Hayden Transmission Oil Cooler Install

Discussion in '1st Gen. Tacomas (1995-2004)' started by zero4, Aug 16, 2010.

  1. Sep 18, 2010 at 3:30 PM
    #61
    Manlaan

    Manlaan Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30054
    Messages:
    1,029
    Gender:
    Male
    First Name:
    Greg
    Riverton, Utah
    Vehicle:
    2002 XtraCab SR5 V6 4x4 Black
    See Signature
    Light to medium trails. I would guess I worked the truck about as hard as previous trails. Outside temps were easily in the 90s.

    Highest I saw the trans temp get was about 190 when I was going up a pretty steep, semi-long hill. It wasn't 4L steep, but it did cross my mind. Most of the time it seemed to be in the 170s. Quite a bit better than the previous trail runs of reaching 250 and makes me feel a lot better.

  2. Sep 20, 2010 at 2:19 PM
    #62
    MyTaco

    MyTaco Well-Known Member

    Joined:
    Jul 31, 2008
    Member:
    #8239
    Messages:
    318
    Az
    Vehicle:
    08 Prerunner
    BLHM, Grillcraft grill, painted grill and eyelids. 285/70/17 BFG's on 17x9 Pro Comps 5100's all corners
    Guys, I have a 2002 2.4 4 banger with the auto trans. Which model tranny is this as I will be towing with it?

  3. Sep 20, 2010 at 2:40 PM
    #63
    Manlaan

    Manlaan Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30054
    Messages:
    1,029
    Gender:
    Male
    First Name:
    Greg
    Riverton, Utah
    Vehicle:
    2002 XtraCab SR5 V6 4x4 Black
    See Signature
    Look at the label inside of your door. On mine, the trans is in the bottom right hand corner of the label (bottom right printed, top right physical since the sticker is sitting sideways). Mine's the A340F. I believe the 2WD are A340E. No clue on Prerunners.

  4. Sep 20, 2010 at 2:42 PM
    #64
    MyTaco

    MyTaco Well-Known Member

    Joined:
    Jul 31, 2008
    Member:
    #8239
    Messages:
    318
    Az
    Vehicle:
    08 Prerunner
    BLHM, Grillcraft grill, painted grill and eyelids. 285/70/17 BFG's on 17x9 Pro Comps 5100's all corners

    Will do and thanks for the info. Is the "F" heavier duty than the "E"?

  5. Sep 21, 2010 at 4:47 AM
    #65
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,406
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Been readin thru some of the posts......I've had no issues running the ziptie thingies, no issues with radiator being affected by atf cooler on front of it & no issues with the worm clamps on my car. Truck is manual so it won't be gettin one. One thing that comes to mind on the truck would be the jarring and bumping it'd be taking while offroading so the mounting sturdiness will be a bit more important here. My car is lowered so it doesn't have as smooth of a ride as you'd expect but it isn't what it'd be offroading either. Thinking if you have low temp issues in winter you could swap the thermostat out for the hotter one. One main point about doing this is that for every 20 degrees cooler the temps stay it doubles the life of the tranny. That and the price and ease of installation should make it worth doing regardless of whether you tow or offroad that much or any at all.

  6. Mar 13, 2011 at 10:47 AM
    #66
    taco 11

    taco 11 taco 11

    Joined:
    Jan 5, 2011
    Member:
    #48782
    Messages:
    7
    Gender:
    Male
    MB, Canada
    Vehicle:
    2003 Tacoma TRD Slightly Modified
    ARB Bull bar w/light force fog lamps, Custom Rear Bumper w/tire carrier w/ matching rim and tire rear light, Hi-lift mount and Hi-lift, and Military jerry can set up. Safari-Snorkle, custom gas tank skid plate and 4" lift w/255-85-R-16.
    my 03 DC has the Orange fan clutch, I need the Green one... Looking for a tranny cooler so I can pull my 14'x7' cargo trailer...

  7. Mar 13, 2011 at 12:18 PM
    #67
    Flash1034

    Flash1034 Well-Known Member

    Joined:
    Oct 29, 2010
    Member:
    #45429
    Messages:
    73
    Gender:
    Male
    Southern California
    Vehicle:
    2003 SR5 TRD 4x4 Extracab 3.4 liter
    None
    Where do you get a green one and what does it do differently?

    Flash

  8. Mar 13, 2011 at 6:51 PM
    #68
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    440
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    The green one comes with the so called "tow package". You can get it from the dealer, it's an original Toyota part. Not sure if aftermarket brands actually make both a standard one & a heavy duty one.

  9. Dec 13, 2011 at 6:57 AM
    #69
    The Driver

    The Driver Trail Runner/Barefoot Beach Runner/Snow Skier

    Joined:
    Dec 12, 2011
    Member:
    #68618
    Messages:
    1,794
    Gender:
    Male
    First Name:
    Raph, and I'm from Tampa, FL.
    Lakewood (Green Mountain), CO. I'm from Tampa. I
    Vehicle:
    '02 Extra cab 4X4 TRD SR5
    Aftermarket tranny cooler, 5100 Series Bilsteins, Class 3 Hitch.
    Subscribed!

  10. Dec 23, 2011 at 1:16 AM
    #70
    95Yota4x4

    95Yota4x4 -FURY FROM THE SKY

    Joined:
    Dec 15, 2011
    Member:
    #68823
    Messages:
    51
    Gender:
    Male
    First Name:
    J.D.
    Houston, Tx
    Vehicle:
    Black 95 Tacoma, reg cab, 2.7L 4 cyl, 4x4
    4" lift
    impressive job Sir!

  11. Dec 24, 2011 at 11:51 AM
    #71
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    440
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    Thank you! :thumbsup:

  12. Mar 19, 2012 at 3:19 PM
    #72
    duty

    duty Active Member

    Joined:
    Oct 18, 2011
    Member:
    #65444
    Messages:
    37
    Gender:
    Male
    hey im going to the same my 2003 what year was your truck ? and can you make them spacers for me ? im going to order the same cooler luv the job and pics thanx for shareing !!!

  13. Apr 4, 2012 at 9:24 PM
    #73
    specialized7

    specialized7 boosted?

    Joined:
    Apr 4, 2012
    Member:
    #76298
    Messages:
    343
    Gender:
    Male
    ,Saskatoon, Canada
    Vehicle:
    01 TRD
    3" body lift 3" suspension lift 265/75 duratracs all the tow goodies Tube Bumper
    I used Hayden part number 403
    I didnt make any mounting brackets. i just used what was included in the kit.
    The only issues i ran into is THERE WASENT ENOUGH HOSE INCLUDED IN THE KIT.
    Also i pulled the hose going from the metal tranny line to the passenger side of the radiator(USDM) and ran the Hayden line directly from the metal line off the tranny to the Oil cooler.
    I Then bought a 3 foot peice of hose from Partsource(Canada) and cut about 4" off.
    Also i didnt relocate the Horn at all.
    i just twisted it out of the way until i got the cooler installed.

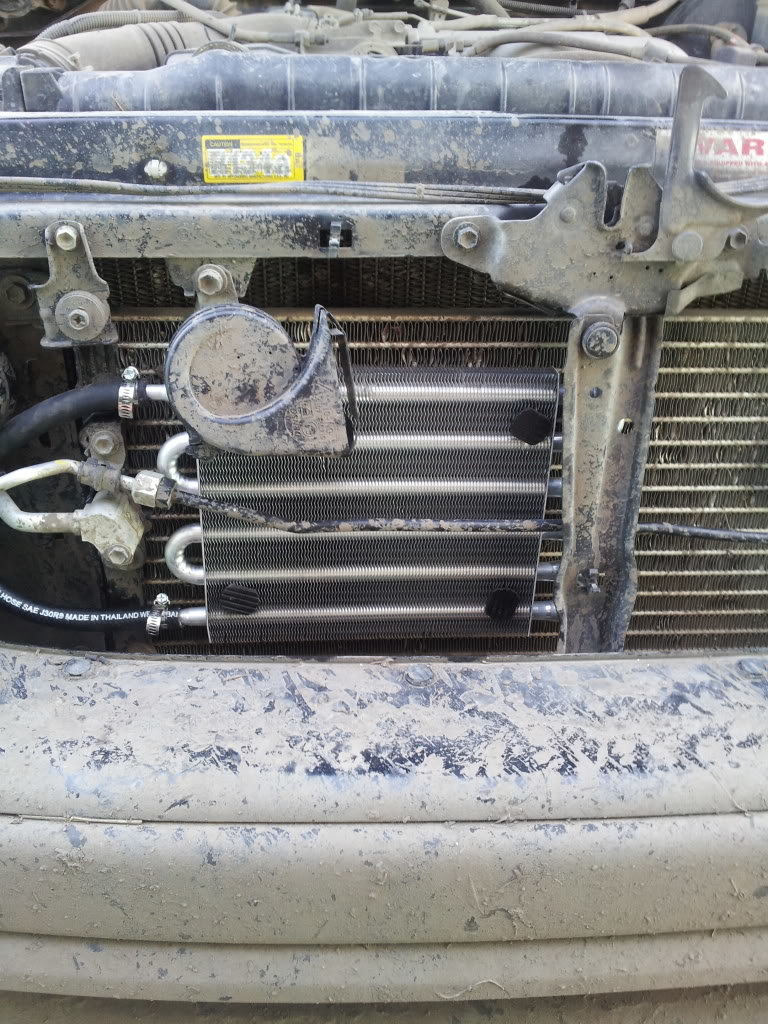

    [​IMG]

  14. Apr 5, 2012 at 3:51 AM
    #74
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,406
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    ^^^^ That is tube and fin cooler. Better than nothing but the stacked plate one like in the OP pics is 33% more efficient. Stacked plate ones are also thinner. I would use the oem and the Hayden to get the most cooling possible. It also adds more fluid to the capacity of the system which is a good thing for fluid longevity. Yes, they give you just enough hose to piss you off and mess with your mounting plans without buying another piece of hose. Had to buy more for my compact car, would imagine it's definitely a necessity of a midsize in most cases.

  15. Apr 6, 2012 at 4:17 PM
    #75
    specialized7

    specialized7 boosted?

    Joined:
    Apr 4, 2012
    Member:
    #76298
    Messages:
    343
    Gender:
    Male
    ,Saskatoon, Canada
    Vehicle:
    01 TRD
    3" body lift 3" suspension lift 265/75 duratracs all the tow goodies Tube Bumper
    Yea i didnt bypass the original tranny cooler haha that would be stupid.
    I pull a 5000 pound trailer around so this hopefully saves my tranny

  16. Apr 14, 2012 at 5:35 PM
    #76
    duty

    duty Active Member

    Joined:
    Oct 18, 2011
    Member:
    #65444
    Messages:
    37
    Gender:
    Male
    so just to make sure i get this right which way did you run the cooler lines i want to make sure i dont screw anything up lol i have the hayden 678 ...........thanx

  17. Apr 23, 2012 at 11:16 PM
    #77
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    440
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    That depends on wether you want to install it before or after the OE heat exchanger. There's advantages & disadvantages on either way. I installed it after.

  18. Apr 24, 2012 at 5:25 AM
    #78
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,406
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    I ran the hot line from oem cooler to top of Hayden cooler and bottom of Hayden back to return port on trans. If you want it the other way then take hot line from trans to Hayden then cool line from Hayden back to oem cooler then to return on trans.............or just skip the oem if just using the Hayden.

  19. Jun 27, 2013 at 1:33 PM
    #79
    cr500taco

    cr500taco Well-Known Member

    Joined:
    Apr 16, 2012
    Member:
    #77062
    Messages:
    415
    Gender:
    Male
    First Name:
    D
    Northridge
    Vehicle:
    4WD
    K&N intake.
    Hey OP,

    Great info on the install!

    I am reviving this thread, because I am going to be adding a Hayden trans cooler, as well.

    I have emailed other trans cooler companies and asked what size cooler they suggested and their response was measure the area where you are going to mount it and get the biggest one that will fit. Of course they just might be trying to sell me the biggest one that they can.

    I have decided to get a Hayden cooler, either the 678 or 679. I have read about people squeezing the 679 behind the grill and others, like yourself, installing the 678. I called Hayden about what cooler they suggested for what I tow and haul and to see if there are cons about getting a bigger cooler than needed. The guy I talked to recommended the 677 which is a little smaller than the 678. He said he wouldn't suggest anything bigger than the 677, even though the 678 and 679 will fit, because of the concern of not enough air getting to the condenser and radiator. Have you had any issues with the 678?

  20. Jun 27, 2013 at 4:42 PM
    #80
    EL ROJO

    EL ROJO B==D~~

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    5,881
    Gender:
    Male
    First Name:
    Cory
    Camarillo
    Will doesn't come on here much anymore. Pm him or email through his profile
