Head unit install/MAD

Discussion in 'Audio & Video' started by Rockoma5, Sep 1, 2019.

  1. Sep 1, 2019 at 8:10 AM
    #1
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    Bought Pioneer 501ex from Crutchfield. Paid the extra money for the steering wheel controls and them to pre wire it up etc.

    No back up camera and no steering wheel controls work. Wasted 2 hours this morning trying to quadruple check everything with zero luck. Pissed!

  2. Sep 1, 2019 at 8:45 AM
    #2
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,848
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Is the steering wheel control jack plugged into the correct spot? The spot will be labeled W/R on the back of the radio I believe.

    We need some more details.
    What harness did you buy? What steering wheel control module?

    Rockoma5[OP] likes this.
  3. Sep 1, 2019 at 11:15 AM
    #3
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    Crux SWRTY-61N Wiring Interface
    Connect a new car stereo and retain the steering wheel audio controls and backup camera in 2012-up Toyota vehicles

    I had Crutchfield do the ready harness wire service so it should have been plug and play.

  4. Sep 1, 2019 at 11:38 AM
    #4
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,848
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Here are the first steps I would look at

    -make sure the backup cam RCA is plugged into the correct camera/video input.
    -make sure the steering wheel control jack is plugged into the W/R spot

    Then

    -make sure demo mode is off
    -Make sure the camera input is on
    -make sure the camera polarity is on battery

    And see if that gets you any farther.

  5. Sep 1, 2019 at 11:51 AM
    #5
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    is it a brown plug in for camera in top right?

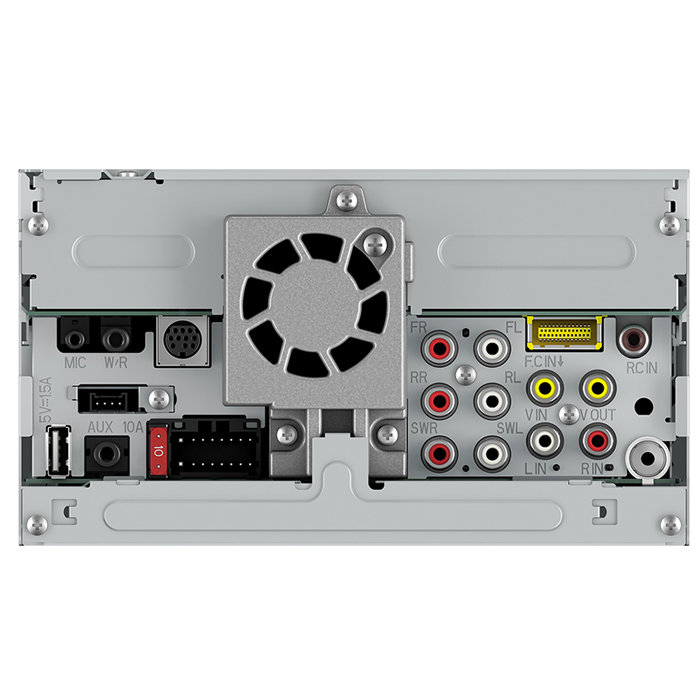

    I am pretty sure I had the wr plugged in correctly though. Here is a pic of the back of the head unit.


  6. Sep 1, 2019 at 11:52 AM
    #6
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    i had the wr plugged in but no dice

    Everything else worked.

  7. Sep 1, 2019 at 11:58 AM
    #7
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    I also had no plug ins on the right side for amplifiers and nothing for vin vout in yellow and lin rin in white and red. I did have the antenna plugged in correctly.

  8. Sep 1, 2019 at 12:00 PM
    #8
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,848
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Yeah the brown rca is for backup cam.

    Double check the dip switches on the crux module just in case they overlooked them

    Based on the manual, they should be
    Down down up up down up down up

    Rockoma5[OP] likes this.
  9. Sep 1, 2019 at 12:02 PM
    #9
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    ill check the dip switched this could be the issue there. But i have nothing to plug into the back up camera port ( i am assuming this is the problem).....I wonder if it is missing a piece or they forgot to have this wired up?

  10. Sep 1, 2019 at 12:19 PM
    #10
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted

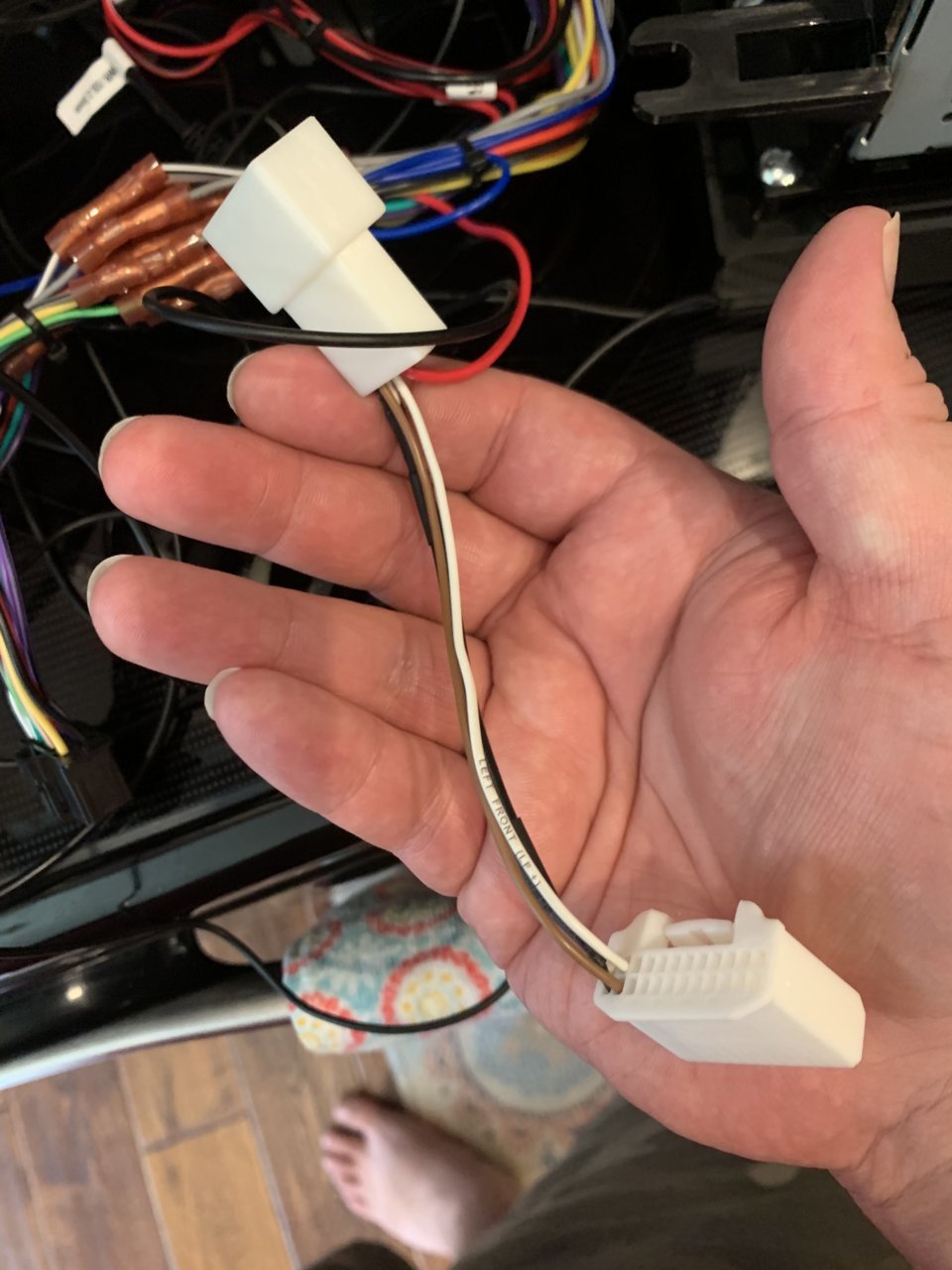

    First off thanks for the help. Secondly I see a black brown and white wire go to a connector but there is no where that plugs into back of head unit

  11. Sep 1, 2019 at 12:20 PM
    #11
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted

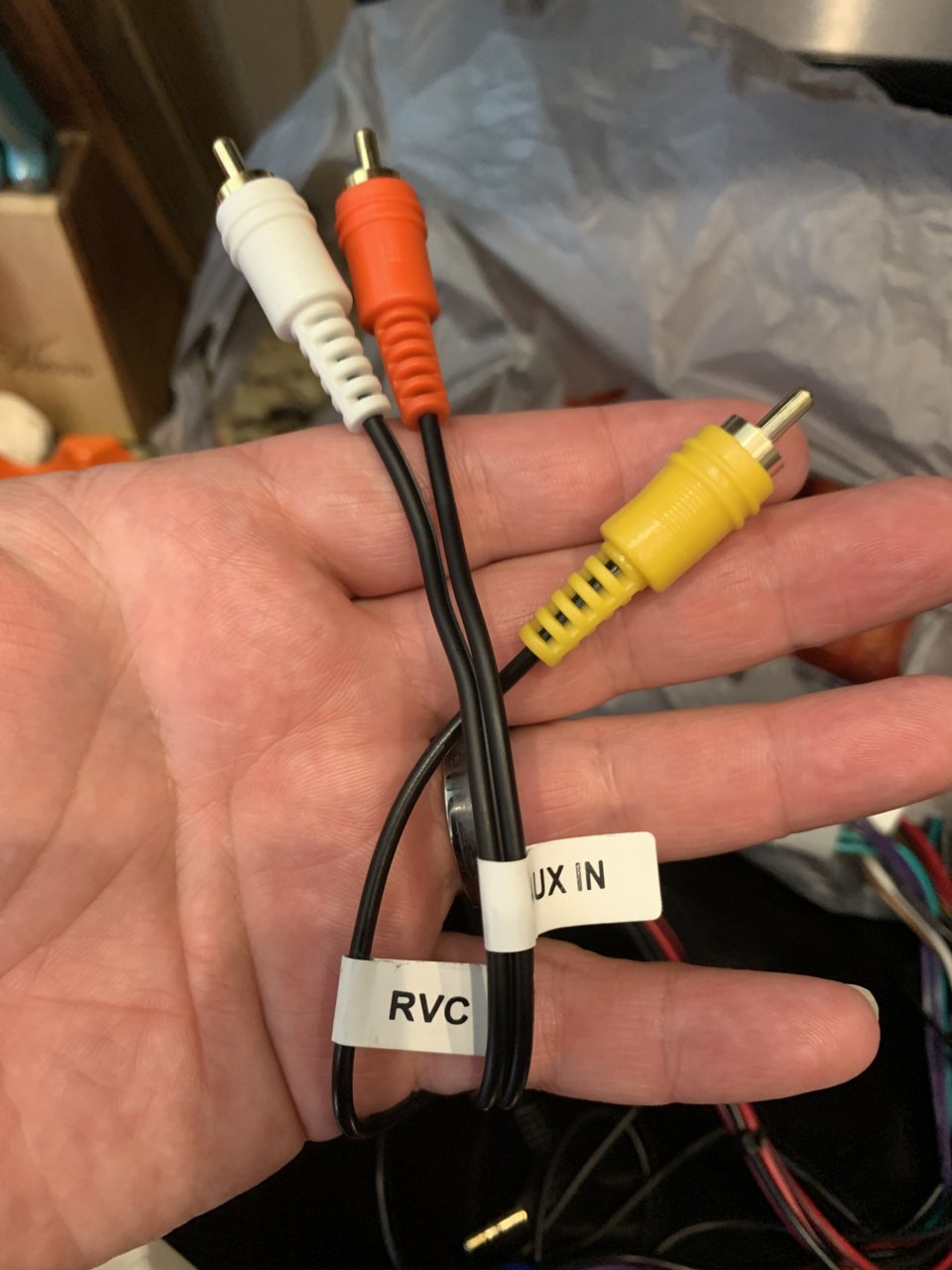

    Here is a set of rca but I don’t know if these go anywhere also.


  12. Sep 1, 2019 at 12:28 PM
    #12
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,848
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    The yellow is your backup cam
    RVC means reverse camera

    The red and white are connected to the aux jack down below your A/C controls

    I’m not sure about the connector with the black brown white. Just make sure that connector is plugged into the car if your car has a matching plug. The manual says some do and some dont

  13. Sep 1, 2019 at 12:35 PM
    #13
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    Well shit. Maybe it was right and I’m dumb.... I’ll report back shortly

  14. Sep 1, 2019 at 12:35 PM
    #14
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted

    Huge thanks man!!!!!!!

  15. Sep 1, 2019 at 12:36 PM
    #15
    ryfox0276

    ryfox0276 Well-Known Member

    Joined:
    Jul 13, 2017
    Member:
    #223928
    Messages:
    1,252
    Gender:
    Male
    First Name:
    Ryan
    Montana
    Vehicle:
    2013 RC 4x4
    The plug with the brown/ white black cables should have something to go into somewhere. I recognize that from an 8 month battle of trying to get MY reverse cam working on my aftermarket head unit. Those wires lead to the camera, at least they do in my truck.

  16. Sep 1, 2019 at 12:40 PM
    #16
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    So the white and red plug into back of head unit that Lin Rin below my two yellow ones?

  17. Sep 1, 2019 at 12:43 PM
    #17
    ryfox0276

    ryfox0276 Well-Known Member

    Joined:
    Jul 13, 2017
    Member:
    #223928
    Messages:
    1,252
    Gender:
    Male
    First Name:
    Ryan
    Montana
    Vehicle:
    2013 RC 4x4
    I assume so? Where do those red white rca plugs go to? If it is for an AUX in (like a 3.5mm plug) that would go into the 3.5mm hole labeled AUX on the back of your new headunit


    EDIT:

    Those L in and R in plugs are for a DVD player, game console, or whatever audio signal that goes with a video input (yellow V in plug)

    Rockoma5[QUOTED][OP] likes this.
  18. Sep 1, 2019 at 1:08 PM
    #18
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    Got back up camera. Not steering controls. Still working

    destin_meeks likes this.
  19. Sep 1, 2019 at 1:10 PM
    #19
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,848
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Those would go here, but you need an RCA-3.5mm adapter

    HOWEVER if you’re using Bluetooth and USB, there aren’t too many times one might use the six jack on the front panel anymore. For example, I have literally never used mine, in my two and a half years owning my truck.

  20. Sep 1, 2019 at 1:16 PM
    #20
    Rockoma5

    Rockoma5 [OP] Well-Known Member

    Joined:
    Sep 19, 2014
    Member:
    #138625
    Messages:
    805
    Gender:
    Male
    St Louis
    Vehicle:
    2019 TRD Sport Lifted
    Got the WR in but damn steering wheel controls no go for some reason
