head-unit upgrade question for 2012 DC LB TRD Sport

Discussion in 'Audio & Video' started by tacodru, Jan 30, 2018.

  1. Jan 30, 2018 at 7:13 PM
    #1
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male
    I think I have most of what I need figured out, but I'm a bit confused on the satellite tuner to OEM shark fin antenna connection. Below is what I am thinking of going with and my truck info:

    2012 TRD Sport DC LB - non-JBL system
    I read through some threads on here and I'm not sure if the antenna plugs directly in to the stock head-unit or if the connector is in the kick panel near the driver side footrest.

    If it plugs in to the stock radio, from what I understand I'll only need a small cable that converts the Toyota plug to what will work with the satellite tuner. Maybe something like the iDatalink Maestro cable ADS-HRN-ANT-SAT1. Not sure if that cable will work though

    If it is the connector in the kick panel (near the drivers side footrest), then I think I'll need one of the following cables:
    1. SFA12F (Toyota/Lexus Shark Fin antenna Adapter, Female)
    2. SFA12M (Toyota/Lexus Shark Fin antenna Adapter, Male)
    If someone can clarify what is needed for making use of the OEM shark fin satellite antenna, I'd greatly appreciate it. Also, I'm open to feedback on the head-unit. Trying to stay under $400 for the HU and still get Apple Car Play, Android Auto, and HD Radio.

    Thanks,

    Drew

  2. Jan 30, 2018 at 7:20 PM
    #2
    Do58

    Do58 Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166373
    Messages:
    587
    Gender:
    Male
    Vehicle:
    2015 white tacoma limited
    That is a fantastic unit for the money. As for that antenna connection I’m not sure about yours but on mine it’s at the radio and you can use the sat1. I’m sure someone will chime in

    tacodru [OP] likes this.
  3. Jan 30, 2018 at 7:23 PM
    #3
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male
    @Do58...from what I read, the connection is different on 2013 and up so that may be why it worked for you. I'm struggling to find out the correct connector type for the 2012.

    Thanks for the feedback on the head-unit, glad to hear its good for the money

  4. Jan 30, 2018 at 7:25 PM
    #4
    Do58

    Do58 Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166373
    Messages:
    587
    Gender:
    Male
    Vehicle:
    2015 white tacoma limited
    Actually.... yes you can use the sat1 but MANY times when I retain the fact sat antenna and it’s behind the radio, you can remove the FAKRA connector and plug that into the v300. Save the money on the sat1. It makes it easy to use it but honestly easy either way.

    tacodru [OP] likes this.
  5. Jan 30, 2018 at 7:28 PM
    #5
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male
    @Do58, not sure I'm following. Can I use that SAT1 cable, think it was only around $15 so I don't mind buying it. Really hoping that this is the solution cause it seems super easy.

  6. Jan 30, 2018 at 7:30 PM
    #6
    Do58

    Do58 Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166373
    Messages:
    587
    Gender:
    Male
    Vehicle:
    2015 white tacoma limited
    Let’s make this easy and do process of elimination. Go to the truck pop out the ac controls and then you will see 4 10mm bolts holding the metal radio brackets. Unscrew them and the radio pops out. Let’s see what we have to work with

    tacodru [OP] likes this.
  7. Jan 30, 2018 at 7:32 PM
    #7
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male
    Good point, probably the best way to approach this. I'll give it a shot tomorrow after work and I'll post a pic of the back of the radio. Thank you for the help!

  8. Feb 1, 2018 at 5:32 PM
    #8
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male
    I should have time tomorrow after work to pull the stereo...I'll post pics soon as I get it done.

  9. Feb 3, 2018 at 7:15 AM
    #9
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male

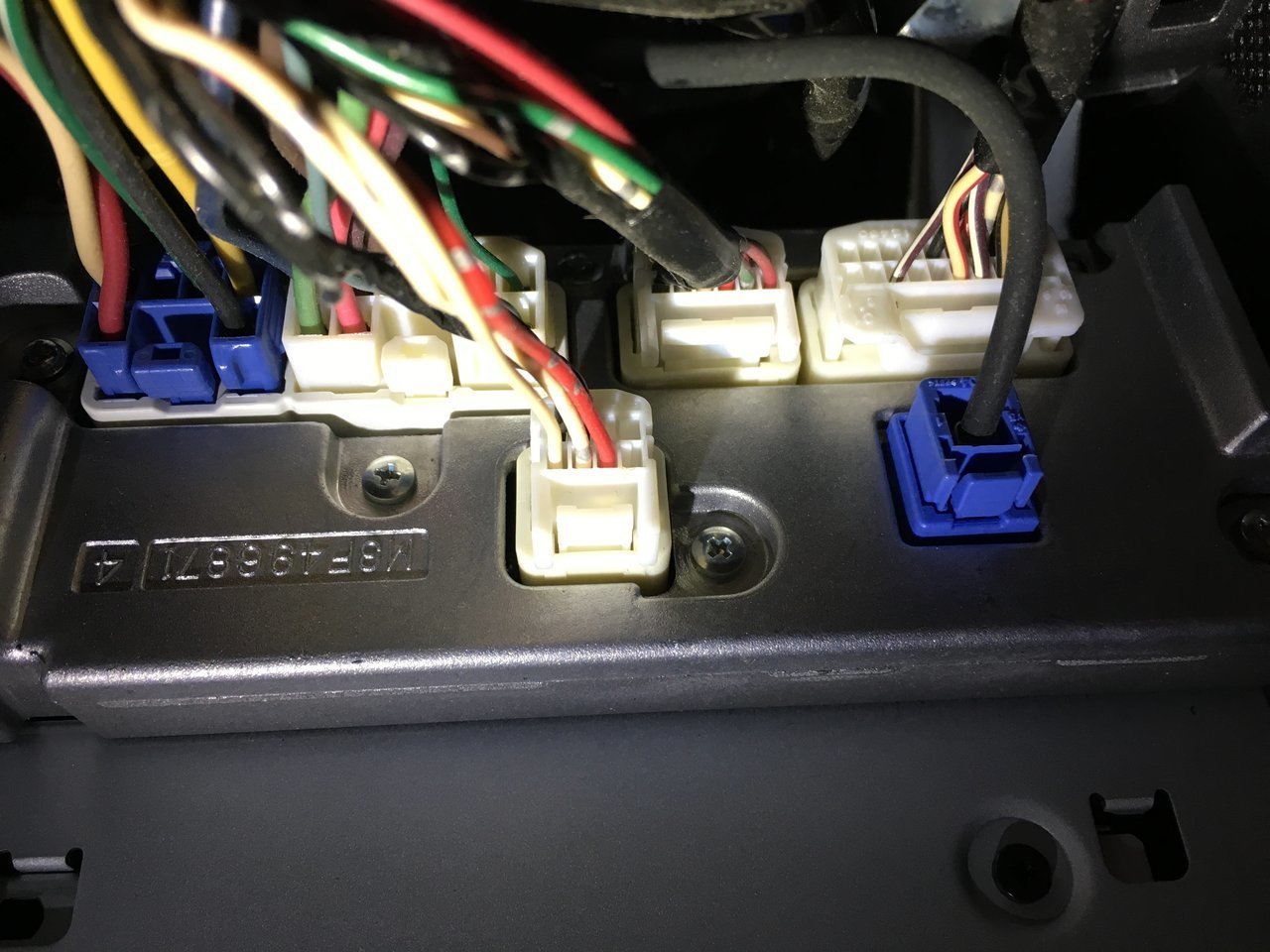

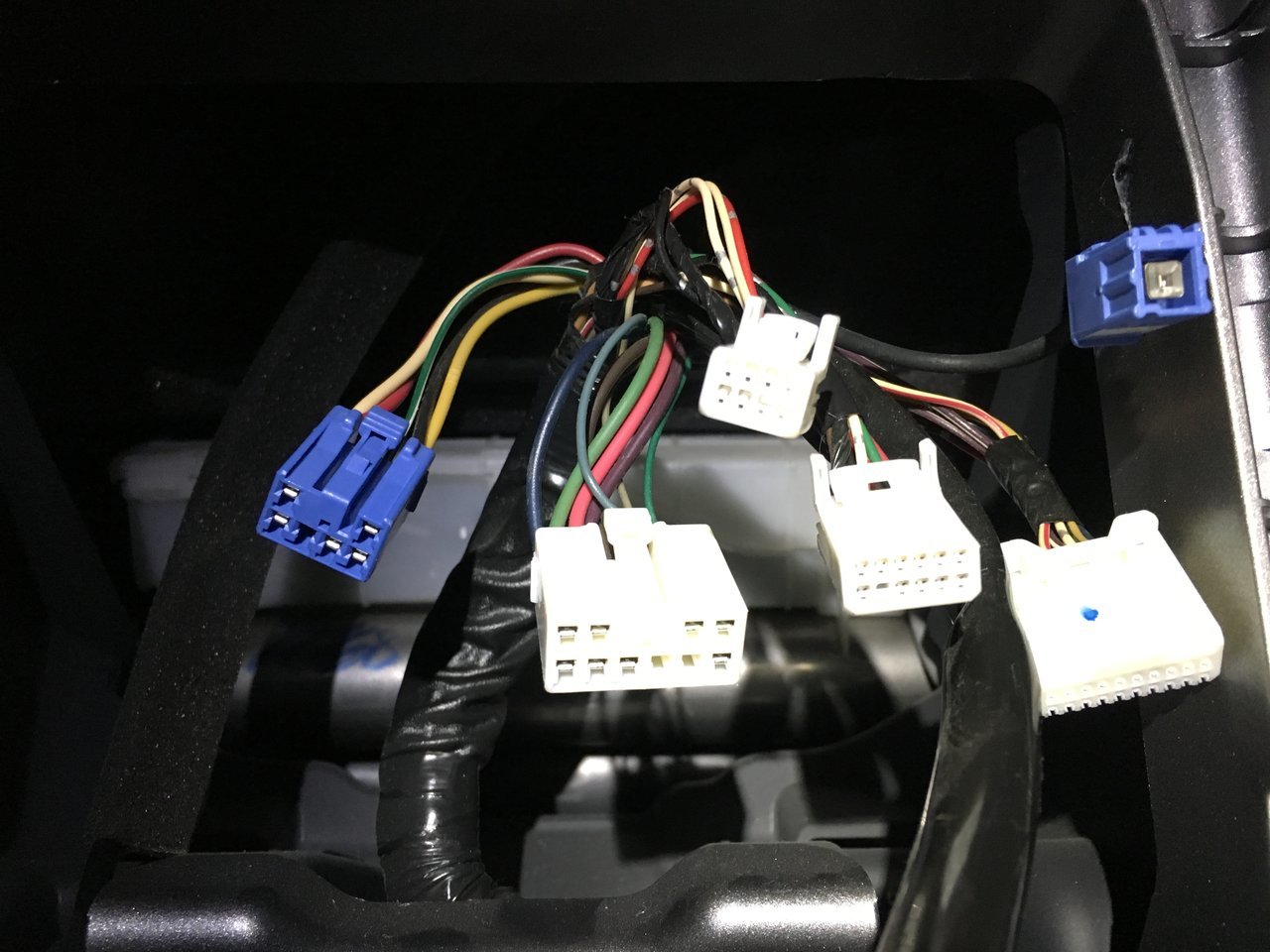

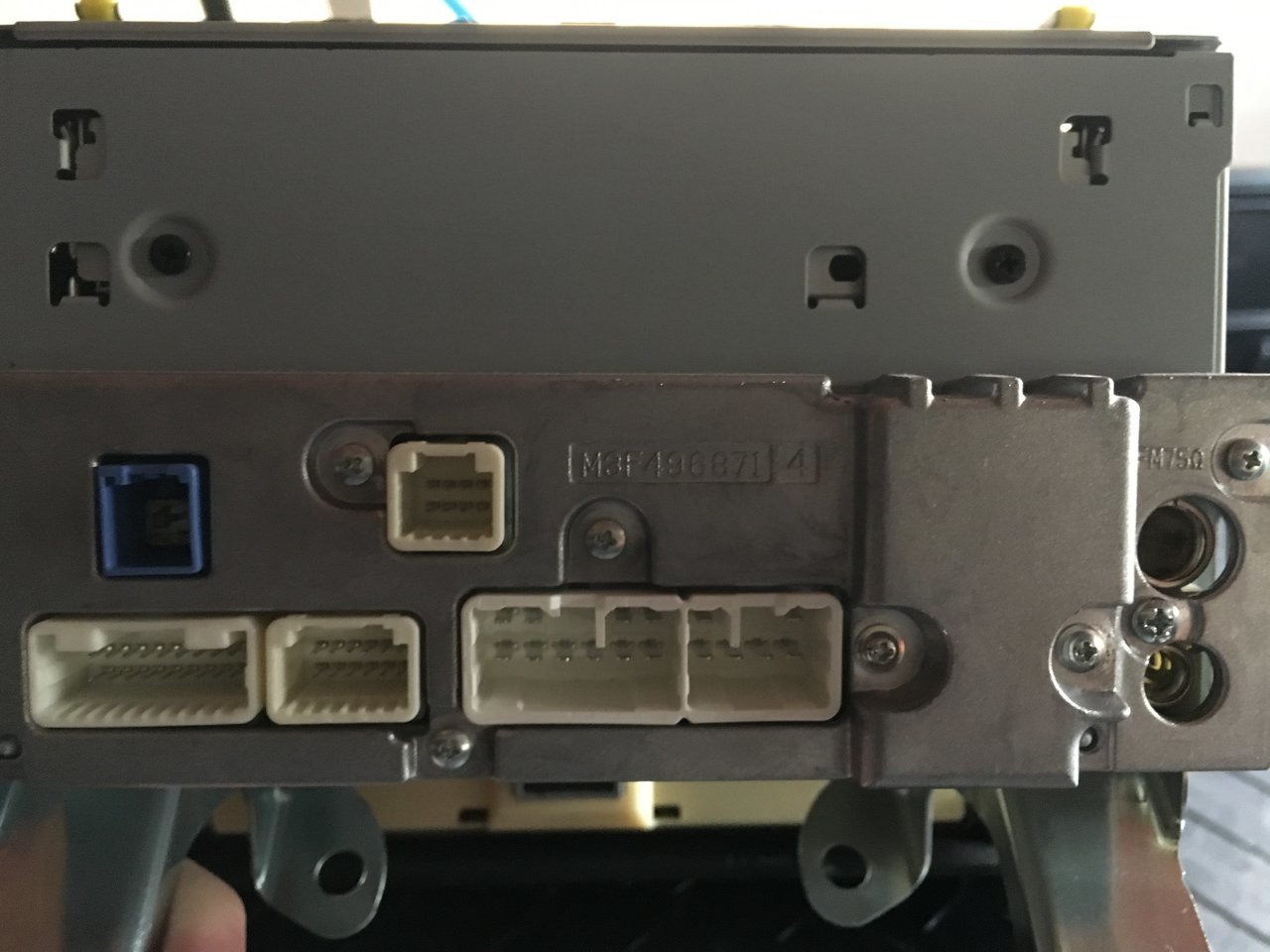

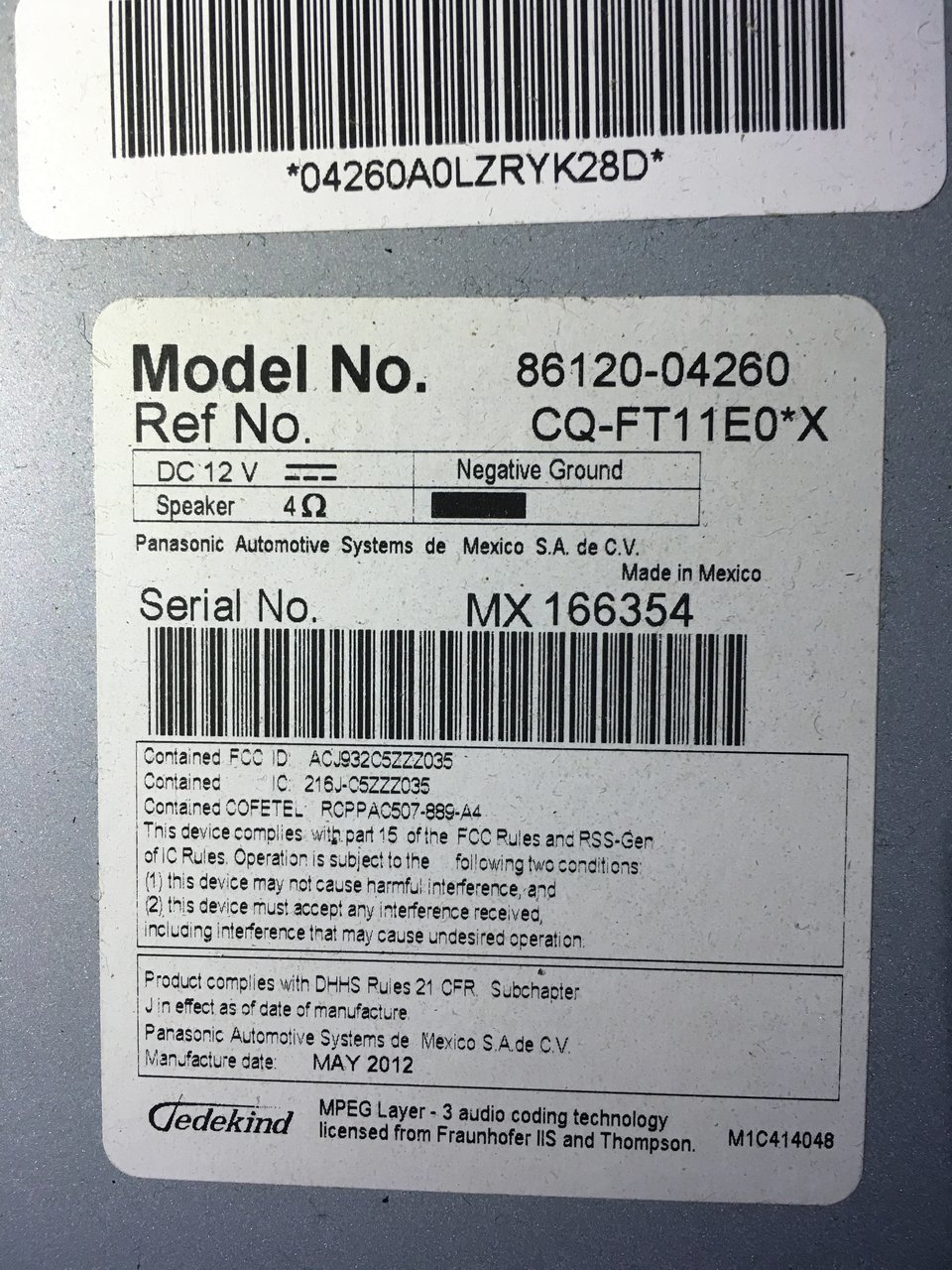

    @Do58...Finally had time this morning to pull the radio, here are the pics. Thanks again for helping me out on this one.

    IMG_5067.jpg IMG_5065.jpg

  10. Feb 3, 2018 at 7:17 AM
    #10
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male
    couple of more pics..

    IMG_5063.jpg IMG_5060.jpg

  11. Feb 3, 2018 at 8:13 AM
    #11
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male
    I don't think I can use the SAT1 cable from iDatalink, not sure though.

    Based off the above pic, I believe the small blue connector on the upper right of the first photo is the cable for the factory satellite sharkfin antenna. If that is the case, I think the following cable may work if I am understanding the description correctly.
    http://www.discountcarstereo.com/XMM-TOY.html

    Any ideas?

  12. Mar 5, 2018 at 4:52 PM
    #12
    asmo

    asmo New Member

    Joined:
    Mar 5, 2018
    Member:
    #246395
    Messages:
    1
    Vehicle:
    2012 Tacoma TRD Sport
    Any updates on this? I am getting ready to put in a new head unit this weekend and trying to get all the right cables together before I dive in.

  13. Mar 9, 2018 at 7:05 AM
    #13
    tacodru

    tacodru [OP] Active Member

    Joined:
    Feb 25, 2016
    Member:
    #179338
    Messages:
    32
    Gender:
    Male
    was traveling this week, sorry for the delay in responding.

    I completed the install a couple of weeks ago and everything works great. Can't stress enough how happy I am with the system and the improvement to the overall sound even with stock speakers. I will most likely at some point upgrade the stock speakers, but I am quite happy at the moment with the functionality and sound.

    Couple of notes about the install:
    1.) One thing I will note is that the installation was pretty straight forward, but the hardest part was putting the stereo back in the dash after adding the iDatalink wiring harness and the satellite tuner.
    2.) The Axxess USB adapter that allows you to retain use of the factory USB port does not plug in behind the radio. This confused me at first, until I found out where it connects. It connects to a wire that is terminated behind the glove box, just be aware of that so you don't waste time like I did.
    3.) There will be a couple of factory plugs that aren't used with the aftermarket wiring harness and stereo. Don't worry about it, just set them aside.
    4.) Make the wiring harness connections before the install. I took the new Kenwood harness and the iDatalink harness and made the connections the night before the install. Was much easier to do this with it laid out on a table, as opposed to doing it in the dash of the truck.

    Below is a list of the parts I used for the install, I'll try to take a couple of pics later.
    Parts used:
    Radio = Kenwood DDX9704S
    Dash Kit = Scosche TA2111BPB (I didn't like the reviews for the Metra dash kit, so I went with the Scosche, more expensive but I like it)
    Maestro = iDatalink Maestro ADS-MRR (this allows you to retain steering wheel controls and add a couple other features)
    Maestro wiring harness = iDatalink Maestro HRN-RR-TO1
    SiriusXM Satellite Tuner = SiriusXM SXV300v1
    Adapter that will allow you to make use of the stock Satellite Shark fin antenna (6 inch adapter cable) = http://www.discountcarstereo.com/XMM-TOY.html
    Cable to allow you to retain use of stock USB port = Axxess AX-TOYUSB-2 (this is specifically for 2012 models, different for other years) https://axxessinterfaces.com/product/AX-TOYUSB-2?search=usb&page=7
    Second USB adapter (Kenwood has two USB ports): https://www.ebay.com/itm/Toyota-Tac...m=162927402574&_trksid=p2047675.c100011.m1850
