Headlight Wiring Assistance

Discussion in '2nd Gen. Tacomas (2005-2015)' started by JoshS, Aug 31, 2019.

  1. Aug 31, 2019 at 9:43 PM
    #1
    JoshS

    JoshS [OP] Well-Known Member

    Joined:
    Aug 31, 2019
    Member:
    #303869
    Messages:
    143
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    2014 Tacoma TRD Sport DCSB 4x4
    Hi all,

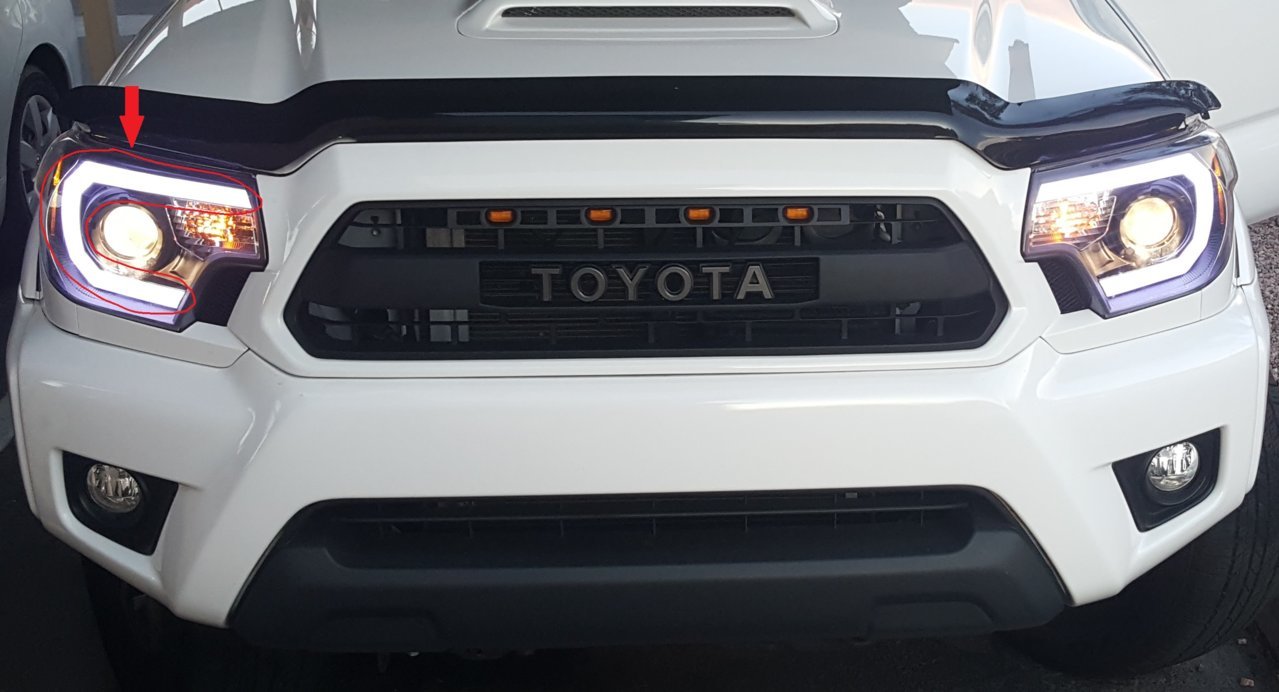

    I'm trying to mod my headlights to disable the stock amber DRL, and change the default DRL to the outer LED light bar that my aftermarket headlights have (see photo):

    I still need the blinkers to work, so I'm thinking a may need to combine the DRL toggle mod + some frankenstein wiring to get this to work.

    Here's the wiring diagram I'm referencing:
    https://www.customtacos.com/tech.ol...6toyewd/06toypdf/ewd/2006/tacoma/h/em01d7.pdf

    Here's the headlights:
    https://www.ebay.com/itm/Jet-Black-...RL-Bar-Projector-Headlights-Pair/382956118230

    Looking for advice from anyone with experience in this area, or someone who has accomplished this before.

    Thanks!

    Last edited: Sep 1, 2019
  2. Sep 3, 2019 at 4:15 PM
    #2
    JoshS

    JoshS [OP] Well-Known Member

    Joined:
    Aug 31, 2019
    Member:
    #303869
    Messages:
    143
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    2014 Tacoma TRD Sport DCSB 4x4

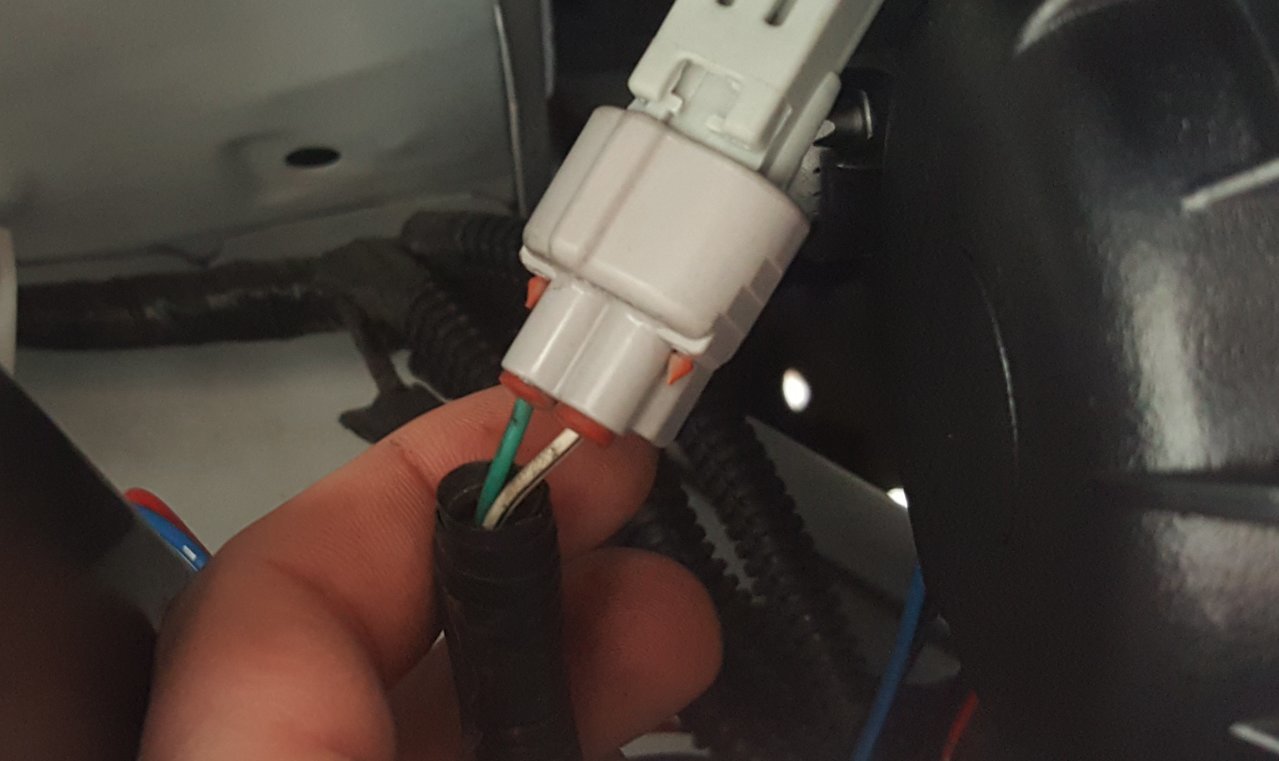

    Here's a screenshot of the connector to the LED bar

  3. Sep 3, 2019 at 4:20 PM
    #3
    Gruber1922

    Gruber1922 Well-Known Member

    Joined:
    Mar 31, 2019
    Member:
    #288634
    Messages:
    1,115
    Gender:
    Male
    Tacoma, WA
    Vehicle:
    2015 Tacoma Sport
    I wanted to do this too but I couldn't find out how. Not sure if you can with the Spyder/aftermarket headlights

  4. Sep 4, 2019 at 8:56 AM
    #4
    fb40dash5

    fb40dash5 Well-Known Member

    Joined:
    Mar 1, 2019
    Member:
    #284962
    Messages:
    368
    People's Republic of MD
    Vehicle:
    11 V6 AC 4x4
    Easiest way to disable the stock DRLs is going to be to switch to a regular flasher module & the jumper block for a non-DRL truck. I got a SmartTap for mine since I wanted to put in LED bulbs anyway, and I really like it. I don't see much sense in trying to frankenstein stuff... the whole point of the factory weird DRL module/flasher is to have DRLs and turn signals out of the same bulb anyway.

    If it were me, once I did that, I'd just wire the LED bars to an ignition-hot circuit (if you want them on ANY time the ignition is on) and bada-bing, daytime (well, anytime, I guess) running lights. If you wanted them only on when the truck is on but the headlights aren't, or like that with an override to turn them on even when the headlights are on, that's not too hard to accomplish with a relay and/or switch.

    12TRDTacoma and Muddinfun like this.
  5. Sep 4, 2019 at 9:11 PM
    #5
    JoshS

    JoshS [OP] Well-Known Member

    Joined:
    Aug 31, 2019
    Member:
    #303869
    Messages:
    143
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    2014 Tacoma TRD Sport DCSB 4x4
    Looks like I have more research to do, the SmartTap isn't quite what I was going for.

    Would it be a bad idea to tap into the live wire for the amber DRL and run that to the connector for the LED bar, and then snip the DRL wire to the amber bulb, and snip the live wire running from the harness to the LED bar? I assume I'd need to do some sort of add-a-fuse or risk burning up my wiring harness.

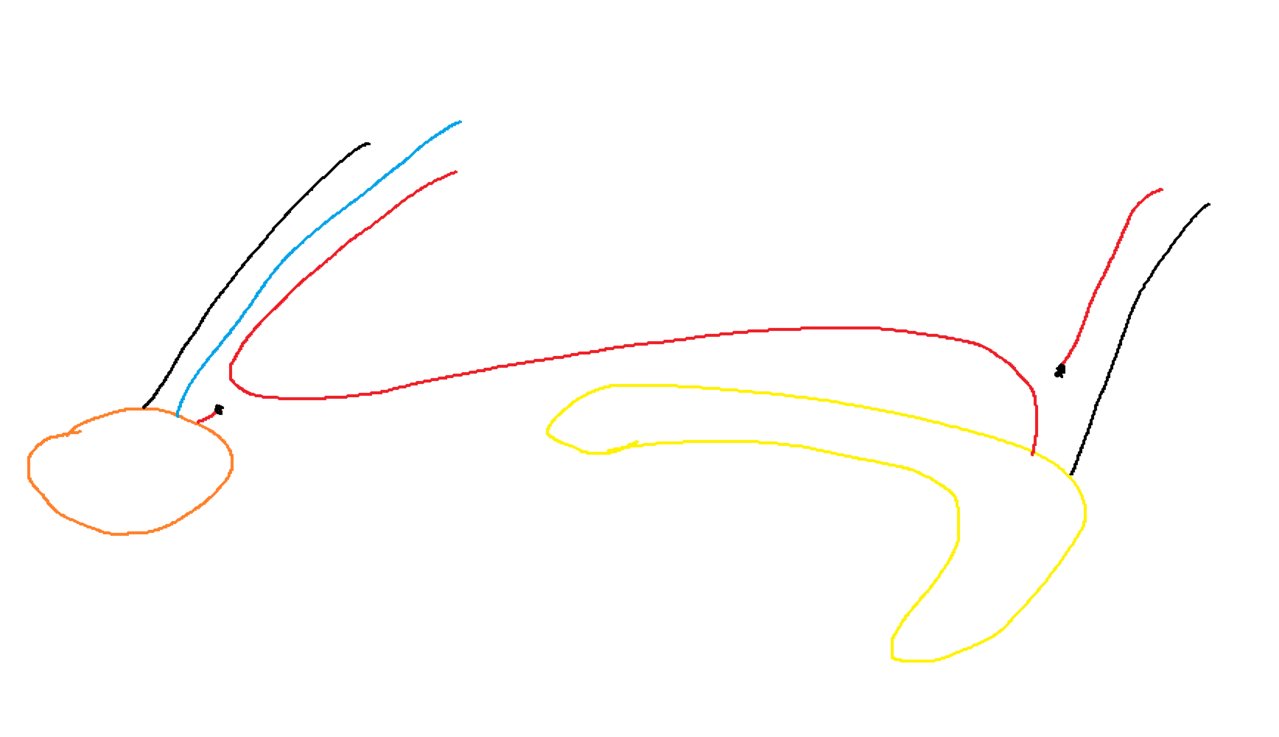

    see crappy paint fig (black=ground, red=live)

  6. Sep 5, 2019 at 4:11 AM
    #6
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    So, then the LED will become the turn signal and you will get hyperflash and you will still need to get a LED flasher. Either a $10 basic flasher or a $60 Smart tap flasher and the grey plastic jumper block. I REALLY like the cool things the Smart Tap flasher does. The most used feature is the departure lighting.

  7. Sep 5, 2019 at 12:10 PM
    #7
    gotoman1969

    gotoman1969 Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254966
    Messages:
    4,246
    Gender:
    Male
    First Name:
    Steve
    San Antonio, TX United States
    Vehicle:
    2015 Silver Tacoma PreRunner
    3" ToyTec coilovers, JBA UCA's, Bilstein 5100's
    What would be neat if you could make the light bar on the light your drl and your blinker.

  8. Sep 5, 2019 at 8:37 PM
    #8
    JoshS

    JoshS [OP] Well-Known Member

    Joined:
    Aug 31, 2019
    Member:
    #303869
    Messages:
    143
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    2014 Tacoma TRD Sport DCSB 4x4
    Even if I only re-wired the amber DRL wire? From the diagram, it appears as though the stock DRL wire and the blinker wire are separate

  9. Sep 5, 2019 at 11:32 PM
    #9
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    How many wires are there going to the front turnsignals?

  10. Sep 5, 2019 at 11:59 PM
    #10
    12TRDTacoma

    12TRDTacoma Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    14,355
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    Truthfully I would just get a switch from On Board air designed to look like an OE switch. Put it in a blank location and run it that way with a relay. That way you can run the new DRLs anytime you want. You can either leave them always off or always on along with the factory DRLs or you can turn them off and just run the factory DRLs. No sense in frankensteining the circuitry if there is no need to.

  11. Sep 7, 2019 at 10:57 AM
    #11
    JoshS

    JoshS [OP] Well-Known Member

    Joined:
    Aug 31, 2019
    Member:
    #303869
    Messages:
    143
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    2014 Tacoma TRD Sport DCSB 4x4
    Three

  12. Sep 7, 2019 at 11:02 AM
    #12
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,509
    Hhhhmmmm, not sure then. I'm more familiar with '05-'11 that only have 2.

  13. Nov 16, 2019 at 1:16 PM
    #13
    PErsing

    PErsing Well-Known Member

    Joined:
    Jan 3, 2019
    Member:
    #277970
    Messages:
    78
    Gender:
    Male
    First Name:
    Paul
    Southern Maine
    Vehicle:
    2012 Tacoma TX pro
    Caliraised 52" curved lightbar, Fox Shocks, TacomaBeast projector headlights
    I had this same issue. I have spyder headlights and did the stealth dtrl mod and all it does is dim the amber lights. Haven’t come up with much after lots of research either

  14. Nov 17, 2019 at 11:35 AM
    #14
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,326
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

  15. Nov 17, 2019 at 11:52 AM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,326
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  16. Nov 17, 2019 at 12:09 PM
    #16
    JoshS

    JoshS [OP] Well-Known Member

    Joined:
    Aug 31, 2019
    Member:
    #303869
    Messages:
    143
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    2014 Tacoma TRD Sport DCSB 4x4
    Thanks for the help everyone

  17. Nov 19, 2019 at 8:23 AM
    #17
    PErsing

    PErsing Well-Known Member

    Joined:
    Jan 3, 2019
    Member:
    #277970
    Messages:
    78
    Gender:
    Male
    First Name:
    Paul
    Southern Maine
    Vehicle:
    2012 Tacoma TX pro
    Caliraised 52" curved lightbar, Fox Shocks, TacomaBeast projector headlights

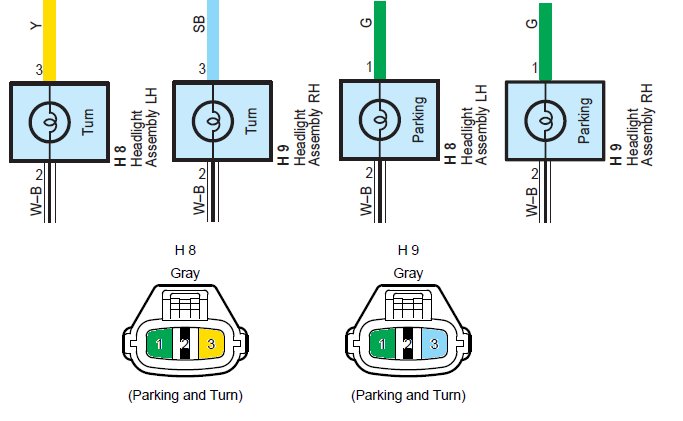

    So if I cut the green wires in this photo I can eliminate my parking lights? I have a 2012 Tacoma with spyder headlights. The stealth mod only dims my drl’s when I cut the green with red striped wire in the cab.

  18. Nov 19, 2019 at 8:37 AM
    #18
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,326
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I don't know how the Spyder headlights are wired. Cutting the green with red stripe eliminates the DRL on the Tacoma.

  19. Nov 19, 2019 at 8:58 AM
    #19
    PErsing

    PErsing Well-Known Member

    Joined:
    Jan 3, 2019
    Member:
    #277970
    Messages:
    78
    Gender:
    Male
    First Name:
    Paul
    Southern Maine
    Vehicle:
    2012 Tacoma TX pro
    Caliraised 52" curved lightbar, Fox Shocks, TacomaBeast projector headlights
    Correct, but for me all they did was dim. That’s why I’m confused

  20. Nov 19, 2019 at 9:22 AM
    #20
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,326
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

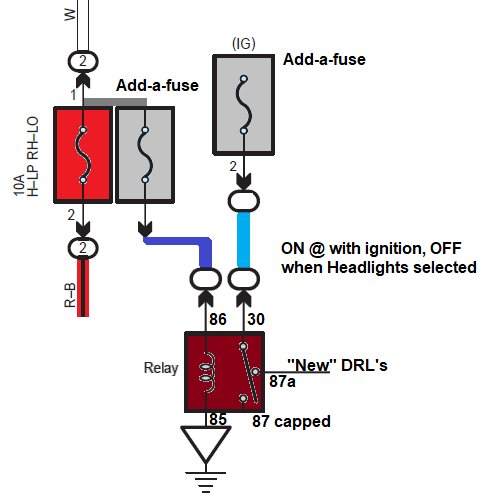

    DRL's in that year is tied to the TURN signal, Vehicle ON DRL's ON, TURN selected DRL's OFF on selected side. Headlights selected DRL's OFF.
    If you want the LED on the Spyders to be ON & Bright always, then you'll need an IGN/ACC fused source to them.
    [​IMG]
