Headliner Homelink Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Railtech, Oct 2, 2009.

  1. Oct 2, 2009 at 2:25 PM
    #1
    Railtech

    Railtech [OP] Active Member

    Joined:
    Sep 16, 2009
    Member:
    #22865
    Messages:
    35
    Gender:
    Male
    Alpharetta, GA
    Vehicle:
    09 TRD Sport DC 4x4
    Everybody,
    Saw this post a while back and decided to try it out.
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/6610-not-your-typical-homelink-install.html

    It was pretty simple and a good solution for us with Tacos with the 2" thick visors that you can't get a opener to clip onto.

    First thing you need to do is find a Homelink Module from a donor vehicle. These are usually installed in visors. I purchased mine on Ebay for about $25 shipped. I do have rolling code openers so I had to purchase the compatible ones with the little house logo on the bezel. Mine was from an 03 Town Car. The grey is slightly ligher than our interior color, but looks fine on the headliner.

    Here are some pics of the unit and the unit with the bezel attached:
    [​IMG]
    [​IMG]
    Next remove your overhead console. There is one screw in the glasses compartment and two metal clips on the front side. Undo the screw and pull down on the forward part of the console and it will pop loose. Be mindful of the two metal clip retainers as these will need to be re-used.

    Next you need to move the wiring loom in the headliner. It routes where I installed mine. There is some tape holding the wiring down. And this clip pictured here, scoot the wiring over so you don't cut the loom when you cut the hole:
    [​IMG]

    Next I used a piece of green tape to lay down a guide line to make the primary cut on. I measured from this to ensure alignment from the dimple for the visor.

    [​IMG]

    To gauge the size of the hole required I made a little template. The overall dimensions are 2" x .75". I made from an old cereal box. I used it to mark the headliner with a pencil.
    [​IMG]

    Here is the hole cut, I used a brand new boxcutter blade. Nothing like cutting a 2 week old truck.
    [​IMG]

    Here is a testfit with the unit in the headliner:
    [​IMG]
    [​IMG]

    Here it is with the bezel test fitted:
    [​IMG]

    It was a pretty snug fit, what I did to help was take my boxcutter and thin out the foam backing on the headliner. This allowed a better fit. Since these are usually installed thru a visor and much thinner material. The buttons work fine and it is secure. Other threads put in some foam to back up the module. There is a metal brace running behind mine and the roof doesn't move when the buttons are used. But if its open above your location use a foam block to back it up. I just taped mine to the back of the headliner with duct tape.

    Wiring is a piece of cake. There is a black wire (ground) and a white wire (12v+). What I did was wire these into the circuit for the map lights. After I wired them I went to homelink.com and pulled the directions for an 03 Town Car. Programmed my doors and it was a piece of cake.

    After that I buttoned up the wiring and reinstalled the overhead console. Looks like an OE fit now:
    [​IMG]

    Hope you find this useful, this was an easy 30 mins to an hour mod. Useful and functional to boot!:cool:

  2. Oct 2, 2009 at 2:34 PM
    #2
    wolf13

    wolf13 Well-Known Member

    Joined:
    Aug 24, 2009
    Member:
    #21673
    Messages:
    121
    Gender:
    Male
    IL
    Vehicle:
    2010 V6 4X4 Access cab TRD OR
    TRD Offroad w/Tow package. LEER 100XQ topper, painted grill surround, 08 cup holders, scangauge II
    I have a homelink unit on my way as well, still haven't decided where I want to put it, this is a good idea though, what wire did you tap into for it? I know the feeling on the two week old and already cutting into it thing.

  3. Oct 2, 2009 at 2:38 PM
    #3
    Railtech

    Railtech [OP] Active Member

    Joined:
    Sep 16, 2009
    Member:
    #22865
    Messages:
    35
    Gender:
    Male
    Alpharetta, GA
    Vehicle:
    09 TRD Sport DC 4x4
    Just the map lights circuit. White is 12v+ and White/Black is GND. I couldn't imagine the module pulling much current.

    I looked all over the dash and couldn't find a place. My backup place was the silver part of the console. I saw one install that tried that and it looked good.

  4. Oct 2, 2009 at 2:56 PM
    #4
    rossk35

    rossk35 Do Work Son!

    Joined:
    Mar 26, 2009
    Member:
    #15197
    Messages:
    945
    Gender:
    Male
    hawaii
    Vehicle:
    07 TRD Sport Supercharged
    TRD S/C/TRD Intake/TRD Boost Gauge/DT Headers/OEM TL/ZKW retro/Pioneer DVD w/Ipod/Magnaflow/20% Tint/BHLM/JL 10" sub, JL VR components, JL 450/4 amp/Helwig Sway bar/Viper 791/ 18" limited 4runner rims
    Came out very nice!

  5. Oct 2, 2009 at 3:05 PM
    #5
    Janster

    Janster Old & Forgetful

    Joined:
    Mar 25, 2007
    Member:
    #1138
    Messages:
    14,254
    Gender:
    Female
    First Name:
    Jandy
    Lancaster, PA
    Vehicle:
    2016 GMC Canyon SLT w/ LineX and....
    Very nice & clean!!!

  6. Oct 2, 2009 at 3:53 PM
    #6
    krans

    krans Well-Known Member

    Joined:
    Feb 28, 2009
    Member:
    #14173
    Messages:
    418
    Gender:
    Male
    First Name:
    Kenny
    Huntington beach/ West min duh
    Vehicle:
    09 Sport mall crawler
    Icon extended travel with resi front and rear,Camburg UCA, All pro standard leaf pack, Fogs anytime, General grabbers AT2,Custom stainless steel brake lines,bed box, Bestop soft top,50' light bar, amber rigid pods,CBI ditch mounts with LED pods,TRD intake,Anti dark hoodlights/rock light/LED whip,FX-R retros and Gibson catback..more mods to come
    Very clean.

  7. Feb 24, 2010 at 12:19 PM
    #7
    gusher

    gusher SUPERCHARGED!!!

    Joined:
    Mar 5, 2008
    Member:
    #5106
    Messages:
    1,176
    Gender:
    Male
    First Name:
    Greg
    Hudson NH
    Vehicle:
    08 Tacoma Double Cab 4x4 long bed, TRD Sport
    '08 Indigo Double Cab TRD Sport 4x4 Long Bed, Grillcraft grill, Pioneer AVH-P3200BT head unit, XM receiver, Boyo backup camera, Custom devil horns Toyota logo, Black headlight mod, Fog lights on anytime mod, Maglight mount, Weathertech floor liners, Debadged, Trex color-matched eyelids, Access tonneau cover, Toyota bed divider, Sno-way 7'4" snow plow, Auxiliary backup lights, Rear spring TSB, Removed front mud flaps, 2.5" Hell Bent Steel front lift, 285/70-17 Goodyear Wrangler Duratracs, Satin black MB TKO wheels, Black Go Rhino Dominator II nerf steps, custom HomeLink install, CompuStar remote starter, Redline Tuning QuickLift Elite hood struts, Toyota bed mat, Custom short Taco antenna, TRD cold air intake, TRD exhaust, TRD supercharger
    Did mine today. Thanks for making it a piece of cake. Now I can open both of my garage doors from my Taco! :woot:

  8. Apr 23, 2010 at 3:46 PM
    #8
    SCFirefighter

    SCFirefighter on idiot patrol ;)

    Joined:
    Apr 20, 2010
    Member:
    #35670
    Messages:
    1,640
    Gender:
    Male
    First Name:
    Stephan
    Cary, NC
    Vehicle:
    Silver 2010 DC TRD Sport 4x4 5'
    MagnaFlow Performance Exhaust, ScanGauge II, Map, dome and license plate LED's, Custom Fire/Rescue decals, Weathertech deflectors, Removed mud flaps, Rear spring TSB, Spidertrax spacers, Tinted windows (5%/27%), Black Tacoma badges, 5100 Billstein x4, ToyTec Coilovers, ToyTec TSB AAL, Devil horns, Hose clamp tailgate mod, OEM bed mat, HomeLink module, Hardwire GPS, Weathertech digital fit floor lines, Front Diff drop, Rear Diff breather mod, 4xInnovation welded sliders, Pioneer AVH-X5800BHS+SiriusXM.
    Awesome mod. I'm watching two eBay actions. Hopefully I won't be bidding against any of you; that would suck.

  9. Apr 23, 2010 at 4:14 PM
    #9
    jefferson

    jefferson needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,269
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    oooOo good ideas

  10. Oct 20, 2010 at 4:09 PM
    #10
    SCFirefighter

    SCFirefighter on idiot patrol ;)

    Joined:
    Apr 20, 2010
    Member:
    #35670
    Messages:
    1,640
    Gender:
    Male
    First Name:
    Stephan
    Cary, NC
    Vehicle:
    Silver 2010 DC TRD Sport 4x4 5'
    MagnaFlow Performance Exhaust, ScanGauge II, Map, dome and license plate LED's, Custom Fire/Rescue decals, Weathertech deflectors, Removed mud flaps, Rear spring TSB, Spidertrax spacers, Tinted windows (5%/27%), Black Tacoma badges, 5100 Billstein x4, ToyTec Coilovers, ToyTec TSB AAL, Devil horns, Hose clamp tailgate mod, OEM bed mat, HomeLink module, Hardwire GPS, Weathertech digital fit floor lines, Front Diff drop, Rear Diff breather mod, 4xInnovation welded sliders, Pioneer AVH-X5800BHS+SiriusXM.

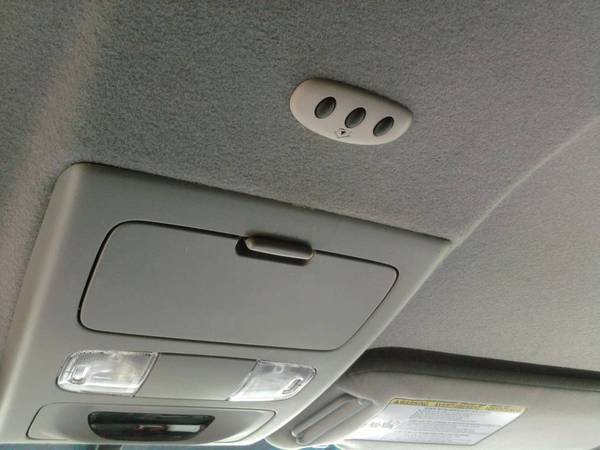

    Did it today :)

    [​IMG]

  11. Oct 21, 2010 at 3:46 PM
    #11
    romafern

    romafern Well-Known Member

    Joined:
    Mar 15, 2010
    Member:
    #33279
    Messages:
    654
    Gender:
    Male
    First Name:
    Rob
    Olympia, WA
    Vehicle:
    stock and very pissed about the issues
    Machine gun mount. Would love to blow the shit out of it since it has nothing but issues. QA at Toyota USA is shit. Start making them in Japan for Christ's Sake!
    This is how I'd like to do mine. How did you power it? Pics? pls. Is that light gray or beige?

  12. Oct 21, 2010 at 7:33 PM
    #12
    SCFirefighter

    SCFirefighter on idiot patrol ;)

    Joined:
    Apr 20, 2010
    Member:
    #35670
    Messages:
    1,640
    Gender:
    Male
    First Name:
    Stephan
    Cary, NC
    Vehicle:
    Silver 2010 DC TRD Sport 4x4 5'
    MagnaFlow Performance Exhaust, ScanGauge II, Map, dome and license plate LED's, Custom Fire/Rescue decals, Weathertech deflectors, Removed mud flaps, Rear spring TSB, Spidertrax spacers, Tinted windows (5%/27%), Black Tacoma badges, 5100 Billstein x4, ToyTec Coilovers, ToyTec TSB AAL, Devil horns, Hose clamp tailgate mod, OEM bed mat, HomeLink module, Hardwire GPS, Weathertech digital fit floor lines, Front Diff drop, Rear Diff breather mod, 4xInnovation welded sliders, Pioneer AVH-X5800BHS+SiriusXM.
    It's the grey one. Powering it is really easy. Pop the console out and there will be two connectors just like the OP showed you in the fourth picture from the top. One connector goes to the compass and temperature gauge (if you have them), the other is a two-wire connector going into the map lights.

    The two wires are white. Get yourself quick splices from Walmart and hook into them. One wire is ground and one is +12V. (The ground one has a black line on it).

    If you put it where I did you'll have to fill the space behind the module with some hard foam. Sorry, I have no pics because I basically used this thread as my how-to.

  13. Oct 22, 2010 at 1:56 PM
    #13
    desert taco

    desert taco Well-Known Member

    Joined:
    Jul 20, 2009
    Member:
    #19909
    Messages:
    51
    Gender:
    Male
    In case you are looking for something a little different, an autodimming rearview mirror with homelink for Tacos is also available thru various sources.

  14. Oct 22, 2010 at 2:01 PM
    #14
    romafern

    romafern Well-Known Member

    Joined:
    Mar 15, 2010
    Member:
    #33279
    Messages:
    654
    Gender:
    Male
    First Name:
    Rob
    Olympia, WA
    Vehicle:
    stock and very pissed about the issues
    Machine gun mount. Would love to blow the shit out of it since it has nothing but issues. QA at Toyota USA is shit. Start making them in Japan for Christ's Sake!
    Firefighter, et al,

    That unit does light up like the rest of the dashboard in the truck right?

  15. Oct 22, 2010 at 3:28 PM
    #15
    romafern

    romafern Well-Known Member

    Joined:
    Mar 15, 2010
    Member:
    #33279
    Messages:
    654
    Gender:
    Male
    First Name:
    Rob
    Olympia, WA
    Vehicle:
    stock and very pissed about the issues
    Machine gun mount. Would love to blow the shit out of it since it has nothing but issues. QA at Toyota USA is shit. Start making them in Japan for Christ's Sake!

    But I think the homelink units are cheaper than the mirror

  16. Oct 13, 2016 at 1:57 PM
    #16
    3X0088

    3X0088 Well-Known Member

    Joined:
    Jan 10, 2016
    Member:
    #174602
    Messages:
    164
    Gender:
    Male
    First Name:
    Eric
    Indiana
    Vehicle:
    2017 TRD Sport dcsb 4x4
    Grill bar light, Pop N Lock, Bed Mat, G4 Fold A Cover Bed lights from mattgecko
    Now I got to find a homelink. You all are just causing my wallet to get lighter.
