Headunit won't power on, help!

Discussion in 'Audio & Video' started by GoDeacsWFU23, Dec 29, 2011.

Page 2 of 3
  1. Dec 29, 2011 at 5:34 PM
    #21
    GoDeacsWFU23

    #21
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    GoDeacsWFU23, Dec 29, 2011
    #21
  2. Dec 29, 2011 at 5:37 PM
    #22
    TacoDawgfan

    #22
    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Ok what I'm referring to as the remote wire is the 12 volt ignition wire.

    TacoDawgfan, Dec 29, 2011
    #22
  3. Dec 29, 2011 at 5:41 PM
    #23
    GoDeacsWFU23

    #23
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

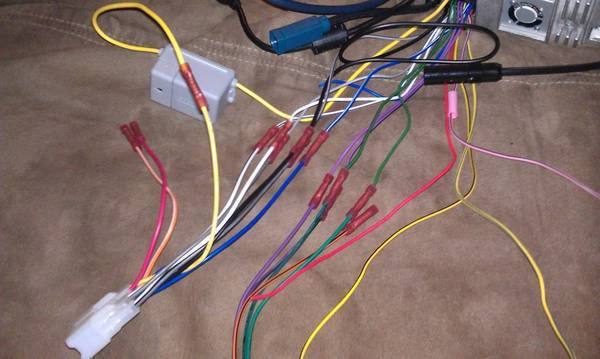

    Here is what I have:

    [​IMG]

    GoDeacsWFU23, Dec 29, 2011
    #23
  4. Dec 29, 2011 at 5:42 PM
    #24
    GoDeacsWFU23

    #24
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    Ok, on the left side of the picture the disconnected wires are the dimmer which is the orange/white wire and ignition/switched 12v which is the red wire

    GoDeacsWFU23, Dec 29, 2011
    #24
  5. Dec 29, 2011 at 5:43 PM
    #25
    GoDeacsWFU23

    #25
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    the blue wire disconnected in the center is the power antenna wire

    GoDeacsWFU23, Dec 29, 2011
    #25
  6. Dec 29, 2011 at 5:43 PM
    #26
    GoDeacsWFU23

    #26
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    on the right side of the picture the disconnected wires are the dimmer ground which is orange/black and the accessory wire which is red

    GoDeacsWFU23, Dec 29, 2011
    #26
  7. Dec 29, 2011 at 5:46 PM
    #27
    TacoDawgfan

    #27
    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Ok so the harness has a 12 ignition lead, what wire from the stereo is the same. They should be connected. Maybe the pink one?

    TacoDawgfan, Dec 29, 2011
    #27
  8. Dec 29, 2011 at 5:48 PM
    #28
    GoDeacsWFU23

    #28
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

    so i need to take my blue/white wire coming out of the hu which is the remote turn on lead and hook that to the red ignition/switched wire coming out of the harness which is not hooked to anything.

    GoDeacsWFU23, Dec 29, 2011
    #28
  9. Dec 29, 2011 at 5:48 PM
    #29
    TacoDawgfan

    #29
    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    yes

    TacoDawgfan, Dec 29, 2011
    #29
  10. Dec 29, 2011 at 5:49 PM
    #30
    GoDeacsWFU23

    #30
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    the pink/black wire on the right is the audio interrupt, i think for the blue tooth

    GoDeacsWFU23, Dec 29, 2011
    #30
  11. Dec 29, 2011 at 5:49 PM
    #31
    GoDeacsWFU23

    #31
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    i will try this and hopefully this will take care of the problem!

    GoDeacsWFU23, Dec 29, 2011
    #31
  12. Dec 29, 2011 at 5:50 PM
    #32
    TacoDawgfan

    #32
    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    If this doesn't get you going then I'm lost. ;)

    TacoDawgfan, Dec 29, 2011
    #32
  13. Dec 29, 2011 at 5:54 PM
    #33
    GoDeacsWFU23

    #33
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    yeah, still nothing

    GoDeacsWFU23, Dec 29, 2011
    #33
  14. Dec 29, 2011 at 5:54 PM
    #34
    joes06tacoma

    #34
    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,183
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2

    I'm going to disagree with the other poster here and say no. The red wire coming from the headunit should be connected to a 12 volt positive source of power that comes on and off with the ignition key. That should be the red wire on your adapter harness that plugs into the trucks wiring.

    The remote turn on lead is for turning on an external amp if you have one.

    You should be able to just match colors on the two harnesses. That's how they are designed to work.

    joes06tacoma, Dec 29, 2011
    #34
  15. Dec 29, 2011 at 5:54 PM
    #35
    GoDeacsWFU23

    #35
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    i am going to go across the street to my neighbor and see if he can figure it out, thanks for your efforts!!!!

    GoDeacsWFU23, Dec 29, 2011
    #35
  16. Dec 29, 2011 at 5:56 PM
    #36
    GoDeacsWFU23

    #36
    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,161
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

    the red wire coming out of the hu is labeled as accessory

    GoDeacsWFU23, Dec 29, 2011
    #36
  17. Dec 29, 2011 at 6:04 PM
    #37
    TacoDawgfan

    #37
    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    I'm not trying to argue but I've done many stereos and If I there in person I could get it. I don't know what wire is what from here. I know they use weird color coding so idk? But it's been 6 years or so since I've done one. Anyway just trying to help. Hope I didn't lead him wrong. I know it's not complicated, just need to be there in person I guess. Hopefully his neighbor can help.

    TacoDawgfan, Dec 29, 2011
    #37
  18. Dec 29, 2011 at 6:13 PM
    #38
    alwaysat8k

    #38
    alwaysat8k My truck is slow

    Joined:
    Dec 23, 2011
    Member:
    #69288
    Messages:
    81
    Gender:
    Male
    Virginia
    Vehicle:
    2012 Access Cab SR5 4cyl 5spd 5lug
    Fat Bobs 2.75" spacer, 1.5" Long AAL in rear
    looks like your 12v isnt hooked up (red wire). that will get u no juice. mate the colors. very simple. red to red etc. that wiring schematic just explains toyota wiring harness plugs.

    the blue with white is your remote turn on - which is for an amplifer hookup. the blue one is for the power antenna, mate it to the other blue. understood we dont have power antennas, but sometimes there is juice running through there for some reason.

    the orange wire is for the dimmer, which when you turn your lights on it dims the brightness of the deck.

    i can almost 100% garuntee you need to connect to the two 12v's, which are the two reds you have disconnected.


    good luck

    alwaysat8k, Dec 29, 2011
    #38
  19. Dec 29, 2011 at 6:15 PM
    #39
    jkc

    #39
    jkc Member

    Joined:
    Aug 8, 2011
    Member:
    #61355
    Messages:
    20
    Gender:
    Male
    Baltimore
    Vehicle:
    06 TRD Double Cab
    from what i can see you need to attach the red to red. turn to page 111 of your manual there is a wiring diagram. this unit is a nav/dvd unit. i have yet to install one but if your parking brake wires are not hooked up then that could be your issue.

    Pages from 500INAW90B-1.jpg


    Attached Files:

    jkc, Dec 29, 2011
    #39
  20. Dec 29, 2011 at 6:17 PM
    #40
    TacoDawgfan

    #40
    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Then what is the yellow w/the box on it? I thought maybe that was an in-line fuse making it the 12v. :notsure: Idk why the power wouldn't be red but I thought the last time I did an install it had weird color combinations.

    TacoDawgfan, Dec 29, 2011
    #40
