Heated seats - Ignition on only

Discussion in 'Technical Chat' started by primer, Oct 9, 2011.

  1. Oct 9, 2011 at 2:27 PM
    #1
    primer

    primer [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42725
    Messages:
    304
    Gender:
    Male
    First Name:
    T
    OK
    Vehicle:
    06 SS Mica AC 4x4 TRD Off-Road
    (Mostly) debadged, Homelink mirror, Elevated rear diff breather, LED illuminated 4x4 switch, Color matched grill surround, Bed cover, Ivan Stewart wheels, Bridgestone 265/75 Dueler AT Revo 2 tires
    As part of the Katzkin group buy I ordered some heating units for my front seats recently. The instructions for putting these in say to wire them straight to the battery. This means that they could be on anytime - even without the key in the ignition. It would be just my luck to accidentally turn mine on when I was getting out of the truck some night and then wake up to a dead battery. I really wanted to have mine where they could only work when the truck was running.

    I got a fair bit of help with this. See this thread:
    http://www.tacomaworld.com/forum/te...easiest-10-amp-wires-heated-seat-install.html

    As always - do this at your own risk. I am not a professional or an expert and have no business giving advice on complex subjects such as modifying your trucks electrical system.

    First you have to install the heating elements. Check out the Katzkin install threads for full instructions on removing/reinstalling upholstery. I suspect most will add heat when you are already doing this part of the project.

    The elements I got for my truck were pretty small. Hopefully they’ll be fine. They have a peel and stick type of adhesive and just stuck right to the foam of the seat. I cut a slit in the foam to route the wiring through.


    I put the bottom heater under my butt. When I sit in my seats now, I think it would be better, if you only have one small element to put it under your thighs on the other part of the seat bottom. I didn’t do this because I worried that the wire passing under the bar would cause problems. I’ll bet you could just run the wire directly through the foam to the bottom of the seat and avoid that all together. If it wasn’t such a hassle to mess with this stuff I’d probably change it. Oh well.

    I ran the wiring harness for the R seat under the carpet to the area under the center console then to the L kick panel. The L harness went to the L kick panel as well.

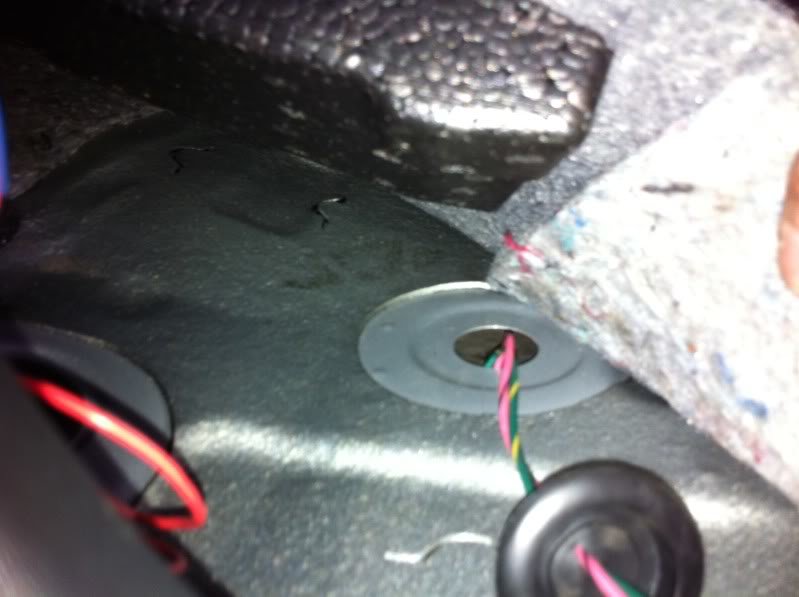

    To get them into the engine bay, I connected them together and ran one power and one ground wired out one of the rubber plugs under the drivers seat.

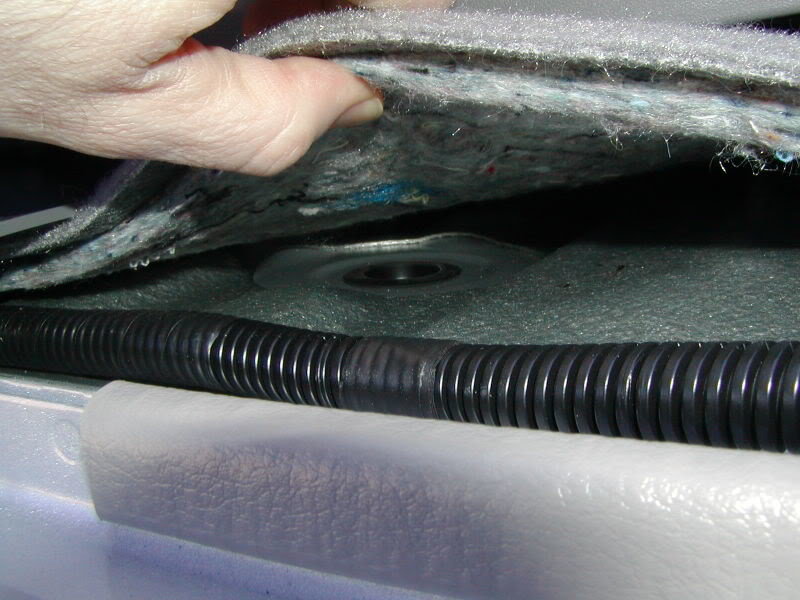

    These pics were taken from when I ran other stuff through here - but I just ran these right with them.

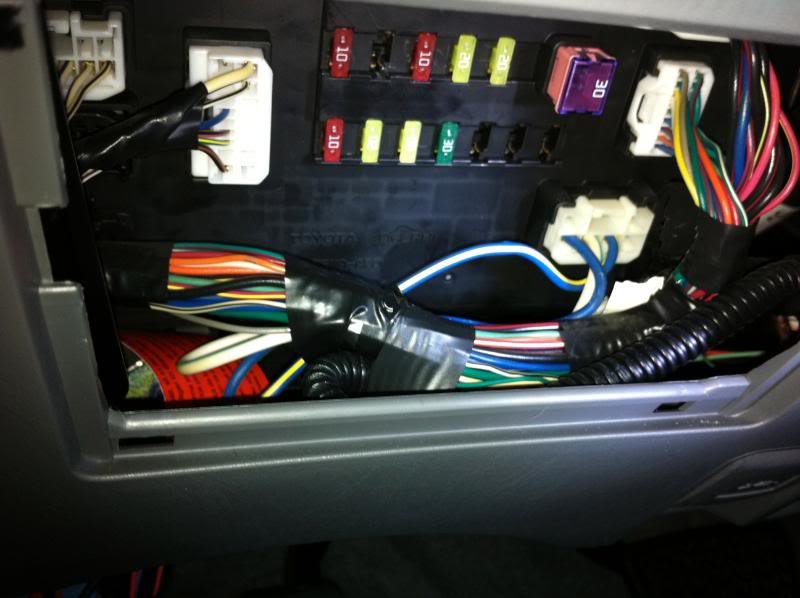

    You also have to find a wire that is “hot” when the ignition is on and “cold” when it’s not. This is the one I found that fits the bill:


    It is the blue wire with the yellow stripe. I tapped into it with a wire tap and ran this with the rest of the heater harness to the engine bay.

    All the wires were zip tied together and routed to the drivers side of the engine bay. At this point you could just run them to the Pos battery terminal and to ground, but If you want to have them controlled by the ignition you need to wire them through a relay.

    This is a diagram of what I did:



    I used this relay and relay socket:
    http://www.amazon.com/gp/product/B000VUAJIM
    http://www.amazon.com/gp/product/B000BTO1HS

    The relay is necessary because it uses the ignition power to switch on power to the seat heaters. If ignition is off now power will reach the seat heaters - even if you flip the switches in the cab.

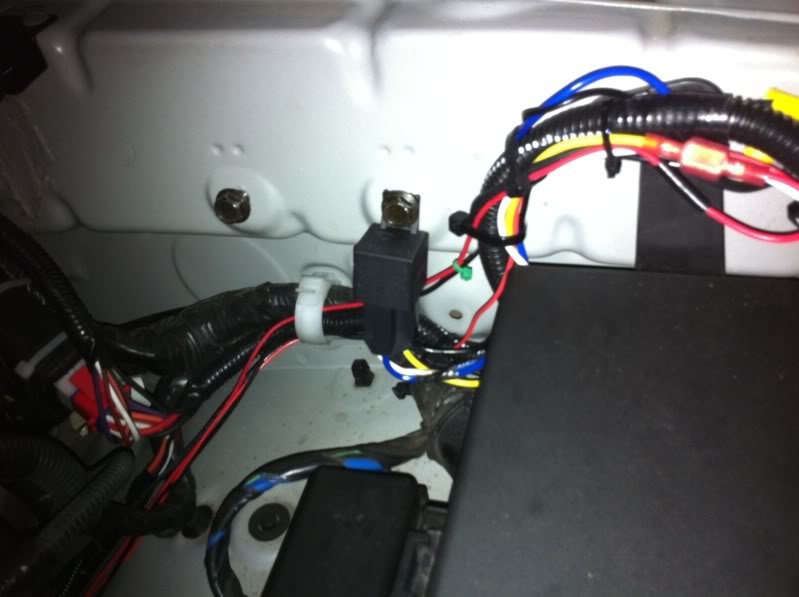

    I mounted the relay through the hole in the top to one of the holes on the side of the engine bay. It turns out that the bolts that hold the jump seats in place for the Access cab fit these holes perfectly. I had to leave one of my seats out for a little while and tried the bolt here. If I can find a part number or something, I’ll post it - but the closest thing I could find at Home Depot didn’t fit the threads.


    Before installing you need to put a diode in the circuit. Apparently a relay wired like this can allow a spike of current back through your system. It is definitely above my head - but it was recommended to me that I put a diode between the white and blue wires. This allows current to flow in only one direction. I’m afraid if I try to explain my understanding of this someone who really knows what they are talking about will expose my ignorance. If you can explain this to others well - please post it here.

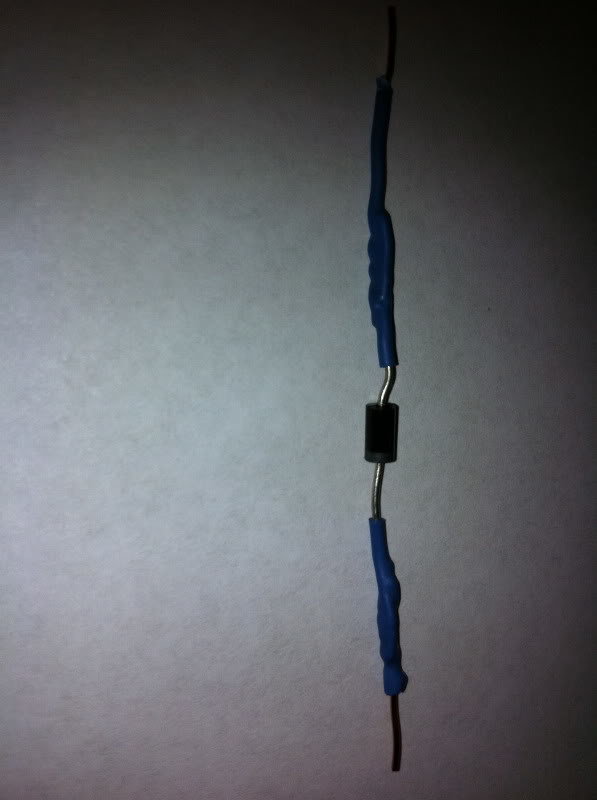

    I used this diode:
    http://www.radioshack.com/product/index.jsp?productId=2036268&CAWELAID=107597561

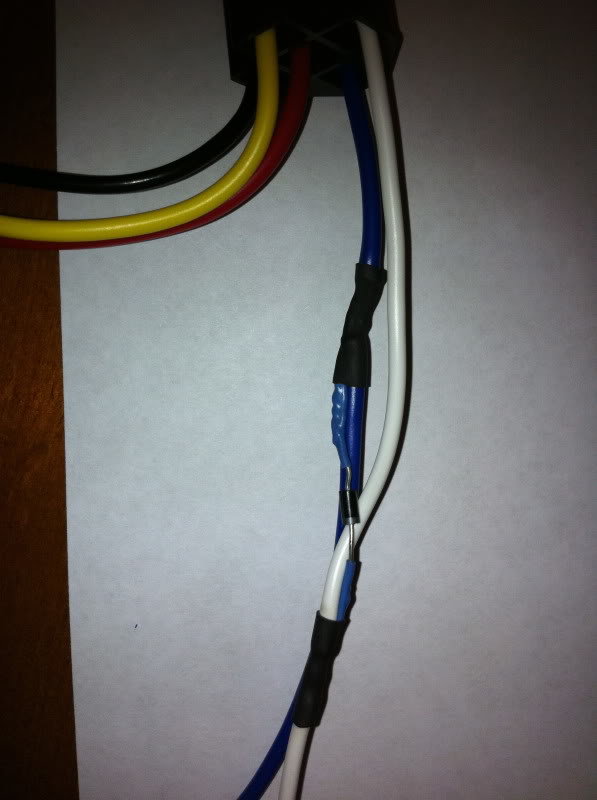

    You can see that it has a white line at one end - that end should be connected to the white wire. The other end is connected to the blue wire:

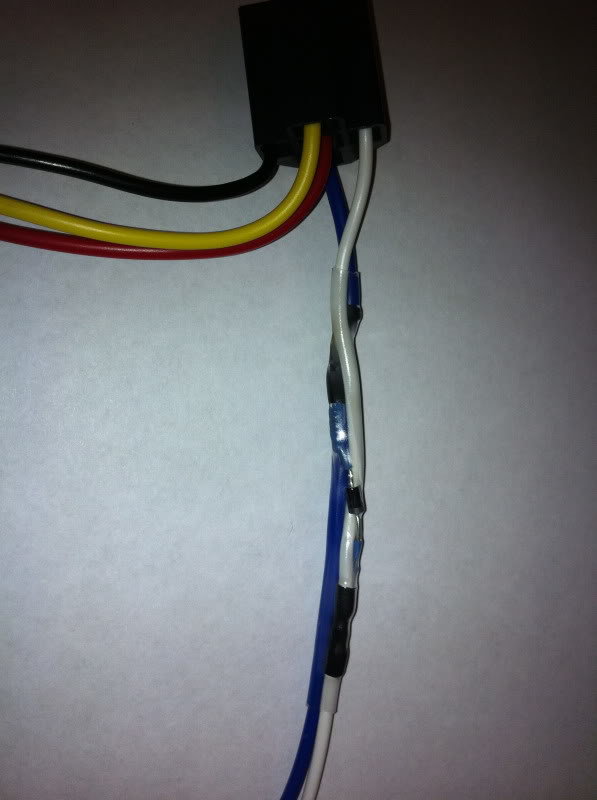

    I put some clear shrink wrap over it all so I could still see what I had done if I forgot:


    The relay socket has five contacts. The center is red and I just trimmed it short.
    The remaining 5 wires connect as follows:

    Black - Pos battery terminal (I put one of the fuse holders from my seat kit here)
    Yellow - Red power wire from seat heater harness
    White - to 12v ignition power (the wire I tapped into at the steering wheel)
    Blue - Ground

    The black (Ground) wire from seat heater harness goes directly to ground as well.

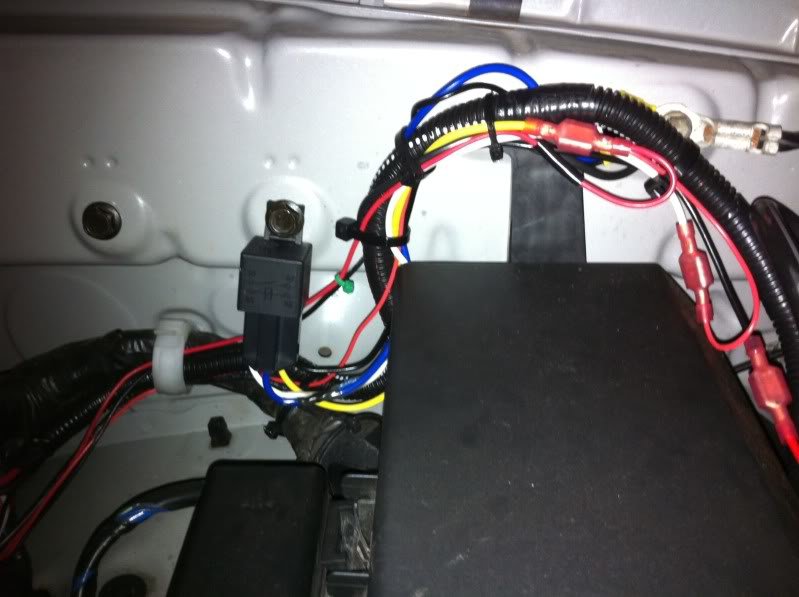

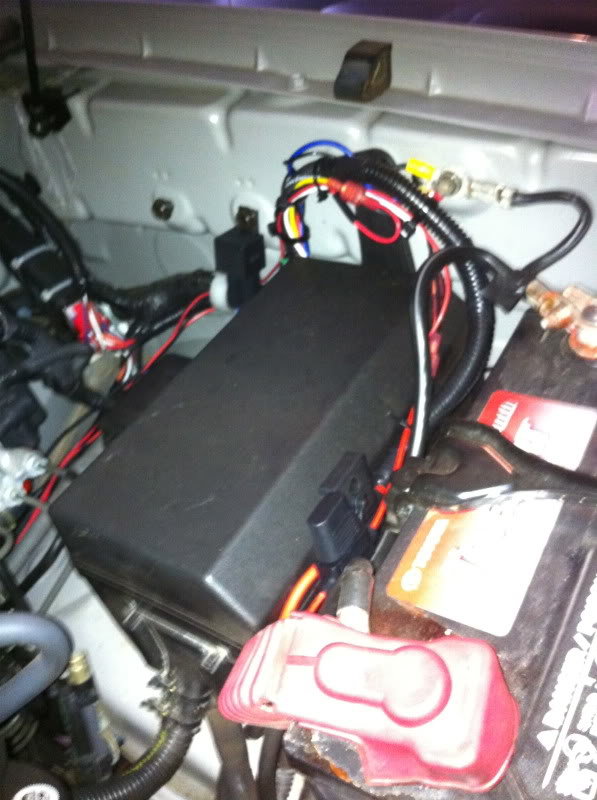

    I need to get a little accessory fuse box, but until then I tried to zip tie everything in place neatly. Sorry for the poor pics:

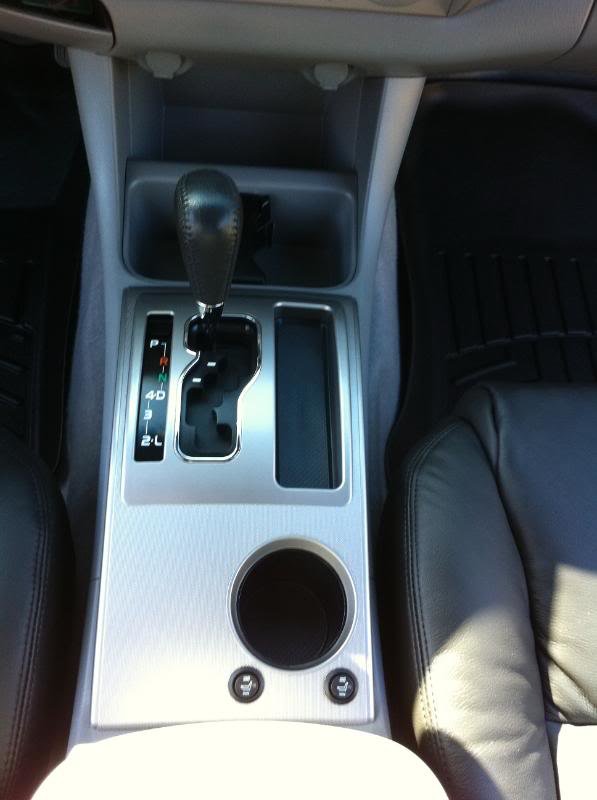

    Finally (and to me the best part) I installed the heater switches in the center console. If you remove the shift knob you can pop up the silver cover on the top of the console.

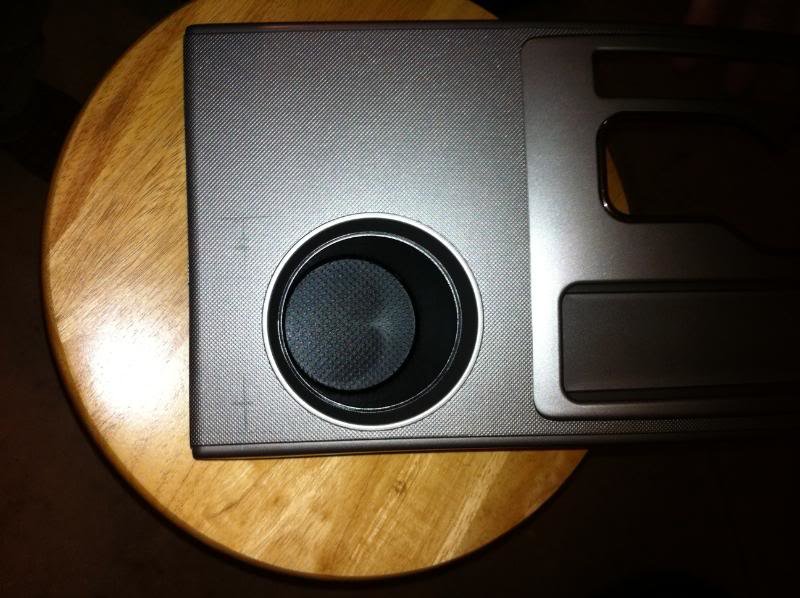

    I drew out where I wanted the holes:

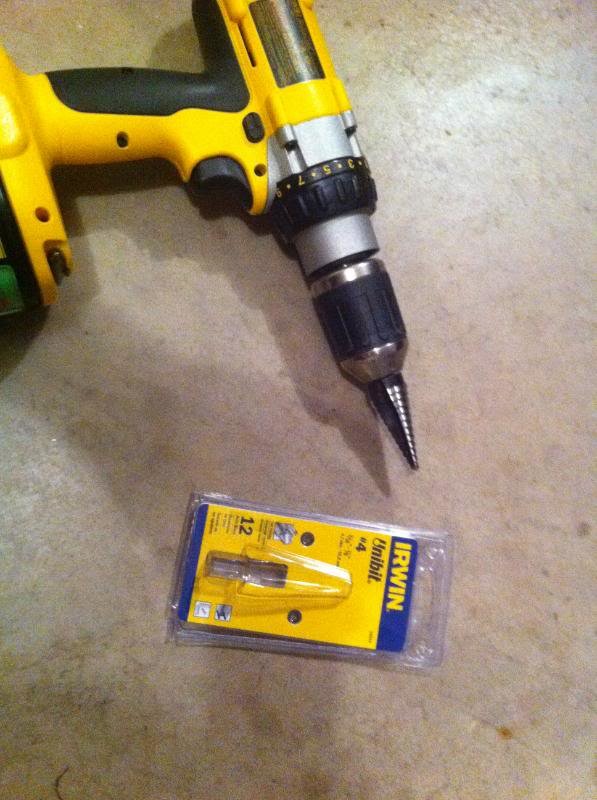

    Then I used on of these drill bits to drill them:

    I had to make the holes a little larger than the instructions said but they fit fine:

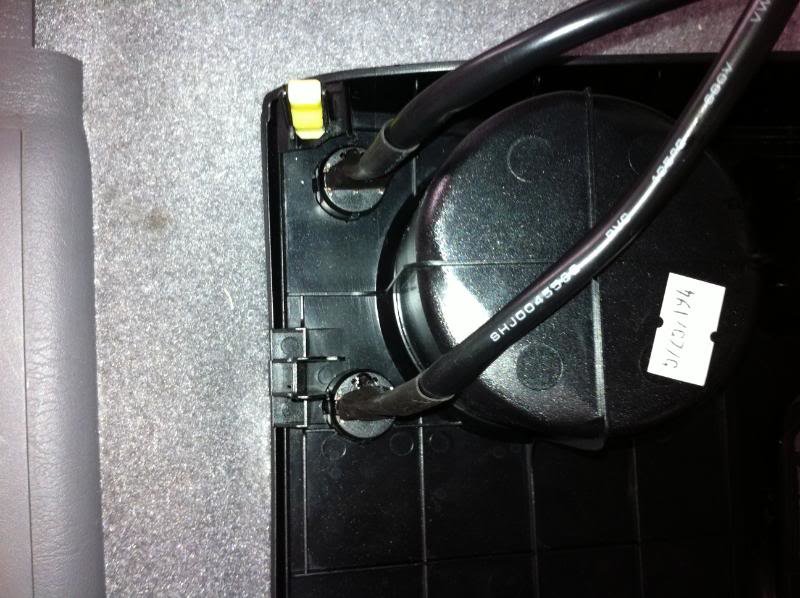

    This is what it looks like underneath:


    There are some friction clips to attach the cover very close to these spots. I had to use my dremel tool to clean them up so the switches fit OK.

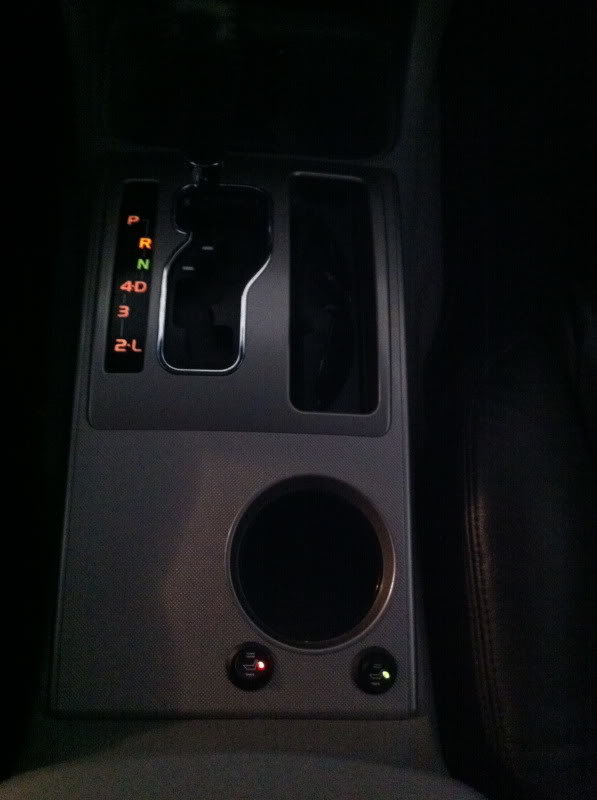

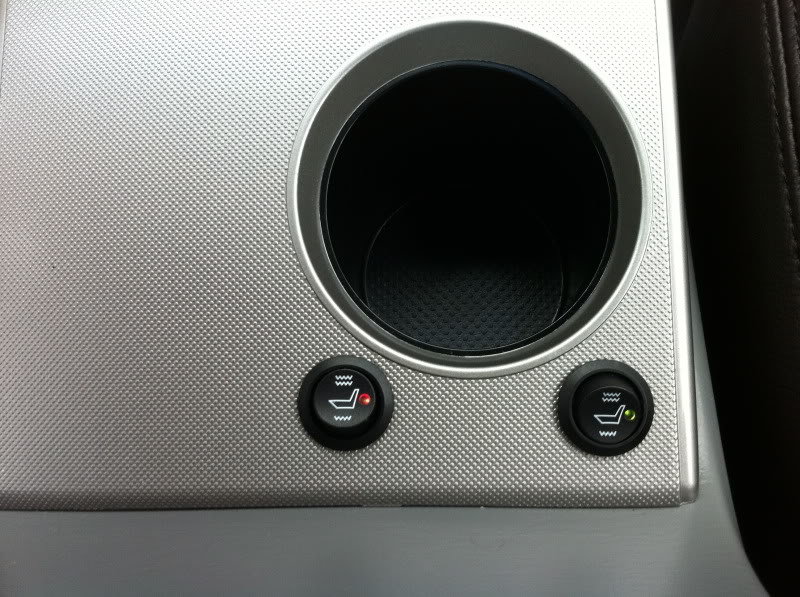

    Now it works just like I want. Heaters are disabled and will not work if the ignition isn’t on. With the ignition on the heaters work perfectly:

    The drivers side switch is on high, the passenger side is on low:




    Caltech90 and Doughnut Spaghetti like this.
  2. Oct 9, 2011 at 3:05 PM
    #2
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    3,140
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C, OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; aFe POWER Magnum FLOW Pro DRY S Air Filter; NSB-AGM27F Battery w/Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Cooper Discoverer A/T3s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; MetalMiller TRD Skid; jsi's Locker Anytime & ramonortiz55's Always on Power Outlet Relay Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades (RallyLights Harnesses, Osram 85/80W H4 & Flösser 90W H11 Bulbs); mattgecko's Underhood Lighting; ND4's Fog Light Anytime Mod; Interior & Reverse LEDs; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; 4Runner 4X4 & FJ Fog Light Switches; Husky Floor Liners; UltraGauge EM; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Toyota Bed Extender; Pop & Lock Power Tailgate Lock; ARE Z-Series Cap, SolarGard Tint; BlendMounted BEL Vector 995; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Nicely done! :thumbsup:

  3. Oct 9, 2011 at 3:19 PM
    #3
    SilverBullet07

    SilverBullet07 Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    I like it!... If it got really cold here I would definitely do this!

  4. Oct 9, 2011 at 3:20 PM
    #4
    Oat

    Oat Well-Known Member

    Joined:
    Aug 19, 2011
    Member:
    #61992
    Messages:
    1,169
    Gender:
    Male
    Florida
    Vehicle:
    2001 Prerunner
    Gibson Exhaust, Painted factory steel wheels, Chrome wheel caps, K&N Air intake, Tint, Regular Bilstein (yellow/blue) all around, Leveling spacer kit upfront, Partially de-badged, Westin Bullbar with skidplate, White, Double Cab Prerunner SR5
    Nice!.

  5. Dec 3, 2011 at 1:58 PM
    #5
    zul

    zul Professional Goofball

    Joined:
    Jun 11, 2011
    Member:
    #58083
    Messages:
    917
    PNW
    Vehicle:
    2012 Pyrite Mica DCSB SR5 4WD V6 AT
    HAVE: Bed mat, Tailgate Lock, Color-matched Grille, Weathertech Floor Liners, Avid Step Rails WANT: Rear Plate Bumper, RokBlokz mud flaps, Steel bed cage
    This is such a great write-up!! I REALLY want to add heater elements to the stock seats... I'm bookmarking this for sure.

  6. Dec 3, 2011 at 4:32 PM
    #6
    primer

    primer [OP] Well-Known Member

    Joined:
    Sep 4, 2010
    Member:
    #42725
    Messages:
    304
    Gender:
    Male
    First Name:
    T
    OK
    Vehicle:
    06 SS Mica AC 4x4 TRD Off-Road
    (Mostly) debadged, Homelink mirror, Elevated rear diff breather, LED illuminated 4x4 switch, Color matched grill surround, Bed cover, Ivan Stewart wheels, Bridgestone 265/75 Dueler AT Revo 2 tires
    Thanks. Every time I see those pics I remember I need to get my wiring cleaned up. I have everything I need except some large gauge wire. Need to get that done.

  7. Sep 9, 2015 at 10:04 AM
    #7
    YanE30M3

    YanE30M3 GO PATS!

    Joined:
    Sep 26, 2014
    Member:
    #139118
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Yan
    JB MDL, NJ
    Vehicle:
    15 TRD Sport (DCLB-BRM)
    subed for reading when I get home.

  8. Sep 25, 2016 at 11:18 AM
    #8
    maxpower29

    maxpower29 Well-Known Member

    Joined:
    Mar 7, 2011
    Member:
    #52525
    Messages:
    7,345
    Gender:
    Male
    First Name:
    Jordan
    Nova Scotia, Canada
    Vehicle:
    2011 Tacoma 4x4 2.7 5 speed SWB
    All season mats, 2nd filter delete, DT header, Jardine cat-back, URD shifter, Bilstein 5100's all around at .85 front with Eibachs + .25 passenger/.5 drivers spacers and 1.5 AAL, 0w20 synthetic, Scanguage II, extra D rings, OEM backup camera+Mirror, bed mat, Extang Solid Fold, Popnlock 5300, Pro Comp 7089's 4.5bs 285/70/17 Revo 2s, De-badged
    Good install

  9. Oct 30, 2017 at 10:18 AM
    #9
    Captainskidmark

    Captainskidmark Active Member

    Joined:
    Nov 29, 2014
    Member:
    #143284
    Messages:
    35
    Gender:
    Male
    nortHErn iLLinois
    Vehicle:
    2015 4X4 TRD SPORT DCLB
    885 COILS, DAKAR LEAFS +1" BLOCKS, AR BAJA RIMS, 265/70/17COOPER DISCOVERER STT PROs, BILSTEIN 5100s, ARE CAP, MAGNAFLOW CAT BACK
    Nice write up! Does anyone know which position on the fuse panel is actually used for vehicles that come from factory with heated seats? Wondering if that is an option for powering them?

  10. Oct 30, 2017 at 10:22 AM
    #10
    Doughnut Spaghetti

    Doughnut Spaghetti Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211939
    Messages:
    952
    Gender:
    Male
    First Name:
    Kristofer
    Lansing, Michigan
    Vehicle:
    2009 Tacoma SR5
    I love the amount of ingenuity that Tacoma owners put into their trucks!

  11. Nov 8, 2017 at 8:45 AM
    #11
    Captainskidmark

    Captainskidmark Active Member

    Joined:
    Nov 29, 2014
    Member:
    #143284
    Messages:
    35
    Gender:
    Male
    nortHErn iLLinois
    Vehicle:
    2015 4X4 TRD SPORT DCLB
    885 COILS, DAKAR LEAFS +1" BLOCKS, AR BAJA RIMS, 265/70/17COOPER DISCOVERER STT PROs, BILSTEIN 5100s, ARE CAP, MAGNAFLOW CAT BACK
    Last edited: Nov 8, 2017
  12. Nov 9, 2017 at 1:35 AM
    #12
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    3,594
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck
    Super Springs
    Nice write up

    If we had a colder climate here in Pa it might be a interesting project .

    But some winters never being below zero for days on end they would most likely never get used.
