Discussion in 'Suspension' started by whitedlite, Jan 18, 2018.

  1. Jan 18, 2018 at 9:47 AM
    #1
    whitedlite

    #1
    whitedlite [OP] Well-Known Member

    Joined:
    Jul 14, 2016
    Member:
    #192033
    Messages:
    9,223
    Gender:
    Male
    USA!
    Vehicle:
    3RD Gen TRD 4WD

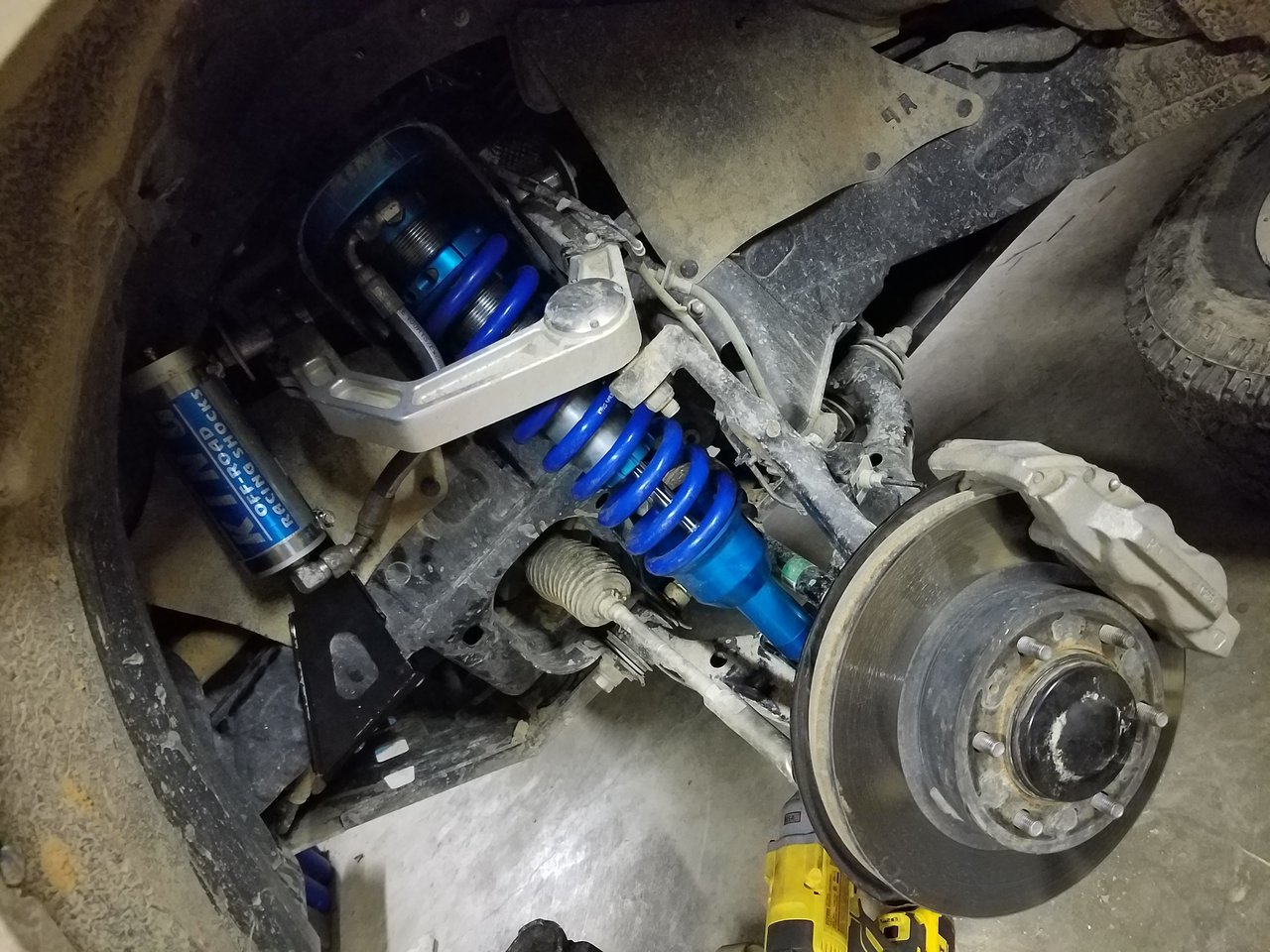

    Sorry for terrible lighting in pics.

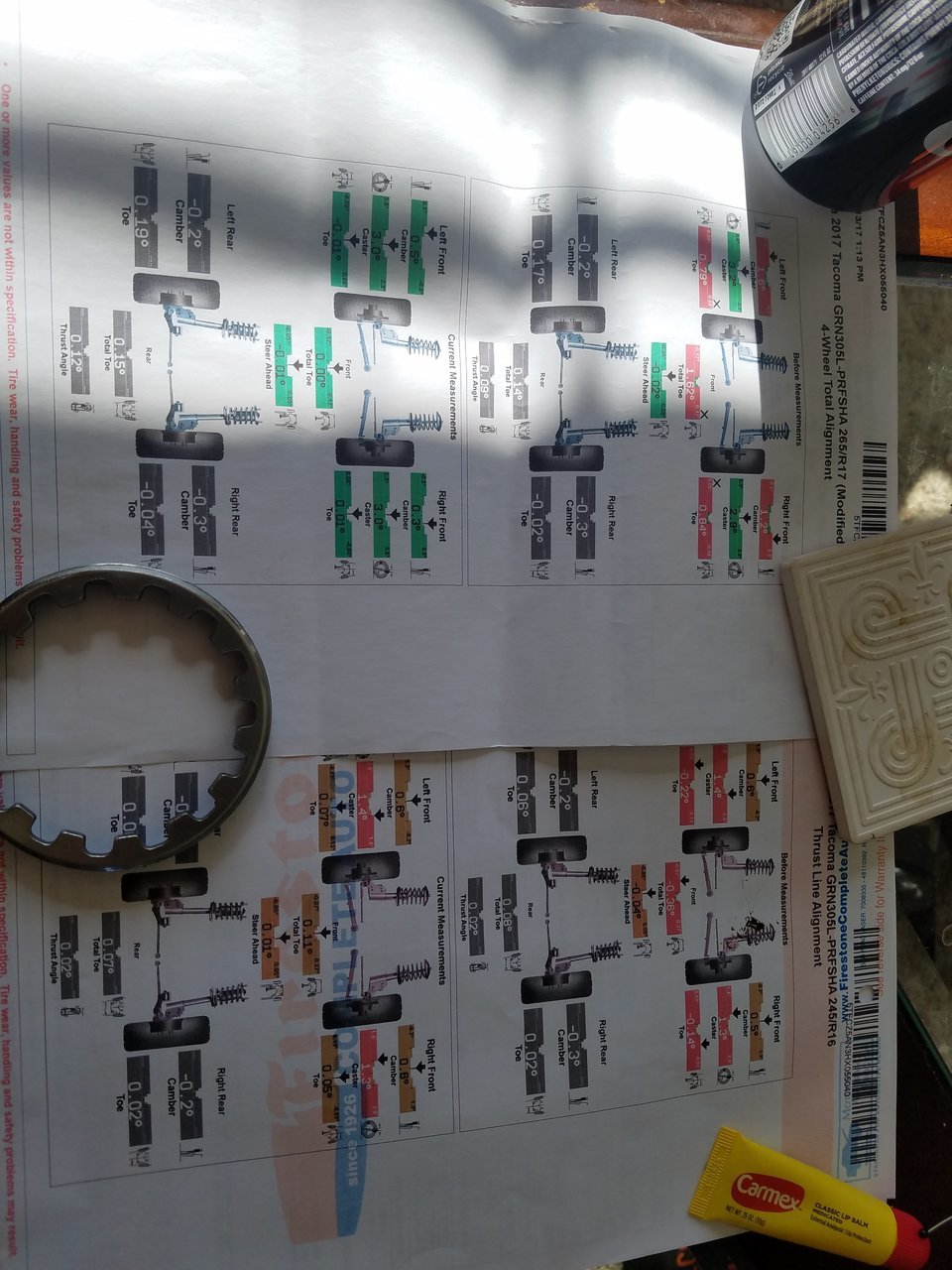

    So the paper on the left is with fox coilovers. The paper on the right is with king coilovers.

    Please note I gained 1.5" of lift in the front switching. So the paper on the right is after gaining 1.5"

    I want to get my alignment numbers back in the green and need help adjusting.

    Where should I start.


    whitedlite, Jan 18, 2018
