Help:Auxbeam Switch panel and arb compressor

Discussion in '3rd Gen. Tacomas (2016+)' started by Gsingh916, Jan 9, 2020.

  1. Jan 9, 2020 at 10:01 PM
    #1
    Gsingh916

    Gsingh916 [OP] Well-Known Member

    Joined:
    Mar 27, 2019
    Member:
    #288186
    Messages:
    202
    Gender:
    Male
    Vehicle:
    2019 Toyota Tacoma trd Offroad

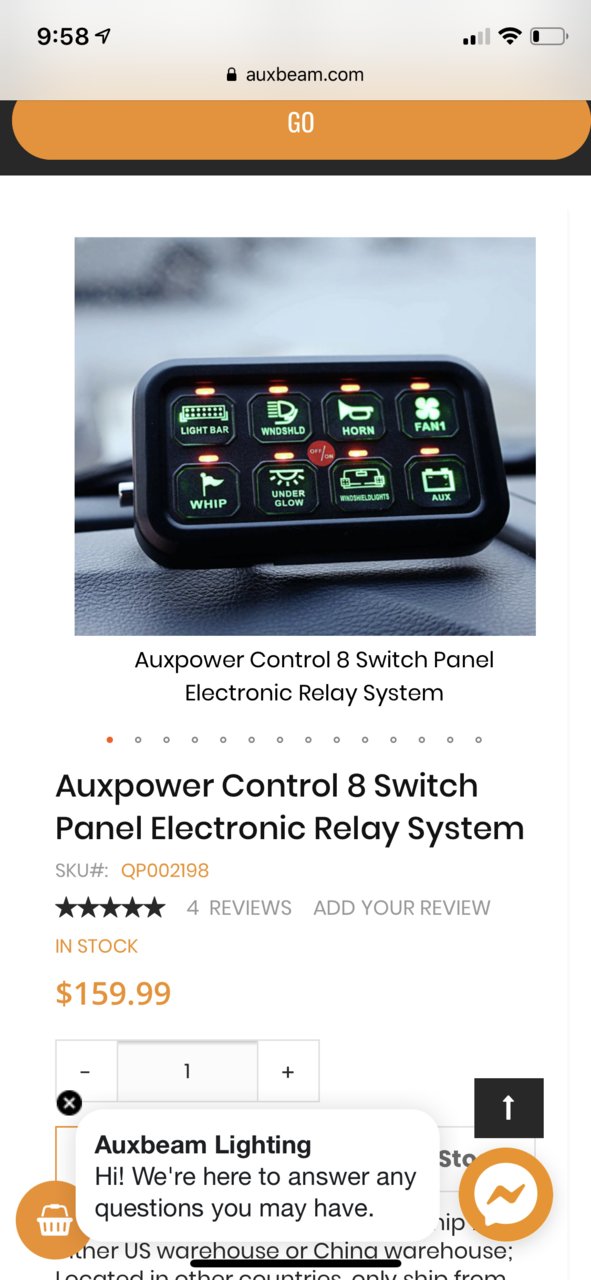

    so I have a auxbeam switch panel that I want to run a single arb compressor off of. Has anyone done this mod or is it possible


  2. Feb 17, 2020 at 11:35 AM
    #2
    hellfire0480

    hellfire0480 Well-Known Member

    Joined:
    Dec 6, 2019
    Member:
    #312666
    Messages:
    220
    Gender:
    Male
    TEXAS
    Vehicle:
    2019 TRD OR Quicksand
    Eibach Pro lift, MR701, 285/70R17 AT3W, SOS Sliders, Sherpa RR
    The auxbeam switch panel has a max channel amp draw of 30 amps. Here is the technical data for the ARB compressors. https://www.arb.com.au/assets/air-lockers/6-07.pdf Looks like the amp draw at max would trip that 30 amp breaker. That being said you're not going to be airing up your tires to 100 psi. I've seen others use the compressor on a 30 amp circuit like the switch pro 9100 just fine.

    Maybe others will chime in but I imagine you'd be fine. Are you using for airing up tires? If so may just wire the switch into the engine bay area since you'll have to access the area to hook up an airline.

  3. Feb 17, 2020 at 11:41 AM
    #3
    Brian422

    Brian422 I fell into the pit that is TW

    Joined:
    Jun 8, 2011
    Member:
    #57958
    Messages:
    9,610
    Gender:
    Male
    First Name:
    Brian
    Birmingham
    Vehicle:
    2012 Tacoma postrunner and 2015 Corolla S Manual
    Not Stock
    You should be fine! I have the same switch panel just haven't hooked it up yet. I can tell you it is a solid piece of equipment. I highly doubt you'll even use 50 psi. Most ive aired mine up too in 40 with zero issues on amp draw.

    shane100700 likes this.
  4. Feb 17, 2020 at 11:44 AM
    #4
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,058
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
    Depends which ARB you go with. If the one you want to use draws more then 30A, use the tigger output to trigger a separate relay instead of the accessory itself. Let a separate relay trigger the ARB.

    Gen3TacomaOBX and hellfire0480 like this.
  5. Feb 17, 2020 at 11:51 AM
    #5
    hellfire0480

    hellfire0480 Well-Known Member

    Joined:
    Dec 6, 2019
    Member:
    #312666
    Messages:
    220
    Gender:
    Male
    TEXAS
    Vehicle:
    2019 TRD OR Quicksand
    Eibach Pro lift, MR701, 285/70R17 AT3W, SOS Sliders, Sherpa RR
    Great suggestion to use the switch panel as a trigger.

    I was going off OPs statement that he was using an ARB single compressor so I assumed it was the CKMA12.

    shane100700 likes this.
  6. Feb 17, 2020 at 11:55 AM
    #6
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,058
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
    Thank you sir. Yeah I wasn’t sure. Personally if I ever did OBA, I think I’d just do a direct line (fused) to a switch under the hood or in the bed. Likely I’d have to get to that area to plug in or pull out an air hose anyways.

    hellfire0480 likes this.
  7. Feb 17, 2020 at 12:03 PM
    #7
    Gsingh916

    Gsingh916 [OP] Well-Known Member

    Joined:
    Mar 27, 2019
    Member:
    #288186
    Messages:
    202
    Gender:
    Male
    Vehicle:
    2019 Toyota Tacoma trd Offroad
    Thanks for the info guys but I got it to work I still have the arb hooked up to the battery with a relay and fuse I just connected the switch wire to the auxbeam works perfectly fine

    MJTH and shane100700 like this.
  8. Feb 18, 2020 at 5:02 PM
    #8
    dc2’s

    dc2’s Well-Known Member

    Joined:
    Jul 21, 2018
    Member:
    #260088
    Messages:
    315
    Gender:
    Male
    First Name:
    Chris
    California
    Vehicle:
    2017 Toyota Tacoma trd 4x4 off road
    Added a driver
    How do you like it and how do you have it mounted?

  9. Feb 18, 2020 at 6:52 PM
    #9
    Gsingh916

    Gsingh916 [OP] Well-Known Member

    Joined:
    Mar 27, 2019
    Member:
    #288186
    Messages:
    202
    Gender:
    Male
    Vehicle:
    2019 Toyota Tacoma trd Offroad

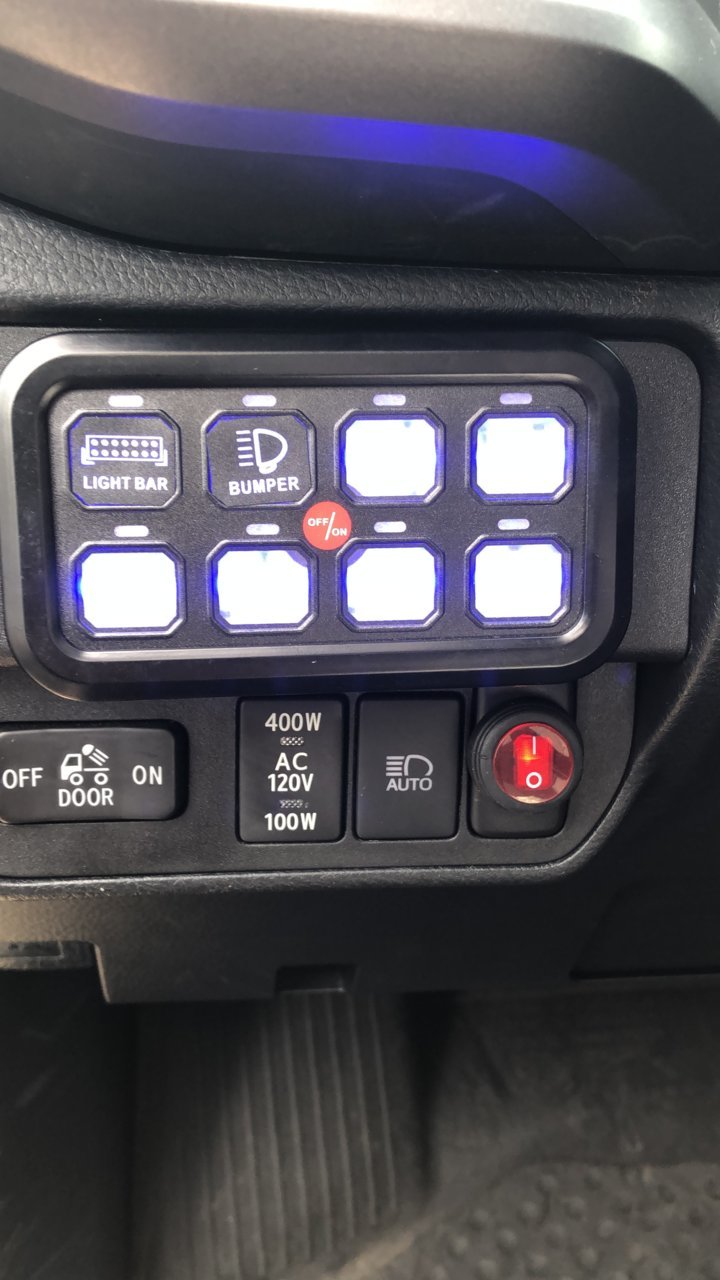

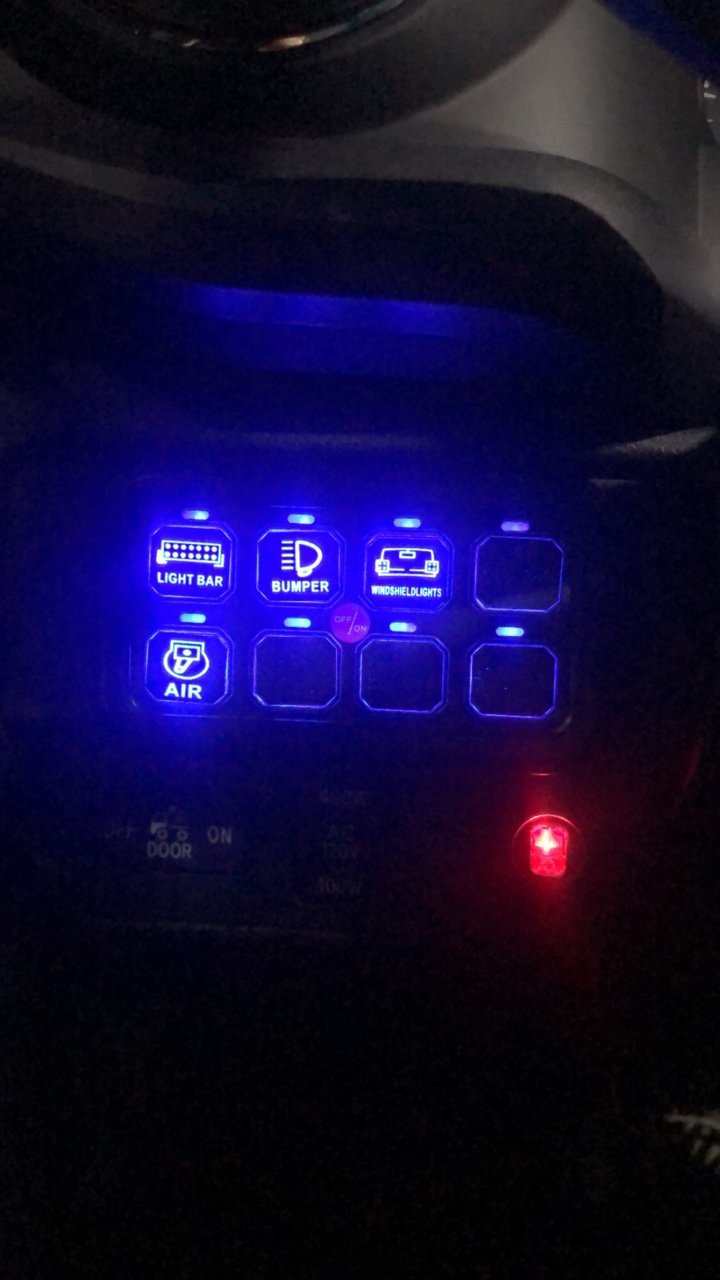

    I love it for the price it’s at. I have 42 inch cali raised 30 inch Baja designs, Baja designs s2 sport and the arb compressor wired to it... I have it mounted where the cubby hole was with some 3m sticky tape


    Gnarman, ohcjam, DR TACO and 2 others like this.
  10. Feb 18, 2020 at 7:24 PM
    #10
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,058
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
    Any issues with the aux lights flashing on for a split second when you start the truck? I’ve heard that was an issue for guys running the McTuning ones.

  11. Feb 18, 2020 at 7:58 PM
    #11
    dc2’s

    dc2’s Well-Known Member

    Joined:
    Jul 21, 2018
    Member:
    #260088
    Messages:
    315
    Gender:
    Male
    First Name:
    Chris
    California
    Vehicle:
    2017 Toyota Tacoma trd 4x4 off road
    Added a driver
    Thank you so much! It’s look awesome!!

    shane100700 likes this.
  12. Feb 18, 2020 at 9:31 PM
    #12
    Gsingh916

    Gsingh916 [OP] Well-Known Member

    Joined:
    Mar 27, 2019
    Member:
    #288186
    Messages:
    202
    Gender:
    Male
    Vehicle:
    2019 Toyota Tacoma trd Offroad
    Never had that issue

    shane100700 likes this.
  13. Nov 14, 2020 at 5:09 PM
    #13
    Gnarman

    Gnarman Well-Known Member

    Joined:
    Jan 24, 2016
    Member:
    #175919
    Messages:
    742
    Gender:
    Male
    Southwest
    Vehicle:
    2016 dbcb trd off road quicksand lb
    ARB Shell, BP51, 255/85/16 ST MAXX, SCS Ray 10 Matte Bronze, Caliraised led 32 inch/side shooter/amber pods, floor mats, start x remote start, auxbeam 8 gang switch panel, diode dynamics hid lows, Australian Shepherd

  14. Nov 14, 2020 at 6:58 PM
    #14
    Gnarman

    Gnarman Well-Known Member

    Joined:
    Jan 24, 2016
    Member:
    #175919
    Messages:
    742
    Gender:
    Male
    Southwest
    Vehicle:
    2016 dbcb trd off road quicksand lb
    ARB Shell, BP51, 255/85/16 ST MAXX, SCS Ray 10 Matte Bronze, Caliraised led 32 inch/side shooter/amber pods, floor mats, start x remote start, auxbeam 8 gang switch panel, diode dynamics hid lows, Australian Shepherd


    Can you take pics of how you wired things in the engine bay? Looks awesome!

  15. Nov 24, 2020 at 2:15 PM
    #15
    Birdog

    Birdog Well-Known Member

    Joined:
    Mar 4, 2015
    Member:
    #150124
    Messages:
    133
    Gender:
    Male
    West Coast, Valley Boy
    Vehicle:
    1st Gen Taco 4x4 SR-5 13th one off the line in Santa Clara May 13 1995. Many mods to it, still showing her force.
    K&N Filter, Boral Exhaust, Posi Trac, CBI DIY front Bumper, Mod front grill, Mod HD lites, Icons mod Front, Rear, & Stero System 7 inch Alpine, with mic, and USB, ipod,, New Carpet, New Suntop Camper shell, Carpet kit rear, Yak roof rack, Rola Cargo basket, Rock Lights,
    Did you use the ARB CMK12 wire harness. Which wire/color did you connect from the ARB to the Auxbeam pos+ wire. Ready to pull the trigger on a 6 panel/Blue ;)

    Air Comp Manual .jpg

  16. Mar 19, 2021 at 7:48 AM
    #16
    18Inferno

    18Inferno Well-Known Member

    Joined:
    Jul 27, 2019
    Member:
    #300460
    Messages:
    62
    Gender:
    Male
    Vehicle:
    2018 TRD-Off Road DCLB Inferno
    How are your aux beam panels holding up?

  17. May 14, 2021 at 4:19 AM
    #17
    joeto3

    joeto3 Member

    Joined:
    Sep 29, 2019
    Member:
    #306559
    Messages:
    9
    Gender:
    Male
    Which wires on the arb harness did you use to trigger the relay?

  18. Jun 3, 2021 at 6:01 AM
    #18
    508Tacoma

    508Tacoma Well-Known Member

    Joined:
    Nov 19, 2018
    Member:
    #273135
    Messages:
    885
    Gender:
    Male
    First Name:
    Ryan
    MA
    Vehicle:
    2017 TRD OR 4x4 DCSB
    @Gsingh916 Any chance of showing some install pictures. Hoping to connect to my Auxbeam panel in the coming months.

  19. Jun 3, 2021 at 6:19 AM
    #19
    ShimStack

    ShimStack Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74701
    Messages:
    935
    Gender:
    Male
    First Name:
    Ben
    NC
    Vehicle:
    '98 Ext Cab V6 5speed, '16 DC OR M/T V6 Locked F/R
    KM2's, shocks
    The red wire from the pressure switch needs the switched 12V.

    joeto3 likes this.
  20. Jun 6, 2021 at 9:47 PM
    #20
    iLLFadedBowl

    iLLFadedBowl Well-Known Member

    Joined:
    Jun 5, 2021
    Member:
    #367742
    Messages:
    56
    Gender:
    Male
    Vehicle:
    2019 Super White TRD Offroad Tacoma
    Remote start w/ vehicle control and locator, Prinsu rack w/ Cali Raised Light Bar and 360 LED lights, LED Bedlights, Tailgate lock, 3" Lift, Wheels and Tires, Raptor Lights, LED headlights and fog lights, Blacked out LED taillights, Front windshield eyebrow tint, Rough country bed molle, 8-gang switch to control LEDS, Dominator D6 running boards/side steps, Blacked out sequential mirror turn signals

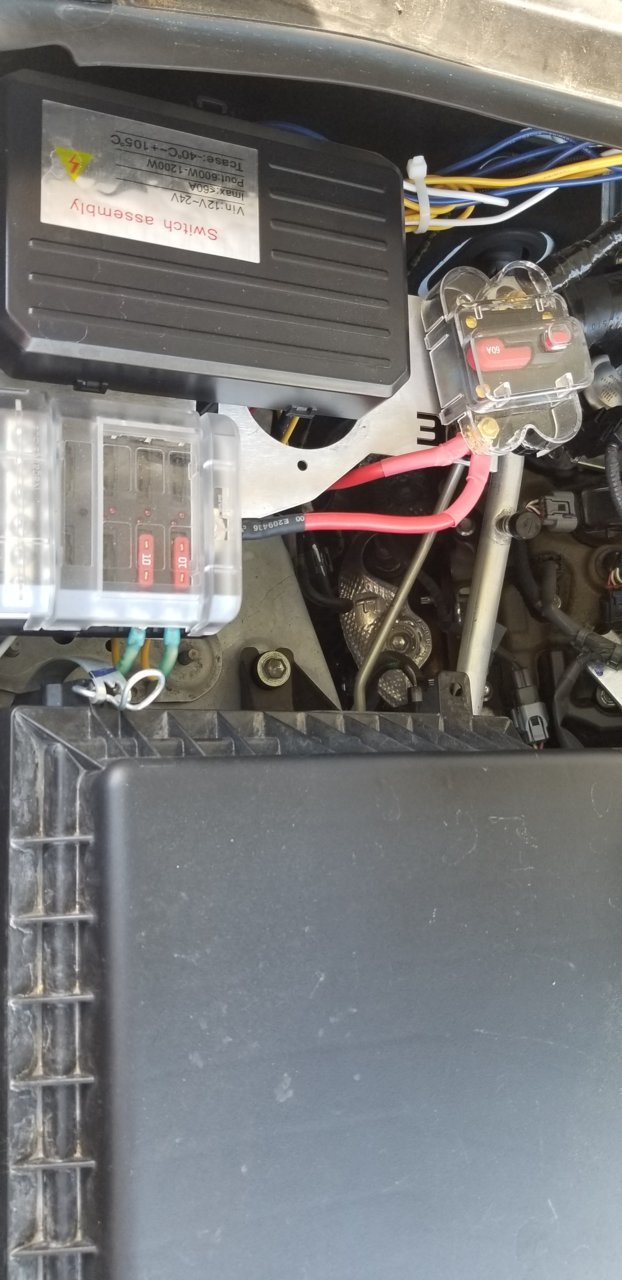

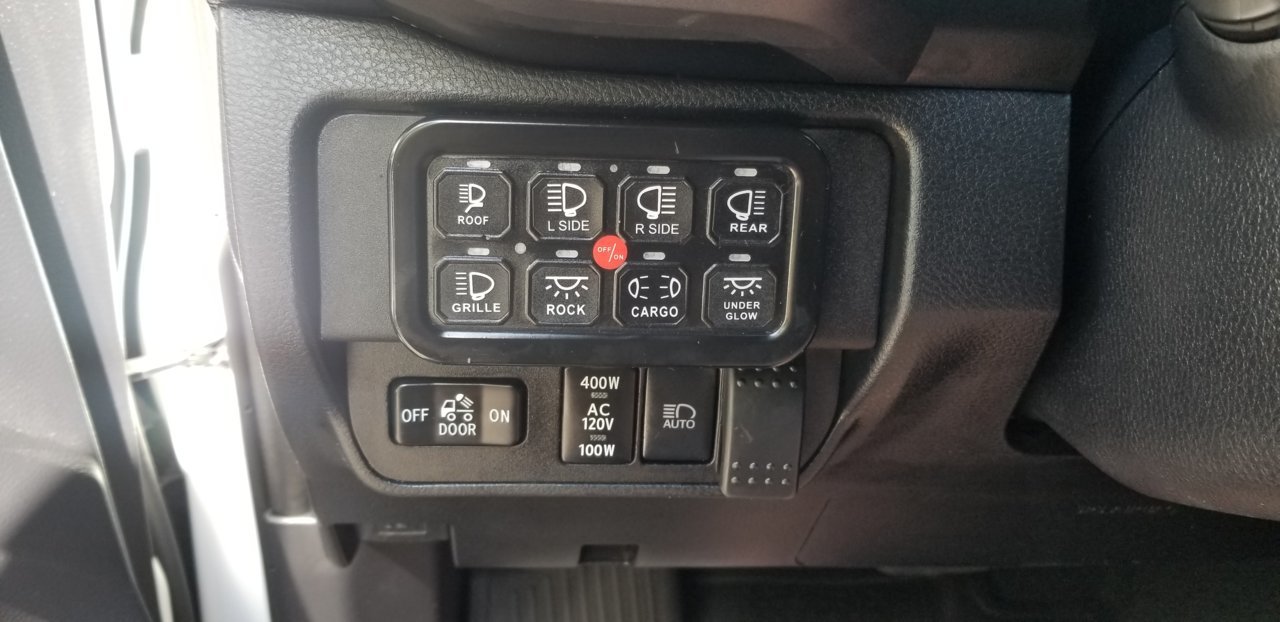

    Here is a bad picture of mine. Definitely recommend a power tray to keep things more organized. I installed mine on the passenger side because there is more room and I dont have any plans of adding a second battery. Had to do a little modification to the power tray to get it to work on the passenger side. Still need to clean in up a little and add some loom over the wires running along the firewall. Let me know if you have and questions.20210605_170930.jpg 20210605_170755.jpg
