Help:Auxbeam Switch panel and arb compressor

Discussion in '3rd Gen. Tacomas (2016+)' started by Gsingh916, Jan 9, 2020.

  1. Aug 8, 2021 at 10:17 AM
    #21
    joeto3

    joeto3 Member

    Joined:
    Sep 29, 2019
    Member:
    #306559
    Messages:
    9
    Gender:
    Male
    I have the same setup and absolutely hate the arb harness.

    Anyone have a diagram of how to wire this up?

  2. Aug 8, 2021 at 10:24 AM
    #22
    joeto3

    joeto3 Member

    Joined:
    Sep 29, 2019
    Member:
    #306559
    Messages:
    9
    Gender:
    Male
    Will try this out and hopefully it works!

  3. Sep 29, 2021 at 11:29 PM
    #23
    joeto3

    joeto3 Member

    Joined:
    Sep 29, 2019
    Member:
    #306559
    Messages:
    9
    Gender:
    Male

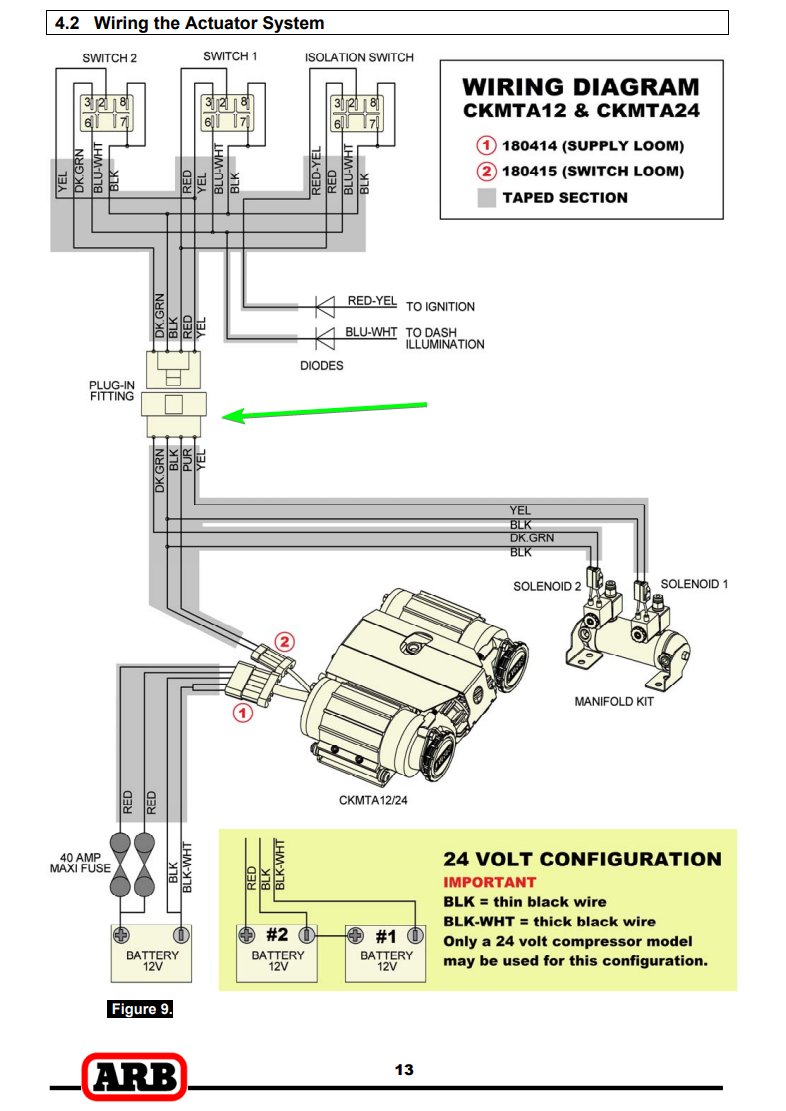

    Just in case someone wants to install an ARB compressor to their vehicle with any auxiliary relay system.

    If you're only installing the ARB compressor, and don't mind splicing the included ARB cable, the 4 prong connector (that isn't connected by default) has a purple wire that is for the compressor activation.

    Then you just need to connect the (2 thick red wires) to battery + (1x thick black wire + 1x thin black wire) to ground.

    Lastly, power the activation switch by connecting the purple wire to a 15A fuse. ARB's included switch is rated for 15A, so it's on a 15A fuse (photo shows 20A, but it's on a 15A).

    [​IMG]

    Lastly, as per ARB's instructions, here is the same plug that I marked in green in the photo above, and with their instructions.
    The wire loom I have connecting to the relay system can be purchased here, and includes the correct wire colors (purple wire, instead of red).
    Blue arrow is where the purple wire leads to.


    Tldr: plug in purple wire from 4 prong wiring harness to activate compressor. This is the 12v compressor activation

    Last edited: Dec 1, 2021
    CementTacoSupreme42 likes this.
  4. Dec 1, 2021 at 2:16 PM
    #24
    tacoma08brandon87

    tacoma08brandon87 Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88123
    Messages:
    1,411
    Gender:
    Male
    First Name:
    brandon
    el paso tx
    Vehicle:
    TRD
    I have the same switch panel. I have dual air compressor that I want to connect it would I be ok.?

  5. Dec 1, 2021 at 3:31 PM
    #25
    tacoma08brandon87

    tacoma08brandon87 Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88123
    Messages:
    1,411
    Gender:
    Male
    First Name:
    brandon
    el paso tx
    Vehicle:
    TRD
    I have a question need help with I have dual arb twin air compressor that I want to hook up to the switch panel. Is it possible

  6. Dec 1, 2021 at 6:44 PM
    #26
    joeto3

    joeto3 Member

    Joined:
    Sep 29, 2019
    Member:
    #306559
    Messages:
    9
    Gender:
    Male
    You need to splice it, or get a $20 cable from someone. Couldn't find the connector after an hour of searching on mouser.

  7. Jan 5, 2022 at 11:11 AM
    #27
    atlas99

    atlas99 seekopenair

    Joined:
    Jan 22, 2017
    Member:
    #208349
    Messages:
    57
    Gender:
    Male
    First Name:
    Cody
    Washington
    Vehicle:
    17' SR5 DCSB
    Kenda Klever R/T 35x12.5r17, RRW RH-7 -25mm, Bilstein 6112s, SPC UCA, Bilstein 5160s, Icon RXT Leaf Pack, Relentless Fab Hybrid Front Bumper, Harbor Freight Winch.
    A different route and what I did with my ARB Twin/Auxbeam panel: If you don't plan on running airlockers (therefore don't need actuators) then you don't need three switches and you don't need to splice, you can cut before the "PLUG-IN FITTING" labeled in the image from joeto3 post. Then purple wire to positive/black to negative, wire up to the battery as you would normally and you're good to go.

    Last edited: Jan 5, 2022
    CementTacoSupreme42 and toku58 like this.
  8. Jan 5, 2022 at 11:18 AM
    #28
    toku58

    toku58 Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,929
    Gender:
    Male
    HAWAII
    Vehicle:
    Mall Crawler!
    21' TRD OffRoad 2" 887 OME on Bilstein 5100's. 285/70R17 General Grabbers G3 17x9" Icon TRD wheels (Gun metal gray)
    I have this switch and the ARB Twin works great! Really easy to set everything up.

  9. Jan 5, 2022 at 11:25 AM
    #29
    tacoma08brandon87

    tacoma08brandon87 Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88123
    Messages:
    1,411
    Gender:
    Male
    First Name:
    brandon
    el paso tx
    Vehicle:
    TRD
    Fuck I didn’t run it to the switch panel people were saying that it can burn it out

  10. Jan 5, 2022 at 11:27 AM
    #30
    atlas99

    atlas99 seekopenair

    Joined:
    Jan 22, 2017
    Member:
    #208349
    Messages:
    57
    Gender:
    Male
    First Name:
    Cody
    Washington
    Vehicle:
    17' SR5 DCSB
    Kenda Klever R/T 35x12.5r17, RRW RH-7 -25mm, Bilstein 6112s, SPC UCA, Bilstein 5160s, Icon RXT Leaf Pack, Relentless Fab Hybrid Front Bumper, Harbor Freight Winch.
    Rip, yeah I have been running it like this for years with no issues. They are probably referring to powering the compressor and you definitely don't want to run power directly to/through the switch panel for something that big (compressor, winch, etc) but powering the switch is totally fine.

  11. Jan 5, 2022 at 11:30 AM
    #31
    tacoma08brandon87

    tacoma08brandon87 Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88123
    Messages:
    1,411
    Gender:
    Male
    First Name:
    brandon
    el paso tx
    Vehicle:
    TRD
    I just ran it to its own arb switch by 4x4 is it ar

  12. Jan 5, 2022 at 9:09 PM
    #32
    toku58

    toku58 Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,929
    Gender:
    Male
    HAWAII
    Vehicle:
    Mall Crawler!
    21' TRD OffRoad 2" 887 OME on Bilstein 5100's. 285/70R17 General Grabbers G3 17x9" Icon TRD wheels (Gun metal gray)
    The Auxbeam "switch" only replaces the rocker "switch" all the other wiring stays the same on anything you run.

  13. Jan 11, 2022 at 8:11 AM
    #33
    CementTacoSupreme42

    CementTacoSupreme42 Member

    Joined:
    Oct 27, 2021
    Member:
    #380627
    Messages:
    9
    Gender:
    Male
    First Name:
    Nic
    Vehicle:
    2020 cement Tacoma trd off-road
    Following.. I just got my twin compressor and I wanna wire it up to my auxbeam.

  14. Jan 14, 2022 at 11:01 PM
    #34
    CementTacoSupreme42

    CementTacoSupreme42 Member

    Joined:
    Oct 27, 2021
    Member:
    #380627
    Messages:
    9
    Gender:
    Male
    First Name:
    Nic
    Vehicle:
    2020 cement Tacoma trd off-road
    This is extremely helpful
