help identify radio options

I just purchased a radio form ebay, part number 86140-04060 57016.. any idea what this raido has beside touch screen..

and how hard will it be to install this into my 2010 tacoma which has the JBL system in it.



The eBay seller didn't list a brand name? Youre potentially going to need a ton of wiring adapters to get it installed. All depends on your particular options. If you're not into the HU for too much, just scrap it and go look at crutchfield.

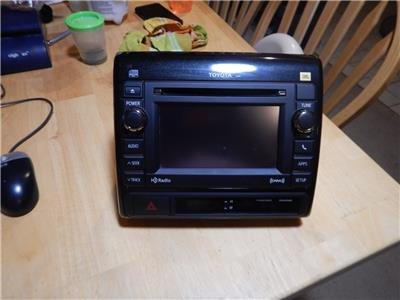

that looks like it.. this is what was included..



awesome man... yeah my 2010 did originally come with a JBL setup .. i do have an aux port already.. is the shark fin the black thing on top of the truck?



cool thanks.. i will have to read up on that process once i get it working..



the more i read the more confused i get.. LOL i am gonna pull out my aftermarket radio and see what the ends look like.. i am not too sure i have all of the options as i do not have the amp on the bottom like in the one pic the guy posted.



well if it becomes too much of a PIA i will just list it in the for sale section and be done with it.. all i really care about is the radio and usb input.. all of that other crap is not important to me.. the etune and nav is not a big deal..



just found this thread..

https://www.tacomaworld.com/threads/2013-bluetooth-touchscreen-install-in-my-06.312741/



That is the XM module that goes below.
Also member moonman50 is selling a complete setup he removed from his 2010.
https://www.tacomaworld.com/threads...h-navigation-appsuite-and-xm-attached.397898/



Found this on E-bay today and the seller is mistaken about the Nav but XM and non clock still attached to bezel.
http://www.ebay.com/itm/311510901338?_trksid=p2055119.m1438.l2649&ssPageName=STRK:MEBIDX:IT



I think I am done.. went to install it and it appears the power adapter is different on my 2010 VS the 2013 radio.. does anyone have the pin out for the power plug on the back of the 2013 radio?? I am to the point i may just sell the dam radio and stick with what I have..



From what I recall from my '13 jbl, xm is built into the radio. Navigation would be the extra module that your missing in the picture you posted.

Here is the wiring diagram for 2013 jbl: http://www.mediafire.com/view/1l4k3o24hub4627/2013_Tacoma_electrical_wiring_diagrams.pdf

Look for the section that starts with audio system <separate type amplifier>

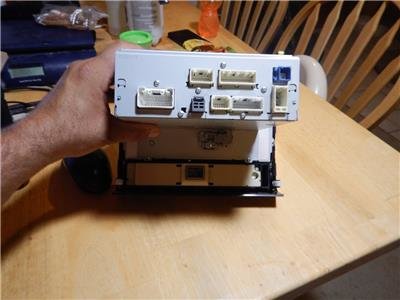

Lower left is the 20 pin plug R15. This is power, speakers and illumination. The top left plug would be the speed sensor. Only one wire goes in that plug. The top middle 28 pin is the steering wheel controls. Blue plug is the xm (shark fin) Grey plug in bottom middle is not used. The other bottom 2 are the navigation module. Bottom far right is the FM antenna. Also, the aux and usb input plugs into the navigation module. Without that, you won't get usb and aux.

Hope this helps.
