Help Releasing Electrical Connector Pins

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ACEkraut, Aug 14, 2016.

  1. Aug 14, 2016 at 11:54 AM
    #1
    ACEkraut

    ACEkraut [OP] Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    3,240
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road

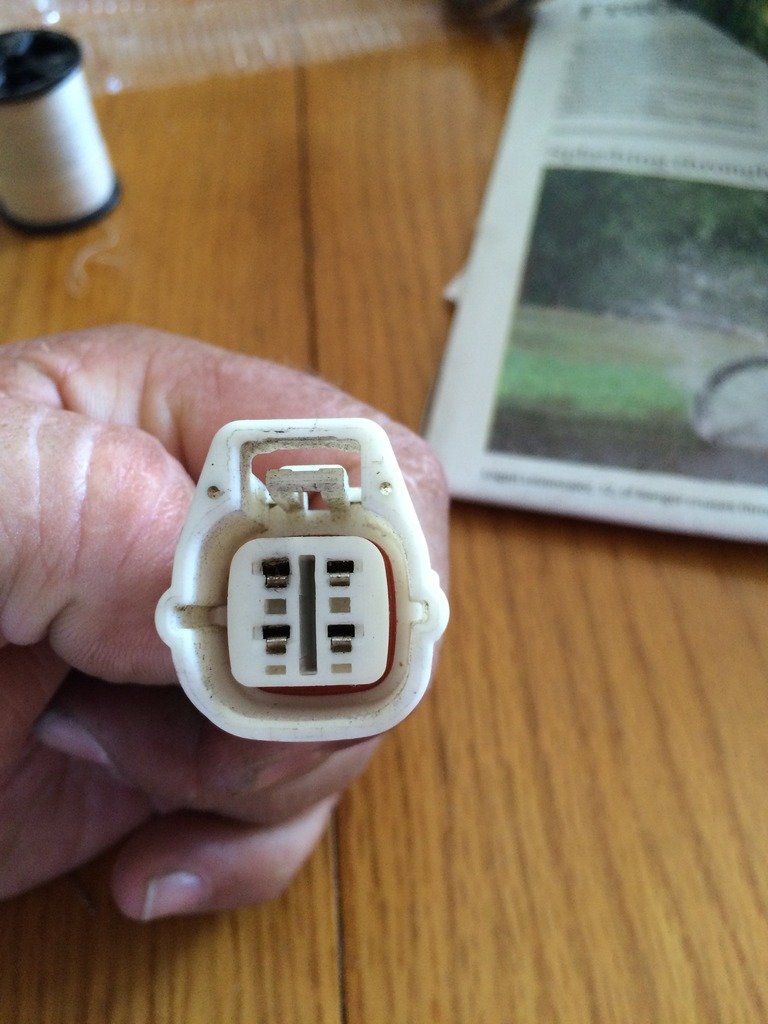

    I need some help removing the pins from this connector.

    72771768-8A79-431D-9F05-11FD0B4E06FC_zps_8d720193b5cbbbc17146cca5e60f3ef5beb3a5a8.jpg

    I have searched the web and TW with no success. Any links or advice is appreciated.

  2. Aug 14, 2016 at 12:51 PM
    #2
    deeve

    deeve Well-Known Member

    Joined:
    Jan 16, 2016
    Member:
    #175103
    Messages:
    143
    Gender:
    Male
    First Name:
    Dave
    Hillsboro, OR
    Vehicle:
    2015 TRD OR SB MGM
    I have used a paperclip or very small screwdriver before to release the individual wires. Something that is small and flat works best. They do make little tools for that I believe, but I've just used what I have around the house. Try those small slots. Push the wire forward a bit from the back and gently insert the tool from the front then gently tug the wire to pull it out. Sometimes is takes from practire.

  3. Aug 14, 2016 at 1:14 PM
    #3
    WOODEX M.E.

    WOODEX M.E. Well-Known Member

    Joined:
    Nov 4, 2012
    Member:
    #90445
    Messages:
    902
    Gender:
    Male
    First Name:
    Corey
    Maine
    Vehicle:
    2013 Tacoma TRD OR Pyrite Mica
    TRD Supercharger, Speedhut TRD Boost Gauge, Speedhut TRD AFR Gauge, PLX Wideband Controller W/Bosch O2 Sensor, Cravenspeed Boost Pod, AFE Pro Dri II Si Intake, Calvert Racing Caltrac Traction Bars. URD Catback Exhaust, URD 2.825" Super Grip Pulley, URD Spec-U Equal Length Headers, URD 255lph Fuel Pump, OEM FPR Mod.
    This might not be too helpfull, but there is almost always a special tool for doing so. Its amazing how well they work when you get the right one. As for what you need im not sure. Also some have barbs on them and are not meant to be removed without replacing. Usually they get damaged and you have to solder new ones on.

  4. Aug 14, 2016 at 1:19 PM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,292
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    There's a lock that needs to be pulled first...it's the white center rim. Then you'll see where to press to release the secondary terminal lock.
    Can you provide other angle on the plug, top, bottom, side and ass end...be more helpful, also looks like a sealed connector.

  5. Aug 14, 2016 at 6:47 PM
    #5
    ACEkraut

    ACEkraut [OP] Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    3,240
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road
    Thanks guys. I was not successful. I can always redo that wiring if I ever figure out how to get the pins out.

  6. Aug 15, 2016 at 4:19 AM
    #6
    B ill y

    B ill y Well-Known Member

    Joined:
    Jul 29, 2015
    Member:
    #160546
    Messages:
    306
    Gender:
    Male
    First Name:
    Billy
    Sarasota County, Florida
    Vehicle:
    2018 4Runner Trd OR, 1997 FZJ80,1985 FJ60
    You this.


  7. Aug 15, 2016 at 5:28 AM
    #7
    ACEkraut

    ACEkraut [OP] Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    3,240
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road
    Any source?

  8. Aug 15, 2016 at 5:33 AM
    #8
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    60,877
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
  9. Aug 15, 2016 at 5:43 AM
    #9
    ACEkraut

    ACEkraut [OP] Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    3,240
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road

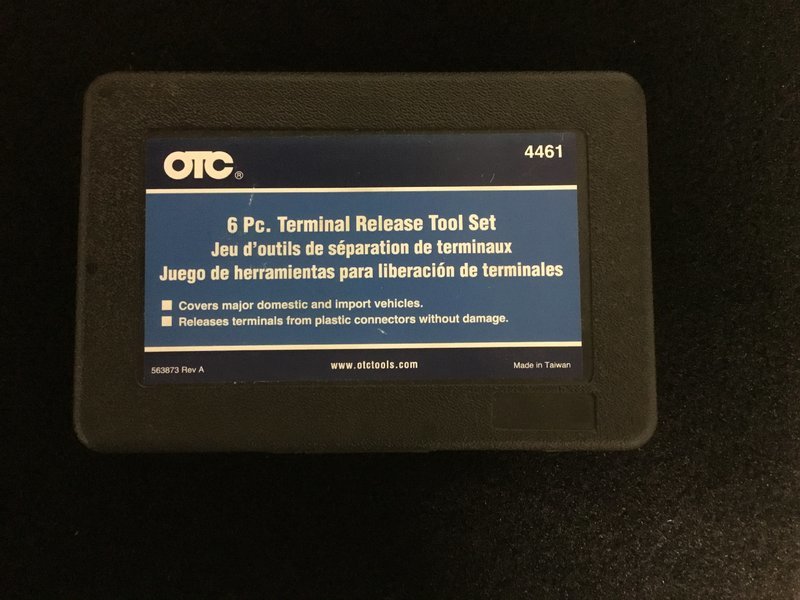

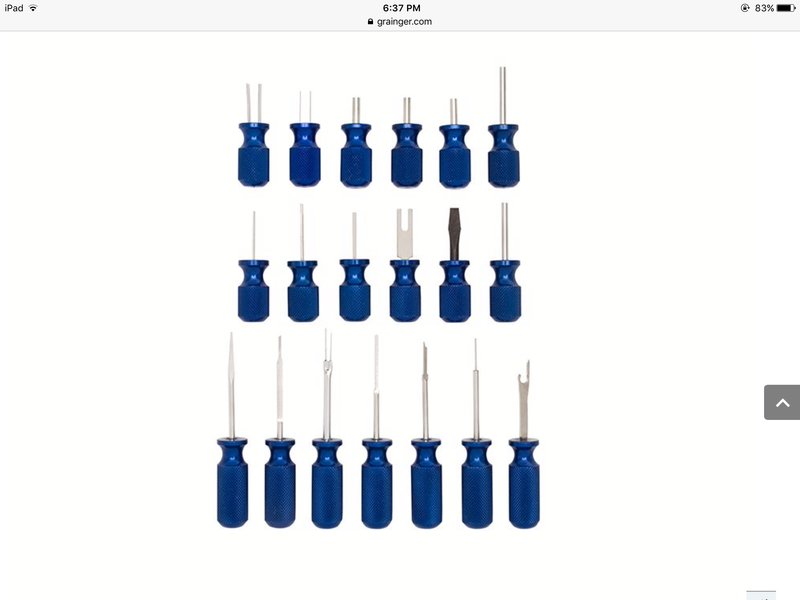

    Found it on Amazon, and other places. Have you tried the kit on that connector?

  10. Aug 15, 2016 at 5:44 AM
    #10
    ACEkraut

    ACEkraut [OP] Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    3,240
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road
  11. Aug 15, 2016 at 2:51 PM
    #11
    B ill y

    B ill y Well-Known Member

    Joined:
    Jul 29, 2015
    Member:
    #160546
    Messages:
    306
    Gender:
    Male
    First Name:
    Billy
    Sarasota County, Florida
    Vehicle:
    2018 4Runner Trd OR, 1997 FZJ80,1985 FJ60

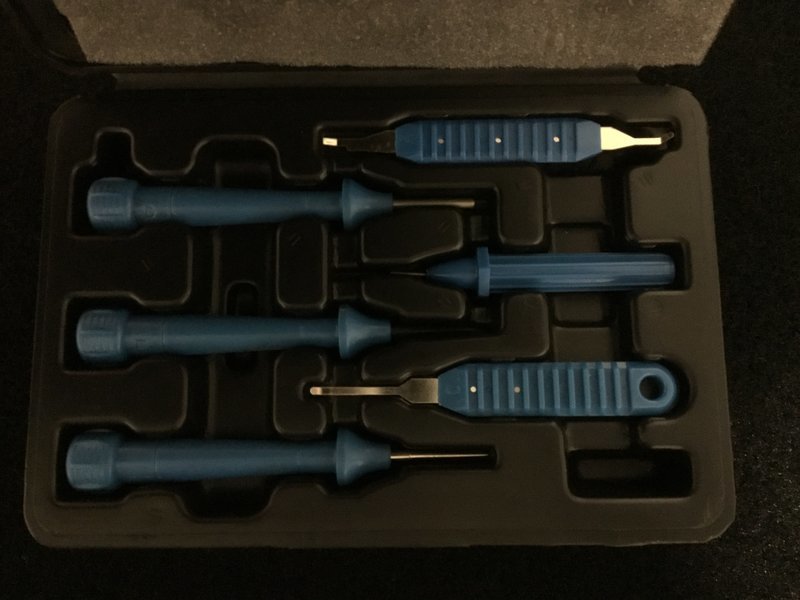

    It works on Toyota plugs and connectors. I use. On my vehicles.

  12. Aug 15, 2016 at 3:36 PM
    #12
    joedirt

    joedirt Hallow

    Joined:
    Jan 21, 2008
    Member:
    #4365
    Messages:
    1,411
    Gender:
    Male
    Ploeśti
    Vehicle:
    2005 Tacoma
  13. Aug 15, 2016 at 3:57 PM
    #13
    3coma

    3coma my kid says my truck is "Boss"

    Joined:
    Sep 19, 2015
    Member:
    #164680
    Messages:
    1,069
    Gender:
    Male
    First Name:
    rob
    Vehicle:
    19 dcsb sport cement 4x4
    Are you planning on reusing the connector after rerouting the wire? The pic looks like female pins with an extra hook so they don't back out. Got a pic of the rear of the connector. May need to be pushed through and desoldered.

  14. Aug 15, 2016 at 5:09 PM
    #14
    knayrb

    knayrb Well-Known Member

    Joined:
    Mar 3, 2010
    Member:
    #32473
    Messages:
    1,742
    Gender:
    Male
    Somewhere in the square states
    Vehicle:
    2010 Dbl-Cab Off-Road
    Pure stock
  15. Aug 15, 2016 at 6:49 PM
    #15
    Lester Lugnut

    Lester Lugnut Well-Known Member

    Joined:
    Mar 3, 2010
    Member:
    #32477
    Messages:
    2,823
    Gender:
    Male
    N of Mex-S of Canada-E of LA-W of NC
    Vehicle:
    '15 Tacoma PreRunner V6 SR5 Auto
    Try youtube:

    Search for -> electrical connector pins

    Obviously not all vids are going to line up with what you're trying to do.

    Last edited: Aug 16, 2016
  16. Aug 16, 2016 at 5:33 AM
    #16
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    60,877
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
    igno1tus, Daves300 and Biscuits like this.
  17. Aug 13, 2020 at 11:05 AM
    #17
    Daves300

    Daves300 TTC#0333

    Joined:
    Mar 20, 2020
    Member:
    #322554
    Messages:
    178
    Gender:
    Male
    First Name:
    Dave
    Texas
    Vehicle:
    2005, SCLB, 5 Lug, 2TR-FE, A340E
    Fat Bobs 2.75 AAL Lift, Bilstein 6150 30x9.5R15 URD 190LPH Fuel Pump
  18. Aug 13, 2020 at 11:17 AM
    #18
    ACEkraut

    ACEkraut [OP] Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    3,240
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road
    Holy thread rejuvenation Batman! This thread was dormant for 4 years! I forgot I ever started it...

    Daves300 and davidstacoma like this.
  19. Aug 13, 2020 at 12:03 PM
    #19
    vtdog

    vtdog Well-Known Member

    Joined:
    Apr 9, 2009
    Member:
    #15767
    Messages:
    520
    Gender:
    Male
    NH
    For us old guys (and I do mean old) that fix was originally known as a "Western Union" splice. In one of the variations, a square knot is made using the two ends and then the wire is spliced & taped (no solder on poles!) so that the knot takes the tension

  20. Aug 13, 2020 at 4:33 PM
    #20
    Daves300

    Daves300 TTC#0333

    Joined:
    Mar 20, 2020
    Member:
    #322554
    Messages:
    178
    Gender:
    Male
    First Name:
    Dave
    Texas
    Vehicle:
    2005, SCLB, 5 Lug, 2TR-FE, A340E
    Fat Bobs 2.75 AAL Lift, Bilstein 6150 30x9.5R15 URD 190LPH Fuel Pump
    We've been waiting 4 years for you to come back and tell us how it turned out

    :confused::confused::confused::confused:

    davidstacoma likes this.
