Help With Keyless Entry Install

Discussion in '1st Gen. Tacomas (1995-2004)' started by DUCKSHOT, Jul 31, 2016.

  1. Jul 31, 2016 at 5:34 PM
    #1
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    Bought this keyless entry system
    https://www.amazon.com/gp/product/B006QH9C5A/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

    I can turn wrenches all day, this is a different animal.
    I'm assuming I need the wiring diagram for my truck, can't find it.
    Not sure where exactly to install this at either, under steering wheel?
    Am I running wires to each door lock?
    What's the best way to splice into theses lines and where do I do that.
    Going to make a install thread once I get going in the right direction? You think this would have already been done. Every thread is vague.
    Someone please help me out!

  2. Jul 31, 2016 at 8:22 PM
    #2
    CD20H

    CD20H Well-Known Member

    Joined:
    Oct 25, 2014
    Member:
    #141019
    Messages:
    719
    Gender:
    Male
    First Name:
    Ben
    North Texas
    Vehicle:
    2004 Double Cab TRD 4x4 Limited
    Magnuson Kompressor, OME lift kit, JBA Headers, junky Sony radio.
    Read the instructions thoroughly. Yes you will need a wiring diagram of your truck. There are internet sites that have diagrams.
    Install the control box on the driver side in the kick panel.
    Again, read the instructions thoroughly and have a idea of what wires go to what. Each keyless entry wire color system is different.

    I installed a remote start system on my truck and it was a MAJOR PITA. I wrote down on a piece of paper of which wire on the keyless entry system goes which wire in the truck and where the wire is in the truck before I ever started. Start with the easy wires first like the ones that flash the parking lights when unlocked and locked.

    Last edited: Jul 31, 2016
  3. Jul 31, 2016 at 8:34 PM
    #3
    carofchoice

    carofchoice Well-Known Member

    Joined:
    Dec 30, 2015
    Member:
    #173539
    Messages:
    701
    Gender:
    Male
    First Name:
    Jeff
    Newton, IL
    Vehicle:
    2003 DC 4X4 TRD, 2012 X-Runner
    maybe this would help. I haven't gone through it myself yet so not sure. just copy and paste into browser

    file deleted:bananadead:

    Last edited: Jul 31, 2016
  4. Jul 31, 2016 at 8:56 PM
    #4
    CodeSeven

    CodeSeven Yo

    Joined:
    Aug 20, 2014
    Member:
    #136597
    Messages:
    1,971
    Gender:
    Male
    First Name:
    Serge.
    Coachella Valley
    Vehicle:
    '00 Taco 3.4 4x4 TRD ( <3), '06 Taco Prerunner 4.0 (totaled)
    3 inch lift. bluetooth stereo. blue transparent skulls shift knobs
    nice try lol. thats not how you upload BTW...

    Last edited: Aug 1, 2016
  5. Jul 31, 2016 at 8:59 PM
    #5
    carofchoice

    carofchoice Well-Known Member

    Joined:
    Dec 30, 2015
    Member:
    #173539
    Messages:
    701
    Gender:
    Male
    First Name:
    Jeff
    Newton, IL
    Vehicle:
    2003 DC 4X4 TRD, 2012 X-Runner

    ehh it worked when i copied and pasted. lol

    CodeSeven likes this.
  6. Aug 1, 2016 at 4:38 AM
    #6
    RLD831

    RLD831 Active Member

    Joined:
    Apr 3, 2016
    Member:
    #183238
    Messages:
    32
    Gender:
    Male
    First Name:
    Rob
    Vehicle:
    2001 Tacoma Doublecab PreRunner Limited
    I used the diagram at this link when I wired mine. http://www.commandocaralarms.com/wiring/2001-2003/toyota/tacoma/2038.html I have a 2001 PreRunner as well. If you're just looking to wire up a set of door locks, it should be a really easy install. All of the problems I ran into were for the ignition start wiring. Your best bet for splicing into the harness is inside the kick panel to the left and under the steering wheel.

  7. Aug 1, 2016 at 9:02 AM
    #7
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner

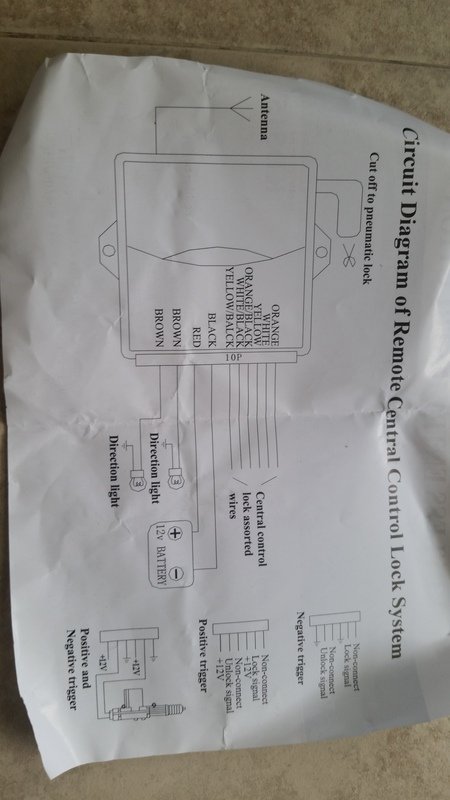

    This is my wiring instructions.
    I assume the 2 bottom brown wires are for the flashers, red and black have to run to the battery.
    The other six wires I have no idea....
    How do I tie into the wires?
    Strip a small portion back and wrap the wire around it and the put electrical tape on it?


  8. Aug 1, 2016 at 10:25 AM
    #8
    CD20H

    CD20H Well-Known Member

    Joined:
    Oct 25, 2014
    Member:
    #141019
    Messages:
    719
    Gender:
    Male
    First Name:
    Ben
    North Texas
    Vehicle:
    2004 Double Cab TRD 4x4 Limited
    Magnuson Kompressor, OME lift kit, JBA Headers, junky Sony radio.
    Start with easiest wires first.
    Black wire/negative......ground it to the body some where.
    Red wire/Positive......run a wire all the way to the battery with inline fuse or find a continues 12v positive to tie in to with the ignition OFF.
    Your controller has 2 brown wires for the parking lights. Either you can use both....run each brown wire to both FRONT parking lights( redundancy ) OR use just one and splice in to the POSITIVE wire on one of the parking lights. Look at the wiring diagram for you truck and find the positive wire for the parking lights. Splice one of those brown wires to it.

    The other six wires are tricky and where a multimeter will come in handy.
    Remove the driver side door panel to get access to the door lock actuator wires. Look on the truck wiring diagram and find the door lock actuator trigger wires. Grab your multimeter, ground the negative probe to a ground on the truck somewhere. With the red positive probe, tap in to one of the wires that triggers the door lock. You may have to go through all of them to single out the wires. Operate the door locks and observe what the voltage does. If the voltage shows a jump in POSITIVE voltage.....you have a positive trigger. If the voltage does nothing....you have a negative trigger.
    I suspect you will have a positive trigger. Most automobile manufactures don't want live positive wires running through the door. In case of a accident where you are hit in the door, with a live positive wire would burn the truck to the ground.
    The door lock system uses a positive signal to operated the door lock actuator. One pulse of positive current will unlock the doors on one wire ( unlock wire on the truck diagram ) and another pulse of positive current will lock the doors ( lock wire on the truck diagram ). When you push the unlock/lock button on the door.......the button sends positive voltage signal to the lock actuator, the keyless entry box is simulating this. Splice the box controller unlock wire to the unlock truck wire. Splice the control box lock wire to the lock truck wire. You will have to trace the wires from the door to the kick panel to keep from running wires into the door from the keyless entry box.

    Take the Yellow wire and the yellow/black wire and splice those into a constant 12v source.
    Take the Orange and Orange/black wire and tie them into a knot to signify they will not be used and tape them up.

    Take a remote push unlock. The doors should unlock. If they lock......you have the lock and unlock wire backwards.
    Check to see if the parking lights are flashing when unlocking and locking.

    Note: DO NOT use quick splice type splices. http://www.wiringproducts.com/quick-splices. They short out to easily and you will be taking everything apart to remove them and doing the job right.
    Proper way is to cut a small section of insulation from the wire, wrap the wire you are wanting to connect, solder, wrap in self vulcanizing rubber electrical tape.

    Last edited: Aug 1, 2016
    DUCKSHOT [OP] likes this.
  9. Aug 1, 2016 at 2:20 PM
    #9
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    Thank you CD20H, now that's more along the lines of some of the help I needed.

  10. Aug 2, 2016 at 8:19 AM
    #10
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner

  11. Aug 2, 2016 at 9:34 AM
    #11
    CD20H

    CD20H Well-Known Member

    Joined:
    Oct 25, 2014
    Member:
    #141019
    Messages:
    719
    Gender:
    Male
    First Name:
    Ben
    North Texas
    Vehicle:
    2004 Double Cab TRD 4x4 Limited
    Magnuson Kompressor, OME lift kit, JBA Headers, junky Sony radio.
    So I am looking for the gray and purple wires coming from the fuse box based off this list?
    http://www.commandocaralarms.com/wiring/2001-2003/toyota/tacoma/2038.html
    That leaves me with 3 wires coming out of the control box.
    Seems like these 3 wires go to the lock and unlock wires, why do I need to trace wires to the lock?

    Ok let's take a look at the Positive Trigger wiring schematic from top down on the keyless entry box.
    1. Not used.
    2. Lock signal
    3. +12v
    4. Not used.
    5. Unlock signal
    6. +12v

    The only wires that you will be splicing are the Lock Signal, Unlock Signal and the 2 Positive 12v wires (look below).
    Splice the UNLOCK wire on the keyless entry box to the PURPLE wire.
    Splice the LOCK wire on the keyless entry box to the GREY wire.
    The 2 +12v wires, After looking at the confusing keyless entry box diagram, You need to check to see what they do. Do they supply a positive 12v or do they need positive 12v. They may supply a 12v signal for something like the horn. Example: horn honks when the doors are unlocked and locked. All technical writers should be shot.

    As for the DOOR TRIGGER wires on the truck wiring.
    1. THE DRIVER DOOR TRIGGER IS GREEN(-)
    2. THE FRONT PASSENGER DOOR TRIGGER IS GREEN/WHITE(-)
    3. THE REAR DOOR TRIGGER IS YELLOW/GREEN(-) .
    I believe these wires are only used when installing an alarm system. They are for lock tampering.

    Trace the wires to the lock to verify that you have the correct wires. Disregard if you are confident that you have the correct wires.

    Last edited: Aug 2, 2016
  12. Aug 2, 2016 at 2:21 PM
    #12
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    Thank you so much, about to get started.
    Where should I connect the yellow wire for 12v? Assuming I do the same with the other 12v yellow and black wire? Same spot?

  13. Aug 2, 2016 at 2:38 PM
    #13
    CD20H

    CD20H Well-Known Member

    Joined:
    Oct 25, 2014
    Member:
    #141019
    Messages:
    719
    Gender:
    Male
    First Name:
    Ben
    North Texas
    Vehicle:
    2004 Double Cab TRD 4x4 Limited
    Magnuson Kompressor, OME lift kit, JBA Headers, junky Sony radio.
    Hook eveything up besides the Yellow and Yellow and black wires. You need to check to see if they supply a positive 12v volts or need 12 volts. I suspect they supply 12v for like a horn honk to signal operation.

    If the wires shows a 12v spike when unlocking and locking the doors, you can hook them up to anything that will signal door lock operation. Example head lights, horn, dome light and etc. But check it to see.

  14. Aug 2, 2016 at 4:32 PM
    #14
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    So far I have connected the positive and negative wires, the lock and unlock and it does nothing. The box clicks when I hit the remote but nothing happens with the locks.

  15. Aug 2, 2016 at 4:35 PM
    #15
    CD20H

    CD20H Well-Known Member

    Joined:
    Oct 25, 2014
    Member:
    #141019
    Messages:
    719
    Gender:
    Male
    First Name:
    Ben
    North Texas
    Vehicle:
    2004 Double Cab TRD 4x4 Limited
    Magnuson Kompressor, OME lift kit, JBA Headers, junky Sony radio.
    With a multimeter check the lock and unlock wires on the key entry box to see what the voltage does.

  16. Aug 2, 2016 at 4:35 PM
    #16
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    What's the best way to attach the wire to the fuse box? Will hooking one wire to the horn make it go off when the bitton is pressed?

  17. Aug 2, 2016 at 4:38 PM
    #17
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    Hard to do now because it just started raining.

  18. Aug 2, 2016 at 4:40 PM
    #18
    CD20H

    CD20H Well-Known Member

    Joined:
    Oct 25, 2014
    Member:
    #141019
    Messages:
    719
    Gender:
    Male
    First Name:
    Ben
    North Texas
    Vehicle:
    2004 Double Cab TRD 4x4 Limited
    Magnuson Kompressor, OME lift kit, JBA Headers, junky Sony radio.
    The best way to attach a wire to the fuse box is attach it to a wire going INTO the fuse box.
    You will have to find the GREEN/RED wire on the steering column.

  19. Aug 2, 2016 at 4:42 PM
    #19
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    So find the horn wire and splice into that? What is the purpose of this and the other one?
    Make the horn go off?

  20. Aug 2, 2016 at 4:50 PM
    #20
    DUCKSHOT

    DUCKSHOT [OP] Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    165
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    Just checked with a volt meter. Had the negative wire on the negative battery post and the positive shoved into my splice and operated the locks back and forth. Nothing....
    Had to have spliced the wrong wires....
    Any ideas for me for tomorrow?!?!
    Supposed to rain the rest of tonight.
