Help with with final ARB compressor wiring connections

Discussion in '2nd Gen. Tacomas (2005-2015)' started by EchoDeltaSierra, Apr 30, 2015.

  1. Apr 30, 2015 at 3:10 PM
    #1
    EchoDeltaSierra

    EchoDeltaSierra [OP] Well-Known Member

    Joined:
    Apr 13, 2015
    Member:
    #153078
    Messages:
    412
    Gender:
    Male
    Georgetown, TX
    Vehicle:
    2020 TRD Off-Road
    Nitro 4.88 gears OME suspension ST/Maxx 255/85R16s
    Today was the first significant vehicle mod; and ARB compressor install. The install went pretty well with the help of chuckbcuz57, but I need to figure out a couple of minor items.

    First, what is the best place, in a 2010, to hook the ignition (red yellow) wire and the dash light (blue white) wire off the ARM harness?

    Second, I'm thinking about installing the compressor switch between the fog light switch and the inverter switch. Currently it's between the traction control and side airbag switch. Also, it appears I need to dremel or otherwise trip out the switch hole a bit. What do you recommend?

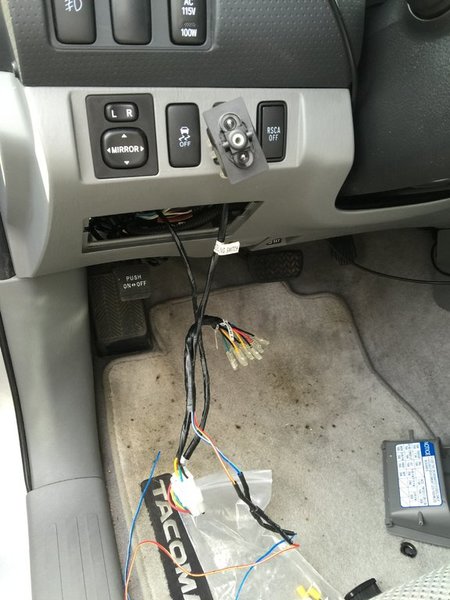

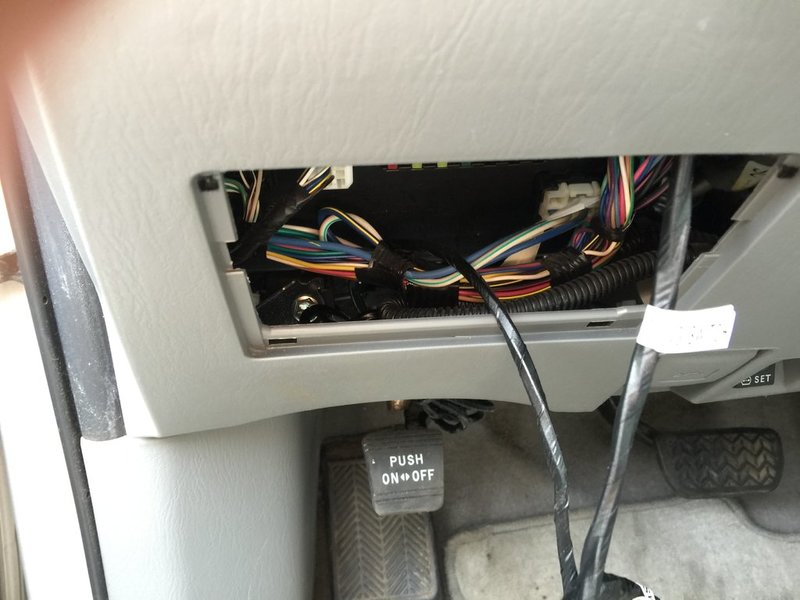

    Here are a couple of pictures to help. Thanks for any insight.



  2. Apr 30, 2015 at 6:47 PM
    #2
    Jefes Taco

    Jefes Taco Well-Known Member

    Joined:
    Mar 28, 2014
    Member:
    #126413
    Messages:
    2,633
    Gender:
    Male
    Denver, CO
    Vehicle:
    14' DCLB TRD Sport supercharged

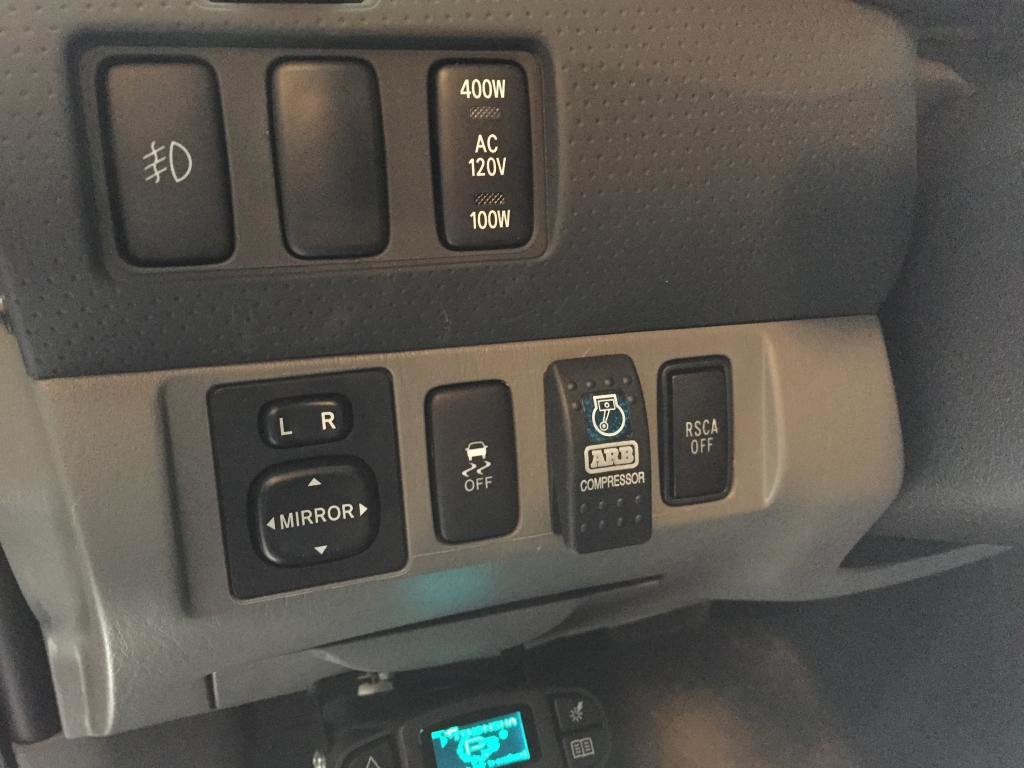

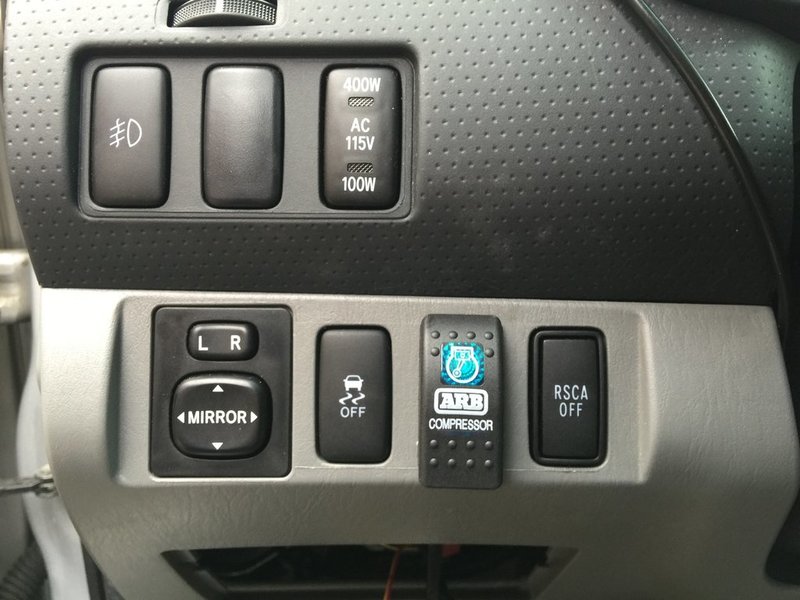

    I put mine here:


    I did have to make a little room for it to fit. I used my pocket knife I keep in the center console as it's extremely sharp. I just cleared away a bit of material and it fit.

    Go get a couple of add a circuit from Auto Zone, O'Reilly's, etc. Add it to whichever fuse you feel like. I just hooked the hot wire for the light in a hot when ignition on fuse. It stays lit the entire time. You could probably skip the light if it bothers you at night.

  3. May 1, 2015 at 6:57 PM
    #3
    EchoDeltaSierra

    EchoDeltaSierra [OP] Well-Known Member

    Joined:
    Apr 13, 2015
    Member:
    #153078
    Messages:
    412
    Gender:
    Male
    Georgetown, TX
    Vehicle:
    2020 TRD Off-Road
    Nitro 4.88 gears OME suspension ST/Maxx 255/85R16s
    Wohoo! Project complete. I need to get a writeup on my build thread.
