HF Badlands 9k winch install ARB bumper

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jagergirll, Jan 19, 2019.

  1. Jan 19, 2019 at 8:54 AM
    #1
    jagergirll

    jagergirll [OP] Well-Known Member

    Joined:
    Jan 16, 2015
    Member:
    #146520
    Messages:
    508
    Gender:
    Female
    First Name:
    Sam
    Midwest
    Vehicle:
    4x4 RC
    OME Suspension ARB Bumper Rock Sliders BFG KO2 A/T 245/75R16 Camper Shell
    Note for entertainment purposes only.

    So after lots of searching I could not find a solid answer that I liked about the HF Badlands 9k winch being installed in an ARB Bumper so here it is.

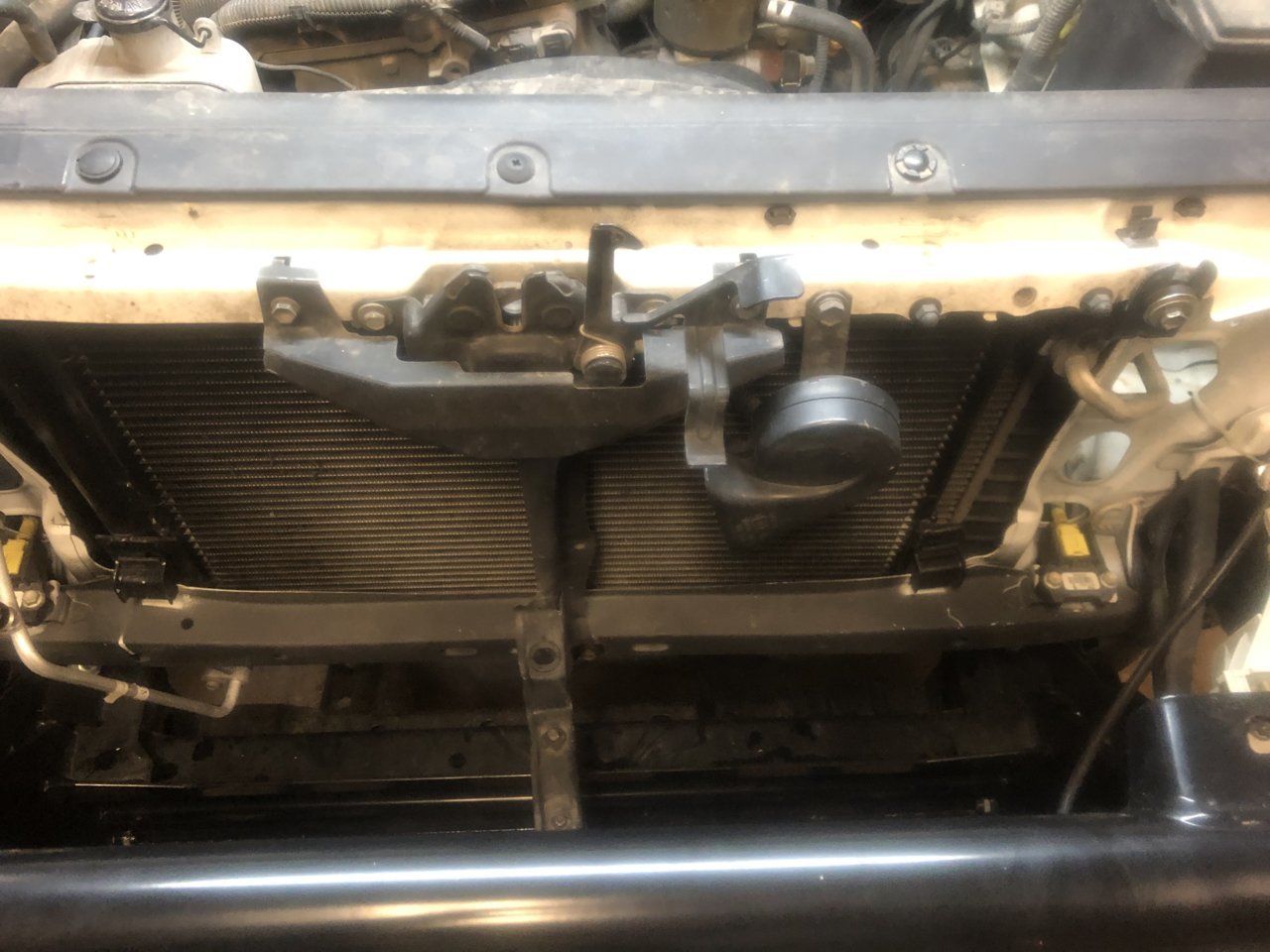

    First instead of taking the bumper off we removed the grille and supports across the front which made it easier to see how it was going to fit.

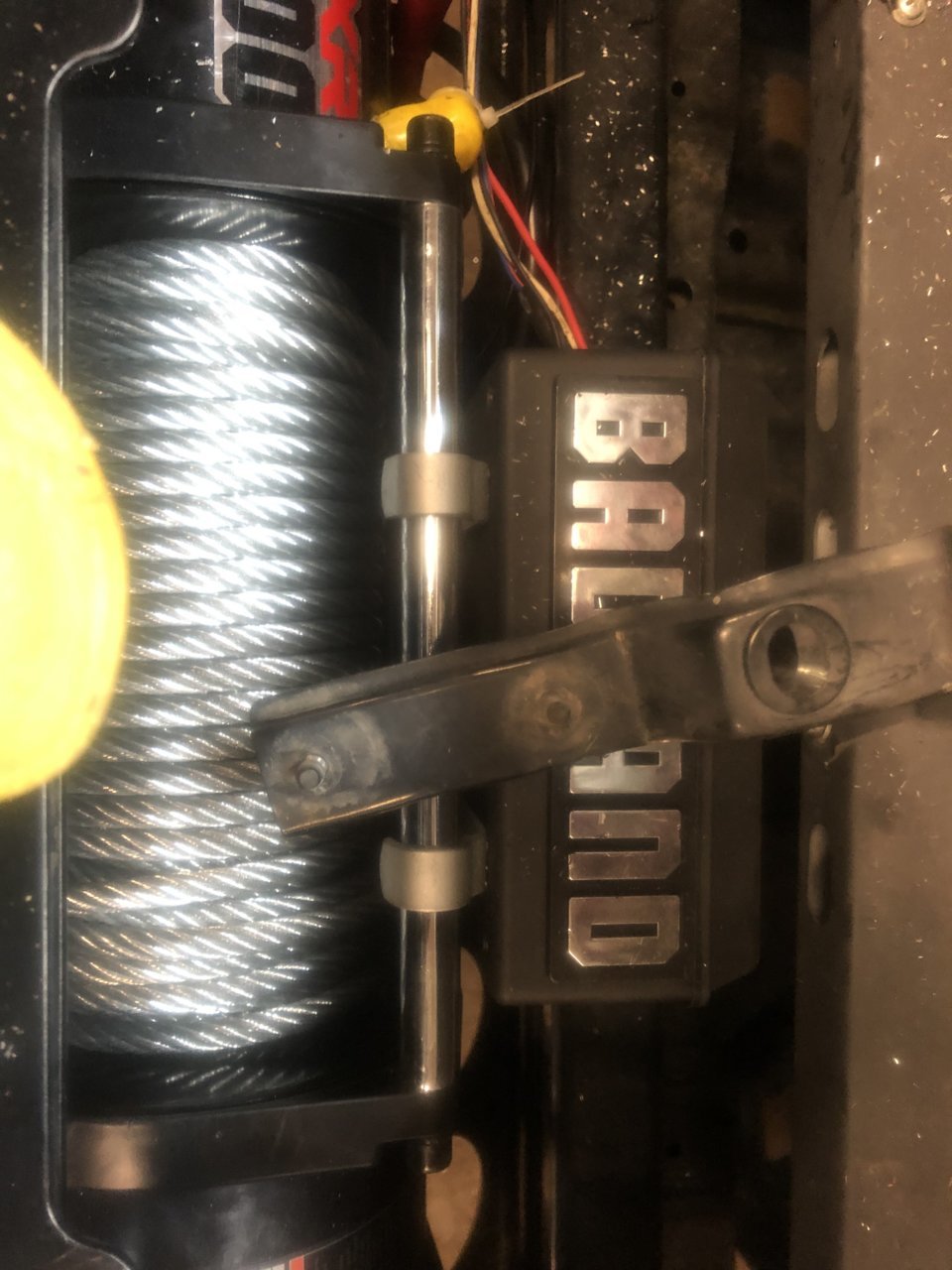

    Then once we knew how far to clock it we clocked the winch.

    After clocking the winch we noticed the HF winch farlead plate had its own bolts which we skipped and drilled holes to line up with the winch holes. In my opinion using longer bolts to accomplish this made the use of spacers unnecessary.

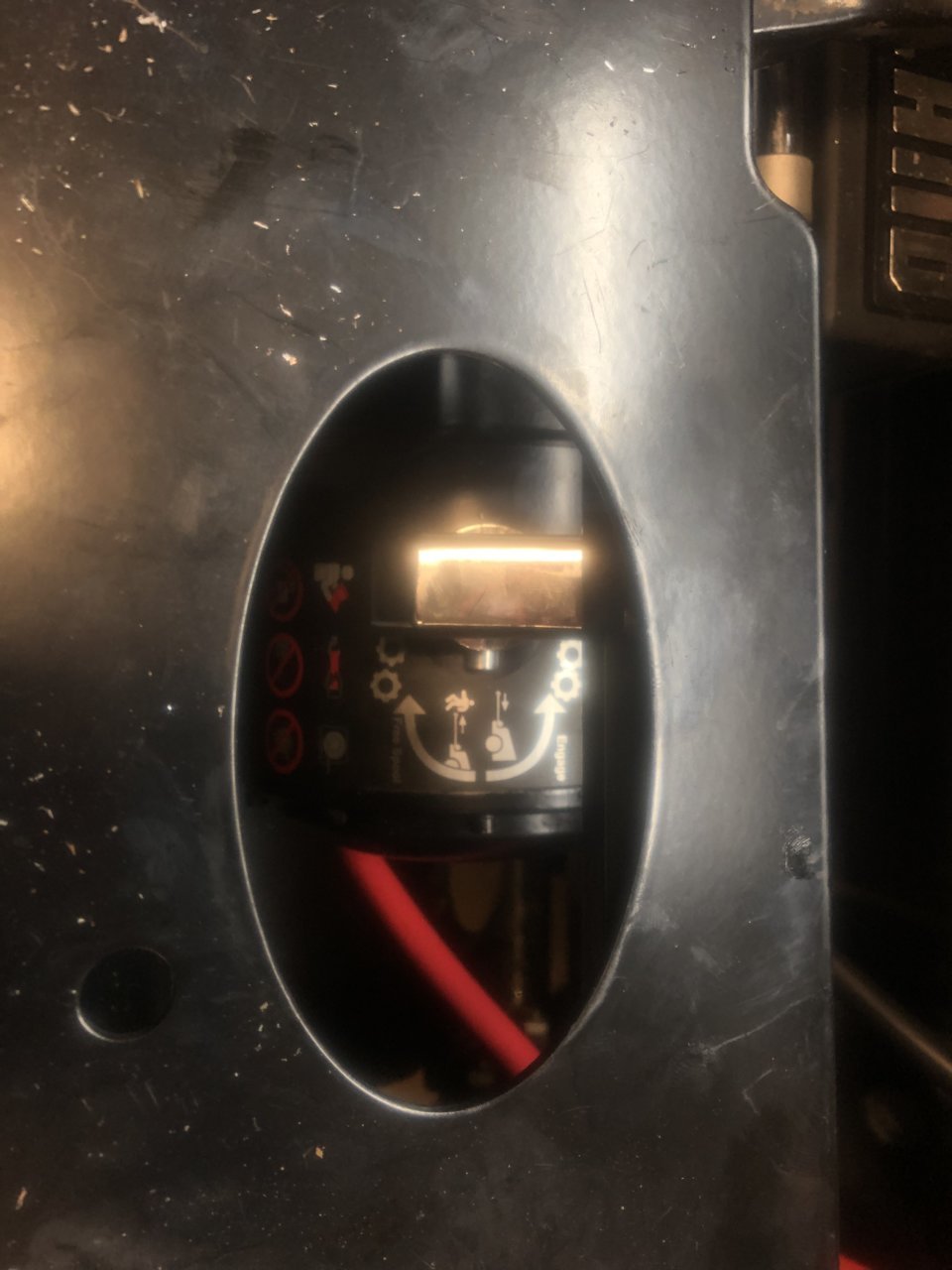

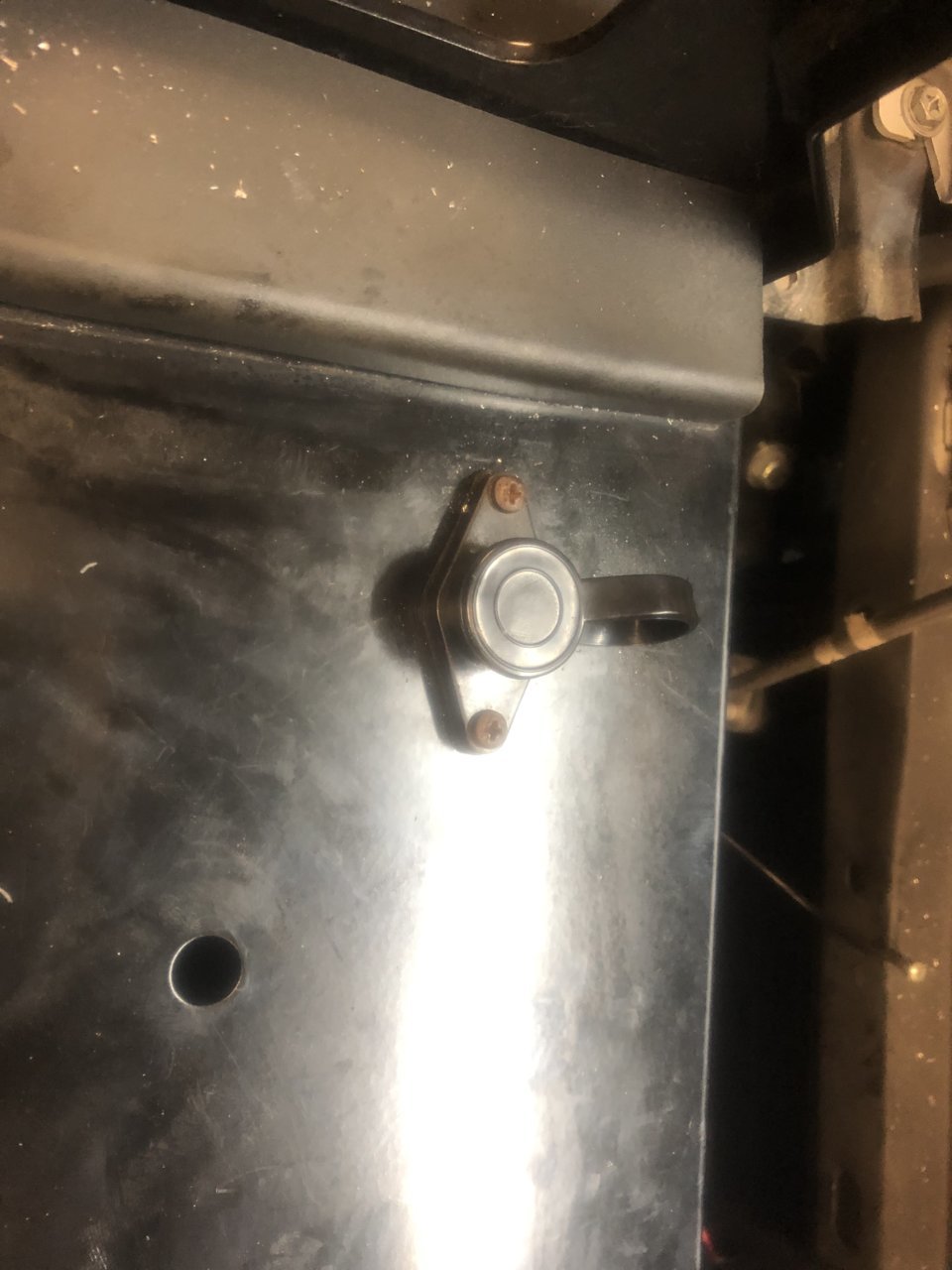

    Then we relocated the remote plug and mounted the cilenoid box on the back of the winch like it was supposed to be mounted.


    Used the die grinder to make an existing hole larger and self taping screws to hold it in place.

    After everything worked right we used silicone to close up the holes on the box to keep water out. Put my light bar back on and called it good.

    Please note you do not have to trim the handle if you clock it right on the 9k I have heard the 12k you may have to.


    Finished product.

    Last edited: Jan 19, 2019
    Mully, lo2hi and Grey 2015 like this.
  2. Apr 15, 2019 at 3:56 PM
    #2
    taconut2011

    taconut2011 New Member

    Joined:
    Nov 21, 2018
    Member:
    #273356
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2011 tacoma trd sport
    old man emu/ bilstein lift, ARB front bumper fab fours rear bumper, ditch lights falken wildpeaks
    Did you just clock it 90 degree?

  3. Apr 16, 2019 at 7:59 PM
    #3
    jagergirll

    jagergirll [OP] Well-Known Member

    Joined:
    Jan 16, 2015
    Member:
    #146520
    Messages:
    508
    Gender:
    Female
    First Name:
    Sam
    Midwest
    Vehicle:
    4x4 RC
    OME Suspension ARB Bumper Rock Sliders BFG KO2 A/T 245/75R16 Camper Shell
    Yes any further forward you have difficulty accessing the handle may hands are small well compared to a mans hand so it works perfect for me.

  4. Apr 16, 2019 at 8:12 PM
    #4
    Bloodytaco208

    Bloodytaco208 Well-Known Member

    Joined:
    Apr 6, 2019
    Member:
    #289329
    Messages:
    336
    Gender:
    Male
    208
    Vehicle:
    Twisted steel sex appeal reg cab tacoma
    Bunch of built and bought mods
    Why didnt you mount the solenoid on the top of the bumper?

  5. Apr 17, 2019 at 7:31 AM
    #5
    Bajatacoma

    Bajatacoma Well-Known Member

    Joined:
    Dec 10, 2010
    Member:
    #47503
    Messages:
    1,498
    Gender:
    Male
    SC
    Vehicle:
    05 TRD Off-Road, SR5, 6 speed
    The light bar is in the way or where the box is supposed to be mounted. ARB provides a bracket for the solenoid in the hardware bag and there are holes pre-drilled for it. Being in the bumper it's more protected anyways. I relocated mine to inside my engine compartment when I put the light bar on.

    Make sure that you keep your winch cable snug, not slack. Daystar makes a buffer block that works well. Ex. https://www.amazon.com/Daystar-Universal-fairlead-isolator-KU70039BK/dp/B001GH5PRE

    jagergirll [OP] likes this.
  6. Apr 17, 2019 at 10:24 AM
    #6
    Bloodytaco208

    Bloodytaco208 Well-Known Member

    Joined:
    Apr 6, 2019
    Member:
    #289329
    Messages:
    336
    Gender:
    Male
    208
    Vehicle:
    Twisted steel sex appeal reg cab tacoma
    Bunch of built and bought mods
    I understand that arb comes with a mounting bracket for it. Installing it in your engine compartment is a lot better idea than on the winch tucked into the bumper. If there is an issue with the solenoid than itll be a bitch to repai on the trail. I would rather have my solenoid in a spot to get to than a sweet light bar. Get rid of that cheap ass hook and go with factor 55 shackle mounts. Safer and stronger

  7. Apr 17, 2019 at 9:07 PM
    #7
    jagergirll

    jagergirll [OP] Well-Known Member

    Joined:
    Jan 16, 2015
    Member:
    #146520
    Messages:
    508
    Gender:
    Female
    First Name:
    Sam
    Midwest
    Vehicle:
    4x4 RC
    OME Suspension ARB Bumper Rock Sliders BFG KO2 A/T 245/75R16 Camper Shell
    I actually used the mounting bracket that came with it. It’s not too bad to get to and another light bar is not in the budget. I use the light almost daily so in respects it was important to keep. My flush mounted lights in the rear bumper are great too.

  8. Apr 17, 2019 at 9:21 PM
    #8
    Bloodytaco208

    Bloodytaco208 Well-Known Member

    Joined:
    Apr 6, 2019
    Member:
    #289329
    Messages:
    336
    Gender:
    Male
    208
    Vehicle:
    Twisted steel sex appeal reg cab tacoma
    Bunch of built and bought mods

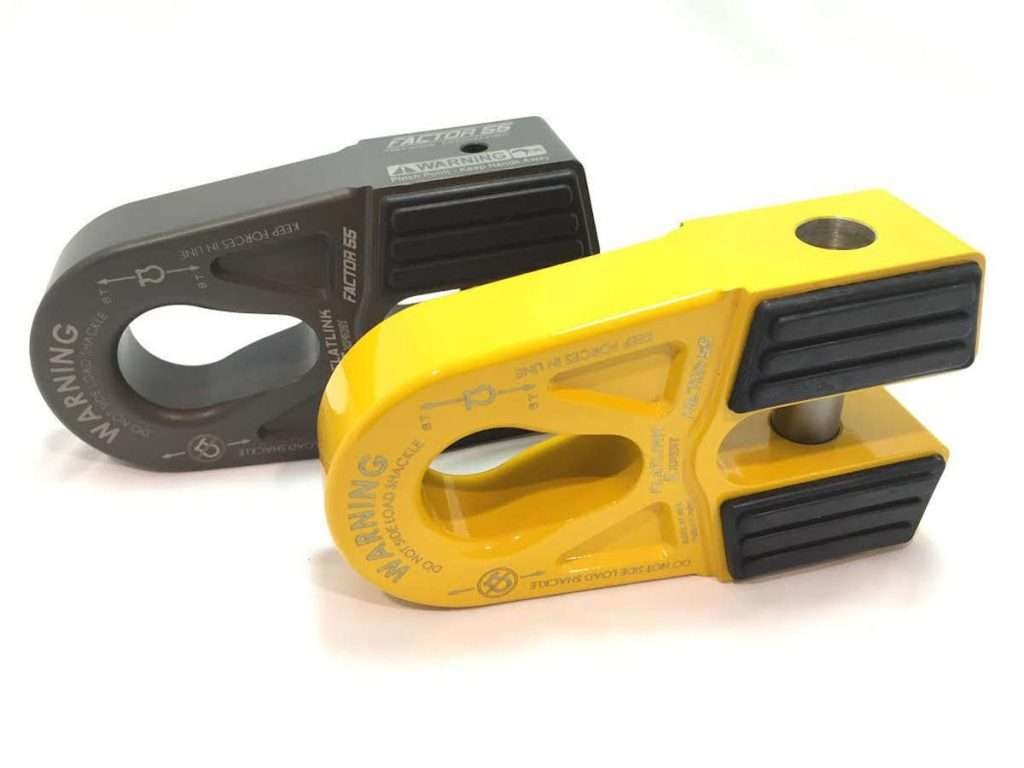

    Hey if that works then hammer down. All i was doing was critical thinking not criticizing, if that works for you then im just making shit up, except fot the hook. When you get a minute i recommend getting something like thisFlatLink-E-Yellow-and-Gray-2-1024x768.jpg

    jagergirll [OP] likes this.
