HHG's Built, Yet Still Building, Build Thread. (Now With Flat Bed & 37s)

Discussion in '2nd Gen. Builds (2005-2015)' started by HolyHandGrenade, Jul 4, 2016.

  1. Jul 4, 2016 at 5:54 PM
    #1
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    I never started a build thread when I bought my truck new 3 1/2 years ago. I wasn't going to do anything major to it...

    Well, it's snowballed and it seems every time I swear I'm done... Well, turns out I'm not. So, here's my build thread.

    The Current:

    SUSPENSION/LIFT
    -ADS Extended Travel Coilovers
    -SPC UCAs
    -Dakar Leaf Pack with D29XL Add a Leaf
    -Bilstein B110's Rear
    -U-Bolt Flip
    -Superbumps Front And Rear
    -Archive Shackle Flip
    -37x12.5x17 Cooper Discovery Pros
    -Jegs Steelies With TMI Weld On Beadlocks

    PERFORMANCE & DRIVETRAIN
    -Magnuson Supercharger
    -2.55 Pulley
    -61 lb injectors
    -URD 7th Injector
    -FJ / 4Runner 70mm Throttle Body
    -UCON
    - @Roostfactor Pulley Wrap Kit
    -URD Fuel Pump Kit
    -Doug Thorly Pipe Bomb
    -Doug Thorly Long Tube Headers
    -URD Cat-back
    -AFE Intake (Pro Dry)
    -IPT Valve Body

    -Twin Sticked FJ T-Case
    -FJ Tube (ADD Delete)
    -ECGS Built 4.88 Front Diff With ARB
    -ECGS Rear Dana 60 with OX Locker
    -One Piece Driveshaft
    -RCV Front Axles


    ARMOR Gusseting
    -Bruteforce Front Bumper / ComeUp 9500 LB Winch
    -Home Made Flatbed
    - @Mobtown Offroad IFS, Trans, & T-case Skids
    -RCI LCA Skids
    -Pelfreybily Fuel Tank Skid
    -Bruteforce Sliders
    -Gussetted Cam Tabs
    -Coil Tower Gussets
    -Spindle Gussets
    -Mohawk Fab Traction Bar
    -Mohawk Fab Rear X-Member


    LIGHTING/ELECTRICAL
    -C4 FAB Hood Scoop Bracket With Single Row LED Bar
    -Four 4" Light Pods Up Front
    -2 Light Pods Out Back & 20” Bar
    -Blue Sea Fuse Block
    -Iggy Panel
    -In Cab Winch Switch

    Misc
    -OBA ARB Twin Compessor With 2.5 Gal Tank
    -Safari Snorkel
    -ScanGauge ll
    -Trans Cooler With Fan
    -Interior Wall Plug Run Off Factory Invertor
    -Fog Light Anytime Mod (Switch now controls light pods in front bumper)
    -400W Anytime Mod

    There're a Bunch of other little Misc things but everything above is the important stuff

    Links To Some Of My Mods
    -Auxiliary Fuel Tank
    https://www.tacomaworld.com/threads...x-fuel-tank-setup.475581/page-4#post-14566354
    -Bumper/Winch Install
    https://www.tacomaworld.com/threads/bruteforce-makeover.426393/
    -Re-Gear
    https://www.tacomaworld.com/threads/this-weekends-project-re-gear.409086/
    -Decal Removal
    https://www.tacomaworld.com/threads/removed-trd-sport-decals-today.357333/
    -Trans Cooler With Fan
    https://www.tacomaworld.com/threads/my-trans-a-cooler-with-a-fan-install.352071/

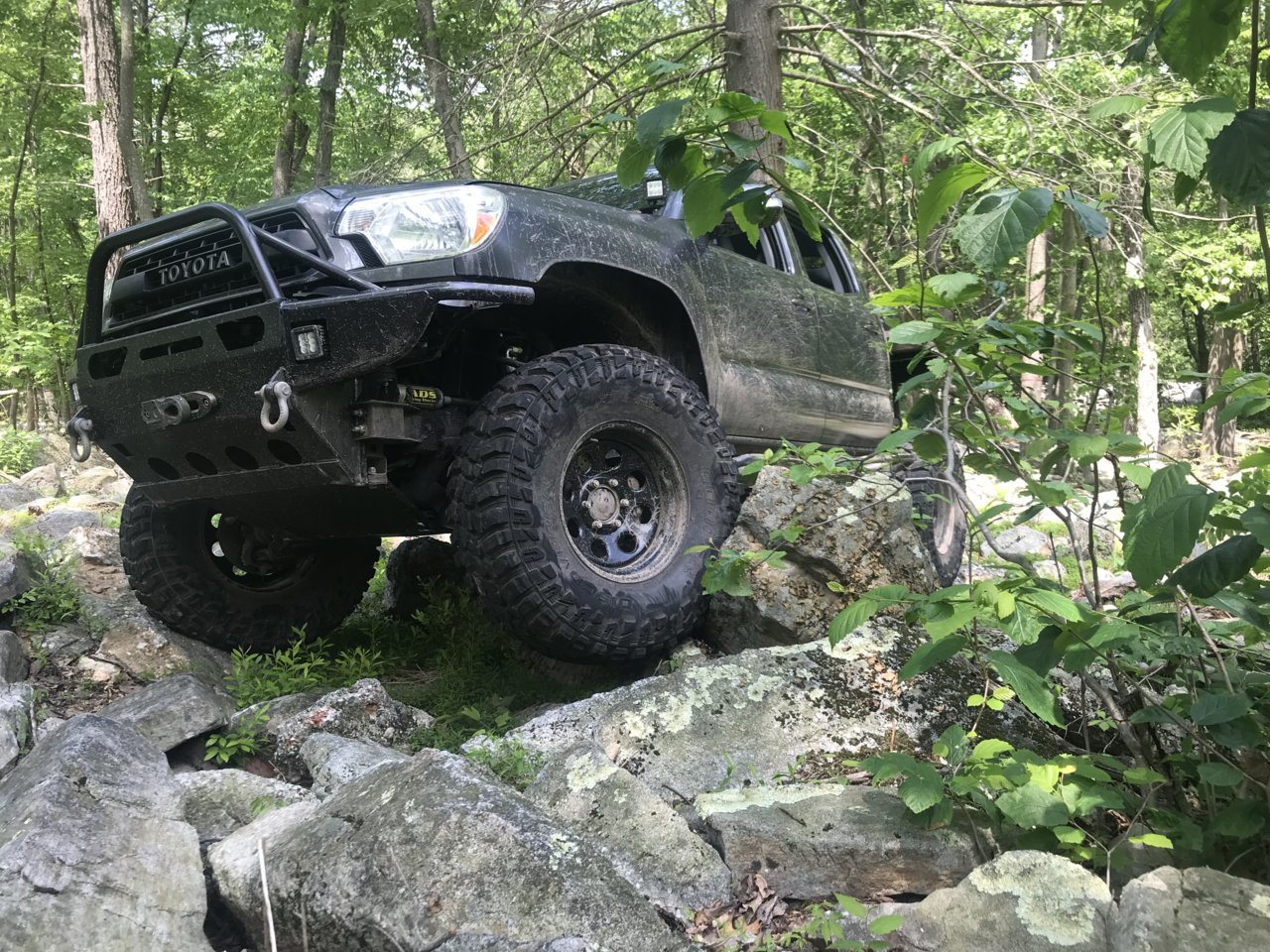

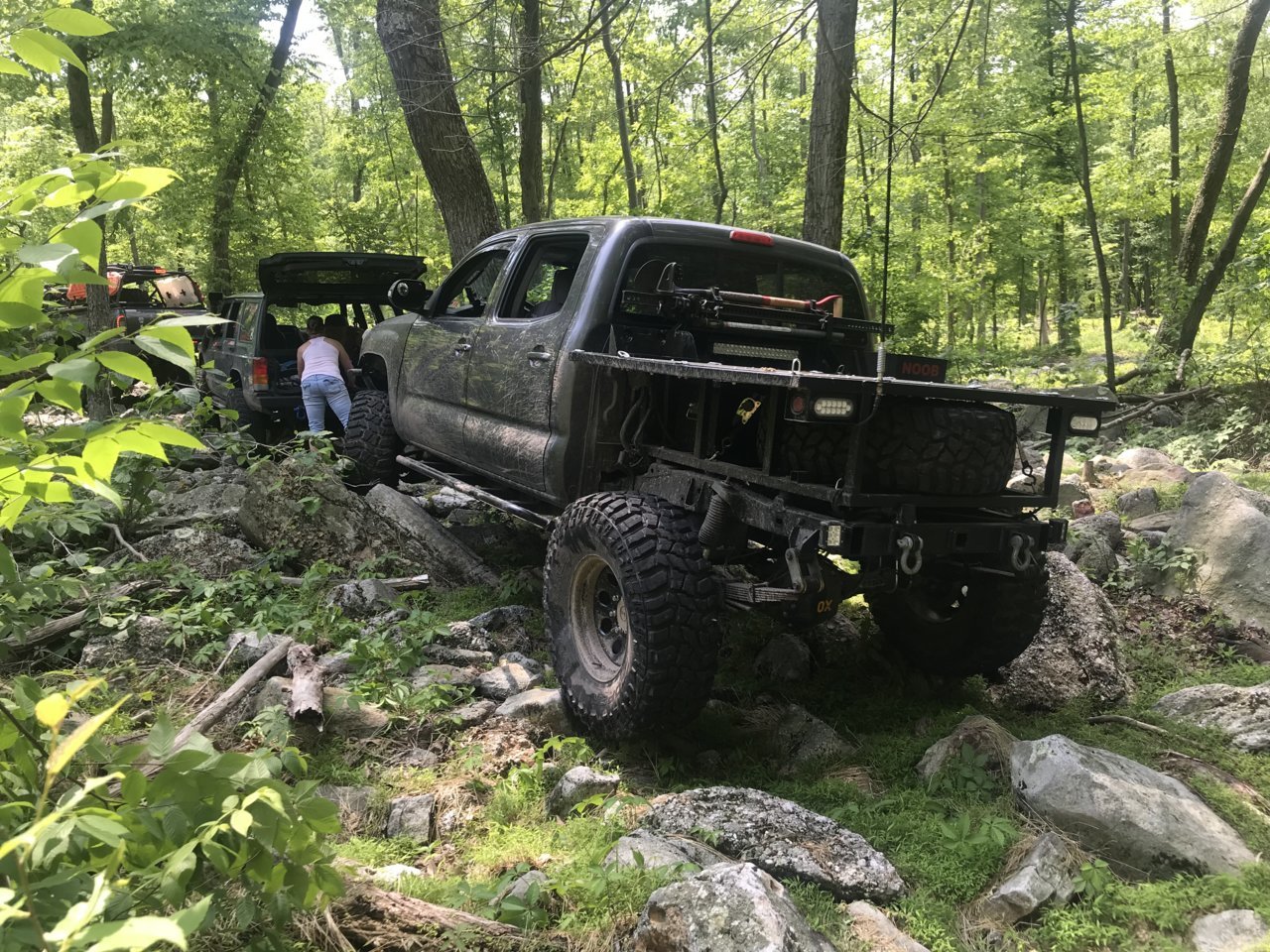

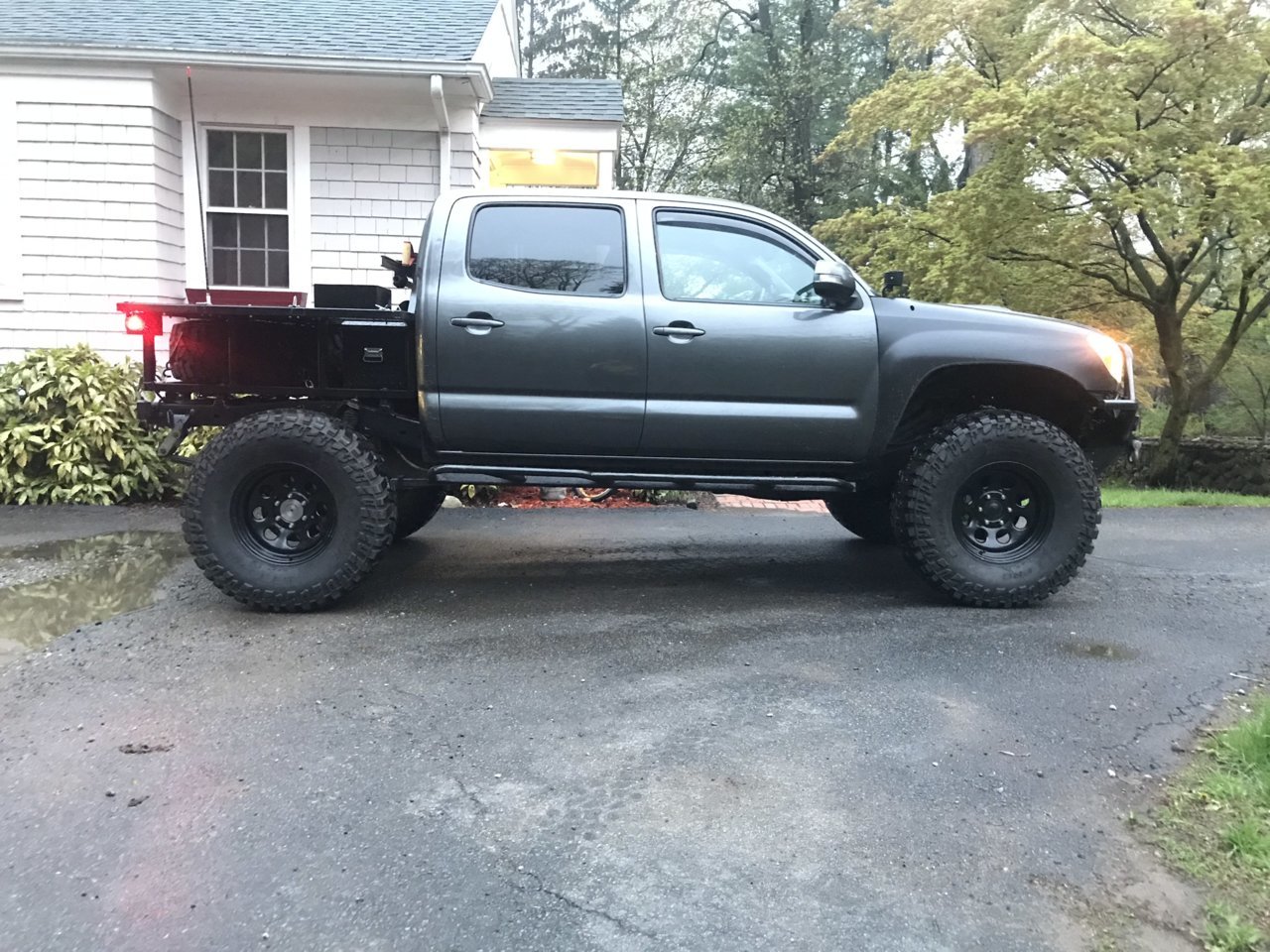

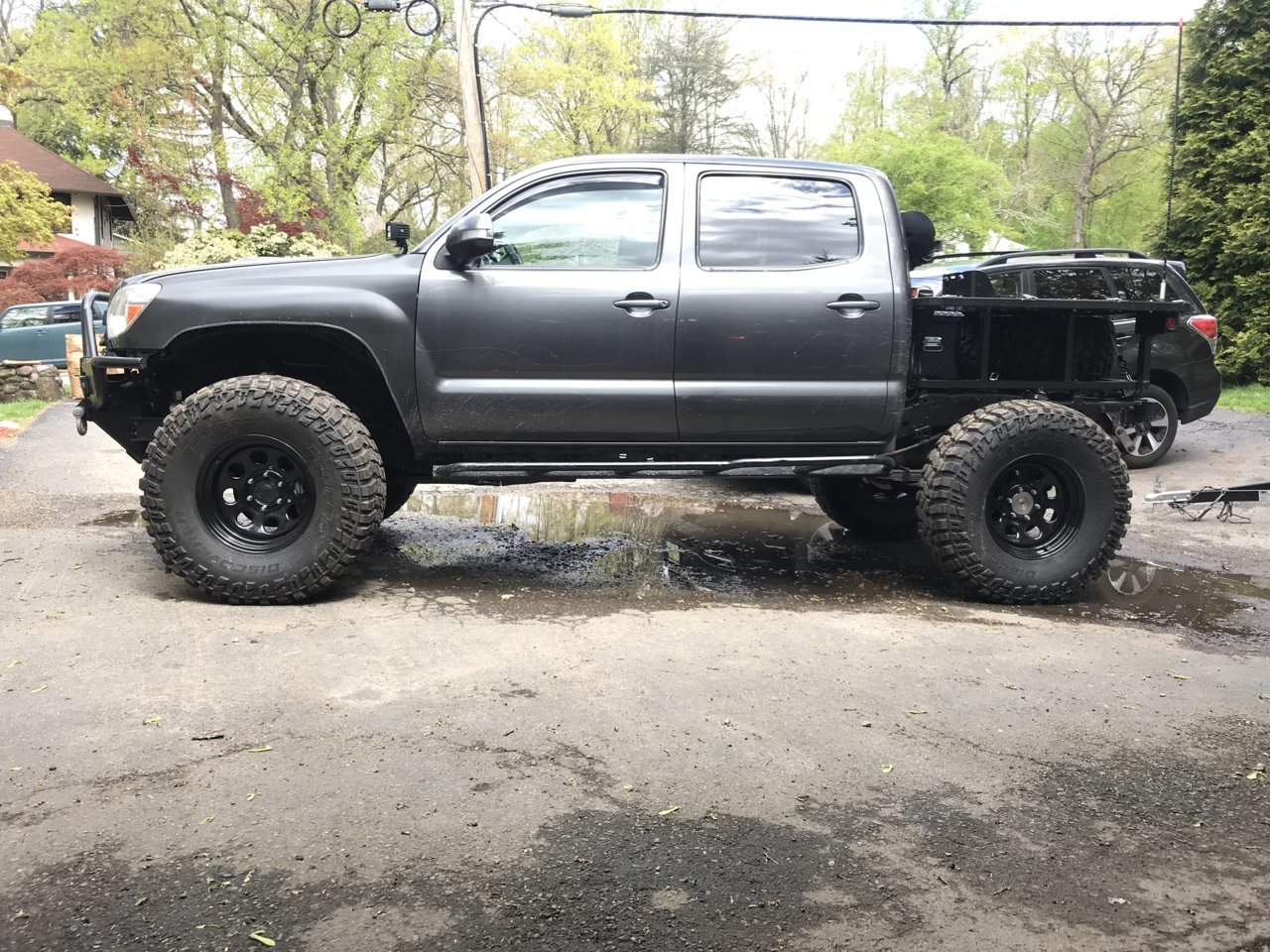

    Current:







    Last edited: Jan 21, 2019 at 1:39 PM
  2. Jul 4, 2016 at 7:13 PM
    #2
    LivinLoud

    LivinLoud Professional hypeman... skkrrrrrt

    Joined:
    Mar 7, 2015
    Member:
    #150354
    Messages:
    1,710
    Gender:
    Male
    First Name:
    TJ
    Western mass
    Vehicle:
    BSP '10 SR5
    Billies wrapped in 885s, Top plate spacer, LR UCAs, Deaver AAL, Mayhem wheels, 265 AT3Ws, tint, audio, immryo bracket, voodoo tailgate cap, DEPO lights, LEDs everywhere
    Awesome truck OP! Something tells me there will be window tint in the future

  3. Jul 4, 2016 at 7:15 PM
    #3
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    Thanks man! I'm not really a tint guy though. I'm too damned handsome to not be seen... :D

    JoeDLS, Kinsail48, ChadsPride and 5 others like this.
  4. Jul 4, 2016 at 9:18 PM
    #4
    Nedrolls

    Nedrolls Well-Known Member

    Joined:
    Sep 7, 2014
    Member:
    #137776
    Messages:
    211
    Gender:
    Male
    First Name:
    Scott
    Coquille, Oregon
    Vehicle:
    1999 Ext cab beater. 2016 Pro 4Runner(wife's)
    How do you like the 4.56s with the 255s?

  5. Jul 5, 2016 at 2:43 AM
    #5
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    Love it. With all the extra weight, it was a must.

    Nedrolls likes this.
  6. Jul 7, 2016 at 7:42 PM
    #6
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    Added an Iggy panel tonight and some OTRATTW switches.

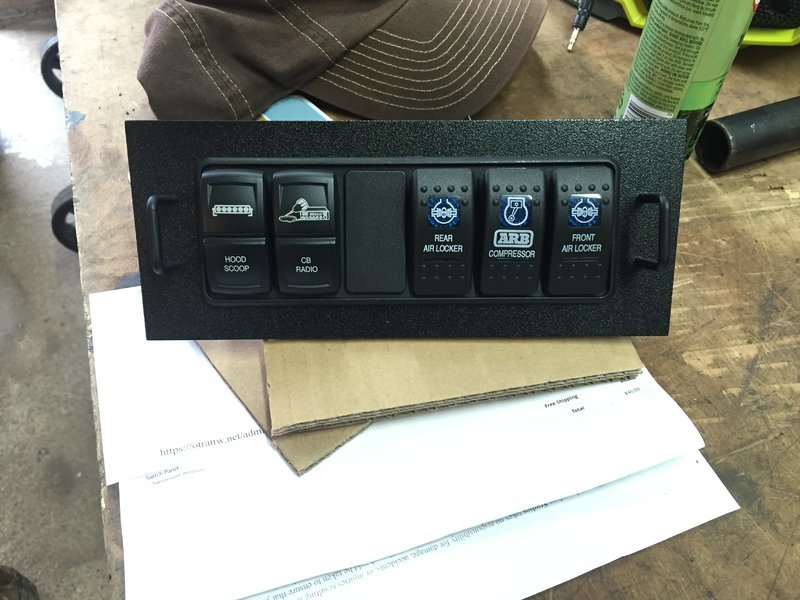

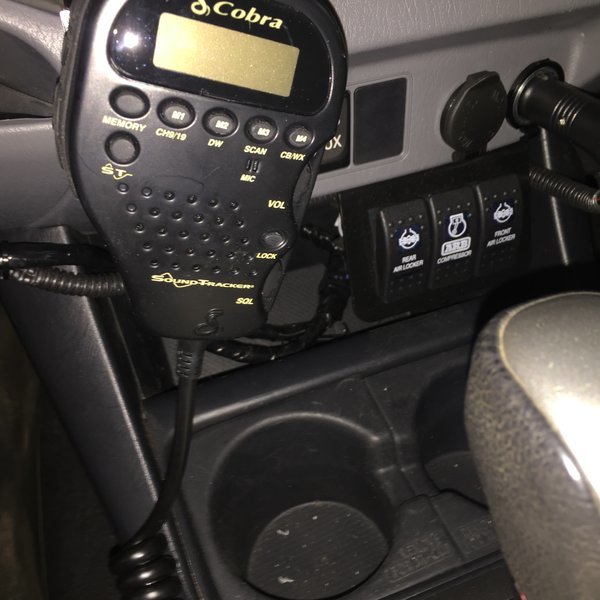

    Before


    Painted the panel with spray on bed liner. I like the texture, and I had it sitting on the shelf from when I did my bumpers.


    After


    The blank will hold the power switch for my winch. That'll be this weekends project. I have 500A solenoid to use as an isolator.

    Last edited: Jan 8, 2019
    DriftingPanda18 likes this.
  7. Jul 7, 2016 at 8:14 PM
    #7
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff

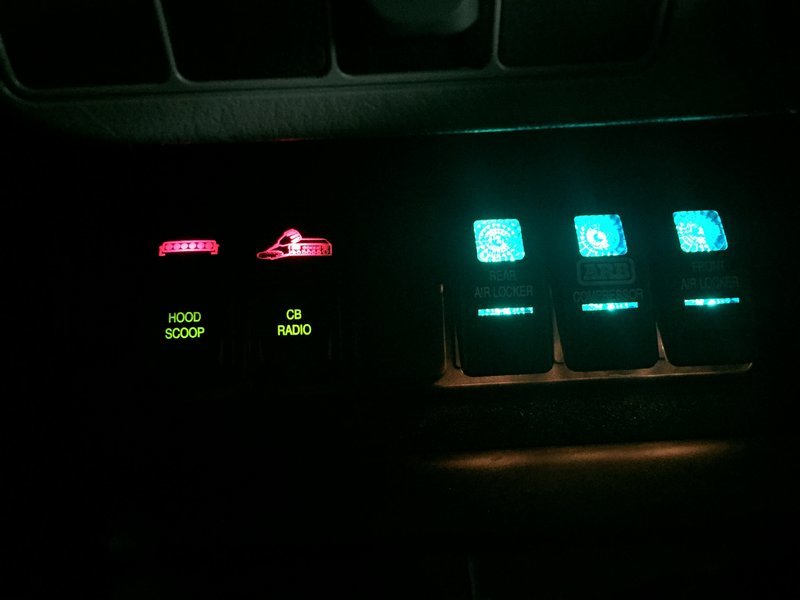

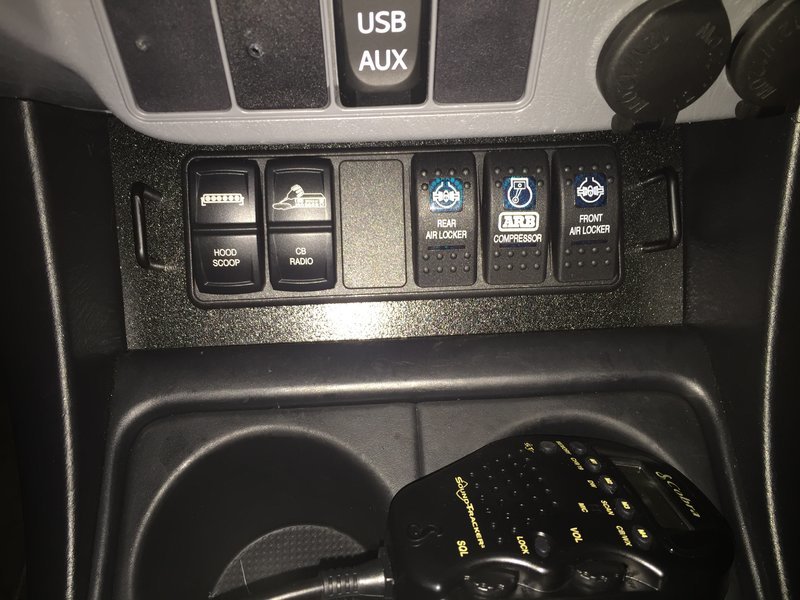

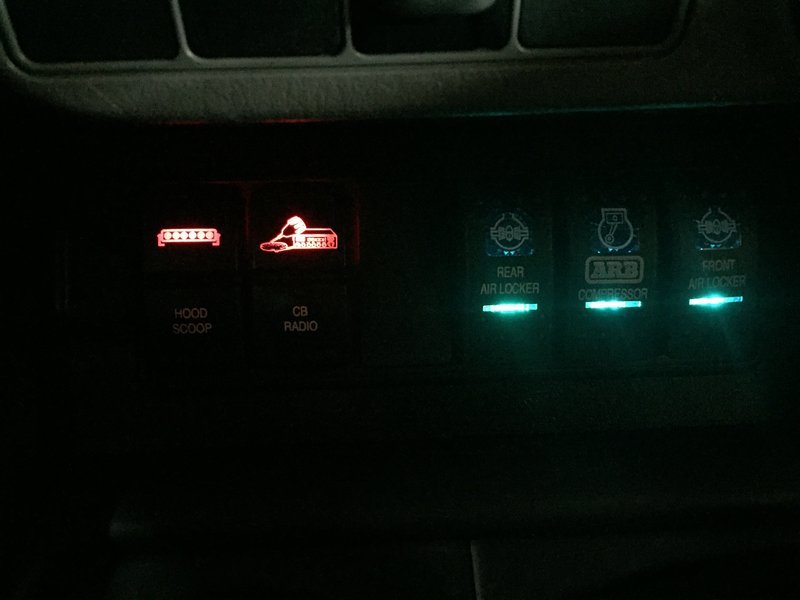

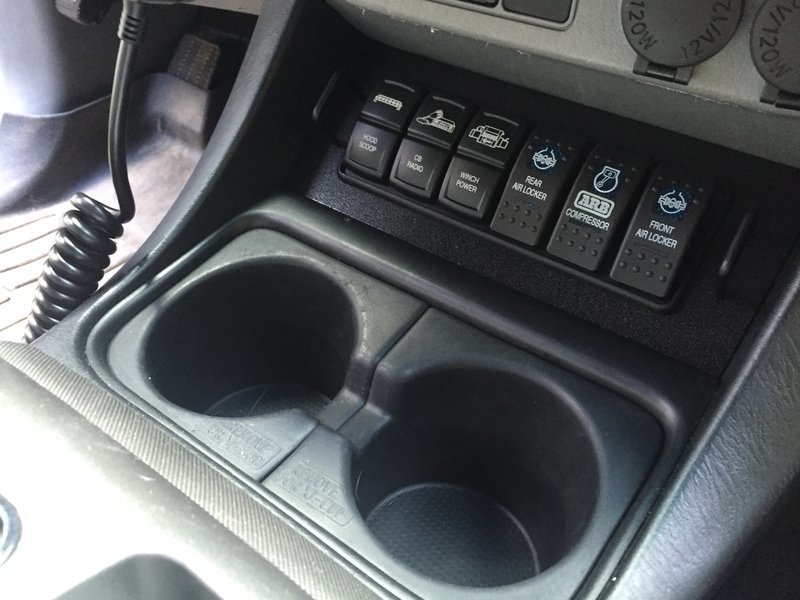

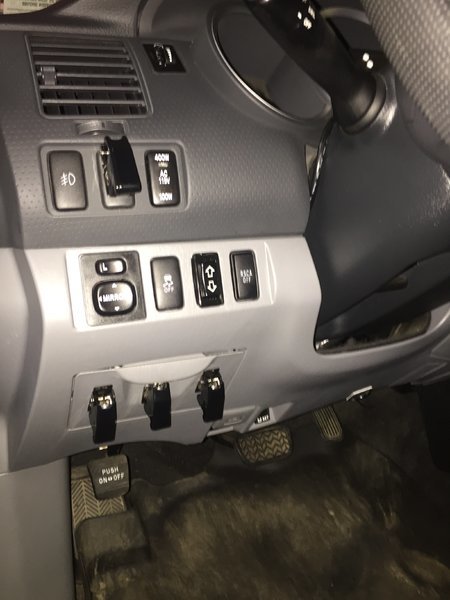

    Doesn't take long to fill up a six switch panel... Those six will be full once I rewire my winch. On top of those, I also have these


    Toggle between the fog light and inverter switches is an ABS kill

    The one with the up/down arrows is for the rear slider

    The three in the fuse panel are front pods, rear pods, and trans cooler fan.

    If someone told me I'd need 11 switches for after market stuff when I bought this truck, I would've laughed at them...

    uurx and Nedrolls like this.
  8. Jul 7, 2016 at 8:54 PM
    #8
    Kyitty

    Kyitty Mr. Beard

    Joined:
    Feb 20, 2015
    Member:
    #149179
    Messages:
    9,247
    Gender:
    Male
    Bozeman, MT
    Vehicle:
    2015 Tacoma DCLB Better Than TRD
    See Build Page
    I did 4.56's after mounting 255/85/16's as well. Made a big difference. I've got lots of weight on my truck too. LOL

    Nedrolls likes this.
  9. Jul 7, 2016 at 8:56 PM
    #9
    Kyitty

    Kyitty Mr. Beard

    Joined:
    Feb 20, 2015
    Member:
    #149179
    Messages:
    9,247
    Gender:
    Male
    Bozeman, MT
    Vehicle:
    2015 Tacoma DCLB Better Than TRD
    See Build Page
    Took me a minute before I saw the 1/4" top plate spacers on your mod list. I looked at your truck and realized we both have the same size tire and 886's. I was like, "How does he sit so high?"

    Good lookin' rig! :)

    HolyHandGrenade [OP] likes this.
  10. Jul 7, 2016 at 9:03 PM
    #10
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    For me, the shifting was the worst part. I found myself having to manually shift from 5th to 4th and back to 5th again to get it to shift into OD.

    The 4.56's care of that :thumbsup:

  11. Jul 7, 2016 at 9:10 PM
    #11
    Subway4X4

    Subway4X4 Shameless Copy Cat

    Joined:
    Nov 10, 2015
    Member:
    #169260
    Messages:
    11,953
    Gender:
    Male
    First Name:
    Lloyd
    NY/NJ
    Vehicle:
    05 Speedway Blue DCSB OR TRD
    Everything TW members recommend
    Where you gonna put your dual battery solenoid switch?

  12. Jul 7, 2016 at 9:11 PM
    #12
    Kyitty

    Kyitty Mr. Beard

    Joined:
    Feb 20, 2015
    Member:
    #149179
    Messages:
    9,247
    Gender:
    Male
    Bozeman, MT
    Vehicle:
    2015 Tacoma DCLB Better Than TRD
    See Build Page
    Me too! LOL Exactly the same on the highway. Once you got to like 65+ the truck would never use 5th/OD properly. It got stuck at high RPMs.

    I also find that with 4.56's due to the gear ratio it doesn't hunt between 4th and 5th as much. Though I don't use Cruise Control because it sucks horribly on these trucks.

  13. Jul 8, 2016 at 2:42 AM
    #13
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    Yes, I noticed that too. I do use cruise a lot though. Keeps my speeds from creeping up on trips. My boots are a tad too heavy... :D

    Last edited: Jul 8, 2016
    SuperBad and Kyitty like this.
  14. Jul 8, 2016 at 2:44 AM
    #14
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    I decided to skip the dual batteries for now. Instead, I'm just upgrading. I have a North Star on the way.

    Still redoing all my accessories with a fuse block and rewiring the winch though.

    Last edited: Jul 18, 2016
  15. Jul 10, 2016 at 4:53 PM
    #15
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    So I ditched my air bags a couple of weeks ago. Today I installed an Allpro U-bolt flip and Superbumps front an rear.



    First problem. The U-bolts were too long.



    Easy fix.



    Next issue. I think I need to extend the bump stops?




    The bump stop is JUST starting to touch the frame here and the Dakars are going negative.


    Hey @OZ-T what are those Wheelers towers that you mentioned earlier in this thread? I don't see them on their site.


    Crom likes this.
  16. Jul 10, 2016 at 4:59 PM
    #16
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    Busy weekend...

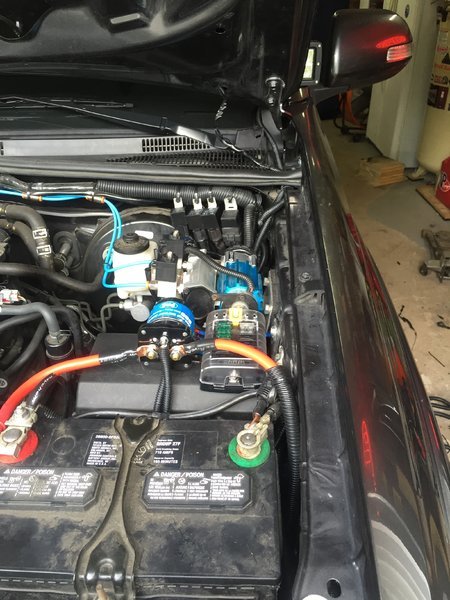

    I also redid all of my underhood accessory wiring. I added a Blue Sea fuse block and an in cab winch switch. still waiting on the Northstar battery to arrive. But I'll be all ready for it when it does.

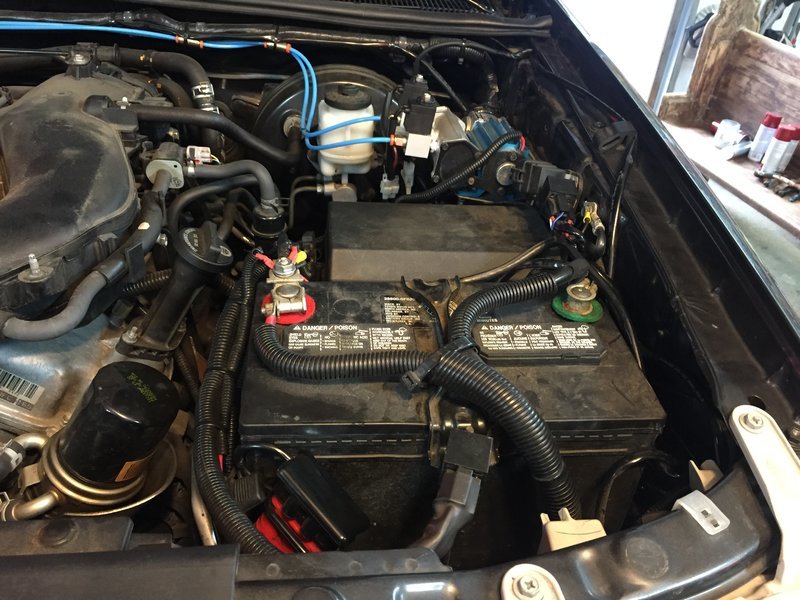

    Wiring before:

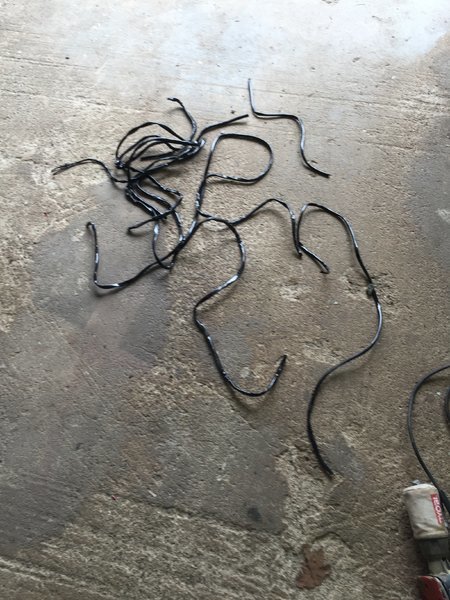

    The rats nest I removed:

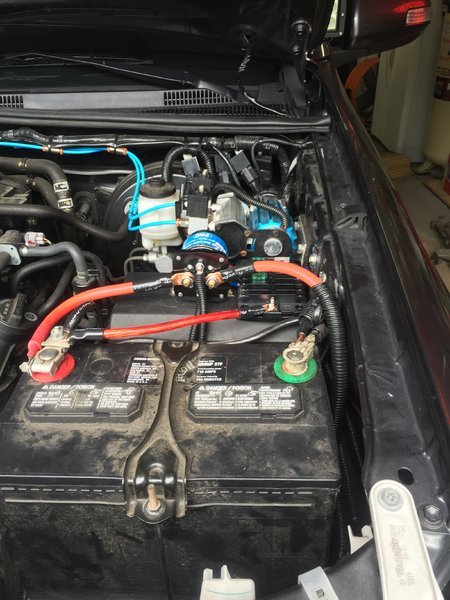

    All cleaned up. Fuse block and 500A selonoid controlled by in cab switch.


    Winch switch in Iggy Panel

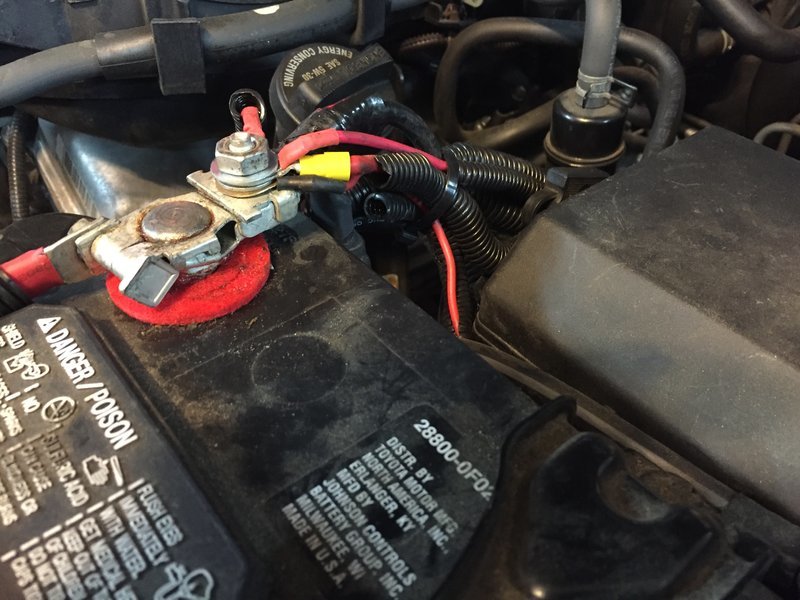

    I thought that I'd ordered a Blue Sea 100A breaker to put between the fuse block and the battery. It wasn't in the Amazon box. I checked, and sure enough, it wasn't in my order history. It's on the way now.

    I did make up this 4G cable just to check if everything still works. Everything does. The breaker should arrive tomorrow. I'll finish this project up if it does.


    Last edited: Jul 10, 2016
  17. Jul 10, 2016 at 7:51 PM
    #17
    Subway4X4

    Subway4X4 Shameless Copy Cat

    Joined:
    Nov 10, 2015
    Member:
    #169260
    Messages:
    11,953
    Gender:
    Male
    First Name:
    Lloyd
    NY/NJ
    Vehicle:
    05 Speedway Blue DCSB OR TRD
    Everything TW members recommend
    Nice!!!!

    HolyHandGrenade [OP] likes this.
  18. Jul 10, 2016 at 7:58 PM
    #18
    fatfurious2

    fatfurious2 EAF YO

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    31,954
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 Super White TRD Access Cab
    so for a wiring noob like me, the basic wiring plan is:

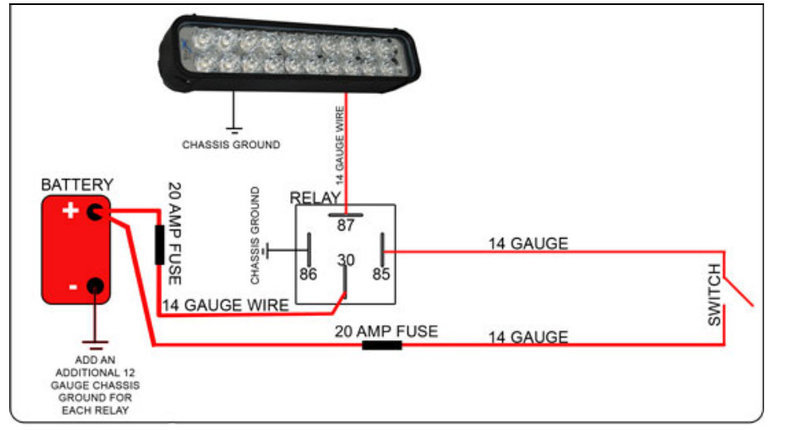

    light bar wires > blue sea fuse panel > additional relay > firewall/cab > switch ?

    Ive been delaying wiring up my light bar because I have no idea. What size wires did you use? Solder and heat shrink? Was getting them into the cab easy?

  19. Jul 11, 2016 at 2:50 AM
    #19
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    Hold on, I did s poor job of explaining that...


    Last edited: Jul 11, 2016
    fatfurious2 likes this.
  20. Jul 11, 2016 at 2:51 AM
    #20
    HolyHandGrenade

    HolyHandGrenade [OP] NOOB

    Joined:
    Mar 25, 2013
    Member:
    #100579
    Messages:
    10,548
    Gender:
    Male
    First Name:
    Tim
    Garage Most Likely
    Vehicle:
    A Truck
    Some Stuff
    Hey Lloyd. Thanks again for the wire loom. As you can see, it came in handy :thumbsup:
