HID ballasts mounting

Discussion in 'Lighting' started by 113tac, Feb 26, 2011.

  1. Feb 26, 2011 at 8:51 AM
    #1
    113tac

    113tac [OP] Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    4,675
    Gender:
    Male
    First Name:
    Stephen
    Northern Virginia
    Vehicle:
    05 4 banger
    tint 35/20 colormatched (by me) grill.
    Alright so I just got put some HID's on and i thought it'd be a good idea to make a thread for people some pics of where people mount their ballasts. I searched and couldnt find many pictures on where people were mounting their's.

    So let's see em!

    ill post a pic in a little when i go take some

  2. Feb 26, 2011 at 11:04 AM
    #2
    tencrawler

    tencrawler Beaver Believer

    Joined:
    Sep 6, 2010
    Member:
    #42830
    Messages:
    712
    Gender:
    Male
    First Name:
    Wes
    Cotati, CA
    Vehicle:
    07 Silver SR5 TRD Sport 4X4 DCSB
    17x8 Pro Comp 7089, Black Tail Light Tint, Air Box Mod w/ K&N, iPod & Aux Input, Black Dash & Center Console, Debadged, De-Mudflapped, Blacked Out Front Valance, Red Calipers, Fog Light Anytime, 35W 6000k HID Fog Lights, 5100 Billys All Around, Front @ 1.75", Wheeler's 1.5" 3 Leaf Progressive AAL, All-Pro U-Bolt Flip Kit, Cover King Ballistic Seat Covers, BHLM Morimoto DS2 Retrofits
    I like the idea of this thread. I'm not particularly happy with the placement of my ballasts for my Headlights or Fogs. I actually need to reinstall one of the fog ballasts (replaced through warranty) and I was considering rewiring and relocating my HID set ups. Looking forward to getting a few ideas.

  3. Jun 13, 2016 at 12:51 PM
    #3
    TacomaArto

    TacomaArto Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    485
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    Pics?

  4. Jun 13, 2016 at 1:58 PM
    #4
    gym_jamz

    gym_jamz All I Do Is Nguyen

    Joined:
    Jul 10, 2012
    Member:
    #82308
    Messages:
    3,072
    Gender:
    Male
    First Name:
    Jimmy
    Gainesville, GA
    Vehicle:
    12' Mall Crawlin Peerunner
    I would take pictures but i have mine exactly where andrew put his.

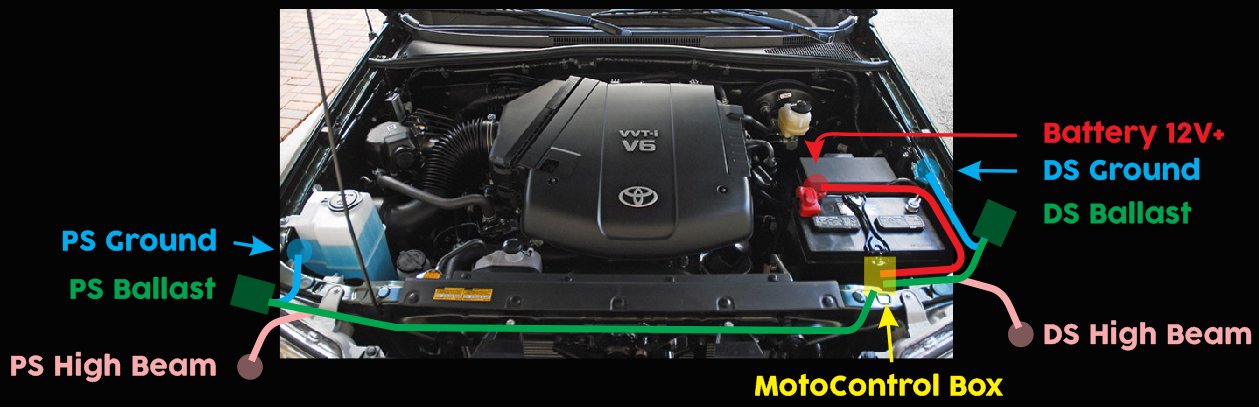

    [​IMG]

  5. Jun 13, 2016 at 2:07 PM
    #5
    TacomaArto

    TacomaArto Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    485
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    And you just use 3M tape? I did that for an install years ago and it failed. But it seems like everyone's go-to now. Maybe it's a better product now?

  6. Jun 13, 2016 at 4:36 PM
    #6
    gym_jamz

    gym_jamz All I Do Is Nguyen

    Joined:
    Jul 10, 2012
    Member:
    #82308
    Messages:
    3,072
    Gender:
    Male
    First Name:
    Jimmy
    Gainesville, GA
    Vehicle:
    12' Mall Crawlin Peerunner
    I used the industrial strength velcro at walmart. Works great for me. You can probably use zip ties or screws to screw it down

  7. Jun 14, 2016 at 2:53 AM
    #7
    113tac

    113tac [OP] Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    4,675
    Gender:
    Male
    First Name:
    Stephen
    Northern Virginia
    Vehicle:
    05 4 banger
    tint 35/20 colormatched (by me) grill.
    No, I can't find any, I went back to regular bulbs a few years ago haha

  8. Jun 14, 2016 at 3:46 AM
    #8
    TacomaArto

    TacomaArto Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    485
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    Cool. Can I ask why? Had u installed retros or just rolled HIDs in halogen housing?

  9. Jun 14, 2016 at 4:22 PM
    #9
    113tac

    113tac [OP] Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    4,675
    Gender:
    Male
    First Name:
    Stephen
    Northern Virginia
    Vehicle:
    05 4 banger
    tint 35/20 colormatched (by me) grill.
    They were in the stock housing. After I adjusted them so I didn't blind people they weren't that great. A bulb burnt out and I just never felt that replacing the bulb was worth it haha

  10. Jun 18, 2016 at 4:13 PM
    #10
    Sicyota04

    Sicyota04 Get in Where ya fit in

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    1,021
    Gender:
    Male
    Anderson, CA
    Vehicle:
    04 Tacoma Lunar mist Double cab TRD V6 4x4
    Camburg UCA'S, Bilstein 5100'S All around w/ Eibach 3" coil springs & a 1.5" AAL. Custom Retrofits w/ RGB halos. Deck plate mod. 1.25" Spidertrax wheel spacers. Flow master 40 series. 3D optic 42",4D optic 22" light bar & 4D optic Pods. 16x8 Method double standards.DB CUSTOMZ Steel grill insert. TG Front & Rear bumpers plus sliders.
    Here is where I put my TRS ballasts. Can't really tell, not that great of pictures.


    Last edited: Aug 10, 2016
  11. Jun 18, 2016 at 4:13 PM
    #11
    Sicyota04

    Sicyota04 Get in Where ya fit in

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    1,021
    Gender:
    Male
    Anderson, CA
    Vehicle:
    04 Tacoma Lunar mist Double cab TRD V6 4x4
    Camburg UCA'S, Bilstein 5100'S All around w/ Eibach 3" coil springs & a 1.5" AAL. Custom Retrofits w/ RGB halos. Deck plate mod. 1.25" Spidertrax wheel spacers. Flow master 40 series. 3D optic 42",4D optic 22" light bar & 4D optic Pods. 16x8 Method double standards.DB CUSTOMZ Steel grill insert. TG Front & Rear bumpers plus sliders.
    I'll get better pictures tomorrow

  12. Jun 19, 2016 at 5:17 AM
    #12
    TacomaArto

    TacomaArto Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    485
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    Sounds good, thank!

  13. Aug 10, 2016 at 4:36 AM
    #13
    TacomaArto

    TacomaArto Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    485
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    What kind of screws? Just self-tapping metal screws? Even tho it's a bad picture, I assume u couldn't get a wrench behind it.

  14. Aug 10, 2016 at 10:23 AM
    #14
    Sicyota04

    Sicyota04 Get in Where ya fit in

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    1,021
    Gender:
    Male
    Anderson, CA
    Vehicle:
    04 Tacoma Lunar mist Double cab TRD V6 4x4
    Camburg UCA'S, Bilstein 5100'S All around w/ Eibach 3" coil springs & a 1.5" AAL. Custom Retrofits w/ RGB halos. Deck plate mod. 1.25" Spidertrax wheel spacers. Flow master 40 series. 3D optic 42",4D optic 22" light bar & 4D optic Pods. 16x8 Method double standards.DB CUSTOMZ Steel grill insert. TG Front & Rear bumpers plus sliders.
    Yeah self tapping screws. They're mounted on the sheet metal between the engine bay and the fender. So the other side is inside the fender. It holds tight though! I mounted the controller right in front of the ballast that you see there. The hardest part is getting a wrench or socket on the headlight adjustment screws. I use a 4mm socket on the adjustment screw w/ an extension

  15. Aug 13, 2016 at 6:13 PM
    #15
    JoeSchmuck

    JoeSchmuck Well-Known Member

    Joined:
    May 19, 2009
    Member:
    #17443
    Messages:
    285
    Gender:
    Male
    First Name:
    Joe
    Virginia
    Vehicle:
    09 PreRunner SR5 2x4 O.R., Timberline Green
    Pop & Lock, Access LE Rollup Cover, Alpine PDX-5 Amp, Image Dynamics CS-6/CX-6 & 10" Sub
    I have just purchased all the parts and new headlight assemblies to do a conversion to the Morimoto D2S V3.0 and I too am looking for locations that people have used for placement of the wiring harness and more importantly the ballasts. I was pretty sure I read that some folks attached the ballasts directly to the headlights using double sided tape or velcro. I would like to see any photos or suggestions on where this stuff was placed. I'm pretty anal about a clean looking installation so I may need to take apart the inside of the engine compartment to make it look nice and like factory, if that is possible. I was really hoping for a much simpler wiring harness without power connections to the battery.

    So tomorrow I will split my new headlight assemblies apart and I will take a lot of photos. I will also take photos on my placement and what I used to do the installation. I'm not doing anything fancy, keeping it all chrome looking, no halos or LED lights added (I would like to add a nice bright string of LED lights to the inside to make DRL but I'm not sure what LEDs would be appropriate).

  16. Aug 13, 2016 at 6:21 PM
    #16
    t4daddy

    t4daddy Well-Known Member

    Joined:
    Jun 16, 2010
    Member:
    #39041
    Messages:
    5,594
    Gender:
    Male
    North Alabama
    Vehicle:
    2008 PreRunner Double Cab

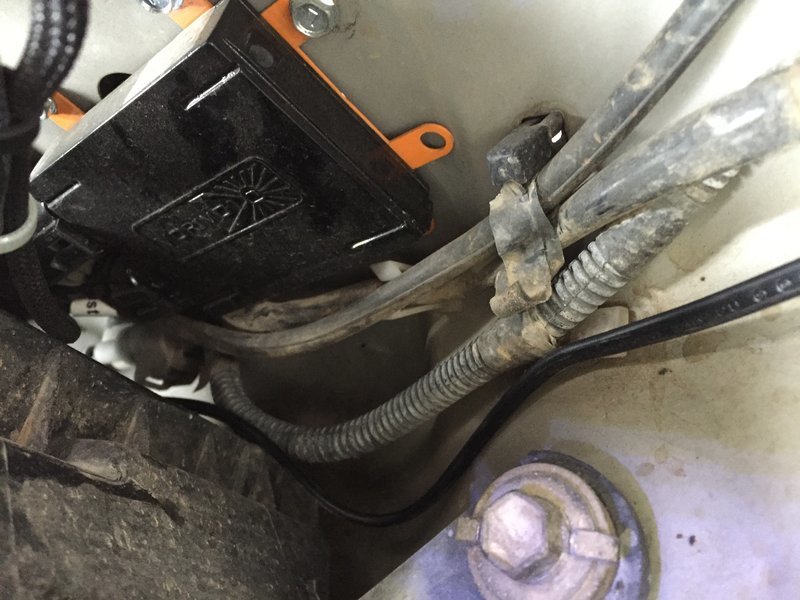

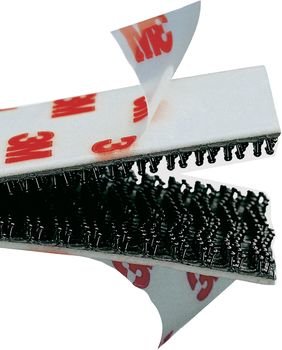

    image.jpg There is a perfect flat spot on the side of the gen2 headlight housing for ballast. Fog ones and Hella retros are both mounted on the top and sides of the aluminum crash bar. All are mounted using 3M dual lock. With this it actually snaps into place, but can be removed if needed.

  17. Aug 14, 2016 at 5:45 AM
    #17
    JoeSchmuck

    JoeSchmuck Well-Known Member

    Joined:
    May 19, 2009
    Member:
    #17443
    Messages:
    285
    Gender:
    Male
    First Name:
    Joe
    Virginia
    Vehicle:
    09 PreRunner SR5 2x4 O.R., Timberline Green
    Pop & Lock, Access LE Rollup Cover, Alpine PDX-5 Amp, Image Dynamics CS-6/CX-6 & 10" Sub
    Are you talking the large flat spot in the inside (vehicle center line) next to the larger amber bulb? That was the only really good place I could see. I'd love to mount it with three screws but it appears the small screws would come right through the inside reflector area. Also I can see the velcro would facilitate easy access the the bulb should it need to be replaced.

  18. Aug 14, 2016 at 7:14 PM
    #18
    TacomaArto

    TacomaArto Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    485
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    Figured I would jump in now and show where I decided to mount things.

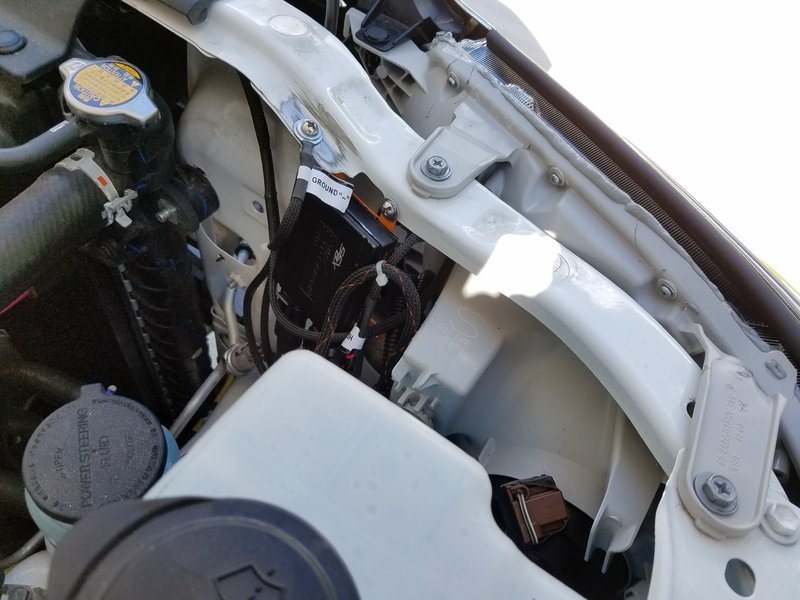

    For the controller I bent top 90 degrees and drilled a hole, then used #10 screw and lock nut vinyl washer.20160814_160849.jpg 20160814_160822.jpg

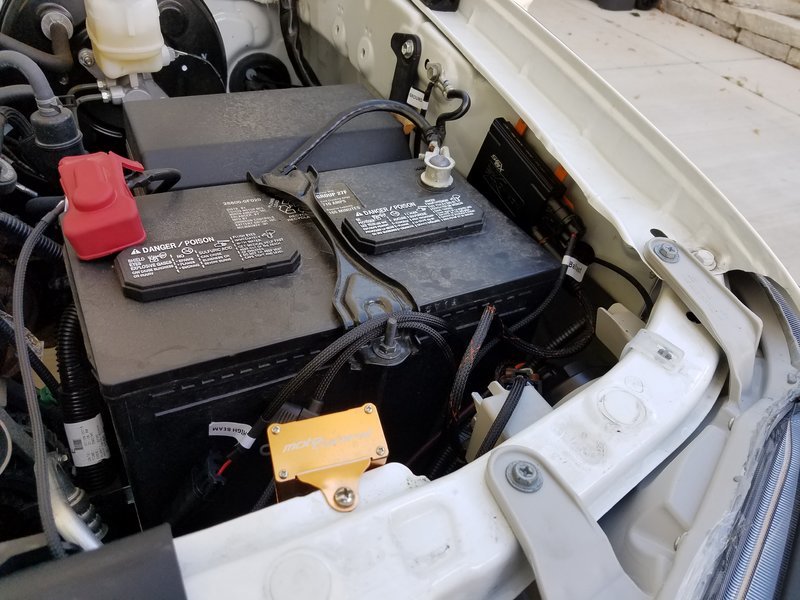

    For driver side ballast I snuck it in on the side by the battery. Started by using industrial velcro, but added a self-tapping metal screws for fun. Never going anywhere.

    And for passenger ballast I drilled a hole and again used a #10 screw and lock nut nylon washer.

    Pretty happy with it all. May take some slack out of all the leads someday if I am bored enough. Just to tidy it up some more.

    gym_jamz likes this.
