HID OFFROAD LIGHTS

Discussion in '1st Gen. Tacomas (1995-2004)' started by BCH, Oct 30, 2010.

?

Which Lights are Best for the Buck

Poll closed Nov 28, 2010.
  1. KC PODS

    1 vote(s)
    12.5%
  2. KC 861's HID

    3 vote(s)
    37.5%
  3. KC Halogens

    2 vote(s)
    25.0%
  4. Sumpm Else

    2 vote(s)
    25.0%
  1. Oct 30, 2010 at 12:19 AM
    #1
    BCH

    BCH [OP] Shiester

    Joined:
    Apr 2, 2010
    Member:
    #34473
    Messages:
    105
    Gender:
    Male
    First Name:
    Chris
    Lafayette Ga
    Vehicle:
    SR5 4x4 4cyl
    Viper, ARE Camper
    I wanna know if HID lights are that much brighter than Halogen. I have looked at the Halogen KC Hilites, The KC-861 HID's, and The KC Pods. I am finding it difficult to spend $800 for a set of lights unless its really worth it. Thats what the 861's cost. The Pods are about $1300 for a set. I can get the 150W Halogens for about $250. I know they run cooler but dang. I'm gonna make a poll out of this thread but I still wanna hear from the ones that are running the HID's that was running the Halogens. Are they that much better ????????

  2. Oct 30, 2010 at 12:45 AM
    #2
    cummins6speed

    cummins6speed Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,818
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    HID's are a lot brighter.

    But it is cheaper to buy halogen lights and convert them to HID with a cheap HID kit like DDM tuning

  3. Oct 30, 2010 at 12:57 AM
    #3
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,997
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    There is a big difference in the light and illumination between Halogen and HID... as well as between Driving (Euro) and Pencil (Spot) beams. Fog lights can also be used for cornering, as they are a short, wide beam pattern.

    In a perfect set up, I would have 2 fog (cornering) lamps in or below my bumper, but not where they will get knocked... 2 driving lamps same elevation as the headlights... 2 pencil beams... up high if possible, otherwise next to the driving lamps. I would have the front of the truck able to see wide on both sides, the road ahead and sides lit up, and then way, way out there lit to see things like cows if I am going fast.

    Halogen is 'cheap' (~$100), draws 100 watts (or other), and is about 3,000ºK in color (slightly yellow, but white).

    HIDs (xenon) are expensive (~$400), draws only 35 watts (or other), is about 4,300º in color (pure white to slightly blue (don't exceed 5,000ºK) The more blue, the less illumination on the ground. 35 watt HIDs give the light of 150 watts of Halogen, but more true daylight on the ground (you easily see colors at night with HIDs, just like the sun is up)!

    There is a 'cheap' HID... comes in a 7" Euro Beam, from Kragen... Sadly, they are in an ABS plastic housing and will crack with heavy off road vibration. Mine got repaired with fiberglass... but I since got Metal Hella 4000 100 watt halogen pencil beams. I plane on modifying my light bar to have all four... The Hellas can be converted to HID, as well.

    You will be impressed with the 35 watt HIDs, they are brighter and whiter than 100 watt halogens at about 1/3 the energy.

    The really big bucks lighting system coming is LED... tiny amount of power.... wild lighting... see www.BajaDesigns.com for all types.

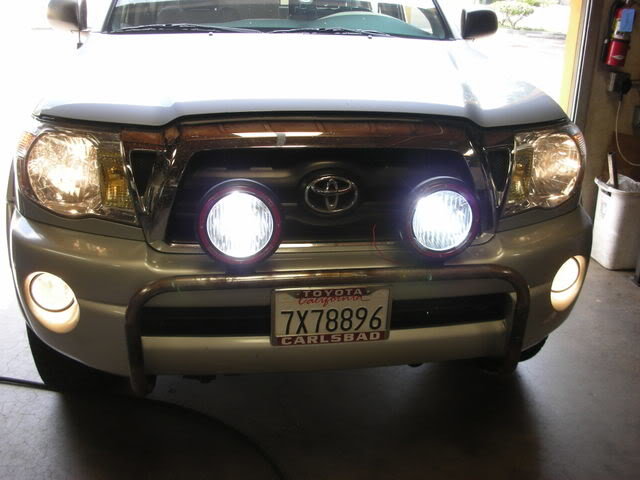

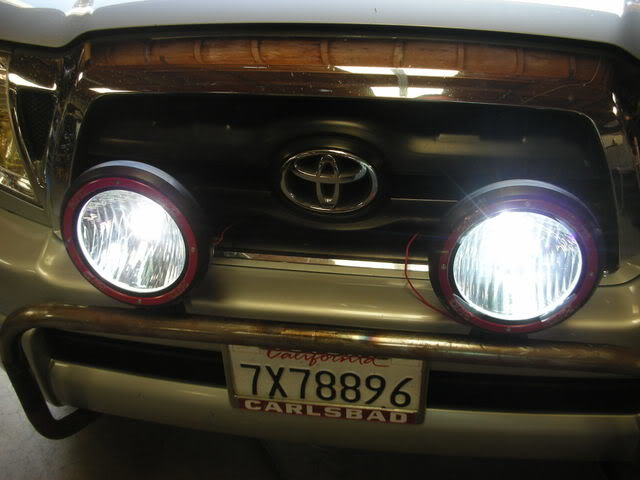

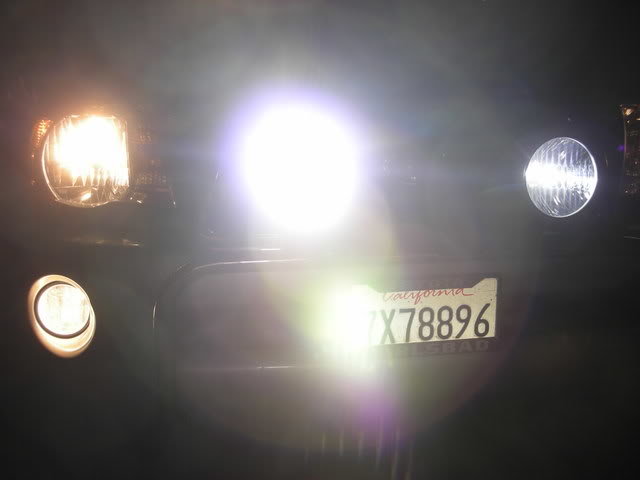

    HIDs:

    [​IMG]

    [​IMG]

    [​IMG]

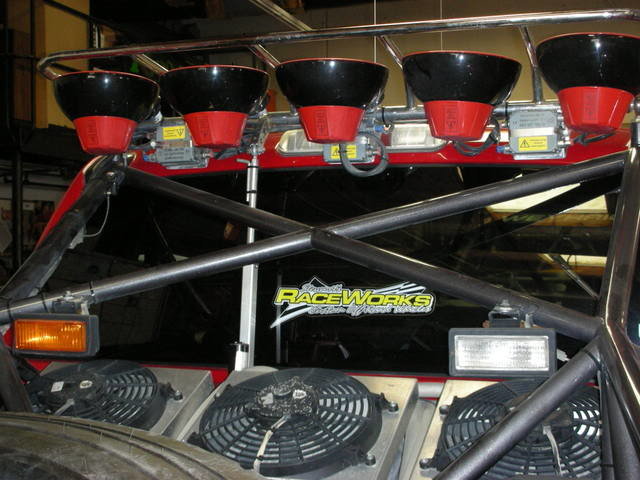

    Off Road Racing HID light bar:

    [​IMG]

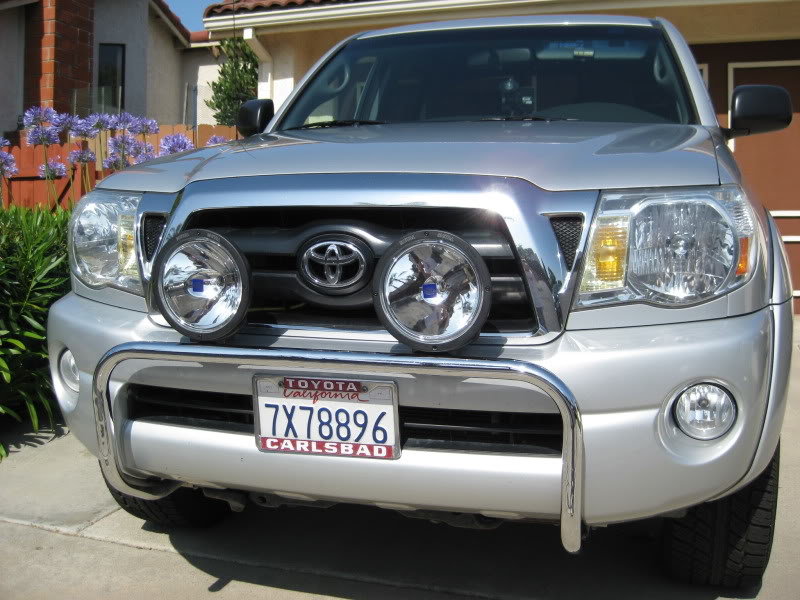

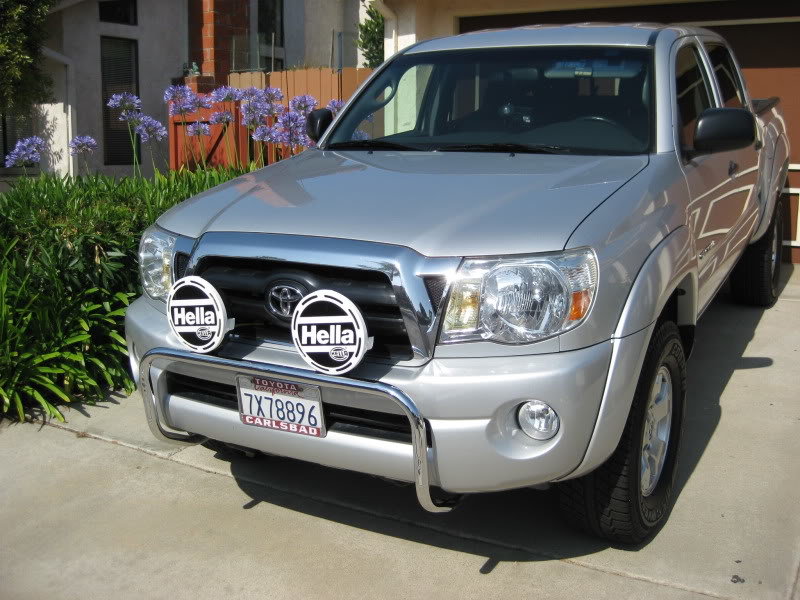

    Hella 4000 metal halogens:

    [​IMG]

    [​IMG]

    LOW BEAM:

    [​IMG]

    HIGH BEAM:

    [​IMG]

    HELLA BEAM (pencil):

    [​IMG]

    Again, high beam:

    [​IMG]

    Pencil beam:

    [​IMG]

    My thinking was I could keep as is or upgrade my stock headlights to HID for a good driving beam... and have the pencils for way out there...

  4. Oct 30, 2010 at 1:07 AM
    #4
    Leadgolem

    Leadgolem Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35238
    Messages:
    1,000
    Gender:
    Male
    First Name:
    Greg
    Littleton, CO
    Vehicle:
    98 Tacoma SR5 2.7L 4x4 stick
    Herculiner bed liner, White LED instrument lights, Custom painted hood, Homemade leather steering wheel wrap, Avic u310bt gps stereo, 1.5" bushwacker fender flares, 1.25" bilstein lift front, 1" shackle lift rear, rear bilstein 5100 shocks, ridiculous helper spring lift rear, wet okole seat covers, mutilated exhaust, boom mat under hood
    Here's some numbers for you to play with. The number at the end of the line is candle power.

    KC POD - 7 1/4" Driving - Carbon Fiber - HID 70 Watt #9635 1100k
    HID - 8" Rnd Driving - Black - 50 Watt #863 385k
    Rally 800 - 8" Rnd Driving - Black/SS - 130 Watt #803 170k


    KC POD - 7 1/4" Long Range - Carbon Fiber - HID 70 Watt #9634 1200k
    HID - 8" Rnd Long Range - Black - 50 Watt #861 814k
    Rally 800 - 8" Rnd Long Range - Black/SS - 130 Watt #801 375k


    This is all from the KC website. I would prefer to do comparisons in lumens, but lumen data is not available for all the lights.

    EDIT: I had one of my numbers switched. It's fixed now.

  5. Oct 30, 2010 at 1:56 AM
    #5
    WhatThePho?

    WhatThePho? Greg Graffin 2016

    Joined:
    Jun 30, 2009
    Member:
    #19096
    Messages:
    5,396
    Gender:
    Male
    First Name:
    Andre
    HCMC, VN
    Vehicle:
    2006 STi
    The things required to pull bitches
    I converted my 4000 into hids WAY brighter than stock. It's definitely a thrower.

    [​IMG]

  6. Oct 30, 2010 at 9:13 AM
    #6
    IamTacO

    IamTacO red balls got me!

    Joined:
    Jan 31, 2010
    Member:
    #30401
    Messages:
    703
    Gender:
    Male
    First Name:
    adam
    QC az
    Vehicle:
    01 Prerunner SR5 TRD-Offroad
    4x2 Prerunner. Hankook Dynapro ATM rf10 265-65-16, e-locker FTW! Morimoto d2s bi-xenon HID projectors, Philips 85122+ 4300K, Cobra 75 w/ 3' firefly, Kenwood KDC-MP342U w/ SIRIUS, Line-x bed liner, 4' coretrax(black)
    its been covered on another website already, but ddm bulbs have been proven to melt the reflector bowls in a projector. they have also been proven to melt shrouds on the projectors as well

    for more info... check hidplanet.com/forums and you will be suprised how many people dislike ddm.

    example is a blazer projector. normally a halogen projector. when outfitted with a ddm kit, the bowl bubbled in less than 4 hours. the ddm bulbs run much hotter than a oem bulb. but of course, you have your die hard fan boys that will never give up their 70 hid kit. bottom line, you get what you pay for. you run a very high risk of damaging your setup by running a shitty kit

  7. Oct 30, 2010 at 9:28 AM
    #7
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,997
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Are you talking about Hella 4000s or another off road light being converted? Sounds like you are talking about a stock headlight issue?

  8. Oct 30, 2010 at 9:42 AM
    #8
    IamTacO

    IamTacO red balls got me!

    Joined:
    Jan 31, 2010
    Member:
    #30401
    Messages:
    703
    Gender:
    Male
    First Name:
    adam
    QC az
    Vehicle:
    01 Prerunner SR5 TRD-Offroad
    4x2 Prerunner. Hankook Dynapro ATM rf10 265-65-16, e-locker FTW! Morimoto d2s bi-xenon HID projectors, Philips 85122+ 4300K, Cobra 75 w/ 3' firefly, Kenwood KDC-MP342U w/ SIRIUS, Line-x bed liner, 4' coretrax(black)
    i'm talking about ddm bulbs in halogen projectors, hid projectors, stock reflectors. their bulbs are soooo hit and miss that i wouldn't even give them away. they run hotter than oem bulbs and that means they run the very real risk of melting your setup and causing them to be dimmer/ruined.

    never a good idea to retro an hid bulb into a halogen setup. they may not be able to handle the heat of the new bulb

  9. Oct 30, 2010 at 11:50 AM
    #9
    cummins6speed

    cummins6speed Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,818
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    That is funny because we put DDM hid's in my girlfriends tacoma in the head lights, foglights and her hella 500's and after many months of use not one issue. My buddy put the DDM kit in his cheap ebay headlights on his dodge with no problems other than a horrible beam pattern because of the cheap lights. I have also converted two other sets of hella 500's without problems. So 0 problems out of the 6 kits I have delt with

  10. Oct 30, 2010 at 12:50 PM
    #10
    IamTacO

    IamTacO red balls got me!

    Joined:
    Jan 31, 2010
    Member:
    #30401
    Messages:
    703
    Gender:
    Male
    First Name:
    adam
    QC az
    Vehicle:
    01 Prerunner SR5 TRD-Offroad
    4x2 Prerunner. Hankook Dynapro ATM rf10 265-65-16, e-locker FTW! Morimoto d2s bi-xenon HID projectors, Philips 85122+ 4300K, Cobra 75 w/ 3' firefly, Kenwood KDC-MP342U w/ SIRIUS, Line-x bed liner, 4' coretrax(black)
    either you are extremely lucky, or you just haven't look hard enough for the damage its caused. in any case, they are all considered offroad use only cause they just can't handle the light output correctly. you are endangering others with them.

    and yes, i flash those around me that have them just as reminder of what it looks like from oncoming traffic

  11. Oct 30, 2010 at 12:53 PM
    #11
    cummins6speed

    cummins6speed Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,818
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    I have looked, even had the lights apart last week, and no issues whatsoever. I don't care for HID's in the factory headlights either and we will be doing a projector retrofit but that wasn't the point here.

    By the way the glare isn't really that bad on the 2nd gen headlights, I haven't had any problems driving in front of her or toward her

  12. Oct 30, 2010 at 12:57 PM
    #12
    WhatThePho?

    WhatThePho? Greg Graffin 2016

    Joined:
    Jun 30, 2009
    Member:
    #19096
    Messages:
    5,396
    Gender:
    Male
    First Name:
    Andre
    HCMC, VN
    Vehicle:
    2006 STi
    The things required to pull bitches

    I think the OP was refering to offroad lights

  13. Nov 4, 2010 at 7:04 PM
    #13
    BCH

    BCH [OP] Shiester

    Joined:
    Apr 2, 2010
    Member:
    #34473
    Messages:
    105
    Gender:
    Male
    First Name:
    Chris
    Lafayette Ga
    Vehicle:
    SR5 4x4 4cyl
    Viper, ARE Camper
    HMMMMMMMM............So are the converted lights just as good as the ones you buy already HID ?

  14. Nov 4, 2010 at 10:00 PM
    #14
    WhatThePho?

    WhatThePho? Greg Graffin 2016

    Joined:
    Jun 30, 2009
    Member:
    #19096
    Messages:
    5,396
    Gender:
    Male
    First Name:
    Andre
    HCMC, VN
    Vehicle:
    2006 STi
    The things required to pull bitches
    Yes and No.

    The converted ones has an external ballast, Some of the HID ones has an internal ballast. The Hella ballast are pretty damn reliable compare to these Chinese Ballast. But for the Price difference I would do the conversion.

    The older hella 4000 had an external ballast the newer ones has an internal one.
