HID Retro complete!!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by yosh2000, Oct 18, 2009.

  1. Oct 18, 2009 at 12:18 PM
    #1
    yosh2000

    yosh2000 [OP] Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,940
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8

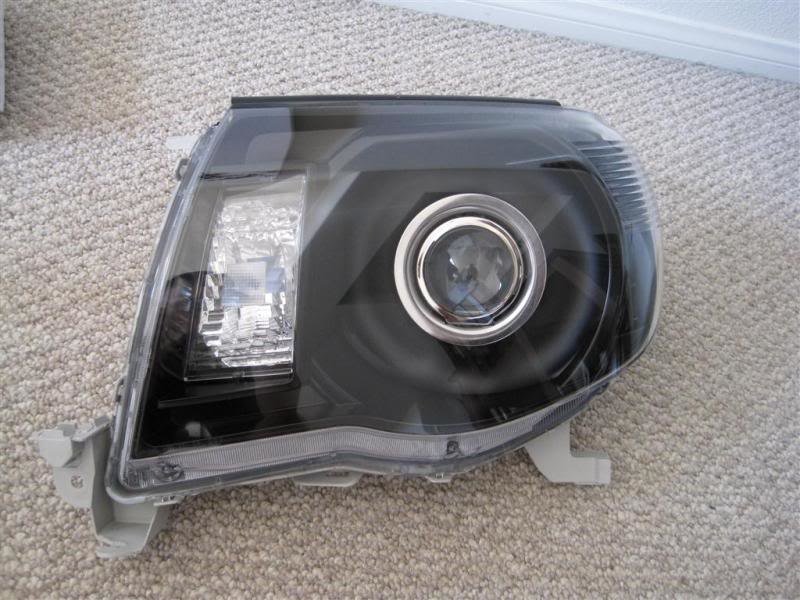

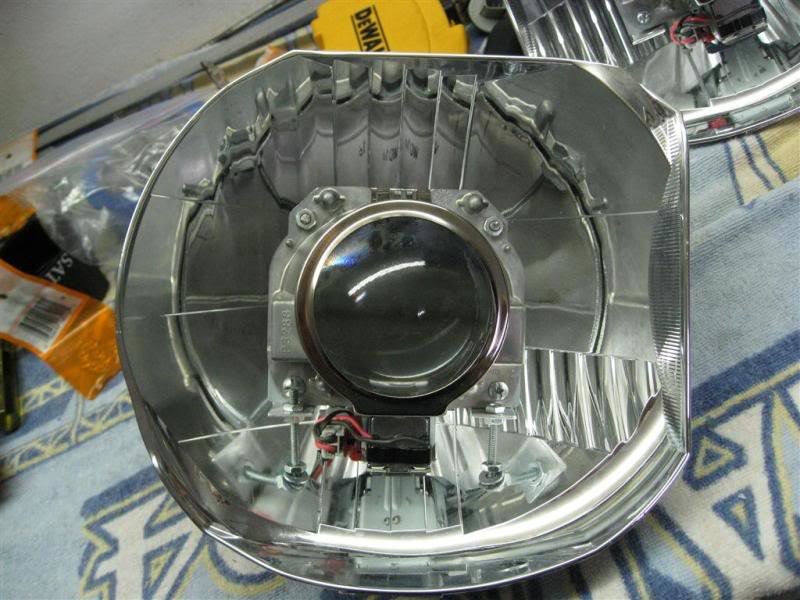

    well, its finally finished! i used 08 acura TL projectors w/ clear lense, OEM toyota denso ballasts, phillips 85122 bulbs and homemade wire harness. i also left the blinkers chrome, and swapped out clear lenses here too.

    here are the pics...

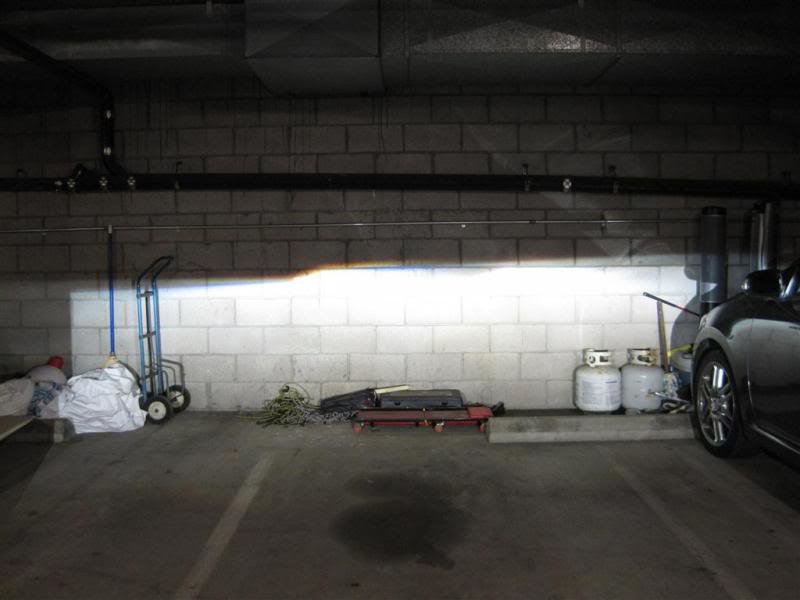

    OEM output..

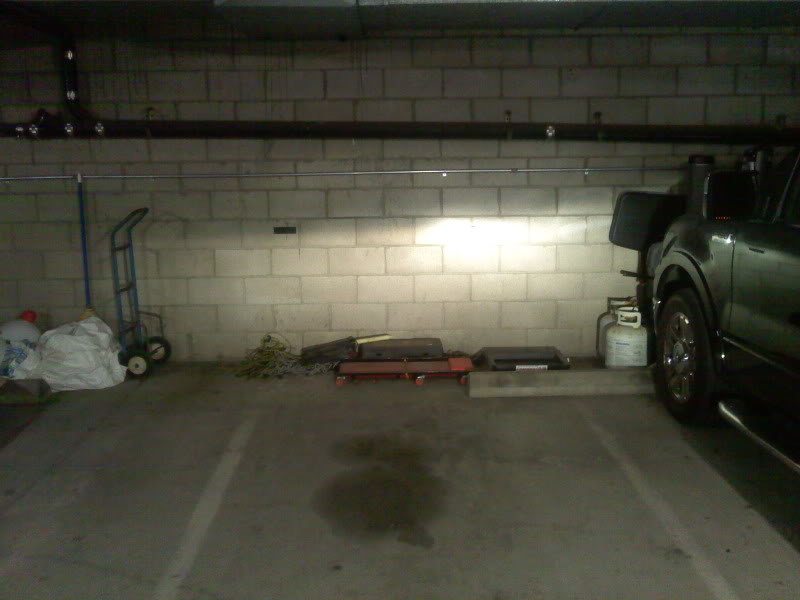

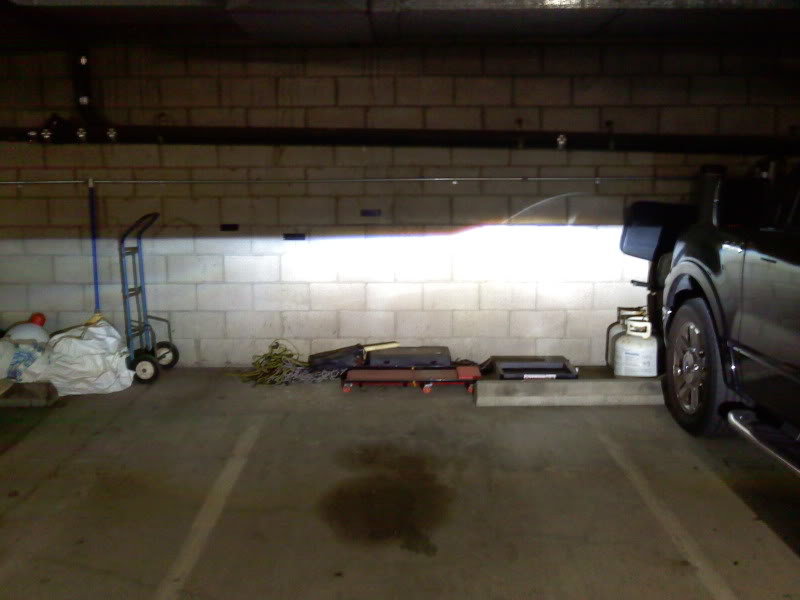

    HID output...

    both (i know the driver is a little off, but you cant tell when actually driving, it was my first retro so lay off!!)

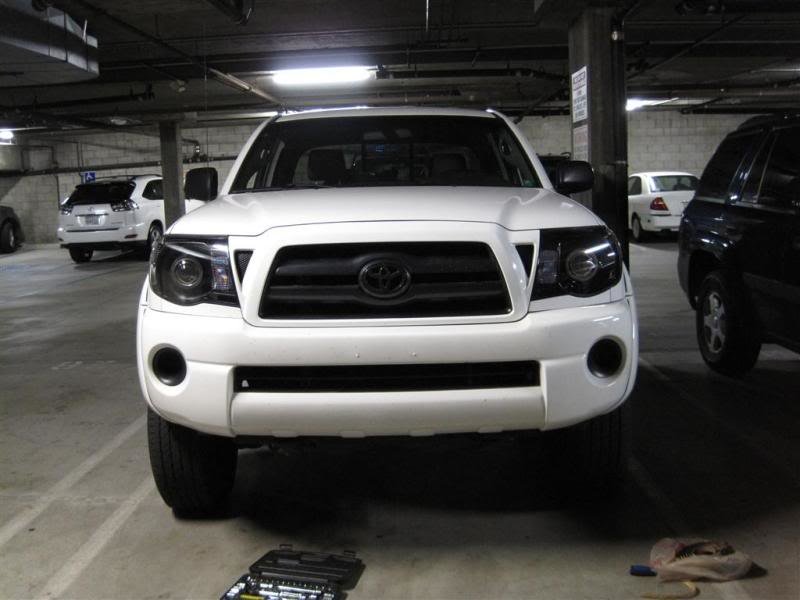

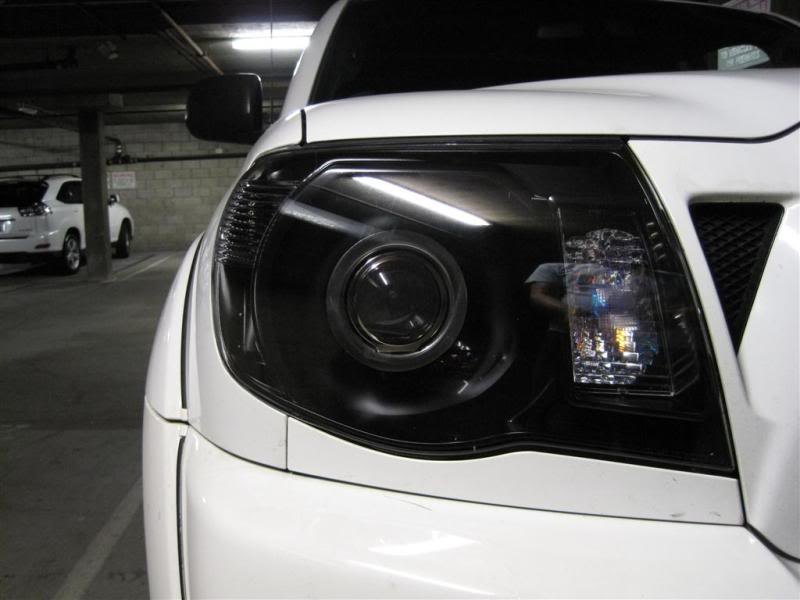

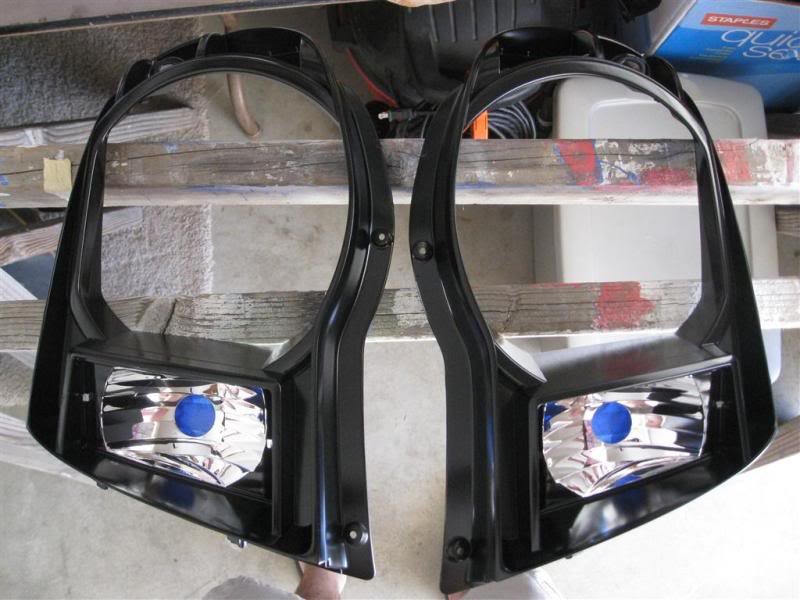

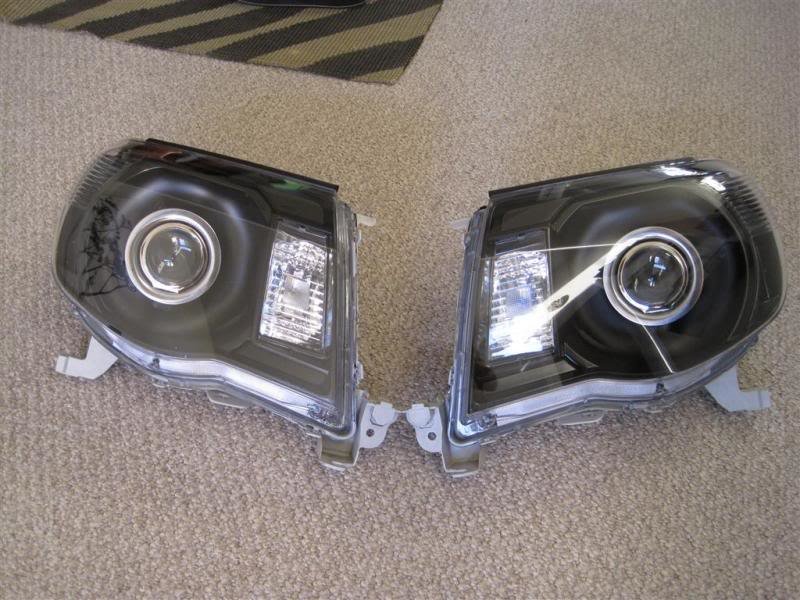

    misc pics..

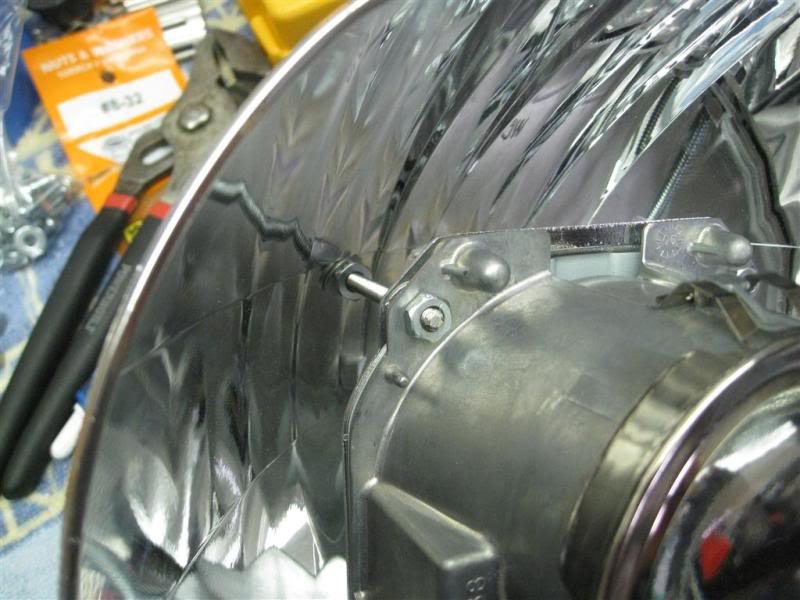

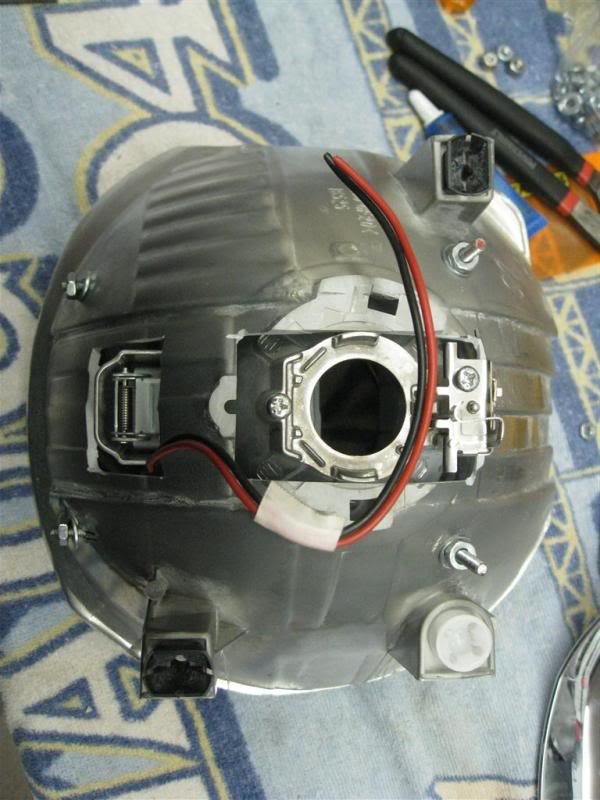

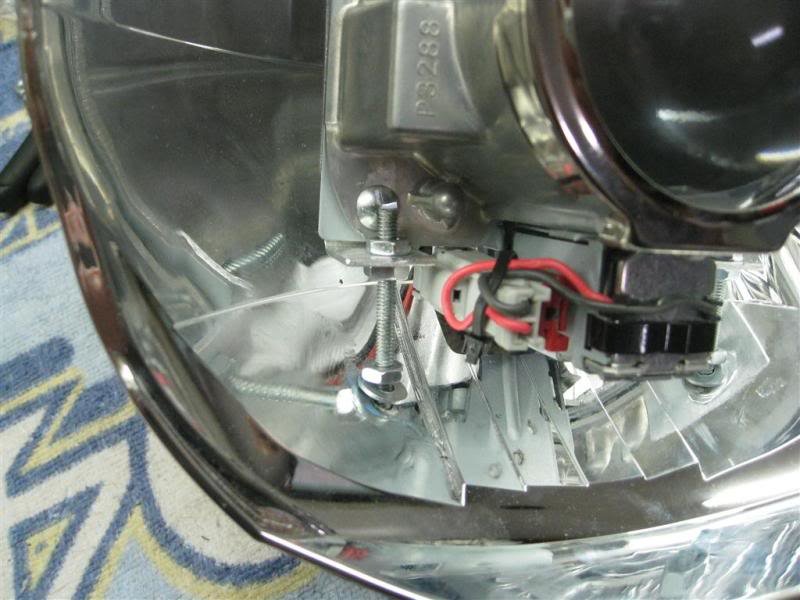

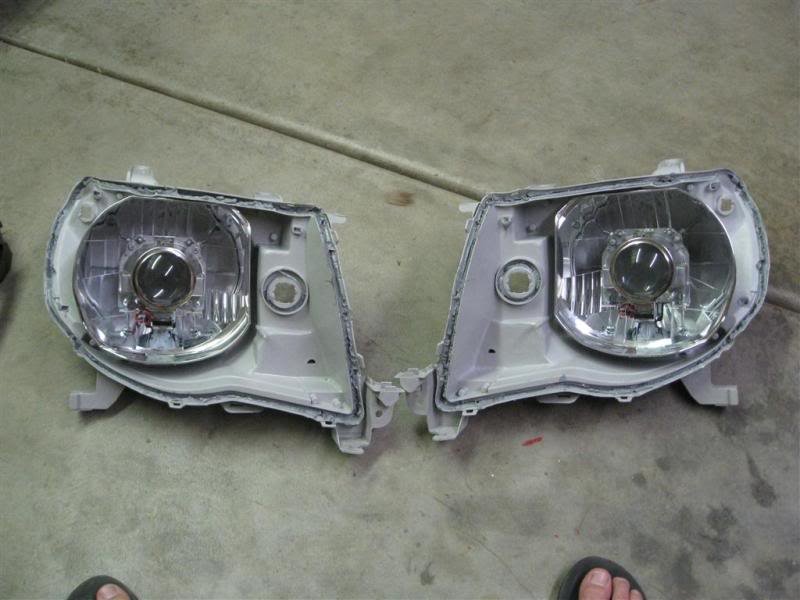

    EDIT...mounting and process pics...

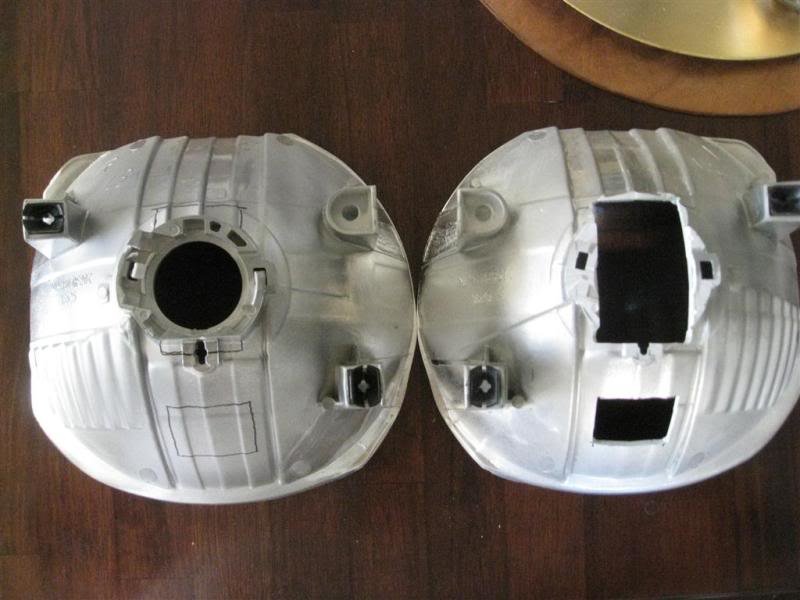

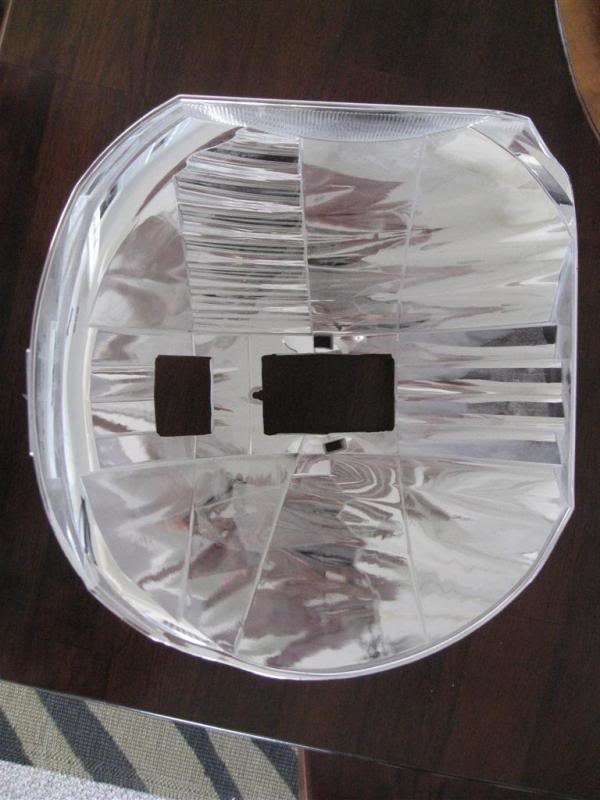

    i got a metal housing used to hid recessed lights at lowes and cut it to size

    then filled in the OD w/ 3M ruuber sealer to make it smooth

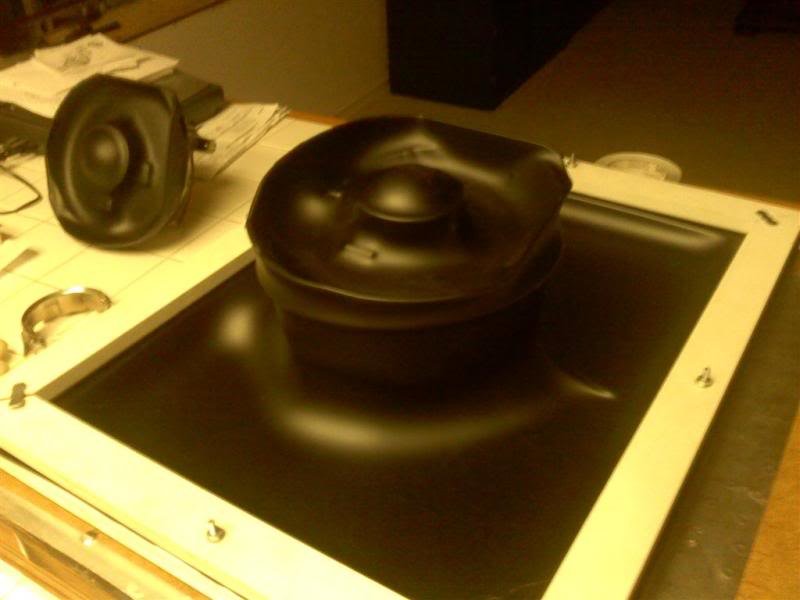

    then vacuum formed using 0.060" thick polystyrene (3.5 mins at 275* was perfect)

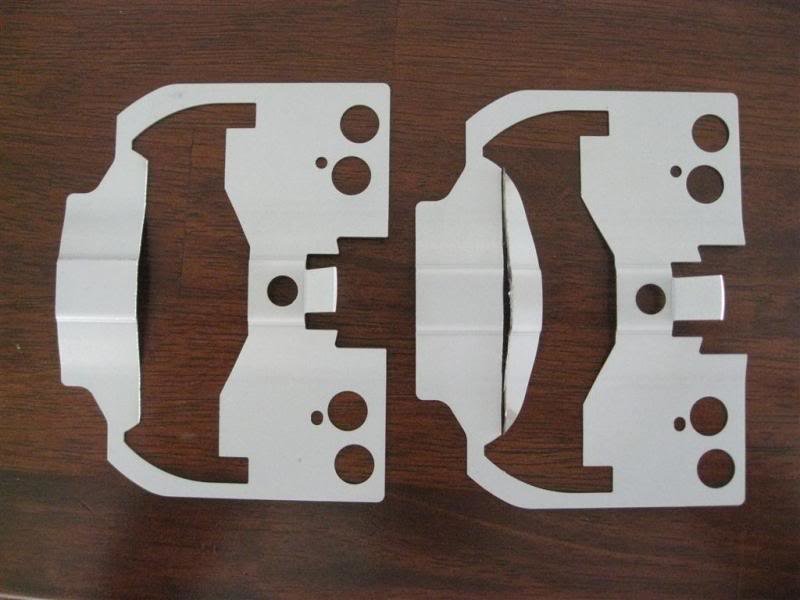

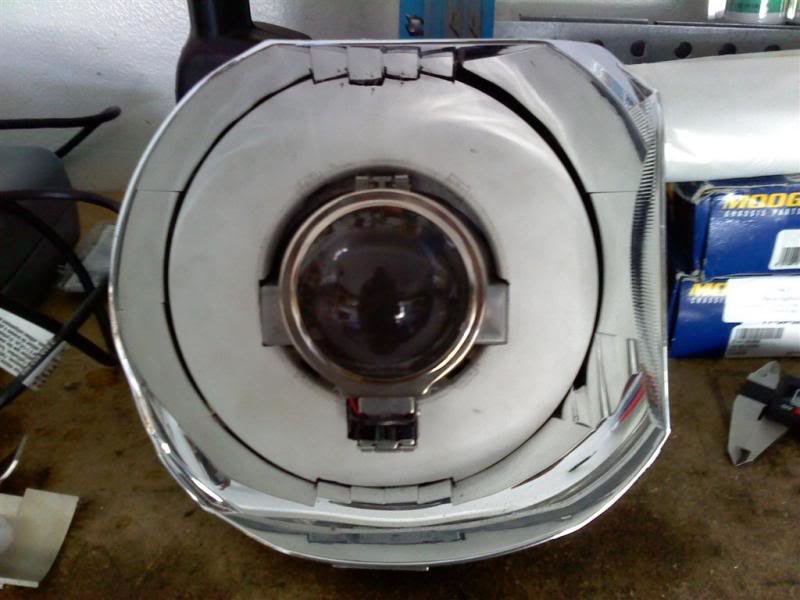

    now, here is where i ran into a jam. i was going to use a gatling gun shroud, but when i was going to glue it on, it just didnt look good and i would have never been happy w/ it. so i got some 3" ABS PVC and cut about an inch piece to surround the projector and vacuum formed again around it. then i used a kitchen sink drain surround and cut to fit...worked perfect. link to drain surround here. i got this idea from a member on xr-underground (HiTek21). i then used plumbers goop and let dry for a few days in order that it wouldnt fog up the headlights.

    let me know if you guys have any other questions...

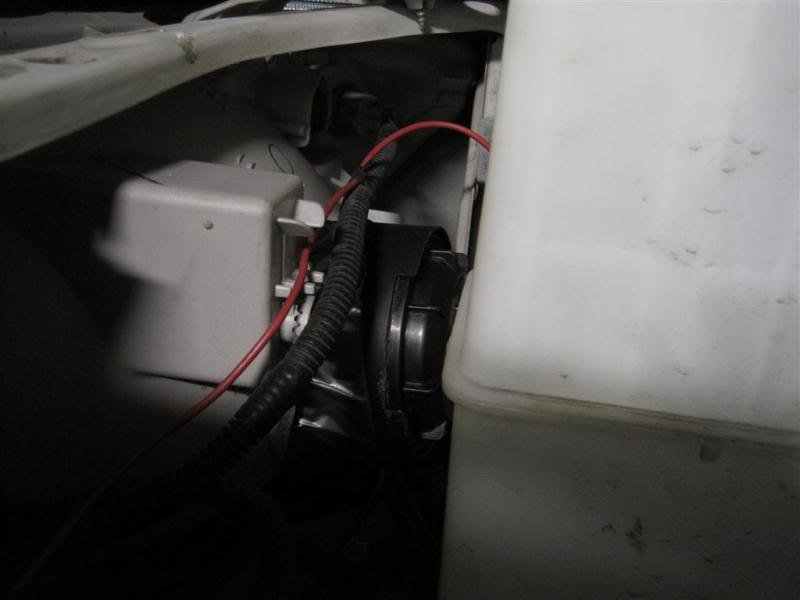

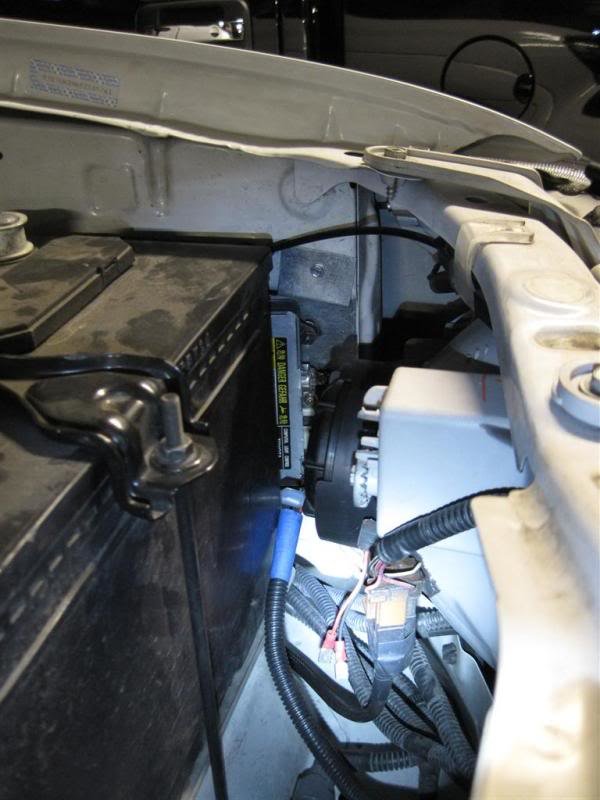

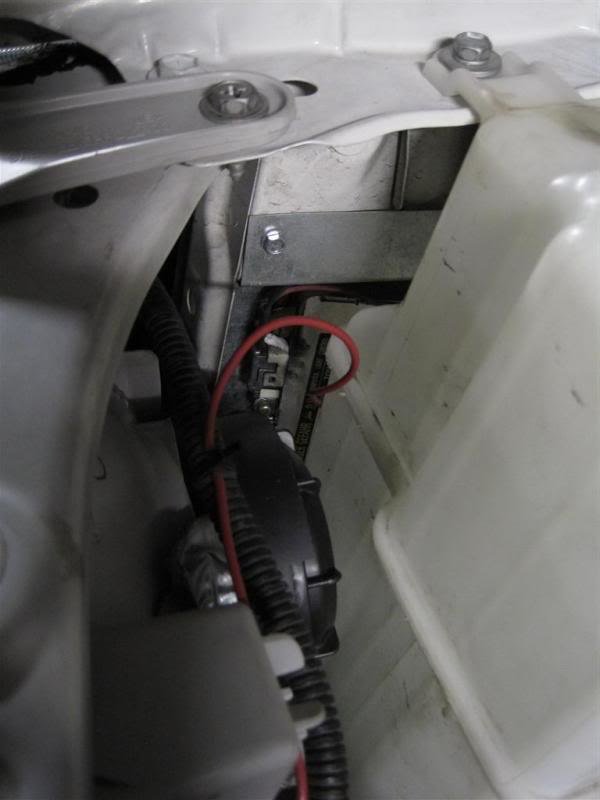

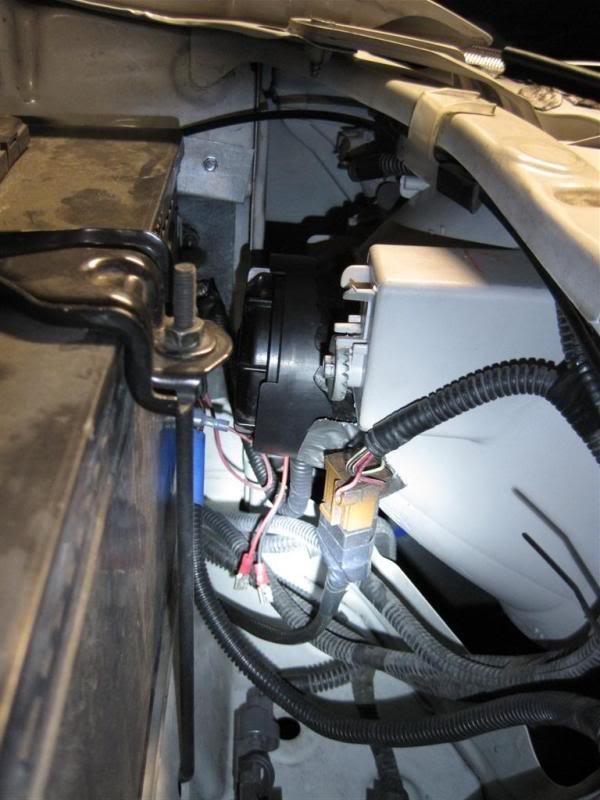

    output nightshot and backside photos per request...
