HID Retrofit 2009 Tacoma Extended Cab

Discussion in 'Lighting' started by 95SLE, Mar 27, 2012.

  1. Mar 27, 2012 at 6:47 PM
    #1
    95SLE

    95SLE [OP] Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,910
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    I finally had the time to devote 100% of my attention to theHID retrofit for my Tacoma. Iparticipated in the group buy last November/December. I purchased the FX-R Stage IV kit with CCFL rings, Gatling Gunshrouds, and extra sealing compound.

    Link to TRS

    http://www.theretrofitsource.com/product_info.php?cPath=24&products_id=205

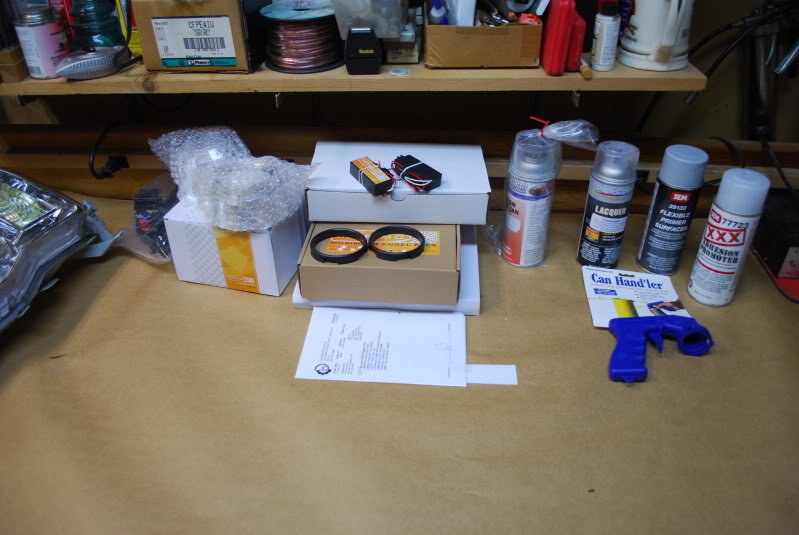

    This is what the kit looks like when removed from the shipping box.

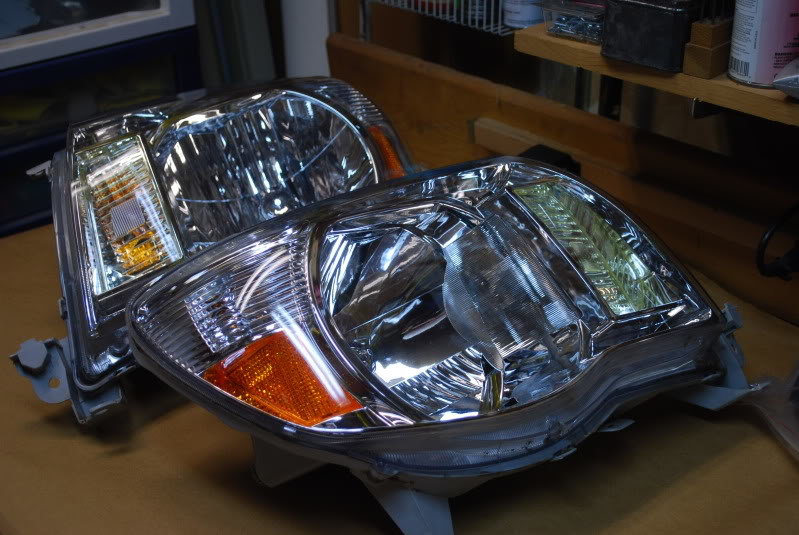

    I also purchased a set of OEM headlights from another member. Thanks Dave!

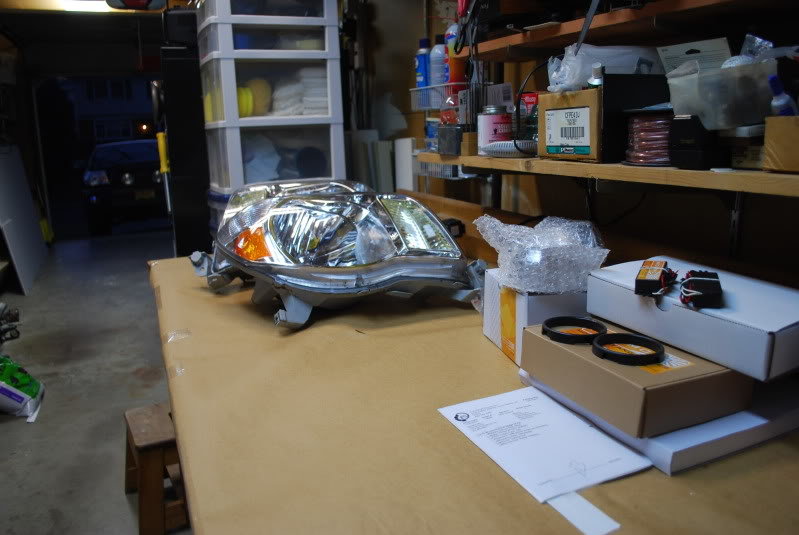

    My workbench set up for the retrofit.

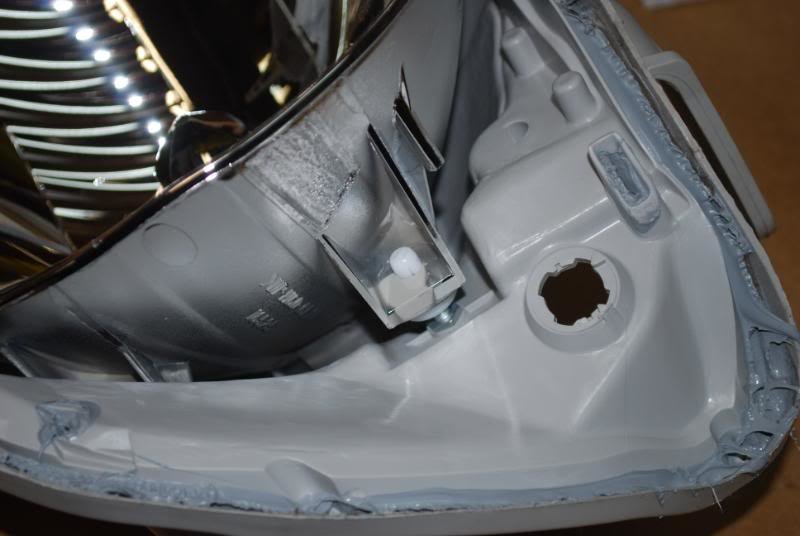

    First up was to disassemble the headlamps. I preheated the oven to 255 degrees then put the headlamps in the oven, turned off the heat and let then sit in there for 7minutes. One of the headlamps needed two cycles to finally be able to pull them apart.





    Before removing the Halogen bulb clamp the reflector to as tationary object, in my case a rolling cart. I marked the reflector and the position on the cart as well as theposition of the cart wheels on the floor. I then fired up the low beam and marked the cutoff pattern on the garage wall. You will need the markings on the wall onceyou install the HID projectors in the reflector.

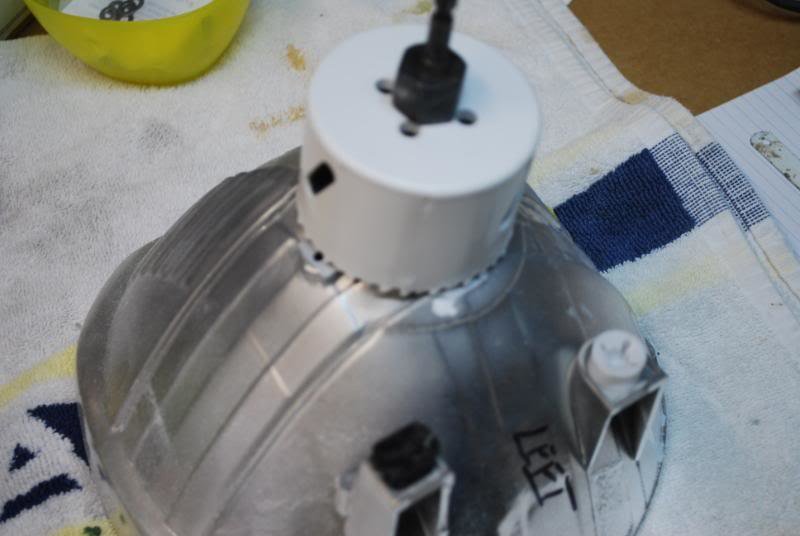

    I next used a 2 3/4 in bimetal hole saw to cut a hole in theback of the reflector bowl.

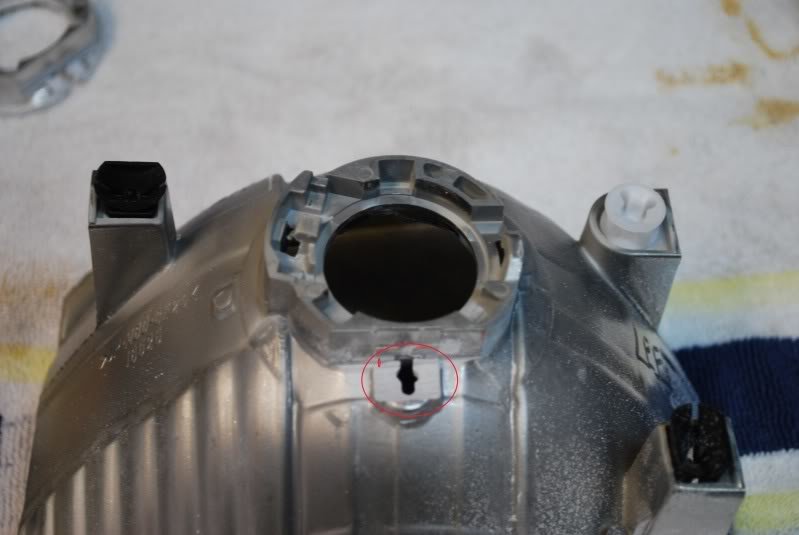

    I removed the circled protrusions with a hack saw. This enabled the hole saw to fit flushagainst the reflector bowl.

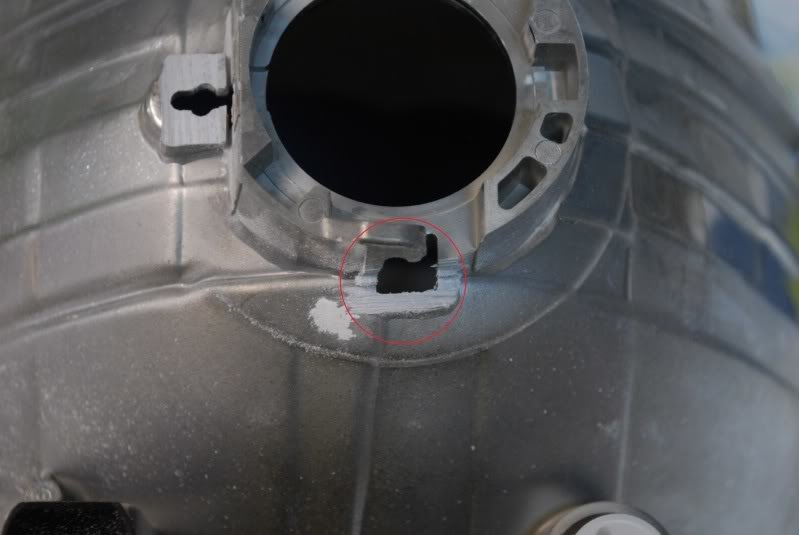

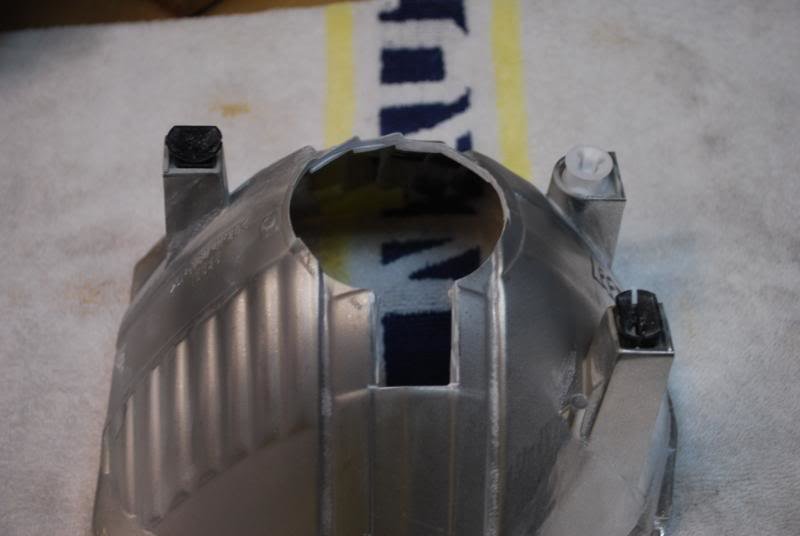

    Finished cut. You cansee that I cut a notch at the bottom of the bowl to allow the solenoid toprotrude out the back and allow the wires to go out the back. You need to make the notch larger than thisto allow the CCFL connector to be routed through the hole. I found out the hard way that it was notlarge enough.

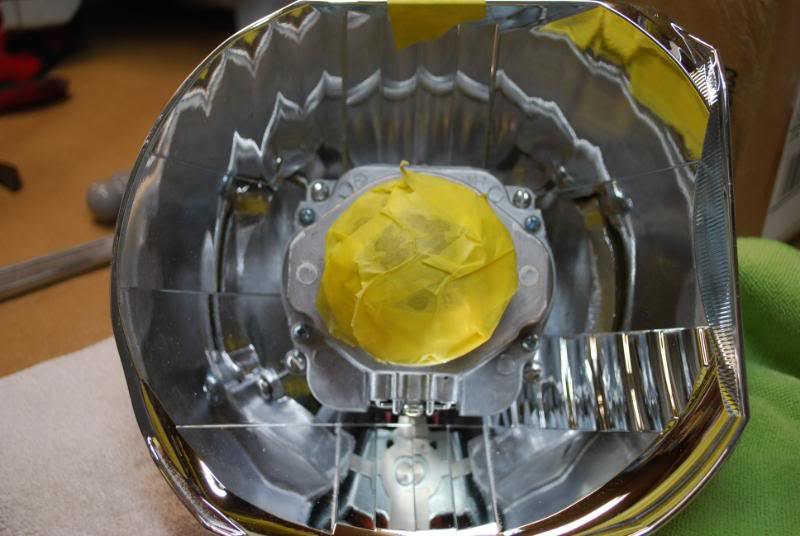

    Next up I positioned the projector in the reflector bowl, markedthe screw hole locations, drilled the holes and mounted the projector. In this pic the projector is nor 100%horizontal so I need to tweak it to have it horizontal in the bowl.


    Once you are satisfied that the position is correct then youcan light up the projector and see if the cut off line are the same as the onefor the Halogen bulbs. At this point youcan start to assemble the reflector. Iused a red hi temp sealant to fill the gaps where the bowl and projectormeet. I also did the same where thescrews came through the reflector bowl.


    I let this dry overnight before proceeding. Next I used hot glue to secure the CCFL ringto the inside of the shroud.

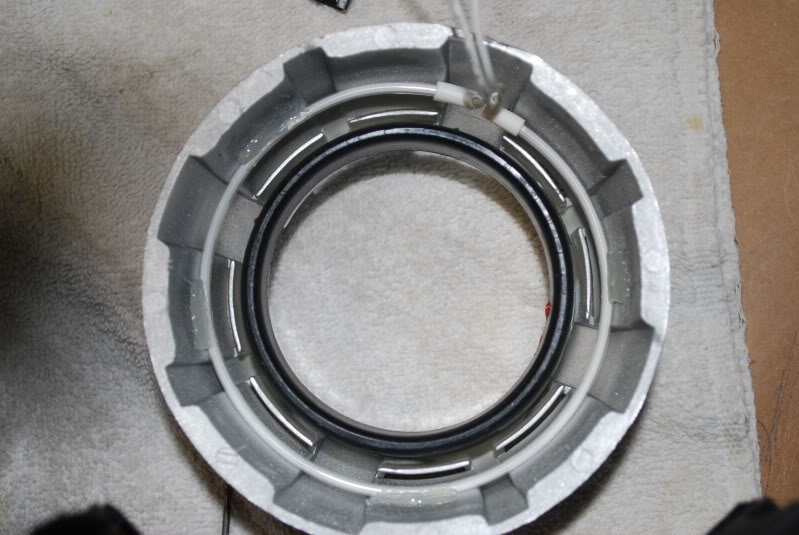

    I put sealant on the inside of the concentric ring to sealit to the shroud.

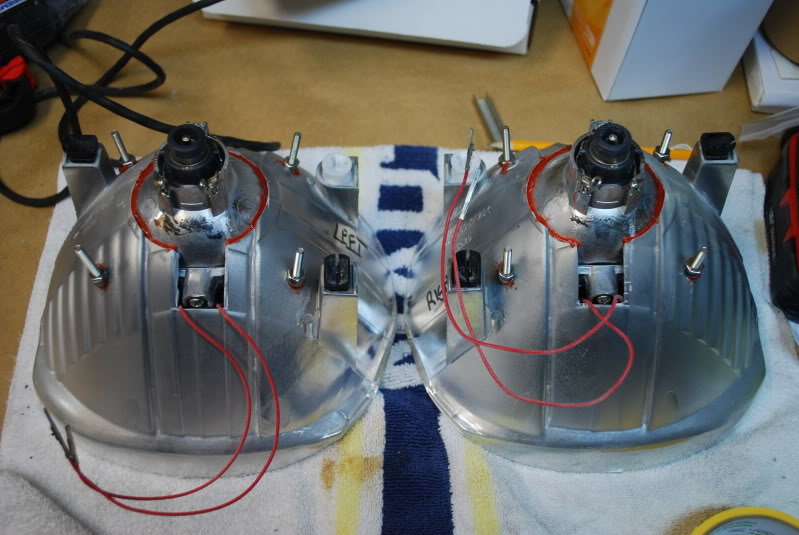

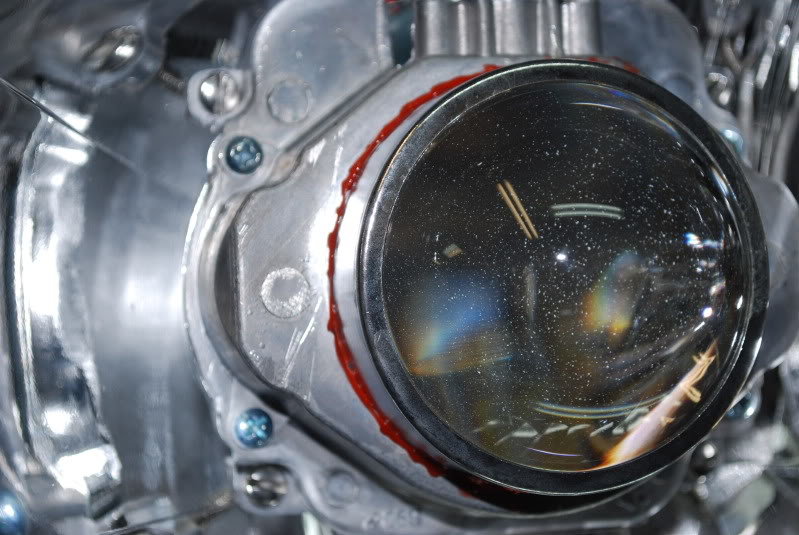

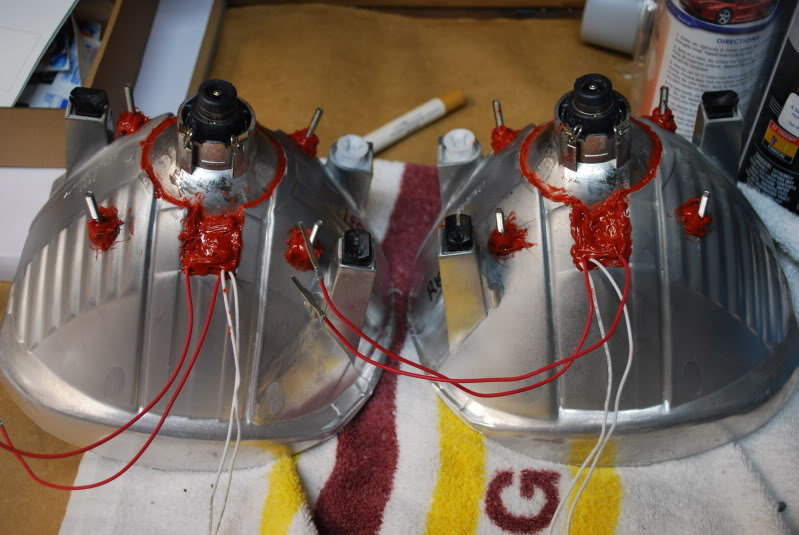

    I then ran a bead of sealant at the base of the projectorand installed the shroud.



    Headlights sealed up.

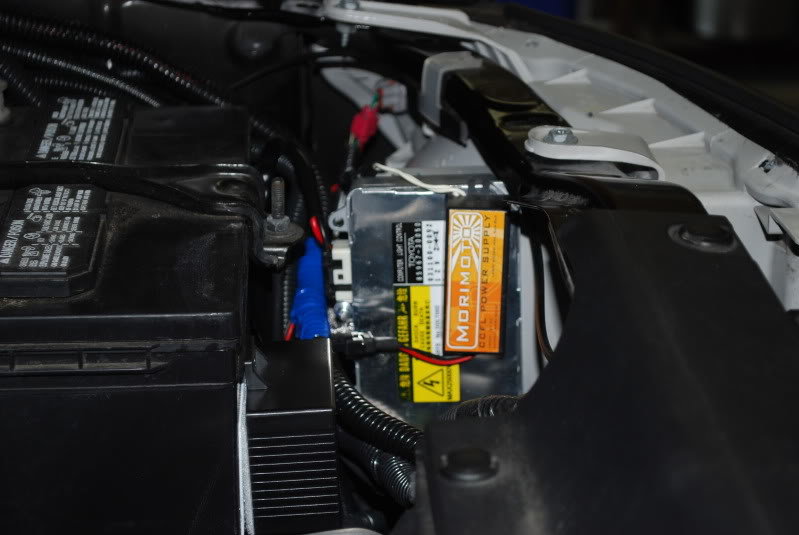

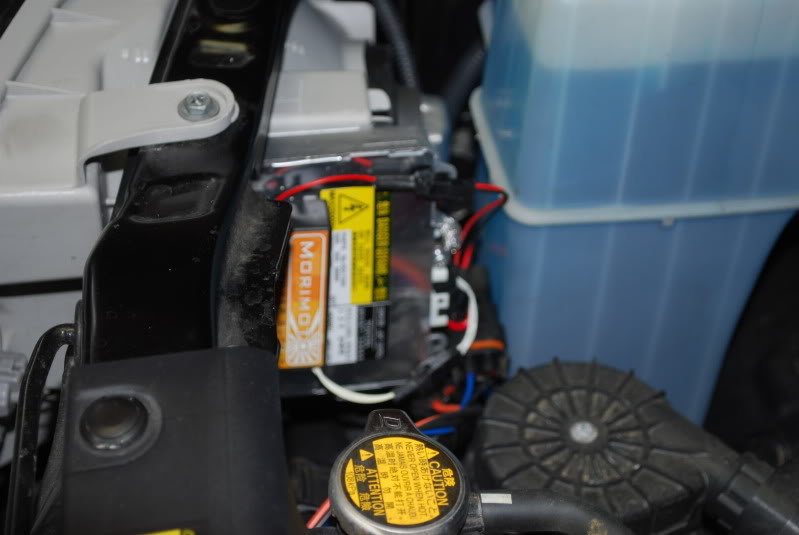

    Two pics of the ballast and CCFL ballast mounted on the sideof the headlamps.

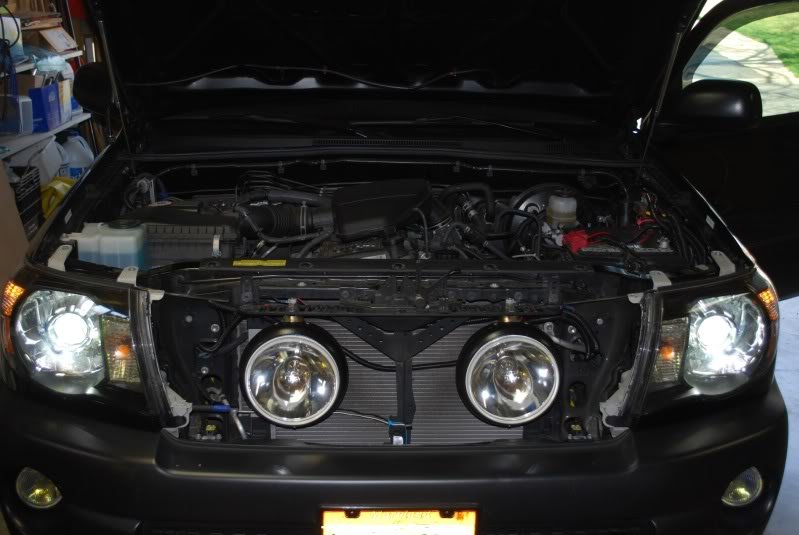

    Headlights mounted in the grill


    CCFL lit up in the daytime


    Painting the trim ring was a separate process that took 3 days due to my letting each phase of the paint dry for an entire gay before moving on. I am very happy with the colormatch to the BSP on my Tacoma

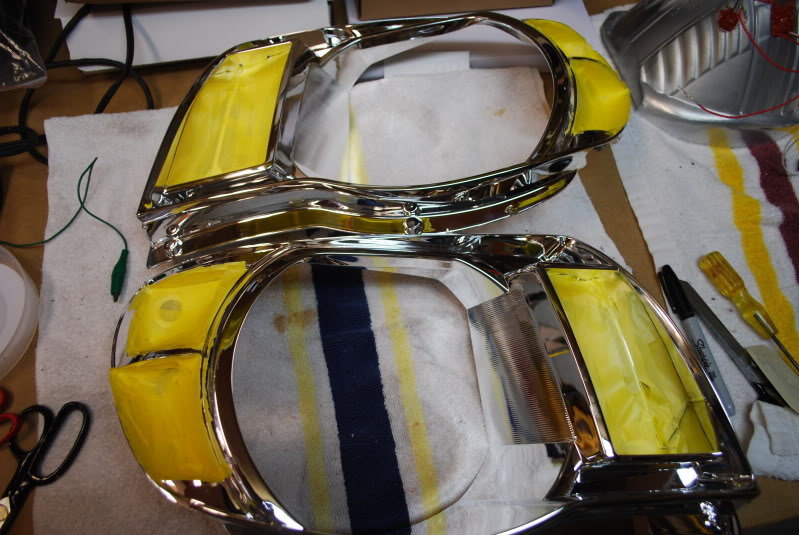

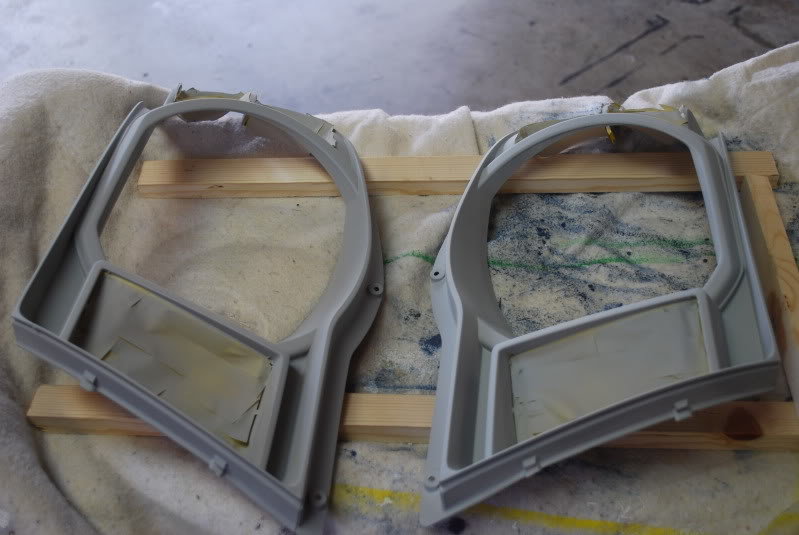

    Headlight trim taped up and ready to primer. I removed the lenses prior to the masking.


    Two coats of adhesion promoter and 3 coats of flexibleprimer applied.

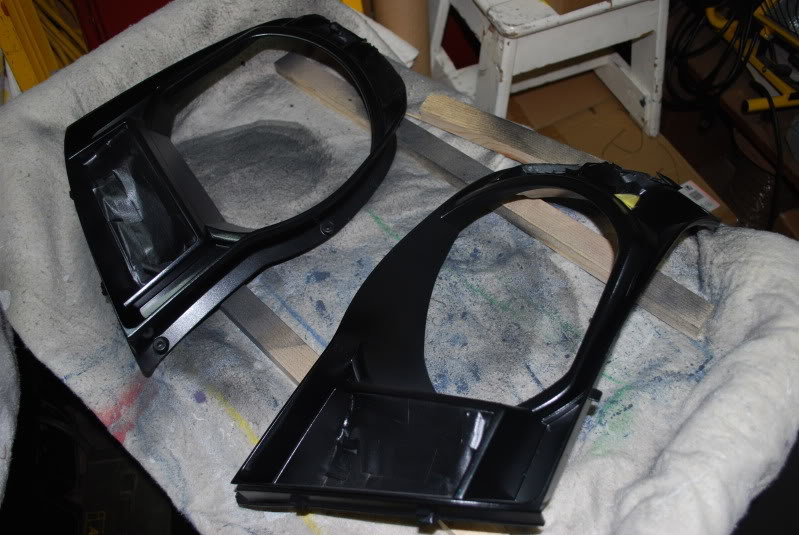

    The trim painted up with 4 coats of BSP and 4 coats of clearcoat.

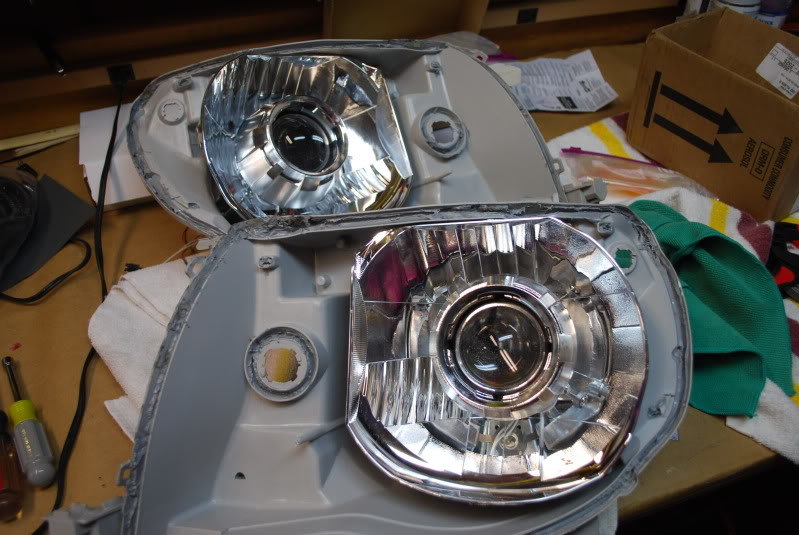

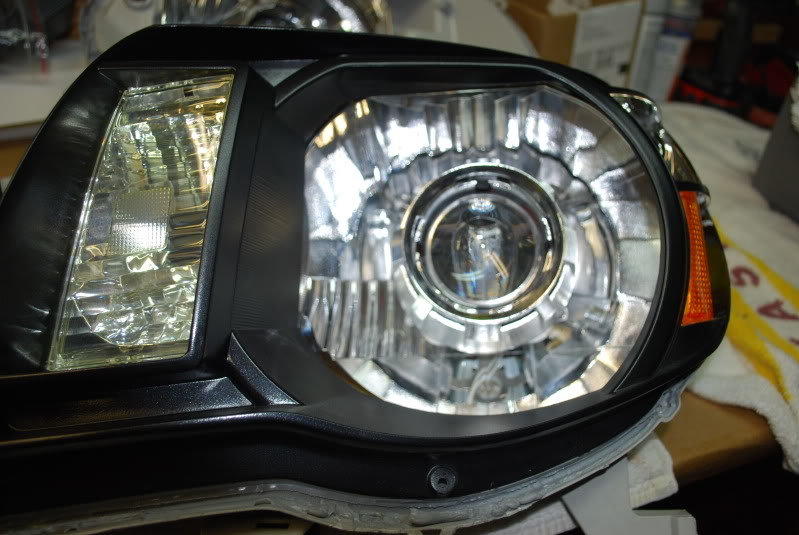

    The reflector bowls with projectors mounted back in theheadlight housing.


    Inner trim ring painted BSP

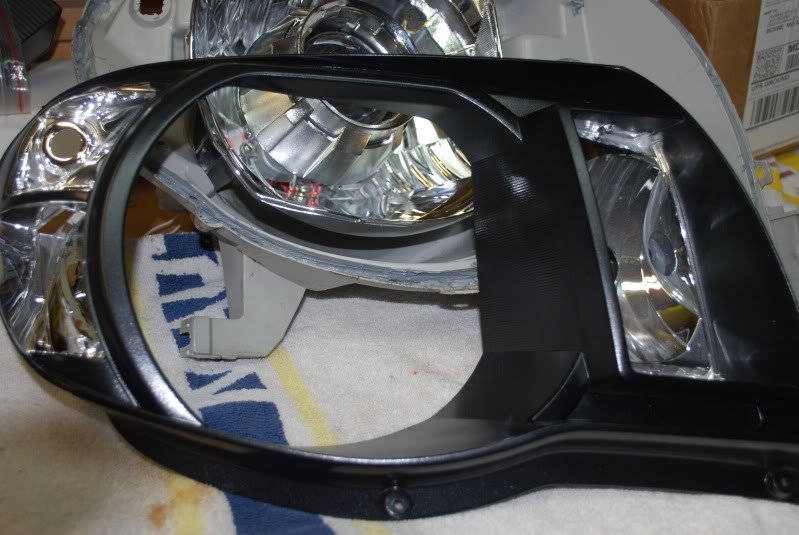

    Test fit trim ring into housing

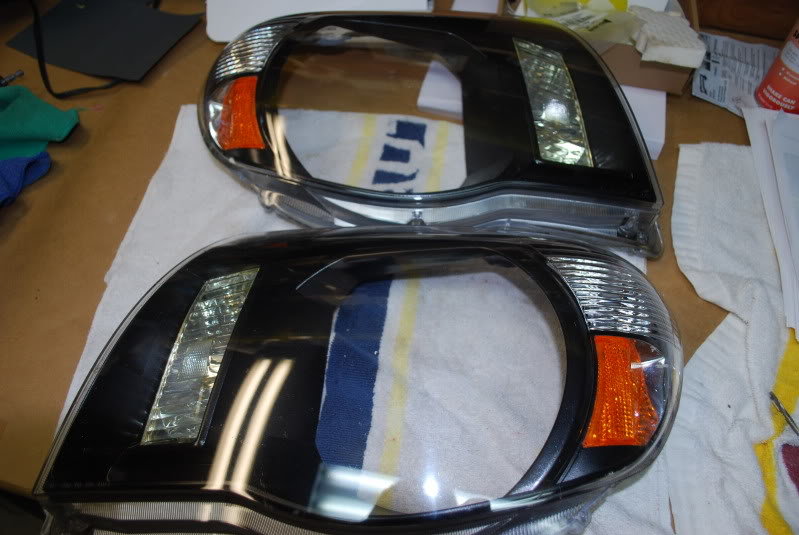

    Trim rings secured to clear plastic headlight cover.

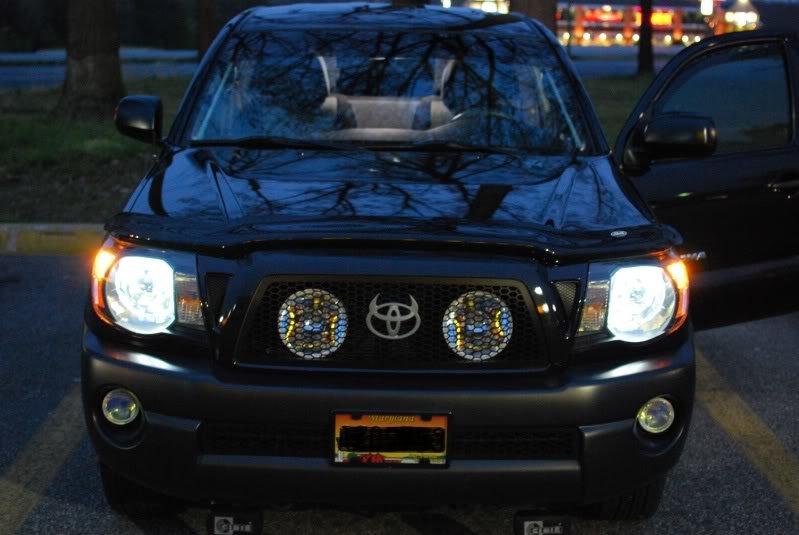

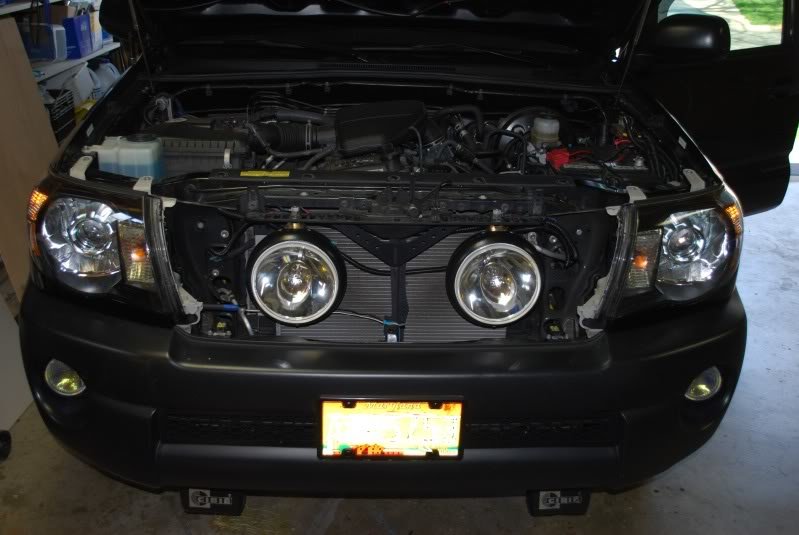

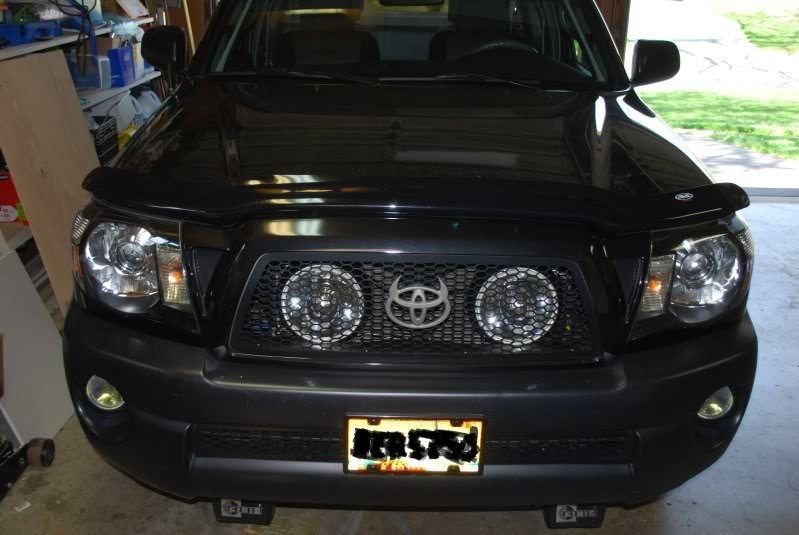

    Final results in the garage




    I will get some better pics tomorrow in the daylight. I will also post some illumination pics onceI have the headlights adjusted properly. This may take a few days.

  2. Mar 27, 2012 at 6:48 PM
    #2
    95SLE

    95SLE [OP] Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,910
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    I finally was able to do a decent alignment.

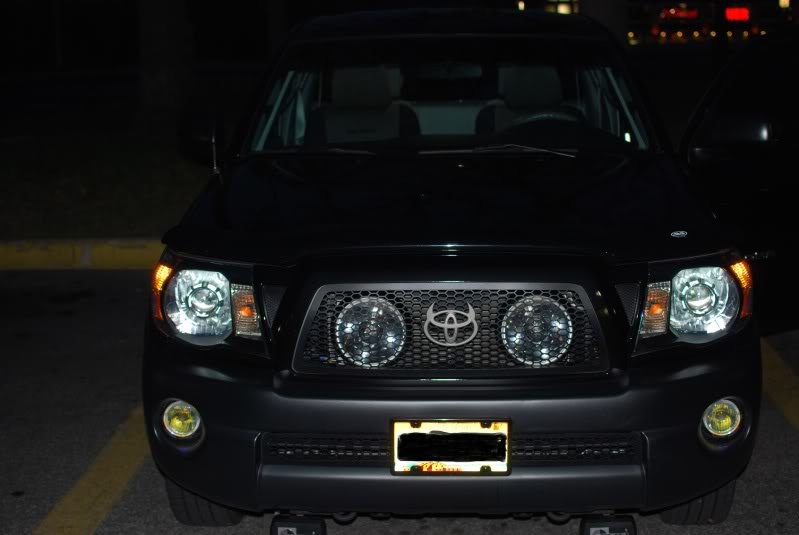

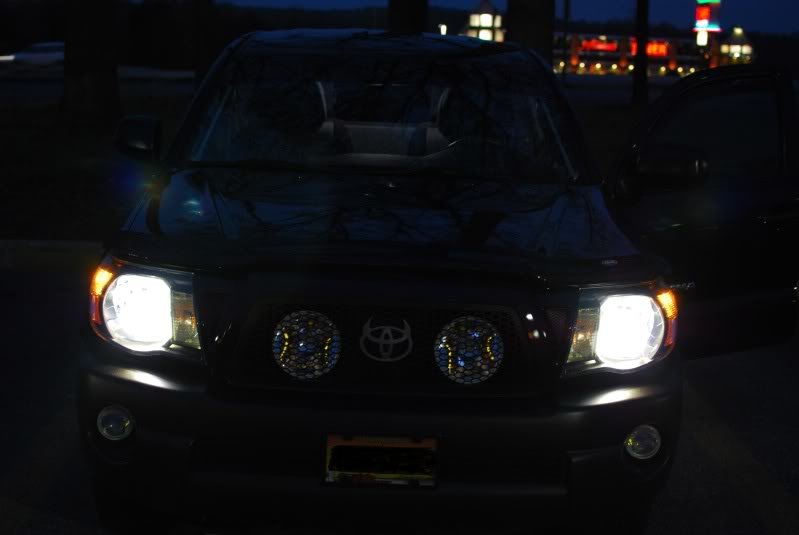

    A few lighting pics.



    A pic with just the CCFL on.


  3. Mar 27, 2012 at 6:54 PM
    #3
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    14,271
    Gender:
    Male
    First Name:
    Colton
    Gillette, WY
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    Yeah, I gots boost
    Attention to detail is amazing Tom! I will be frequenting this thread when I ditch my Mini D2S I have now and upgrade to an FX-R

  4. Mar 27, 2012 at 6:59 PM
    #4
    95SLE

    95SLE [OP] Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,910
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    Believe me I asked a lot of questions via PM's. A big TY to ANT.

  5. Mar 27, 2012 at 7:00 PM
    #5
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,398
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    What is the (functional) difference between this kit and the kits that retrofit sells that don't require drilling and sealing to mount the projector?
    Are they not Bi-Xenon?

  6. Mar 27, 2012 at 7:07 PM
    #6
    Night

    Night Well-Known Member

    Joined:
    Feb 21, 2011
    Member:
    #51613
    Messages:
    980
    Gender:
    Male
    First Name:
    Mike
    Canada
    Vehicle:
    '11 TRD OR AC MagGrey
    Banks Monster Exhaust, aFe ProGuard 7, 3M Film, UnderCoating, alpine 920 headunit, alpine 6.5 components, 20% tint all around, JL Stealthbox, PDX-V9 Amp, Avid Lightbar, Avid Sliders, Full Metal JackRabbit Tonneau, TRD S/C
    You have gave me the confidence to do my own! You include specifics and turn this into a how-to! Nice truck!

  7. Mar 27, 2012 at 7:09 PM
    #7
    95SLE

    95SLE [OP] Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,910
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    They are Bi-Xenon.


    When I was doing research I kept reading posts from guys, here on TW and on HID Planet, that they were not satisfied with the illumination and lightpattern of the H1 retrofit kit. The also said they eventfully replaced the H-1with the FX-R. The projector is the biggest difference, the FX-R is a better all around projector with better glass.



    I decided to bite the bullet and do the more complicated install.

  8. Mar 27, 2012 at 7:36 PM
    #8
    Night

    Night Well-Known Member

    Joined:
    Feb 21, 2011
    Member:
    #51613
    Messages:
    980
    Gender:
    Male
    First Name:
    Mike
    Canada
    Vehicle:
    '11 TRD OR AC MagGrey
    Banks Monster Exhaust, aFe ProGuard 7, 3M Film, UnderCoating, alpine 920 headunit, alpine 6.5 components, 20% tint all around, JL Stealthbox, PDX-V9 Amp, Avid Lightbar, Avid Sliders, Full Metal JackRabbit Tonneau, TRD S/C
    I thought the FX-R would be even more complicated but they are relatively still a simple install, did you follow a particular guide?

  9. Mar 27, 2012 at 7:39 PM
    #9
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,398
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Gotcha'
    That does make sense. Ordering a spare set of lights would certainly take some stress out of the project.

    I assume we want the H4 relay.

  10. Mar 27, 2012 at 8:34 PM
    #10
    AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,586
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    great TOM! good job looks really great!

  11. Mar 27, 2012 at 8:46 PM
    #11
    S7ICKlVlAN

    S7ICKlVlAN Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,372
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    Really nice work! Thanks for posting the pics.

  12. Mar 27, 2012 at 9:47 PM
    #12
    OverRated

    OverRated Well-Known Member

    Joined:
    Jan 25, 2012
    Member:
    #71434
    Messages:
    306
    Gender:
    Male
    First Name:
    David
    San Jose, CA
    Vehicle:
    12 Tacoma / TRD-OR / DCSB
    Nice! I'm going to use your thread as reference when I do mine! Waiting for spring break (next week) so I can start and take my sweet time!

  13. Mar 28, 2012 at 2:41 AM
    #13
    95SLE

    95SLE [OP] Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,910
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    Correct on the relay.

    The spare set of headlamps is a blessing. There is no time factor to do the mod quickly. I just took my time and tries to measure twice and cut once.

    I had thought about a 3in hole saw but I believe there would not be enough clearance between the battery and the headlamp to support a deeper depth to the projector.

  14. Mar 28, 2012 at 5:36 AM
    #14
    Oury

    Oury Texas Taco

    Joined:
    Sep 13, 2010
    Member:
    #43204
    Messages:
    1,346
    Gender:
    Male
    First Name:
    Oury
    Austin, Tx
    Vehicle:
    07 TRD Offroad
    stuff and more stuff
    What is that red sealant called?

  15. Mar 28, 2012 at 5:42 AM
    #15
    95SLE

    95SLE [OP] Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,910
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
  16. Mar 28, 2012 at 6:00 AM
    #16
    oldtacomaguy

    oldtacomaguy four forty four

    Joined:
    Dec 11, 2006
    Member:
    #444
    Messages:
    10,040
    Gender:
    Male
    First Name:
    Dave
    SE Conn.
    Vehicle:
    08 SR-5 4WD Impulse Red Pearl
    Alpine deck and amp, Polk speakers front and rear, Kenwood subwoofer, windows tinted to 20%, Sockmonkey decals, TSB, Eibach springs and Bilstein 5100's
    Nice job and great writeup Tom. Those lights were put to good use!

  17. Mar 28, 2012 at 6:06 AM
    #17
    Oury

    Oury Texas Taco

    Joined:
    Sep 13, 2010
    Member:
    #43204
    Messages:
    1,346
    Gender:
    Male
    First Name:
    Oury
    Austin, Tx
    Vehicle:
    07 TRD Offroad
    stuff and more stuff
  18. Mar 28, 2012 at 6:14 AM
    #18
    95SLE

    95SLE [OP] Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,910
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    Take your time. It actually was a nice project that helped me learn additional quirks on how are Tacoma's are put together.

    The first under headlight trim panel I removed snapped so loud I thought I had broken the retainer clip. When I reinstalled it I made sure it was cleaned on both sides and I sprayed some quick detailer on the clip to make it easier to insert.


    Dave thank you so much for the donor headlamps. I feel it was a win win situation for both of us. I reused your packaging to store my old headlamps. I have a feeling I may be helping some local guys out with retrofits and my old headlamps may be used again.

  19. Mar 28, 2012 at 6:13 PM
    #19
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,398
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    I'll be blacking out the bowl as well, so I'm not concerned about the reflection of the projector as long as the shroud covers most of it.

    What do you think about the E46R-Extended?

  20. Mar 29, 2012 at 5:59 AM
    #20
    95SLE

    95SLE [OP] Starting to get cold outside

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,910
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    Thos is my first retrofit so i do not have any knowledge of the E46R-Extended. You might want to send a PM to AsianAnts. He was most helpfull to me with my retrofit.
