HID Rock Lights Install

Discussion in 'Lighting' started by jberry813, May 5, 2011.

  1. May 5, 2011 at 3:07 PM
    #1
    jberry813

    jberry813 [OP] The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    16,597
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    Yes you read that right. HID rock lights. Count em, five 55 Watt HID lights. 25000 lumens of light…pointing at the ground. :eek:

    I’d been meaning to install some rock lights for a while now, but never really found quite what I was looking for. Night time wheeling is a whole different beast and extra lights always help. They also double as landing lights out at Pismo. :D

    I was strolling through my local Wallyworld and came across these small and inexpensive fog lights. They were on clearance for $13 a pair. So I bought the last 3 sets they had. The housings are all metal and the lenses are glass and they have a nice thick rubber grommet to keep out moisture and debris. Pealing back the rubber grommet you can see it uses a standard 55 Watt halogen bulb held in with a small single set screw

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    My original plan was not to use HID bulbs, but since the lights were a standard H3 bulb and I had a couple of DDM kits leftover from a previous project, I figured I’d give it a try. The bulbs fit the housings perfectly with room to spare. I replaced the set screw with a slightly larger screw with a larger surface area to ensure it wouldn’t move around too much.

    [​IMG]

    Next I cut a small slit in the rubber grommet for the back of the bulbs and wiring and slid it back into its original spot. Wrapped it with some electrical tape to keep any extra debris out and call it done.

    [​IMG]

    [​IMG]

    [​IMG]

    I repeated that process 4 more times for a total of 5 lights. I actually had to order an additional set of HIDs as I didn’t have 5 on hand, so this was a bit of an ongoing project.

    The lights themselves are quite small and can fit in relatively tight spaces. Finding a spot to mount the lights was easy. Finding a spot for the ballast was slightly more challenging.

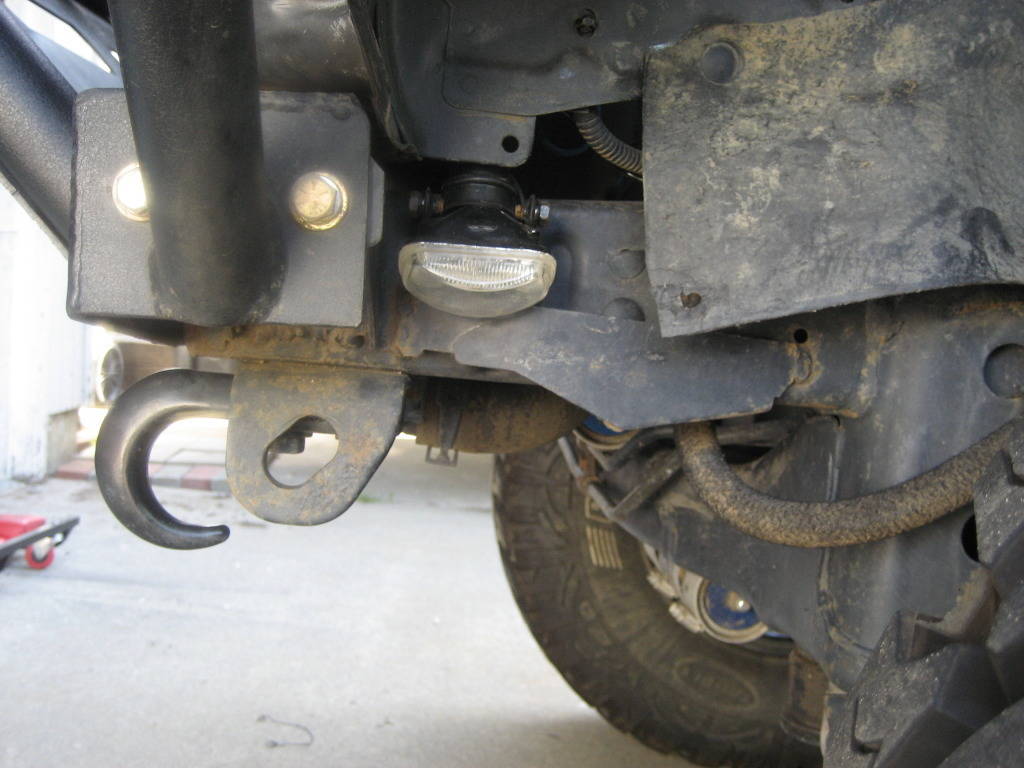

    The front two lights are behind the front bumper and shine directly in front of the front tires.

    [​IMG]

    The middle two lights are mounted in between the front and rear tires directly on the frame. Again my goal was to have them project in front of the tires but these lights really flood.

    [​IMG]

    The last one was mounted where my rear spare tire carrier used to be. I have a full sized spare in the bed of my truck and have no use for the old tire carrier so I unbolted it and put the last light in its place and facing slightly to the rear.

    [​IMG]

    Wiring was is pretty straightforward. I did run into one small snafu when wiring this up though. Five lights at 55 watts each is a total of 275 watts. Total current draw for that at 12 volts is 22.9 amps. I ran two strands of wire. Two lights (passenger side) on one strand, and three lights (driver side and rear) on the other. I figured at 22.9 amps I could use a single relay and a single 30 amp fuse. While this worked, it didn’t work for long. The fuse got super hot and blew after a few test uses. Unbeknownst to me, HID’s pull more than twice as much load when the bulbs are first heating up. Meaning instead of 22.9 amps it was drawing more than 46 amps when warming up. So I split it into two separate circuits.

    I had bought a small 6 circuit auxiliary fuse block a while back and this was as good excuse as any to finally put it to use. The fuse block is made by Blue Sea. Each circuit is rated at a max of 30 amps and the total block is rated at 125 amps. I ran a 4 AWG line from the battery to the fuse block with an inline 100 amp AGU fuse. The whole package bolted down to a piece of steel and mounted behind the factory fuse block.

    [​IMG]

    [​IMG]

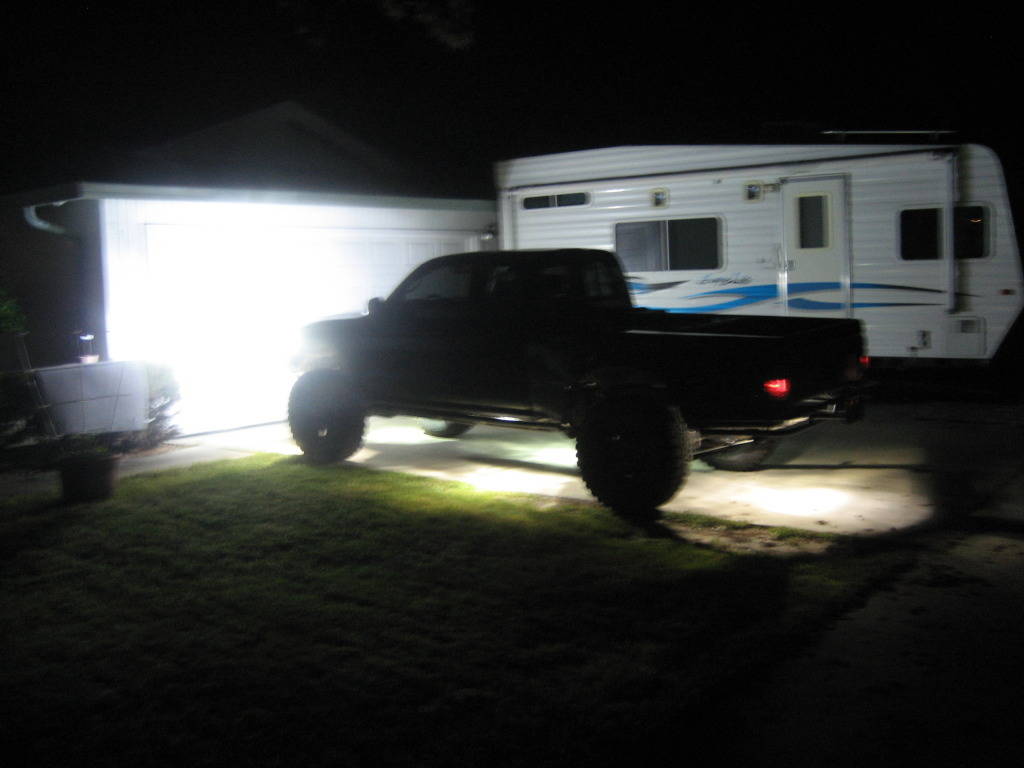

    And now, the finished product. Get your suglasses ready :cool:

    The pictures really don’t do it justice but these things light up my entire street. Can’t wait for the next Pismo trip.


    [​IMG]

    [​IMG]

    [​IMG]

  2. May 5, 2011 at 3:10 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,158
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
  3. May 5, 2011 at 3:13 PM
    #3
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,274
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    Damn Jason! nutty... atleast now you can clearly see all the mud flying up into your airbox! :D:D:D:D:D

  4. May 5, 2011 at 3:16 PM
    #4
    jberry813

    jberry813 [OP] The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    16,597
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    Is that the chris4x4 "DAM!" of approval or the chris4x4 "DAM!" you'r an idiot. I can never tell.

    I'm seriously never living that one down huh? I'm working on a solution though. It involves a midget and zipties ;)

  5. May 5, 2011 at 3:17 PM
    #5
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,158
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Oh no. Thats Approval! Well done!!

  6. May 5, 2011 at 3:22 PM
    #6
    Sabre

    Sabre Well-Known Member

    Joined:
    Oct 7, 2010
    Member:
    #44356
    Messages:
    2,560
    Gender:
    Male
    First Name:
    Kyle
    Astoria, OR
    Vehicle:
    2009 DC 4x4
    Icon 2.5 coilovers, color match grill, DDM tuning 5k fogs, Retrofit Headlights, lower valence painted
    sick right up! i really like it

  7. May 5, 2011 at 3:39 PM
    #7
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,274
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    You just need to put a hamster in there with a tiny bucket.. :)

  8. May 5, 2011 at 6:02 PM
    #8
    jberry813

    jberry813 [OP] The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    16,597
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    I can die happy now :D

    Thanks!

    Excellent plan B! He can bail through the deckplate.

  9. May 6, 2011 at 7:31 AM
    #9
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,036
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    haha thats great! Ive had a set of those lights on my last taco, one for a backup light and one for a bed light. the backup light didnt last long, blew out and then got crushed crossing a dried out ditch...:eek:

    but the bed light always worked great. I always wondered what these would be like with HID's in them :eek: :cool: :thumbsup:

  10. May 7, 2011 at 11:17 AM
    #10
    ironman44bear

    ironman44bear "Toyota Mafia" MORE BALLS THAN BRAINS

    Joined:
    Jan 8, 2011
    Member:
    #48937
    Messages:
    657
    Gender:
    Male
    First Name:
    Billy
    Clovis,CA
    Vehicle:
    05 DC Taco 4x4
    Nice work OP, i'm gathering up parts to do the same..:D 1 rep for you sir:cool:

  11. May 7, 2011 at 11:39 AM
    #11
    booboy

    booboy Well-Known Member

    Joined:
    Aug 13, 2010
    Member:
    #41642
    Messages:
    315
    Gender:
    Male
    PaCiFiC nOrThWeSt
    Vehicle:
    2010 TrD SpOrT 4x4
    That's tight! Awesome job brotha!

  12. May 7, 2011 at 11:55 AM
    #12
    sandman427

    sandman427 KR FAB

    Joined:
    Mar 9, 2009
    Member:
    #14497
    Messages:
    5,891
    Gender:
    Male
    First Name:
    Amir
    WAY THE HELL OUT THERE, So Cal
    Vehicle:
    BAMF TACO!!
    2 ten inch kicker cvt subs, pioneer deck and alpine 1000 watt class D amp, and flowmaster exhaust, 4 inch camburg lift spindles and my coilover is adjusted to 1" (5inch total) in front and 3" All Pro leafs, KING off road racing reservoir shocks and coil-overs, KR FAB CUSTOM BUMPER with three 9" HELLA 4000 Race LIGHTS , HID headlights with rigid amber LEDs , "KR Fabrication" custom built bumper, sliders and tiregate, Full size spare with matching rim, custom bed bar with two amber off road lights, cb radio, also BHLM (thanks Ray), and debagged
    holy snaapppss... looks good brotha....

  13. May 7, 2011 at 1:45 PM
    #13
    jberry813

    jberry813 [OP] The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    16,597
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    Thanks guys!!! :cool:

  14. Apr 14, 2012 at 9:41 PM
    #14
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    57,110
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    Epic WIN!

  15. Apr 18, 2012 at 11:32 PM
    #15
    VanCity4x

    VanCity4x The shit show

    Joined:
    Aug 1, 2011
    Member:
    #60970
    Messages:
    1,409
    Gender:
    Male
    First Name:
    DJ
    BC
    Vehicle:
    05 Prerunner SAS
    3link 1tons on 40's and sum stuff
    WOW nice work. Super clean. Really nice size housing. I have a little bigger housing im retrofiting with 9W LED bulbs for reverse lights.

    1+ for you sir. Sick rig.

  16. Jul 23, 2012 at 5:37 AM
    #16
    Fati Tacoma

    Fati Tacoma Well-Known Member

    Joined:
    Apr 25, 2010
    Member:
    #35969
    Messages:
    69
    Gender:
    Male
    Epic. Nice set up here! What brand are the lights? I'm having trouble finding small lights with glass lenses and decent protection in the back like yours.

  17. Jul 23, 2012 at 5:49 AM
    #17
    taco4x4

    taco4x4 Well-Known Member

    Joined:
    Mar 4, 2011
    Member:
    #52327
    Messages:
    482
    Gender:
    Male
    First Name:
    Chad
    North Carolina
    Vehicle:
    2008 Tacoma 4 door trd off road
    3 inch Tuff Country Suspension lift, Removed the Mudflaps, Tinted windows, Nitto Trail Grapplers with 18x9 XD Monsters debadged and aftermarket grill. Fog light anytime mod. Hids in fogs and headlights and all led lights. Flowmaster 40 series. Bed pocket lights mod.. TRD Seat covers, Aries Bull Bar Plasti-Dipped Black with 2 Hella 700 converted HID.
    SWEET!!!

  18. Jul 23, 2012 at 6:51 AM
    #18
    Taco Man in HD

    Taco Man in HD DC TRD MallRunner

    Joined:
    Dec 13, 2009
    Member:
    #27494
    Messages:
    833
    Gender:
    Male
    Ohio
    Vehicle:
    2004 DC Tacoma PreRunner
    Methods, Red Labels, and other bro stuff.
    looks great man!

  19. Jul 23, 2012 at 7:19 AM
    #19
    uneekvisions

    uneekvisions Active Member

    Joined:
    Jul 21, 2012
    Member:
    #83082
    Messages:
    39
    Gender:
    Male
    First Name:
    Steven
    Austin, Texas
    Vehicle:
    05 TRD Sport 4x4 Super White
    Revtek Susp Lift, OEM Skid Plate
  20. Aug 2, 2012 at 8:54 PM
    #20
    chilidogrc

    chilidogrc Play stupid games, win stupid prizes

    Joined:
    Aug 22, 2009
    Member:
    #21561
    Messages:
    2,515
    Gender:
    Male
    First Name:
    Rodrigo
    San Diego
    Vehicle:
    05 AC Sport 4x4
    King RR Coilovers, FM 40, Allpro rear bumper, OME Dakar leafs, rear 5100's, Snugtop Rebel shell, Treadwright tires, Allpro apex front plate bumper, triple hella 700's, Blacked out headlights, CF hood, weathertech floor mats
    Nice write-up! How are the lights holding up so far?
