Hidden fuse for trailer lights?

Discussion in 'Technical Chat' started by Blue Truck, Jun 12, 2019.

  1. Jun 12, 2019 at 7:51 AM
    #1
    Blue Truck

    Blue Truck [OP] Well-Known Member

    Joined:
    Jan 28, 2019
    Member:
    #280939
    Messages:
    96
    Gender:
    Male
    I have a 2008 TRD V6 with according to my VIN a factory tow package. It has 7 pin connector and has 12V at trailer plug with key on through the black wire and power to running lights with headlights on but that is all, no brake or turn signals. I have been searching and it is suggested there may be other fuses somewhere. Anyone know where they may be?

  2. Jun 12, 2019 at 7:54 AM
    #2
    Jethro 2.0

    Jethro 2.0 Well-Known Member

    Joined:
    Nov 24, 2017
    Member:
    #236765
    Messages:
    116
    Gender:
    Male
    First Name:
    Matt
    New Hampshire
    Vehicle:
    2017 MGM SR5 dcsb 4x4
    Did you check the in cab fuse box? My 3rd gen has the main fuse box in the engine bay and there is a secondary fuse box under the dash on the driver’s side.

  3. Jun 12, 2019 at 7:59 AM
    #3
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,036
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Should be a fuse box behind the little cubby thing to the left of the steering wheel (above the hood release). In addition to the main fuse box in the engine bay, drivers side. Google should help you figure out the rest.

    If you find all fuses to be good, you might also check the trailer wiring harness itself. Certainly possible a few wires have frayed and snapped off from the plug after 11 years.

  4. Jun 12, 2019 at 7:59 AM
    #4
    Blue Truck

    Blue Truck [OP] Well-Known Member

    Joined:
    Jan 28, 2019
    Member:
    #280939
    Messages:
    96
    Gender:
    Male
    I checked both fuse boxes, hear tales of fuses in jack box under rear jump seat didnt find anything there either

  5. Jun 12, 2019 at 8:04 AM
    #5
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,036
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    A few simple google searches should be able to tell you exactly what fuses you need to be looking at, based on your exact symptoms. (Test the fuse with a multimeter for almost zero resistance between the pins, in addition to just a visual check)

    From there you can move onto looking at other issues like broken wires.

  6. Jun 12, 2019 at 8:08 AM
    #6
    Blue Truck

    Blue Truck [OP] Well-Known Member

    Joined:
    Jan 28, 2019
    Member:
    #280939
    Messages:
    96
    Gender:
    Male
    Been searching google for hours. Since it is a factory installed option they dont show up on the wiring diagrams

  7. Jun 12, 2019 at 8:10 AM
    #7
    Blue Truck

    Blue Truck [OP] Well-Known Member

    Joined:
    Jan 28, 2019
    Member:
    #280939
    Messages:
    96
    Gender:
    Male
    Also cannot locate the towing converter relay

  8. Jun 12, 2019 at 8:35 AM
    #8
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    4,036
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
  9. Jun 12, 2019 at 8:46 AM
    #9
    Blue Truck

    Blue Truck [OP] Well-Known Member

    Joined:
    Jan 28, 2019
    Member:
    #280939
    Messages:
    96
    Gender:
    Male
    nothing wrong with those fuses

  10. Jun 12, 2019 at 8:33 PM
    #10
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    1,758
    Deep South
    Herculiner Hootus
    Check the "Towing relay" fuse in the engine bay. And check the towing converter relay in the drivers kick panel area.

  11. Jun 17, 2019 at 6:11 AM
    #11
    joeyv141

    joeyv141 Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176710
    Messages:
    913
    Gender:
    Male
    First Name:
    Joey
    New Orleans
    Vehicle:
    08 DCLB 4x4 V6 TRD Sport
    planning in progress
    What are you using to check the power at the connected, if you've got a trailer hooked up and are watching those lights I would not suggest that. Get one of these or something similar so you are only looking at the truck and nothing else. At my dealer we get an annoying amount of "well I have this problem when my trailers hooked up" but people don't bring the trailer and the trucks test 99% fine.
    Haynes manuel doesnt have trailer lighting diagrams, I can check in Alldata tomorrow and see what they have for trailer lights.
    Not to be mean but how good are you with electrical testing/knowledge?

    Last edited: Jun 17, 2019
    SR-71A likes this.
  12. Jun 17, 2019 at 6:32 AM
    #12
    Blue Truck

    Blue Truck [OP] Well-Known Member

    Joined:
    Jan 28, 2019
    Member:
    #280939
    Messages:
    96
    Gender:
    Male
    Im not an electric guru by any means but have at least average troubleshooting knowledge. I am not using trailer lights but a test light and multimeter. I do know for sure that there is power from the black wire 12V with key on and power from the green tail light wire. White ground wire also tests good. Same thing on the "other" side of the BE1 towing harness connector. From what I can tell I would have to pull the whole dash out of the truck to get to the towing converter relay are there issues with the longevity of those relays? Amybe the relay is easier to get to than I think? In order to tow my friends boat this past weekend I opted to splice in a generic flat 4 connector to the tail lights. I don't need trailer brakes and all of that but it would be nice to not have two trailer plugs at the hitch, one not working. Any help is appreciated.

  13. Jun 18, 2019 at 12:16 AM
    #13
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    10,665
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    Have you done the simple first??

    Pull the plug apart check for broken or wires pulled out.

    If you live any place winter chemicals are used corrosion might be a problem.

    Installing Hitches and connecting plugs for years fixing things every spring is a given

  14. Jun 18, 2019 at 4:34 AM
    #14
    Blue Truck

    Blue Truck [OP] Well-Known Member

    Joined:
    Jan 28, 2019
    Member:
    #280939
    Messages:
    96
    Gender:
    Male
    Testing by probing wires ahead of the connectors to rule them out.

  15. Jun 18, 2019 at 10:00 AM
    #15
    joeyv141

    joeyv141 Well-Known Member

    Joined:
    Jan 31, 2016
    Member:
    #176710
    Messages:
    913
    Gender:
    Male
    First Name:
    Joey
    New Orleans
    Vehicle:
    08 DCLB 4x4 V6 TRD Sport
    planning in progress
    Here is what I have from Alldata, its not much since the diagrams done tell you which fuse is where in the fusebox but I hope it will help. I also have a 08 with towing so if you are not sure something is in the right place I can check mine assuming its easy to get to.
    Dont think this would matter since you are talking about the four pins connectors but do you have a trailer brake controller installed, without that a few pins on the 7 pin connector wont ever have power at the trailer plug.

    I have had to deal with a few older fords that I wasnt sure which fuse was which so I just took a voltmeter, hooked one end to ground and touched both sides of every single fuse to see if it had 12V, if both sides have 12V then the fuse is good.

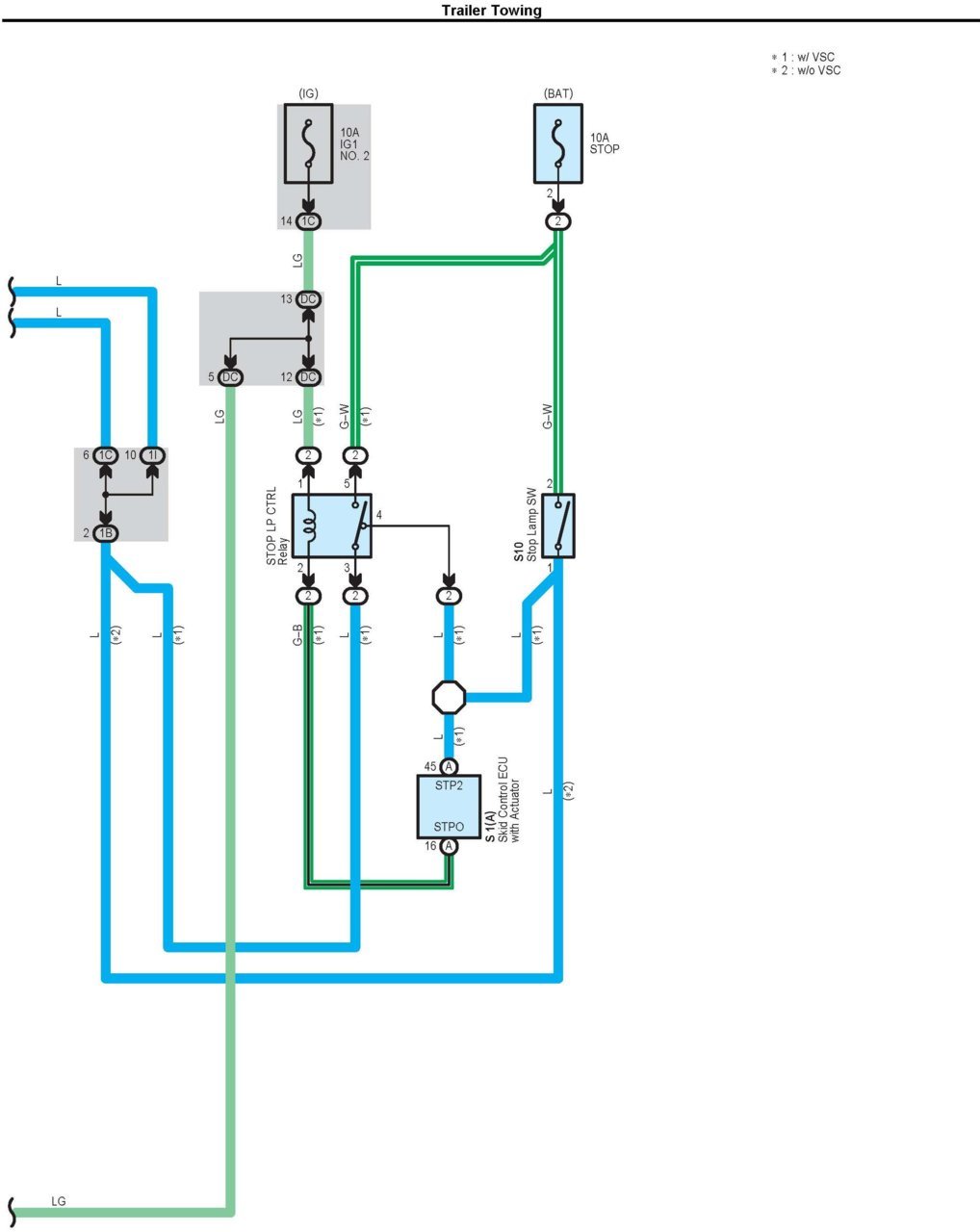

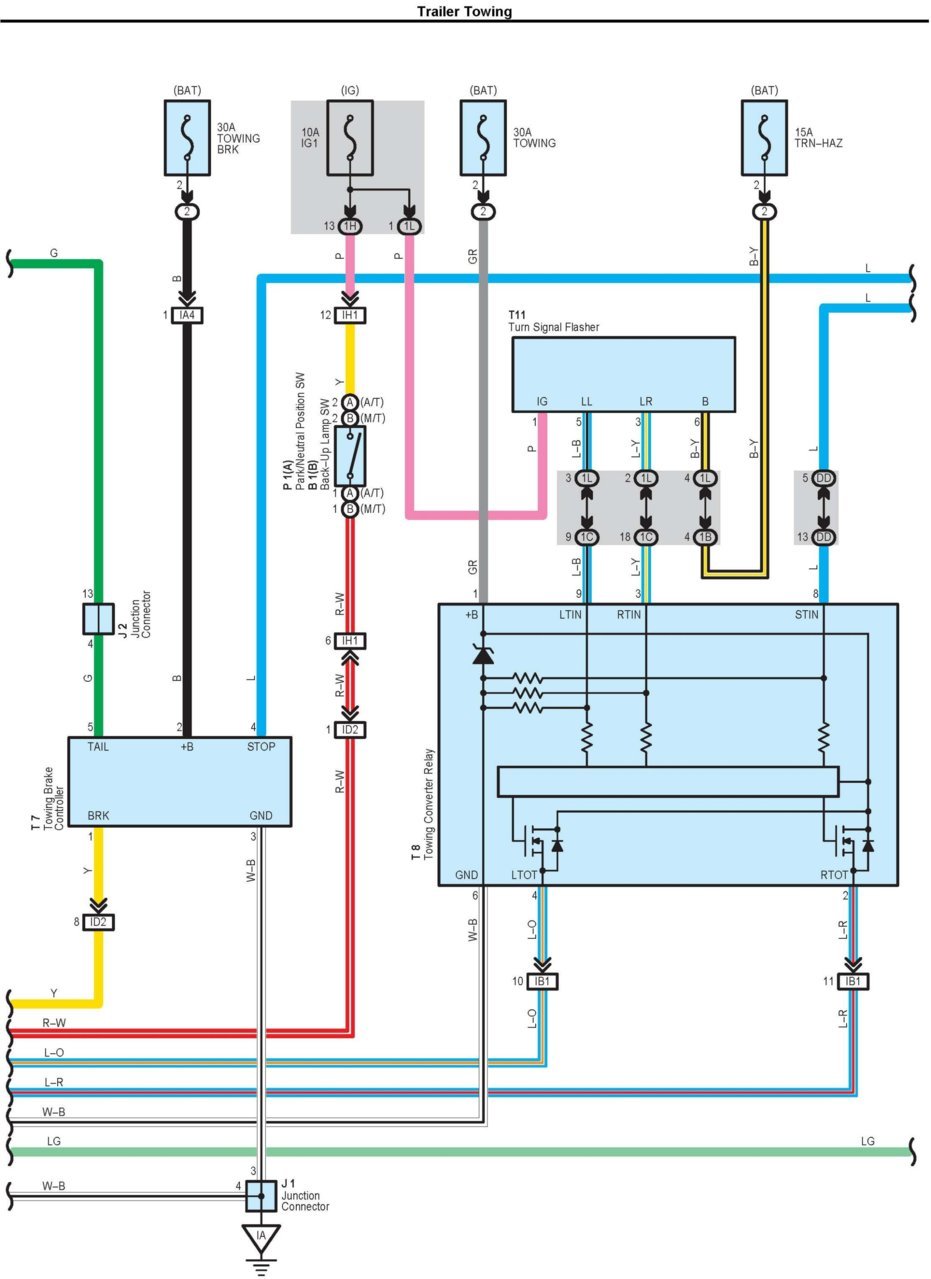

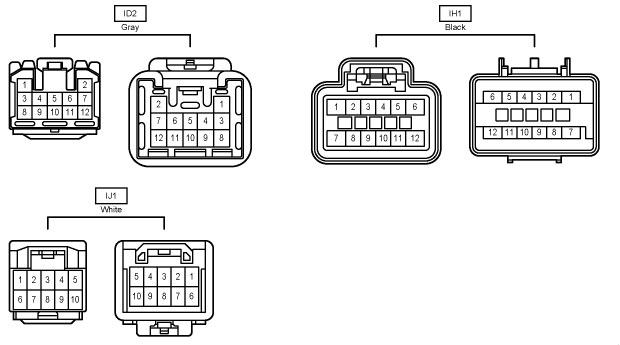

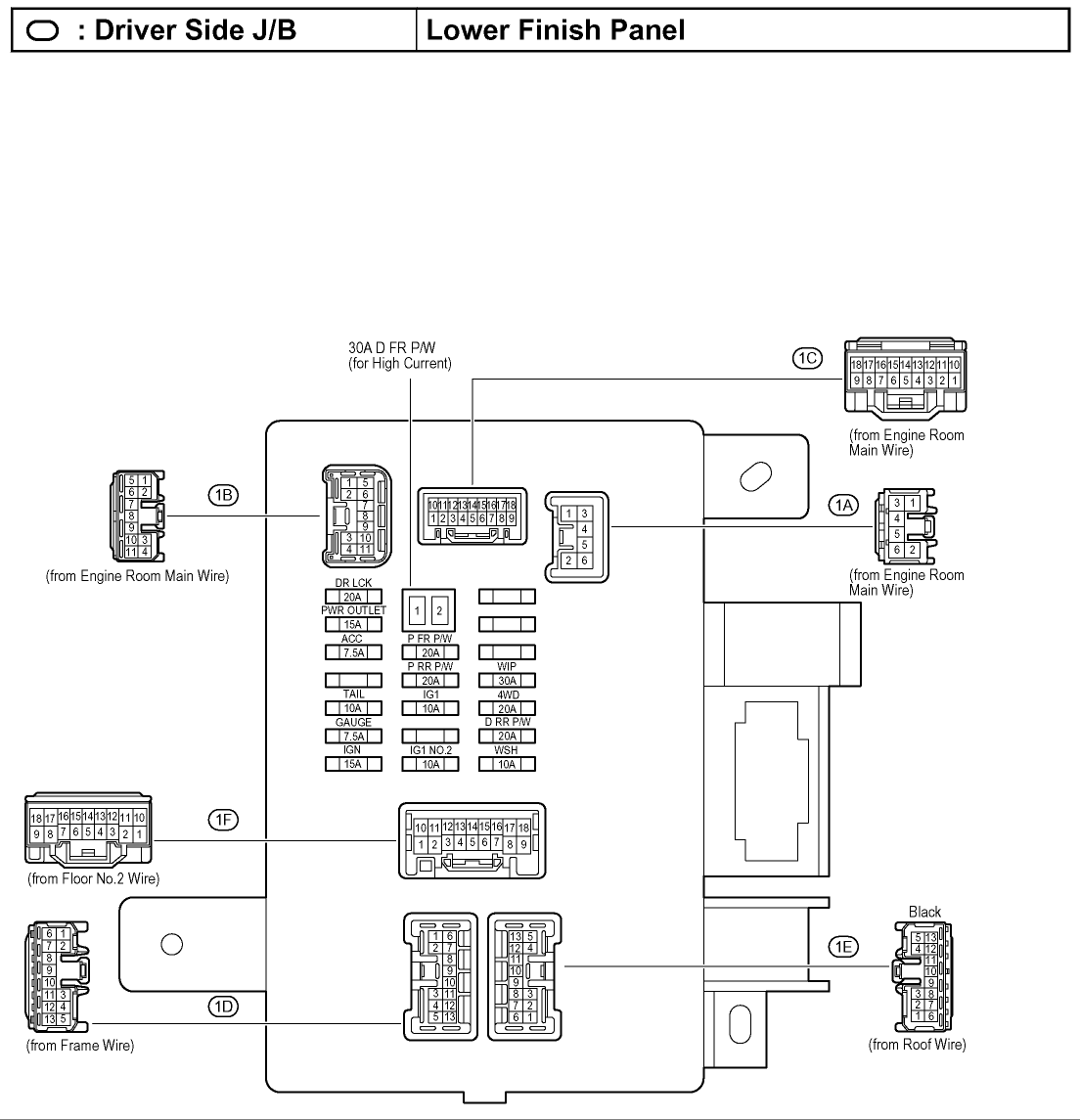

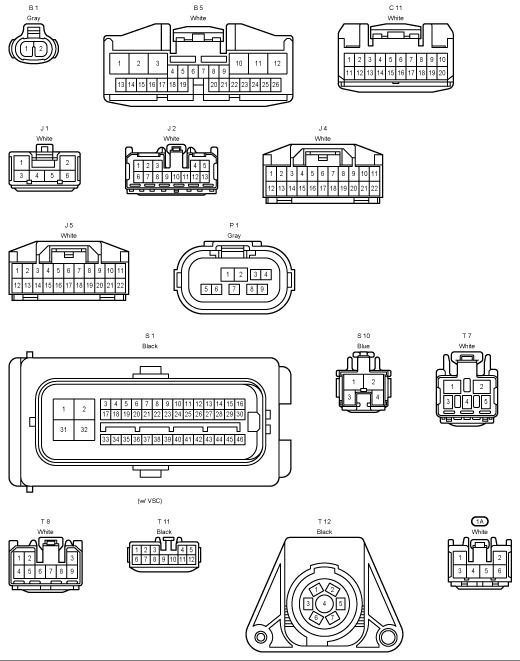

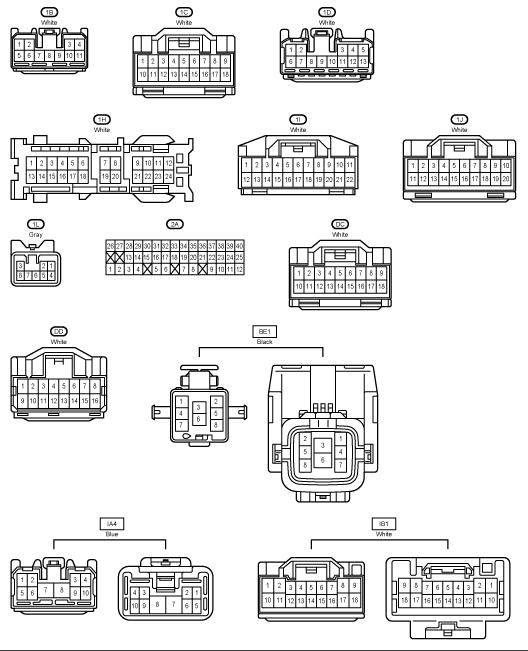

    Tacoma Fuse Info 1.gif Tacoma Fuse Info 2.gif Tacoma Trailer Connectors 1.gif Tacoma Trailer Connectors 2.gif Tacoma Trailer Connectors 3.gif Tacoma Trailer Wiring 1.jpg Tacoma Trailer Wiring 2.jpg Tacoma Trailer Wiring 3.jpg

    SR-71A likes this.
