HIDs in Spyder Projectors

Discussion in 'Lighting' started by AkArin, Mar 15, 2015.

  1. Mar 15, 2015 at 9:20 PM
    #1
    AkArin

    AkArin [OP] Well-Known Member

    Joined:
    Oct 24, 2014
    Member:
    #140995
    Messages:
    56
    Gender:
    Male
    Vehicle:
    08 TRD Off-Road
    x

    Last edited: Jan 5, 2017
  2. Mar 15, 2015 at 9:47 PM
    #2
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    If you go that route... You will need two harnesses. Make sure you get one relay harness for stock hid bulb setup (H4). This will make tying into the stock system easier. You will also gain the ability to wire it to the secondary harness so you can have the high's and low's on at the same time.

    You will actually take the high beam output from the H4 HID harness and use that to trigger the relay for the high beams.

    be prepared to modify the bulb holder in the high beam slot. the standard HID bulb will not fit that slot. the low beam is no problem.

    Last edited: Mar 15, 2015
  3. Mar 15, 2015 at 11:32 PM
    #3
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    you can totally do that... i had the H4 harness aleady when i switched to the spyder lights. i wanted it to be a complete plug n play with the stock harness.

    you will need a H4 plug or pigtail to wire up the two harnesses to the stock plug.

  4. Mar 31, 2015 at 11:37 PM
    #4
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
  5. Mar 31, 2015 at 11:52 PM
    #5
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
  6. Apr 1, 2015 at 5:10 PM
    #6
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd

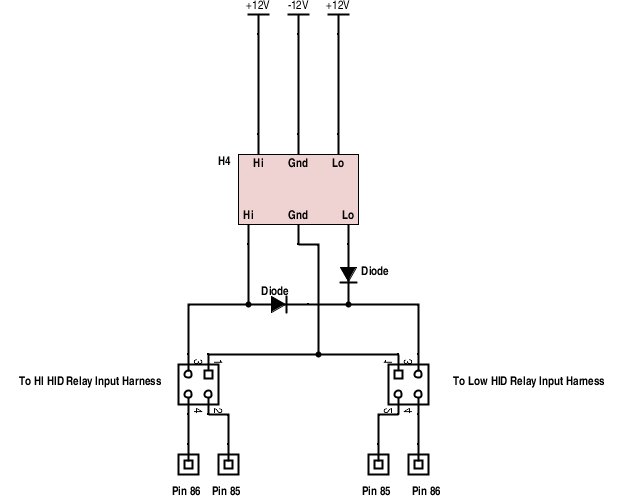

    ive had a completely busy day at work and i still have to attend school tonight. when i can get a break tomorrow, i will put together wiring diagram that you can use to wire those lights up with.

    the link you posted for the HID bulb socket modification is spot on.

  7. Apr 5, 2015 at 9:42 PM
    #7
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
  8. Apr 7, 2015 at 10:36 AM
    #8
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    So you have 3 HID harnesses now? or 2 H1's Harnesses and the pigtail?
