Hilux 167 Snorkel for 3.4L Tacoma

Discussion in '1st Gen. Tacomas (1995-2004)' started by MatthewMay1, May 18, 2015.

  1. May 18, 2015 at 10:00 AM
    #1
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
    I have been told that this snorkel will also work on the 4.0L in the second gens with similar installation steps. However, I have not installed one myself so I cannot provide detailed instructions for that application.

    There is a new snorkel in town, which looks to be a better design. See this thread and page 5 for pictures of it installed. Thanks to @m3bassman for trying it out for us, and making mine obsolete now, haha.
    https://www.tacomaworld.com/threads/new-design-ebay-snorkel.573571/


    That being said, on to the good stuff...

    After doing lots of looking around and deciding that I didn't want to pay the price for ARB, I messaged Q Source on here because he had one and decided not to install it. Originally, it came from Amazon, see here- http://www.amazon.com/Snorkel-Intak...=1417107809&sr=8-1&keywords=hilux+167+snorkel. I have never seen this installed on a first gen Tacoma, but there is a 4Runner thread about it. That's how I decided I wanted to try it. See that thread here- . The snorkel fits really nicely, with a small gap at the front. Slight modification is required to the template in order to get the bolt holes to line up. I'll get to that later. Removing the tire will make this install much easier for you. I didn't do it at first, but it came off eventually Anyway, here you go TacomaWorld!

    Step 1:
    Line up the template with the edges of the fender, by the door and hood.

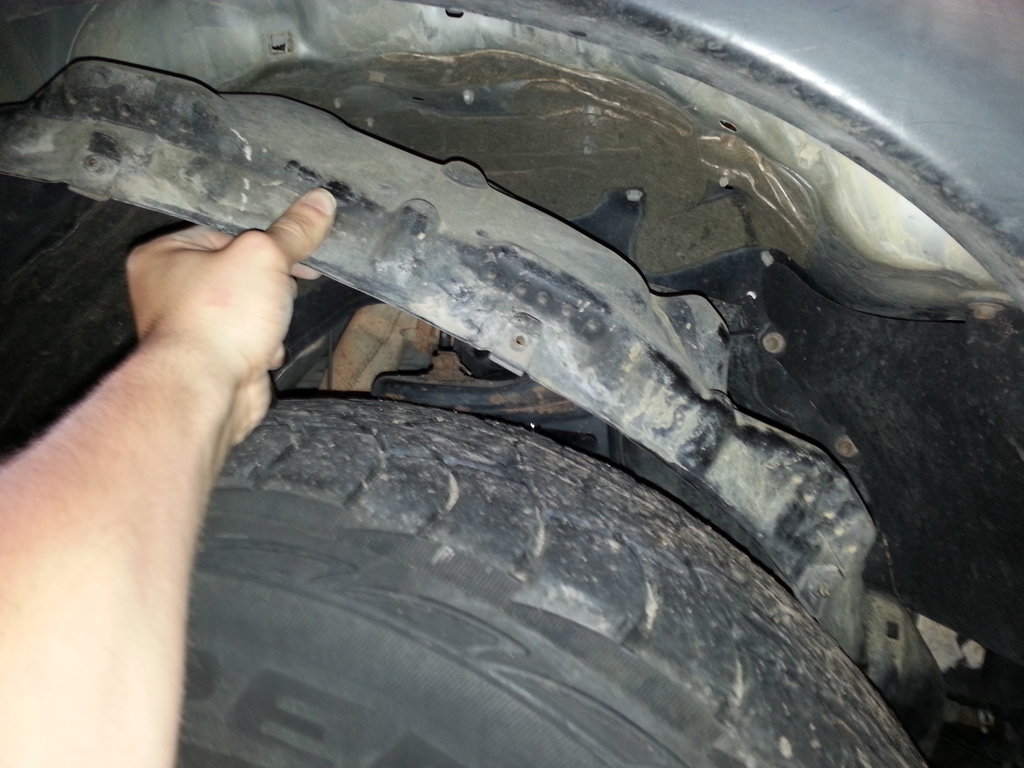

    Step 2:
    Remove the plastic fender liner. It is held in with plastic clips and some bolts. I couldn't get to all the clips, and ended up breaking 2 or 3 of them.


    Step 3:
    Remove the airbox from the stock intake tube.


    Step 4:

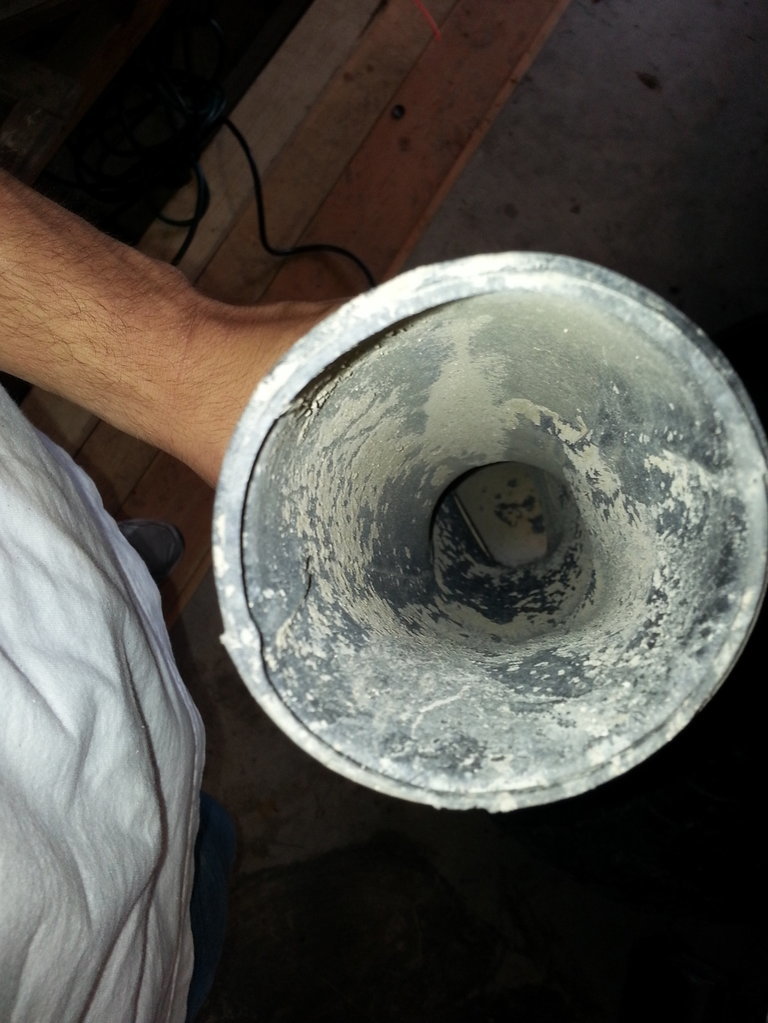

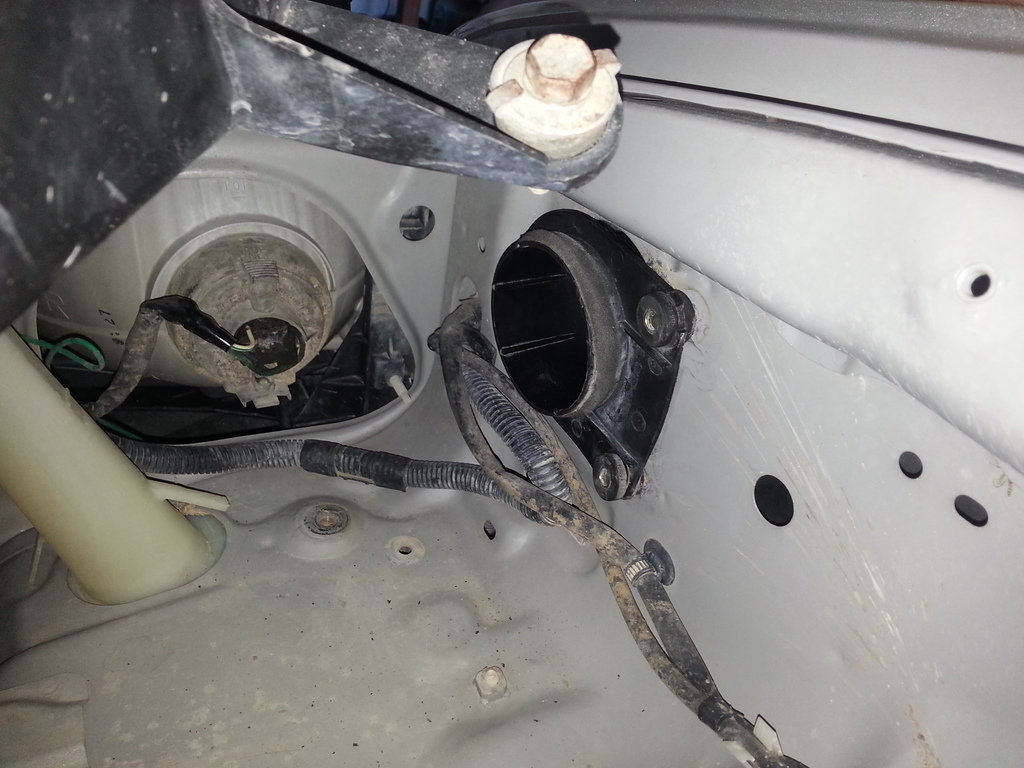

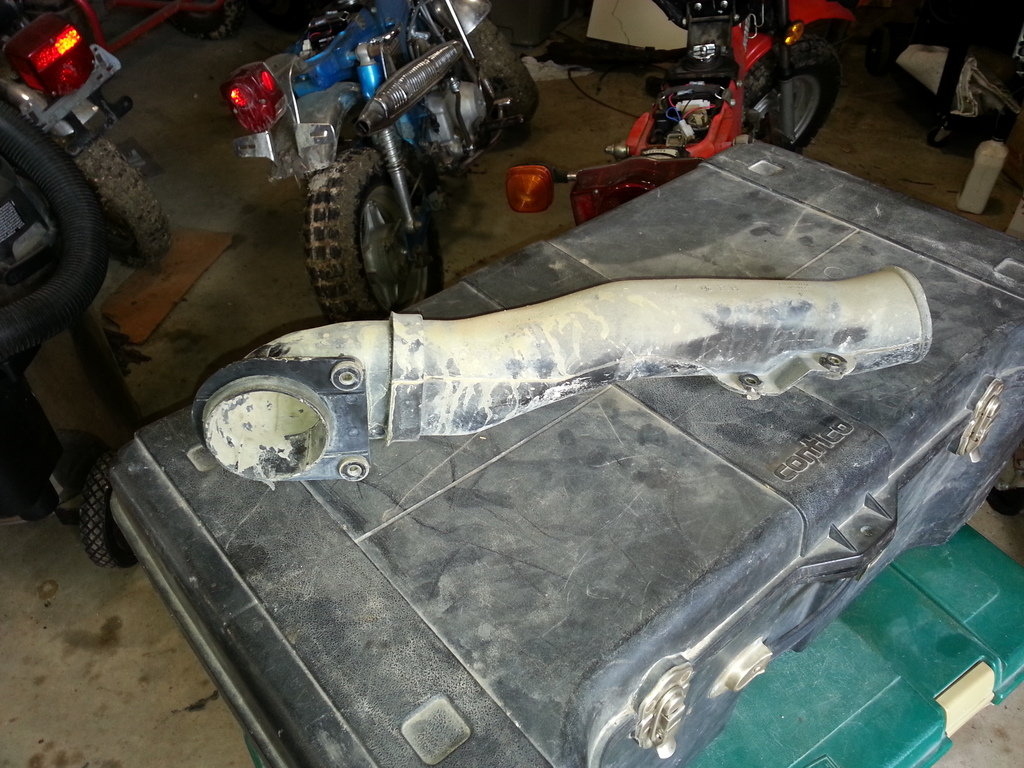

    Remove the stock intake tube from the fender. It's held in by 2 bolts by the airbox connection, and 2 inside the fender well. Mine was full of all types of nastiness!


    Step 5:
    This is where it gets nerve racking. Prepare to drill the hole.


    Step 6:

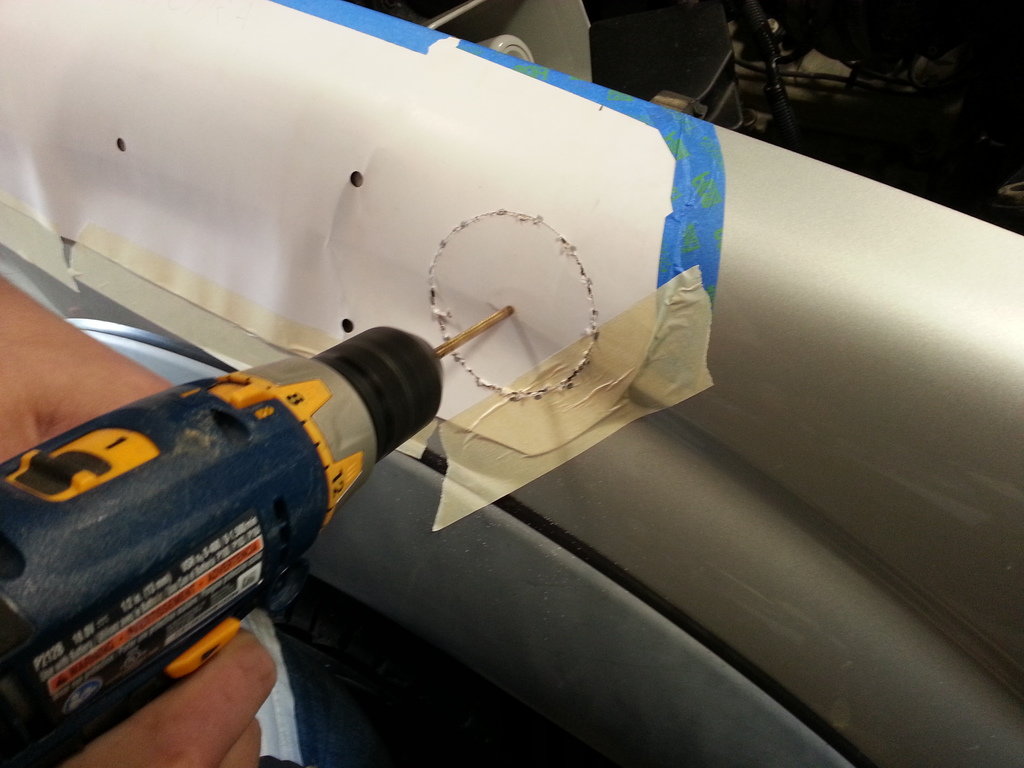

    Drill a hole in the center to help keep your circle where it needs to be.

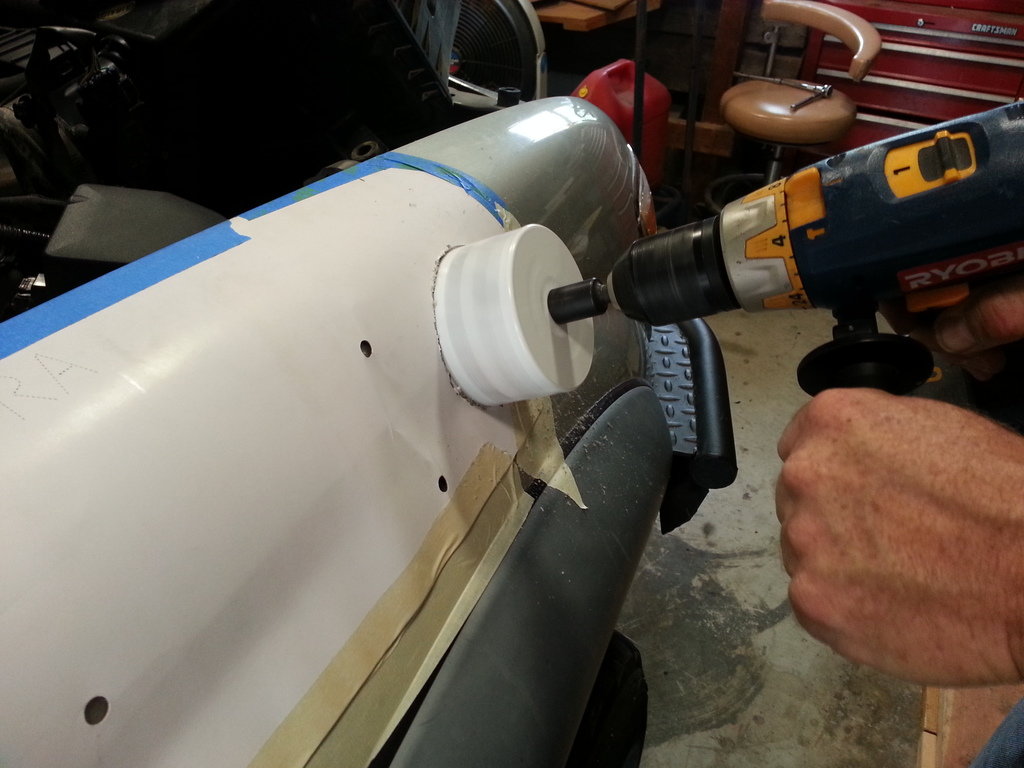

    Step 7:
    This is the point of no return! I used a 3 5/8" circle cutter and then used a dremel to make fine adjustments to aid in fitment of the snorkel.


    Step 8:

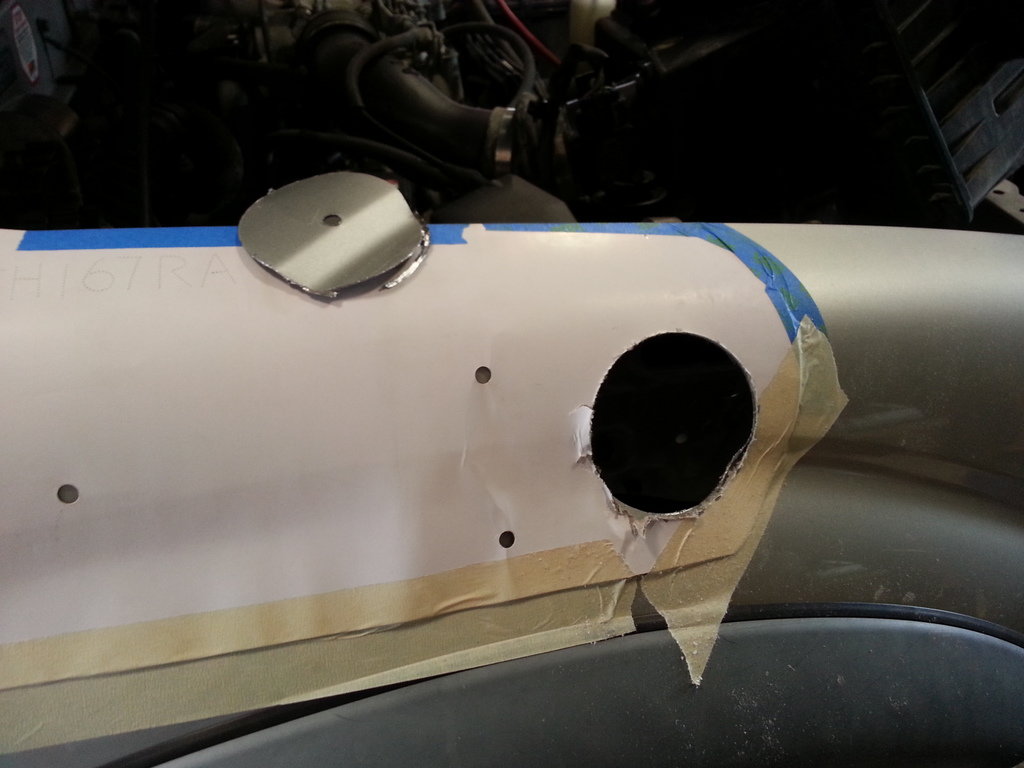

    With the circle drilled, I did a quick test fit to make sure it was going to line up well. When it is fitted like you like, trace the snorkel because you will need to modify the template here.


    Step 9:

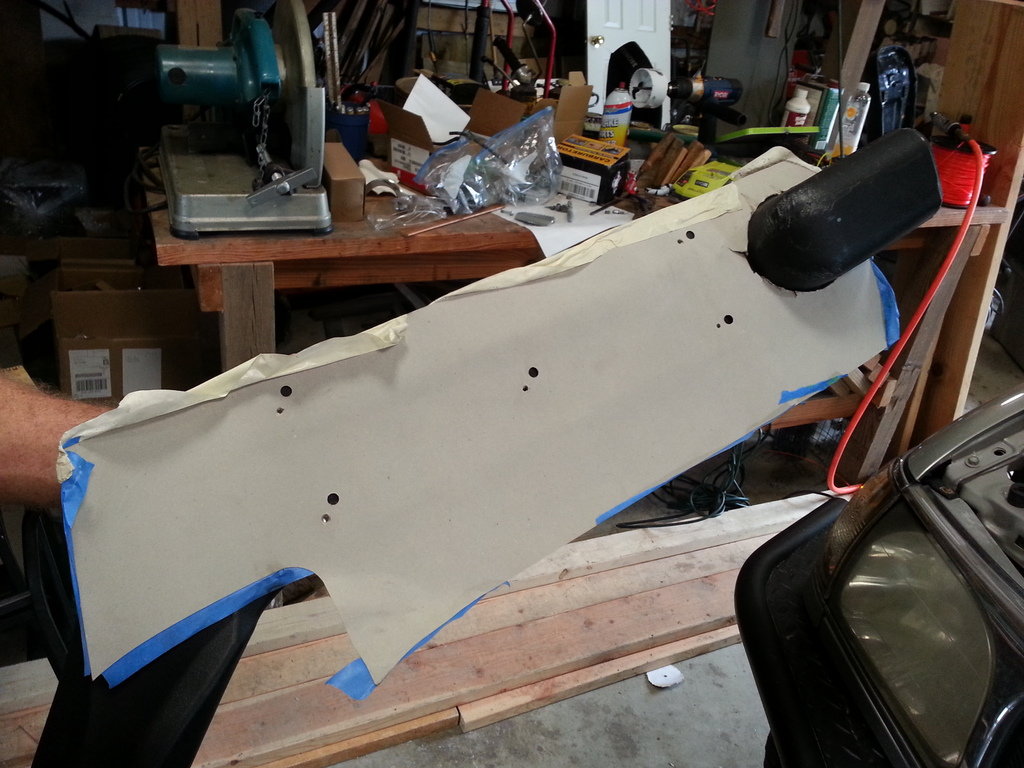

    Remove the snorkel and template and line the template up with the traced line. You will need to punch new holes through the template. Here, you can see the original mounting holes and the new ones I punched.

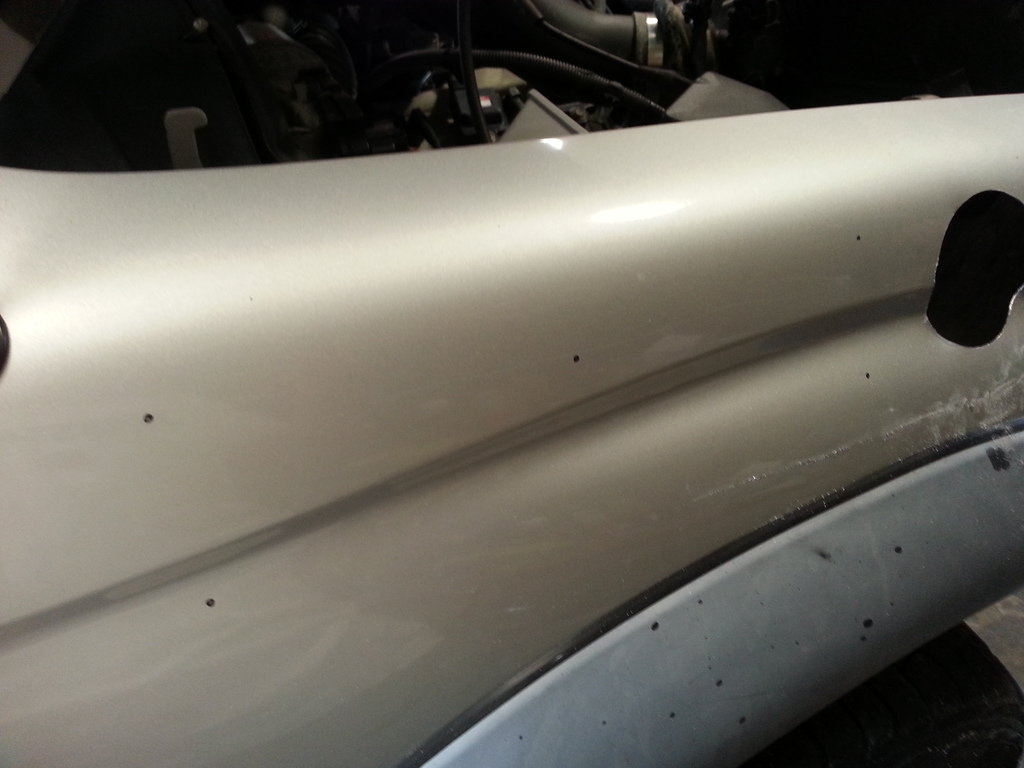

    Step 10:

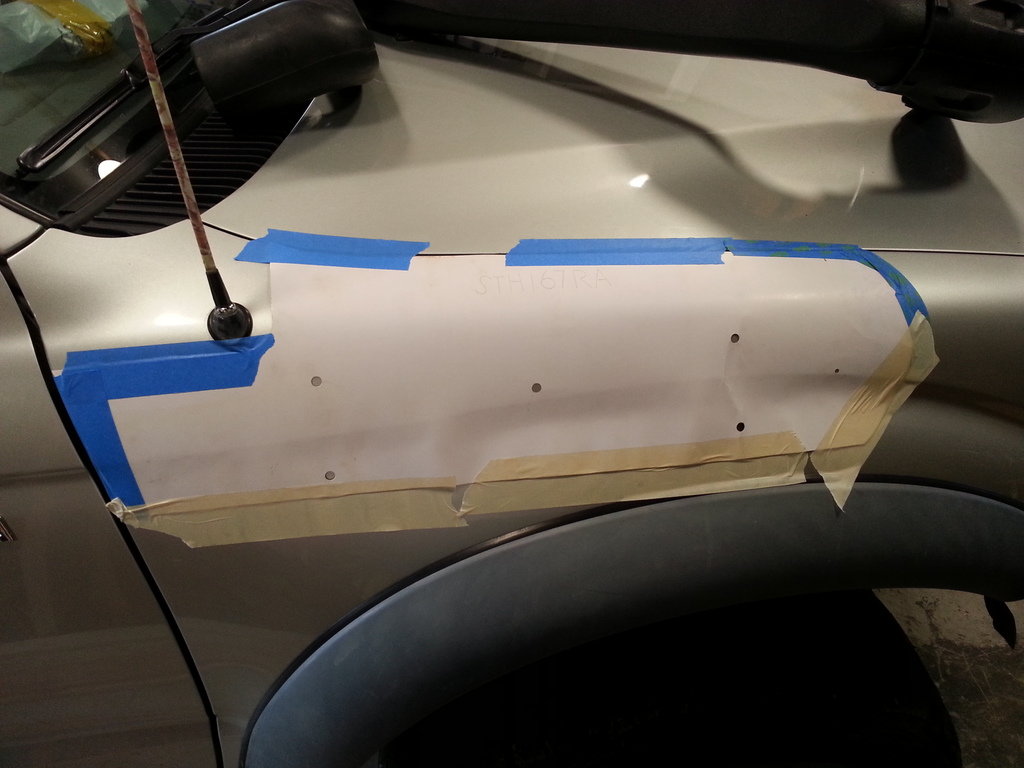

    Put the template back on the fender and mark where your new bolt holes need to be. Then drill them.


    Step 11:

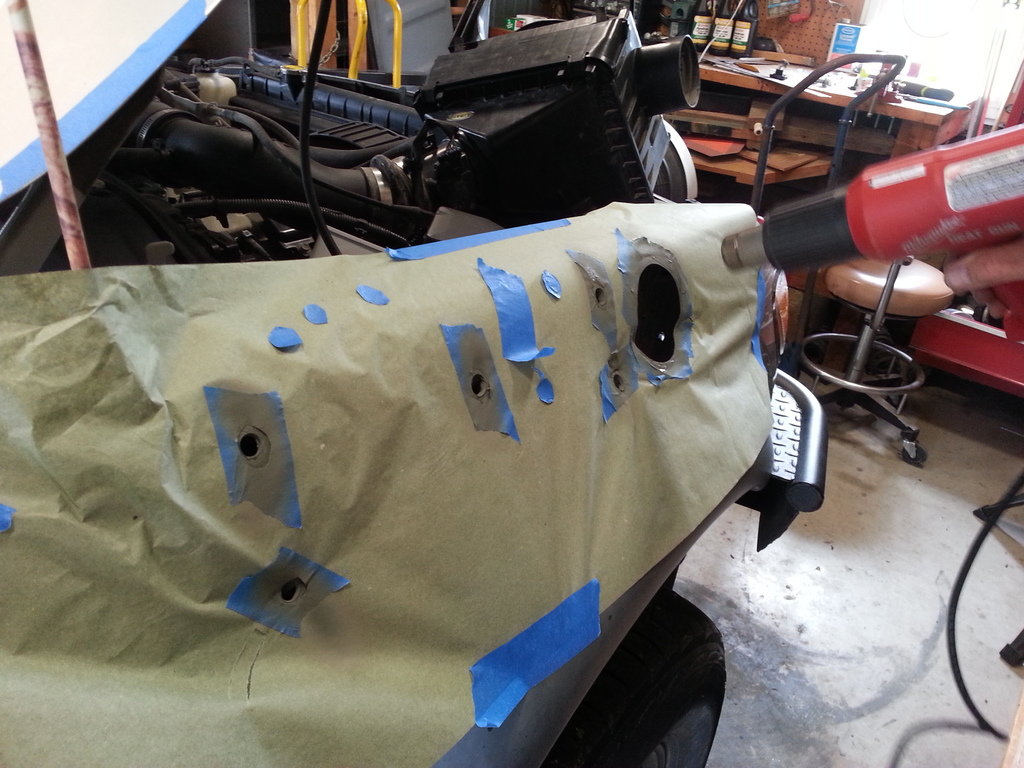

    This is optional. I put down some paper and taped around the drilled holes to spray some gray primer on them. I wanted to limit the amount of exposed metal I would have.


    Step 12:
    Install the snorkel! I needed to use the dremel to make some of the bolt holes a little larger because it was not an exact fit. The washers supplied are pretty big, so you've got some wiggle room there.

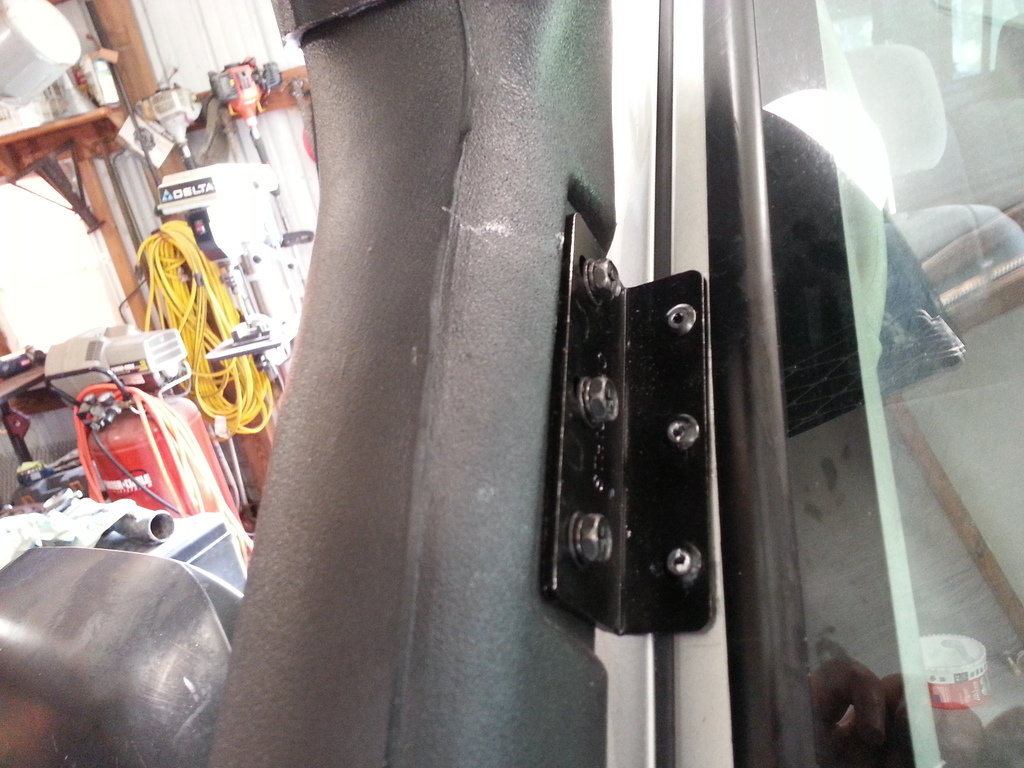

    Step 13:
    I screwed the bracket to the snorkel, then rivited the bracket to the A-pillar. Install the scoop at the top and you're almost done!


    Step 14:

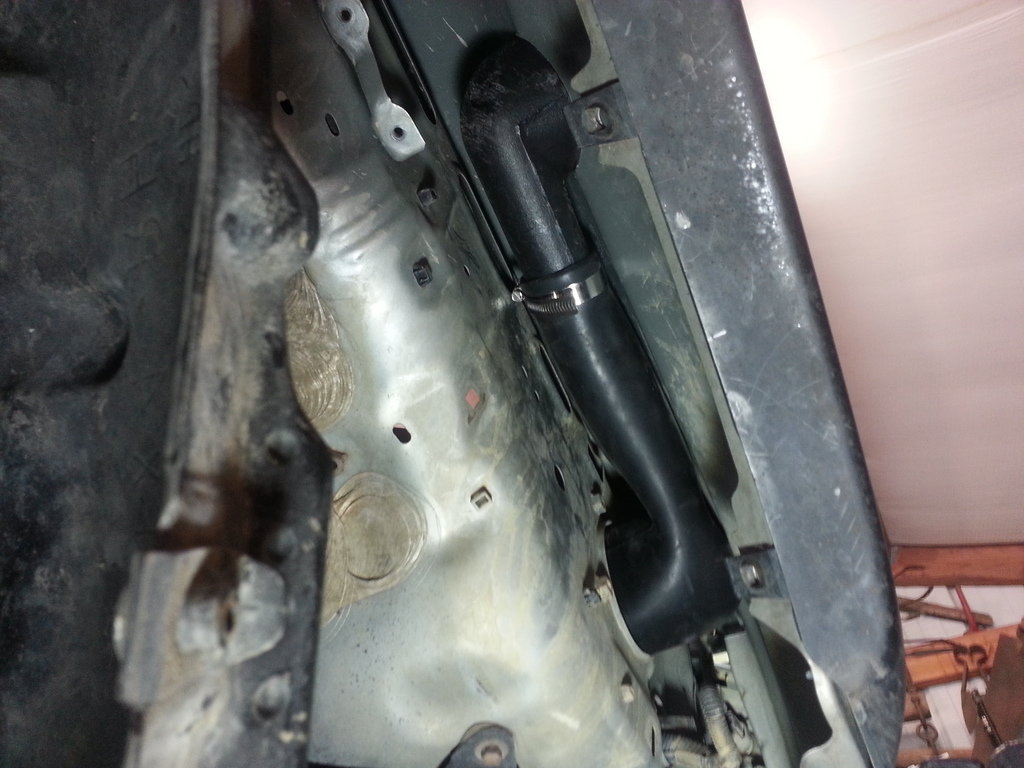

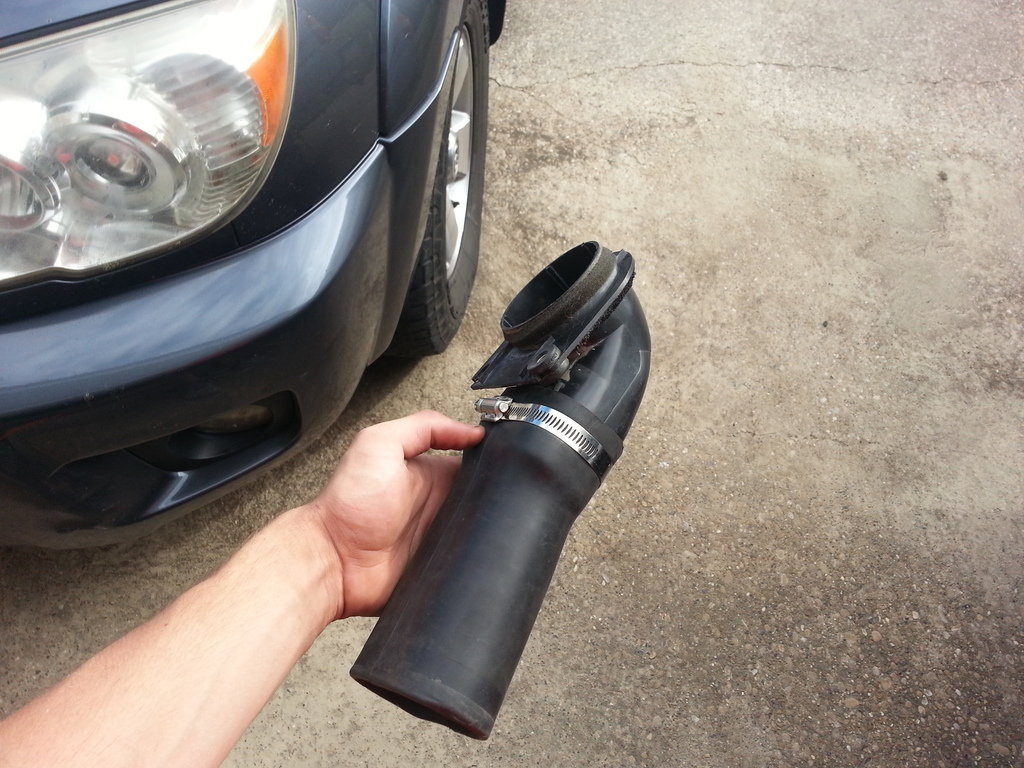

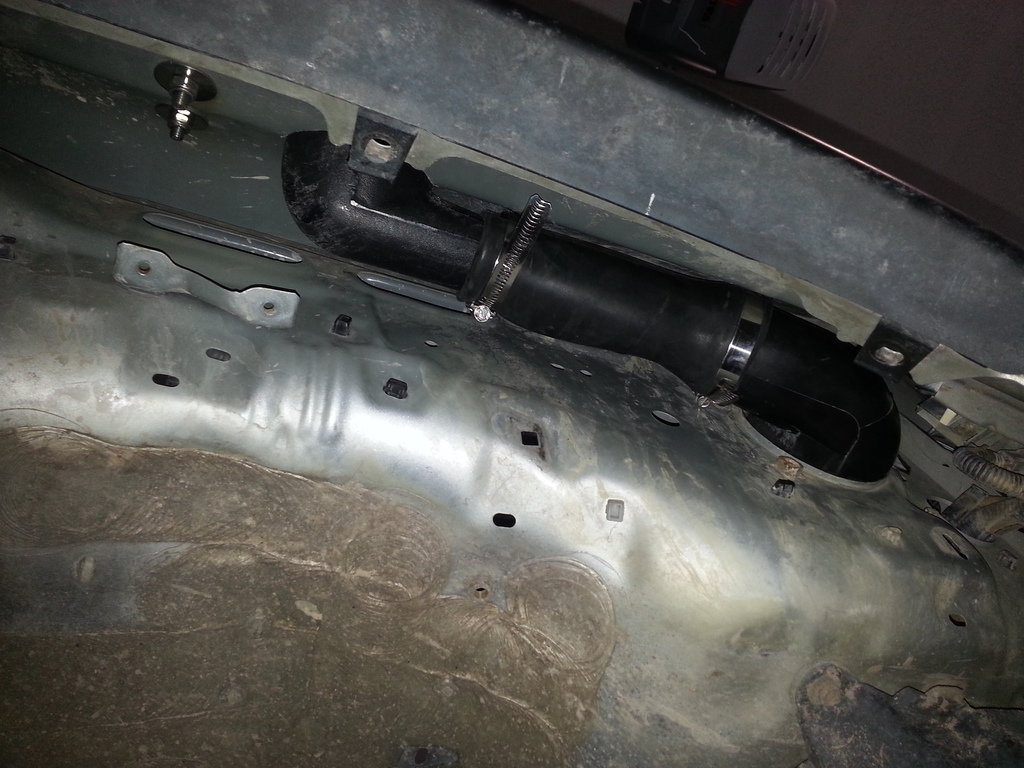

    Time to make this snorkel functional. The rubber tube that comes with the kit is the exact same size as the inlet on the airbox. It was difficult to get on, and I had to use a heat gun, screw drivers, and two extra hands. I recommed installing that part first, because it is much harder. Then run the tubing through the hole and attach it to the snorkel. This clamp was very difficult to get on, because the tubing is almost touching the fender. Space is extremely tight in there. After letting loose a string of profanity, it was all clamped in.


    Step 15:
    Bolt in the airbox, double check all your clamps, re-attach the plastic liner and shut the hood! All done!

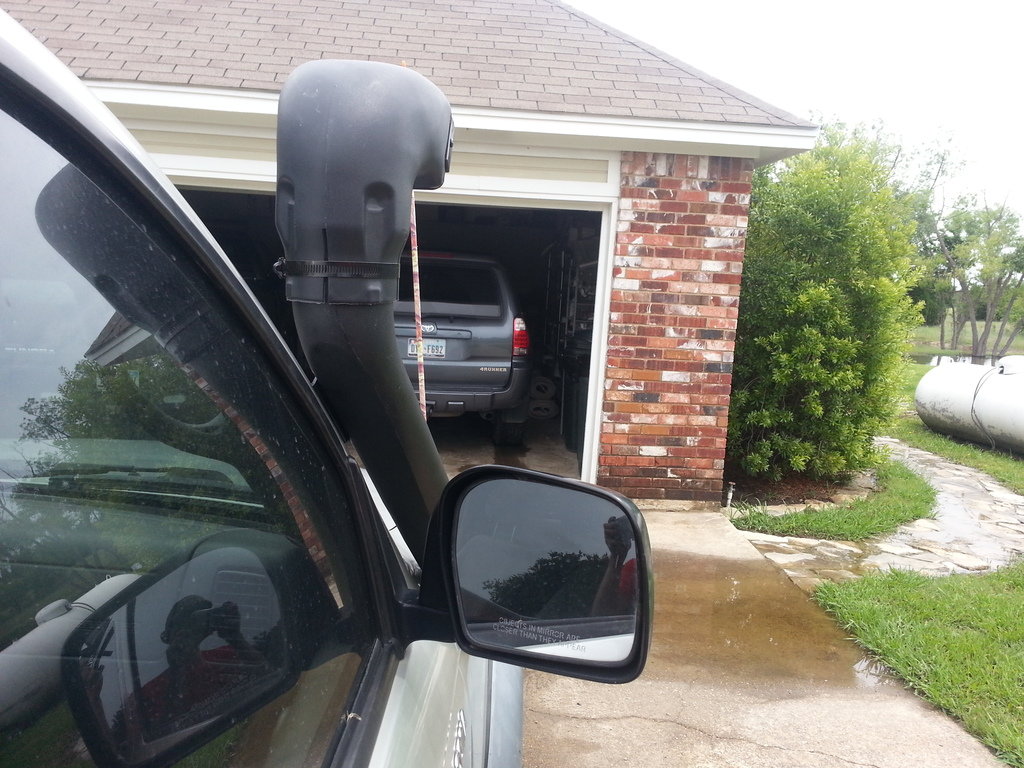

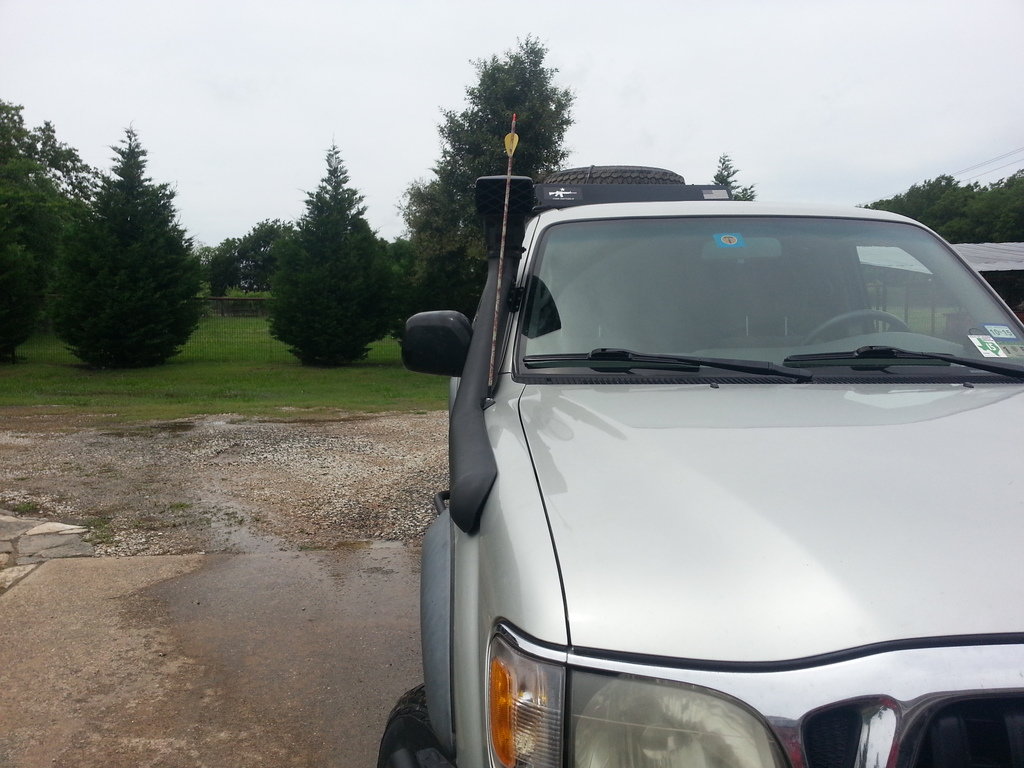

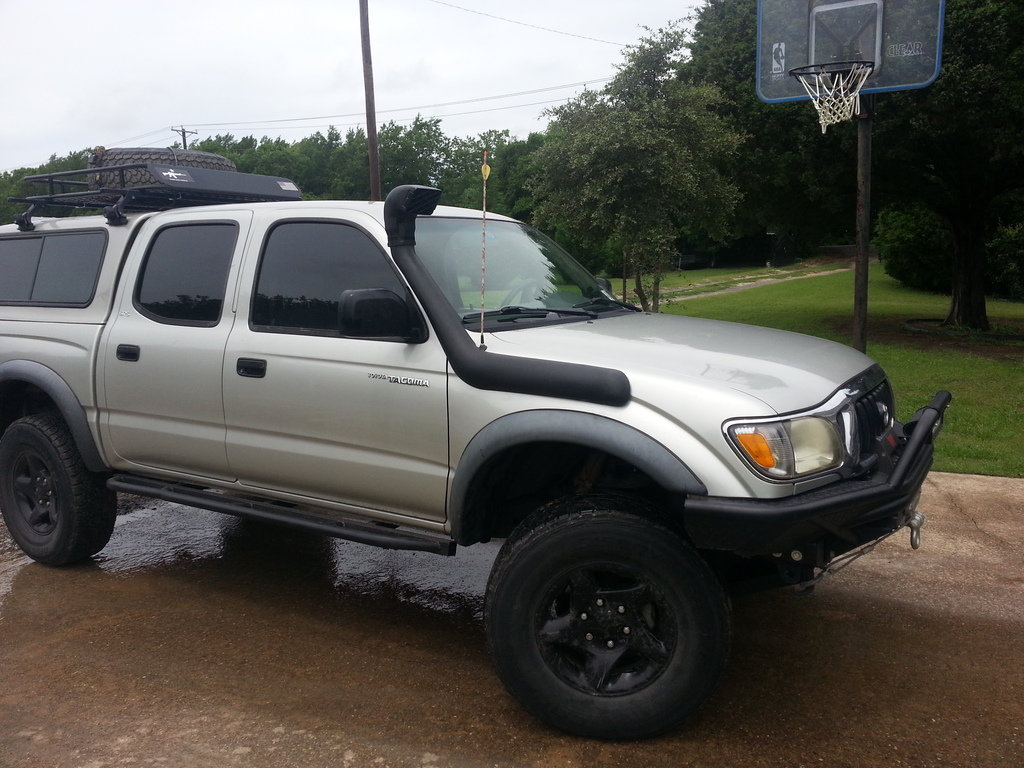

    Here's the finished product.

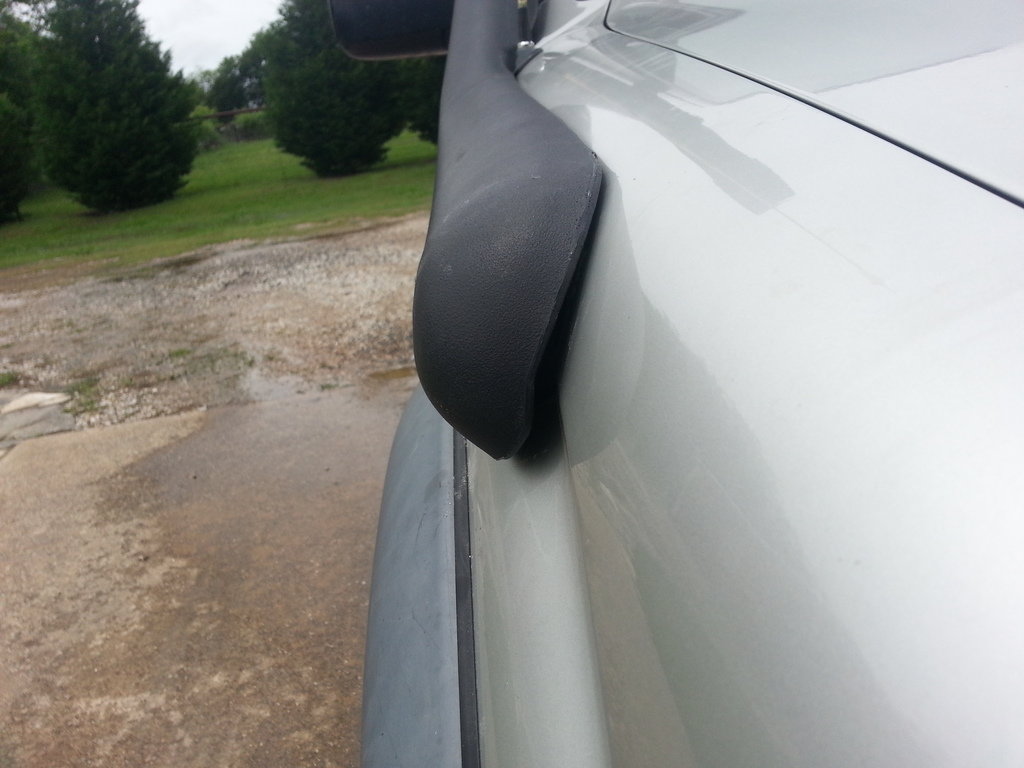

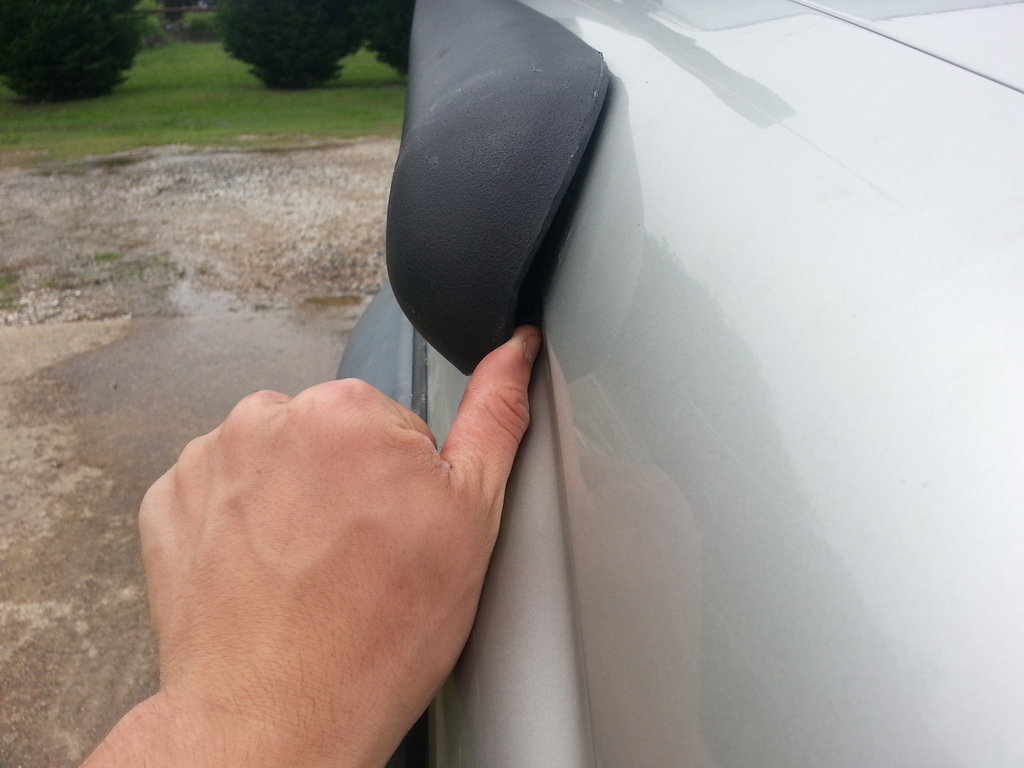

    Here is the gap I mentioned earlier. It isn't that big, and I can live with it for saving around $300 for a functional snorkel.

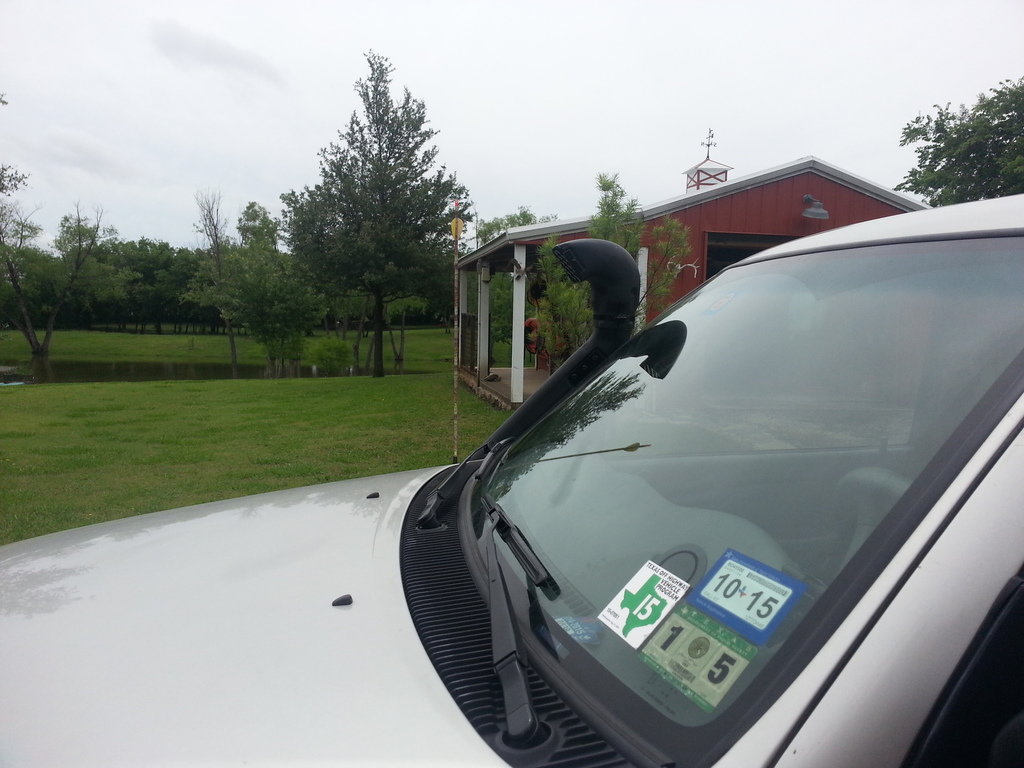

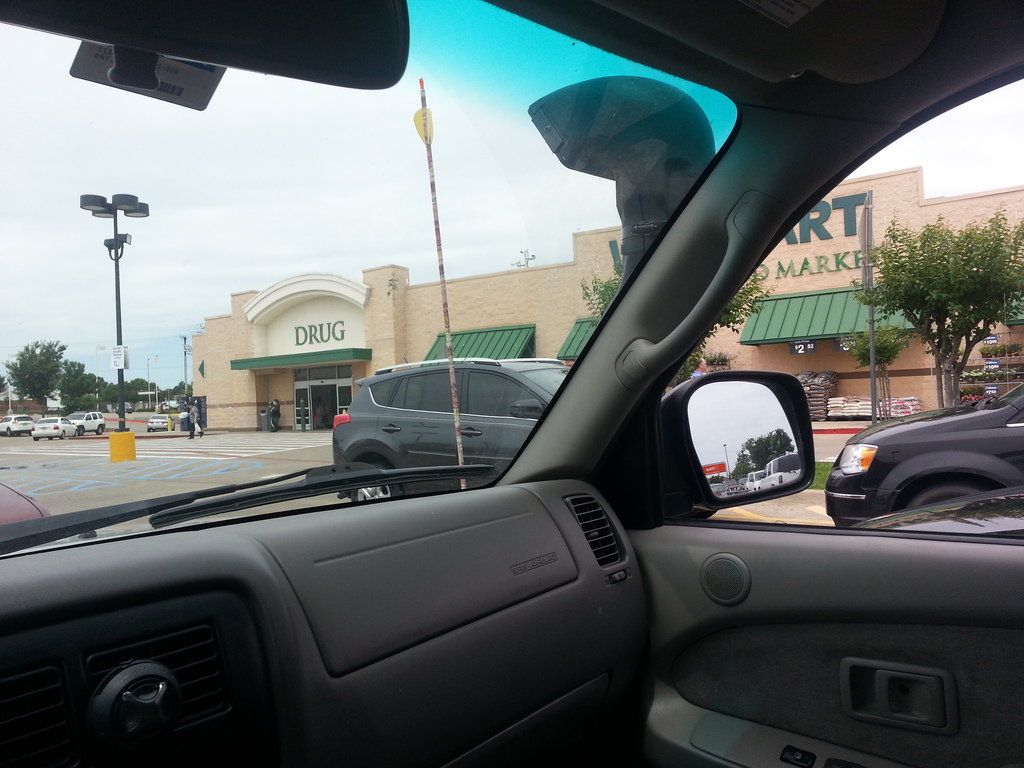

    From the driver's seat, you can't see any of it other than the scoop. It doesn't block any view, and doesn't whistle on the highway.


    That's it! There is one issue that I need to address though. When at full throttle around 3750-4025rpm, the rubber hose sucks itself closed. I think it is happening at the pinch where it goes through the hole from the airbox to the fender. This does not stall the engine, just takes away all power. I am going to try to modify the original hard plastic tube so I can use it for the corner instead of the rubber hose. I'll post updates when I do that. Until then, I just keep my deck plate open and have no issues with it. Thanks for looking!

    Update: I fixed the problem I was having with the tube sucking closed. Here is what I did:

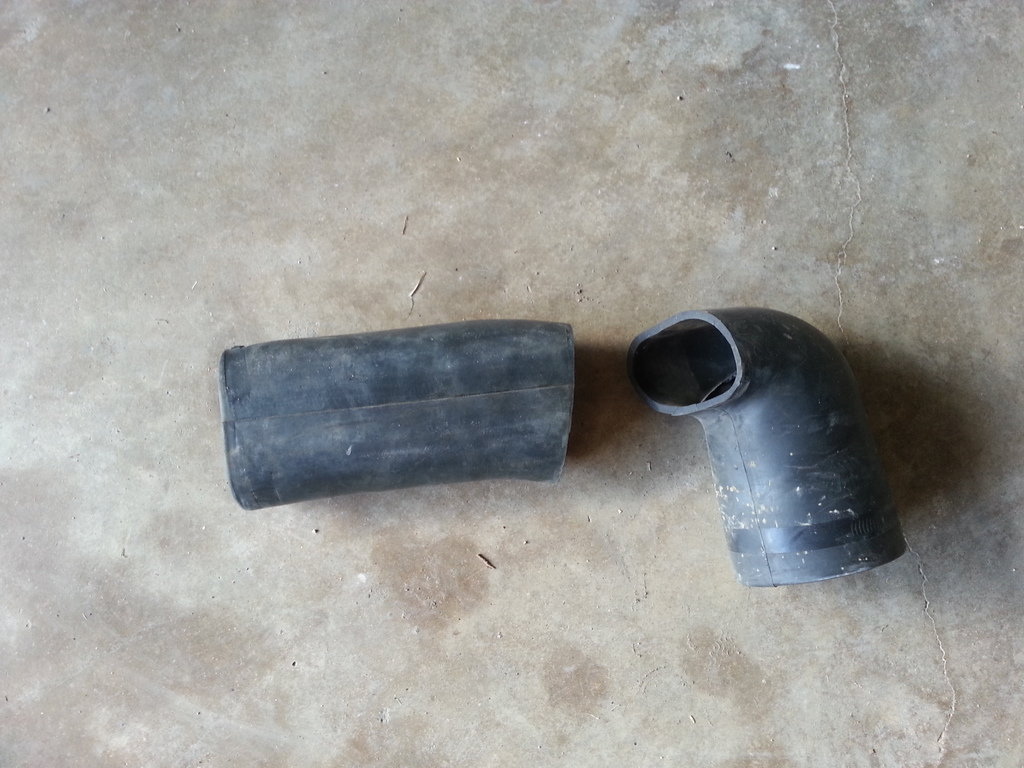

    I thought it was happening at the bend in the hose, so I installed the stock tube to make the corner. I then cut the rubber hose and used the straight part to connect from the stock corner piece to the snorkel tube inside the fender. The rubber hose took a lot of persuading to get on the stock tube. I ended up letting it soak in boiling water for a few minutes and then borrowed another set of hands to get it attached. Make sure it is attached so it bends slightly down. You will know what I am talking about if you have it in your hands. From then on, I reinstalled everything as usual with a thick layer of silicone where the air box connects to the corner piece.





    I thought that would fix it, but it didn't. The rubber hose was still collapsing. Next I did this:

    I found this wire in my garage -

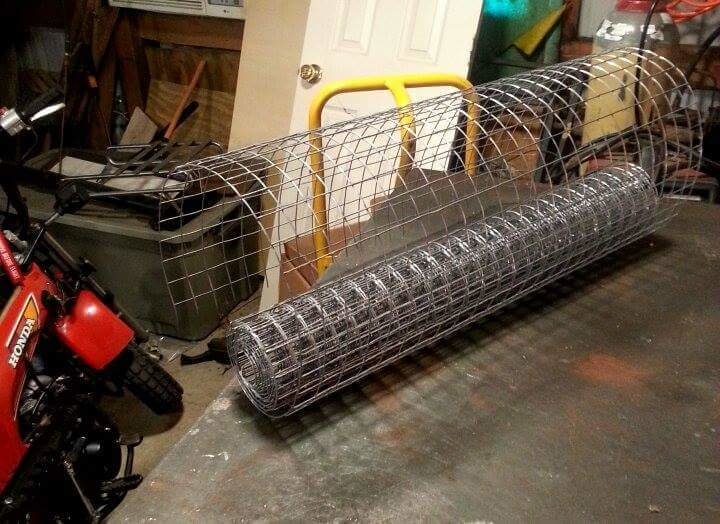

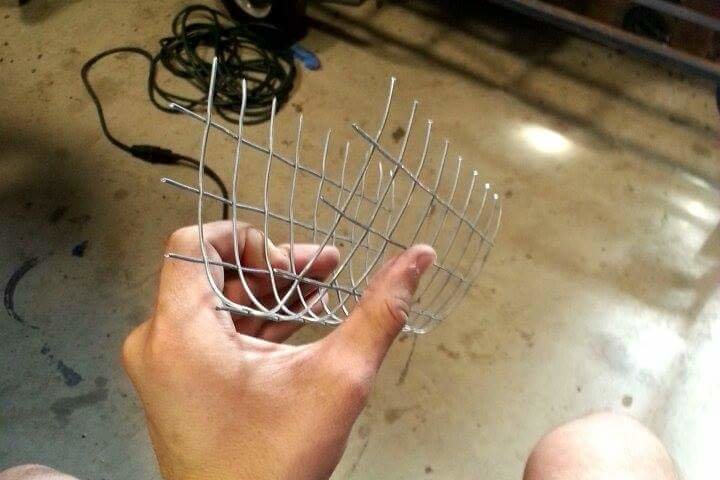

    I cut a section of this wire fencing out and folded it in my hand like this -

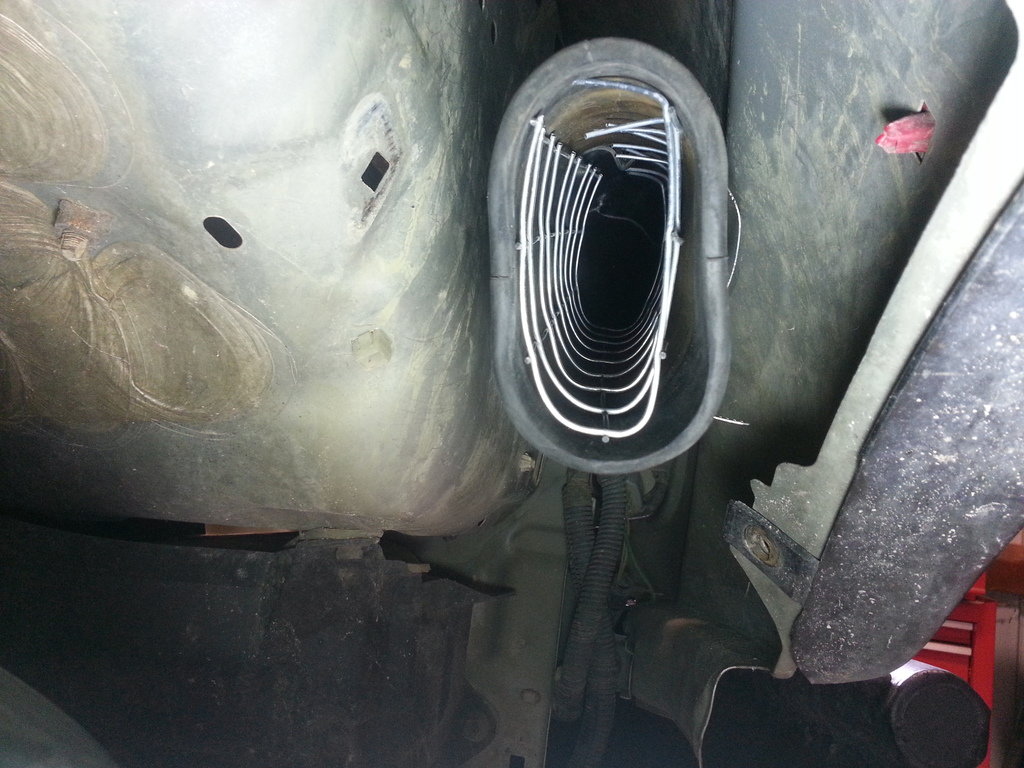

    I trimmed off one of the edges because it was too long, then I slid it into the tube like this-



    I put it all back together and tested it 3 times full throttle accelerations. No problems anymore!

    Last edited: Oct 28, 2018
  2. May 18, 2015 at 10:21 AM
    #2
    Kneeboarder1025

    Kneeboarder1025 member-in-training

    Joined:
    Apr 4, 2012
    Member:
    #76249
    Messages:
    366
    Gender:
    Male
    First Name:
    Walt
    Broken Arrow, OK
    Vehicle:
    '03 Forester
    Awesome! Thanks for braving this for the rest of us. Sub'd for future plans.

  3. May 18, 2015 at 10:22 AM
    #3
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
    Thanks! Yeah, I hadn't seen it done on a Tacoma before. Figured I would pioneer it!

  4. May 18, 2015 at 10:31 AM
    #4
    Fernando

    Fernando ! GIT-SUM !

    Joined:
    Aug 25, 2012
    Member:
    #85507
    Messages:
    17,856
    Gender:
    Male
    First Name:
    Fernando
    Sacramento
    Vehicle:
    04 Tacoma DC 4x4
    Too many, See Build
    Great Job Matt :thumbsup:

  5. May 18, 2015 at 10:31 AM
    #5
    BYJOSHCOOK

    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    24,006
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Build
    :popcorn: wonder if it will work with the ditch lights. Good right up may use it if I get a snorkel and go this route rather than ARB one

    spazoner likes this.
  6. May 18, 2015 at 10:34 AM
    #6
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
    Not quite, but almost!
    Thanks!
    I'm not sure if it will work or not. I think it might depend on what light you use. There's a 4Runner guy who has ditch lights with the snorkel.

    Tucker771 likes this.
  7. May 18, 2015 at 10:37 AM
    #7
    552Jrider

    552Jrider Well-Known Member

    Joined:
    Jul 25, 2011
    Member:
    #60537
    Messages:
    1,075
    Gender:
    Male
    First Name:
    Jeremy
    Norcal
    Vehicle:
    2002 DC 4x4
    i wonder if the snorkel could be heated and bent or made to conform the the fender a bit better in the front.

  8. May 18, 2015 at 10:41 AM
    #8
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
    Maybe, but that might just end up making it look worse or deformed. I thought about putting some weather stripping in there, but the gap really isn't that big. I am happy with the fitment.

  9. May 18, 2015 at 10:51 AM
    #9
    davidpick

    davidpick NWXPDTN

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    2,376
    Gender:
    Male
    First Name:
    David
    Snohomish, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    Great write-up! Definitely would have gone this route had I known about it when I installed my snorkel.

  10. May 18, 2015 at 11:40 AM
    #10
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
    Thank you!

  11. May 18, 2015 at 12:19 PM
    #11
    bowyer2002

    bowyer2002 always tinkering

    Joined:
    Sep 4, 2009
    Member:
    #22295
    Messages:
    432
    Gender:
    Male
    NE Missouri
    Vehicle:
    01 Taco SR5 D-cab 4WD
    OME 882s, OME shocks all around and OME Dakar spring packs, ARB, Warn 8000, ARE shell, Custom rear bumper w/ reciever, 5-235/80R17 Cooper Discoverer ST MAXX on FJ wheels, grey wire mod, Hi-Lift, Hellas, Red-Line hood lifters, Scion radio, sliders, Safari snorkel & LED Ditch lights on CBI mounts.
    I'm not sure if it will work or not. I think it might depend on what light you use. There's a 4Runner guy who has ditch lights with the snorkel.[/QUOTE]


    ByJoshCook -
    my CBI ditch light mount needed a little trimming (shortening & redrilling the hole towards the center line of the truck) to fit next to the ARB snorkel - but it did work.
    Great write up too!

    MatthewMay1 [OP] and BYJOSHCOOK like this.
  12. May 18, 2015 at 12:35 PM
    #12
    BYJOSHCOOK

    BYJOSHCOOK Mr. Mojo Risin

    Joined:
    Jun 9, 2013
    Member:
    #105887
    Messages:
    24,006
    Gender:
    Male
    First Name:
    Josh
    Woodstock and Alpharetta Ga
    Vehicle:
    2000 SR5 4WD Lunar Mist
    Check Out My Build
    ponethousand's truck had a snorkel and ditch lights, don't know if he trimmed them or not, I'll look into it. It's way down the list haha

    MatthewMay1 [OP] likes this.
  13. May 18, 2015 at 3:24 PM
    #13
    Wobbly

    Wobbly Well-Known Member

    Joined:
    Feb 25, 2013
    Member:
    #98423
    Messages:
    155
    Gender:
    Male
    First Name:
    El Guapo
    San Quilmas, Tx
    Vehicle:
    Texas Edition SR5 Prerunner
    Dome Light, map lights mod, side molding, WeatherTech floorliners, 5100s, Flowmaster dual exhaust, K&N drop-in filter, clear bra front end, Redline Elite hood struts, Pelfreybilt FSP
    Well done instruction and great professional looking installation Matt....:proposetoast:

  14. May 18, 2015 at 6:09 PM
    #14
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
    Thank you, sir.

  15. May 27, 2015 at 7:18 PM
    #15
    cmj

    cmj Well-Known Member

    Joined:
    Jun 21, 2011
    Member:
    #58636
    Messages:
    893
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    98 Tacoma 4x4
    Would this work with the 2.7L?

  16. May 28, 2015 at 6:58 AM
    #16
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
    I can't say for sure. It is designed for the 3.4L Hilux. I'm not sure if the air box is in the same spot as the 3.4L

  17. Jun 15, 2015 at 3:20 PM
    #17
    presto

    presto Well-Known Member

    Joined:
    May 9, 2011
    Member:
    #56375
    Messages:
    2,238
    Gender:
    Male
    First Name:
    Topher
    san francisco
    Vehicle:
    2k T4R 4x4
    so what is plan C?

    I would say just get a small piece of plastic pipe that the rubber fits over and just use the rubber as a coupling between each end of the pipe.

    my truck redlines around 4.5k/5k RPMs.

    and to answer if it will work with the 2.7 vs 3.4 I'm almost positive it will. i think ARB only has one snorkel model for all the 1st gen tacomas.

  18. Jun 15, 2015 at 3:38 PM
    #18
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,368
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
    Plan C is to use more hard plastic and only use rubber for the connections between the two parts. My truck redlines at 5500rpm

  19. Jun 15, 2015 at 3:39 PM
    #19
    chowwwww

    chowwwww Well-Known Member

    Joined:
    Jun 9, 2014
    Member:
    #131583
    Messages:
    1,563
    Gender:
    Male
    Orange County
    Vehicle:
    03 Doublecab 4x4
    Billys 5100/Eibach and Wheelers Progressive 1.5 AAL with overload in
    That sounds like it would work.

  20. Jun 16, 2015 at 7:09 AM
    #20
    cynicalrider

    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    12,052
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4
    Drop bracket lift and booger welds
    Yeah I was thinking plastic pipe or like a plastic X that can go into the soft section.
