Home built long travel (clean version)

Discussion in 'Suspension' started by 5lugger95, Nov 30, 2013.

Thread Status:
Not open for further replies.
  1. Nov 30, 2013 at 12:41 PM
    #1
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male
    Im posting this because i have a 1996 tacoma (5lug) and love being in the dirt. Not asking advice, if your like to give constructive advice, go for it, if not. Just look. I also want to show those who may not have the means to buy a $3000 lt kit, or just want to build their own stuff. This kit currenty cycles 13.5 inches of travel, strapped and bumped at 12 to save the BJs. Made out of 1/8 plate and 3/16 plate welded with a lincoln 110v welder. All built with $150 worth of material and a brain. Used a grinder and a cutoff wheel to make the plates. First set held for 2 months and is still going strong, im building a second set with what i learmed and bc i have coilovers now.

    Pics:

  2. Nov 30, 2013 at 12:45 PM
    #2
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male

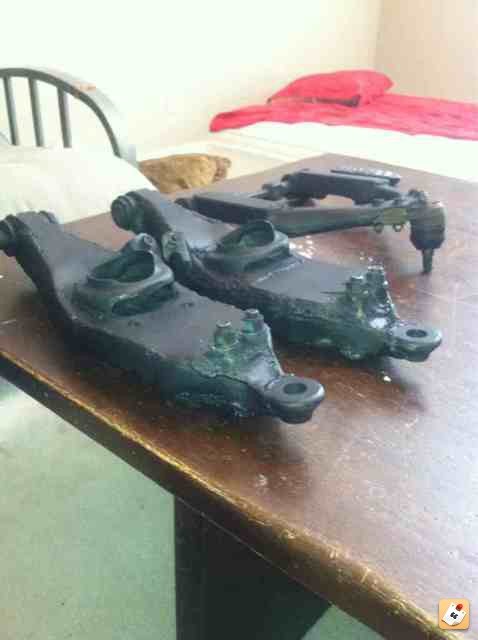

    [​IMG] first kit, the lowers are 1/8th boxed, uppers are 1incj soldi rod boxed with 3/16s

    [​IMG]

    [​IMG]

    [​IMG]

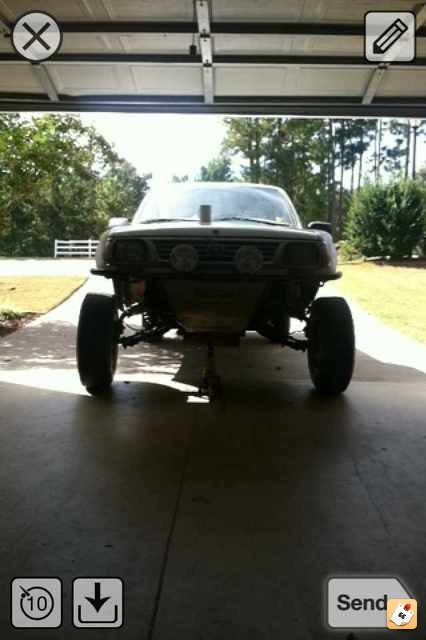

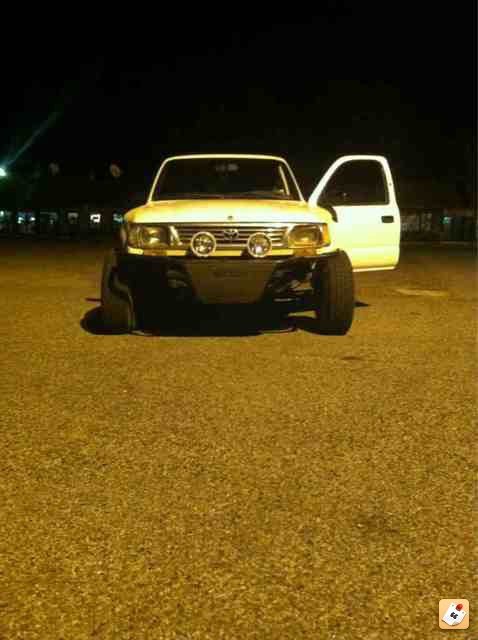

    [​IMG] full droop

  3. Nov 30, 2013 at 12:47 PM
    #3
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male
    This kit held really well for being my first ever fab job, i extended them using 3inch box still, just cut, extend, weld. The welds were crappy though and the design was flawed, so before i crashed my truck i decided to revamp the design, build all new lowers and buy coilovers

  4. Nov 30, 2013 at 12:47 PM
    #4
    snowgod06

    snowgod06 UG legend wannabe

    Joined:
    Apr 26, 2009
    Member:
    #16454
    Messages:
    5,201
    Gender:
    Male
    First Name:
    Rob
    A farm field, OREGON
    Vehicle:
    06 Access Cab CLONE
    crap bolted and welded together....
    interesting.... GL with it!

  5. Nov 30, 2013 at 12:49 PM
    #5
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,106
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
  6. Nov 30, 2013 at 12:49 PM
    #6
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male

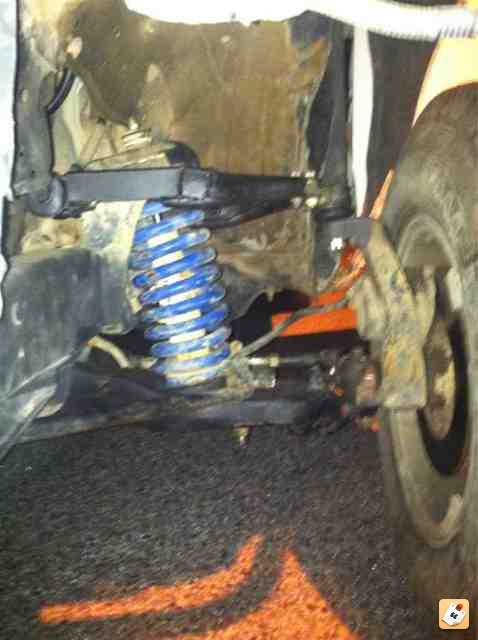

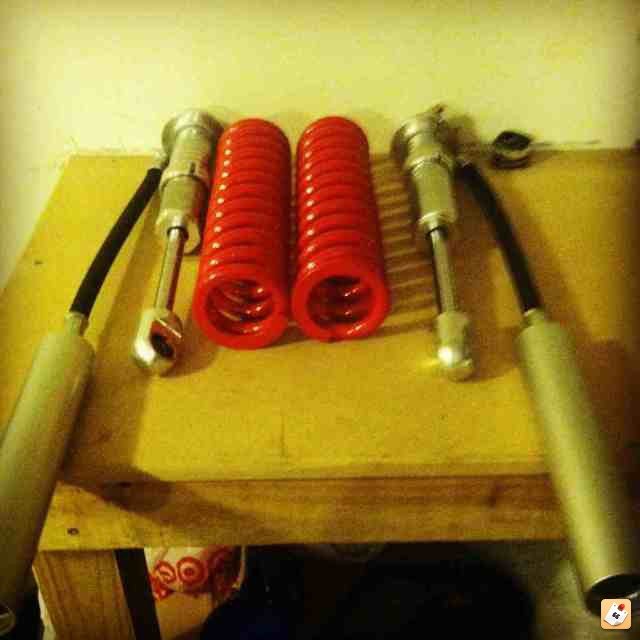

    [​IMG] FOAs and viper coils (500lb)

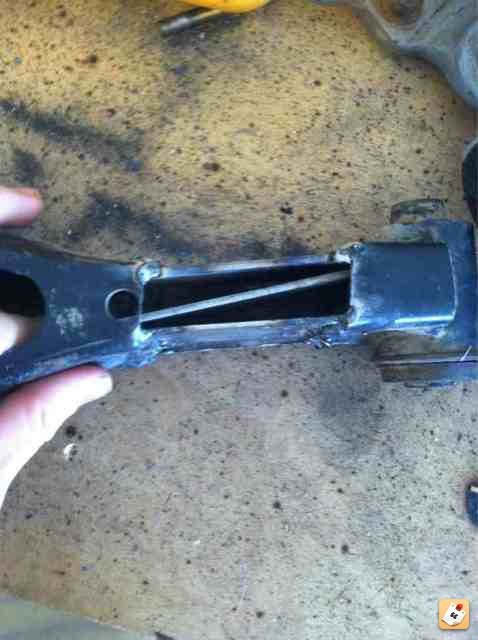

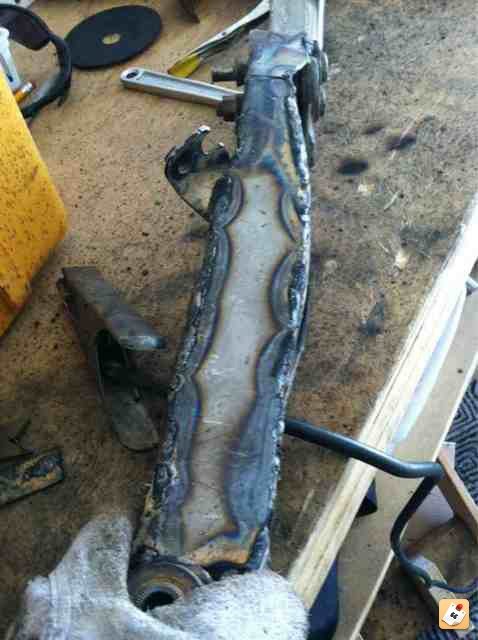

    [​IMG] cut and extended in a more structurally sound area

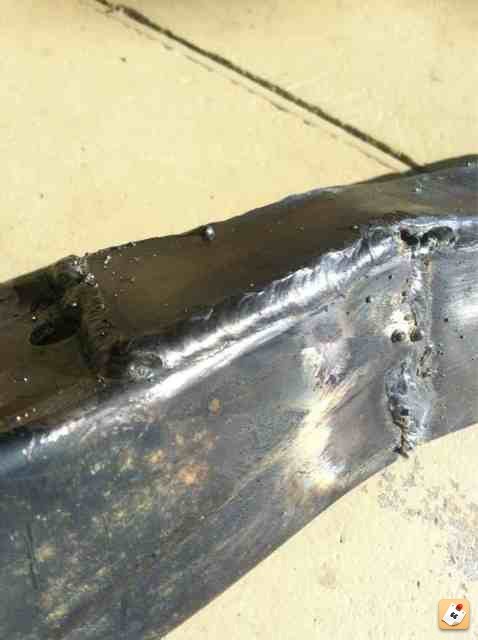

    [​IMG] weldings alot better

    [​IMG]

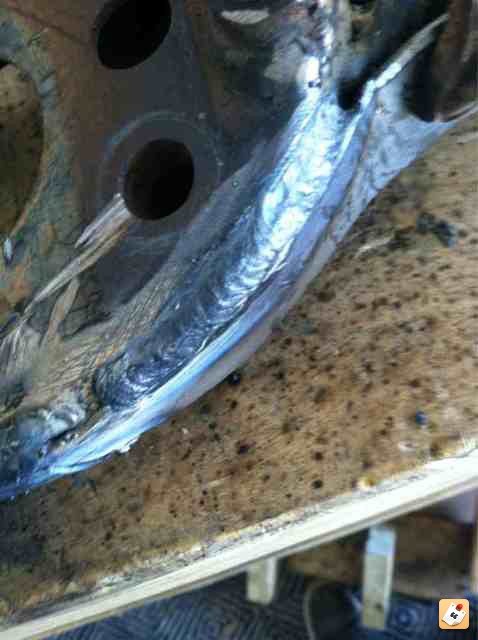

    [​IMG] good penetration

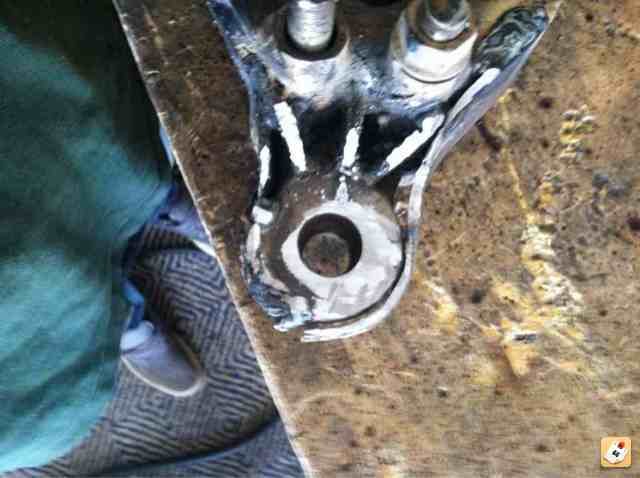

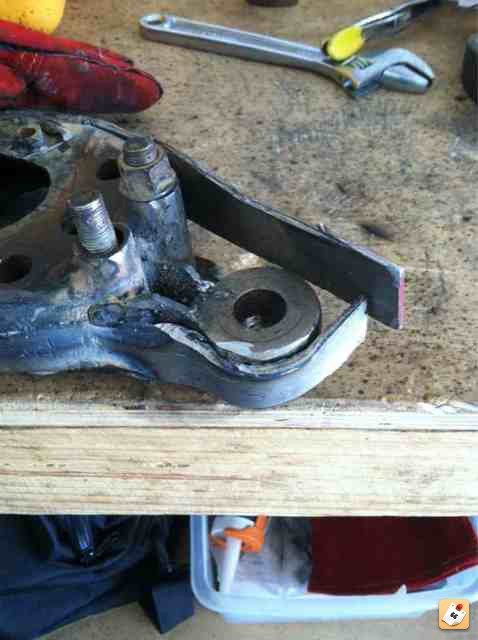

    [​IMG] this is the part that always breaks on these trucks, reinforcing it like this helps ALOT as long as you get the bracket hot

  7. Nov 30, 2013 at 12:58 PM
    #7
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,447
    SoCal- SGV
    Popcorns

  8. Nov 30, 2013 at 1:00 PM
    #8
    RJALLDAY702

    RJALLDAY702 U MAD? OH U MAD

    Joined:
    Sep 12, 2011
    Member:
    #63360
    Messages:
    14,143
    Gender:
    Male
    First Name:
    RJ
    Hermosa Beach
    Vehicle:
    08'
    6" Ruff Country DBL
  9. Nov 30, 2013 at 1:01 PM
    #9
    MGMTacolover55

    MGMTacolover55 Well-Known Member

    Joined:
    Jan 31, 2013
    Member:
    #96545
    Messages:
    4,000
    Gender:
    Male
    Orygun
    Vehicle:
    2013 MGM Taco TRD Off Road
    floor Mats
    Oh not this thread again! Here goes another round!! :popcorn:

  10. Nov 30, 2013 at 1:02 PM
    #10
    davidjmay

    davidjmay Well-Known Member

    Joined:
    Sep 2, 2012
    Member:
    #86090
    Messages:
    933
    Gender:
    Male
    First Name:
    David
    Orange County/Azusa
    Vehicle:
    '00 PreRunner
    Pioneer HU & door speakers, Alpine type R, Kicker dx1000.1, OME 883 lift, Wheelers 2" AAL, custom mesh grille, smoked LED taillights, LED light bar, Raptor exhaust dumped before axle, custom fabbed roll bar/light bar mount
    :rofl: :popcorn: for jeff

    Welcome to Tacomaworld…

    Not dezertrangers

    Last edited: Nov 30, 2013
  11. Nov 30, 2013 at 1:06 PM
    #11
    05Aztacoma

    05Aztacoma Well-Known Member

    Joined:
    Jul 5, 2012
    Member:
    #82006
    Messages:
    2,568
    Gender:
    Male
    First Name:
    Luis
    Tempe, Az
    Vehicle:
    05 Tacoma 4x4
    Almost Stock
  12. Nov 30, 2013 at 1:07 PM
    #12
    darkgreentaco

    darkgreentaco XXXL Member

    Joined:
    Jun 10, 2010
    Member:
    #38712
    Messages:
    2,239
    Gender:
    Male
    NorCaL
    Vehicle:
    Timberland Rocket
    King RR C/O's, All-Pro expdtn Leaf Icon UCA's Fox Resi's BAMFsliders LCAskids diffcover 17" Addicts Yukon 4.56 35" Dynapro MT's
    Did you make your own UCA's as well?

    Umm. Nevermind. I saw the other thread you made and that answered my question. It's cool you're making your own shit. Even the best fabricator had to start somewhere, right ?

    Last edited: Nov 30, 2013
  13. Nov 30, 2013 at 2:06 PM
    #13
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male
    Thanks man and yeah for sure ive been fabbing for about 6 months now,i never claimed it to be pretty haha but it works well for what i do and it will just get better. And the uppers are cut and extended with 1inch solid rod boxed in with 3/16 plate just for those who havnt seen the other thread

  14. Nov 30, 2013 at 2:57 PM
    #14
    darkgreentaco

    darkgreentaco XXXL Member

    Joined:
    Jun 10, 2010
    Member:
    #38712
    Messages:
    2,239
    Gender:
    Male
    NorCaL
    Vehicle:
    Timberland Rocket
    King RR C/O's, All-Pro expdtn Leaf Icon UCA's Fox Resi's BAMFsliders LCAskids diffcover 17" Addicts Yukon 4.56 35" Dynapro MT's
    Just fininshed the whole thread you started the other day. Like I said, it's cool you are making your own shit, just be open to some of the advice given to you. You dont have to take it, but, at least hear em out. Most of them have done the R&D already and know what works and what wont. Anyways, good luck.

  15. Nov 30, 2013 at 3:26 PM
    #15
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male
    Im always up for positive, educated advice. That other thread got outa hand and was a pissing match not an advice thread anymore haha. If someone has good constructive advice im stoked to hear it and will most likely take it

  16. Nov 30, 2013 at 7:26 PM
    #16
    Mr. Biscuits

    Mr. Biscuits Salesman by trade, Gentleman by habit

    Joined:
    May 6, 2012
    Member:
    #78316
    Messages:
    1,569
    Gender:
    Male
    First Name:
    Brennen J
    Bakersfield
    Vehicle:
    2000 PreRunner TRD V6
    -Bilstein 5100/ Eibach 3" lift -Custom 2" lift rear leaf pack -Crystal clear headlight housings -updated (01-04) rear tail lights -custom front tube bumper -custom rear tube bumper -Deckplate mod -Kenwood Headunit -Pioneer Speakers -black door handles -Debadged, rebadged black -Ultraguage
    sub'd out of amusement.

  17. Dec 2, 2013 at 1:46 PM
    #17
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male

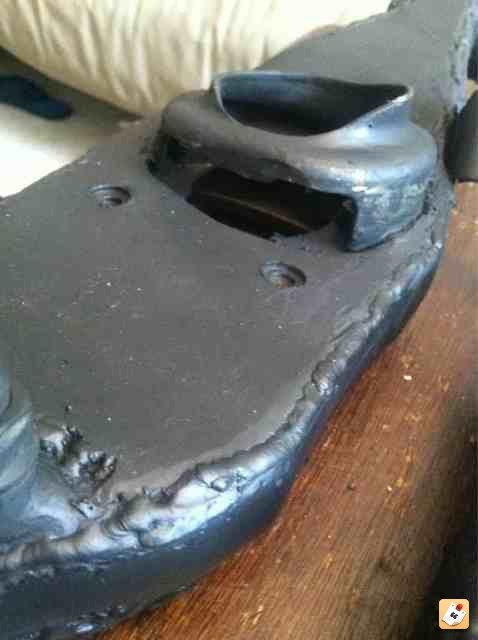

    [​IMG] finished the bj bracket gusseting today, its not pretty but its strong. My last arm i only plated the sides and top and it held, so this will be able to put up with bigger tires and a 130lb increase in spring rate.

  18. Dec 2, 2013 at 1:46 PM
    #18
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male
    Ps. The picture doesnt do it justice

  19. Dec 2, 2013 at 1:50 PM
    #19
    richardbui23

    richardbui23 That guy

    Joined:
    Apr 26, 2011
    Member:
    #55580
    Messages:
    17,039
    Gender:
    Male
    First Name:
    Richard
    Arlington Texas
    Vehicle:
    Stacy
    pass the pop corns

  20. Dec 6, 2013 at 5:26 PM
    #20
    5lugger95

    5lugger95 [OP] Well-Known Member

    Joined:
    Feb 14, 2013
    Member:
    #97501
    Messages:
    93
    Gender:
    Male

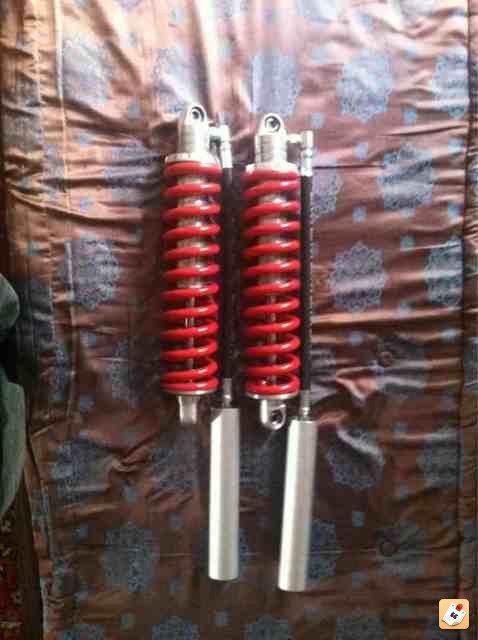

    [​IMG] coilovers all charged up and ready to bolt up, gotta fabricate some towers and weld them to the frame, hopefully be rolling on these by next weekend
