Homemade Crank Pulley Tool

Discussion in '1st Gen. Tacomas (1995-2004)' started by BadBrains, Feb 17, 2011.

  1. Feb 17, 2011 at 2:31 PM
    #1
    BadBrains

    BadBrains [OP] Well-Known Member

    Joined:
    Apr 28, 2010
    Member:
    #36179
    Messages:
    766
    Gender:
    Male
    First Name:
    Wes
    Destin, FL
    Vehicle:
    '07 SSM DCSB TRD OR 4x4 AT
    King, Dakar, 285 MT/R's.
    Here's the tool I made for around $20-$25 instead of purchasing the Schley SP 64400 for $60-$80.

    C-channel from the Depot, and 3/8" rod also from the Depot.

    I had to chase out the holes on my pulley due to rust, other than that it worked like a charm when I recently did my T-belt/Water-pump.



    [​IMG]


    Last edited: Jan 8, 2015
  2. Feb 17, 2011 at 3:43 PM
    #2
    tacomaman06

    tacomaman06 Carolina Alliance: Lead, follow, or get the hell o Staff Member

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,305
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '13 Silverado ext cab
    sweet. i made one as well......looks like the one from schley.......but the damn holes i drilled for pins didnt line up worth a shit. now..if i dont use it...i just lay a prybar against the frame with a socket on the crank nut and bump the engine over...breaks her loose real fast.:D

  3. Feb 17, 2011 at 3:48 PM
    #3
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,953
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    I made one as well, but out of scrap so it was free. I just welded two pieces of 1/4" flat stock together to make 1/2" thick steel, drilled holes in it for the drill bits, torched a big hole in the middle for the socket, and welded about 3' of 1/2" x 1" flat stock to that for a handle. Worked perfect.

  4. Feb 17, 2011 at 3:49 PM
    #4
    BadBrains

    BadBrains [OP] Well-Known Member

    Joined:
    Apr 28, 2010
    Member:
    #36179
    Messages:
    766
    Gender:
    Male
    First Name:
    Wes
    Destin, FL
    Vehicle:
    '07 SSM DCSB TRD OR 4x4 AT
    King, Dakar, 285 MT/R's.
    That's how I broke it loose as well. I made the tool at the end when I was ready to put everything back together.

    Stuck the tool on and rotated it until it stopped against the frame, then torqued the pulley bolt.

  5. Feb 17, 2011 at 3:56 PM
    #5
    wired_af

    wired_af Clever white boy.

    Joined:
    Jul 1, 2008
    Member:
    #7687
    Messages:
    106
    Gender:
    Male
    First Name:
    Alex
    Wichita, KS
    Vehicle:
    '07 DC TRD Sport S/C ♥
    TRD Supercharger · AFE intake · Bilstein 5100s · Progressive add-a-leaf

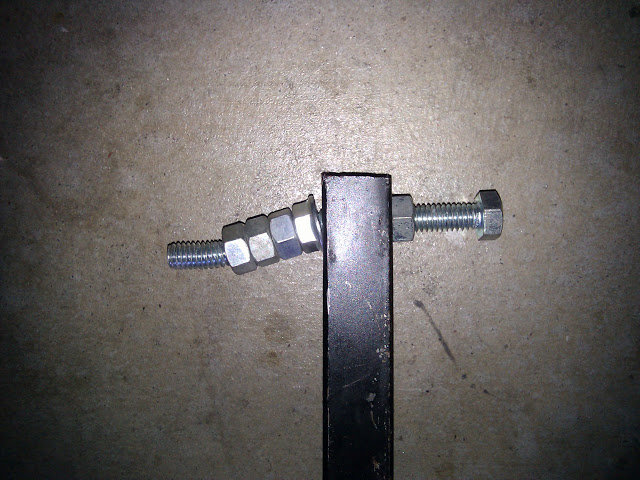

    I made one too for my 2nd gen. This is the aftermath from torquing to 204ftlbs.

    [​IMG]

    Obviously, I should have used a stronger bolt :D

  6. Feb 17, 2011 at 4:10 PM
    #6
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,953
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
  7. Feb 23, 2011 at 11:07 AM
    #7
    Willman

    Willman Sierra Expeditions

    Joined:
    Jan 25, 2011
    Member:
    #49893
    Messages:
    50
    Gender:
    Male
    Nice work!

  8. Mar 31, 2011 at 12:16 AM
    #8
    bwill808

    bwill808 Active Member

    Joined:
    Nov 27, 2010
    Member:
    #46805
    Messages:
    36
    Gender:
    Male
    First Name:
    bryan
    hawaii
    Vehicle:
    00 extra cab 5lug trd supercharged
    trd supercharger the grey version , k&n intake , trd headers , 2 1/2 inch catback
    noticed ur in az or kailua????/?i just moved here from hawaii , i have no way to make a that tool , if ur near phenix if i could buy or borrow ,






  9. Apr 1, 2011 at 10:04 PM
    #9
    BadBrains

    BadBrains [OP] Well-Known Member

    Joined:
    Apr 28, 2010
    Member:
    #36179
    Messages:
    766
    Gender:
    Male
    First Name:
    Wes
    Destin, FL
    Vehicle:
    '07 SSM DCSB TRD OR 4x4 AT
    King, Dakar, 285 MT/R's.
    From Kailua, but live in Northern AZ now....however I'm currently out in CA for a couple more months.

    Hopefully someone from the Phoenix area will see this and hook you up/ help you out.

  10. Nov 8, 2011 at 7:36 PM
    #10
    Gorillazrus

    Gorillazrus To be continued...

    Joined:
    Nov 3, 2010
    Member:
    #45646
    Messages:
    197
    Gender:
    Male
    Vehicle:
    01 Prerunner SR5
    5100 Bilistens set @ 1" in front, Wheelers 5 leaf in rear, Leer Topper, TRD Skid Plate, Dual Band Ham Radio
    Just me being lazy and I don't Wana crawl under my truck at the moment, but what is the length of the 3/8 rod from the base to the tip?

  11. Nov 8, 2011 at 8:28 PM
    #11
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,953
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    it doesn't matter, just make them around 4" to be safe.

  12. Nov 8, 2011 at 9:18 PM
    #12
    Gorillazrus

    Gorillazrus To be continued...

    Joined:
    Nov 3, 2010
    Member:
    #45646
    Messages:
    197
    Gender:
    Male
    Vehicle:
    01 Prerunner SR5
    5100 Bilistens set @ 1" in front, Wheelers 5 leaf in rear, Leer Topper, TRD Skid Plate, Dual Band Ham Radio
    Ok thanks, haven't had a chance to look it over but wanted to start getting my metal together.

  13. Nov 8, 2011 at 9:19 PM
    #13
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,953
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    They just need to engage in the holes in the crank pulley, the one I made just uses drill bits stuck through holes in the tool.

  14. Nov 8, 2011 at 9:30 PM
    #14
    Gorillazrus

    Gorillazrus To be continued...

    Joined:
    Nov 3, 2010
    Member:
    #45646
    Messages:
    197
    Gender:
    Male
    Vehicle:
    01 Prerunner SR5
    5100 Bilistens set @ 1" in front, Wheelers 5 leaf in rear, Leer Topper, TRD Skid Plate, Dual Band Ham Radio
  15. Nov 9, 2011 at 1:56 PM
    #15
    BadBrains

    BadBrains [OP] Well-Known Member

    Joined:
    Apr 28, 2010
    Member:
    #36179
    Messages:
    766
    Gender:
    Male
    First Name:
    Wes
    Destin, FL
    Vehicle:
    '07 SSM DCSB TRD OR 4x4 AT
    King, Dakar, 285 MT/R's.
    I'd measure them for you but the tool I made is in storage.

  16. Feb 14, 2012 at 7:27 PM
    #16
    Beluga

    Beluga Member

    Joined:
    Nov 9, 2010
    Member:
    #45962
    Messages:
    18
    Gender:
    Male
    Another technique that works is just screw in 2 bolts into the pulley at the same time so the pulley is level while the bolts push the pulley out as it hits the block. Pretty much the same way you take out rear drum cover with 2 bolts.

  17. Jun 27, 2012 at 10:38 AM
    #17
    TallTacoma

    TallTacoma Well-Known Member

    Joined:
    Jun 11, 2010
    Member:
    #38787
    Messages:
    145
    Gender:
    Male
    First Name:
    Charles
    The Silver State
    Vehicle:
    Locally owned and operated!
    3" suspension lift (ToyTec coilovers and wheeler leafs), Yakima roof rack, ARE tonneau, K&N FIPK.
    That's how I did it. It's amazing how much torque those starters are putting out.

  18. Jun 27, 2012 at 9:32 PM
    #18
    The Raisin

    The Raisin Well-Known Member

    Joined:
    Feb 2, 2011
    Member:
    #50452
    Messages:
    172
    Gender:
    Male
    First Name:
    Mark
    Spanaway, WA
    Vehicle:
    streetqueen
    Badlands front bumper with a Smittybilt 8K winch, synthetic winch line. Demello sliders and bedbar. Custom rear bumper. Custom skid plates. Flex-a-lite tranny cooler with fan mounted in bed. Bilstein 5100's with SAW coils, AllPro UCAs, NW offroad rear springs (garbage), 4.88s and front and rear lockrights. Lots of custom sheetmetal work.
    I've done my water pump and timing belt twice now, both times i removed the crank pulley bolt with a pneumatic impact gun. It came right off both times.

  19. Jun 27, 2012 at 9:33 PM
    #19
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,953
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    205k+ miles, 265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    pulled the radiator out too?

  20. Jun 27, 2012 at 9:43 PM
    #20
    The Raisin

    The Raisin Well-Known Member

    Joined:
    Feb 2, 2011
    Member:
    #50452
    Messages:
    172
    Gender:
    Male
    First Name:
    Mark
    Spanaway, WA
    Vehicle:
    streetqueen
    Badlands front bumper with a Smittybilt 8K winch, synthetic winch line. Demello sliders and bedbar. Custom rear bumper. Custom skid plates. Flex-a-lite tranny cooler with fan mounted in bed. Bilstein 5100's with SAW coils, AllPro UCAs, NW offroad rear springs (garbage), 4.88s and front and rear lockrights. Lots of custom sheetmetal work.

    Yes the radiator and the grill. So much easier to get it done that way. I just did the entire thing last Saturday, waterpump, t-belt and t-stat, pulleys and new t-belt tensioner as well. It took me and a buddy about 5 hours from start to finish.
