Homemade Crank Pulley Tool

Discussion in '1st Gen. Tacomas' started by BadBrains, Feb 17, 2011.

  1. Jun 27, 2012 at 9:56 PM
    #21
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,947
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    not bad

  2. Jun 27, 2012 at 10:00 PM
    #22
    The Raisin

    The Raisin Well-Known Member

    Joined:
    Feb 2, 2011
    Member:
    #50452
    Messages:
    172
    Gender:
    Male
    First Name:
    Mark
    Spanaway, WA
    Vehicle:
    streetqueen
    Badlands front bumper with a Smittybilt 8K winch, synthetic winch line. Demello sliders and bedbar. Custom rear bumper. Custom skid plates. Flex-a-lite tranny cooler with fan mounted in bed. Bilstein 5100's with SAW coils, AllPro UCAs, NW offroad rear springs (garbage), 4.88s and front and rear lockrights. Lots of custom sheetmetal work.
    I thought it was a decent time. We were not in a hurry and there was a few cold beverages consumed as well.

  3. Jul 25, 2012 at 4:51 AM
    #23
    06yfz450ridr

    06yfz450ridr Well-Known Member

    Joined:
    Feb 4, 2012
    Member:
    #72116
    Messages:
    141
    Gender:
    Male
    First Name:
    Austin
    CT
    HID's
    wish i saw this a long time ago. i didnt want to remove the radiator etc to use an impact gun since you cant fit anything in there worth of crap. just ended up using a 3 foot breaker bar with a pipe wrench while the truck was in 4wd low and on blocks and still ended up moving with that. had to heat it, still destroyed the pulley but thats what i was replacing anyways. will make one of these next time or just pull the radiator nice work tho

  4. Jul 25, 2012 at 7:38 AM
    #24
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,947
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    5th gear in 2wd would have worked better...

  5. Oct 15, 2012 at 12:01 PM
    #25
    85GT 79FJ40

    85GT 79FJ40 Well-Known Member

    Joined:
    Dec 16, 2010
    Member:
    #47768
    Messages:
    885
    Gender:
    Male
    First Name:
    Ken
    New Hampshire
    Vehicle:
    05 SR5 Double Cab 4X4
    I made one of these 4-5 years ago when doing the belt job in my wife's old 4Runner. Layed it against the frame when I was re-torquing the crank pulley. Dame thing busted the cast ring in the balancer! So I pulled it off, got a used balancer, and put it back on using my impact and some loctite. I took it off with the impact too. It's been 70k miles since then and it's still fine. Of course it's due for another belt soon but it's not mine any more so I don't have to do it this time.

  6. Jan 1, 2013 at 5:29 PM
    #26
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    22,446
    Gender:
    Male
    First Name:
    Doug
    Gardnerville, Nevada
    Vehicle:
    No Truck
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
  7. Jun 27, 2013 at 1:52 PM
    #27
    yellozebra

    yellozebra New Member

    Joined:
    Jun 21, 2013
    Member:
    #106760
    Messages:
    4
    Gender:
    Male
    PacNW
    Vehicle:
    96 Tacoma 3.4L 4WD
    I used this method lastnight to both remove and reinstall my crank pulley bolt. I saw some other references to this method using an old timing belt to remove timing cam gears which I also used successfully. Not my idea, just interpreting it for use on the crank bolt.

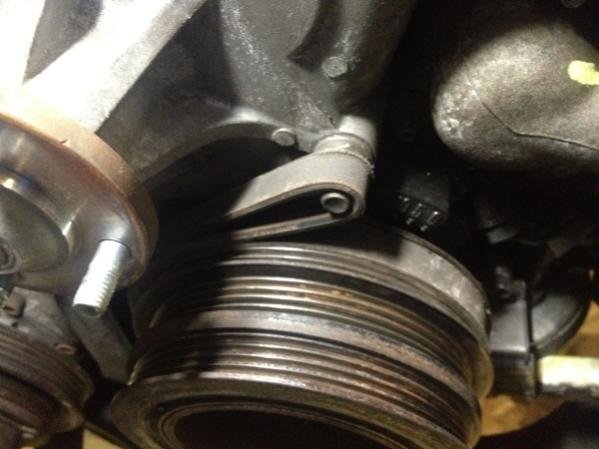

    Use an old, intact belt to wrap around the crank pulley so that it is doubled under and wrapped onto itself, catching the loop on the nearby stud sticking out from the lower timing cover / fan mount. See pics... [​IMG][​IMG]

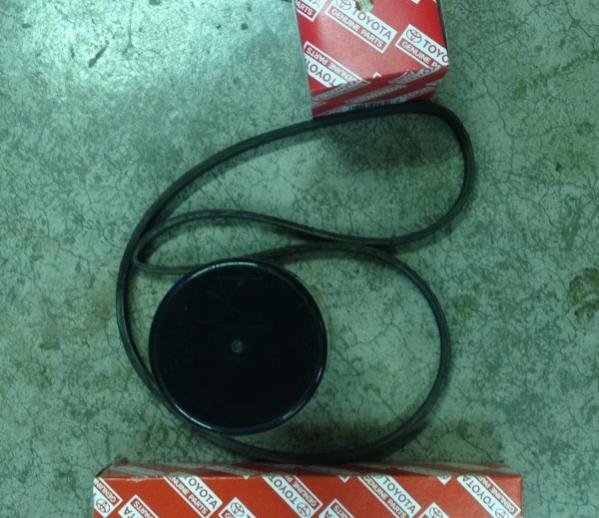

    This pic shows how the belt is looped around the pulley for bolt removal, the black disc representing the pulley. Installation is the mirror image...

    I have used the "starter trick" before without a problem, but I hear that you can potentially break flywheel teeth, the starter, or a minute chance of damaging bearings. I liked this method because I could feel how tight the bolt was coming off, using a 1/2" drive socket, a breaker bar, and a 3' cheater bar over that. Not having a torque wrench to go above 150lbs, I tightened it (tighter than hell) proportionately to the force it took me to remove it.

    Last edited: Jun 27, 2013
  8. Jul 5, 2013 at 9:25 PM
    #28
    dlehmkuhl

    dlehmkuhl Active Member

    Joined:
    Jul 1, 2013
    Member:
    #107424
    Messages:
    34
    Gender:
    Male
    First Name:
    D
    Colorado
    Vehicle:
    '98 SR5 Stndrd Taco
    Coil over front suspension Blocked in rear
    Bout a year ago did the timing, new water pump, crank seal and cam seals with a friend. Took us a couple days cause we had a HELLUVA time getting the seals out. Then we found that crushing the seals (carefully!) with a flathead and a pair of needlenose turned that job into a five minute ordeal, lol. Anyway, as far as a tool to hold the crank pulley while breaking loose the nut, we cut the old timing belt EXACTLY the same distance around the pulley, then held 'er in place with a good grade chain break (wrench, tong or whatever you wanna call it). Then another breaker bar with the socket and she was done. No radiator pull or anything, just the fan. Worked great. Had to cycle antifreeze when done but who cares about that? That's playground shyte, hahahahaha.

    EDIT: Used the same method for the cam pulleys. Sorry bout that! Only done that job once ya know!

  9. Jul 5, 2013 at 9:28 PM
    #29
    dlehmkuhl

    dlehmkuhl Active Member

    Joined:
    Jul 1, 2013
    Member:
    #107424
    Messages:
    34
    Gender:
    Male
    First Name:
    D
    Colorado
    Vehicle:
    '98 SR5 Stndrd Taco
    Coil over front suspension Blocked in rear
    @ yellozebra: Very cool man. :cool:

  10. Jul 9, 2013 at 8:44 PM
    #30
    soup101

    soup101 Active Member

    Joined:
    Dec 6, 2012
    Member:
    #92585
    Messages:
    40
    Gender:
    Male
    First Name:
    Joe
    Maryland
    Vehicle:
    04 SR5 TRD DC 4x4
    OME 882 Coils, OME Dakars with D6XL AAL, Nitrocharger Sport Shocks, Sky Manufacturing rear axle relocation plate set 3/4 inch towards rear, BAMF BPV Relocation Bracket, Leer 100R Shell, Trail Gear Sliders, Trail Gear Low Profile Front Bumper, CBI Outback 1.0 Rear Bumper w/ tire swing-out, Cornfed Suspension Diff Drop
    Does anyone have experience with the Schley SP 64400 tool? I need a tool and don't mind spending the money for this provided I know it works good.

  11. Aug 11, 2013 at 2:50 PM
    #31
    soup101

    soup101 Active Member

    Joined:
    Dec 6, 2012
    Member:
    #92585
    Messages:
    40
    Gender:
    Male
    First Name:
    Joe
    Maryland
    Vehicle:
    04 SR5 TRD DC 4x4
    OME 882 Coils, OME Dakars with D6XL AAL, Nitrocharger Sport Shocks, Sky Manufacturing rear axle relocation plate set 3/4 inch towards rear, BAMF BPV Relocation Bracket, Leer 100R Shell, Trail Gear Sliders, Trail Gear Low Profile Front Bumper, CBI Outback 1.0 Rear Bumper w/ tire swing-out, Cornfed Suspension Diff Drop
    Guess I'll answer my own question since I now have experience with the SP 64400 tool. It worked great.

  12. Oct 6, 2013 at 10:16 PM
    #32
    yf19

    yf19 Well-Known Member

    Joined:
    Apr 21, 2013
    Member:
    #102535
    Messages:
    258
    Gender:
    Male
    Phoenix AZ
    Vehicle:
    1998 ExtraCab Limited V6
    Icon coil overs, Camburg UCA, 1" body lift, lots of trimming, Scion XB seats with Wet Okle covers, Alpine Head unit and amps with RF subs and Polk Momo in doors, and much more.
    Yellowzebra that is very clever. For those with manual transmissions, just put it in 5th gear. Works for me every time for proper torque.

  13. Jan 6, 2014 at 6:52 PM
    #33
    Redneck92

    Redneck92 Well-Known Member

    Joined:
    Aug 9, 2012
    Member:
    #84398
    Messages:
    1,350
    Gender:
    Male
    First Name:
    Chris
    Concord, NC
    Vehicle:
    02 Tacoma Limited TRD
    ARE Camper shell
    I did mine with a breaker bar laid on the frame and bump the starter. For tightening just put in 4th and "torque" to spec (i.e. really fawking tight). If you have an auto then I fell sorry because you have the wrong transmission:D

  14. Jan 10, 2014 at 12:04 PM
    #34
    ornithology

    ornithology Active Member

    Joined:
    Jan 28, 2013
    Member:
    #96377
    Messages:
    34
    Gender:
    Male
    Thanks for this

  15. Jan 15, 2014 at 7:44 AM
    #35
    Gooiegoogoo

    Gooiegoogoo Well-Known Member

    Joined:
    Apr 27, 2012
    Member:
    #77718
    Messages:
    251
    Gender:
    Male
    First Name:
    Gustavo
    Phoenix
    Vehicle:
    03 TRD SR5
    2" lift
    Nice ill be making this soon. If anyone needs its pm. Ill be doing the timing belt, water pump and all other stuff as well.

  16. Mar 10, 2014 at 1:06 AM
    #36
    671

    671 Member

    Joined:
    Feb 28, 2014
    Member:
    #124202
    Messages:
    12
    Gender:
    Male
    First Name:
    John
    Guam
    Vehicle:
    97 tacoma 3.4l
    2" coil spacer, 2" body lift, more to come
    That's how I remove those bolts too, just a click of the key and you can finger that bolt right off. Also, be sure to unplug the distributor harness or harnesses on coils (if distributorless) so it doesn't start up, you'd have a bad day if it does!

  17. Apr 29, 2014 at 3:01 PM
    #37
    Flight Risk

    Flight Risk Member

    Joined:
    Jul 14, 2012
    Member:
    #82628
    Messages:
    15
    Gender:
    Male
    First Name:
    Tony
    WV
    Vehicle:
    2011 TRD Off-Road
    3" ToyTec Suspension Lift, Alpine INE-S920HD, Devil Horns by Andres, 255/85R16 BF Goodrich KM2's

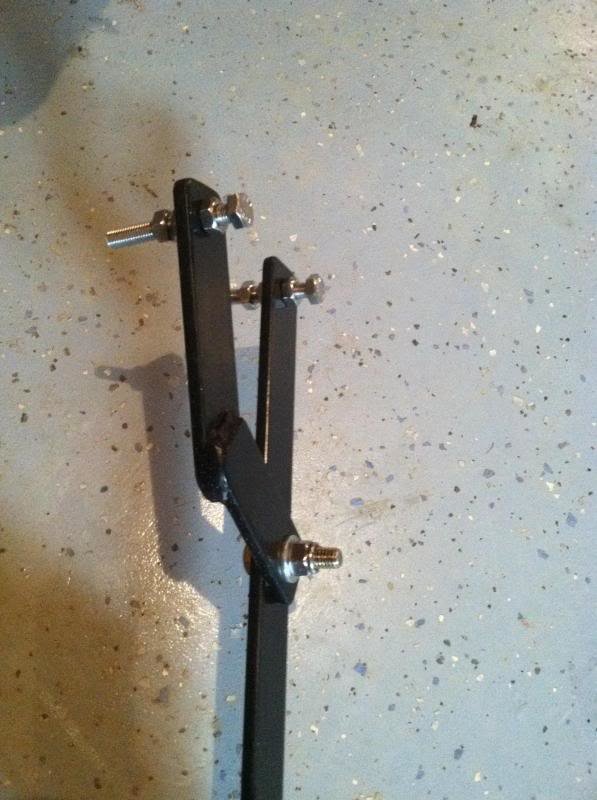

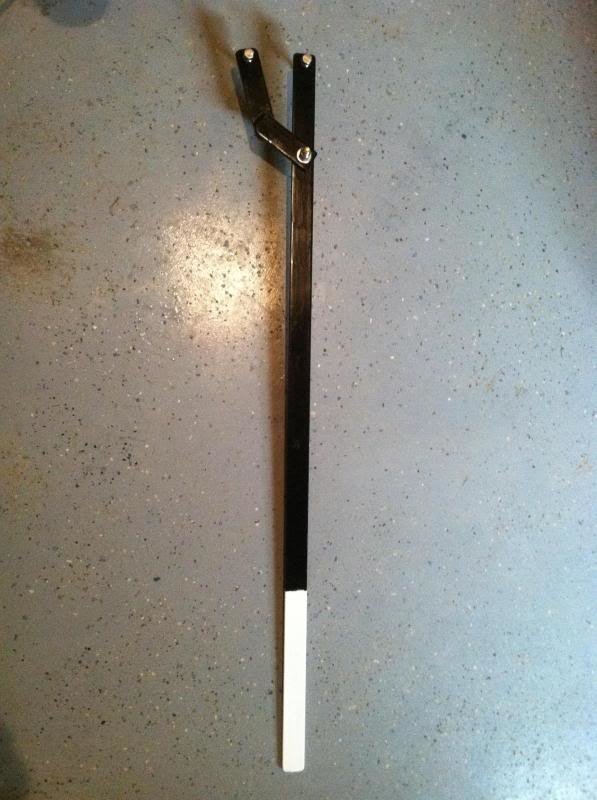

    Here is my go at it. It's on a pivot so I can use it on a different pulley if I ever need to.

    [​IMG]

    [​IMG]

    The factory tool that Toyota dealers use is about $250. Buying a universal holder from is about $53. Here is the break down of what mine cost me:

    $13.77 - 1/4x48 flat stock
    $2.12 - Two M8x1.25x60 bolts
    $0.82 - Six M8x1.25 nuts
    $0.79 - 3/8 bolt
    $0.58 - 3/8 nylon self locking nut
    $0.26 - Two 3/8 washers

    Bare bones would have cost me $18.34 but I decided to paint it and Plasti Dip a handle on it so after primer, paint, and Plasti Dip at an additional $17.46 my final price was $35.80 which is $17.20 cheaper than the universal tool and a whopping ~$214.20 cheaper than the tool Toyota garages use.

  18. Apr 27, 2015 at 5:21 AM
    #38
    keakar

    keakar Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    2,862
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2004 SR5 Tacoma 2wd Prerunner 3.4L v6 ext cab (white)
    so how often do you actually have to change the timing belt on the 3.4 engine?

    the way I see people talk about it, you'd swear its like every other year this needs to be done lol

    seriously, how often do you do this? im thinking of getting a 3.4 taco

  19. Apr 30, 2015 at 10:13 AM
    #39
    Speed Freek

    Speed Freek Turbo Meister

    Joined:
    Dec 17, 2008
    Member:
    #11676
    Messages:
    2,480
    Gender:
    Male
    First Name:
    Jason
    Vista, Ca, Lake Havasu, Az.
    Vehicle:
    98' 2.4 extra cab w/LS1 Aluminum V8
    ARP Head Studs, Ported Head, MLS Head Gasket, GT3076R Garrett BB Turbo, Synapse Tubular SS Exhaust Manifold, PSI Forward Facing Sheet Metal Intake, Intercooler, 550cc injectors,255lph Fuel Pump, Speed-Trac Traction bars, Heim joint Strut bars, URD Short Shifter, CC Twindisk Clutch, , Haltech Platinum Sport 1000 Standalone ECU, Pre-runner rear springs, V6 rearend with TRD limited-slip Differential New list....LS1 with T56 6-speed trans...simply awesome.

    I recommend people do it every 80-100K (including water pump.)
    I usually just buy the Aisin kit that has all the idler pulleys, w/p, and tensioner.
    Removing the Crank bolt I ALWAYS use the breaker bar and hit the key method, dont worry about unhooking coils or anything, if it starts it just takes the bolt completely out. I dont normally have to remove radiator, to install I have a strap or chain wrench to tighten back to spec, and always put a drop of red loc-tite on the bolt before install.

  20. Apr 30, 2015 at 6:31 PM
    #40
    keakar

    keakar Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    2,862
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2004 SR5 Tacoma 2wd Prerunner 3.4L v6 ext cab (white)
    thanks
