Homemade Crank Pulley Tool

Discussion in '1st Gen. Tacomas (1995-2004)' started by BadBrains, Feb 17, 2011.

  1. Jul 28, 2015 at 6:50 PM
    #41
    MatthewMay1

    MatthewMay1 I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    10,202
    Gender:
    Male
    First Name:
    Matthew
    Lone Star Republic
    Vehicle:
    '01 TRD Off-Road
  2. Jul 30, 2015 at 7:43 AM
    #42
    cynicalrider

    cynicalrider #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    11,082
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4
    Drop bracket lift and booger welds
    My tool did not make it out too well. Probably will revise for future uses or will buy the damn tool.


    Getting it off was easy. Pulling the rad took me another 10 mins so I used an impact to remove. Torquing the bitch back on to spec though was another story.

    Bulldogs129 likes this.
  3. Jul 31, 2015 at 4:37 AM
    #43
    DrZ

    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    901
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed

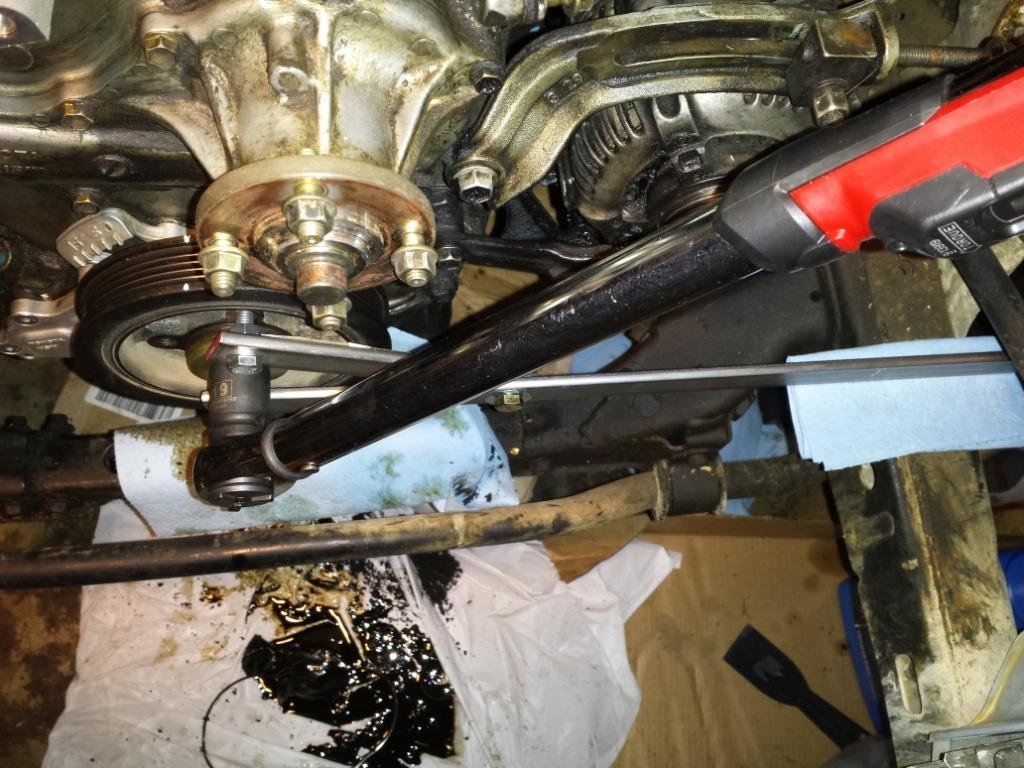

    Here's a picture of mine. No welding, just drilling with plenty of oil to drill through the steel. I used a 1/4" x 1" x 36" steel bar I bought at Lowes. I cut off 6.5" to make the Y-piece.


    You need to use shorter bolts and a higher grade/class of bolts. These bolts were M8x1.25 class 10.9 (roughly equivalent to US Grade 8). I screwed them into the crank pulley holes, then turned the inner nut tight toward the tool to hold the bolt. I thought the force when torquing it would bend things a little, but the tool didn't even budge 1mm when torquing to 193 ft-lbs!


    Last edited: Aug 1, 2015
  4. Aug 27, 2015 at 8:14 PM
    #44
    crazy jerry

    crazy jerry New Member

    Joined:
    Jul 25, 2015
    Member:
    #160301
    Messages:
    2
    Gender:
    Male
    im in the process of doing the timing belt, waterpump, seals etc on a 3.4. my plan was just to make the tool for the crank bolt. what have you guys used for removing and torqing the cam pulley nuts ? from what i remember, the service manual says to use the same tool as the crank bolt. is that how you guys do it ?

    one other question. so far ive got the belt covers and accesories off. whats the hose going from the small nipple on the side of the water pump ? looked like it went into the side of the block or something so i figured it was a bypass hose but not sure

  5. Aug 27, 2015 at 8:18 PM
    #45
    BadBrains

    BadBrains [OP] Spreading the Aloha

    Joined:
    Apr 28, 2010
    Member:
    #36179
    Messages:
    1,404
    First Name:
    Wes
    Dothan, AL
    Vehicle:
    '07 Tacoma TRD OR, '00 Integra GS-R
    King, Dakar, 285 MT/R's, Aluminum this and that.
  6. Sep 22, 2015 at 9:38 AM
    #46
    LAL00O00

    LAL00O00 Well-Known Member

    Joined:
    Jul 11, 2014
    Member:
    #133710
    Messages:
    140
    Gender:
    Male
    First Name:
    Jorge
    San Diego, CA
    Vehicle:
    2001 TRD Taco
  7. Feb 17, 2016 at 9:05 AM
    #47
    Trapperr

    Trapperr Well-Known Member

    Joined:
    Mar 6, 2014
    Member:
    #124720
    Messages:
    1,002
    Gender:
    Male
    Reno, NV
    Vehicle:
    2002 Tacoma Double Cab 4x4 3.4l V6
    getting ready to do this job next weekend. If anyone in the Reno or Sacramento area has the pulley tool, I'd like to buy, rent, or borrow it please.

    My other option is the breaker bar against the frame trick. Couple questions.. which way does the 3.4 rotate? I haven't been in there to check yet. Also, what electrical connections must I disconnect so I don't turn the breaker bar into a propeller?

  8. Feb 17, 2016 at 10:02 AM
    #48
    PedroH

    PedroH Well-Known Member

    Joined:
    Nov 10, 2014
    Member:
    #142038
    Messages:
    45
    Gender:
    Male
    Clockwise.
    Some say to remove the efi relay, but i just clicked in the key, no worries,

  9. Mar 7, 2016 at 5:08 PM
    #49
    5TEWN

    5TEWN Member

    Joined:
    Mar 3, 2016
    Member:
    #180137
    Messages:
    8
    It runs clockwise. You only need to "bump" the starter. Turn the key to start and as soon as you hear the engine start to crank, turn the key off. It only takes a split second. If you turn the key off immediately, the engine won't start. Do this at your own risk. I have done it probably seven or eight times and never had a problem. Works like a charm. Now getting that Crank bolt to 200 and something pounds is another story. I ended up buying the Schley tool and it was worth every penny. Nothing home made works as well. I tried the 2x6 approach, the metal bar and drill bits, etc.
    The right tool for the job is priceless.

    MY two cents.
    JR

  10. Mar 7, 2016 at 5:10 PM
    #50
    5TEWN

    5TEWN Member

    Joined:
    Mar 3, 2016
    Member:
    #180137
    Messages:
    8
    I think it's the oil cooler hose.

  11. Mar 8, 2016 at 8:24 AM
    #51
    Trapperr

    Trapperr Well-Known Member

    Joined:
    Mar 6, 2014
    Member:
    #124720
    Messages:
    1,002
    Gender:
    Male
    Reno, NV
    Vehicle:
    2002 Tacoma Double Cab 4x4 3.4l V6
    I think I'll just order the tool for next time

  12. Oct 24, 2016 at 7:16 PM
    #52
    Bulldogs129

    Bulldogs129 Don't find fault, find a remedy

    Joined:
    Sep 8, 2016
    Member:
    #196750
    Messages:
    1,261
    Gender:
    Male
    First Name:
    Malcolm
    Mississippi
    Vehicle:
    2018 TRD, OR, 4wd, Dblcab, 3.5l, & 2002 Tacoma 4wd, SR5, TRD, 3.4L, auto
    My harmonic balancer was on so tight, I had to weld two pieces of flat plate steel together to keep my grade 8 bolts from sheering off. Northern tool has a 48" x 1" breaker bar on the shelf. Just make sure you have a stout 19mm socket, I used an impact socket.


  13. Nov 27, 2016 at 8:00 PM
    #53
    tercel89

    tercel89 Member

    Joined:
    Nov 25, 2016
    Member:
    #203298
    Messages:
    23
    Vehicle:
    2003 Tacoma 2.7 4wd

    That tool looks very sturdy !

  14. Jan 3, 2017 at 1:33 PM
    #54
    jbrandt

    jbrandt Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    7,014
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Sticker mod
    I just did my timing belt this weekend, I used basically this design, but kept bending the bar (both long and short pieces!) because I have He-Man strength (lol).

    I have a welder, so I welded on another 36" piece to double the thickness. Then, I used a piece of 2" x 2" angle iron for the short piece, then used 3.5" long grade 8 8mm bolts (no nuts). The bolts were technically too long, but that didn't really matter because you want them to go in as far as possible so they don't move around as much. Then just slide the arms in so they are touching the pulley.

    36" long makes it so you can rest the "handle" end on the ground, and that allows you to get both hands on the torque wrench.

    If you don't have a welder, I'd suggest using angle iron for the longer bar, too.

    I'll try to get a picture of what I did tonight...

  15. Jan 3, 2017 at 10:35 PM
    #55
    DrZ

    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    901
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed
    It couldn't have been steel, or it wasn't thick enough (1/4").

  16. Jan 3, 2017 at 11:16 PM
    #56
    jbrandt

    jbrandt Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    7,014
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Sticker mod
    most definitely steel, but it ws 3/16". So a little undersized, which is why I ended up doubling up on it.

    The root of the issue I think was more likely that the 40mm bolts I had first weren't quite long enough, so they only went in the holes a small amount allowing the tool to twist, bending the arm under my he-man strength.

    With the 70mm bolts I used (class 10.2 or whatever), they went all the way in, (still stuck out, so I could have used slightly shorter bolts) so the bolts couldn't twist and the too, stayed straight. Presto, 217 ft lbs.

    DrZ likes this.
  17. Sep 13, 2017 at 8:33 PM
    #57
    valleyboy

    valleyboy Hillbilly 2nd class

    Joined:
    Mar 2, 2012
    Member:
    #73983
    Messages:
    41
    Gender:
    Male
    Renfrew, Ontario
    Vehicle:
    95 Tacoma Ext Cab V6 4wd on it's 3rd set of springs
    Owned since new,2-6volt golfcart batteries in bed hooked up to alternator for camping, Air springs in rear,4-runner bucket seats with a centre console from a ford ranger,brand new cab floor all welded in. manual rear linelock for the brakes, rear diff vent tube extension, rear view mirror map light mod, ignition switch ring light from an mr2
    I made a copy of your SST, worked like a charm. Used an impact wrench for removal but this tool was mandatory for install.

    DrZ likes this.
  18. Sep 15, 2017 at 4:08 PM
    #58
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    4,218
    Gender:
    Male
    Whats the torque spec of the crank bolt?

  19. Sep 15, 2017 at 6:04 PM
    #59
    Dalandser

    Dalandser ¡Me Gustan Las Taco-mas!

    Joined:
    Feb 19, 2015
    Member:
    #149090
    Messages:
    9,761
    First Name:
    Anthony
    Downey, LB
    Vehicle:
    08 PreRunner Regular Cab / 98 4x4 Extra Cab
    Empty Wallet Mod
    Yours is most likely the newer style so 217 ft-lb.

  20. Sep 15, 2017 at 7:05 PM
    #60
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    4,218
    Gender:
    Male
    what torque wrenches go to +200lb, my craftsmen sucks.
