Homemade skid plates?

Discussion in 'Off-Roading & Trails' started by NC15TRD, Feb 10, 2013.

  1. Feb 10, 2013 at 8:49 PM
    #1
    NC15TRD

    NC15TRD [OP] Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,867
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
    I've started thinking about making (designing mostly; I have a drafting degree) my own skids for my truck. I have a couple shops I'd talk to about making them. Namely the IFS, trans, transfer case, and gas tank ones. I'd more than likely buy the rear diff diaper and LCA ones depending on how well making the others goes.

    So onto what I'd like to know:
    1. Has anyone made their own before? IIRC pAP made a trans skid
    2. What material? 1/4" steel seems the most common from my searching
    3. Where would/should I bolt them to the truck? And what size hardware should be used?

    Thanks for any input you may have

  2. Feb 10, 2013 at 8:54 PM
    #2
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,936
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Do you think you will see a savings over just buying a proven brand ?

  3. Feb 10, 2013 at 9:07 PM
    #3
    NC15TRD

    NC15TRD [OP] Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,867
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
    On shipping alone I think it'd be worth it. I'd get prices from the shop to see what I would save but I really belive the savings would be really good

  4. Feb 10, 2013 at 9:11 PM
    #4
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,936
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Interested to see what you find out

  5. Feb 10, 2013 at 9:14 PM
    #5
    offroadwonder

    offroadwonder Well-Known Member

    Joined:
    Mar 28, 2012
    Member:
    #75774
    Messages:
    192
    Gender:
    Male
    First Name:
    Jared
    Aurora, CO
    Vehicle:
    '10 Tacoma DCSB 4x4 TRD Off-Road
    Chopped mud-flaps (yup, I'm hardcore)
    I have been thinking about the same (also largely due to exorbitant shipping costs). My thought is that I would like to build them out of a lighter material. As you mentioned most guys seem to be building skids out of 1/4" plate, but that is incredibly heavy.

    In my opinion armor is there to protect the truck from something unavoidable, not protect from an idiot behind the wheel. So if I am on a trail that has a boulder that is just that extra inch too tall and it ends up getting into a skid, I shouldn't need 1/4" plate. 1/8" will hold the static weight of the truck and even handle a decent impact (it will probably dent from impact however).

    With all the stuff I load in my truck I don't want to give up 100lbs just to skid plates alone.

  6. Feb 10, 2013 at 9:14 PM
    #6
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,809
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    Got 60$ into my IFS skid.

  7. Feb 10, 2013 at 9:18 PM
    #7
    IgnorantlyAlberta

    IgnorantlyAlberta VA6DCO

    Joined:
    Apr 22, 2012
    Member:
    #77432
    Messages:
    3,150
    Gender:
    Male
    First Name:
    David
    edmonton
    Vehicle:
    06 sr5 tacoma rear shock relocate, 35s
    lift, wheels, bumper, rear bumper, intake, front and rear winches, swing tailgate, OBA, sliders.
    PICS when you get the drafts done.

  8. Feb 10, 2013 at 11:19 PM
    #8
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,553
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
  9. Feb 11, 2013 at 5:03 AM
    #9
    NC15TRD

    NC15TRD [OP] Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,867
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
    Thanks for the link! I wonder what kind of weight difference there would be between 3/16" over the 1/4"? Obviously it would weigh 25% less but as far as actual poundage I'm not sure. I'm also not sure though how well they would hold up to a hit.

    I'm gonna start working on my drawings this morning, it'll take me a few days I'm sure cause I take a lot of time to make sure my measurments are exactly what I want and I'll be taking notes as well

  10. Feb 11, 2013 at 8:15 AM
    #10
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,553
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    a lot haha

    id do 3/16s up front as it has shit behind it to keep it strait. Then 1/4 for the belly skid as it tends to bend.

    thats my plan anyways.

  11. Feb 26, 2013 at 7:26 AM
    #11
    NC15TRD

    NC15TRD [OP] Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,867
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
    Quoted from Raush Creek meet discussion as it is more than relevant:


  12. Feb 26, 2013 at 12:30 PM
    #12
    Box Rocket

    Box Rocket just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,033
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff

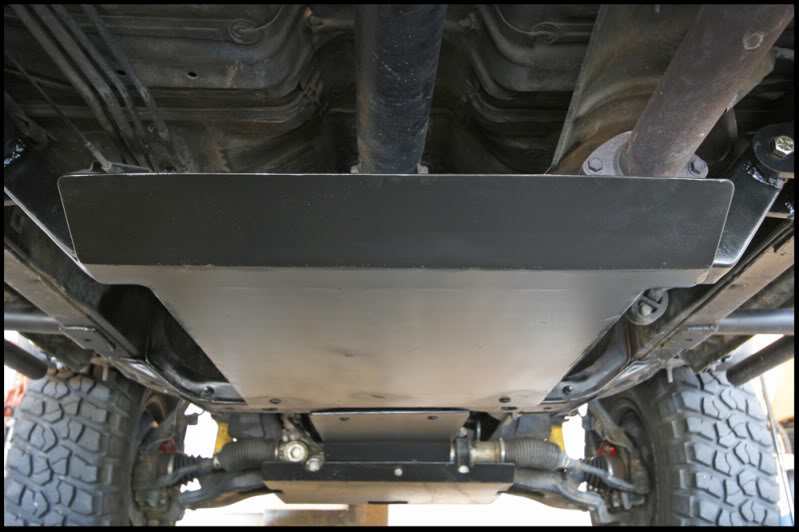

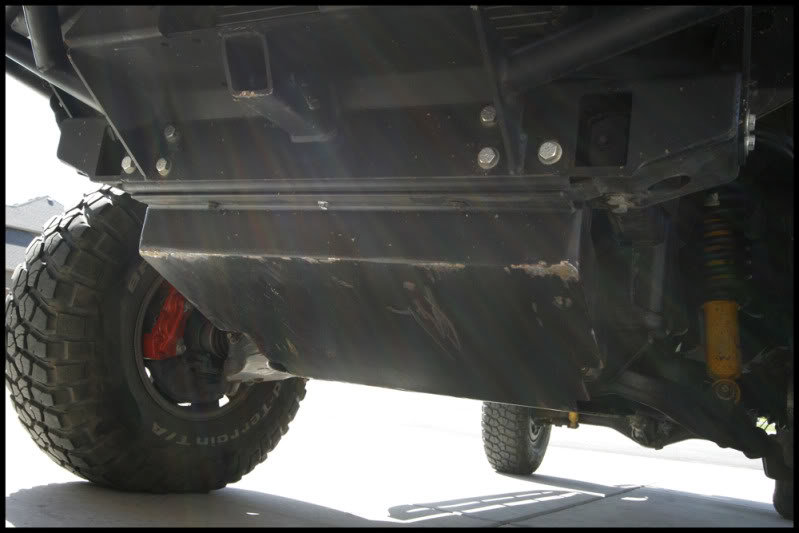

    Home made is absolutely cheaper than buying a proven brand. I spent a total of $100 on all three of my skids...IFS, trans, T-case. They are stronger than Budbuilts because of the extra bracing. You can find tons of posts from people showing their Bud Built belly skids all bent because they didn't add extra bracing. Bud Builts are good skid plates, don't get me wrong but they need some extra beef to keep them from bending.

    3/16" is more than adequate if you incorporate some proper bracing to the plates. In fact most of the "proven" skids out there like BudBuilt, Skid Row, AllPro, TG etc all use 3/16". Some tricks are to have some vertical or angled edges on the sides to keep the edges from beding, and then add a few peices of bracing through the middle to help distribute load when you take big hits.

    I have beat the snot out of my skid plates and they are still straight and doing their job perfectly for a fraction of the cost of something you could buy from other vendors.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    here they are all clean......
    [​IMG]

  13. Feb 26, 2013 at 3:36 PM
    #13
    NC15TRD

    NC15TRD [OP] Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,867
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
    ^^This is exactly the type of information I was looking for! Thanks

  14. Feb 26, 2013 at 4:55 PM
    #14
    IgnorantlyAlberta

    IgnorantlyAlberta VA6DCO

    Joined:
    Apr 22, 2012
    Member:
    #77432
    Messages:
    3,150
    Gender:
    Male
    First Name:
    David
    edmonton
    Vehicle:
    06 sr5 tacoma rear shock relocate, 35s
    lift, wheels, bumper, rear bumper, intake, front and rear winches, swing tailgate, OBA, sliders.
    Hey did you have a template to work with?
    Other than cardboard you threw out afterwards.

  15. Feb 26, 2013 at 8:33 PM
    #15
    Box Rocket

    Box Rocket just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,033
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    No templates for me. Just a tape measure. Didn't even use cardboard.

  16. Feb 26, 2013 at 8:56 PM
    #16
    IgnorantlyAlberta

    IgnorantlyAlberta VA6DCO

    Joined:
    Apr 22, 2012
    Member:
    #77432
    Messages:
    3,150
    Gender:
    Male
    First Name:
    David
    edmonton
    Vehicle:
    06 sr5 tacoma rear shock relocate, 35s
    lift, wheels, bumper, rear bumper, intake, front and rear winches, swing tailgate, OBA, sliders.
    Nice. Looks good.

  17. Apr 1, 2013 at 9:19 AM
    #17
    jds0912

    jds0912 Well-Known Member

    Joined:
    Jan 18, 2011
    Member:
    #49488
    Messages:
    463
    Gender:
    Male
    First Name:
    Justin
    Baltimore, MD
    Vehicle:
    2007 Tacoma TRD Off Road
    Some shit I got on craigslist
    So you just used a wheel, hammer, welder and a drill? Plasma cutter?

  18. Apr 1, 2013 at 9:25 AM
    #18
    Box Rocket

    Box Rocket just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,033
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    I have a very basic set of tools. All of my fab work is done with the following list of tools.

    Dewalt Chop saw with abrasive wheel
    Dewalt 4" angle grinder with cutoff wheels.
    Dewalt 12v drill
    Hobart Handler 180 Welder
    HF Pipe Bender

    So for the skid plates all cuts were made with the 4" angle grinder with a cutoff wheel. For the bends I used the "whiskey bend" method of using a cutoff wheel to cut most of the way through the plate where the bend will be and then bending the plate along the cut and rewelding the seam.

    One day I would love to add a plasma cutter, press brake, real tubing bender, drill press, etc to my list of tools but I just make do with what I have.

  19. Apr 1, 2013 at 5:05 PM
    #19
    looneytunemagoun

    looneytunemagoun Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53340
    Messages:
    82
    Gender:
    Male
    First Name:
    james
    Leicester,mass
    Vehicle:
    SR5
    I am thinking of making some at work soon

  20. Apr 1, 2013 at 5:12 PM
    #20
    CASTRATE

    CASTRATE Well-Known Member

    Joined:
    Aug 10, 2012
    Member:
    #84491
    Messages:
    819
    Gender:
    Male
    First Name:
    Gabe
    SW of Tulsa, OK
    Vehicle:
    2012 4x4 SR5 6spd
    I believe 1/4 carbon steel weighs around 9lbs/ sq ft. I don't know about the 3/16 though
