Homemade skid plates?

Discussion in 'Off-Roading & Trails' started by NC15TRD, Feb 10, 2013.

  1. Apr 1, 2013 at 5:16 PM
    #21
    HomerTaco

    HomerTaco That "grill guy" Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    26,876
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    07' DCSB cut to pieces...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad / Safari Snorkel / Illuminated 4x4 switch / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust Dump / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift
    quoted for truth.

  2. Apr 2, 2013 at 5:23 AM
    #22
    jds0912

    jds0912 Well-Known Member

    Joined:
    Jan 18, 2011
    Member:
    #49488
    Messages:
    459
    Gender:
    Male
    First Name:
    Justin
    Baltimore, MD
    Vehicle:
    2007 Tacoma TRD Off Road
    Some shit I got on craigslist

  3. Apr 2, 2013 at 5:44 AM
    #23
    Got2ryde

    Got2ryde Well-Known Member

    Joined:
    May 1, 2012
    Member:
    #77982
    Messages:
    554
    Gender:
    Male
    First Name:
    Ryder
    Maryland
    Vehicle:
    AC OR 6spd silverstreak
    Off Road tow pac. GTCovers wetskinz seat covers, Direct wired Escort 9500xi, Leer 180 w/ARB awning, bed mat, extra d-rings, rear dif breather relocated, Weathertec mats, Elite front with Warn M8000-s and Rigid D2's, BAMF sliders, ABS killswitch, Kicker Hideaway sub, UltraGauge, ATO rear with flush mount duallys, FJ Trail Team black rims w/Duratracs.
    Where in PA are you? I like the sound of this.

  4. Apr 2, 2013 at 10:25 AM
    #24
    Box Rocket

    Box Rocket Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,798
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff

  5. Apr 17, 2013 at 5:09 PM
    #25
    Slodgetto

    Slodgetto Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,327
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.
    Same here.

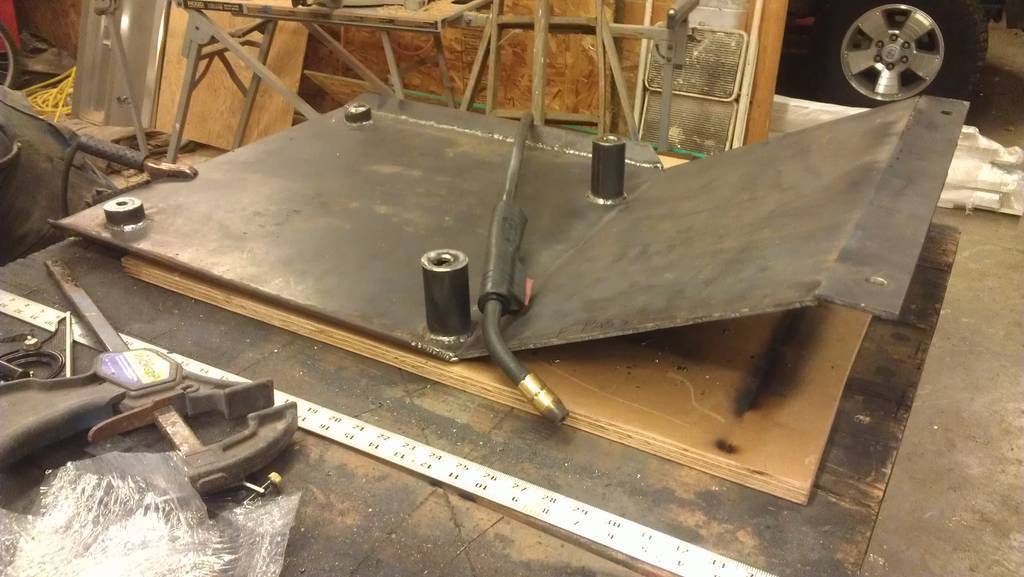

    I copied Box Rocket's method for making skid plates, and I love the way mine turned out! A lot stonger and way cheaper than buying aftermarket skids...

    I found the key to making sure the skids fit well in the end is to constantly double, triple, and quadruple check the measurements, how they're applied to your blank piece of steel, and a lot of test fitting when you're making the bends and final cuts.

    I used 1/4" plate for both my skids with 3/16" angle iron bracing on the transmission skid. (Since this tends to bed first, from the pics I've seen..) I do think 1/4" is overkill for the IFS skid, and adds unnessecary weight to the front end, it was cheaper for me to go this route since all I had to do was get a giant piece of 1/4" plate.

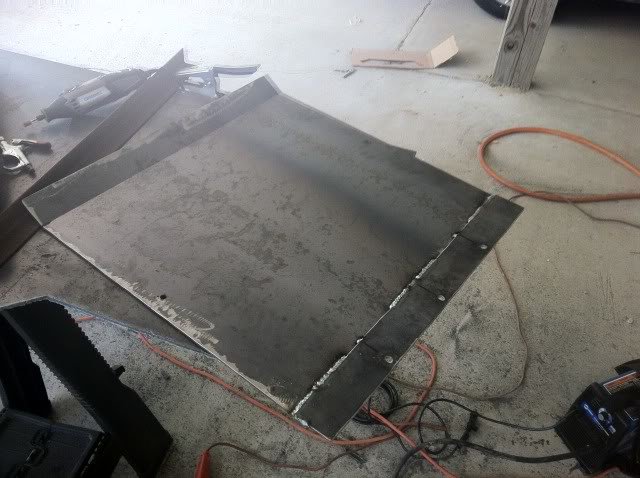

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  6. May 13, 2013 at 9:06 AM
    #26
    Benson X

    Benson X ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,513
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF

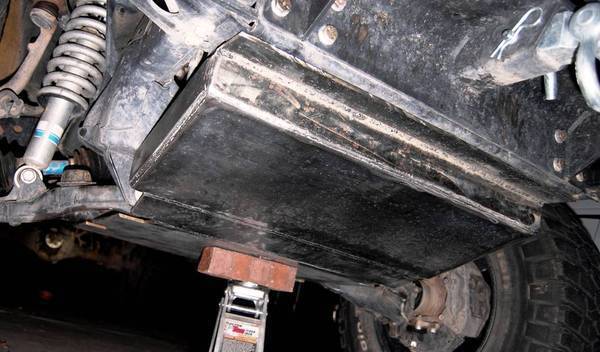

    Here's mine:

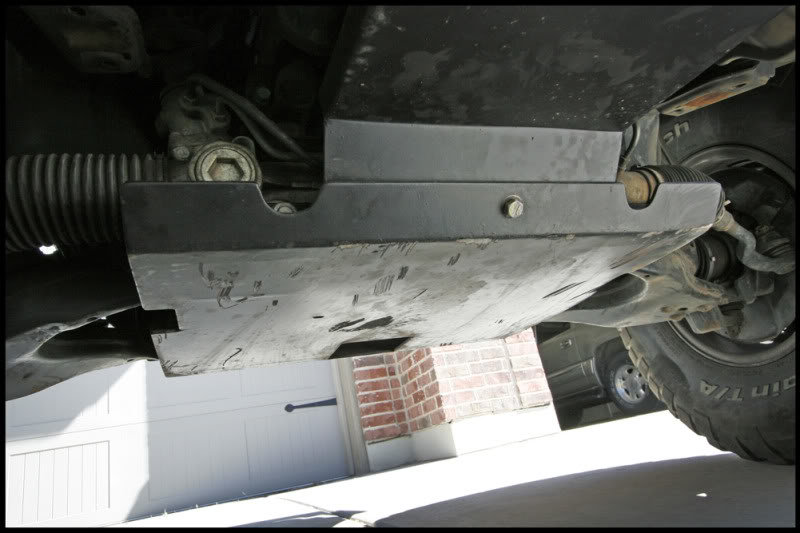

    [​IMG]
    [​IMG]
    [​IMG]




    After I added the Mid-Skid:

    [​IMG]
    [​IMG]

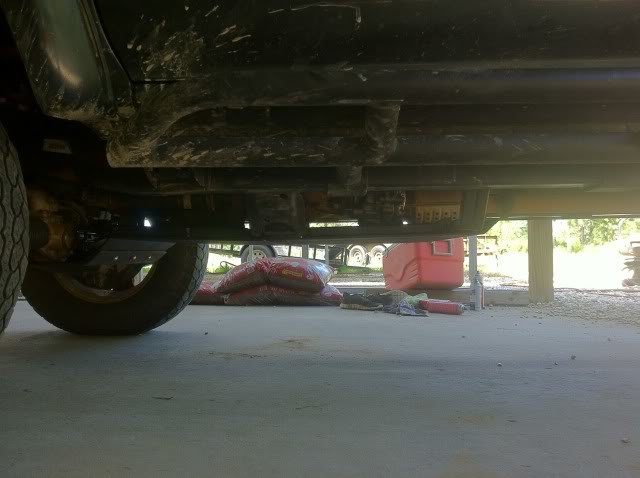

    Unfortunately I don't have a write-up for the skids (sorry). It mounts to the factory bolt holes and hardware (except for some Grade-8 nuts and bolts I picked up) and uses the transmission cross-member studs to bolt the rear into place.

    I basically checked out the different skids I liked (Relentless, Bud Built, ATO) and saw how they mounted to borrow ideas from. I had a rough sketch from a buddy with measurements for the front IFS skid, so that took a lot of the guess-work out of it.

    I bought a 64" x 24" piece of 3/16" thick A36 steel and used a combination square to start marking my cuts, welds, and bends. I had never welded before, but with the help of a fellow Taco buddy, we cut out each piece with the plasma cutter, and started welding it together. We test fit each piece along the way to make sure the factory mounting holes lined up.

    After we got the front skid done, we had to slot some of the holes to make it fit just right. I had originally planned to make (2) separate skids that bolted together, but simplicity and ease won in the end, and we welded them into a one-piece. I just got done mounting the whole thing up, and it was a chore. After some "persuasion" we got it mounted and it is pretty damn solid.

    I guess my best advice would be to really check out your under-carriage, note what factory holes you have available, see where you need protection, and measure, measure, measure. Use a degree finder to dial in the rough angles you need to work around. Once you have the separate pieces ready to weld together, test fit them on the truck and tack weld them to each-other after confirming they line up. Remove the skid(s) and finish welding all the seams/joints.

    Hope this helps, and gives you some ideas for your truck. Good luck! :cheers:

  7. May 13, 2013 at 10:26 AM
    #27
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,812
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    ;)

  8. May 13, 2013 at 10:41 AM
    #28
    NC15TRD

    NC15TRD [OP] Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,716
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
    I love Tacomaworld!

  9. May 13, 2013 at 10:58 AM
    #29
    BostonBilly

    BostonBilly Well-Known Member

    Joined:
    Jan 11, 2012
    Member:
    #70435
    Messages:
    7,473
    Gender:
    Male
    Easton
    Vehicle:
    2015 Jeep Wrangler Sahara
    Sub for great info

  10. May 13, 2013 at 11:08 AM
    #30
    Pliny

    Pliny Offline

    Joined:
    Nov 1, 2012
    Member:
    #90249
    Messages:
    10,968
    First Name:
    Leonard Mead
    +1. I've been thinking about trying to make my own skids as well...

  11. May 13, 2013 at 11:18 AM
    #31
    Benson X

    Benson X ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,513
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    :thumbsup:

  12. May 13, 2013 at 1:35 PM
    #32
    Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,082
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
  13. May 15, 2013 at 12:45 PM
    #33
    Dirty Pool

    Dirty Pool Lost In The Ozone

    Joined:
    Mar 24, 2013
    Member:
    #100471
    Messages:
    806
    Gender:
    Male
    59.4 Miles, 56.67*NE Of Moab
    Vehicle:
    99 XCAB V6 MT TRD

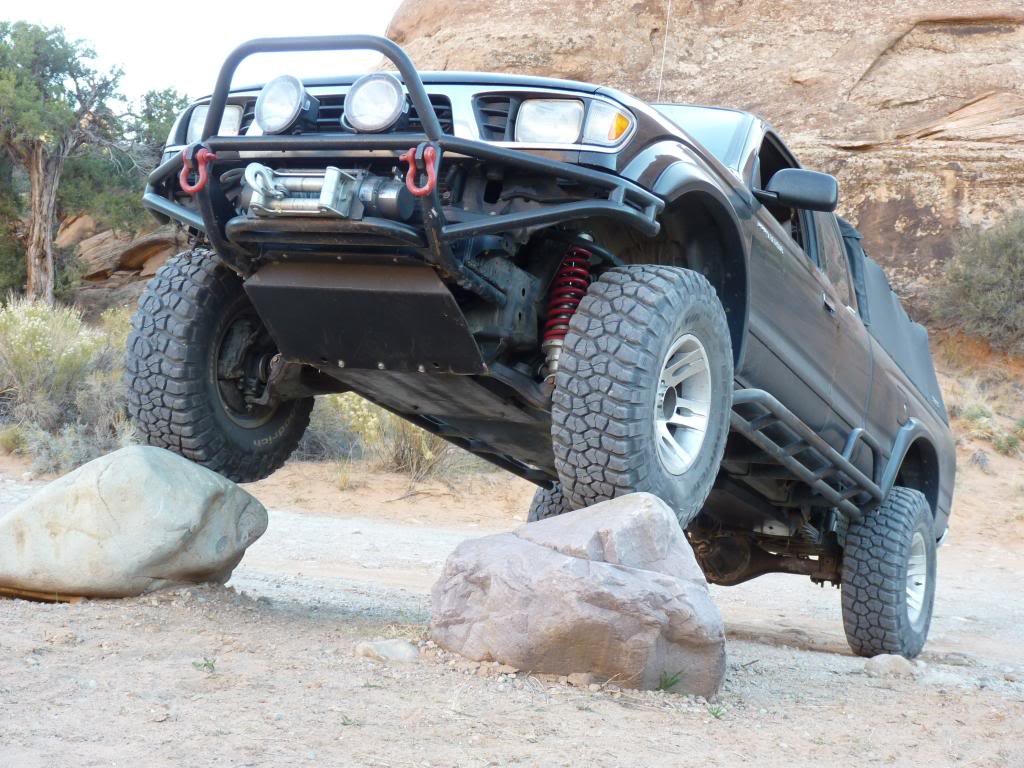

    Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, Both 31" MTZ's and 33" Toyo's, 01 Center console, Map lights, Disraeli gears
    I'm sure many folks have seen these. They have been bouncing around TTORA since time began.

    http://www.mikeharan.net/temp/skidplate1.pdf
    http://www.mikeharan.net/temp/skidplate2.pdf


    The front will NOT work with an auto trans radiator. You will have to add the "Bud Built Bulge" or swap to a man trans rad and stand alone cooler.

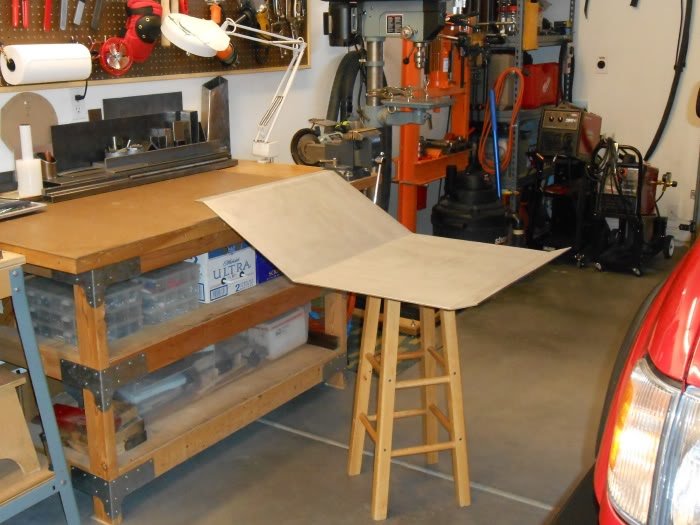

    I made an exact cardboard template from the "front" drawing and it fit ok. I would recommend doing the cardboard thing direct from the drawing and tweek that for your final piece.

    By playing with the angles of the 3 main bends and the lengths of the flats there was no loss of ground clearance and full protection of LCA adjusters. The front cut-outs are only about 1/8" below the inner ends of the control arms.
    The OEM mount locations are as light weight as the OEM skid and should be replaced. I made new rear mounts by replacing the stockers with 3/16" plate with heavy pattern nuts welded above. This allowed them to be placed higher in the cross member for ground clearance and enabled the use of "pocketed" mount bolts. The front mount "cross member", if you can call it that, is just as flimsy and should be replaced as well.

    I have about $65 in it including $15 for the 3 main bends, paint and hardware.

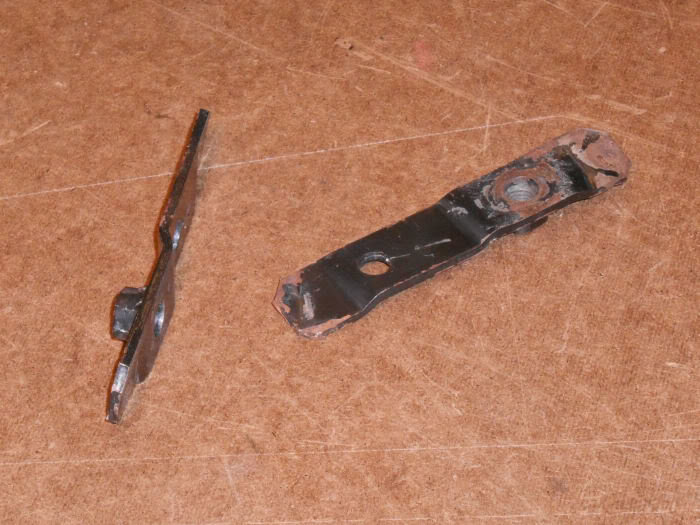

    Really wimpy OEM rear mounts.
    [​IMG]

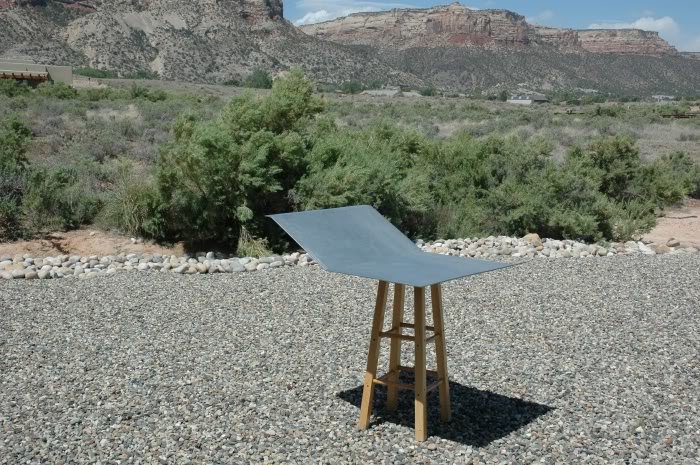

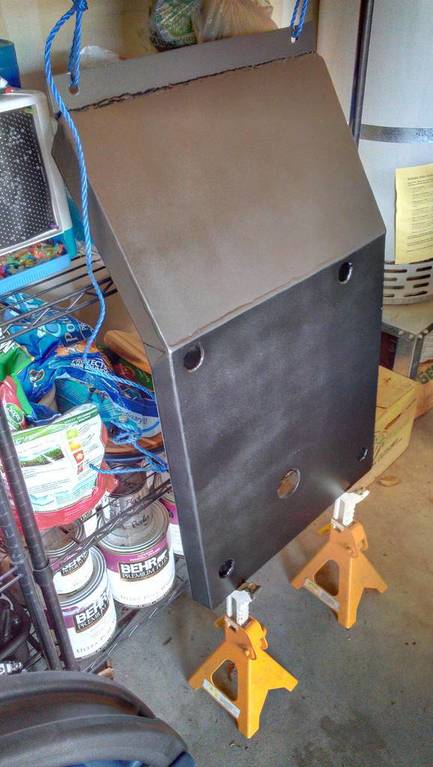

    3/16" plate drop fresh from a 15 min. improvised acid bath, I hate mill scale.
    [​IMG]


    Back from the bender.
    [​IMG]


    Back from the bender, scenic version.
    [​IMG]

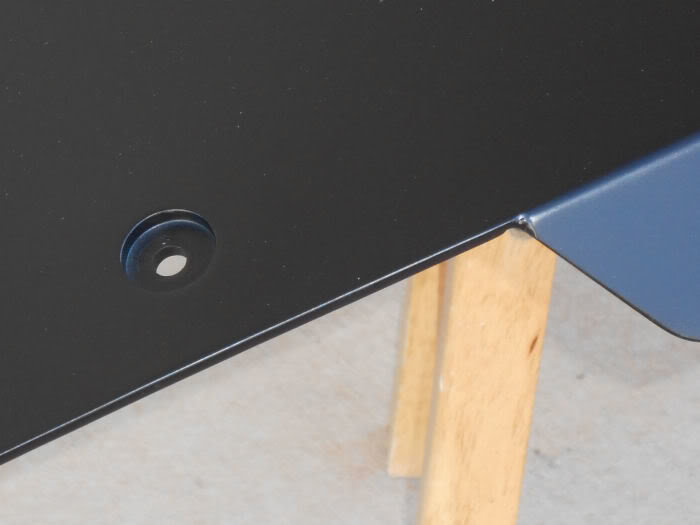

    Rear bolt "pocket"
    [​IMG]

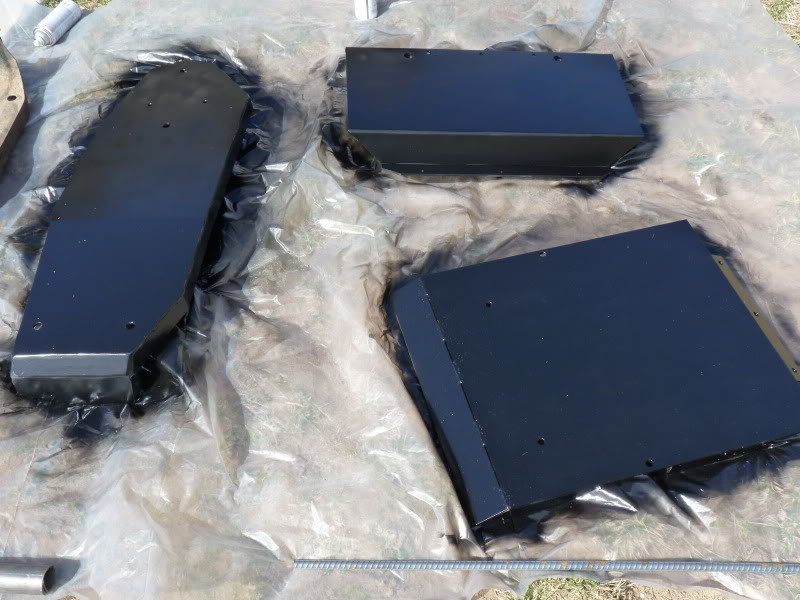

    Virgin semi gloss lacquer.
    [​IMG]

    Last edited: May 15, 2013
  14. Jul 14, 2013 at 8:56 PM
    #34
    venturequest

    venturequest Member

    Joined:
    Jan 7, 2011
    Member:
    #48868
    Messages:
    8
    Gender:
    Male
    Sacramento
    Vehicle:
    2010 Tacoma TRD SPORT DBL CAB
    BRUTE FORCE PLATE BUMPER, XRC 8 WINCH,
    I am in the process of fabricating my on front skid plate. I will post pics as I progress. Hopefully it will work and I will also attach specs.


  15. Jul 14, 2013 at 9:16 PM
    #35
    IgnorantlyAlberta

    IgnorantlyAlberta VA6DCO

    Joined:
    Apr 22, 2012
    Member:
    #77432
    Messages:
    3,060
    Gender:
    Male
    First Name:
    David
    edmonton
    Vehicle:
    06 sr5 tacoma rear shock relocate, 35s
    lift, wheels, bumper, rear bumper, intake, front and rear winches, swing tailgate, OBA, sliders.

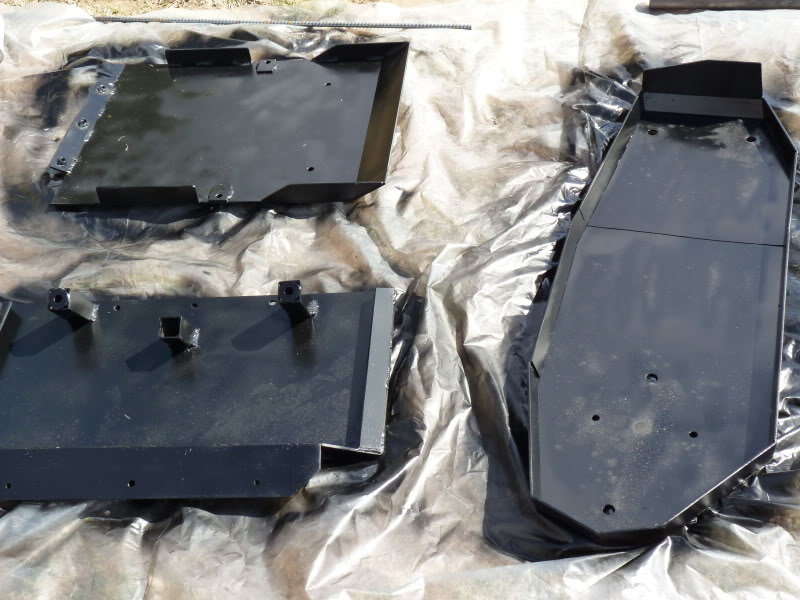

    Started with this.

    Came up with this. Not many build pics.

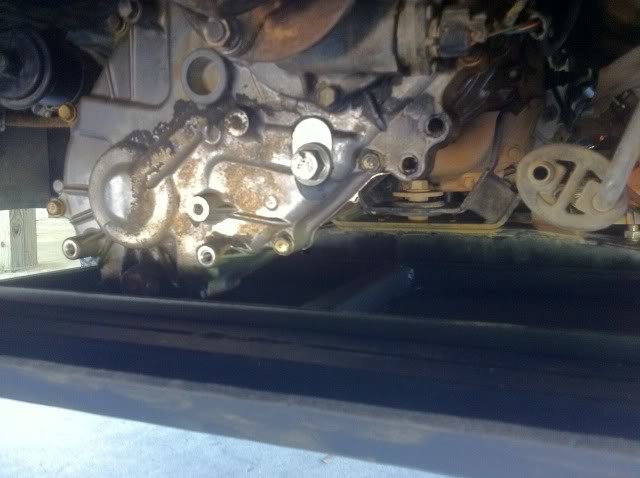

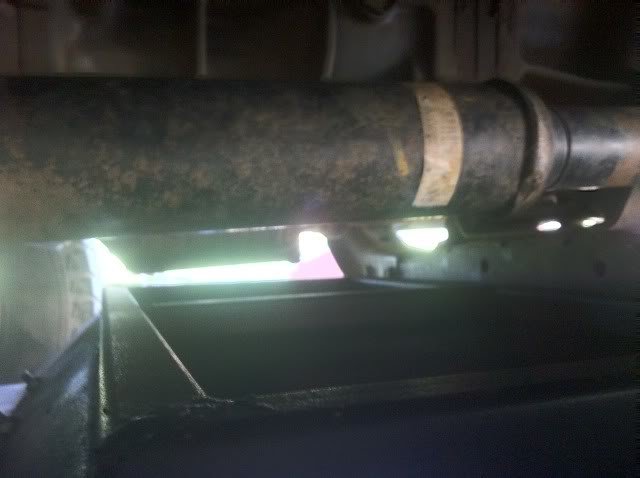

    Rear diff skid. This will be removed and modified to cover the tailstock alittle better.

  16. Jul 14, 2013 at 9:24 PM
    #36
    IgnorantlyAlberta

    IgnorantlyAlberta VA6DCO

    Joined:
    Apr 22, 2012
    Member:
    #77432
    Messages:
    3,060
    Gender:
    Male
    First Name:
    David
    edmonton
    Vehicle:
    06 sr5 tacoma rear shock relocate, 35s
    lift, wheels, bumper, rear bumper, intake, front and rear winches, swing tailgate, OBA, sliders.
    Without threads like this one, I wouldn't attempt half of what I've done.

    Couple more pics. Using my little 120v welder she came out not half bad.


  17. Jul 15, 2013 at 12:04 AM
    #37
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,812
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    Ferd Fteenthousand 6.4
    Tuner.
    well that's one way

    I've given out specs to a couple people but always ask they donate to the BRC or something similar.

  18. Jul 15, 2013 at 5:21 AM
    #38
    Southern01Taco

    Southern01Taco Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40457
    Messages:
    1,953
    Gender:
    Male
    First Name:
    Sean
    Holden, La
    Vehicle:
    01 V6 4x4 Xtra Cab SR5

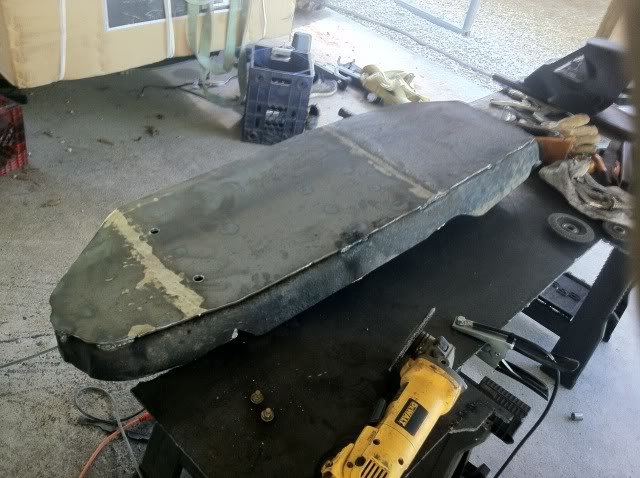

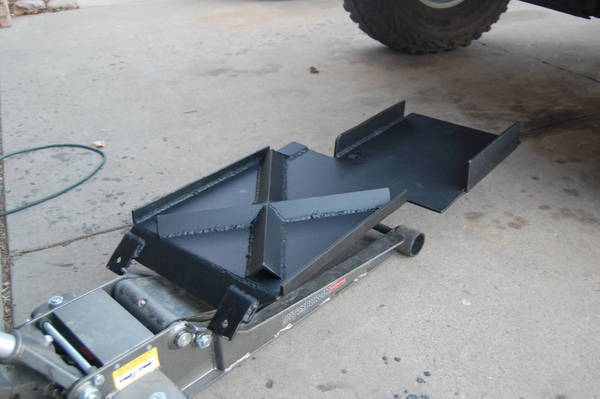

    Here are my skids. 3/16" thick and bolts up just like stock. I made my bash plate and engine skid separate so that changing the oil would be easier. I also put 1" square tubing on my trans. and t-case skids as bracing. Then I just plated my factory gas tank skid.

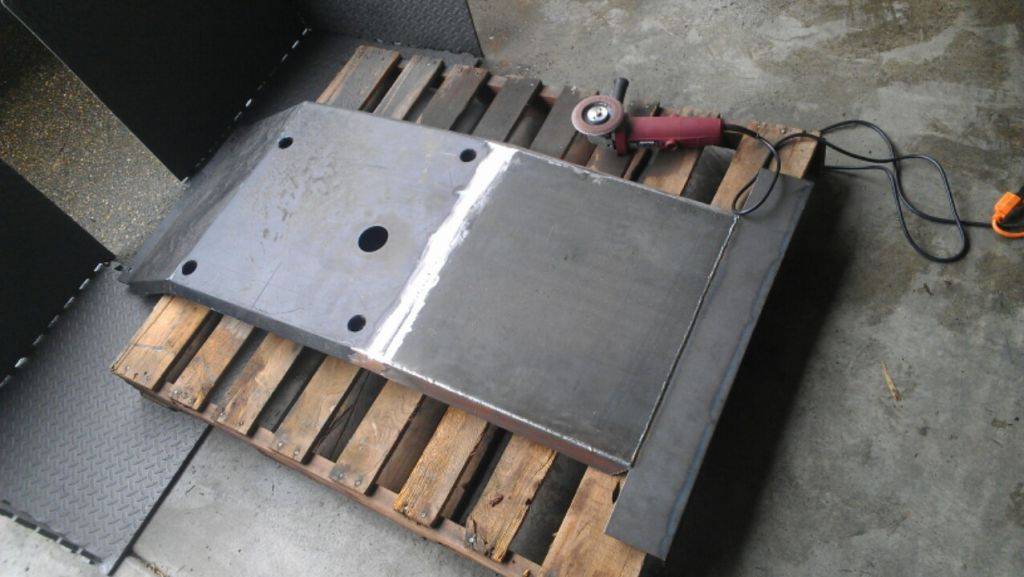

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  19. Jul 15, 2013 at 1:19 PM
    #39
    PantherTaco

    PantherTaco Well-Known Member

    Joined:
    Apr 11, 2012
    Member:
    #76704
    Messages:
    6,842
    Gender:
    Male
    First Name:
    Luke
    Home: Lexington, VA Current: Pittsburgh/Chicora,
    Vehicle:
    07 TRD Off-Road SR5 BSP
    mall crawler
    sub'd. planning on making my own as well

  20. Jul 17, 2013 at 12:58 PM
    #40
    Lumpskie

    Lumpskie Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,894
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

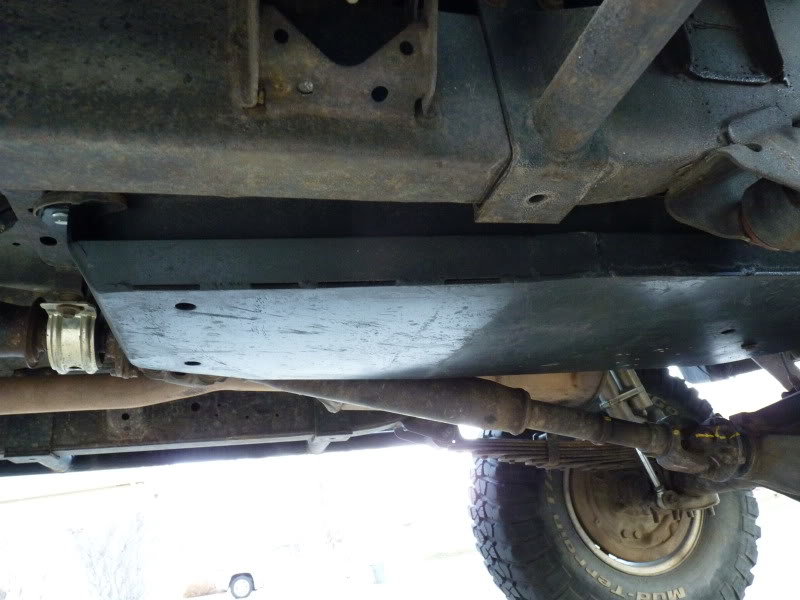

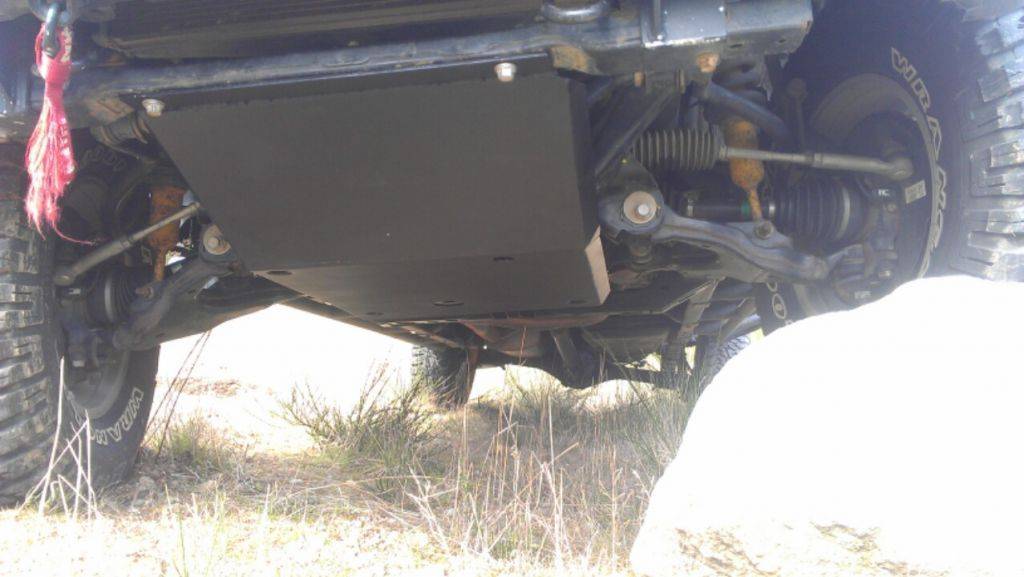

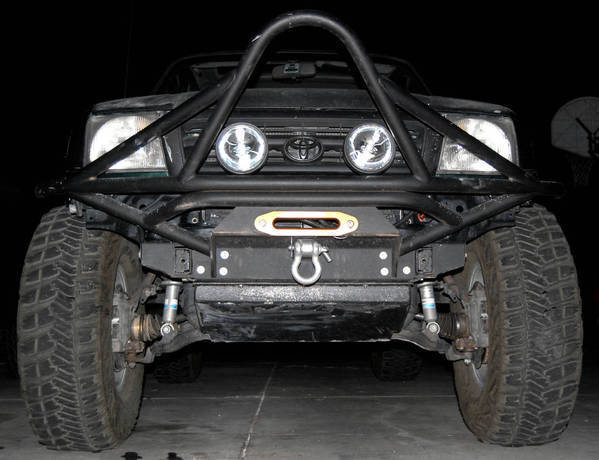

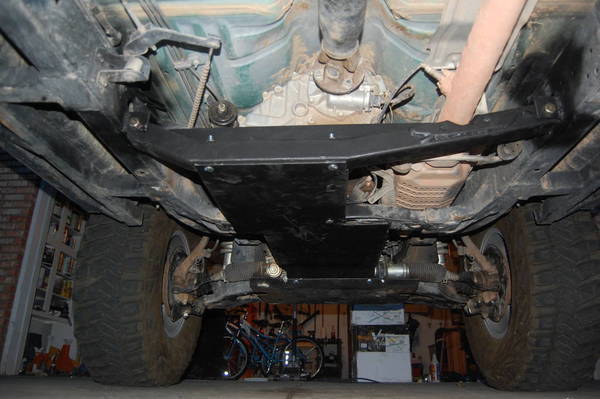

    Here are some pics of my home made skids. They are all 3/16" like everyone elses and have see some serious abuse. Some unique details are the fact that I used 3 stand offs on the front skid instead of 2.
    Also, my IFS skid can be removed without removing the belly or front skid for easier oil changes. I'll be updating the belly skid for my flat belly some time here. I'll post up more pics then[​IMG]
    [​IMG]
    [​IMG]

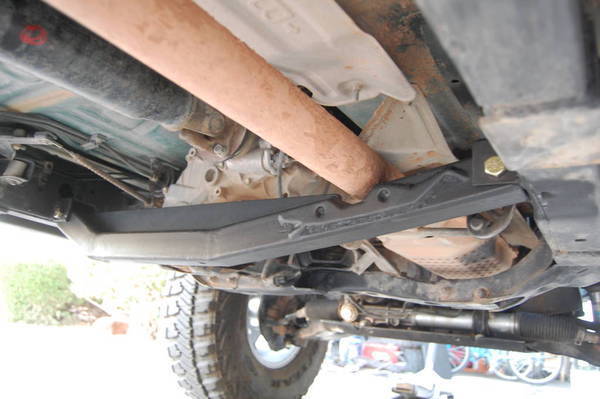

    You can see how they sit on the truck here:

    [​IMG]

    Last edited: Mar 27, 2014
