Hood hinge light brackets for LEDs

Discussion in 'Famous Fabrication' started by DWreck, Sep 3, 2012.

  1. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    In stock 12/01/14
    $100 via PayPal to famousfabrication@hotmail.com

    Include USPS shipping address in memo box.

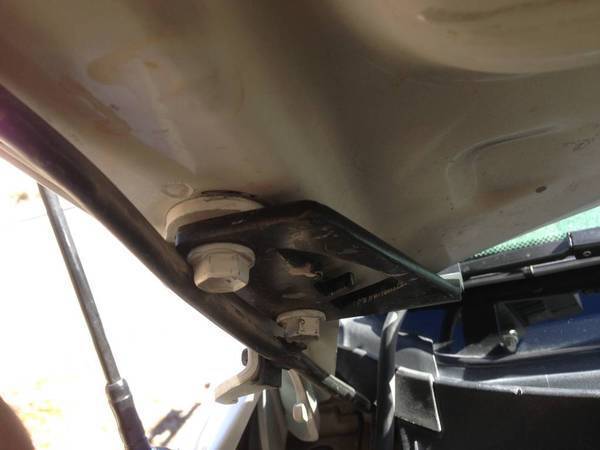

    [​IMG]
    [​IMG]
    [​IMG]

    Instructions;

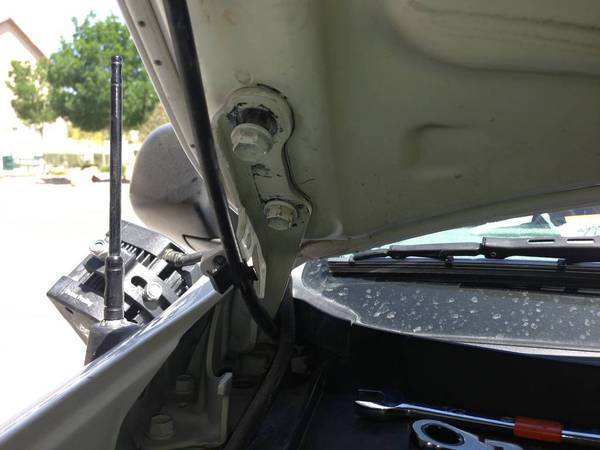

    Remove forward-most bolt on hood hinge with 12mm socket or wrench

    [​IMG]

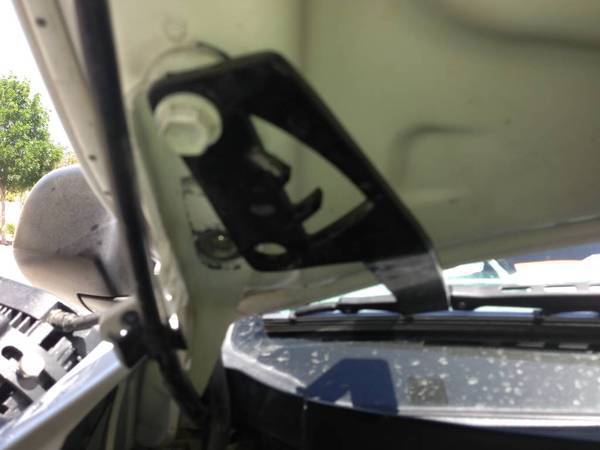

    Install bracket with this bolt and tighten snugly. Failure to do so may result in hood slipping off alignment in next step.

    Remove other bolt from hood hinge.

    [​IMG]

    Rotate light bracket on first bolt to align second hole on bracket with last bolt removed. Install bolt and tighten. Double check tightness on both bolts.

    [​IMG]

    Install lights

    Last edited: Dec 1, 2014
  2. ToyoComp

    ToyoComp Addicted Mod'r

    Joined:
    Apr 1, 2008
    Member:
    #5684
    Messages:
    114
    Gender:
    Male
    Tampa, FL
    Vehicle:
    07 4x4 TRD Off Road DC
    Sway-A-Way Race Runner 2.5 coil over (3" lift) & 2.0 rear shocks on TSB springs, Total Chaos UCA, ToyTec differential drop, 8128 Pro Comp wheels, Toyo Open Country RT 285/70/17, DT Long Tube headers, TRD CAI & exhaust, Line-X coated Famous Fabrication front bumper, Demello Sliders and rear bumper, Wet Okole covers, Rigid LED spot & fog, bed mat, debadged & TRD brake pads
    Nice work Derek! That's another cool mod for the list. Let me know when you determine the price.

  3. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Thanks! Will do! :D

  4. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Price set...$50 for the set

  5. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    bump

  6. DdayIsNear

    DdayIsNear Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18432
    Messages:
    6,512
    Gender:
    Male
    First Name:
    Crazy
    NW Jersey
    Vehicle:
    TRD Offroad
    All pro sliders
    How they work with opening hood?

  7. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Like there's nothing there. :D There is still roughly 1" of clearance with hood open from back of light to windshield.

  8. DdayIsNear

    DdayIsNear Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18432
    Messages:
    6,512
    Gender:
    Male
    First Name:
    Crazy
    NW Jersey
    Vehicle:
    TRD Offroad
    All pro sliders
    What are dimensions of light, will only work with that led light? Or other options?

    HAve a link to those lights?

  9. SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,241
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    Great product!
    Subd

  10. AzogSS

    AzogSS Well-Known Member

    Joined:
    Aug 26, 2009
    Member:
    #21829
    Messages:
    2,396
    Gender:
    Male
    First Name:
    Andy
    Soda City, SC
    Vehicle:
    2008 Pick-em-up-truck
    Ultimate Tailgate Machine
    Nice!

  11. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
  12. FailRated

    FailRated RTO

    Joined:
    Mar 13, 2012
    Member:
    #74855
    Messages:
    294
    Gender:
    Male
    First Name:
    Evan
    Maryland
    Vehicle:
    03 Double Cab TRD
    5100's w/ Eibachs, Front sway bar in trash mod, Diff drop, 265/75-16 Duratracs or 33x10.50 KM2's on 15x8 wheelers steels, ARB front bumper, Warn VR8000 winch, Trailgear sliders, Allpro rear bumper, Sky Offroad E-Locker guard, Sky Offroad weld on differential guard, Savage skid plates w/ Budbuilt cross member, e-locker rear, ARB air locker front, 4.56 gears, bought it from my mom who bought it new :-D
    Will you be making these for 1st gens?

  13. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    I can see if they work on a 1st gen as is...

  14. DJSPEC

    DJSPEC 808 Zombie Outbreak Tactical Response Team K9 Unit

    Joined:
    Jul 26, 2011
    Member:
    #60600
    Messages:
    746
    Gender:
    Male
    First Name:
    Sean
    Kaimuki,Hawaii
    Vehicle:
    2011 TRD Sport DCSB 4x4
    debadged Viper Alarm Diehard Platinum 31M Battery Pelfreybilt Battery Cage OEM roof racks, step sides LED HI/LO Headlights 35W 6000k HID Fog Lights 20% tint Front windows 5% tint rear windows 2 Sets of Rigid Industries D2 above the valance Duallys on Famous Fabrication's Hood Hinge Brackets Rigid Industries SR2 10" in HoodScoop with C4 Fabrications Hood Scoop Bracket Flowmasters Super 44 series Dueler A/T REVO2 265/70R17 SCS Stealth 6 Wheels Wet Okole Seat Covers Reese Tow Hitch 33090 Plastidip Front Valance FoglightMod(Fuel Pump Relay Version) Kobalt Slim Tool Box Matt Gecko Truck Bed LED Kit and Sliding Window Security Bar the list goes on...
    ah! sweet! i've been waiting for someone to make these!!!

  15. FailRated

    FailRated RTO

    Joined:
    Mar 13, 2012
    Member:
    #74855
    Messages:
    294
    Gender:
    Male
    First Name:
    Evan
    Maryland
    Vehicle:
    03 Double Cab TRD
    5100's w/ Eibachs, Front sway bar in trash mod, Diff drop, 265/75-16 Duratracs or 33x10.50 KM2's on 15x8 wheelers steels, ARB front bumper, Warn VR8000 winch, Trailgear sliders, Allpro rear bumper, Sky Offroad E-Locker guard, Sky Offroad weld on differential guard, Savage skid plates w/ Budbuilt cross member, e-locker rear, ARB air locker front, 4.56 gears, bought it from my mom who bought it new :-D
    Thanks man

  16. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    I've got two sets ready to ship!

  17. DJSPEC

    DJSPEC 808 Zombie Outbreak Tactical Response Team K9 Unit

    Joined:
    Jul 26, 2011
    Member:
    #60600
    Messages:
    746
    Gender:
    Male
    First Name:
    Sean
    Kaimuki,Hawaii
    Vehicle:
    2011 TRD Sport DCSB 4x4
    debadged Viper Alarm Diehard Platinum 31M Battery Pelfreybilt Battery Cage OEM roof racks, step sides LED HI/LO Headlights 35W 6000k HID Fog Lights 20% tint Front windows 5% tint rear windows 2 Sets of Rigid Industries D2 above the valance Duallys on Famous Fabrication's Hood Hinge Brackets Rigid Industries SR2 10" in HoodScoop with C4 Fabrications Hood Scoop Bracket Flowmasters Super 44 series Dueler A/T REVO2 265/70R17 SCS Stealth 6 Wheels Wet Okole Seat Covers Reese Tow Hitch 33090 Plastidip Front Valance FoglightMod(Fuel Pump Relay Version) Kobalt Slim Tool Box Matt Gecko Truck Bed LED Kit and Sliding Window Security Bar the list goes on...
    $50 to ship to Hawaii too?

  18. DJSPEC

    DJSPEC 808 Zombie Outbreak Tactical Response Team K9 Unit

    Joined:
    Jul 26, 2011
    Member:
    #60600
    Messages:
    746
    Gender:
    Male
    First Name:
    Sean
    Kaimuki,Hawaii
    Vehicle:
    2011 TRD Sport DCSB 4x4
    debadged Viper Alarm Diehard Platinum 31M Battery Pelfreybilt Battery Cage OEM roof racks, step sides LED HI/LO Headlights 35W 6000k HID Fog Lights 20% tint Front windows 5% tint rear windows 2 Sets of Rigid Industries D2 above the valance Duallys on Famous Fabrication's Hood Hinge Brackets Rigid Industries SR2 10" in HoodScoop with C4 Fabrications Hood Scoop Bracket Flowmasters Super 44 series Dueler A/T REVO2 265/70R17 SCS Stealth 6 Wheels Wet Okole Seat Covers Reese Tow Hitch 33090 Plastidip Front Valance FoglightMod(Fuel Pump Relay Version) Kobalt Slim Tool Box Matt Gecko Truck Bed LED Kit and Sliding Window Security Bar the list goes on...
    Money sent!!! Thanks bro!

  19. DaveEli

    DaveEli Member

    Joined:
    Feb 16, 2012
    Member:
    #72959
    Messages:
    512
    Gender:
    Male
    First Name:
    David
    Virginia Beach
    Vehicle:
    2011 Tacoma Sport 4X4
    Icon Extended Travel Coilovers, All-Pro Expo leaf springs, All-pro U-Bolt flip kit, Icon 2.0 Series custom length rear shocks, Wheelers Superbump Bumpstops, All-Pro extended rear brake lines, Redline Hood Struts, AVS Bugflector II, Pelfreybilt front bumper, Brute Force rear bumper with short swingarm, Famous Fabrication Rock Sliders, Budbuilt Skid Plates, Rigid Driving Lights, Dick Cepek DC-2 17x9" wheels, 285/70R17 Goodyear MTRs with Kevlar tires, neoprene seat covers, ARE bed top, TRD cat back exhaust, AVS in channel window vents, Toyota door sill protectors, Pop & Lock tailgate lock, Husky Rear floorliners, WeatherTech Front Floorliners, DeeZee bed mat, Window tint, TRD drop in air filter, Plasmaglow led bed lights, Hi-Lift jack mounted on bed rail, IMMRYO Rear View Mirror Relocate
    Like to see some photos showing how they mount. Any cutting involved in the installation?

  20. DWreck

    DWreck [OP] Famous Fabrication Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,111
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2010 TRD Off Road 4x4
    Debadged, k&n cai, tc uca, billy 5100, led hood lights, redline hood struts, tailgate ez-down, ddm hid heads, Piaa 510 hid fogs, procomp 7089, dunlop fierce mt, cb and ham radios, hideaway strobes, ff front bumper, ff sliders, bed rack,
    Not at all! Simply unbolt the one closest to hood latch (front), place bracket and bolt it. Dug it up but not too tight. Lossen and remove other bolt, closer to cowl, and pivot hinge on first bolt to the other and reinstall bolt. Tighten both fully at this point. Repeat on other side.
