How can I repair this connector (or replace)? SOLVED

Discussion in 'Lighting' started by TheCochese, Dec 19, 2020.

  1. Dec 19, 2020 at 8:39 AM
    #1
    TheCochese

    TheCochese [OP] The Bronze T4R OG

    Joined:
    Apr 23, 2018
    Member:
    #251472
    Messages:
    1,973
    Gender:
    Male
    Gifland
    Vehicle:
    Cavalry Blue soccer machine
    Fine corinthian leather

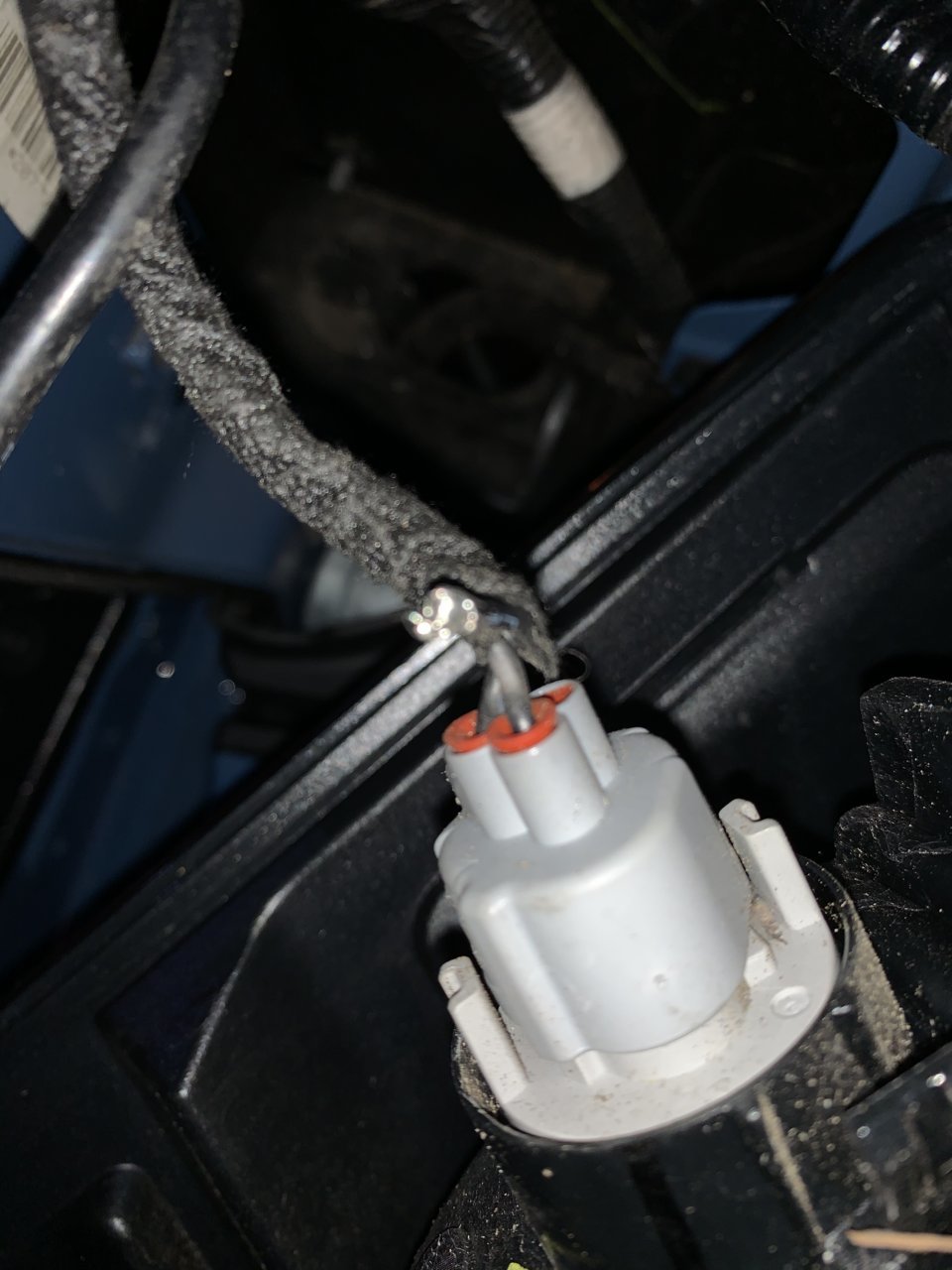

    This is a @MESO Total Tail harness, when my truck was in the shop they had to remove the bed and I assume they pulled the wire out when they did so.

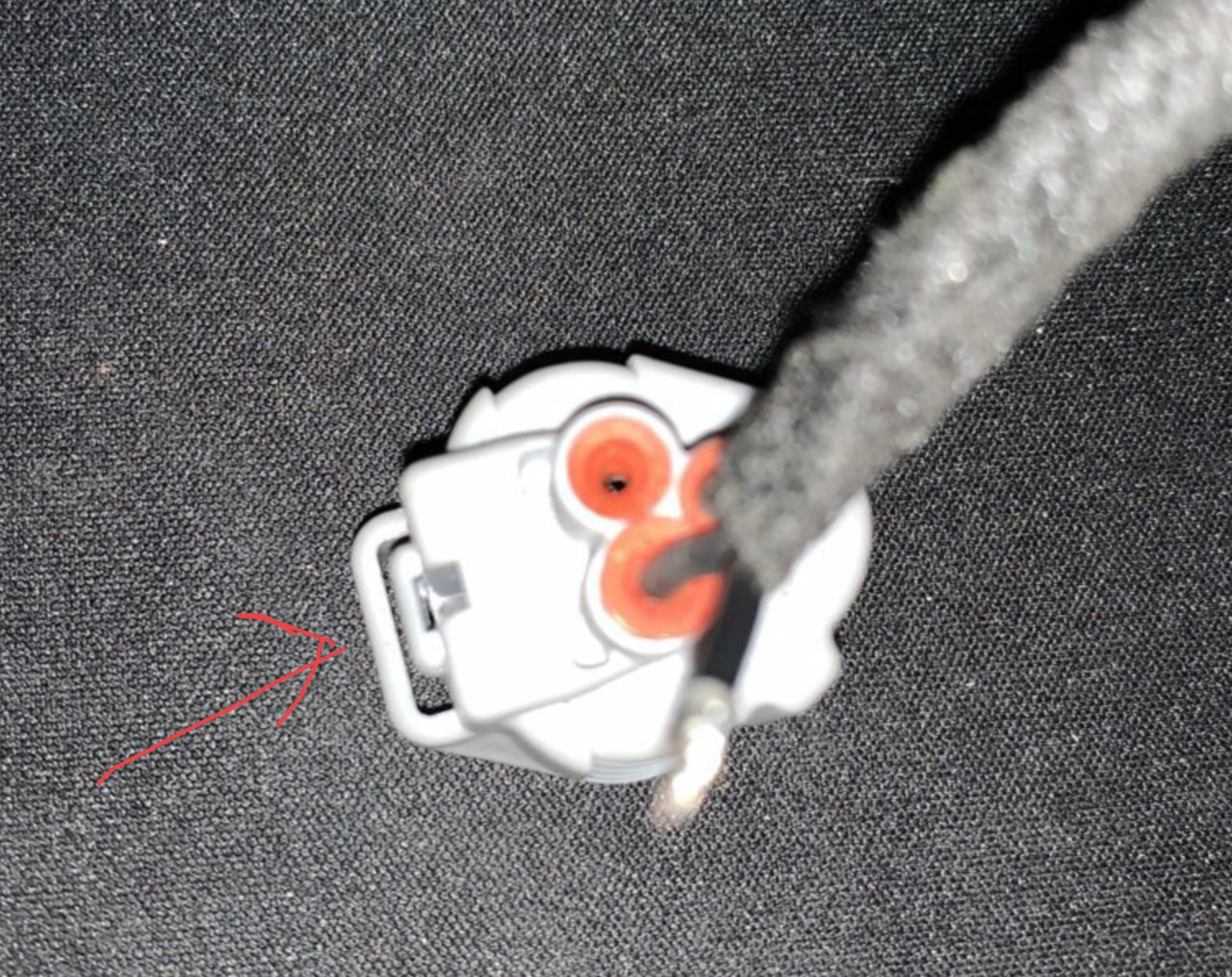

    I would think I could release the tang and push it out, but I can't get that to work. I can't get the red rubber boot to come out either, and it's starting to tear.

    The only part number on this is a 3. I would be willing to cut the wires and use a new one, but I have no idea where I would get one. I'd kinda like to fix this today if possible.


  2. Dec 19, 2020 at 8:42 AM
    #2
    BillDaCat8

    BillDaCat8 Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,619
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?
  3. Dec 19, 2020 at 8:45 AM
    #3
    BillDaCat8

    BillDaCat8 Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,619
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?
    There should be a five digit number in this area. Put a 90980- in front of that number and tell the counter guy that you need a 82998 for that connector. I’m betting it’s a 12440.


  4. Dec 19, 2020 at 8:47 AM
    #4
    TheCochese

    TheCochese [OP] The Bronze T4R OG

    Joined:
    Apr 23, 2018
    Member:
    #251472
    Messages:
    1,973
    Gender:
    Male
    Gifland
    Vehicle:
    Cavalry Blue soccer machine
    Fine corinthian leather
  5. Dec 19, 2020 at 8:49 AM
    #5
    BillDaCat8

    BillDaCat8 Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,619
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?
    Flip that connector around. There should be a white locking tab. You’ll need to pry that outwards. Once that’s out you should be able to pry up on the locking tab that holds the old pin in place. Hard to explain. But easy once you see how it works.

    TheCochese [OP] likes this.
  6. Dec 19, 2020 at 8:51 AM
    #6
    BillDaCat8

    BillDaCat8 Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,619
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    I got a Mickey Mouse antenna ball. Does that count?
    Use the hook end of a pick tool into that silicone boot to help pull it out the back. Hopefully it’s still crimped to the pan.

    TheCochese [OP] likes this.
  7. Dec 19, 2020 at 8:52 AM
    #7
    TheCochese

    TheCochese [OP] The Bronze T4R OG

    Joined:
    Apr 23, 2018
    Member:
    #251472
    Messages:
    1,973
    Gender:
    Male
    Gifland
    Vehicle:
    Cavalry Blue soccer machine
    Fine corinthian leather
    Ahh, I got it! Thanks.

  8. Dec 19, 2020 at 8:54 AM
    #8
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,954
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD 2JZ
    You can unpin it and pull the pin out and solder it back to the wire and reinsert. Or send me a ticket at the bottom of the website and I can send out a new harness :)

    TheCochese [OP] likes this.
  9. Dec 19, 2020 at 8:56 AM
    #9
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,218
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I have the terminals (and the seal) for that. I’ll send you a few if you shoot me your address in a PM. Problem is going to be you need a crimper. You might be able to solder it? Where are you at geographically?

    TheCochese [OP] likes this.
  10. Dec 19, 2020 at 8:57 AM
    #10
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,218
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Never mind, @MESO to the rescue :)

  11. Dec 19, 2020 at 8:59 AM
    #11
    TheCochese

    TheCochese [OP] The Bronze T4R OG

    Joined:
    Apr 23, 2018
    Member:
    #251472
    Messages:
    1,973
    Gender:
    Male
    Gifland
    Vehicle:
    Cavalry Blue soccer machine
    Fine corinthian leather

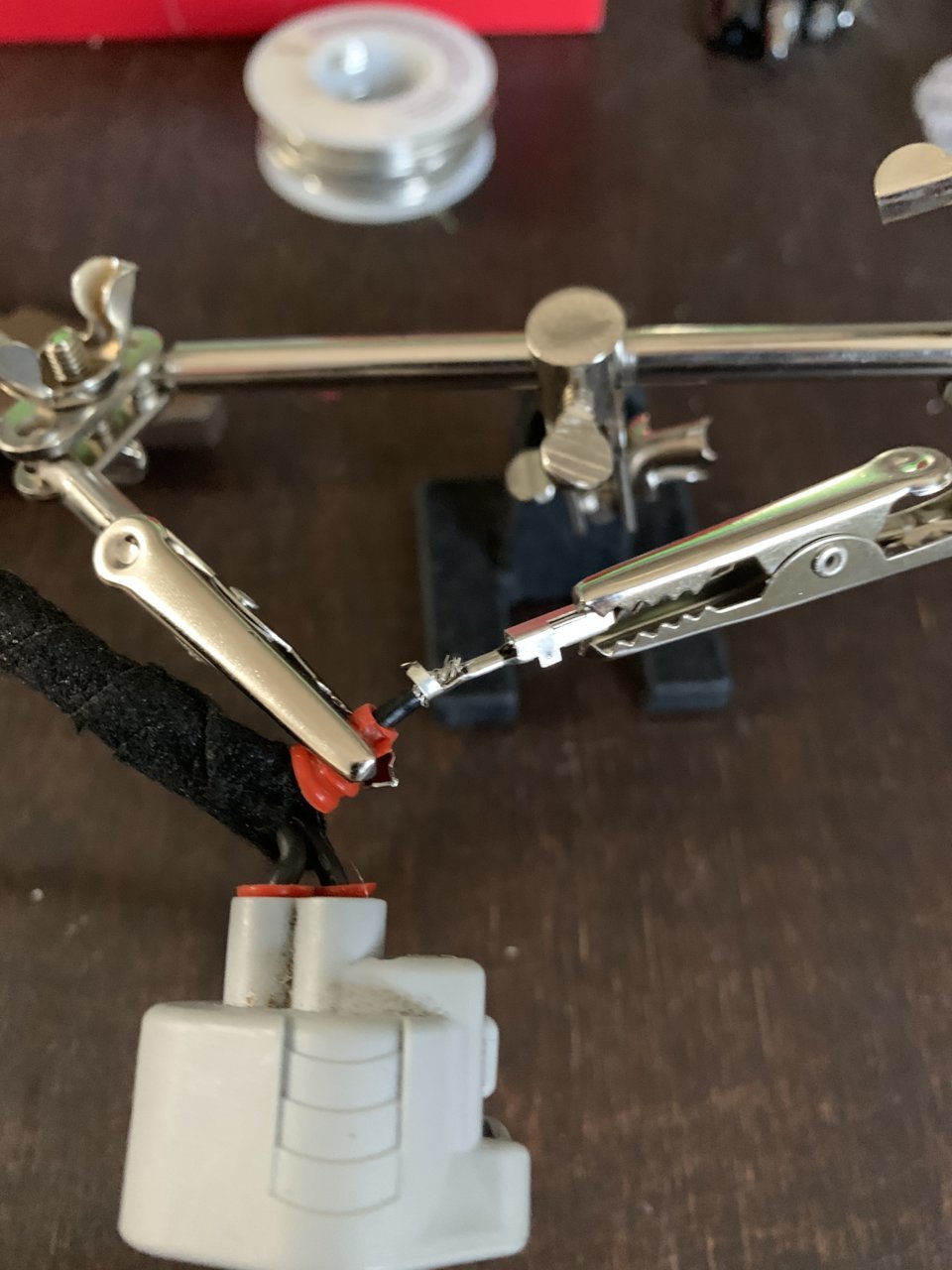

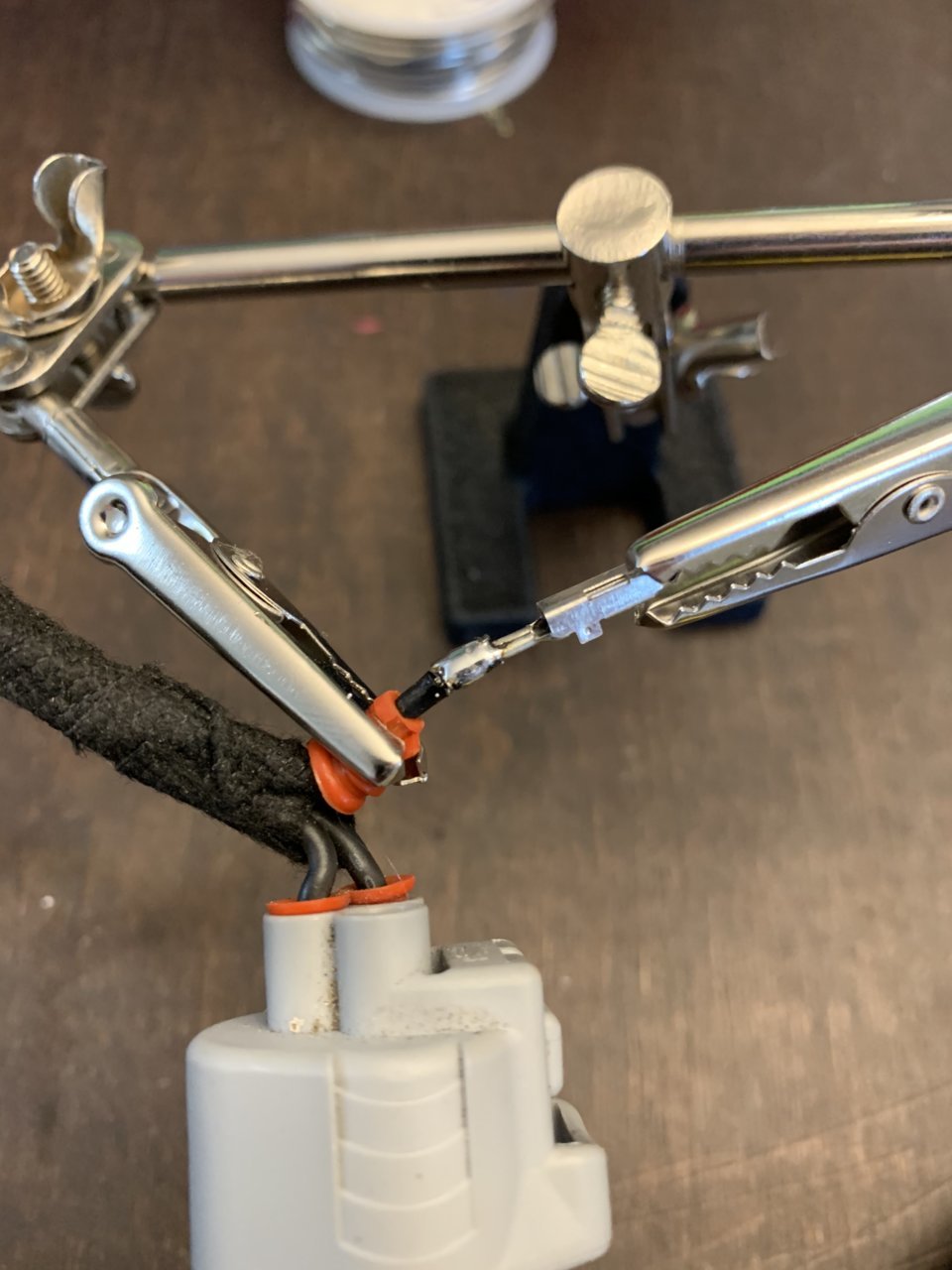

    The hard part was figuring out how the connector worked. But I got it out, it just looks like the wire pulled out. I should be able to repair it, sending a new harness shouldn't be necessary.

    I should be able to just crimp it back in place, but I have the iron warming up just in case.
