HOW TO: 2012+ Power Window Switches in 2005 - 2011 Trucks

Discussion in 'Technical Chat' started by bradforj, Jan 27, 2015.

  1. Nov 4, 2023 at 2:24 PM
    #41
    offroadtoyboy

    offroadtoyboy Well-Known Member

    Joined:
    Jun 22, 2012
    Member:
    #81130
    Messages:
    150
    Gender:
    Male
    Vehicle:
    06 Prerunner converted 4WD / RC62 swap / Manual 4R trasfer case mod
    I also bought a new auto up/down switch for my passenger side when I did the swap and posted on this thread.
    Switch the white and solid blue wires and the switch works just fine.

    Ensure that you check your fuses and connections.
    Additionally, I would pin out the new window switch for Continuity, to ensure that the contacts are working correctly.

  2. Nov 4, 2023 at 2:36 PM
    #42
    RLU

    RLU Member

    Joined:
    Nov 4, 2023
    Member:
    #436837
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2005 Tacoma

    I did all of that. The window goes up and down when controlled from the driver’s side. It just doesn’t work with the passenger side switch.

    Thanks for chiming in!

  3. Nov 4, 2023 at 2:37 PM
    #43
    offroadtoyboy

    offroadtoyboy Well-Known Member

    Joined:
    Jun 22, 2012
    Member:
    #81130
    Messages:
    150
    Gender:
    Male
    Vehicle:
    06 Prerunner converted 4WD / RC62 swap / Manual 4R trasfer case mod

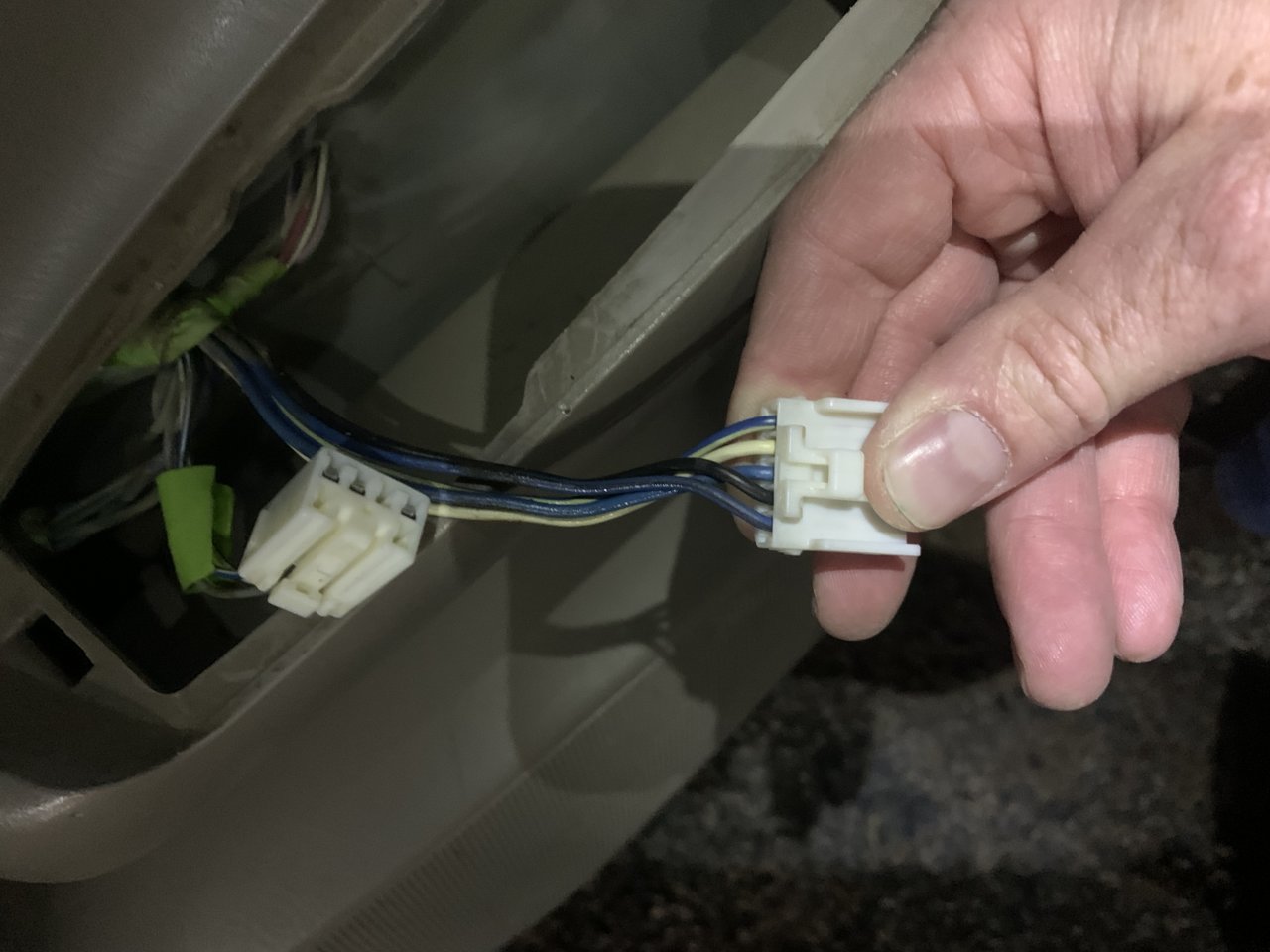

    then de-pin the connector and put it back to the original wiring and see if the new window switch works with the old wiring

  4. Nov 4, 2023 at 5:01 PM
    #44
    SUMOTNK

    SUMOTNK Pavement Pounder / Mall Crawler

    Joined:
    Sep 8, 2014
    Member:
    #137895
    Messages:
    2,773
    Gender:
    Male
    First Name:
    Eddie
    NorCal/South Bay Area
    Vehicle:
    Looks like a Gen2.5 TRD Sport, but really an '08 TRD OffRoad
    TRD Supercharged / OTT Tuned
  5. Nov 5, 2023 at 8:01 AM
    #45
    RLU

    RLU Member

    Joined:
    Nov 4, 2023
    Member:
    #436837
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2005 Tacoma
    Thanks to both of you for the info. This was helpful. I’m humbled that folks that don’t even know me would take time to offer help. I’m so grateful.

    I figured it out. It was a fuse that I missed the first time I checked.

    Last edited: Nov 5, 2023
    SUMOTNK likes this.
  6. Jan 28, 2024 at 3:33 PM
    #46
    whitetaco97

    whitetaco97 Well-Known Member

    Joined:
    Mar 21, 2016
    Member:
    #181939
    Messages:
    519
    Gender:
    Male
    First Name:
    Tyger
    Vehicle:
    2017 White TRD sport
    I just completed this swap and all
    Functions work but the backlight lighting is on even with head lights off. Is this normal?

  7. Apr 27, 2024 at 10:10 AM
    #47
    TX TACO 10

    TX TACO 10 Active Member

    Joined:
    Sep 10, 2020
    Member:
    #340358
    Messages:
    28
    Gender:
    Male
    For those that are doing this conversion, where are you buying the black trim piece that the switch assembly attaches to and snaps into the door panel?

    When I purchased from car trim, all I got was the switches…the door lock and window lock are not the same shape or orientation so I can’t use my existing trim piece.

  8. Apr 27, 2024 at 1:04 PM
    #48
    SUMOTNK

    SUMOTNK Pavement Pounder / Mall Crawler

    Joined:
    Sep 8, 2014
    Member:
    #137895
    Messages:
    2,773
    Gender:
    Male
    First Name:
    Eddie
    NorCal/South Bay Area
    Vehicle:
    Looks like a Gen2.5 TRD Sport, but really an '08 TRD OffRoad
    TRD Supercharged / OTT Tuned

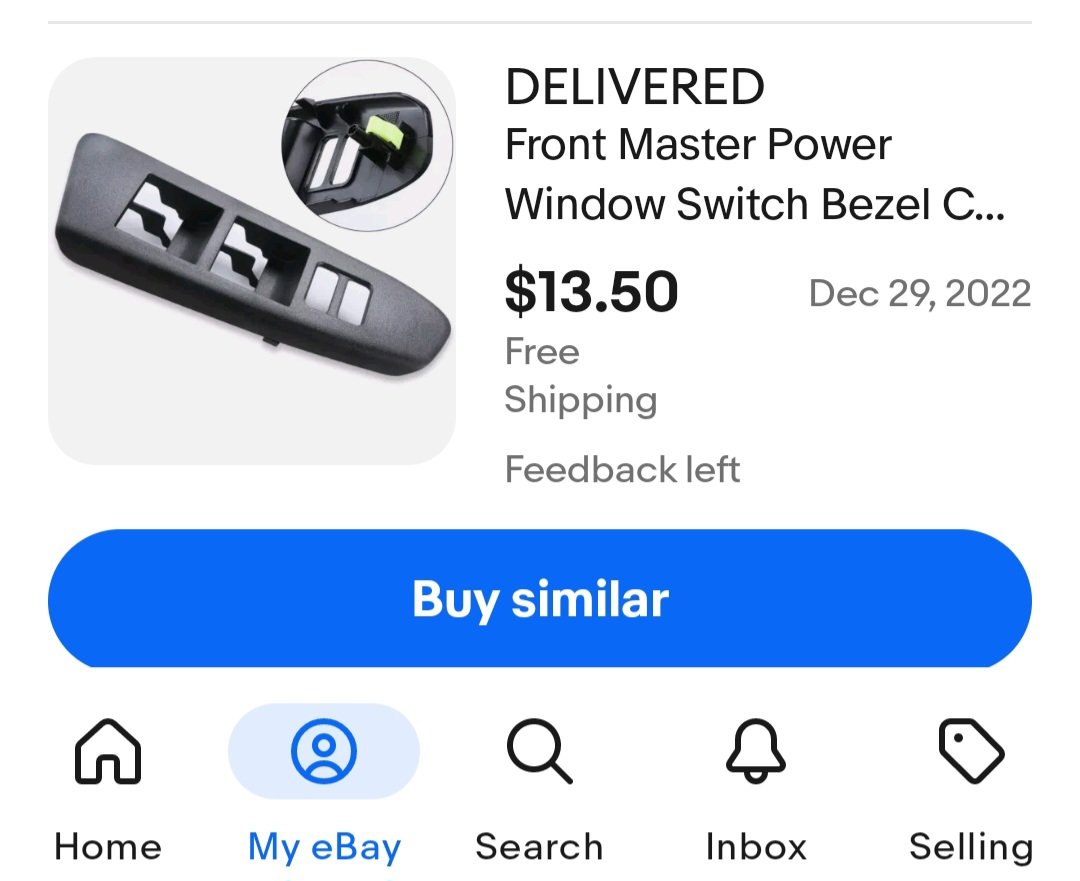

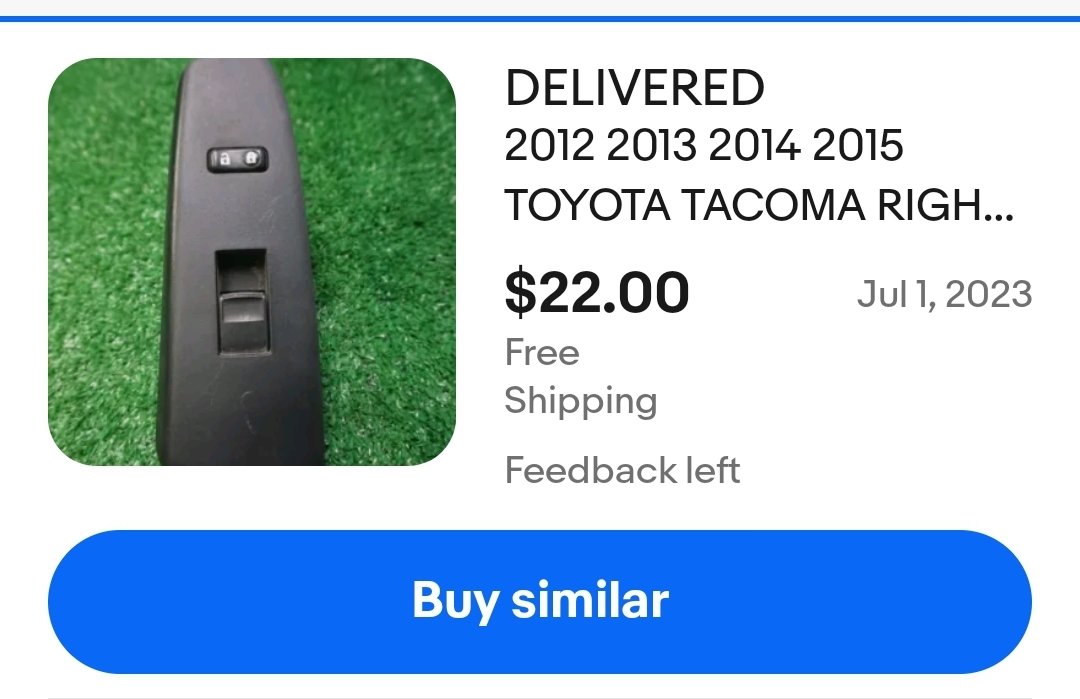

    I bought mine on ebay. $13.50 for driver side. $22 for passenger. These are needed as part of this retrofit conversion. Not PnP.

    Screenshot_20240427_125332_eBay.jpg Screenshot_20240427_130209_eBay.jpg

    This site contains affiliate links for which the site may be compensated.
    #48
  9. Apr 27, 2024 at 1:18 PM
    #49
    SUMOTNK

    SUMOTNK Pavement Pounder / Mall Crawler

    Joined:
    Sep 8, 2014
    Member:
    #137895
    Messages:
    2,773
    Gender:
    Male
    First Name:
    Eddie
    NorCal/South Bay Area
    Vehicle:
    Looks like a Gen2.5 TRD Sport, but really an '08 TRD OffRoad
    TRD Supercharged / OTT Tuned
    mistrchow likes this.
  10. Apr 29, 2024 at 11:40 AM
    #50
    TX TACO 10

    TX TACO 10 Active Member

    Joined:
    Sep 10, 2020
    Member:
    #340358
    Messages:
    28
    Gender:
    Male
  11. Jun 5, 2024 at 7:31 AM
    #51
    mistrchow

    mistrchow Well-Known Member

    Joined:
    Apr 13, 2015
    Member:
    #153083
    Messages:
    234
    Gender:
    Male
    Somewhere in Nature.
    Vehicle:
    11 SWB Taco TRD OR
    Little this, Little that.

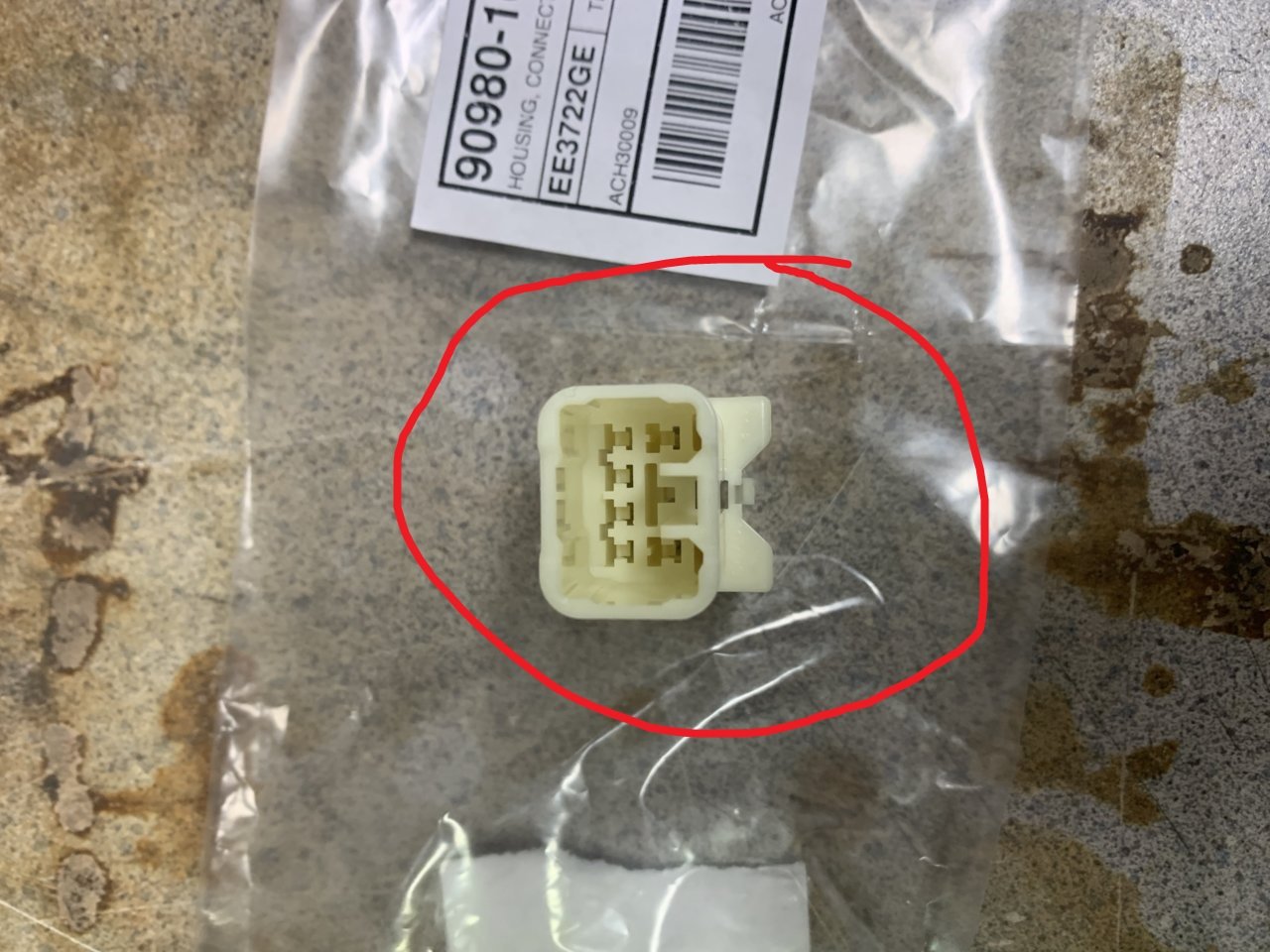

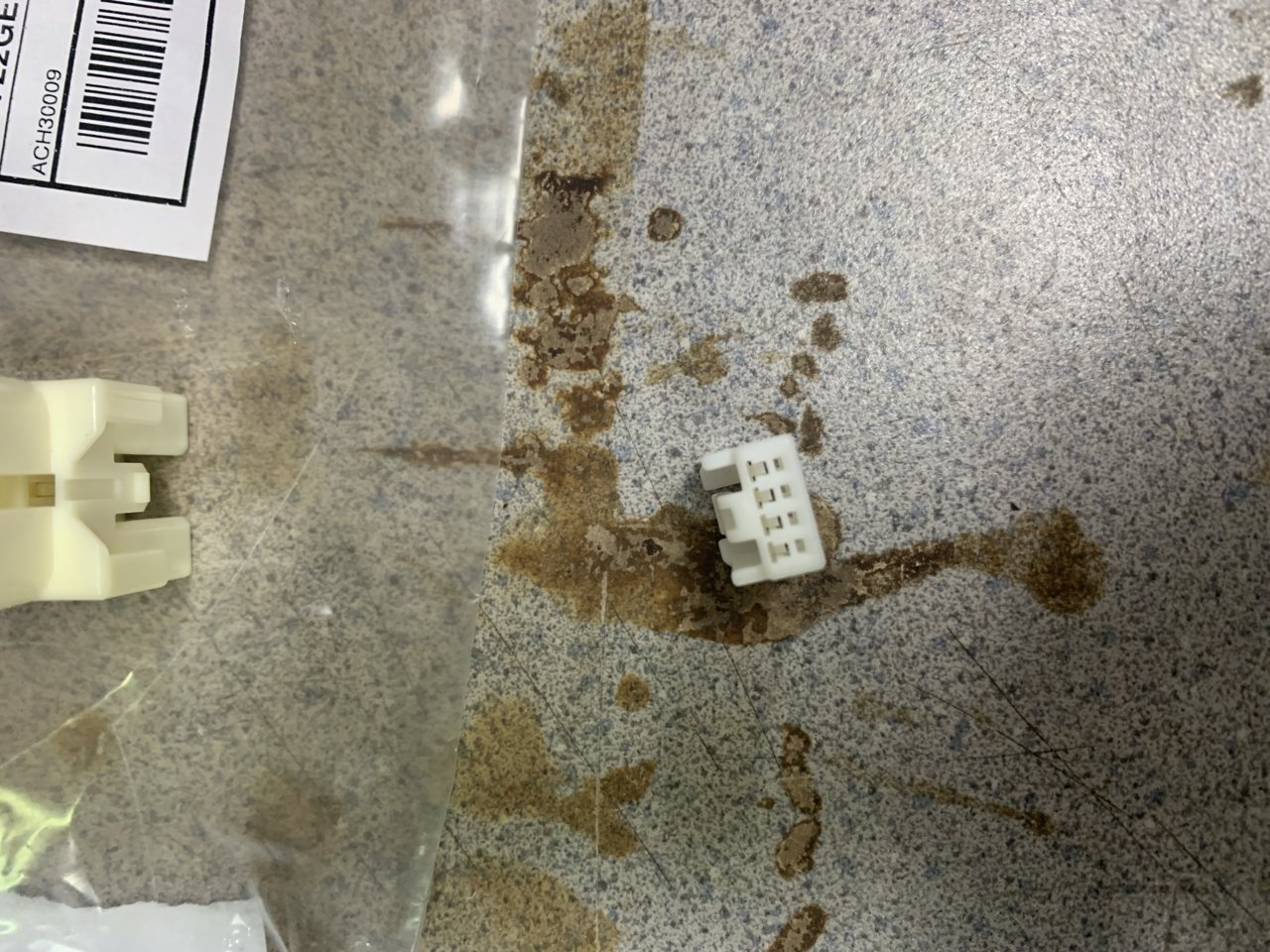

    I'm ordering these parts, You did not list this connector, Should this male connector be this part:
    https://www.hi-1000ec.com/product/2834

  12. Jun 11, 2024 at 7:44 PM
    #52
    mistrchow

    mistrchow Well-Known Member

    Joined:
    Apr 13, 2015
    Member:
    #153083
    Messages:
    234
    Gender:
    Male
    Somewhere in Nature.
    Vehicle:
    11 SWB Taco TRD OR
    Little this, Little that.

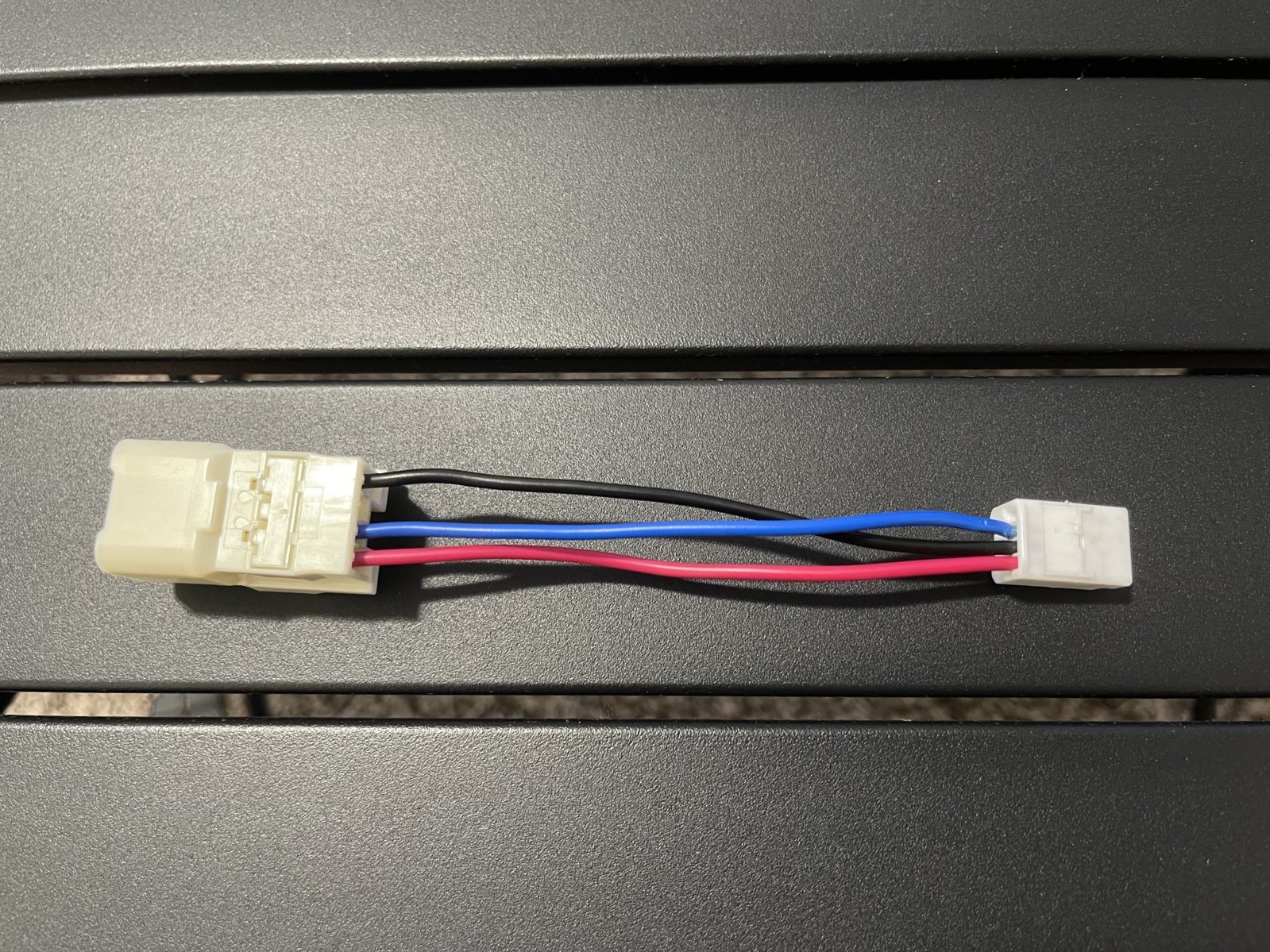

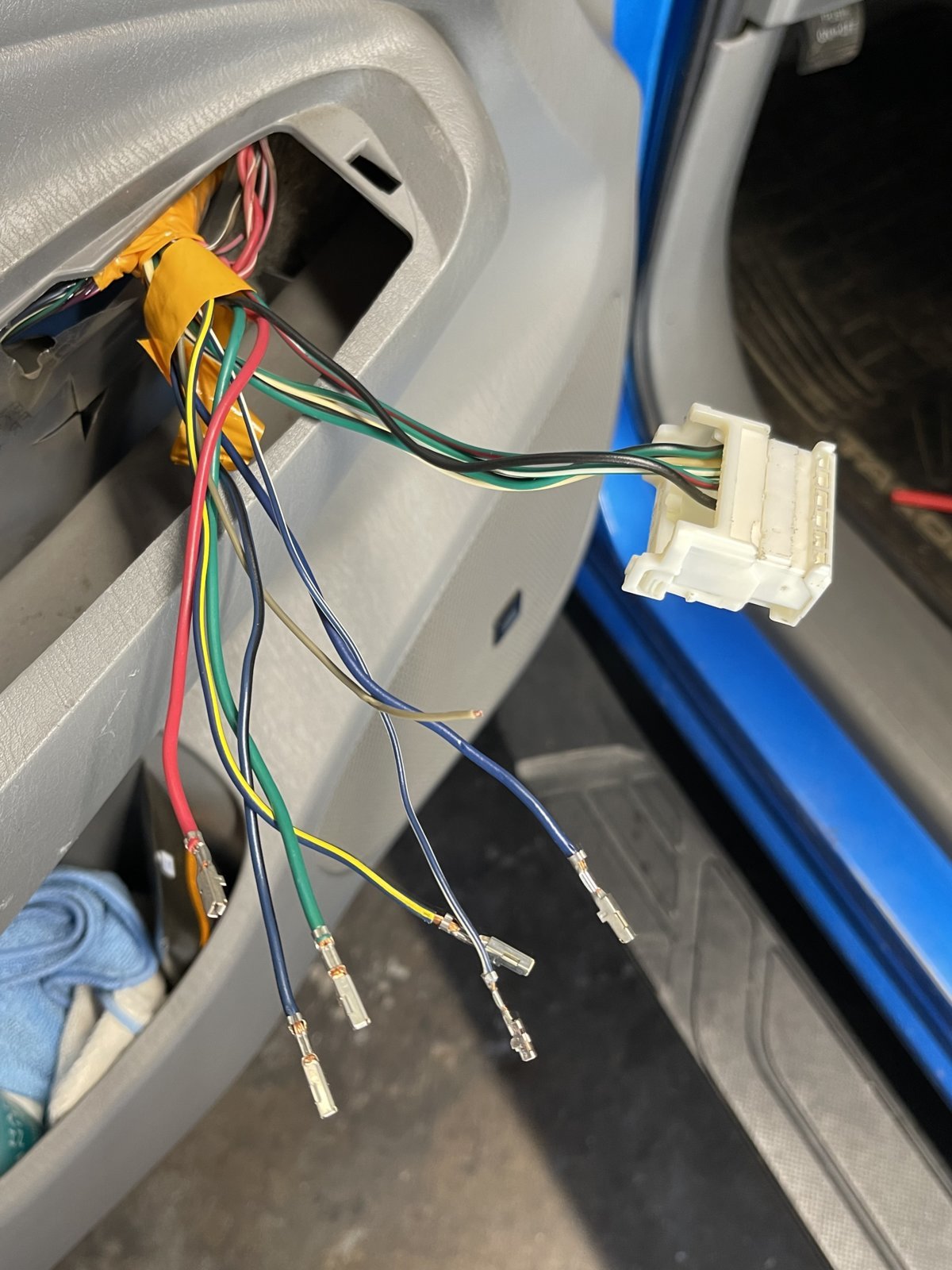

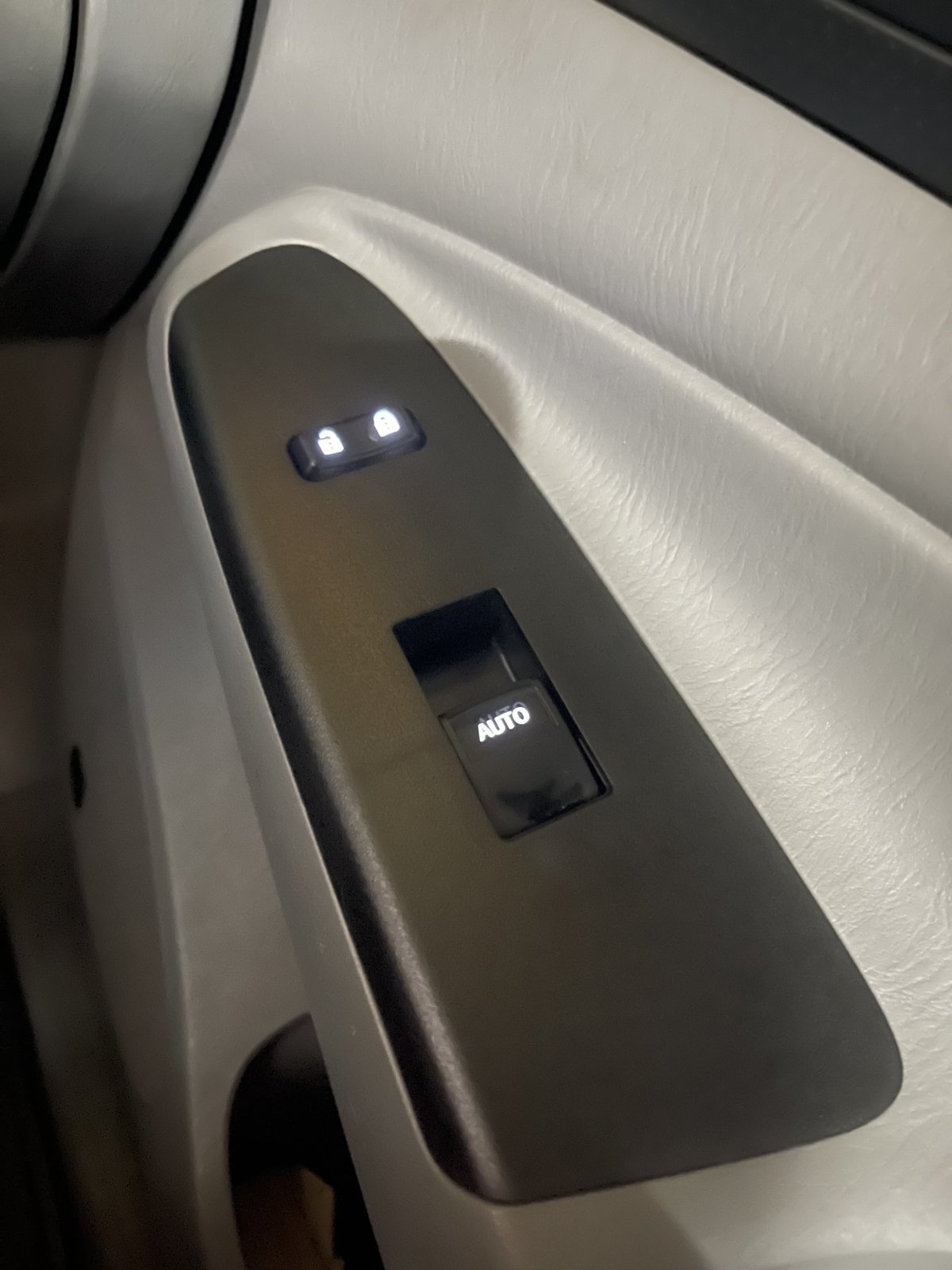

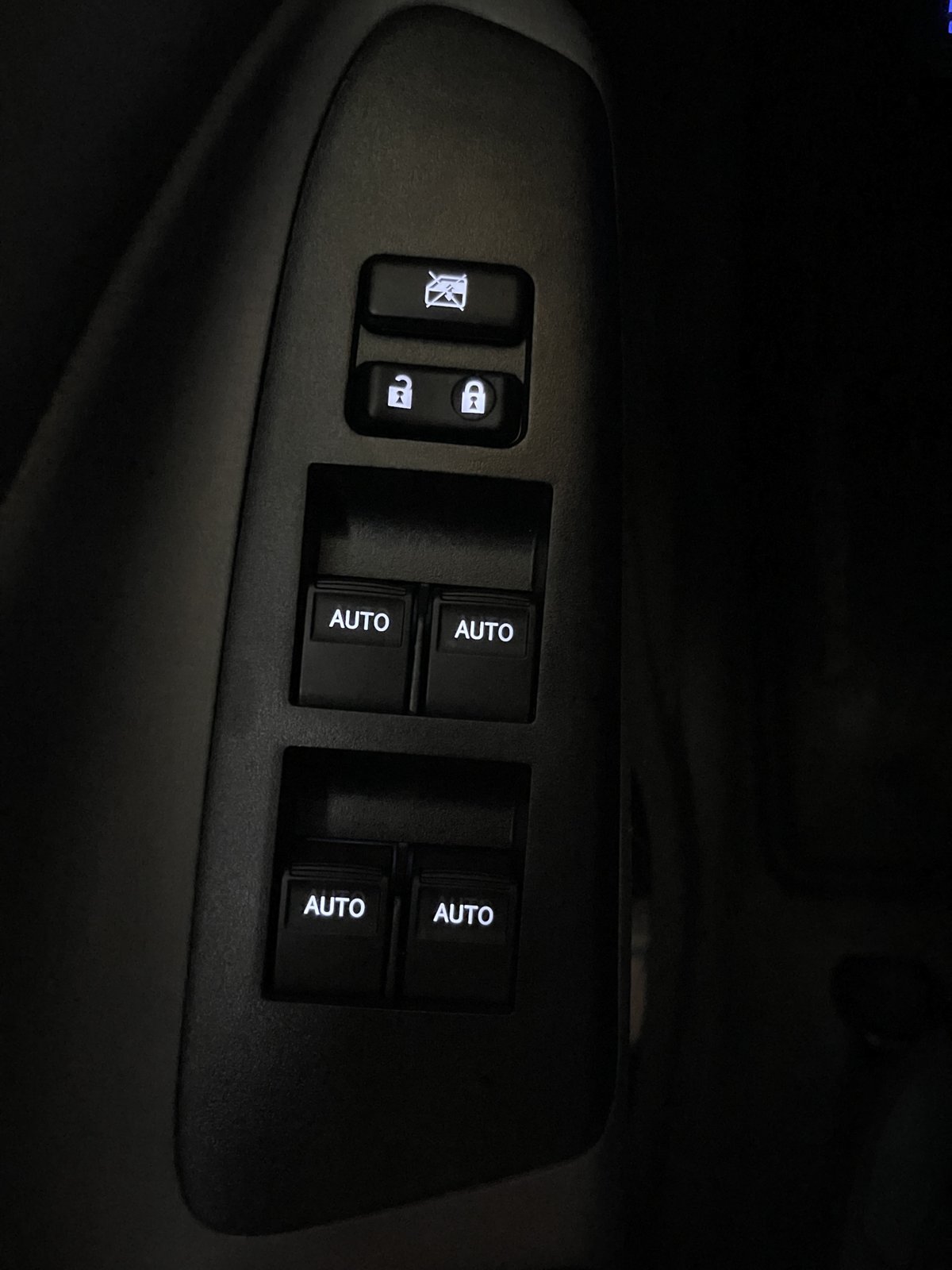

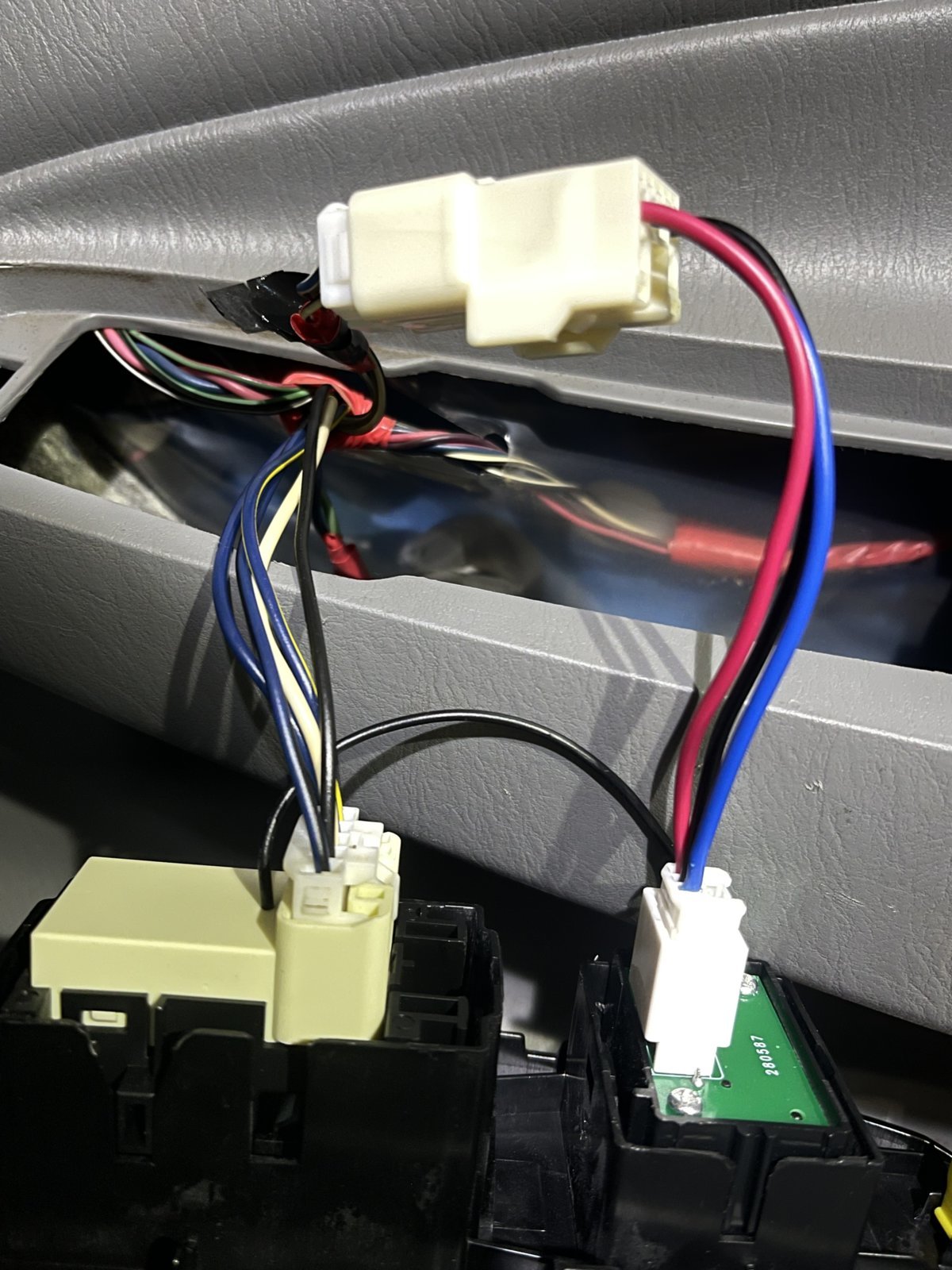

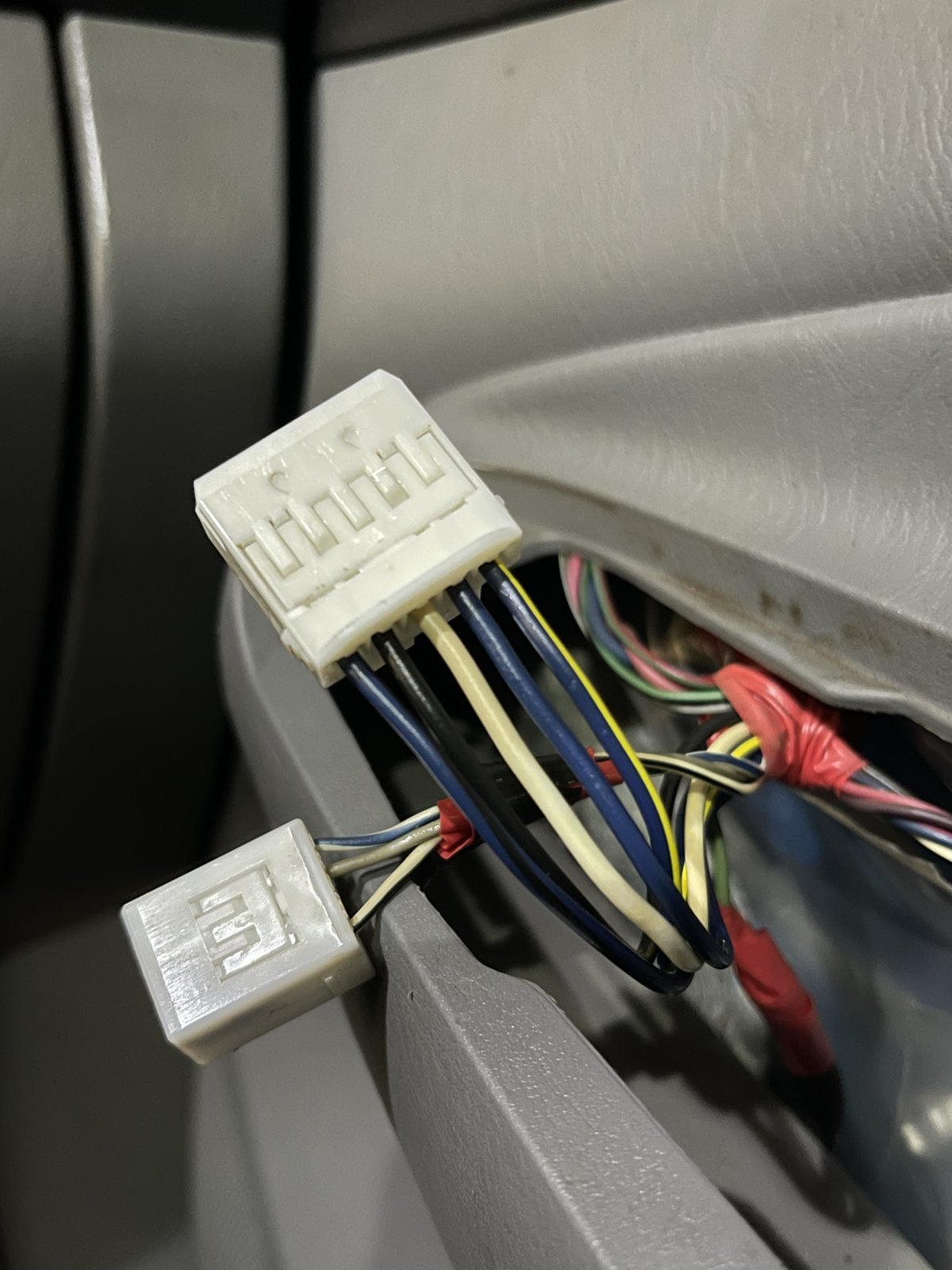

    Thanks, I was able to complete this mod. Switch lights turn on when truck is turn on, not switch controlled. It does turn it self off after a while. I cut the gray wire 8 pin and crimped a larger pin to insert it into 9 instead of “jumping” it. Everything works. Extra pins were purchase just in case.

    IMG_9609.jpg IMG_9614.jpg IMG_9621.jpg IMG_9623.jpg
    IMG_9620.jpg IMG_9627.jpg IMG_9629.jpg

    SUMOTNK likes this.
  13. Jun 12, 2024 at 5:07 AM
    #53
    ThePositiveWay

    ThePositiveWay Member

    Joined:
    Jan 25, 2024
    Member:
    #442429
    Messages:
    23
    Gender:
    Male
    SE Tennessee
    Vehicle:
    06' DCLB TRD Sport Super White
    Stock (For Now)
    Are people doing anything for the rear door window controls? Mostly thinking that I would want the bezel to be black to match the fronts after the swap

  14. Jun 14, 2024 at 12:17 PM
    #54
    Its_Taconie

    Its_Taconie Well-Known Member

    Joined:
    Apr 18, 2017
    Member:
    #216625
    Messages:
    400
    Gender:
    Male
    First Name:
    Nelson
    North Hollywood
    Vehicle:
    2007 Tacoma DCLB PreRunner
    Eibaich Coilover and Shocks, OME Light Leaf Springs, FJ Cruiser Steelies, C4 Overland Bumper, SPC Uppers
    Now the question is, who's willing to make a few bucks on the side and make some harnesses?

  15. Jun 14, 2024 at 2:36 PM
    #55
    Its_Taconie

    Its_Taconie Well-Known Member

    Joined:
    Apr 18, 2017
    Member:
    #216625
    Messages:
    400
    Gender:
    Male
    First Name:
    Nelson
    North Hollywood
    Vehicle:
    2007 Tacoma DCLB PreRunner
    Eibaich Coilover and Shocks, OME Light Leaf Springs, FJ Cruiser Steelies, C4 Overland Bumper, SPC Uppers
    What gauge wire did you use? Im on the site you posted and might pull the trigger on the supplies to do this. Also, what amount of each male/female pin did you purchase?

  16. Jun 17, 2024 at 7:53 AM
    #56
    mistrchow

    mistrchow Well-Known Member

    Joined:
    Apr 13, 2015
    Member:
    #153083
    Messages:
    234
    Gender:
    Male
    Somewhere in Nature.
    Vehicle:
    11 SWB Taco TRD OR
    Little this, Little that.
    I use 16 gauge, I had that laying around but I think 18 would've been a better fit. Because shipping is $20, might as well get extra or make a group buy. Also received it in 2 days from Japan!

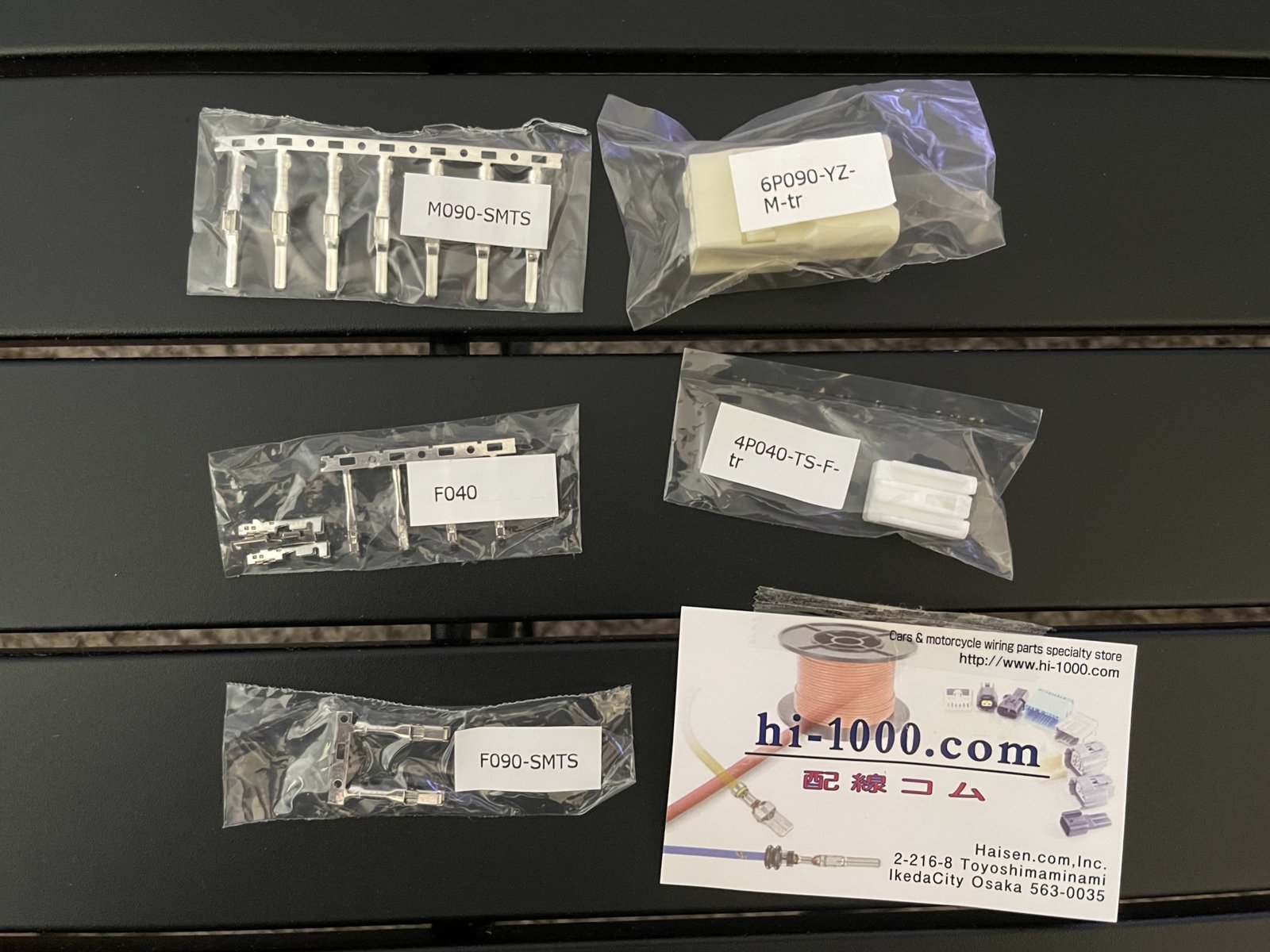

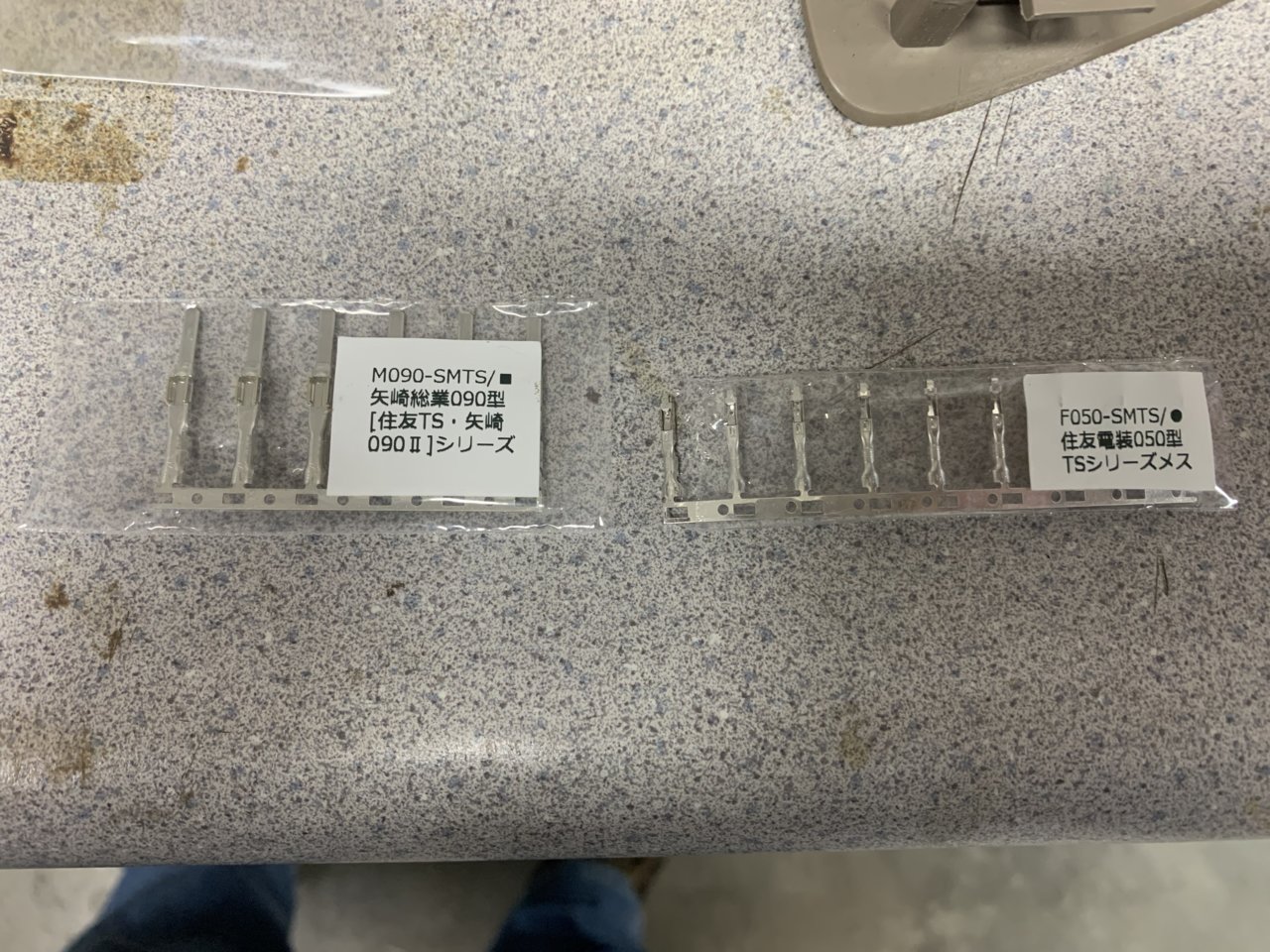

    I ordered extra pins, you really only need:

    Passenger Side Pins:
    [Yazaki] 040 Type F terminal Non waterproof / F040[F040] x 3
    [Yazaki] 090 type [Sumitomo TS/ Yazaki 090II] series male terminal non-waterproofing /M090-SMTS[M090-SMTS] x 3

    Driver Side Pin:
    [Yazaki] 090 type [Sumitomo TS/ Yazaki 090II] series Female terminal non-waterproofing /F090-SMTS[F090-SMTS] x 1

    Its_Taconie[QUOTED] likes this.
  17. Jun 22, 2024 at 9:03 AM
    #57
    offroadtoyboy

    offroadtoyboy Well-Known Member

    Joined:
    Jun 22, 2012
    Member:
    #81130
    Messages:
    150
    Gender:
    Male
    Vehicle:
    06 Prerunner converted 4WD / RC62 swap / Manual 4R trasfer case mod
    Sorry I missed your question, never got an alert.

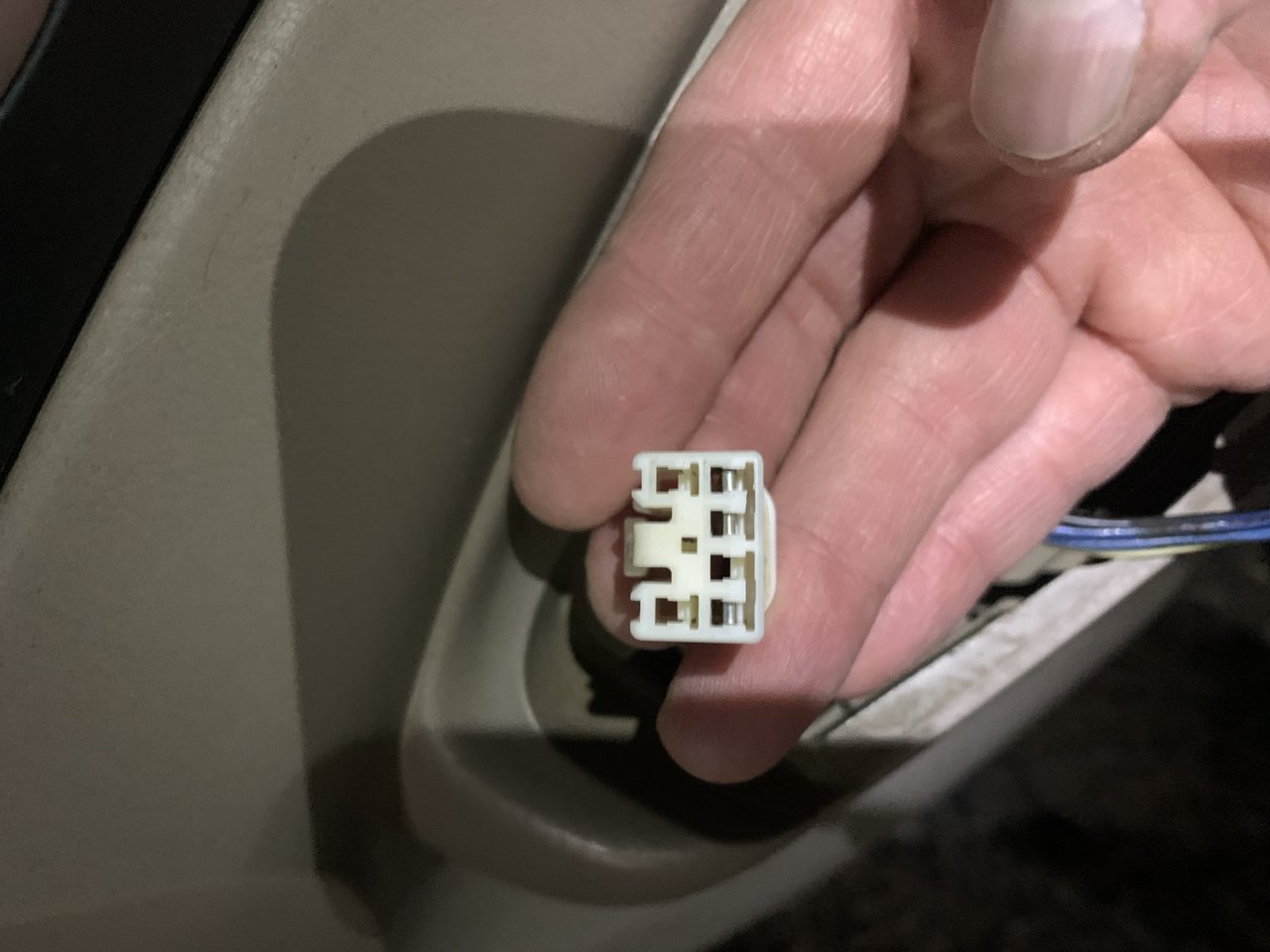

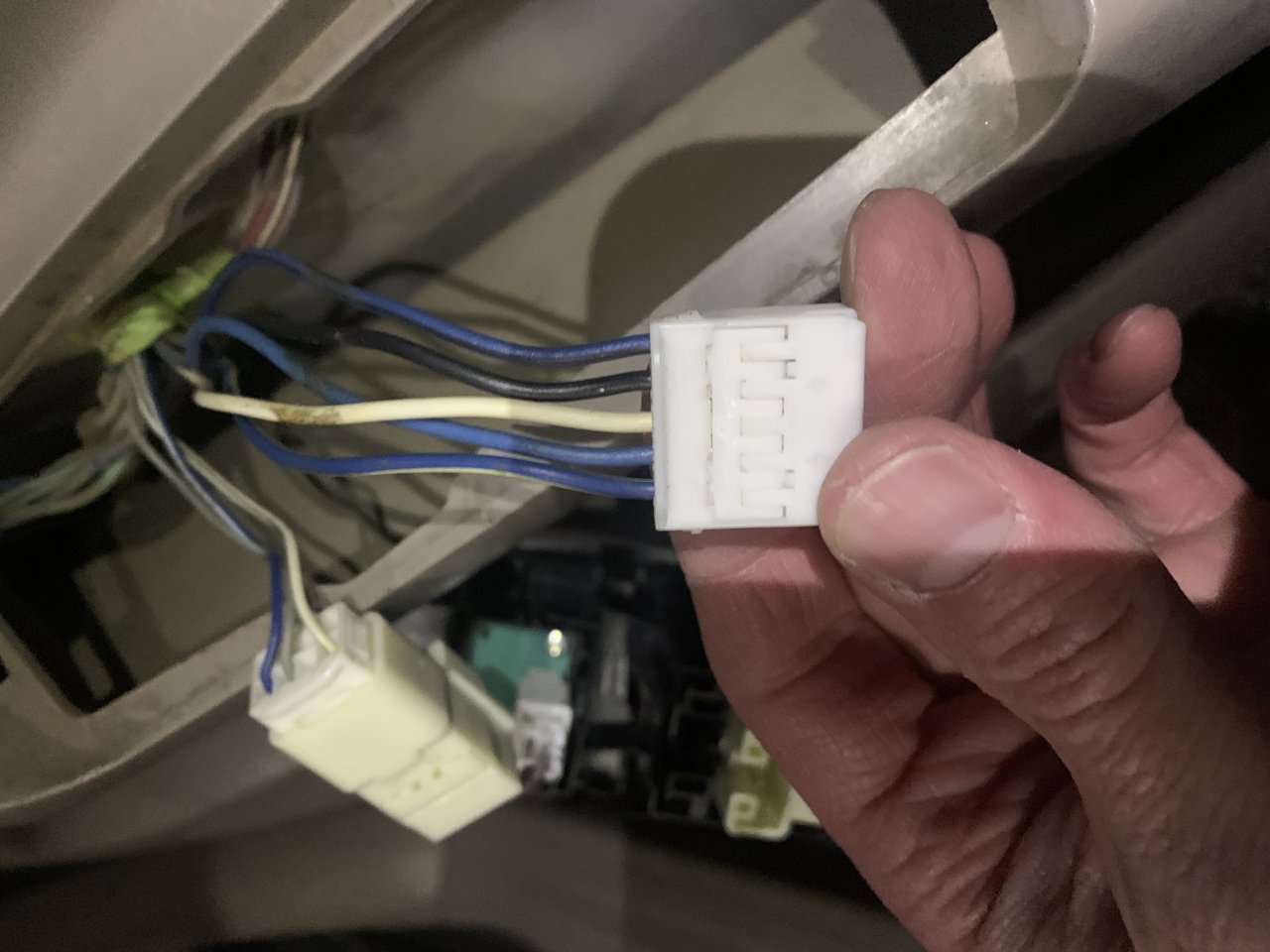

    The part number for that connector is listed in the description right above the photo it is a Toyota part number FYI.

    looks like you got it figured out though.

    Last edited: Jun 22, 2024
    mistrchow[QUOTED] likes this.
  18. Jun 22, 2024 at 9:13 AM
    #58
    offroadtoyboy

    offroadtoyboy Well-Known Member

    Joined:
    Jun 22, 2012
    Member:
    #81130
    Messages:
    150
    Gender:
    Male
    Vehicle:
    06 Prerunner converted 4WD / RC62 swap / Manual 4R trasfer case mod

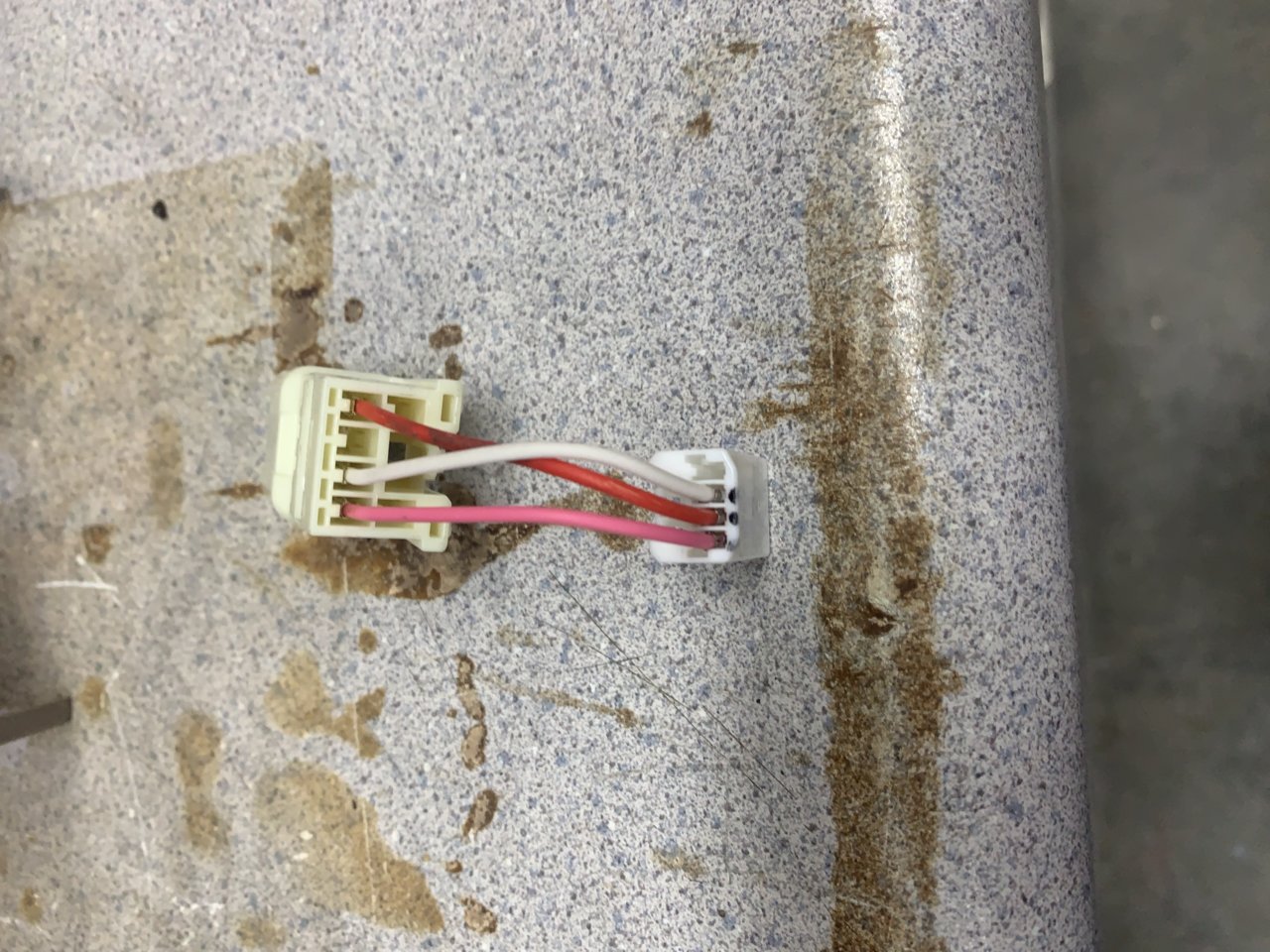

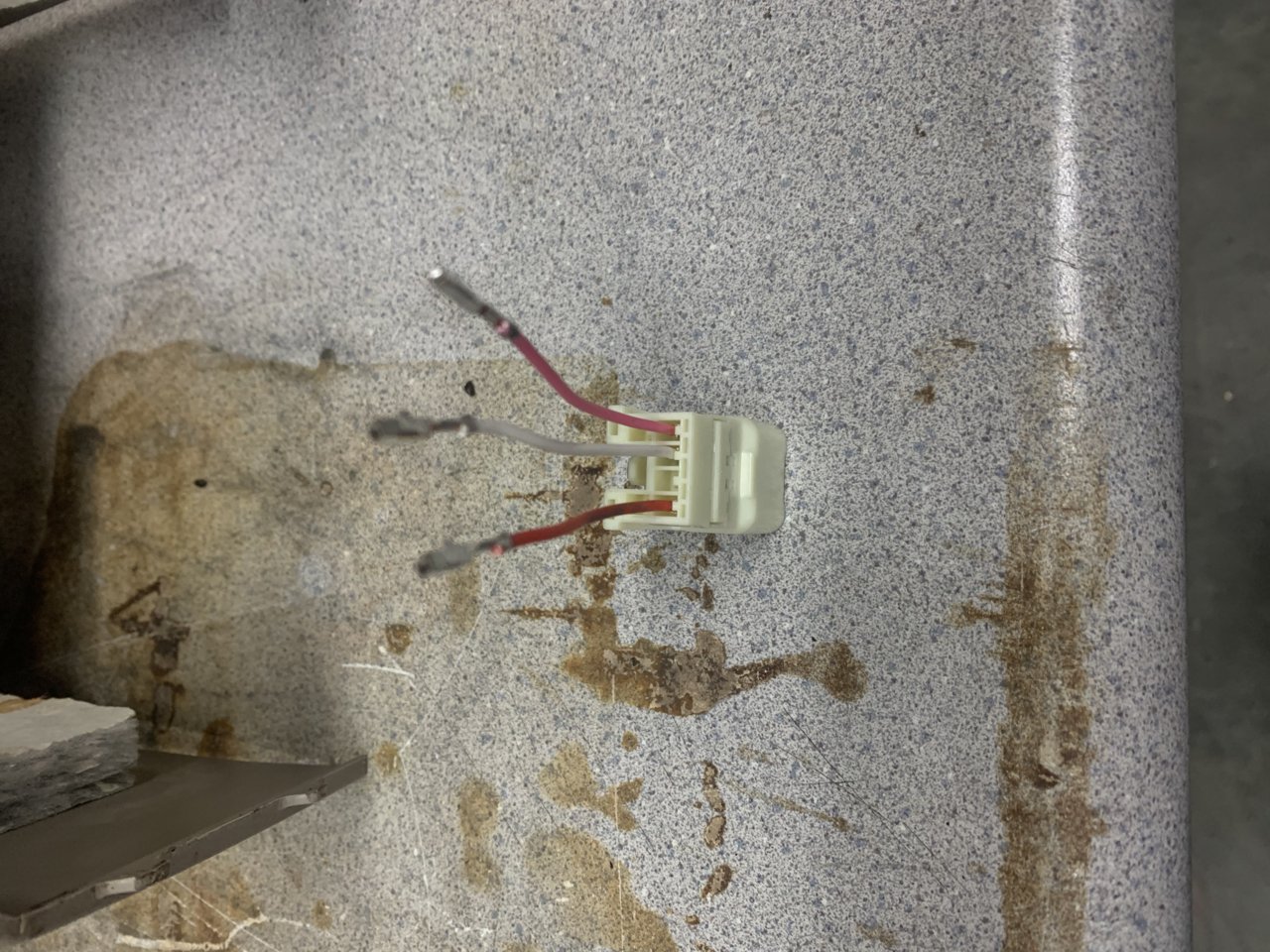

    the wire used for these connectors is very small 20-22 ga

    Its_Taconie[QUOTED] likes this.
  19. Jun 24, 2024 at 7:09 AM
    #59
    mistrchow

    mistrchow Well-Known Member

    Joined:
    Apr 13, 2015
    Member:
    #153083
    Messages:
    234
    Gender:
    Male
    Somewhere in Nature.
    Vehicle:
    11 SWB Taco TRD OR
    Little this, Little that.
    I did, thanks for your post and pictures, nailed it.

  20. Jun 25, 2024 at 6:19 AM
    #60
    bender85

    bender85 Active Member

    Joined:
    Sep 28, 2018
    Member:
    #267680
    Messages:
    28
    Gender:
    Male
    First Name:
    Dean
    Vehicle:
    2009 red Tacoma DCLB
    Hey guys, I just did this mod to my truck yesterday. I have currently only done the driver's side. Weird thing happened though, everything works but the door lock indicator on the driver's door no longer works. I can hear the door lock when I push the door lock button, but the indicator on the door doesn't move. If I manually try to lock the driver's door the indicator/button on the door moves but doesn't do anything. I have even tried the door lock button on the passenger side and it does the same thing. Any ideas?
