How to: AC outlet in cab + 400 Watt Anytime Mod 2nd gen

Discussion in '2nd Gen. Tacomas (2005-2015)' started by adriancast, Mar 28, 2014.

  1. Mar 28, 2014 at 5:10 PM
    #1
    adriancast

    adriancast [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104544
    Messages:
    2,308
    Gender:
    Male
    First Name:
    Adrian
    Ontario, Ca
    Vehicle:
    2005 Tacoma 4x4 TRD Off-Road
    -2.5 Donahoe Coilovers -All Pro Standard Leaf Pack -All Pro U Bolt Flip Kit -Front/RearWheeler Super Bumps -Extended rear Bilstein 5100s -Flowmaster 40 Series -All Pro IFS Skid -All Pro Transmission Skid -Bruteforce Hybrid Bumper -30" Double Row LED bar -400 Watt Anytime -TRD Seat Covers -ABS Kill Switch -Locking Center Console Mod -Rear Differential Breather -BHLM -Anytime Fog Light Mod -Toyota Hilux Snorkel
    How to: AC outlet in cab

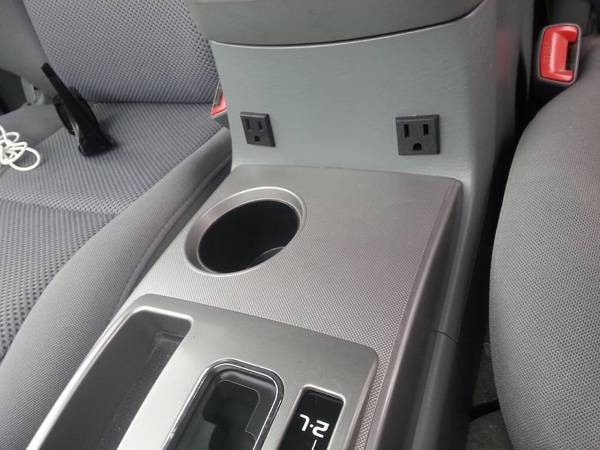

    I wanted to make this how to thread because I think a lot of people would do this, but there wasn't a write up with good pictures for people like me that need them.

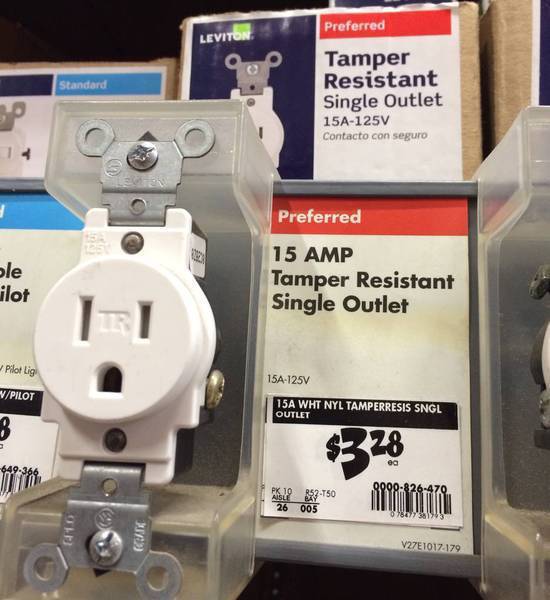

    Started off with this single outlet from home depot. I also picked this outlet because the two screws will defiantly make sure it's not loose after the install.

    [​IMG]

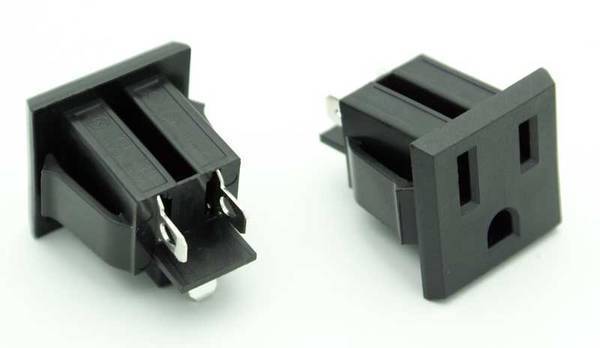

    Another outlet option (thanks BrettBretterson) : http://www.vetco.net/catalog/product_info.php?products_id=9716&keywords=snap in

    [​IMG]

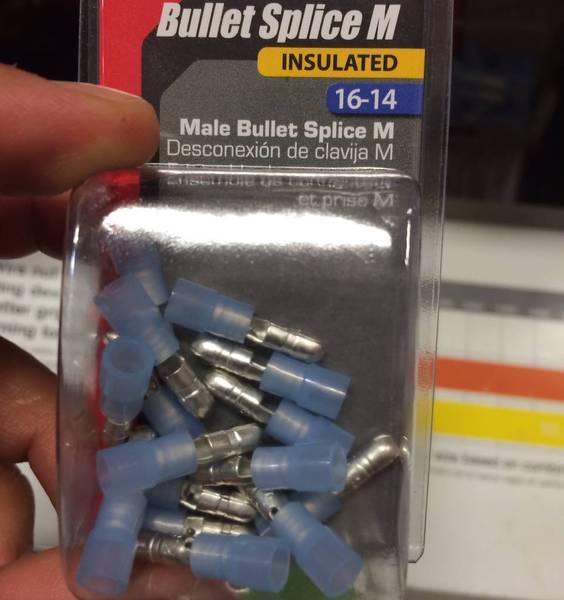

    Bullet splice from Radio Shack and T-Taps (not pictured yet)

    [​IMG]

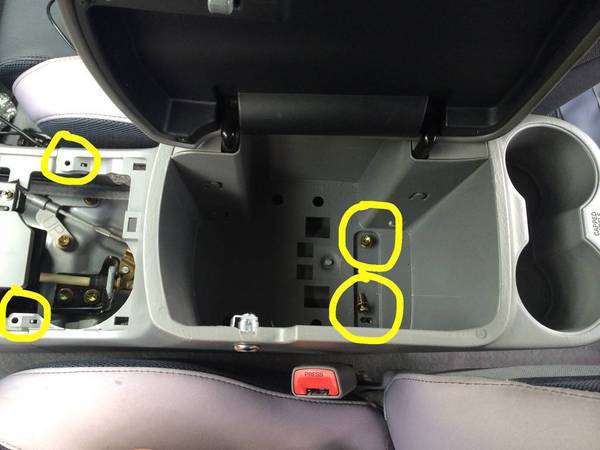

    Start off by taking off the 2 bolts and 2 screws in order to remove the center console.
    I would recommend removing driver seat so it will be easier to get around everything. I didn't, but wish i did.

    [​IMG]

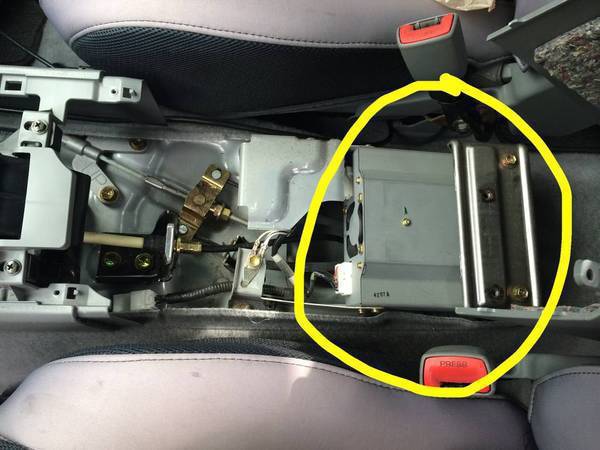

    Then you will see the power converter.

    [​IMG]

    You will only be messing with these two wires. lime green and red with white trace.
    Make sure you have plenty of space in there; it will get tight.

    Green wire: hot
    Red wire: neutral

    [​IMG]

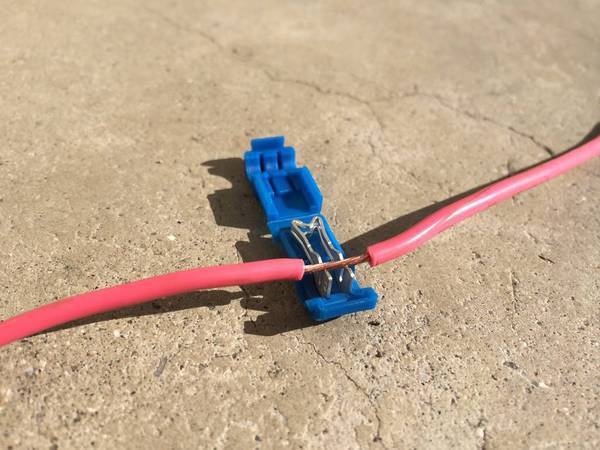

    Then you're going to want to strip out a piece like this for the t-taps in order to get a solid connection.
    Take your time stripping the piece out, i accidently cut the wire the first time and had to repair.

    [​IMG]

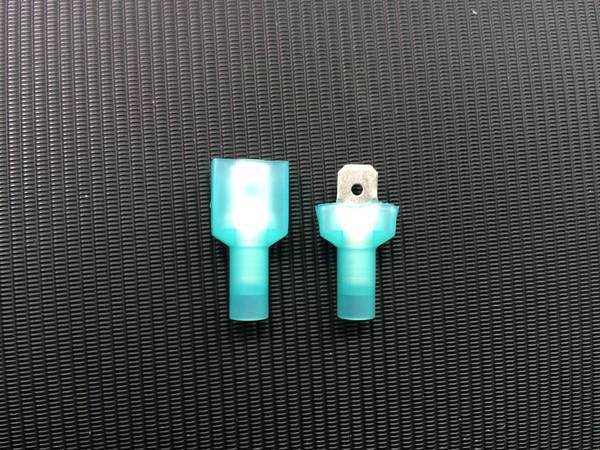

    Then I cut a little section off in order for the male end to go into the t-taps.

    [​IMG]

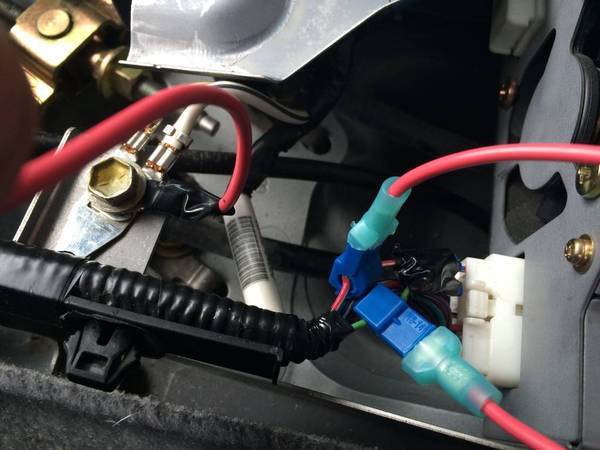

    How it will look after you put the t-taps.

    [​IMG]

    I used the two bottom holes for power connection. (one on each side)

    [​IMG]

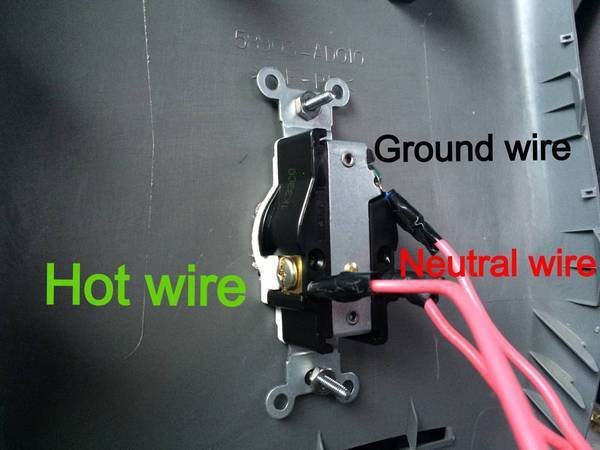

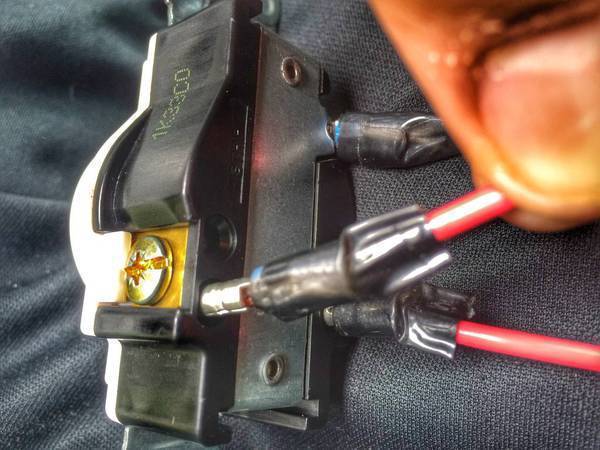

    This is the back of the panel. NOTICE THE COLOR OF THE LETTERING TO SHOW YOU WHICH IS HOT AND WHICH IS NEUTRAL.

    [​IMG]

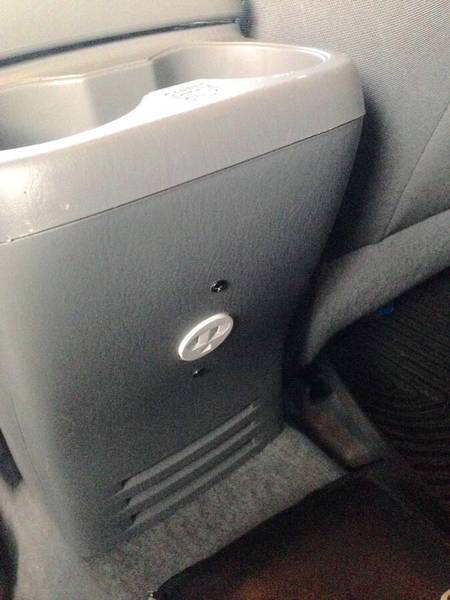

    That is pretty much it. Dont forget to ground. there is a spot right by the power inverter to ground. Just make sure your wires are long enough to reach. then put everything back together and enjoy.!
    Also, I purchased the two nuts to hold the screws. They did not come with outlet.

    [​IMG]

    [​IMG]

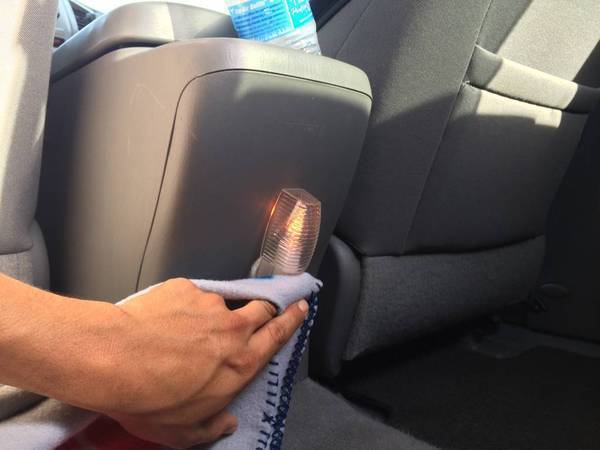

    I'm not going to be using it for a night light. haha just to show you it works.

    [​IMG]

    If anyone has more outlet options feel free to post and I'll add to the original post so people don't have to be searching for it.

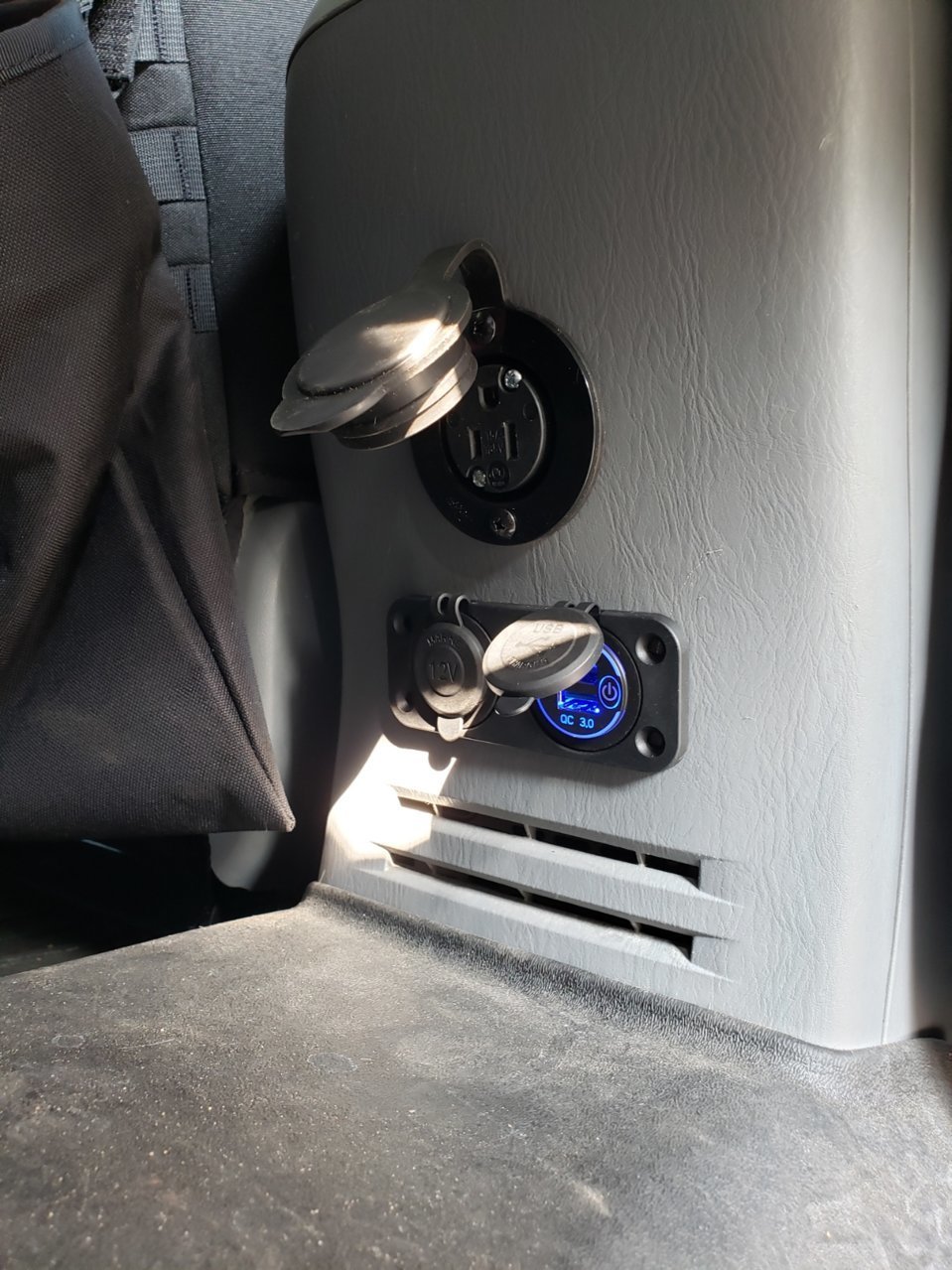

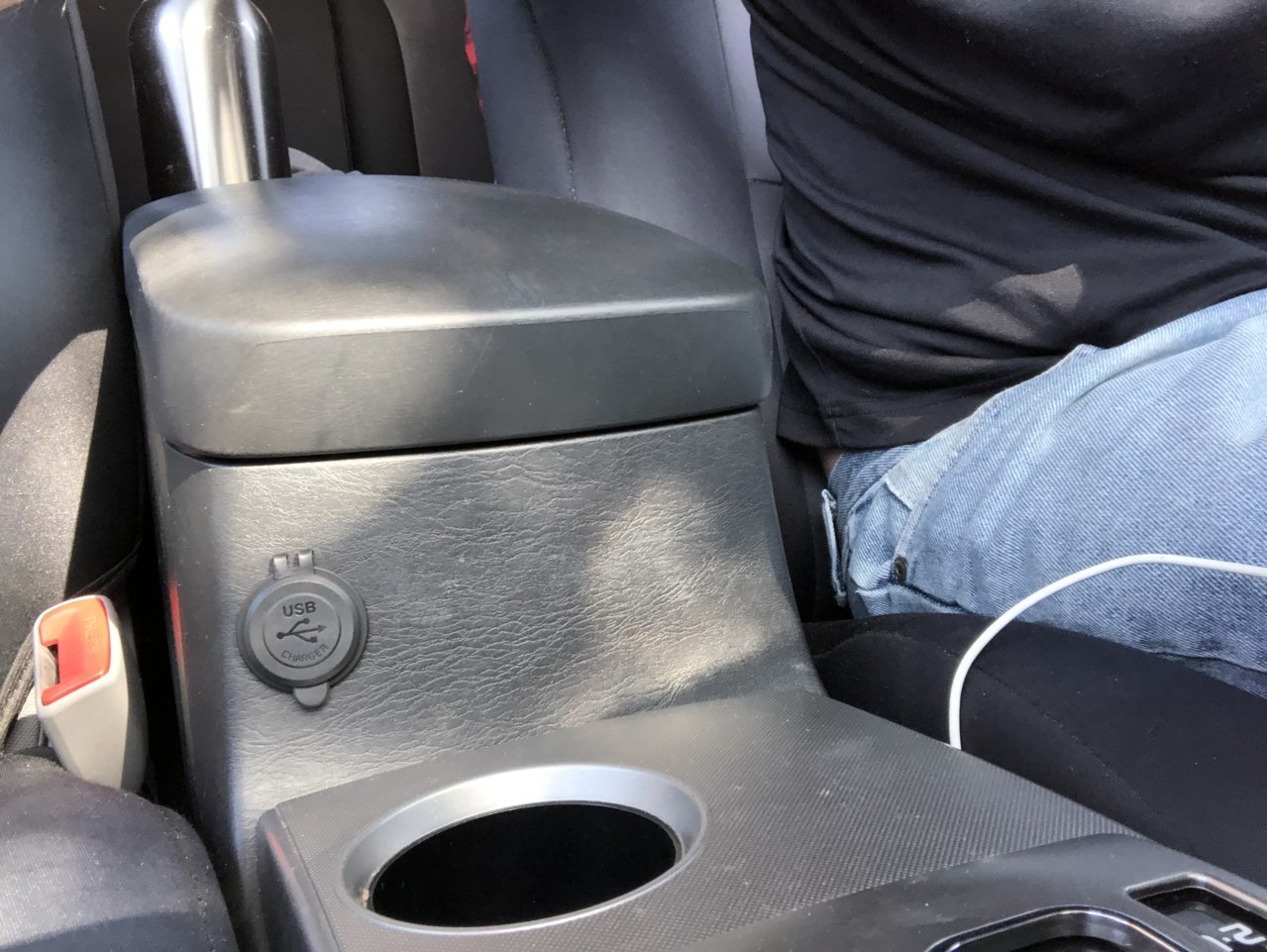

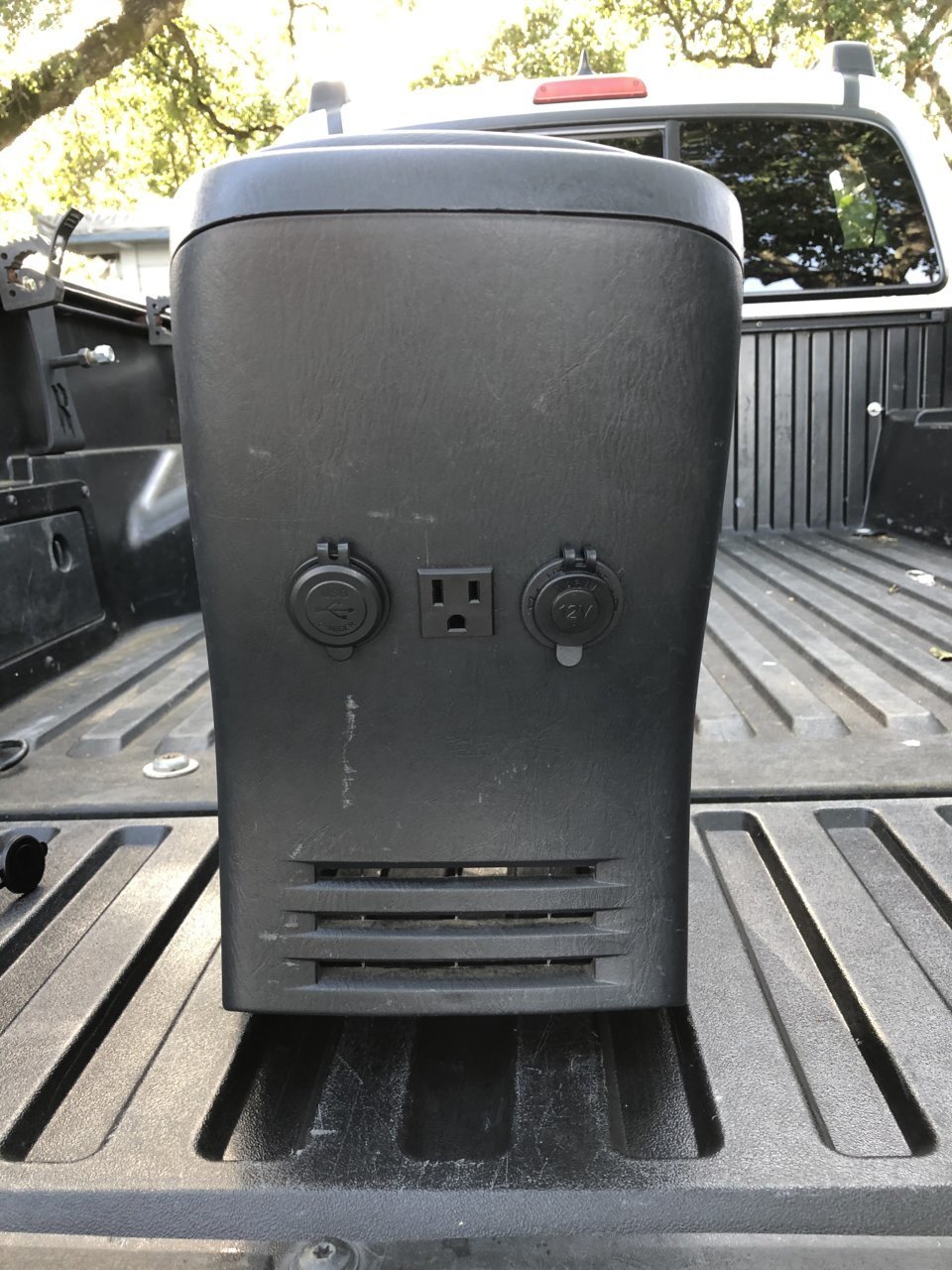

    Member installations:

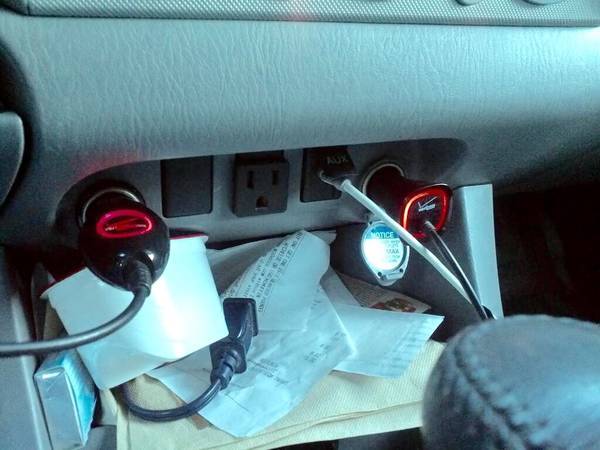

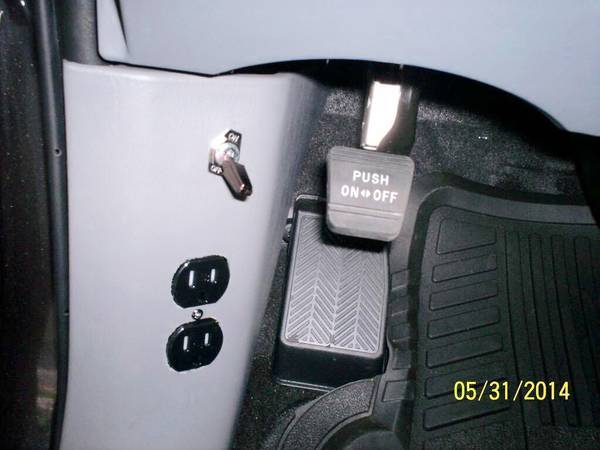

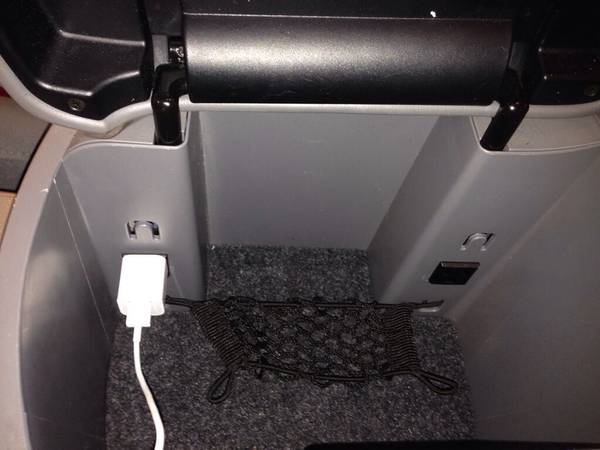

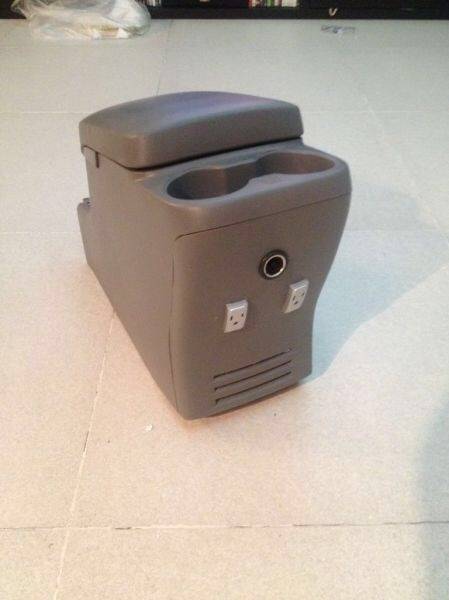

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

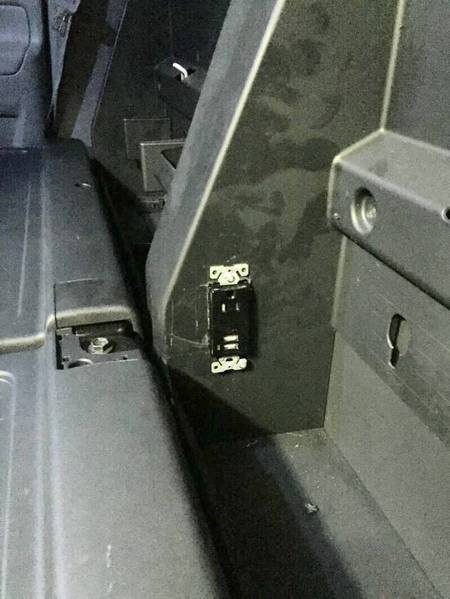

    Lastly, if you do this mod, feel free to add pictures to give other people ideas and hints on what outlet you used and where you put it. Thanks. If you upload from tacomaworld, I will add that picture to the original post so ppl don't have to flip through the pages.

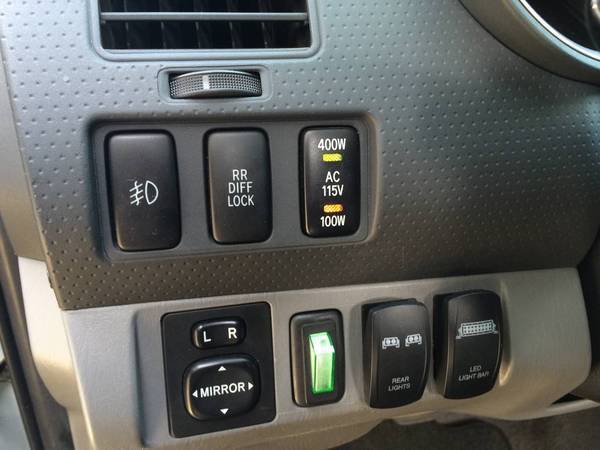

    400 WATT ANYTIME

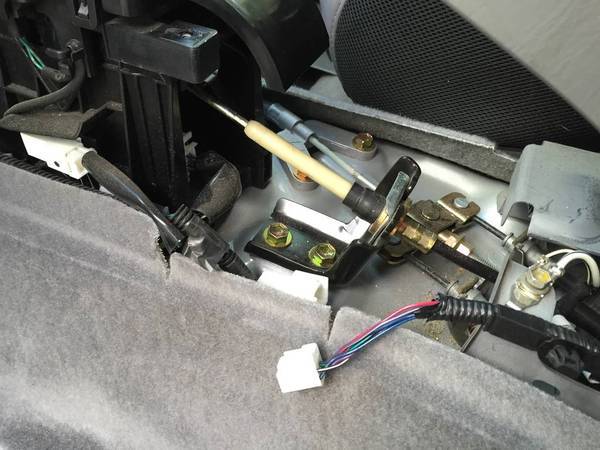

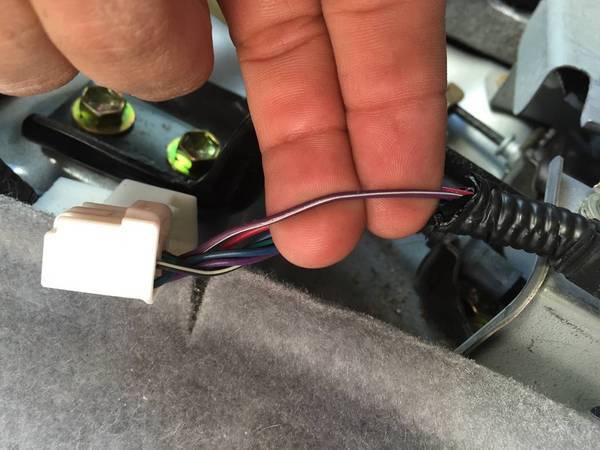

    Find the connector that connects to the inverter.

    [​IMG]

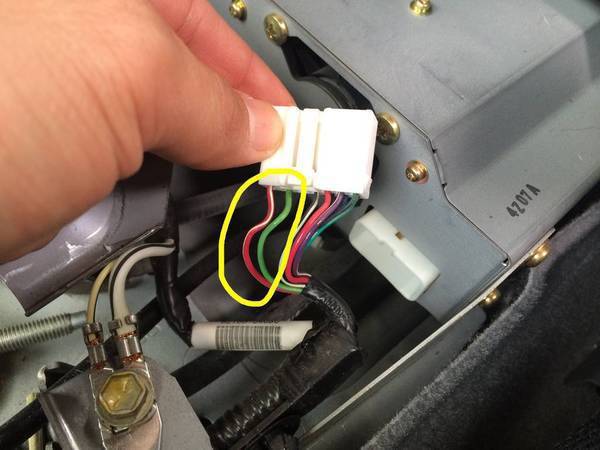

    Violet with white stripe. (Cut and cap off both ends)

    [​IMG]

    Manual Transmission only. blue with black stripe (cut and cap the clutch wires)

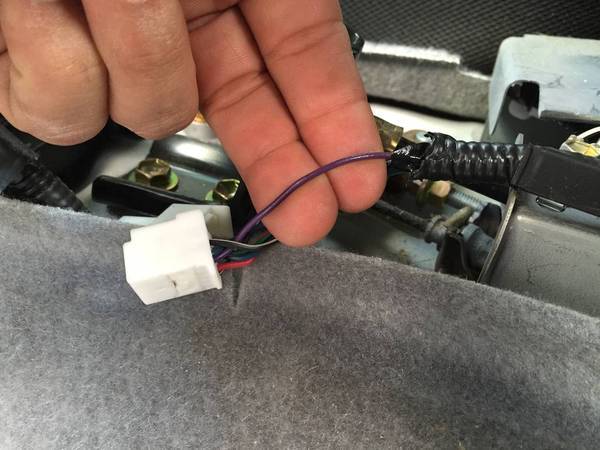

    Solid violet wire. (cut and cap off the side that is not connected to the inverter) then the other end, extend and connect it to a ground.

    [​IMG]

    Thats pretty much it. Pretty simple. Make sure it works. Turn your truck on, put it in drive, push the power switch and the 400 watt should stay on if you did it correctly.

    [​IMG]

    Last edited: Nov 10, 2020
