How To: AirFlow Snorkel Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by lemons, Jul 27, 2016.

  1. Jul 27, 2016 at 5:17 PM
    #1
    lemons

    lemons [OP] LOCO 4X4

    Joined:
    May 5, 2013
    Member:
    #103567
    Messages:
    932
    Gender:
    Male
    First Name:
    Ryan
    Virginia
    Vehicle:
    07 TRD DC Offroad 4X4
    Icon coil overs W/King 14 inch 700lb springs and super bump bump stops, Allpro Expo leaf springs, Allpro Ubolt kit W/timbren Bump stops, Dif Drop Kit, Magnaflow Cat-Back Exhaust, Badges painted Rust-Oleum bed liner, Color Matched TRD Sport Grill W/Grille Craft Insert, TRD seat covers, Weather Tech Floor Mats, Flyzeye's , fog light anytime mod, ABS Off mod, ATO skid plates, ATO rear H/C bumper, BAMF sliders w/kick out, CBI front bumper, Engo 10000lb winch, Rigid D2 foglights, Piaa 510 fog lights, cobra CB w/firestix antenna, AFE snorkel
    I will start this the same way the Safari snorkel how to was started.

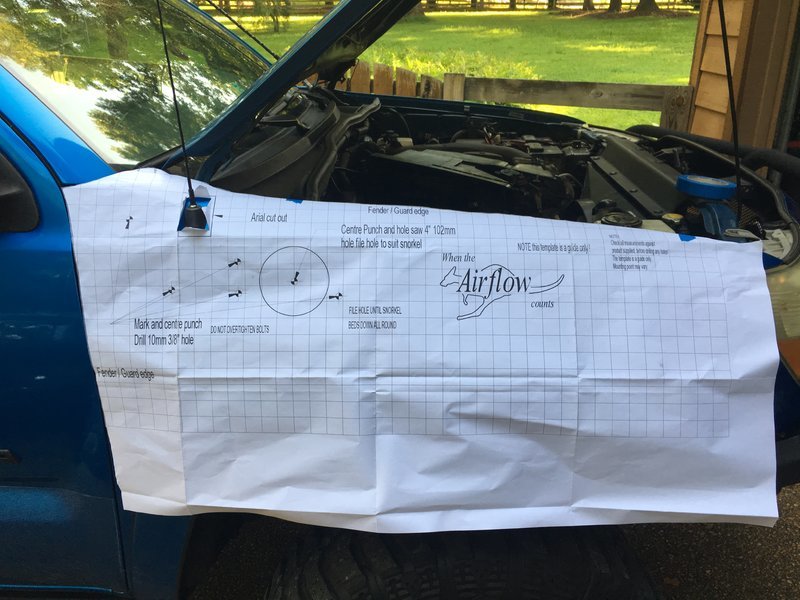

    First- get over the fact that you are about to drill a big ass hole in your fender.
    After you take a big breath and suck it up put painters tape on the fender and cut out the template. Line it up and tape it in place.

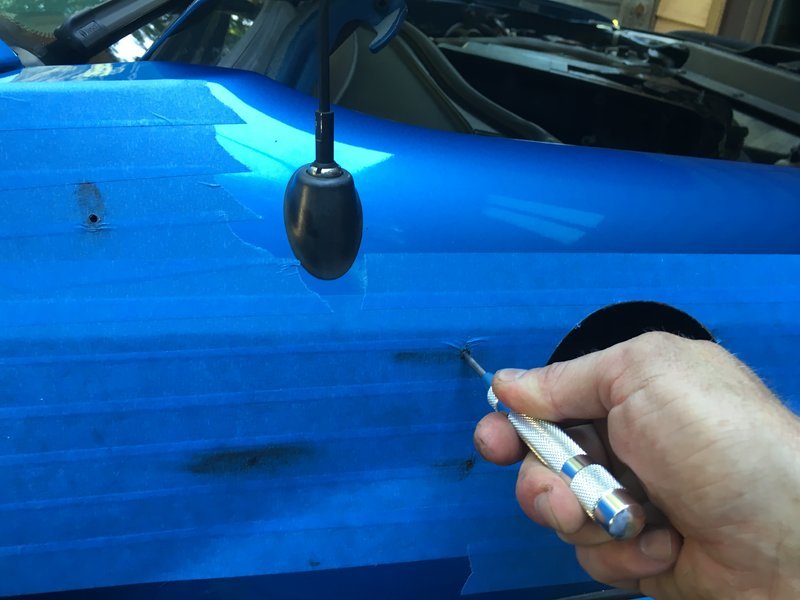

    I used a razor blade and cut the + marks (where to drill)so I can mark the spots with a pencil. I then double and triple checked.

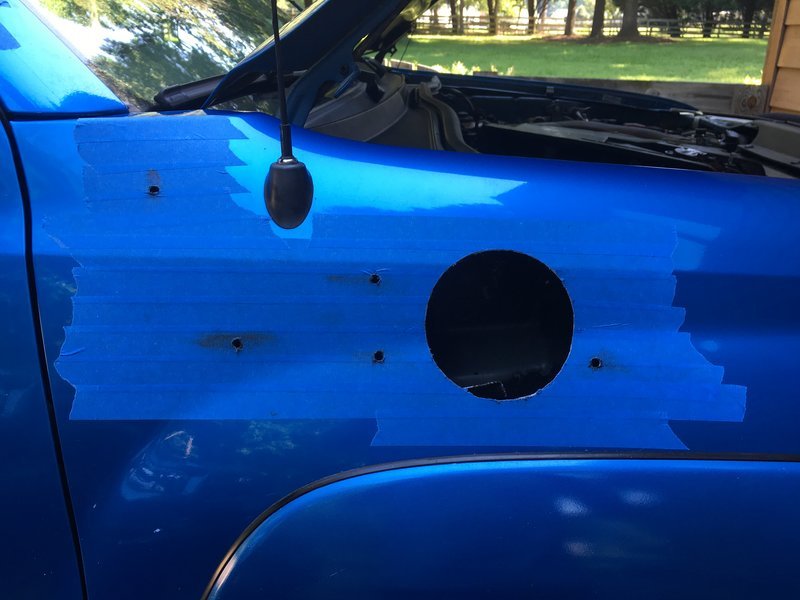

    Then I center punched the big hole and drilled it out with a 105mm/4 1/8inch hole saw.
    DO NOT DRILL THE OTHER HOLES YET!!!

    Now put the studs in the snorkel. I put some grease on the ends of the studs and lined it up and put the snorkel in position marking the tape with the grease from the studs. I found that the marks were way off on all but one of the studs. I did this three times making sure it was right. Then I center punched the spots and drilled.

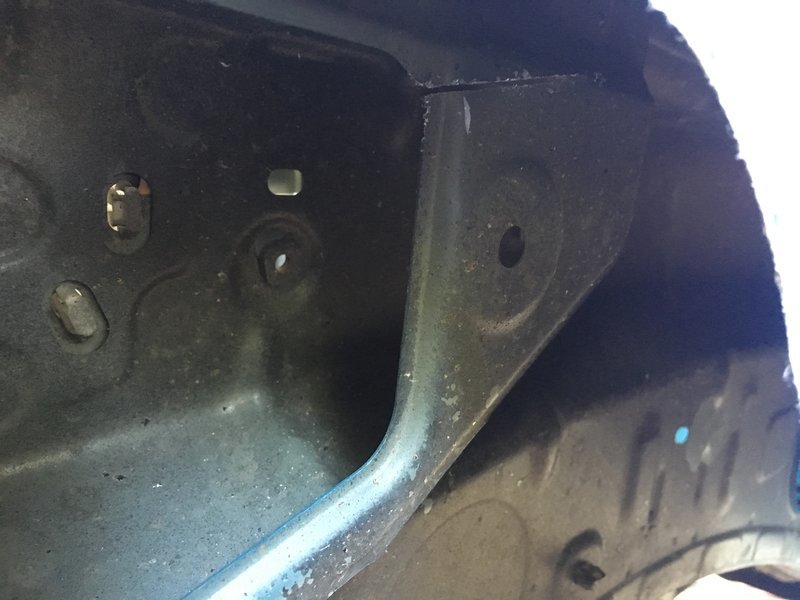

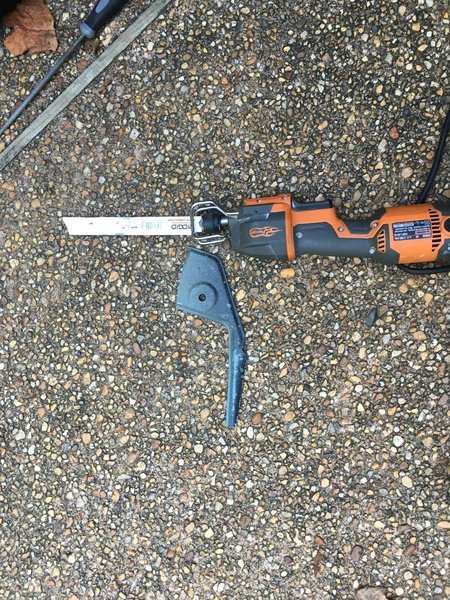

    I then cut the metal support that is behind the big hole to make room for the tubing behind the fender. I went in through the hole for the top of it and under the fender to get to the bottom of the bracket.

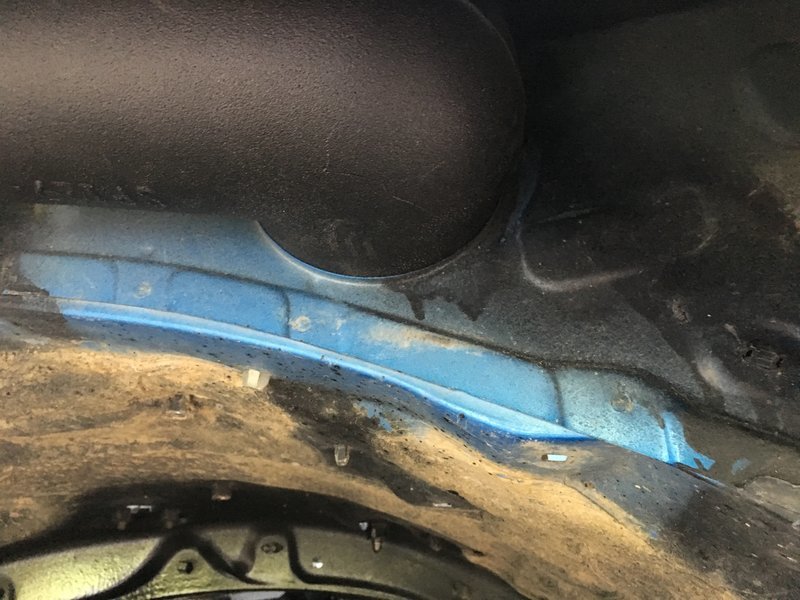

    Then I test fit everything. The elbow wouldn't fit in the stock intake hole so I used a heat gun on the elbow with the clamp around it. Heat a little, tighten, heat, tighten, etc. until it fits.

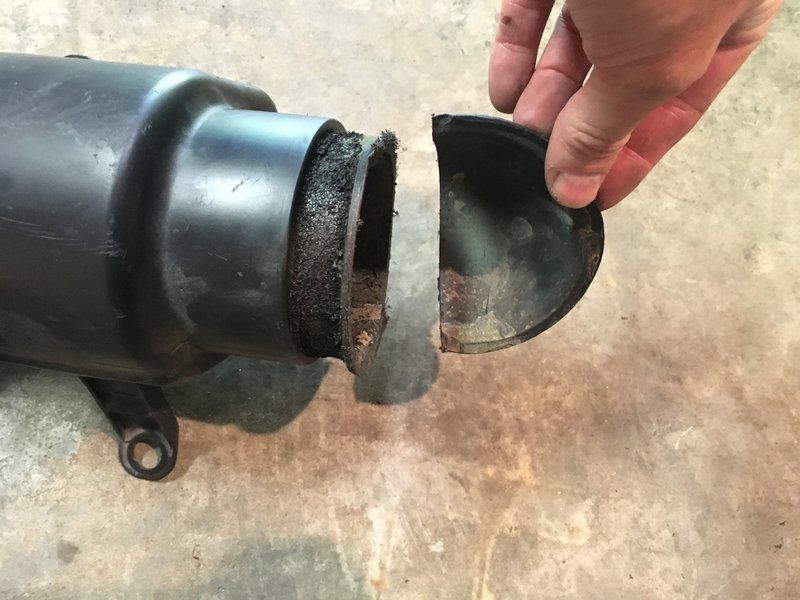

    I also cut off a piece of the stock filter tube

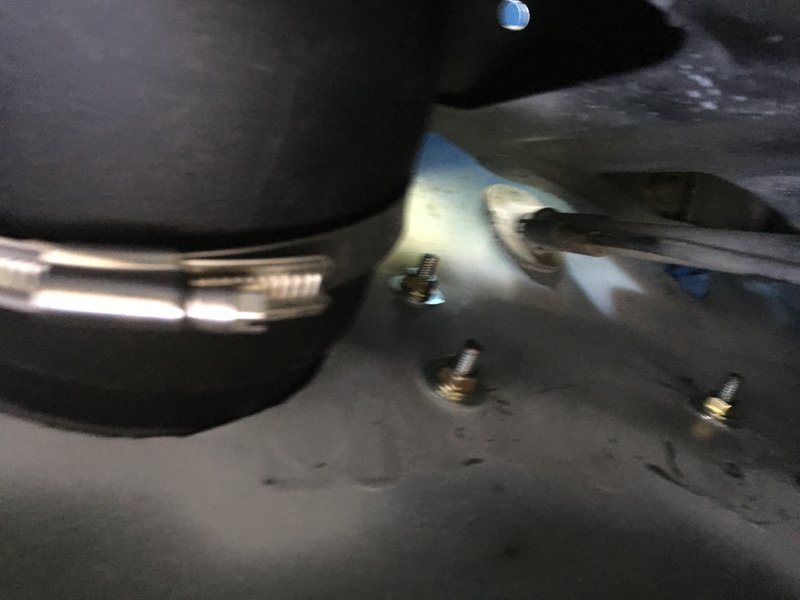

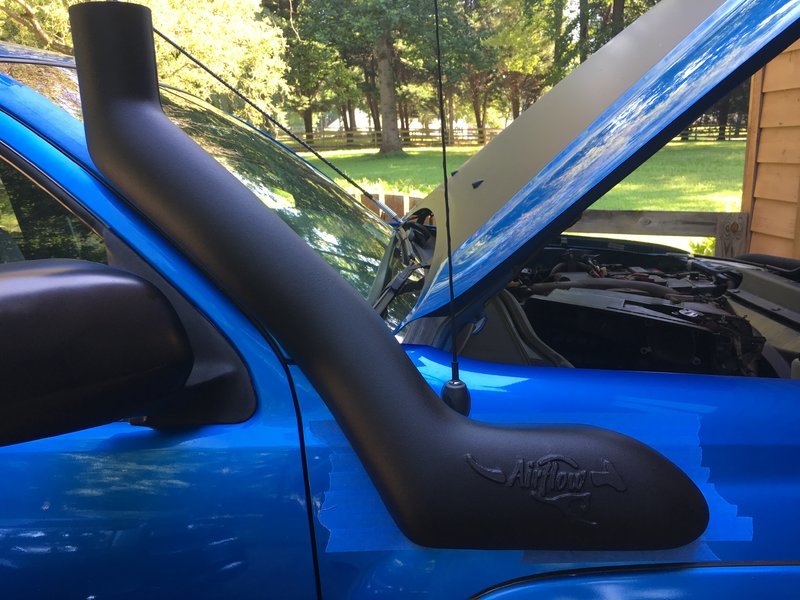

    I then took it back off and started installing it for real. I sealed the studs and installed the snorkel body on the fender then the washers and nuts on the studs. The top most stud nearest to the door sucks. I put tape on the washer to hold it in place then loosened the top bolts that hold the fender on to make a little more room. I then used a ratcheting wrench to get the nut started. After that I got all the elbows and tubes connected and sealed then tightened the clamps.

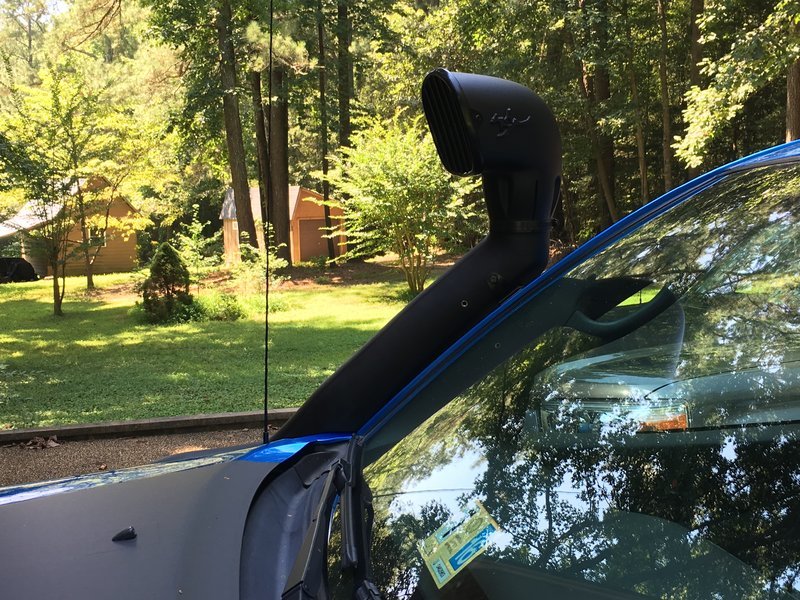

    For the A pillar I used military grade Velcro (there's no fuzzy side) to Secure the bracket to the A pillar

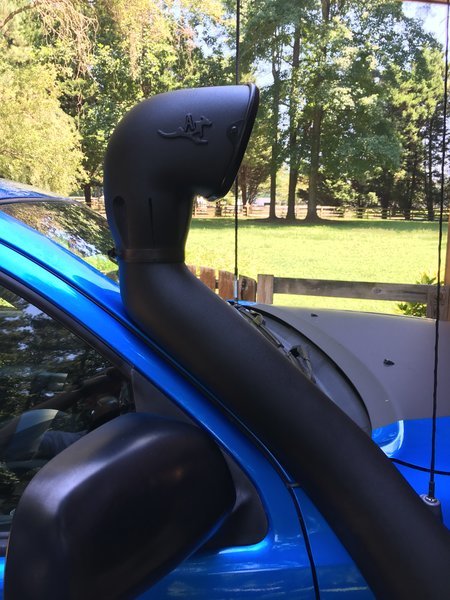

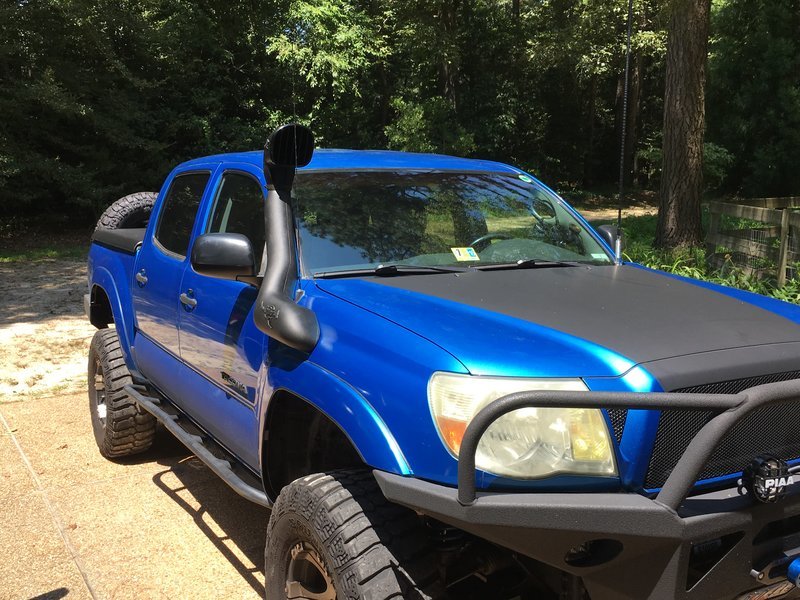

    Then put the scoop on and drink a beer.

    I hope this helps.

    Last edited: Jul 27, 2016
  2. Jul 27, 2016 at 5:25 PM
    #2
    Gearheadesw

    Gearheadesw Well-Known Member

    Joined:
    Apr 2, 2012
    Member:
    #76139
    Messages:
    4,584
    Gender:
    Male
    Davenport Fl
    Vehicle:
    2016 GMC 2500hd
    so many it turned into a GMC
    Thanks for the time and the pics. Helpful.

    lemons [OP] likes this.
  3. Jul 27, 2016 at 5:46 PM
    #3
    la0d0g

    la0d0g Its 4 o’clock somewhere

    Joined:
    Jan 25, 2011
    Member:
    #49903
    Messages:
    17,908
    Gender:
    Male
    First Name:
    Matt
    running for the hills
    Vehicle:
    For crawling not hauling
    No mention of cutting off the old intake curve. Did they change the design so its no longer required?

    Pirhett and lemons [OP] like this.
  4. Jul 27, 2016 at 6:10 PM
    #4
    lemons

    lemons [OP] LOCO 4X4

    Joined:
    May 5, 2013
    Member:
    #103567
    Messages:
    932
    Gender:
    Male
    First Name:
    Ryan
    Virginia
    Vehicle:
    07 TRD DC Offroad 4X4
    Icon coil overs W/King 14 inch 700lb springs and super bump bump stops, Allpro Expo leaf springs, Allpro Ubolt kit W/timbren Bump stops, Dif Drop Kit, Magnaflow Cat-Back Exhaust, Badges painted Rust-Oleum bed liner, Color Matched TRD Sport Grill W/Grille Craft Insert, TRD seat covers, Weather Tech Floor Mats, Flyzeye's , fog light anytime mod, ABS Off mod, ATO skid plates, ATO rear H/C bumper, BAMF sliders w/kick out, CBI front bumper, Engo 10000lb winch, Rigid D2 foglights, Piaa 510 fog lights, cobra CB w/firestix antenna, AFE snorkel
    Forgot about that took a pic too.
    Edit- I added it to the thread


    Attached Files:

    Last edited: Jul 27, 2016
    la0d0g likes this.
  5. Jul 28, 2016 at 10:12 AM
    #5
    bski22

    bski22 Shaka Zulu \000/

    Joined:
    Feb 14, 2016
    Member:
    #178123
    Messages:
    6,773
    First Name:
    Rob
    Vehicle:
    Toyota
    Nice work

  6. Jul 28, 2016 at 10:14 AM
    #6
    taczilla

    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,500
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    Nice!

    Where did you get that Velcro?

  7. Jul 28, 2016 at 10:40 AM
    #7
    lemons

    lemons [OP] LOCO 4X4

    Joined:
    May 5, 2013
    Member:
    #103567
    Messages:
    932
    Gender:
    Male
    First Name:
    Ryan
    Virginia
    Vehicle:
    07 TRD DC Offroad 4X4
    Icon coil overs W/King 14 inch 700lb springs and super bump bump stops, Allpro Expo leaf springs, Allpro Ubolt kit W/timbren Bump stops, Dif Drop Kit, Magnaflow Cat-Back Exhaust, Badges painted Rust-Oleum bed liner, Color Matched TRD Sport Grill W/Grille Craft Insert, TRD seat covers, Weather Tech Floor Mats, Flyzeye's , fog light anytime mod, ABS Off mod, ATO skid plates, ATO rear H/C bumper, BAMF sliders w/kick out, CBI front bumper, Engo 10000lb winch, Rigid D2 foglights, Piaa 510 fog lights, cobra CB w/firestix antenna, AFE snorkel
  8. Jul 28, 2016 at 10:41 AM
    #8
    taczilla

    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,500
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    Thanks!

    Now I just need to hear about my snorkel... :frusty:

    lemons [OP] likes this.
  9. Jul 28, 2016 at 4:35 PM
    #9
    Garfish307

    Garfish307 Well-Known Member

    Joined:
    Mar 24, 2016
    Member:
    #182243
    Messages:
    389
    Gender:
    Male
    First Name:
    Steve
    Katy, TX
    Vehicle:
    2014 Tacoma 4x4 Texas Edition
    Flux Capacitor

    I found this write up which was very informative...FYI yall

    https://www.itapestore.com/3M-Dual-Lock-Guide_ep_49-1.html

    also this tech data explains different densities and density combinations for maximum strength (250/400) appears to be the strongest:

    http://multimedia.3m.com/mws/media/564564O/dual-lock-reclosable-fasteners-sj3872-sj3870-sj3871.pdf

    Last edited: Jul 28, 2016
    Camel51 likes this.
  10. Jul 28, 2016 at 5:23 PM
    #10
    TYetti

    TYetti 4cylinders of awesomeness

    Joined:
    Mar 8, 2014
    Member:
    #124858
    Messages:
    2,336
    Gender:
    Male
    First Name:
    Mat
    Abbotsford, BC, Canada
    Vehicle:
    09 Tacoma AC 2.7L 5spd 4x4
    I never thought about velcro for the a pillar I just used some 1" self toppers and filled the holes full of silicone

  11. Jul 28, 2016 at 9:37 PM
    #11
    Sna

    Sna Well-Known Member

    Joined:
    Mar 21, 2015
    Member:
    #151425
    Messages:
    1,333
    Gender:
    Male
    Alberta
    Vehicle:
    ‘15 trd sport 6MT dcsb 4.56 gears w/Harrop e-lockers
    Looks great....do you have any pictures of under the hood?

  12. Jul 29, 2016 at 4:58 AM
    #12
    lemons

    lemons [OP] LOCO 4X4

    Joined:
    May 5, 2013
    Member:
    #103567
    Messages:
    932
    Gender:
    Male
    First Name:
    Ryan
    Virginia
    Vehicle:
    07 TRD DC Offroad 4X4
    Icon coil overs W/King 14 inch 700lb springs and super bump bump stops, Allpro Expo leaf springs, Allpro Ubolt kit W/timbren Bump stops, Dif Drop Kit, Magnaflow Cat-Back Exhaust, Badges painted Rust-Oleum bed liner, Color Matched TRD Sport Grill W/Grille Craft Insert, TRD seat covers, Weather Tech Floor Mats, Flyzeye's , fog light anytime mod, ABS Off mod, ATO skid plates, ATO rear H/C bumper, BAMF sliders w/kick out, CBI front bumper, Engo 10000lb winch, Rigid D2 foglights, Piaa 510 fog lights, cobra CB w/firestix antenna, AFE snorkel
    It look the same under the hood. No change other than I took off my AFE cold air intake and put back on the stock one.

    Sna likes this.
  13. Jul 29, 2016 at 9:22 AM
    #13
    Sna

    Sna Well-Known Member

    Joined:
    Mar 21, 2015
    Member:
    #151425
    Messages:
    1,333
    Gender:
    Male
    Alberta
    Vehicle:
    ‘15 trd sport 6MT dcsb 4.56 gears w/Harrop e-lockers
    Ok cool.

    How is the quality of this compared to the new Tacoma specific Safari snorkel?

  14. Jul 29, 2016 at 9:45 AM
    #14
    lemons

    lemons [OP] LOCO 4X4

    Joined:
    May 5, 2013
    Member:
    #103567
    Messages:
    932
    Gender:
    Male
    First Name:
    Ryan
    Virginia
    Vehicle:
    07 TRD DC Offroad 4X4
    Icon coil overs W/King 14 inch 700lb springs and super bump bump stops, Allpro Expo leaf springs, Allpro Ubolt kit W/timbren Bump stops, Dif Drop Kit, Magnaflow Cat-Back Exhaust, Badges painted Rust-Oleum bed liner, Color Matched TRD Sport Grill W/Grille Craft Insert, TRD seat covers, Weather Tech Floor Mats, Flyzeye's , fog light anytime mod, ABS Off mod, ATO skid plates, ATO rear H/C bumper, BAMF sliders w/kick out, CBI front bumper, Engo 10000lb winch, Rigid D2 foglights, Piaa 510 fog lights, cobra CB w/firestix antenna, AFE snorkel
    I think it's great. The Safari is a little smaller than the AirFlow so in theory it provides more air. It's a quality product, if I were to do it again I would go with the AirFlow again. Well worth it and it's a little cheaper than Safari.

    YanE30M3 and bski22 like this.
  15. Aug 3, 2016 at 8:59 AM
    #15
    Sna

    Sna Well-Known Member

    Joined:
    Mar 21, 2015
    Member:
    #151425
    Messages:
    1,333
    Gender:
    Male
    Alberta
    Vehicle:
    ‘15 trd sport 6MT dcsb 4.56 gears w/Harrop e-lockers
    Thanks for the reply but the Safari (new 05-15 Taco specific) is not smaller than the Airflow...
    I am just concerned, from things I have read, that the Airflow is not made as well as the Safari and that worries me. I think the Airflow looks MUCH better than the Safari though!

  16. Aug 3, 2016 at 11:47 AM
    #16
    TYetti

    TYetti 4cylinders of awesomeness

    Joined:
    Mar 8, 2014
    Member:
    #124858
    Messages:
    2,336
    Gender:
    Male
    First Name:
    Mat
    Abbotsford, BC, Canada
    Vehicle:
    09 Tacoma AC 2.7L 5spd 4x4
    If run mine into some trees it's still there

  17. Aug 3, 2016 at 12:03 PM
    #17
    la0d0g

    la0d0g Its 4 o’clock somewhere

    Joined:
    Jan 25, 2011
    Member:
    #49903
    Messages:
    17,908
    Gender:
    Male
    First Name:
    Matt
    running for the hills
    Vehicle:
    For crawling not hauling
    Do you mean from the type of plastic used perspective?

  18. Aug 3, 2016 at 1:14 PM
    #18
    Sna

    Sna Well-Known Member

    Joined:
    Mar 21, 2015
    Member:
    #151425
    Messages:
    1,333
    Gender:
    Male
    Alberta
    Vehicle:
    ‘15 trd sport 6MT dcsb 4.56 gears w/Harrop e-lockers
    Last edited: Aug 3, 2016
  19. Aug 3, 2016 at 6:55 PM
    #19
    Garfish307

    Garfish307 Well-Known Member

    Joined:
    Mar 24, 2016
    Member:
    #182243
    Messages:
    389
    Gender:
    Male
    First Name:
    Steve
    Katy, TX
    Vehicle:
    2014 Tacoma 4x4 Texas Edition
    Flux Capacitor
    Installing now..question... 10mm drill holes seems kinda large...?? I know it will have some adjustments but... Did you drill with 3/8"?

    lemons [OP] likes this.
  20. Aug 4, 2016 at 3:57 AM
    #20
    lemons

    lemons [OP] LOCO 4X4

    Joined:
    May 5, 2013
    Member:
    #103567
    Messages:
    932
    Gender:
    Male
    First Name:
    Ryan
    Virginia
    Vehicle:
    07 TRD DC Offroad 4X4
    Icon coil overs W/King 14 inch 700lb springs and super bump bump stops, Allpro Expo leaf springs, Allpro Ubolt kit W/timbren Bump stops, Dif Drop Kit, Magnaflow Cat-Back Exhaust, Badges painted Rust-Oleum bed liner, Color Matched TRD Sport Grill W/Grille Craft Insert, TRD seat covers, Weather Tech Floor Mats, Flyzeye's , fog light anytime mod, ABS Off mod, ATO skid plates, ATO rear H/C bumper, BAMF sliders w/kick out, CBI front bumper, Engo 10000lb winch, Rigid D2 foglights, Piaa 510 fog lights, cobra CB w/firestix antenna, AFE snorkel
    I used a step up bit until the studs fit. Should be around 3/8 or so.
