How to: Bed Lights w/Tailgate Pin Switch

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ilovetacos, Aug 30, 2009.

  1. Aug 30, 2009 at 8:58 PM
    #1
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    I know a few others have done this but I thought I would share mine since everything I do on my truck I try and make it very simple, neat and OEM looking.

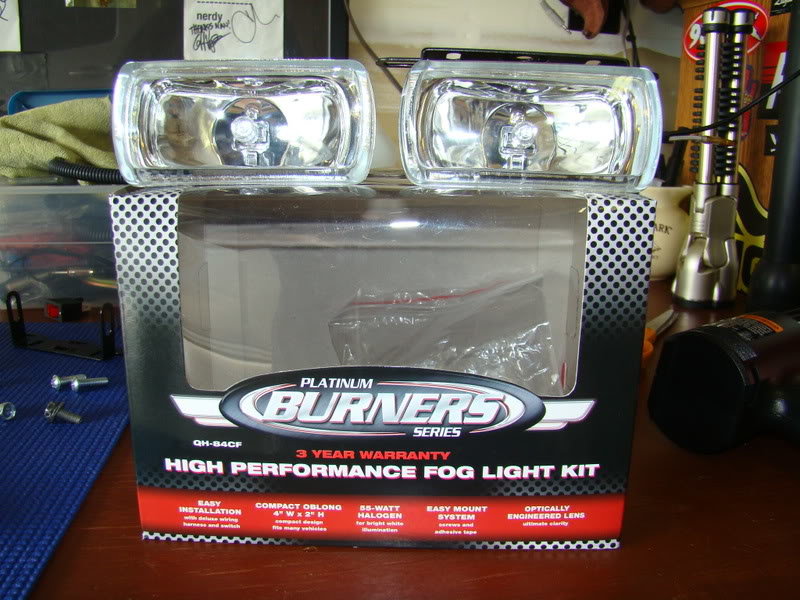

    Started with these $20 Fog Lights from Wal-Mart. They worked out really well and come with everything you need to install them except you will need more electrical wire for the grounds and I used a different in-cab switch.
    [​IMG]


    I mounted the lights to the top of each cubby so I can still use them to store small items.
    [​IMG]

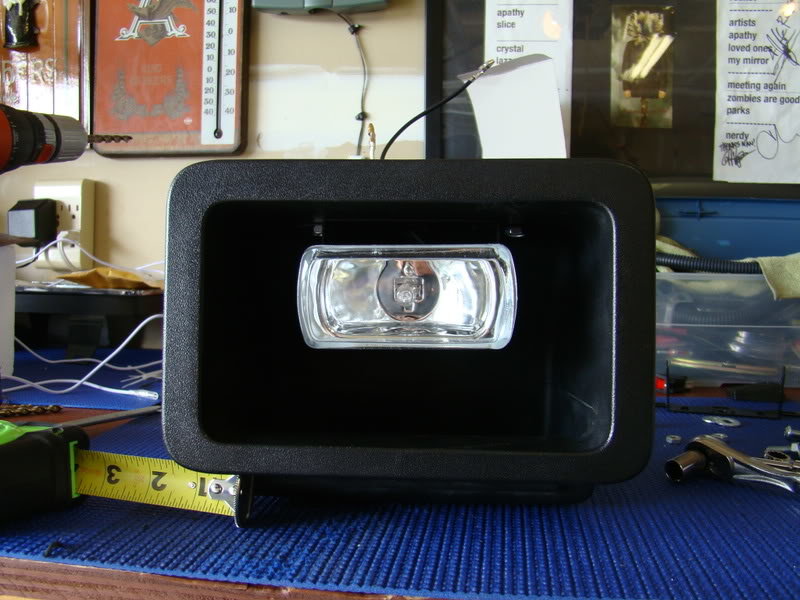

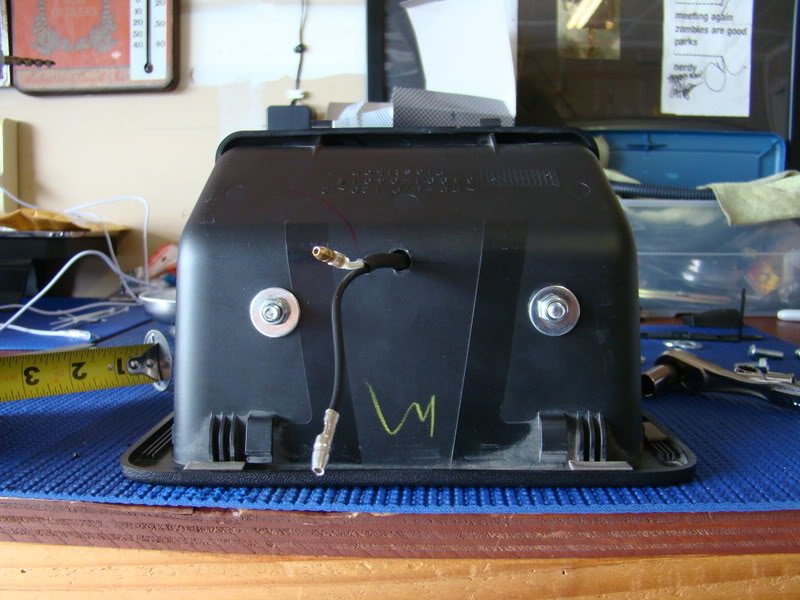

    Back/Top view of the cubby.
    [​IMG]

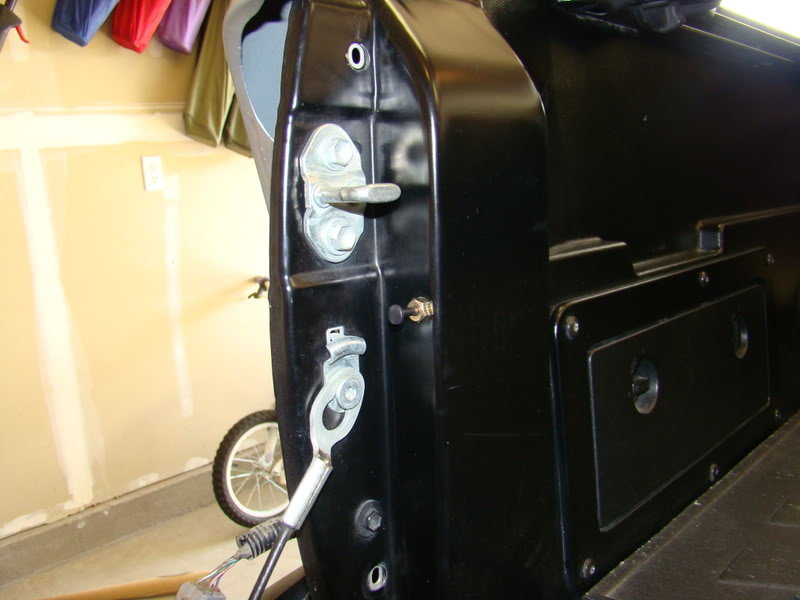

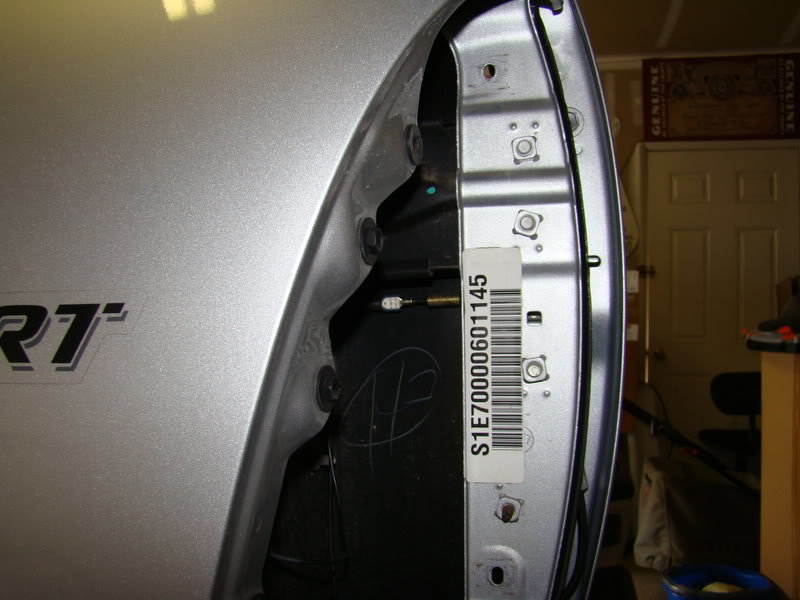

    Added a door pin switch that fit perfectly where the rubber bump stop was. I picked this up from a local stereo shop. I connected the grounds to this switch so when the tailgate is open the grounds connect and the lights turn on. When the tailgate is closed the grounds disconnect and the lights turn off.


    Updated 4/1/11: I am now using the door pin switch. The plastic one ended up breaking.
    [​IMG]



    [​IMG]


    You have to remove the taillight to install the door pin switch and connect the ground wires.
    [​IMG]

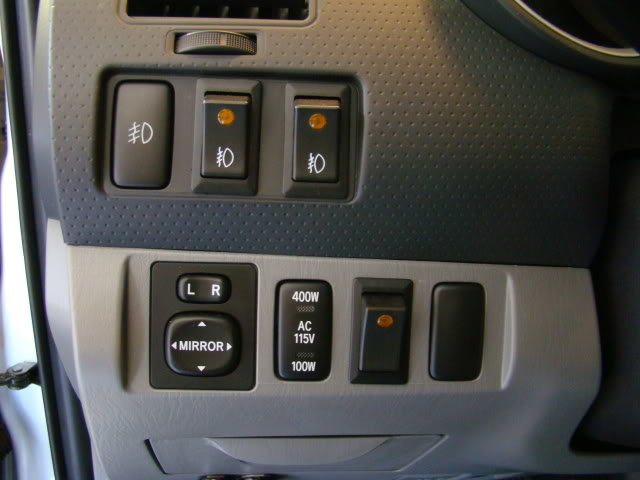

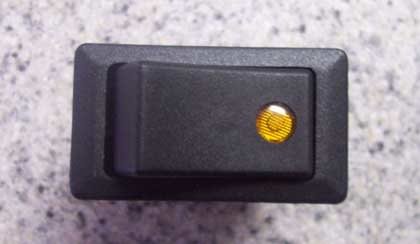

    I ordered this switch off of ebay and mounted it into one the empty slots in-cab. If I have to leave my tailgate open for a long period I can manually turn off the bed lights by turning this switch off.
    [​IMG]
    [​IMG]

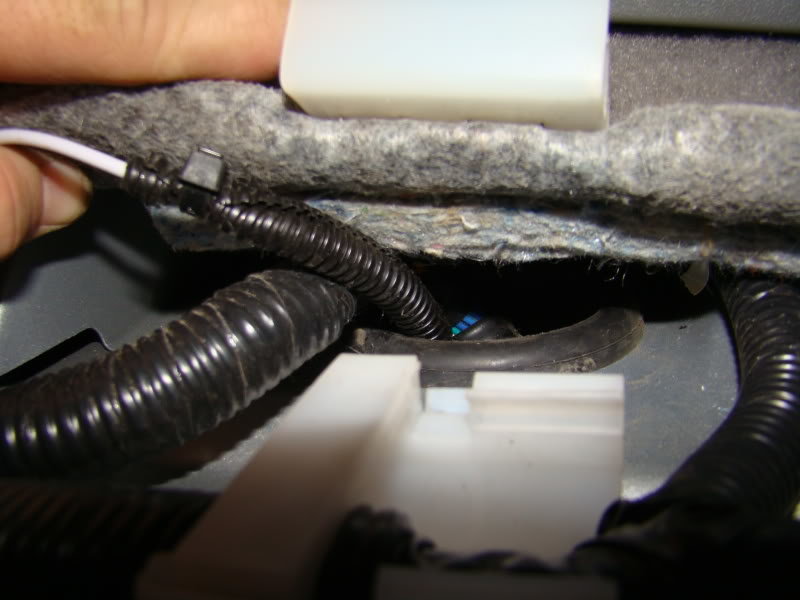

    To get the wires into the cab I ran them thru a rubber grommet that is already under the drivers seat.
    [​IMG]

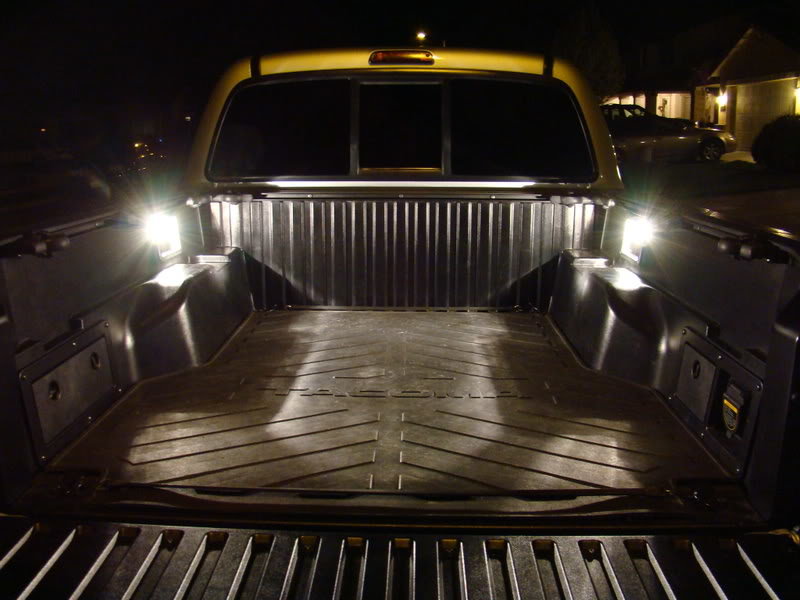

    Success!!!
    [​IMG]

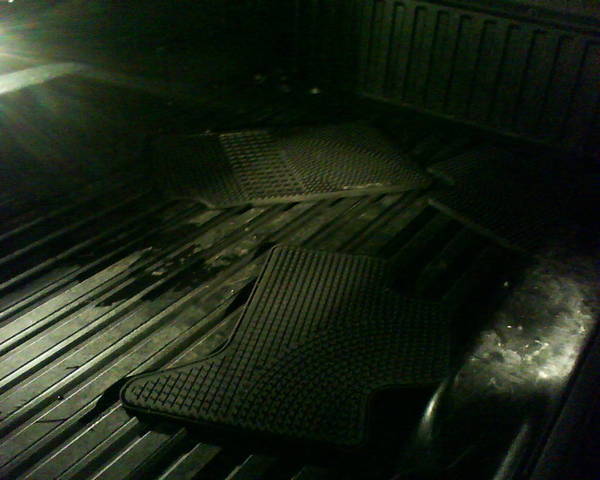

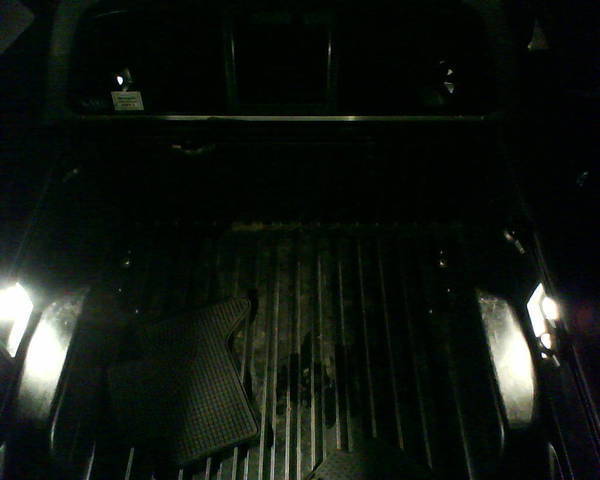

    All the wiring was fairly easy to do. I ran everything under the bed and along the sides for the ground wires. I covered all of the wiring with wire loom, some shrink tubing and used a crap load of zip ties!

    I have had them in since March '09 and they still work fine. The lights haven't fogged up from water or cracked or discolored.
