How to Change a CV Axle on an 01-04 ADD Tacoma

Discussion in 'Technical Chat' started by tigerfan00, Dec 15, 2008.

  1. Dec 15, 2008 at 9:39 PM
    #1
    tigerfan00

    tigerfan00 [OP] BECAUSE INTERNETS!! Staff Member

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    37,397
    Gender:
    Male
    First Name:
    Jeff
    Dunkin Donuts
    Vehicle:
    02 TRD 4x4
    Here’s my little writeup on how to change a CV axle on a 01-04 ADD Tacoma

    Tools required:
    36mm Socket
    Breaker bar or Air-gun
    Small chisel or sharp strong screwdriver
    Rubber mallet
    Metric socket set
    Jack
    Jackstands
    Small or needlenose pliers


    Step 1
    Jack up the front side of the truck where you’ll be changing the axle. Be sure to NOT jack on the control arm as you’ll need that to have a smidge of play in it later

    Step 2
    Remove tire/wheel/skid plate

    Trust me on the skidplate – ESPECIALLY if you have aftermarket skids

    Usually I like to place the tire underneath the front of the truck so that God-forbid the jack/jackstands fail the truck doesn’t crash completely to earth. I chose NOT to do this during this axle change. I also did not use jackstands as I was unable to locate mine. I did however use 2 jacks for that just-in-case factor

    Step 3

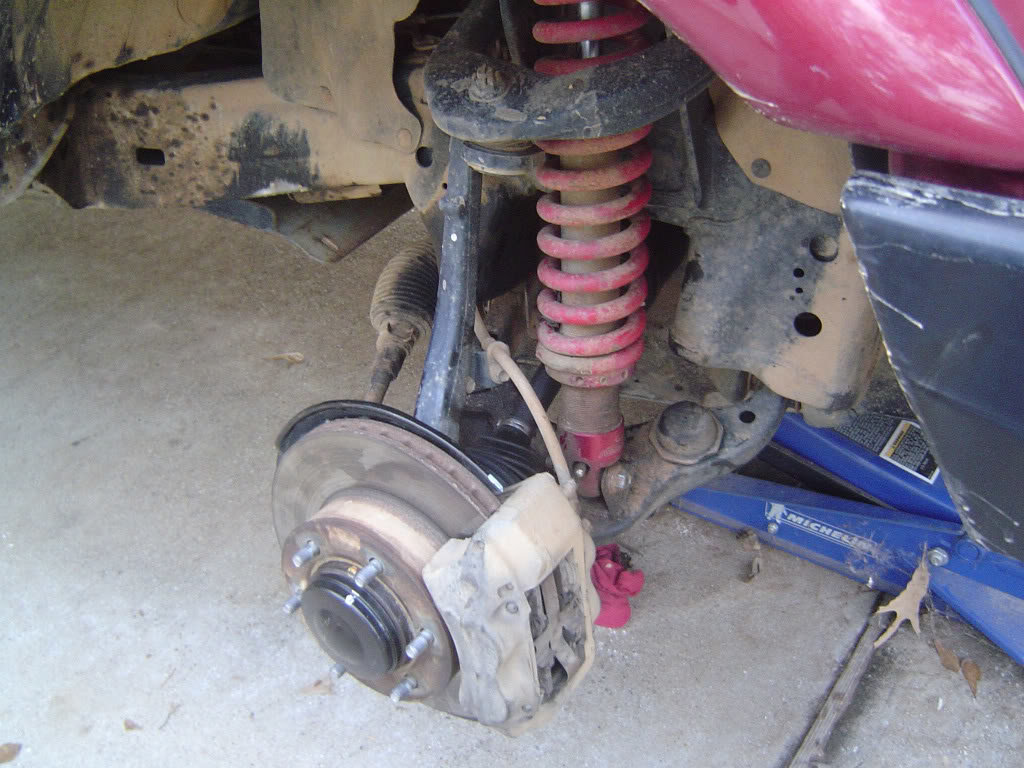

    Once you’ve removed the wheel, you’ll see a black metal cap at the center of the hub
    You’ll want to remove this carefully so as not to booger up the edge too badly because we’re going to reuse this. The best way to remove it is with a chisel or sharp screwdriver. I used a small chisel and a rubber mallet and it popped right off

    [​IMG]

    Step 4

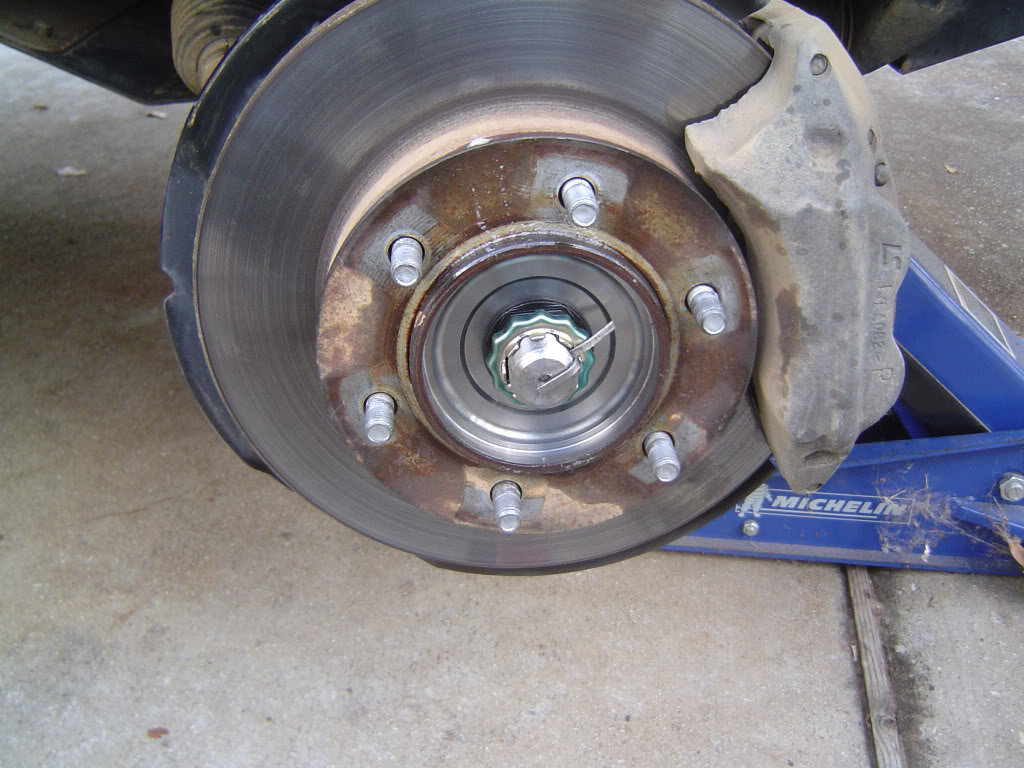

    Once you’ve removed the black dust cap from the hub assembly, you’ll see a large nut and a cotter pit and quite possibly a cotter pin lock? Im actually not sure what you call it but it’s the green thing in my picture

    Remove the cotter pin and cotter pin lock and then using a 36mm socket and a breaker bar or air gun (what I prefer) remove the large nut. This can get a bit tricky as the hub will want to spin while you unscrew the nut. It’s handy to have a 2nd pair of hands to help you but I wasn’t so fortunate today. I angled a screwdriver between 2 of the studs and braced the hub from spinning while removing the nut with the air gun.

    [​IMG]
    [​IMG]
    [​IMG]

    Step 5
    Once you’ve removed the cotter pin and nut, move around to the backside of the hub assembly and disconnect the 4 screws holding the spindle to the lower ball joint. There are 2 at the front and 2 at the back. IIRC this is a 12mm socket.

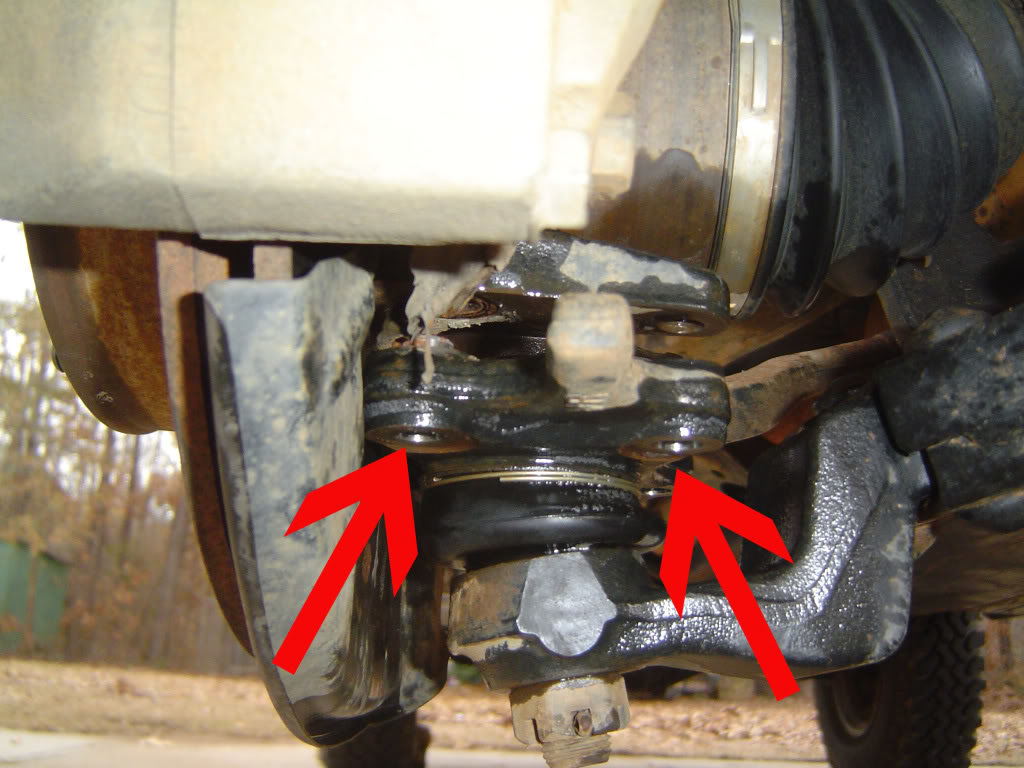

    In my picture, I’ve already removed the bolts but the arrows are pointing to where they were.

    [​IMG]

    Step 6

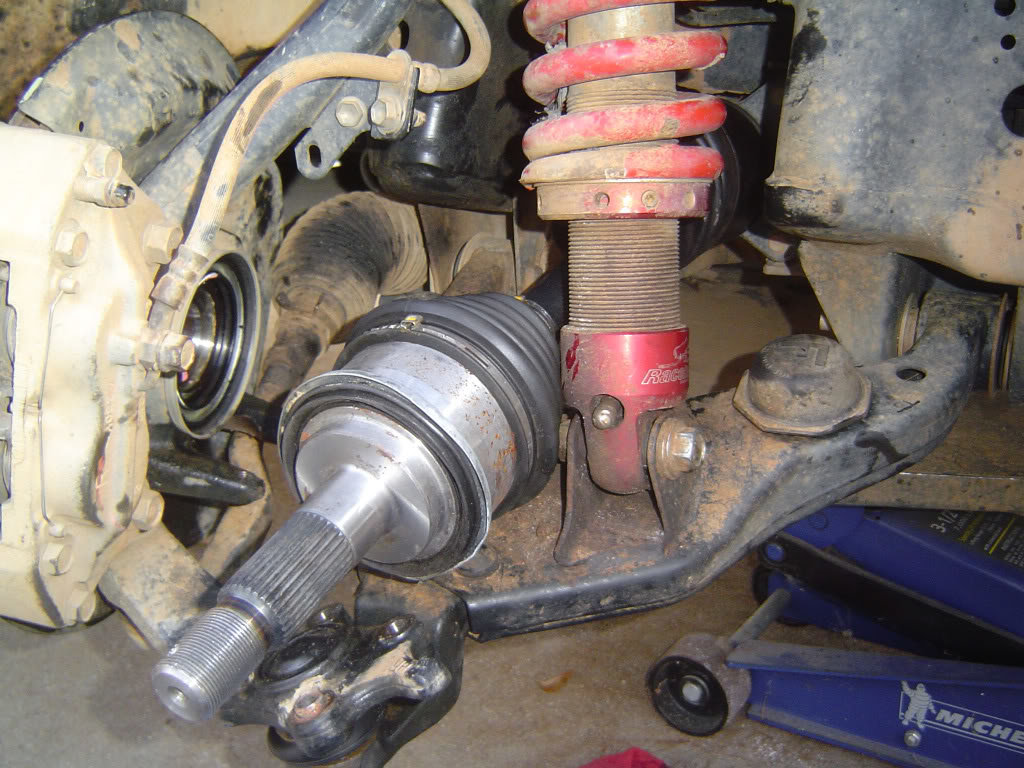

    Pull the spindle out and separate it from the cv axle. It should slide out fairly easily but you may have to bump it slightly to get it to separate. Swing the spindle around to the backside towards the cab of the truck.

    [​IMG]

    Step 7

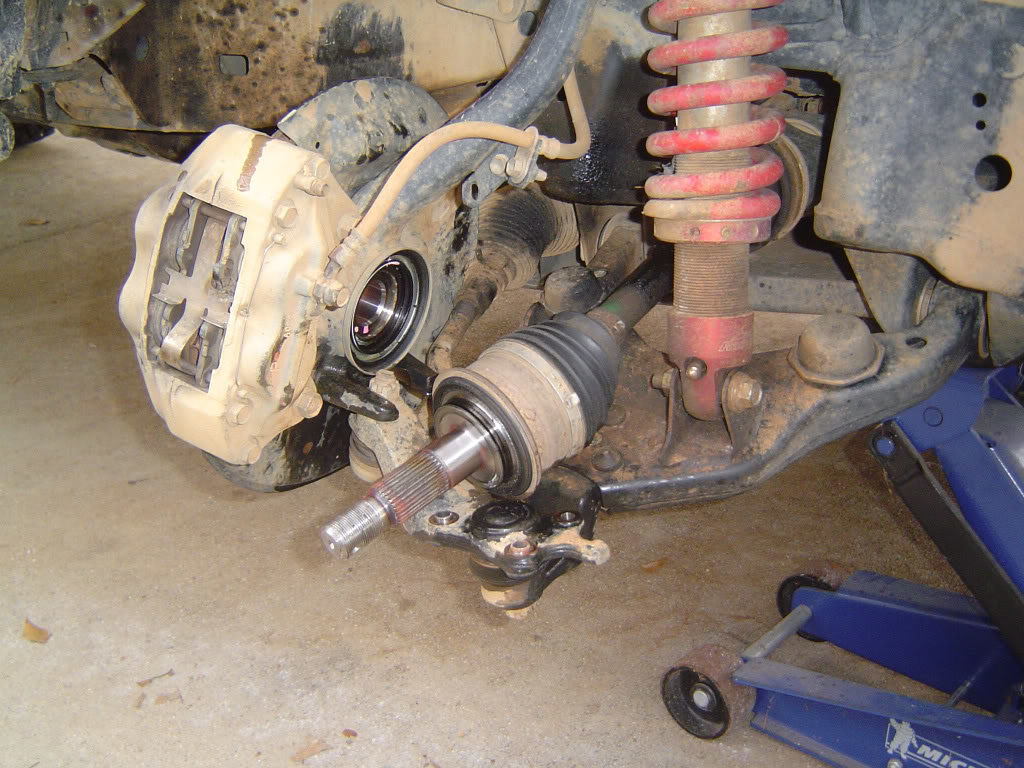

    Remove CV from diff. This is probably the most difficult and time consuming part of the change. You’ll need a prybar (preferably a skinny one). There is a lip on the CV next to the diff that you can use to pop the CV out. Use the prybar to pop the CV loose. You’ll know when it pops free. It’s held in there by a little c-ring around the end of the axle (denoted by the GREEN arrow in the picture below, with the lip marked with RED arrow).

    [​IMG]

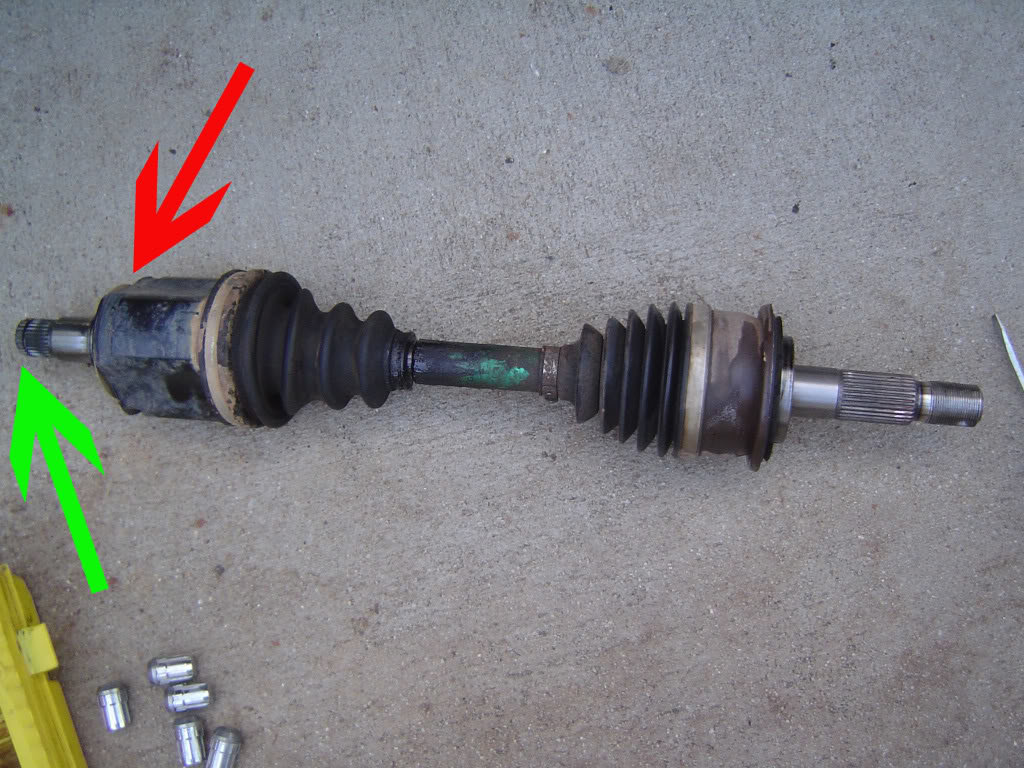

    Now that you’ve successfully pried the CV out of the diff, you’ll probably lose a little bit of gear oil…no biggie…it shouldn’t be that much. If you lose a lot be sure to add some.

    [​IMG]

    Step 8

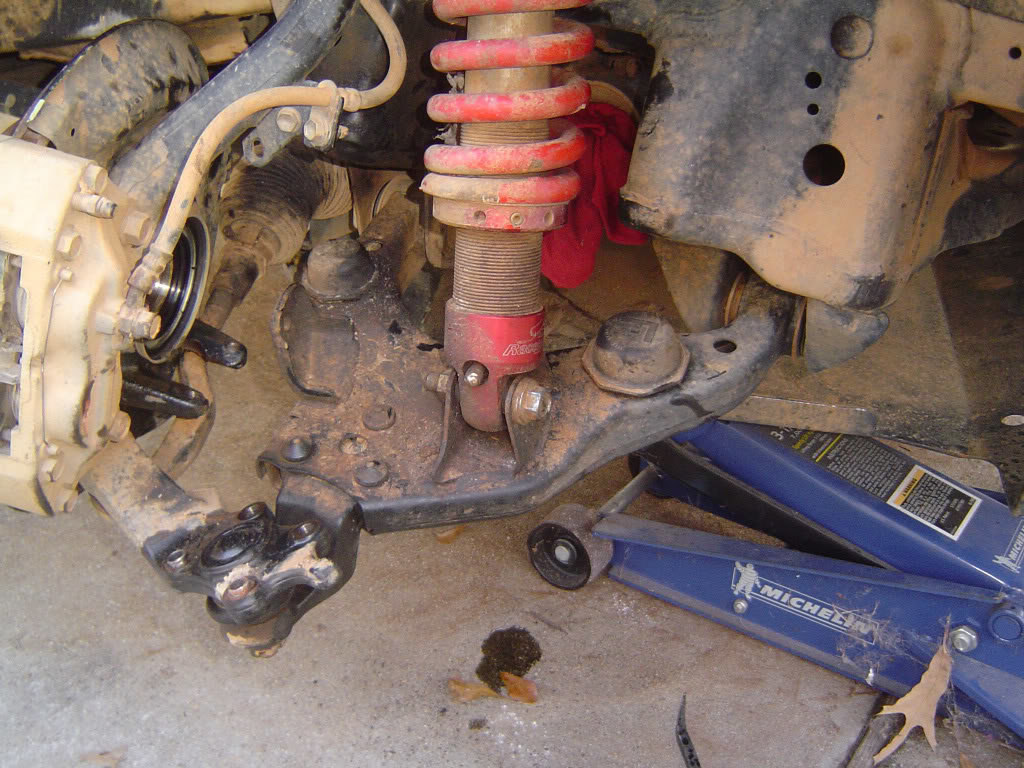

    Now you’re ready to slide the new CV in. This can also be tricky because you have to line up the splines, but just keep trying and turning it till it slides part of the way in. It will more than likely stop before going all the way in. Using the prybar and rubber mallet, gently tap it all the way into the diff. The c-ring will lock it in once it gets in there good.

    [​IMG]

    Step 9
    Bring the spindle/hub assembly back around to where it should be and push the end of the CV thru it. Once again be sure to line up the splines as you don’t want to booger those up in any way. This should slide most of the way thru with no problems.

    Step 10
    Button up the spindle to the lower ball joint/control arm with the 4 bolts you removed previously

    Step 11
    Put the large nut onto the CV axle and tighten down. Place cotter pin lock onto the CV axle and then push cotter pin thru the hole to finish locking the CV in. Check the backside of the hub where the CV joint meets the hub to make sure it’s seated properly. There’s a gasket and lip there that should meet flush with the hub assembly.

    Step 12
    Using the rubber mallet, gently tap the dust cap back into place. Replace skid plates, tire/wheel. Lower jacks. Recheck lugs on the wheel. Take her for a test drive!

    [​IMG]

    [FONT=&quot]That’s it. Pretty easy DIY. It took me about 2 hours including gathering my tools and putting them away.[/FONT]

  2. Dec 15, 2008 at 10:57 PM
    #2
    Janster

    Janster Old & Forgetful

    Joined:
    Mar 25, 2007
    Member:
    #1138
    Messages:
    13,815
    Gender:
    Female
    First Name:
    Jandy
    Lancaster, PA
    Vehicle:
    2007 4.0L 4x4 TRD Sport Access Cab A
    Advantage Torza top (tri-fold), Husky floor mats, RuffTuff seat covers, C2C hood struts, Homelink mirror, USA Spec PA15-Toy (120gig Classic & 8gig nano), Garmin Nuvi 660, Protecta Bed mat, Pop-n-lock, TSB Springs, Scangauge II, Heated drivers seat, Fumoto drain valve, Aries pushbar, PIAA 540 fog lights, Hood scoop grahics, Flowmaster 50 series dual catback exhaust, RainX Latitude windshield wipers, Husky rear floor liner (ontop of folded down seats). Console Vault.
    You really should put that in an HTML format. I wish I had time, or else I'd do it for you. Nice write-up!

  3. Dec 15, 2008 at 10:59 PM
    #3
    TacoNut

    TacoNut IgnoringChrisWatchingEdLi veVicariouslyThroughMJP2

    Joined:
    Mar 29, 2008
    Member:
    #5597
    Messages:
    5,248
    Gender:
    Male
    First Name:
    Adam
    Denver, Co
    Vehicle:
    *SOLD* 08 Prerunner SR5 TRD OR Acess Cab
    Nice write-up Tiger!!!
    Sticky maybe?

  4. Dec 15, 2008 at 11:33 PM
    #4
    Tacoma02TRD

    Tacoma02TRD Well-Known Member

    Joined:
    Nov 1, 2008
    Member:
    #10418
    Messages:
    225
    Gender:
    Male
    Walla Walla WA/ Klamath Falls OR
    Vehicle:
    02 Tacoma TRD
    3inch Revtech lift,Flowmaster Muffler, K&N cold air intake, 33x12.5 Maxxis Bighorns, TRD stock locker, Hella 500 Fog lights, Scanguage II, 6k HIDs, Painted Black Rims
    Great write up. I too think it should be a sticky

  5. Dec 16, 2008 at 6:21 AM
    #5
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,110
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Good job, Copper!!!!

  6. Dec 16, 2008 at 6:24 AM
    #6
    Dark Knight

    Dark Knight Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,546
    Gender:
    Male
    First Name:
    Jeff
    NC/SC
    Vehicle:
    Trail Limo
    Icon stuff, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 Trail grapplers, Rigid SR. 20", Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
    Sweet write up! time to go tear shit up again!

  7. Dec 16, 2008 at 10:20 AM
    #7
    tigerfan00

    tigerfan00 [OP] BECAUSE INTERNETS!! Staff Member

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    37,397
    Gender:
    Male
    First Name:
    Jeff
    Dunkin Donuts
    Vehicle:
    02 TRD 4x4
    what do you mean? i dont have a webpage or anything so i have no use of it being in html format

    thanks guys

    thanks...tho i have a strange issue now...the spare cv i got from a guy who cut out all his IFS and it came out of i think an 03 tacoma...anyways...the boot closest to the tire has one more rib than the stock one and previously i had no ribs touching but now i do...i tried to take my busted one to autozone but they no longer do core swaps as they claim their new cvs are all core-less

    not until i get some more money, time and the issue i just described with chris sorted out

    oh and now my driver's side is leaking grease from the inner boot :rolleyes::mad:

  8. Dec 16, 2008 at 10:26 AM
    #8
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    104,110
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Interesting. Maybe the guy that had the shaft before replaced only the boot, but with a different one? In the past, I have heard about people useing a "spiral" type boot. Maybe you could find one of them. they are supposed to eliminate any rubbing of fins altogether.

  9. Dec 16, 2008 at 10:30 AM
    #9
    tigerfan00

    tigerfan00 [OP] BECAUSE INTERNETS!! Staff Member

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    37,397
    Gender:
    Male
    First Name:
    Jeff
    Dunkin Donuts
    Vehicle:
    02 TRD 4x4

    im just gonna say screw it for now and run this one till it starts popping...i only paid $50 for it...i'll keep my eyes open for another couple from a SAC on ttora...cheaper than the $125 autozone core-less special right...tho many people have said that the aftermarket ones like autozone or a place like that are stronger than OEM ones and typically last longer...

  10. Dec 16, 2008 at 10:34 AM
    #10
    JVTACOMA

    JVTACOMA Well-Known Member

    Joined:
    Nov 18, 2008
    Member:
    #10851
    Messages:
    168
    Gender:
    Male
    nice write up... and well done!!!

    the only thing i would add is to use lock-tite to the 4 bolts in step 10. i had those bolts get loose on me before.

    i wish i had to time to do those kind of write-ups but i'm usually always in a rush to get my junk back together!!!

    agian, nice work!!!

  11. Dec 16, 2008 at 10:43 AM
    #11
    tigerfan00

    tigerfan00 [OP] BECAUSE INTERNETS!! Staff Member

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    37,397
    Gender:
    Male
    First Name:
    Jeff
    Dunkin Donuts
    Vehicle:
    02 TRD 4x4
    you're right...a drop of locktite would be a good idea...because those falling out will be a VERY bad day...but i dont have any and i just cranked down on them good and i'l check them in a couple days

  12. Dec 16, 2008 at 11:27 AM
    #12
    LonghornTaco

    LonghornTaco Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    Ditto on the nice writeup! Since I put on my lift, I've wondered how one would go about changing them...

    Couple of questions:
    1. How different is this from the '05+ (anyone)?
    2. How much is a set of CV axles (in case I want to keep an extra pair on hand)?

  13. Dec 16, 2008 at 11:35 AM
    #13
    TicTacOma

    TicTacOma UnderWater Monopoly Champion

    Joined:
    Dec 14, 2007
    Member:
    #3840
    Messages:
    1,537
    Gender:
    Male
    First Name:
    Anastatia Beaverhausen
    Columbia,SC
    Vehicle:
    I'm Thinking...Oh Yeah...An FJ
    It's all in my head at the moment...
    Here's a question. Without the extra hands to help you keep from axles/hubs from spinning, could you (if you had 4wheel drive) put the truck in 4wheel drive and keep that axle from spinning if you had only one wheel up in the air and the opposite on the ground? I know there is a locker question here somewhere.

    Just wanted to contribute....

  14. Dec 16, 2008 at 11:46 AM
    #14
    tigerfan00

    tigerfan00 [OP] BECAUSE INTERNETS!! Staff Member

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    37,397
    Gender:
    Male
    First Name:
    Jeff
    Dunkin Donuts
    Vehicle:
    02 TRD 4x4
    i would assume that its a very similar setup...but ive never actually looked...

    new CVs from autozone for my truck are $125/per side so $250 for 2 of them...i buy them used from someone whos putting a solid axle under their truck and no longer need the CVs

    i dont know how good of an idea that is honestly...

    when i was doing it...i found if you angled a screwdriver between the wheel studs against the spin you could get enough opposite force to break the nut loose enough to undo by hand the rest of the way

  15. Dec 16, 2008 at 12:43 PM
    #15
    tigerfan00

    tigerfan00 [OP] BECAUSE INTERNETS!! Staff Member

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    37,397
    Gender:
    Male
    First Name:
    Jeff
    Dunkin Donuts
    Vehicle:
    02 TRD 4x4
    good point...but when income and availability of funds is a factor...a used $50 cv is much more appealing than a $125 one

  16. Dec 16, 2008 at 2:15 PM
    #16
    tacomaman06

    tacomaman06 Carolina Alliance: Lead, follow, or get the hell o Staff Member

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,305
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '13 Silverado ext cab
    awesome write up Jeff!!! definitely should be "stuck":D.

  17. Dec 16, 2008 at 2:17 PM
    #17
    tacomaman06

    tacomaman06 Carolina Alliance: Lead, follow, or get the hell o Staff Member

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,305
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '13 Silverado ext cab
    good to hear they are lifetime...........i may need to replace mine pretty soon, if the dealership doesnt cover them under warranty. they arent in bad shape per say........but the boots are dry rotted, not all the way, but pretty close.

  18. Jan 13, 2011 at 4:37 PM
    #18
    ywen

    ywen Well-Known Member

    Joined:
    Nov 28, 2009
    Member:
    #26636
    Messages:
    1,058
    Gender:
    Male
    I'm afraid of damaging the diff seal when popping out the CV. Is this possible? Also how critical is it to tighten down all the bolts to spec. Do we know what the spec torque is?

  19. Jan 14, 2011 at 5:33 AM
    #19
    tigerfan00

    tigerfan00 [OP] BECAUSE INTERNETS!! Staff Member

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    37,397
    Gender:
    Male
    First Name:
    Jeff
    Dunkin Donuts
    Vehicle:
    02 TRD 4x4
    at your own risk of course

    i dont use a torque wrench...dont even own one...just sayin


    and i dont think i've damaged my diff seal...and ive changed CVs several times

  20. Jan 14, 2011 at 7:42 AM
    #20
    Southern01Taco

    Southern01Taco Well-Known Member

    Joined:
    Jul 20, 2010
    Member:
    #40457
    Messages:
    1,956
    Gender:
    Male
    First Name:
    Sean
    Holden, La
    Vehicle:
    01 V6 4x4 Xtra Cab SR5
    I think the only time you have to worry about messing up the diff seal, is when you are reinstalling the axle. You just have to take your time and go easy.

To Top
