How to: Install 3 pack AAL to TSB Springs

Discussion in 'Suspension' started by loco, Feb 2, 2013.

  1. Feb 2, 2013 at 12:28 PM
    #1
    loco

    loco [OP] Have Lockers will Travel!

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    4,762
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    2013 TRD Sport 4x4
    Way too much...Click on the build thread!
    Okay so I just finished up installing a set of wheelers 3 leaf aal on my 2013 Sport 4x4 and took many pics to help aid those who want to install the 3 pack but may have questions about them not working right out of the box becuase of the tsb clamps.

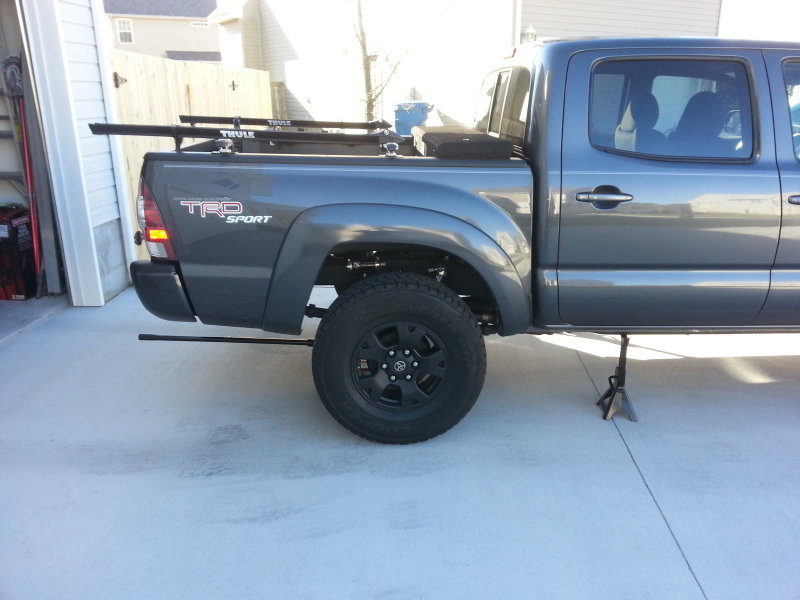

    1. Jack up the truck and put jack stands under the frame. Remove wheels and disconnect the rear shock bolt.

    [​IMG]

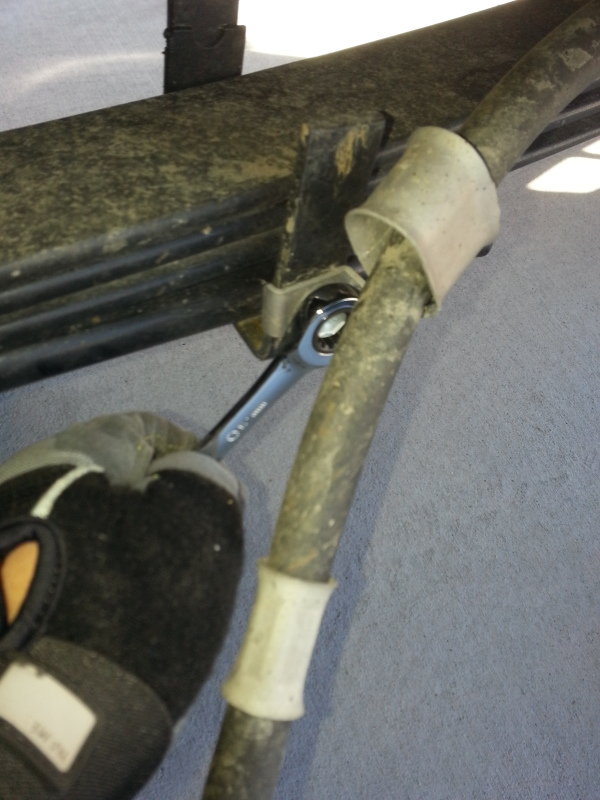

    2. Remove the bolt holding the e brake cable to allow even further droop.

    [​IMG]

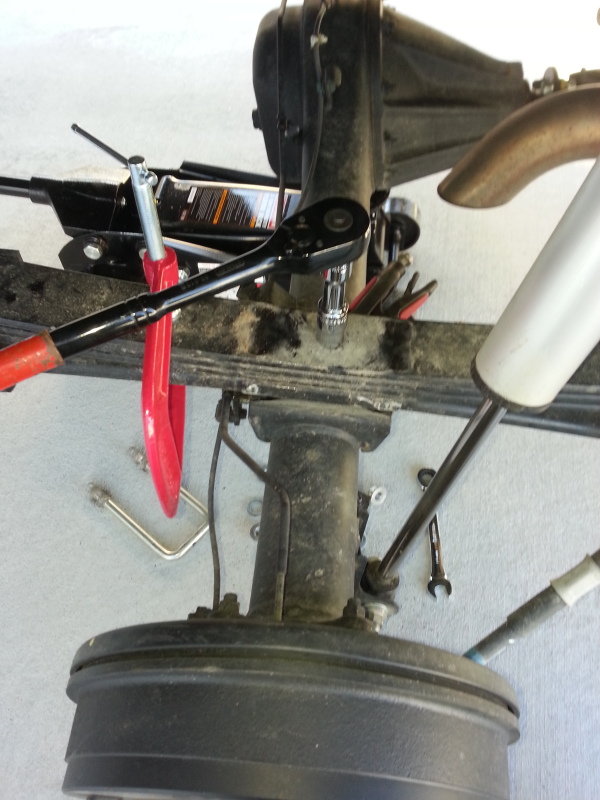

    3. Remove the 4 nuts holding your u bolts on and remove the lower mount. Take the old u bolts and nuts and put them to the side.

    [​IMG]

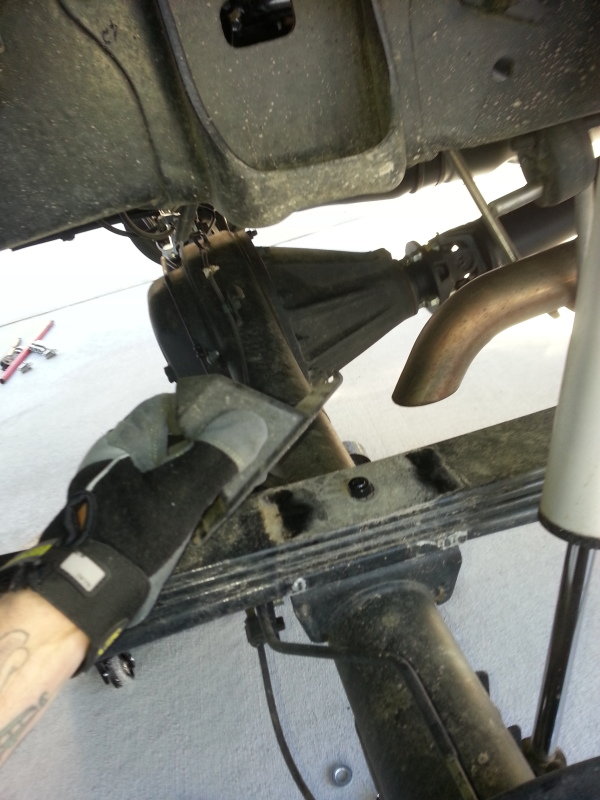

    4. Remove your stock bump stop and retain for future use.

    [​IMG]

    5. Lower the axle with the jack. Install a clamp to the stock pack and use vise grips to hold the bottom of the bolt while removing the nut.

    [​IMG]

    6. Now here is where some of the other threads kind of leave us TSB folks behind. You must remove the rear clamp closest to the axle. I tried to install it just to take these pics so you can see why. It is an easy fix. Use a small angle grinder and cut the two wings off the wrap. Then cut off the rivet holding whats left on the leaf and follow up by grinding down the excess metal so your new spring pack can move easily and quietly. Just take a look at the pics and that should help.

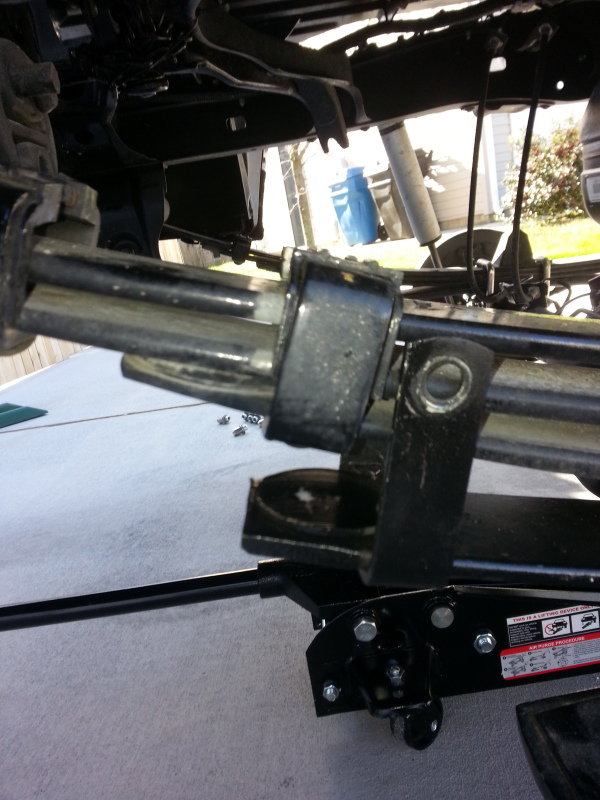

    New clamp in the way of stock clamp.
    [​IMG]

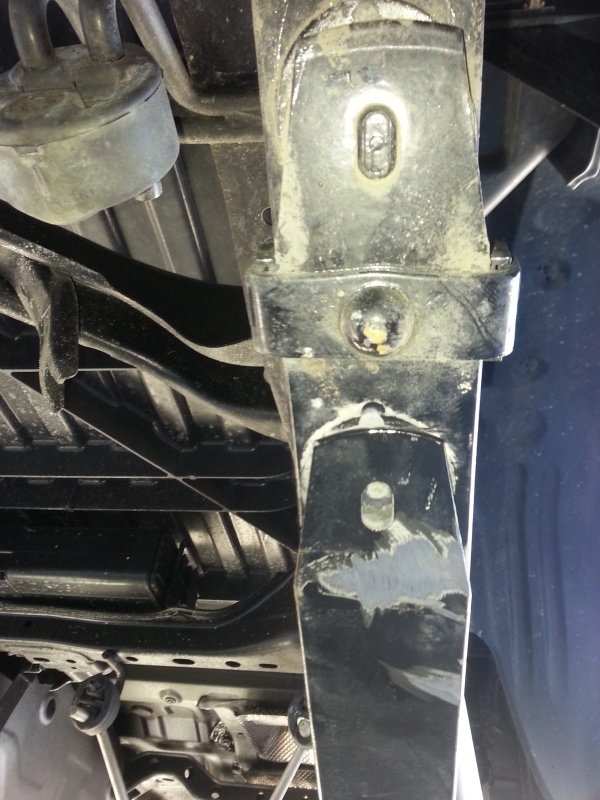

    Wings removed and all you need to do is cut the rivet!!!

    [​IMG]

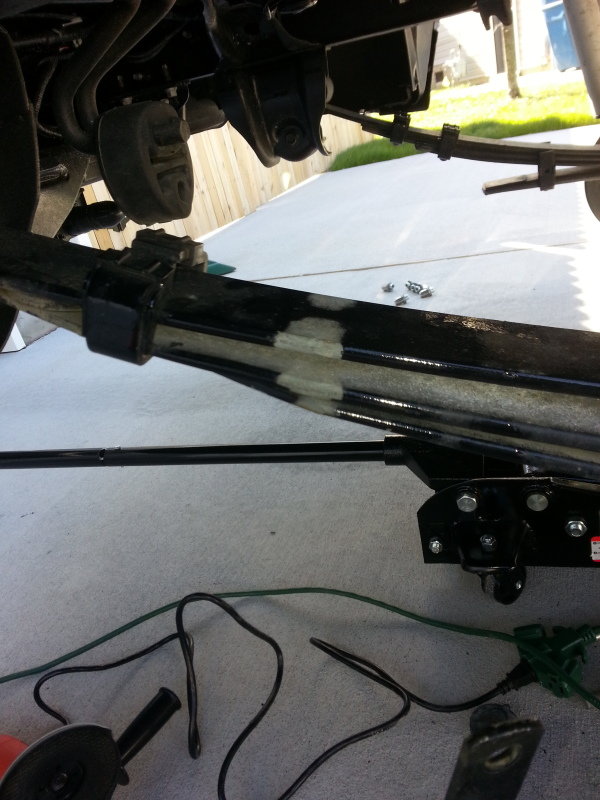

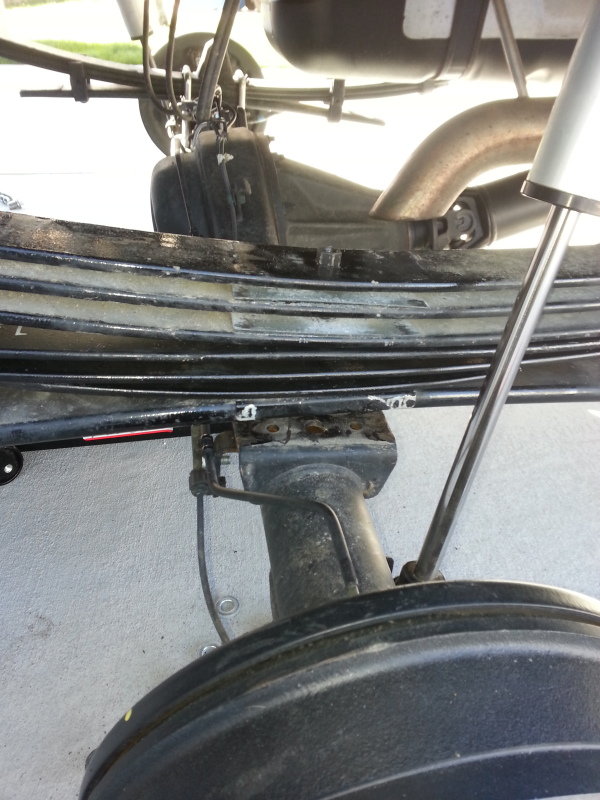

    ground off and then smooth!!!

    [​IMG]

    Unless you like rust paint that exposed steel!

    [​IMG]

    7. Re assemble the pack with the new centering bolt and if you want to use the overload make sure that one is first. Ensure you stack the leafs from largest on top to smallest on the bottom and the long end facing the rear!

    [​IMG]

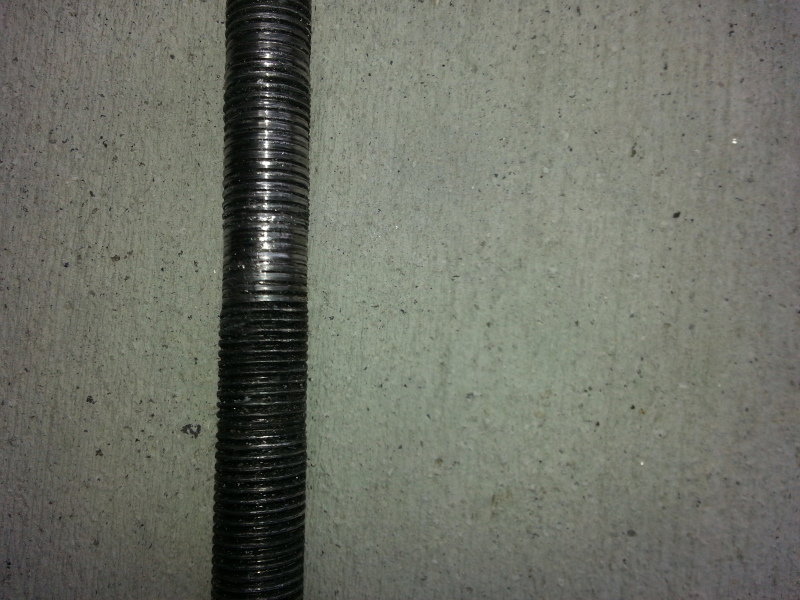

    I had a little issue where the bolt that came with the wheelers kit was crap and stripped while tightening down. I went over and picked up a new grade 8 zinc coated bolt and found it worked better since I could use two 14mm wrenches to tighten down the leaf pack.

    [​IMG]

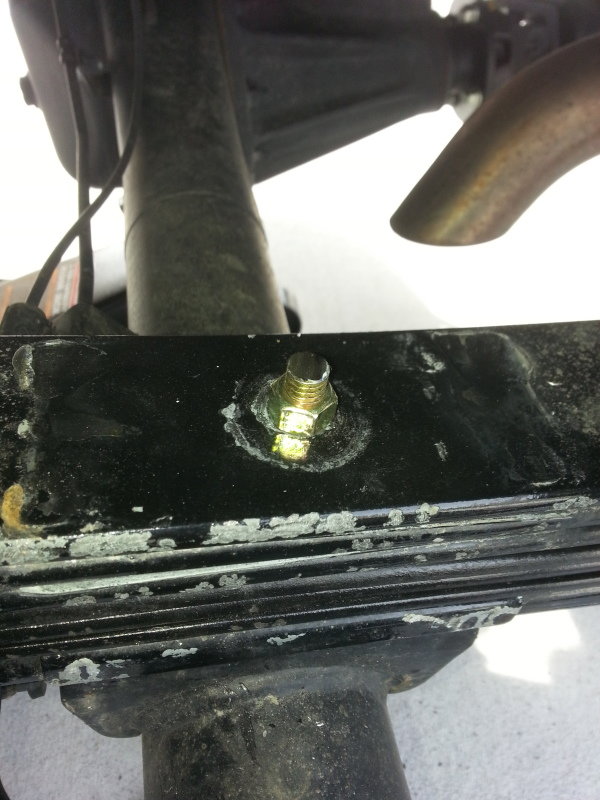

    8. Now make sure the centering bolt is nice and tight before you cut off all the excess bolt thread. Leave about 1/8-1/4" above the nut.

    [​IMG]

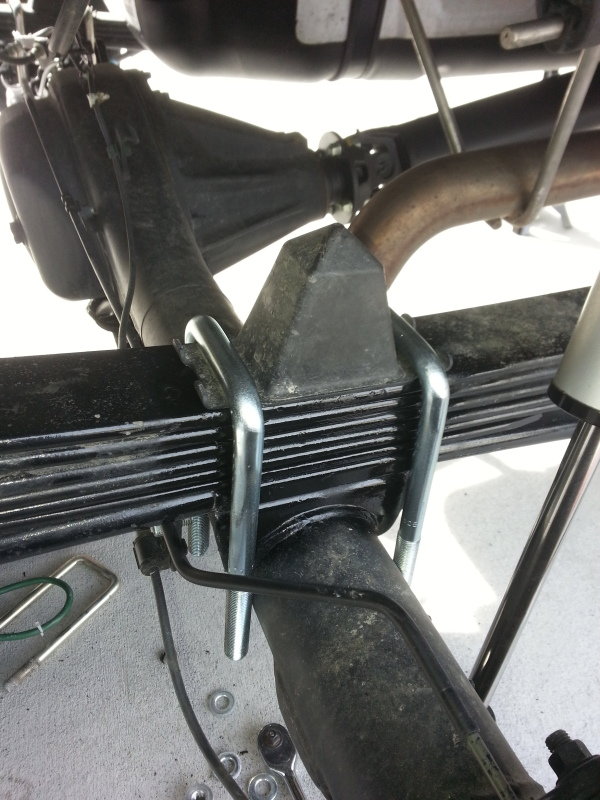

    9. Using the new u bolts with the kit attach your axle to the spring and then tighten down to 75-80 ftlbs. Don't forget to put your old bump stop back in.

    [​IMG]
    As you can see I took the time to paint as I went to cut down on rust. Takes 15 seconds and makes for a much better looking and lasting install!

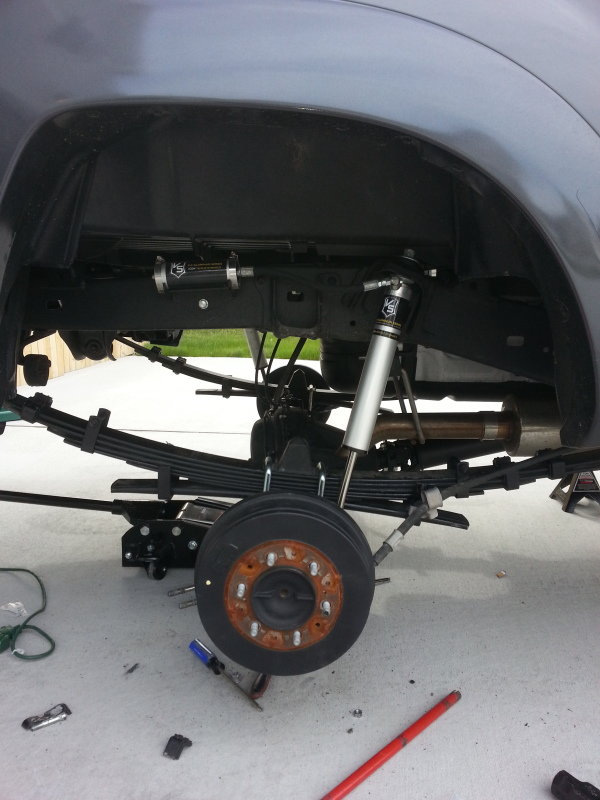

    10. Reconnect the e brake line bolt and lower shock bolt. Looks sweet ehhhh?

    [​IMG]

    11. Reinstall your wheels and torque the lugs to 85 ftlbs.

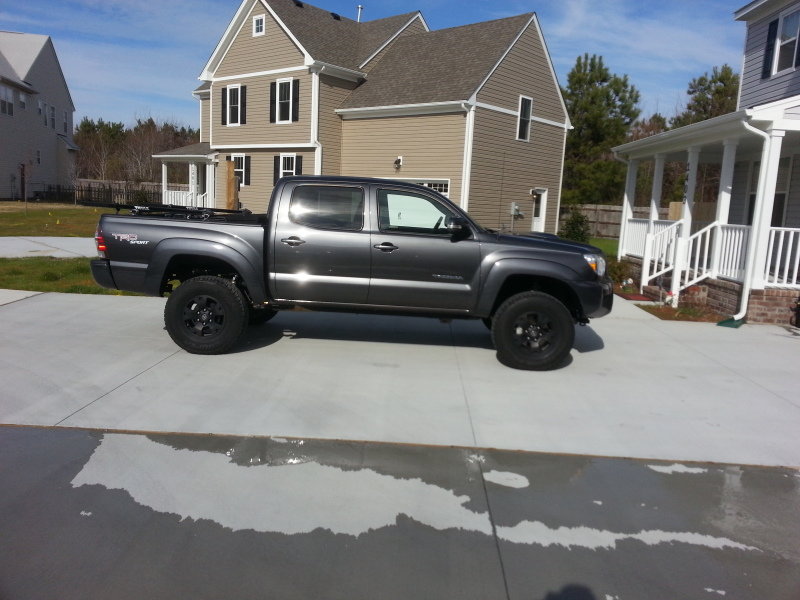

    Step back and enjoy the truck inspired boner...

    [​IMG]

    All told I gained 2" on the driver side and 1.75" on the passenger side which is nice since I did it with a full tank of gas!!! Perfectly level side to side in the rear! I know I will get some sag and will update in a month or two where it settles.

    Cranked up my coilovers in the front to get rid of a little stink bug action and am writing this from the alignment shop.

    Hope this helps someone who had been a bit lost with TSB and 3 packs!

    Phil

  2. Feb 2, 2013 at 12:38 PM
    #2
    Justus

    Justus fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    6,748
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    Nice yob...don't 4get greasing between the leaves.

    Unless u got lucky....mine squeaked.

    Enjoy the nice ride and don't 4get to re check u bolt tq after xxx miles

    Ps, id also recommend undoing the brake line support deal on the axle for maximum droop/room during the procedure without them being under tension

  3. Feb 2, 2013 at 12:46 PM
    #3
    loco

    loco [OP] Have Lockers will Travel!

    Joined:
    Dec 2, 2012
    Member:
    #92254
    Messages:
    4,762
    Gender:
    Male
    First Name:
    Phil
    Virginia Beach, VA
    Vehicle:
    2013 TRD Sport 4x4
    Way too much...Click on the build thread!
    Ehhhh grease will be applied if they squeak.

    I only did the write up on the right side but on the left you should remove the 12mm bolt holding the brake lines to the axle. Just to be safe.

  4. Mar 26, 2014 at 7:14 PM
    #4
    ThatguyJZ

    ThatguyJZ Third Shift

    Joined:
    Apr 30, 2013
    Member:
    #103173
    Messages:
    493
    Gender:
    Male
    First Name:
    Jim
    CLT, NC
    Vehicle:
    2014 MGM DCSB 4x4 TRD Off Road
    A TRD OR built into a Baja/PRO hybrid
    Just got done with this today and of course I'd stumble on this thread after the fact, haha. Good write up! Thanks!

  5. Mar 27, 2014 at 5:12 AM
    #5
    paidfor

    paidfor Well-Known Member

    Joined:
    Aug 21, 2009
    Member:
    #21536
    Messages:
    756
    Gender:
    Male
    Austin, TX
    Vehicle:
    2013 TRD OR 4x4
    Hidden GPS tracking system. Backflip cover, weather techs, bed mat, tailgate lock, OME 885 springs, blistein shocks, 2.5 in AAL/
    will be doing this in a few days to my 2013. thanks for the write up

  6. Mar 27, 2014 at 10:57 AM
    #6
    Bender581

    Bender581 Well-Known Member

    Joined:
    Mar 31, 2012
    Member:
    #76015
    Messages:
    409
    Gender:
    Male
    First Name:
    AL
    Arkansas
    Vehicle:
    SR5 4X4 TSS
    Gobi roof rack. Icon 2.5 extended coilovers, Icon tubular UCAs, Icon 2.0 rear shocks, Icon 3-leaf progressive AAL.
    Very nice writ up. I think even I could do this using your directions.

    Is this the 3pack that Wheelers says will give 1.5inches of lift? Is the overload 0.5 inches thick? In other words if you had taken out the overloads, you would have had 1.5 inches on driver side and 1.25 on the passenger?

  7. Mar 27, 2014 at 1:47 PM
    #7
    Justus

    Justus fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    6,748
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    I have my overload in garage still.... I'll measure them later for ya.

    The icon is identical to the wheelers, and I gained approx 1.7 on each side without the overloads.
