How to: Install Aftermarket Tach

Discussion in '1st Gen. Tacomas (1995-2004)' started by austinramsay, Jul 2, 2012.

  1. Jul 2, 2012 at 12:07 PM
    #1
    austinramsay

    austinramsay [OP] Well-Known Member

    Joined:
    Apr 5, 2012
    Member:
    #76345
    Messages:
    1,416
    Gender:
    Male
    First Name:
    Austin
    Yuma, Arizona
    Vehicle:
    2002 Tacoma TRD SR5
    I couldnt find a good write up on how to install an aftermarket tach so I decided to make one to help out others who want to do this :thumbsup:

    Tools required:
    Wire cutters
    Wire strippers
    Philips screwdriver
    Flathead screwdriver
    10mm and 12mm socket with ratchet
    Soldering iron/gun
    Solder
    Electrical tape
    [​IMG]


    Disconnect your ground wire to the battery with your 12mm socket!

    WRAP EACH SOLDER CONNECTION AND CUT END OF EACH WIRE IN ELECTRICAL TAPE.

    Mount your tach wherever you want. I used these velcro strips from target that were 3 dollars because i didnt want to drill into my dash.

    We need to pull out the instrument cluster to do this, so first we are gonna need to take off the trim piece surrounding the a/c controls and radio.

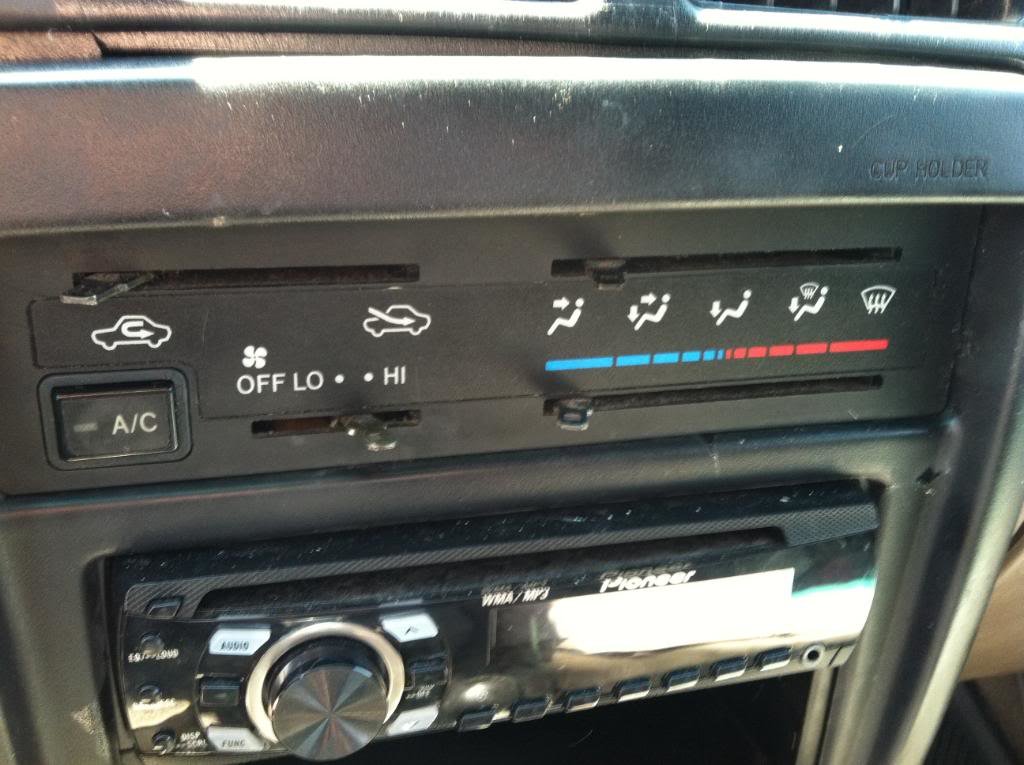

    Start by removing the knobs from the climate control. They pull right off.
    [​IMG]

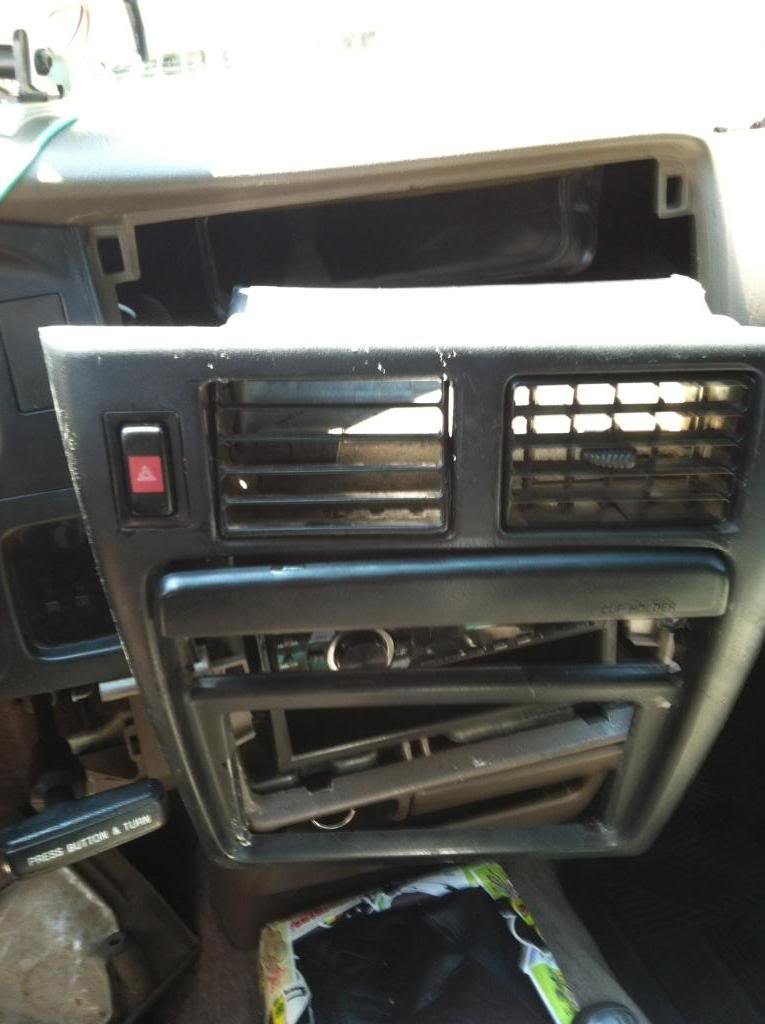

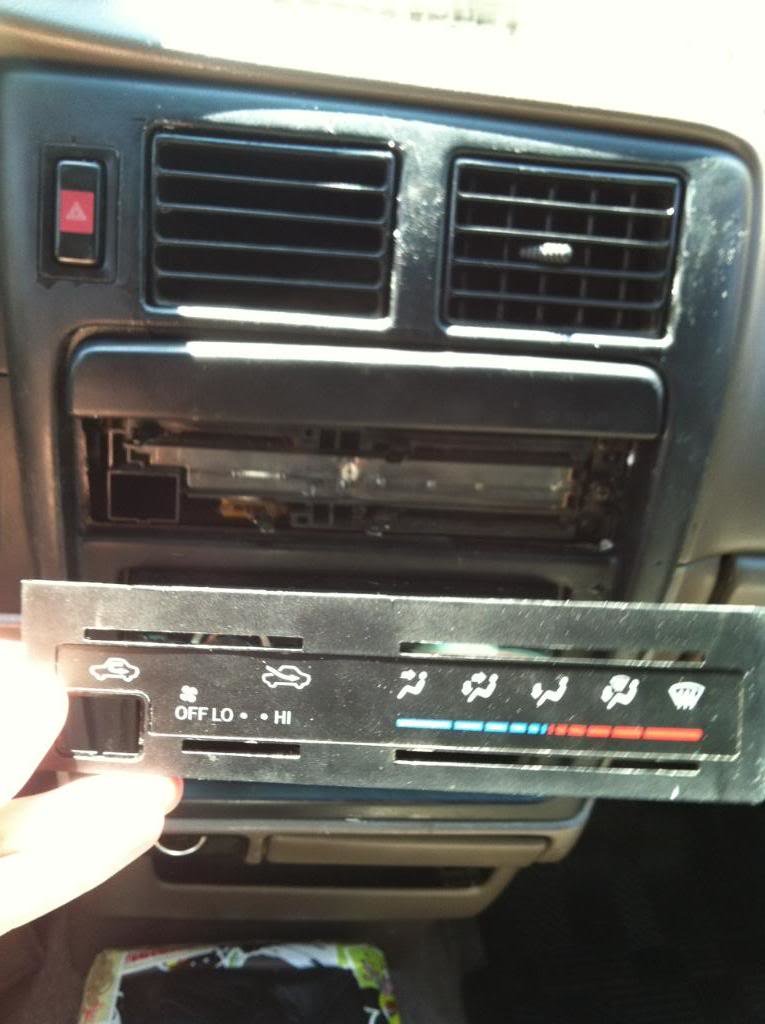

    Next take your flathead and pop it out.
    [​IMG]

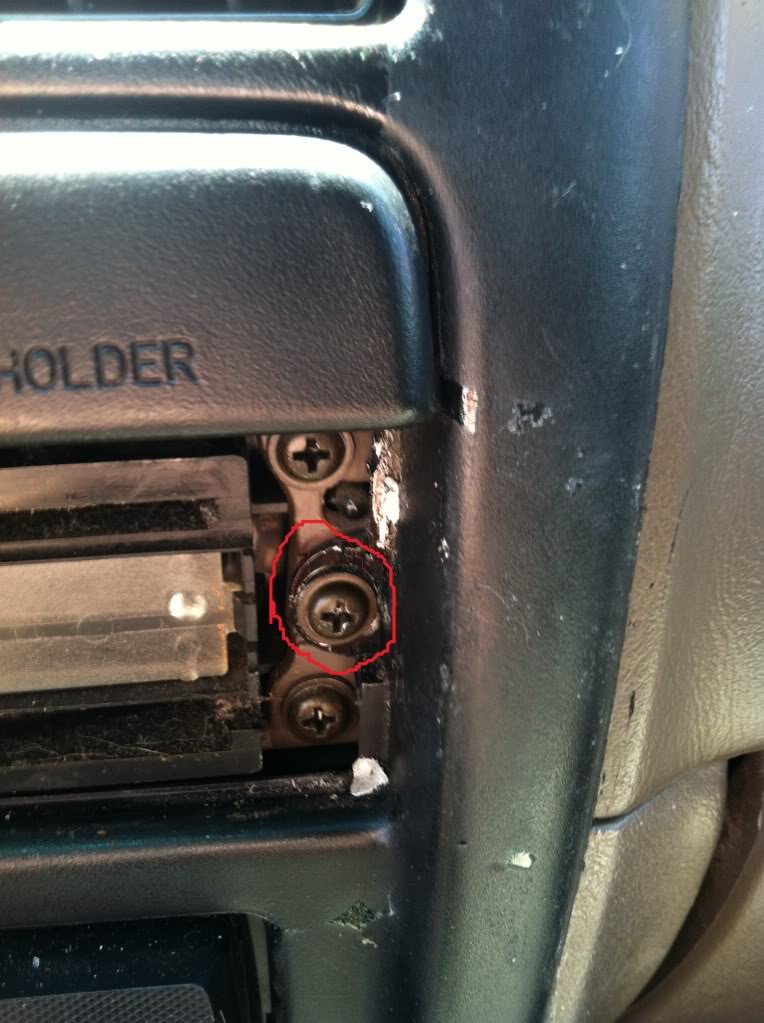

    There are 2 screws holding it into the dash. This is the one on the right, and then you need to remove the one on the left. There are little clips holding it in after you remove the screws. They will come right out with a little effort with a flathead :) and disconnect the hazards switch.
    [​IMG]

    [​IMG]

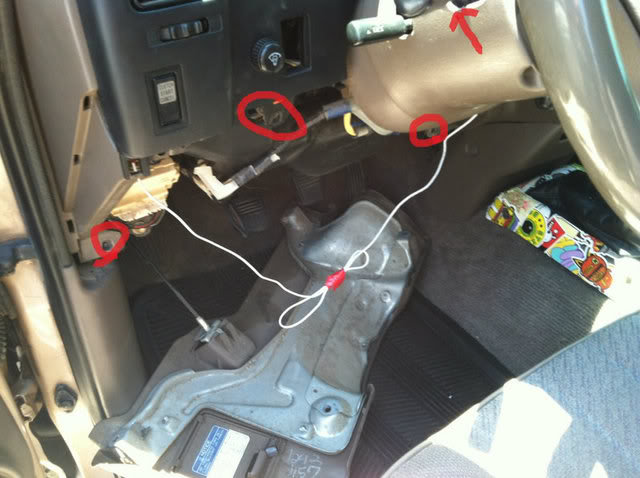

    Next your gonna remove the piece under the steering wheel. It has 4 bolts holding it in. 2 on the left, 2 on the right. I had already taken it off, but you get the point :p
    [​IMG]

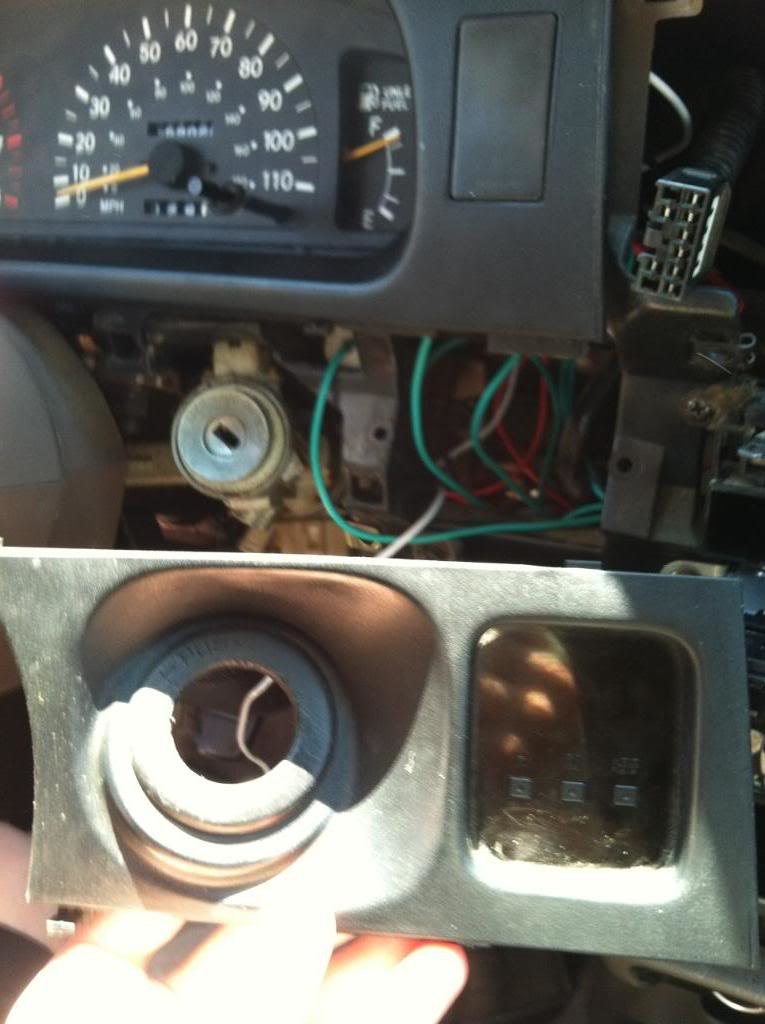

    Pry out the piece around the ignition, it has 2 clips holding it.
    [​IMG]

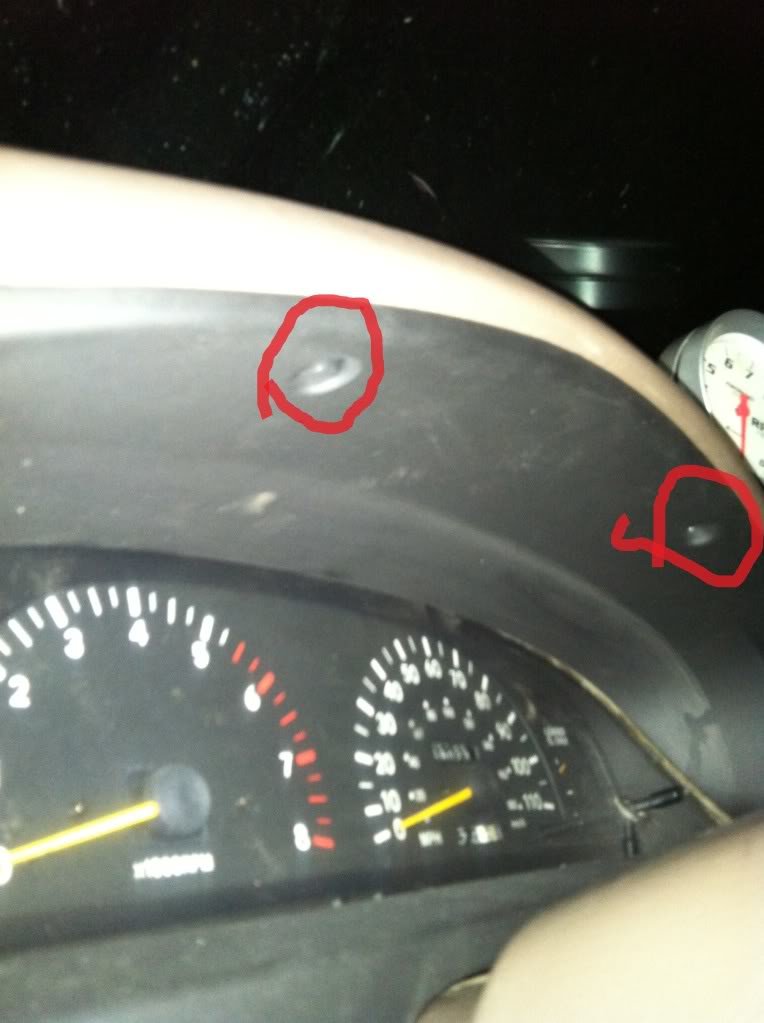

    Now remove the trim around the cluster. Remove the screws holding it in. I didnt get a picture of all of them but dont forget these 2..
    [​IMG]

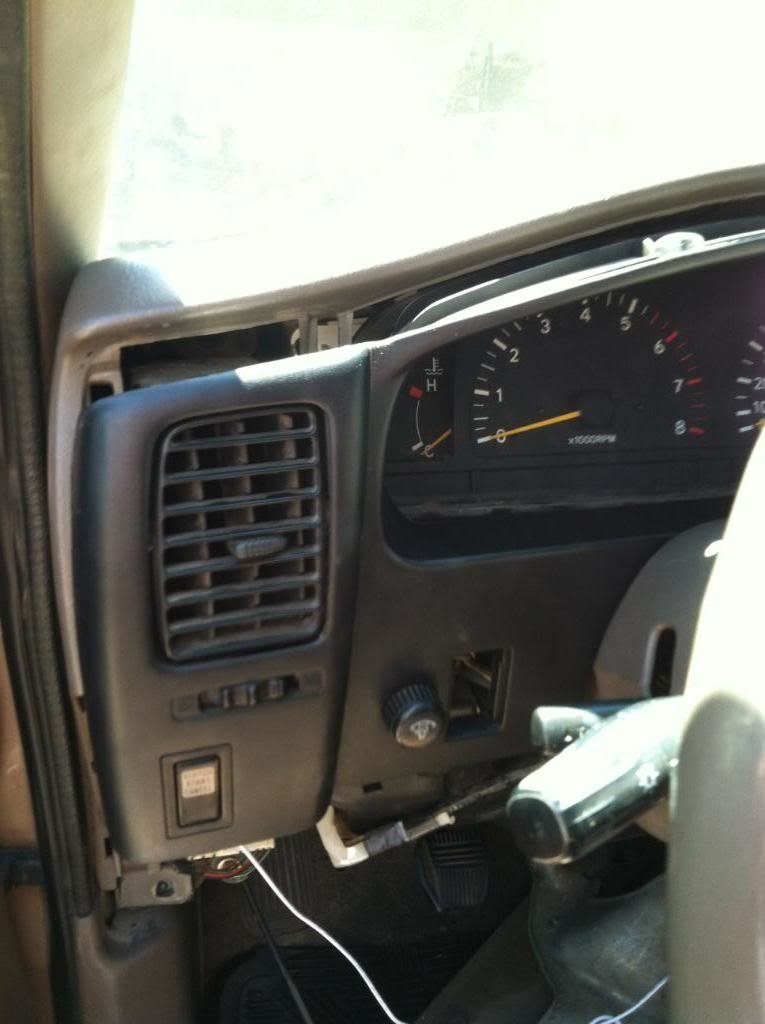

    And you know the drill... pop it out with the flathead. The drivers a/c vent kind of gave me a problem but it came out after some tugging.
    [​IMG]

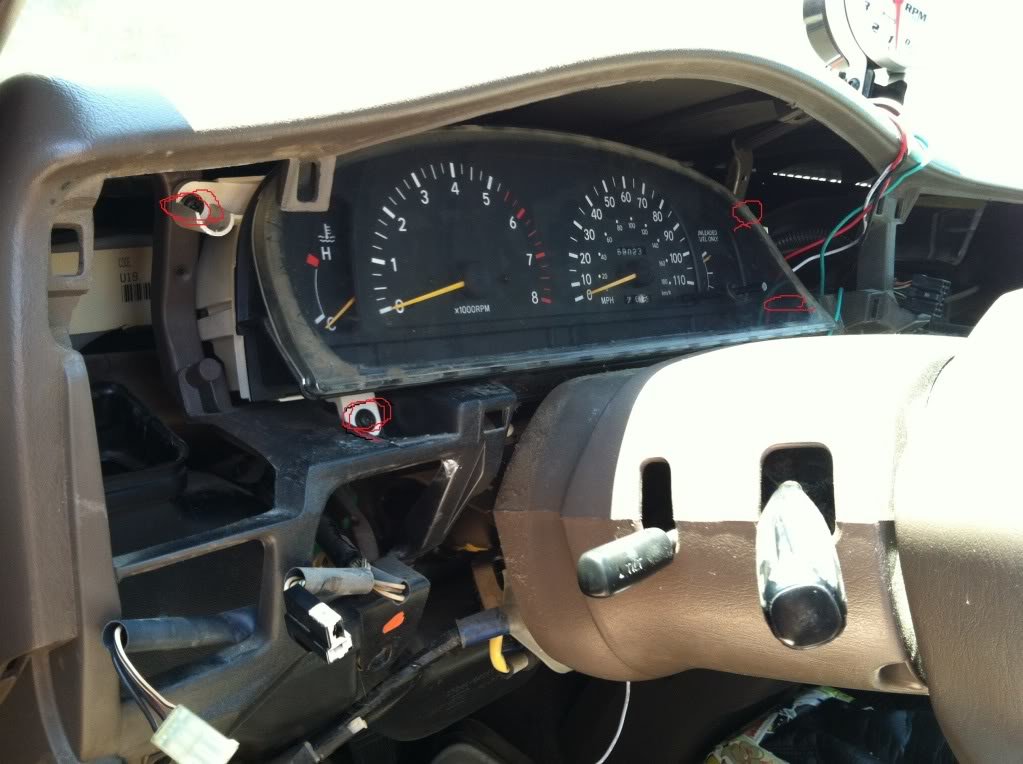

    Then we can finally remove the instrument cluster. Remove the 4 screws around it.
    [​IMG]

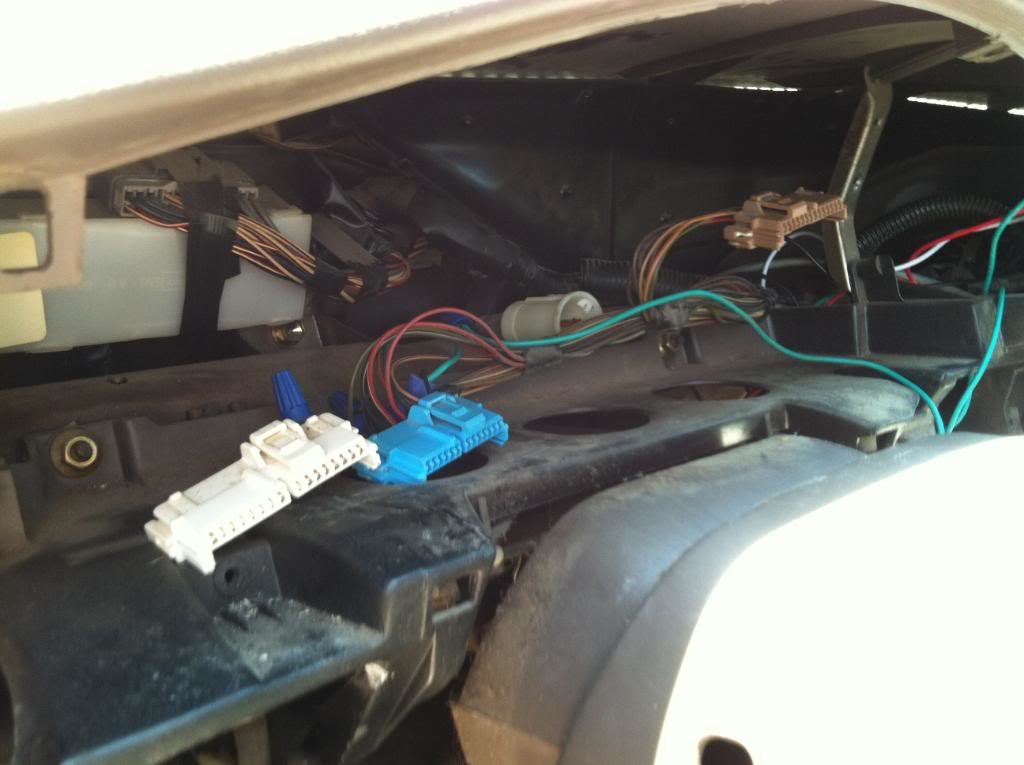

    Unplug all the harnesses hooking up to the cluster. It will come right out after you remove the screws and harnesses. Disregard the green wire in this picture, my tach was already installed but i used wire nuts instead of solder.
    [​IMG]

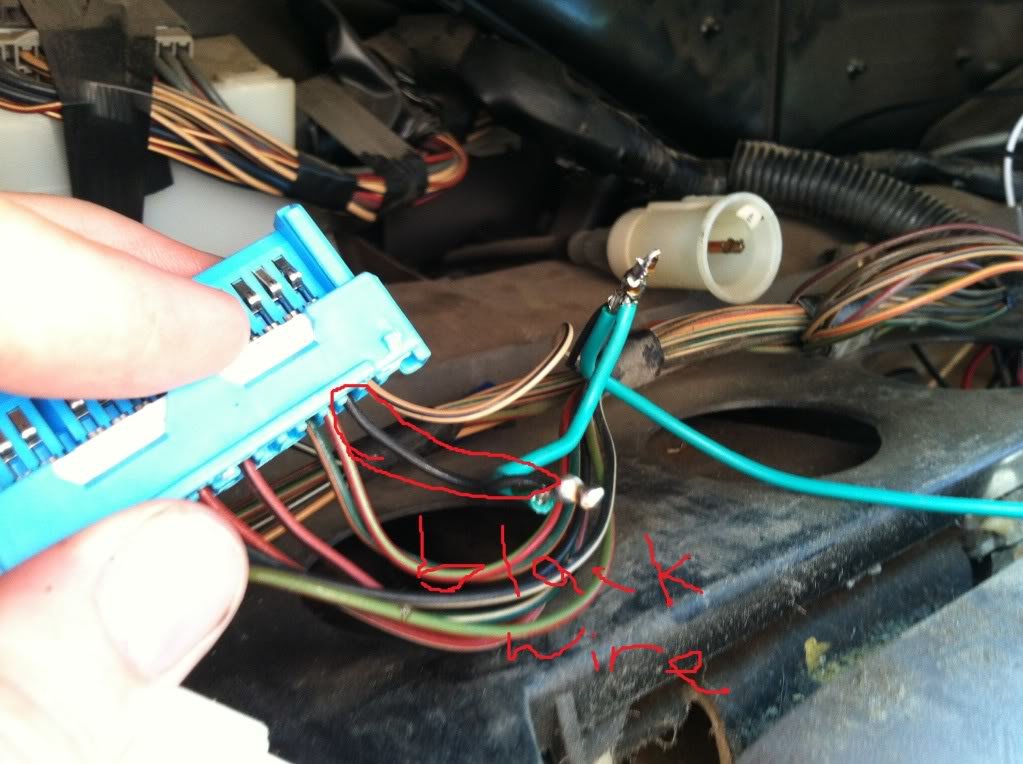

    This is where your going to connect the green wire on your tach. Use the PLAIN black wire going to the blue harness. Cut it, strip it, and solder the 2 cut ends and the green wire from the tach together.
    [​IMG]



    Now we need to connect the tach to a power source. I used the clock harness for this. Some tachs may draw too much power for this to work but mine is only a 3 inch backlit with no shift light. So its fine for me.

    Unplug the harness from the clock, this is what it looks like.
    [​IMG]

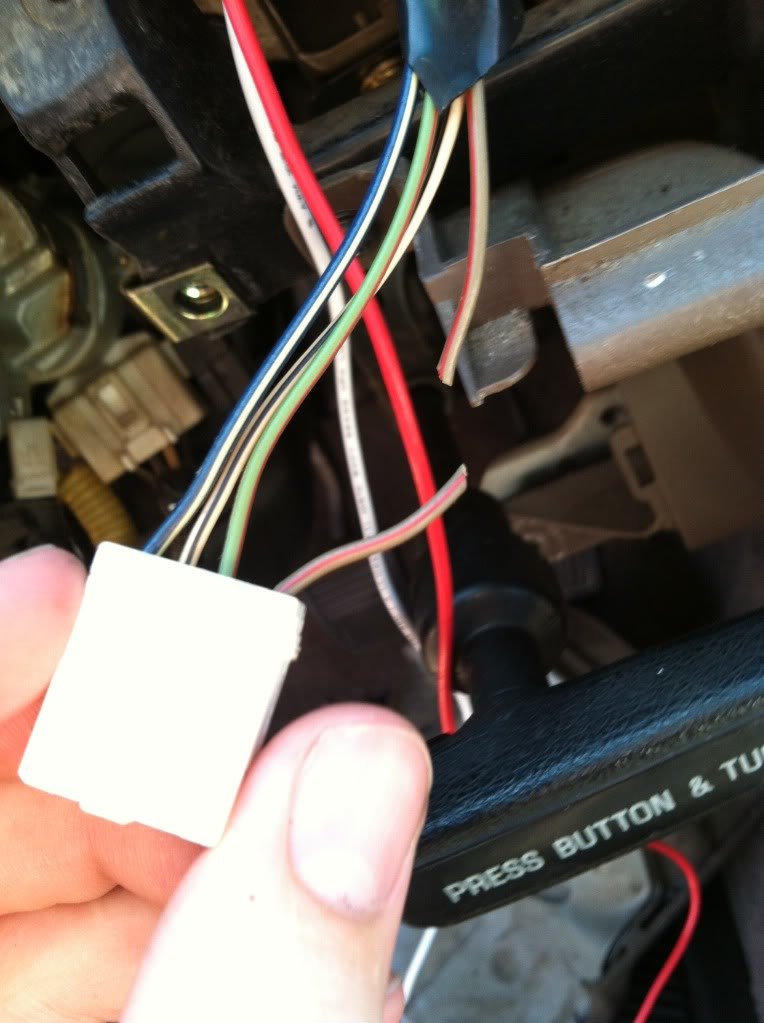

    Cut and strip the grey/red wire on the clock harness. This is what you will solder the positive wire from the tach to.
    [​IMG]

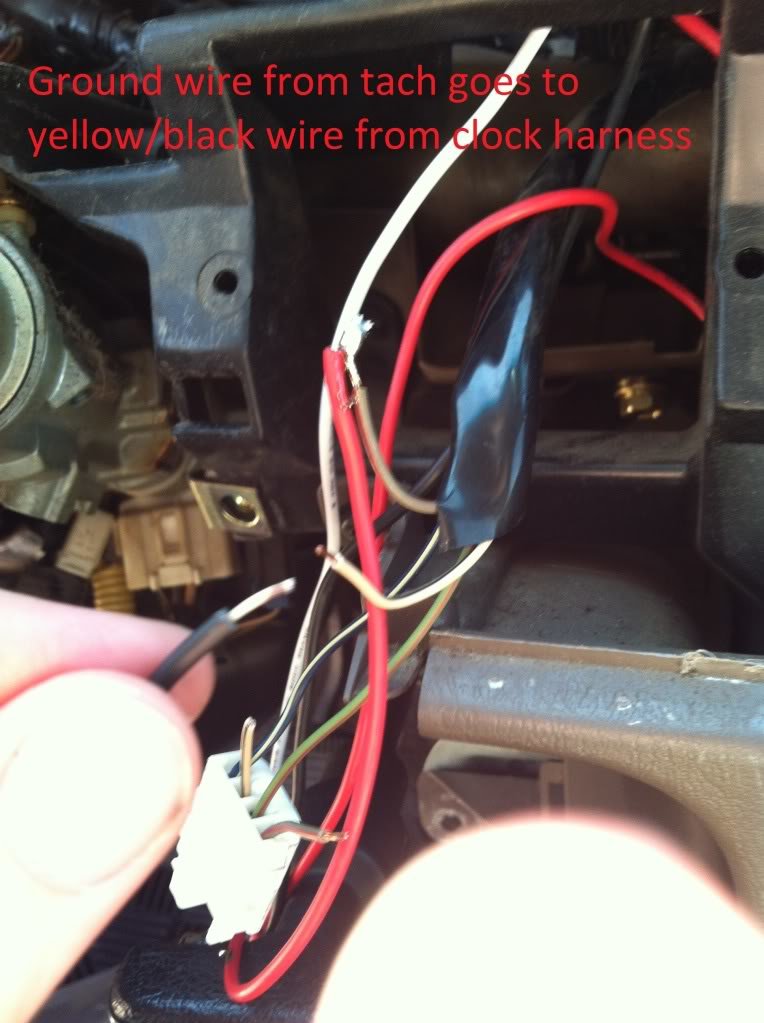

    Cut and strip the yellow/black wire on the harness. The negative wire from the tach solders onto this one.
    [​IMG]

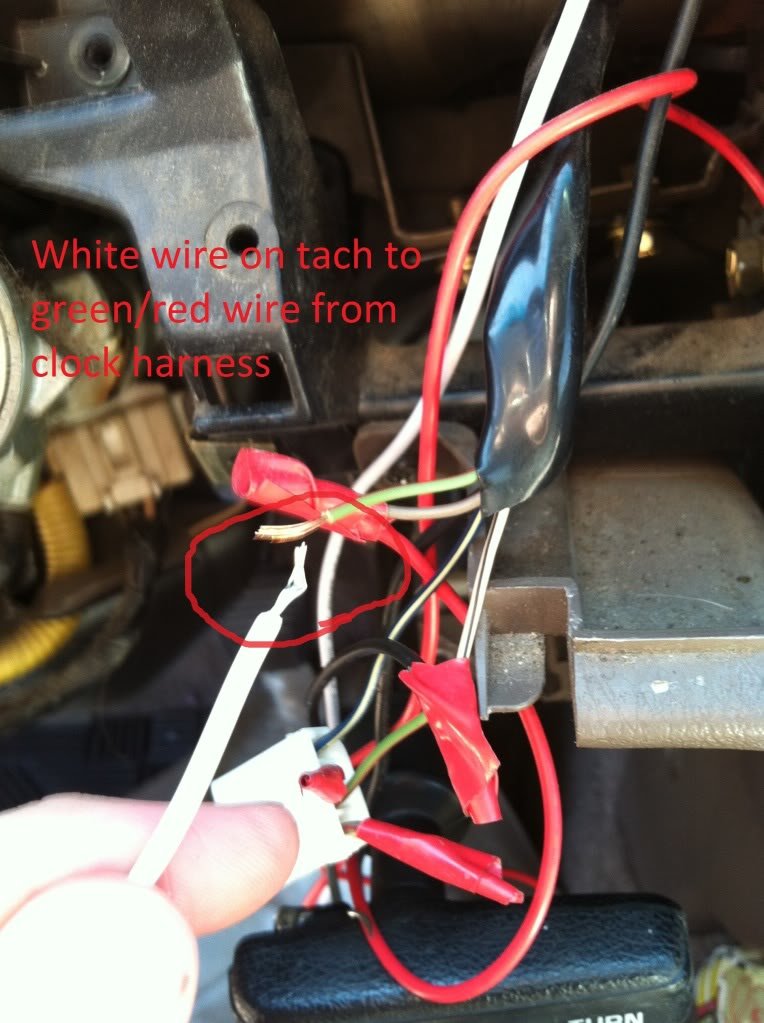

    And the last one.. cut/strip the green/red wire on the harness. Your illumination wire from the tach will solder onto this one. On my tach it was the white wire, pretty sure its the same for all of them.
    [​IMG]

    I took all my wires and used zipties to coil them all together like a hose so they werent all over the place. You could drill holes behind the tach to run the wires thru but i didnt want to ruin the dash.

    Put the cluster back in, and hook up all the harnesses again. It was a little diffucult to get them all hooked back up but its not impossible. Before putting everything back together check that its all working still. Make sure your tach is plugged in. Reconnect the ground wire on the battery. Start it up and check if its working. Make sure your tach is set for the correct number of cylinders. You can search for the manual on google if you dont have it to find out how to change the cylinder setting.

    If its not working, check all your connections and make sure theyre secure. While putting everything back together, make sure to plug everything back in.. for example the clutch start cancel, the dimmer knob, your hazards switch, etc.

    And heres your finished product:
    [​IMG]

    If you have any questions pm me!

    Thanks! Enjoy! :cool:

  2. Sep 11, 2013 at 3:04 PM
    #2
    Taco No Baka

    Taco No Baka Interco Tire Snob

    Joined:
    May 9, 2013
    Member:
    #103866
    Messages:
    2,442
    First Name:
    Lee
    Tampa, FL
    Vehicle:
    1998 SR5 Xtra Cab 4WD V6 Spartan Package
    OME 3" lift with Dakar rear leaves, 33x13.50 Super Swamper LTBs on Pro Comp Series 97 15x8 Steelies, Bud Built Front Skid, 4xI rock sliders, Lincoln Locked front diff, LED cab clearance lights, Sway Bar Delete, Rear Diff Breather Mod, Autometer Monster Tach, Cobra 25LTD Classic, Roof-mounted 2' Firestik II, Garmin GPS

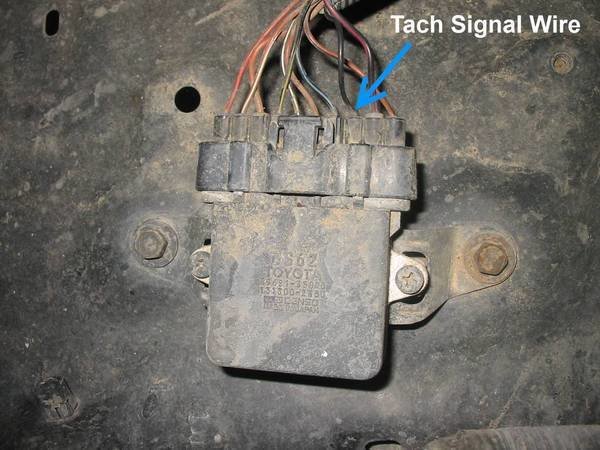

    This method didn't work for me. You must need to have an instrument cluster that already has a tach in it for the wire you specified to get a signal. I ended up following Autometer's recommendation, tying into the black wire coming off the #8 pin on the ignition ignitor harness.

    [​IMG]

    Of course that means you have to run the wire though the firewall, but it turned out to be a heck of a lot easier than pulling the instrument cluster.

    Autometer tach of ridiculous size FTW!


    [​IMG]

    Last edited: Sep 11, 2013
  3. Sep 11, 2013 at 4:10 PM
    #3
    wolfgang123

    wolfgang123 Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19369
    Messages:
    1,372
    Gender:
    Male
    First Name:
    Skyler
    Statesboro, GA
    Vehicle:
    1997 TACOMA - 4x4
    so you have two tachs now?....

  4. Sep 11, 2013 at 4:21 PM
    #4
    Taco No Baka

    Taco No Baka Interco Tire Snob

    Joined:
    May 9, 2013
    Member:
    #103866
    Messages:
    2,442
    First Name:
    Lee
    Tampa, FL
    Vehicle:
    1998 SR5 Xtra Cab 4WD V6 Spartan Package
    OME 3" lift with Dakar rear leaves, 33x13.50 Super Swamper LTBs on Pro Comp Series 97 15x8 Steelies, Bud Built Front Skid, 4xI rock sliders, Lincoln Locked front diff, LED cab clearance lights, Sway Bar Delete, Rear Diff Breather Mod, Autometer Monster Tach, Cobra 25LTD Classic, Roof-mounted 2' Firestik II, Garmin GPS
    The OP does, apparently. I didn't have an instrument cluster with a factory tach so I had to install my own.

  5. Sep 11, 2013 at 4:30 PM
    #5
    Blueitrgsr

    Blueitrgsr Well-Known Member

    Joined:
    Jul 25, 2011
    Member:
    #60495
    Messages:
    1,476
    Gender:
    Male
    First Name:
    Brad
    Gainesville, Fl
    Vehicle:
    2006 Reg Cab 4wd
    Some bilsteins, OME 885's, and an AAL.
    What's the need for more than one? Because race car?

  6. Sep 11, 2013 at 4:36 PM
    #6
    Taco No Baka

    Taco No Baka Interco Tire Snob

    Joined:
    May 9, 2013
    Member:
    #103866
    Messages:
    2,442
    First Name:
    Lee
    Tampa, FL
    Vehicle:
    1998 SR5 Xtra Cab 4WD V6 Spartan Package
    OME 3" lift with Dakar rear leaves, 33x13.50 Super Swamper LTBs on Pro Comp Series 97 15x8 Steelies, Bud Built Front Skid, 4xI rock sliders, Lincoln Locked front diff, LED cab clearance lights, Sway Bar Delete, Rear Diff Breather Mod, Autometer Monster Tach, Cobra 25LTD Classic, Roof-mounted 2' Firestik II, Garmin GPS
    Maybe his OEM tach quit working?

  7. Sep 12, 2013 at 5:51 AM
    #7
    wolfgang123

    wolfgang123 Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19369
    Messages:
    1,372
    Gender:
    Male
    First Name:
    Skyler
    Statesboro, GA
    Vehicle:
    1997 TACOMA - 4x4
    my 97 doesn't have a tach either that's why i bought my scangauge. i like where you put your tach baka looks good.

  8. Sep 12, 2013 at 8:58 AM
    #8
    Taco No Baka

    Taco No Baka Interco Tire Snob

    Joined:
    May 9, 2013
    Member:
    #103866
    Messages:
    2,442
    First Name:
    Lee
    Tampa, FL
    Vehicle:
    1998 SR5 Xtra Cab 4WD V6 Spartan Package
    OME 3" lift with Dakar rear leaves, 33x13.50 Super Swamper LTBs on Pro Comp Series 97 15x8 Steelies, Bud Built Front Skid, 4xI rock sliders, Lincoln Locked front diff, LED cab clearance lights, Sway Bar Delete, Rear Diff Breather Mod, Autometer Monster Tach, Cobra 25LTD Classic, Roof-mounted 2' Firestik II, Garmin GPS
    Thanks. I thought about putting it where the OP did, but I was worried it would rattle on the windshield so I went with the A-pillar. Worked out better there any how. Doesn't obstruct the view out over the hood, doesn't rattle on anything, and it's easy to see. Oh, and it didn't require putting holes in anything to run the wires, but the wires are still mostly hidden for a clean installation.

    I may eventually get a Scangauge, but I had this tach taking up space in my toolbox, so I figured I might as well use it. Next up is installing a mechanical oil pressure gauge. That could take a while since I need to figure out the correct fitting I need to still be able to have the factory oil pressure sensor functional to avoid idiot lights on the dash while also having a tap for the 1/8" copper tubing for the gauge.

  9. Dec 2, 2014 at 1:52 PM
    #9
    Woodzyzewski

    Woodzyzewski Member

    Joined:
    Jul 21, 2014
    Member:
    #134383
    Messages:
    12
    Gender:
    Male
    First Name:
    Woodrow
    West Virginia
    Vehicle:
    02 4x4 Reg Cab 4 cylinder
    Cb radio, cb antenna, custom Earnhardt shift knob, aftermarket radio, Westin bull bar, Westin and PIAA off road lights, custom billet grill
    Where did you run the wire for power to the tach on that one without a tach in the the cluster. And where did you find the ignition igniter?

  10. Dec 2, 2014 at 4:42 PM
    #10
    Taco No Baka

    Taco No Baka Interco Tire Snob

    Joined:
    May 9, 2013
    Member:
    #103866
    Messages:
    2,442
    First Name:
    Lee
    Tampa, FL
    Vehicle:
    1998 SR5 Xtra Cab 4WD V6 Spartan Package
    OME 3" lift with Dakar rear leaves, 33x13.50 Super Swamper LTBs on Pro Comp Series 97 15x8 Steelies, Bud Built Front Skid, 4xI rock sliders, Lincoln Locked front diff, LED cab clearance lights, Sway Bar Delete, Rear Diff Breather Mod, Autometer Monster Tach, Cobra 25LTD Classic, Roof-mounted 2' Firestik II, Garmin GPS
    I pulled power from one of the wires going to the ignition (starter) switch that was hot when the key was 'on'. The ignition igniter is located on the passenger side fender well (in a 1st gen).

    Good luck with it. :cool:

    Last edited: Dec 2, 2014
  11. Dec 2, 2014 at 7:21 PM
    #11
    wild03

    wild03 Well-Known Member

    Joined:
    Nov 29, 2014
    Member:
    #143268
    Messages:
    59
    Gender:
    Male
    Florida
    Vehicle:
    98 Tacoma DLX 2.4L
    tach
    First thanks to the OP for the clock idea, that made this super easy. Second the OP soldering job needs some work, a few online tutorials would help. heat shrink tubing and proper soldering would make this look professional. I didn't cut any wires, just stripped about 1/3" section and twisted tach wire, soldered all connections, and removed pin from plug to slide heat shrink tubing in.

    On my 98, I pulled power and light power from the clock hardness just like the OP, I routed ground to the left wall under dash, but just like OP there's a ground on the clock and that should also work. I tapped the signal from the ECU behind glove box.

    All you need to take apart is glove box, and lower dash under driver. ease and sweet.
