HOW TO: LED Foglights

Discussion in 'Lighting' started by jo35, Feb 2, 2014.

  1. Feb 2, 2014 at 9:16 AM
    #1
    jo35

    jo35 [OP] Well-Known Member

    Joined:
    Dec 7, 2013
    Member:
    #118105
    Messages:
    53
    Gender:
    Male
    First Name:
    Joe
    Orlando, FL
    Vehicle:
    2011 SR5 PreRunner
    Maxtrac Spindles Bilstein 5100 shocks @.85 Eibach springs Dakar leaf pack 1" block 3 degree shims Bilstein extended 5100 shocks CB spacer Method double standard wheels 285/75/17 Terra Grapplers BHLM w/ HID's and custom LED fogs 2011 color matched sport grille
    Here are LED Foglights from Tuff Led on Amazon. They are very high quality and boy are they bright. I wanted to fit them in my stock foglight holes like this guy did http://www.tacomaworld.com/forum/lighting/305548-cheap-led-fog-lights-swap-out-your-stocks.html, however I wanted more of a plug and play approach which requires no mutilation to stock components. I bought them from this amazon here http://www.amazon.com/Tuff-LED-Ligh...358819&sr=8-2&keywords=Tuff+LED+Lights+2+X+4" .

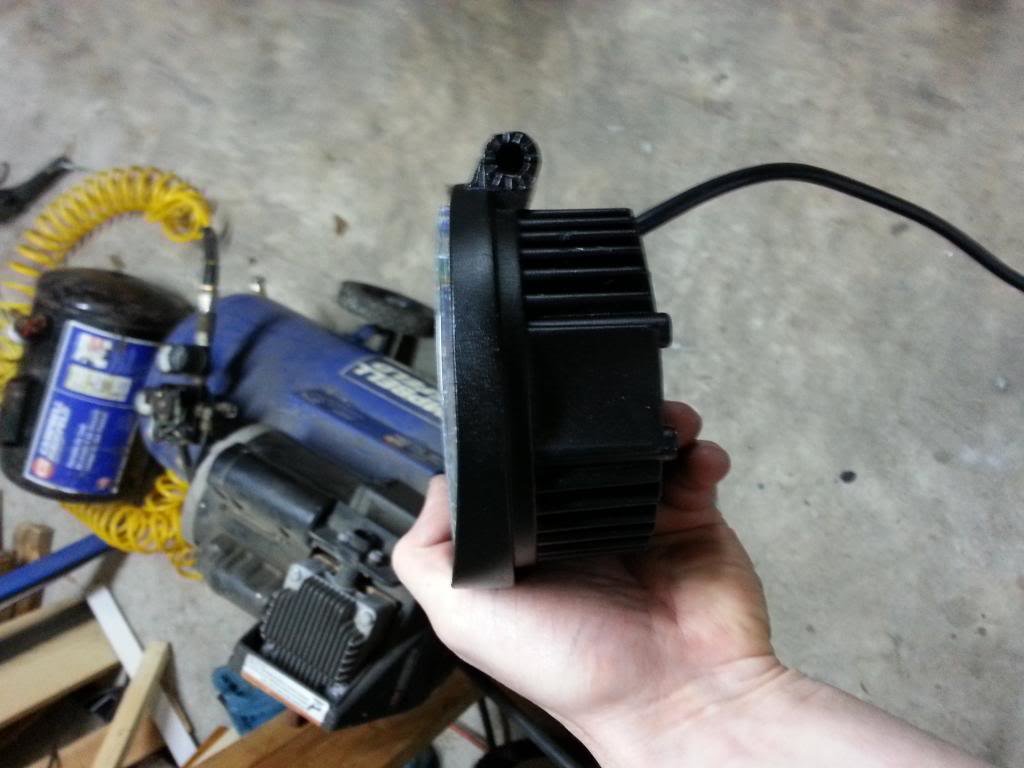

    Step 1: As you can see, the mounting tab on the bottom of the foglight will not allow it to fit into the stock foglight hole.

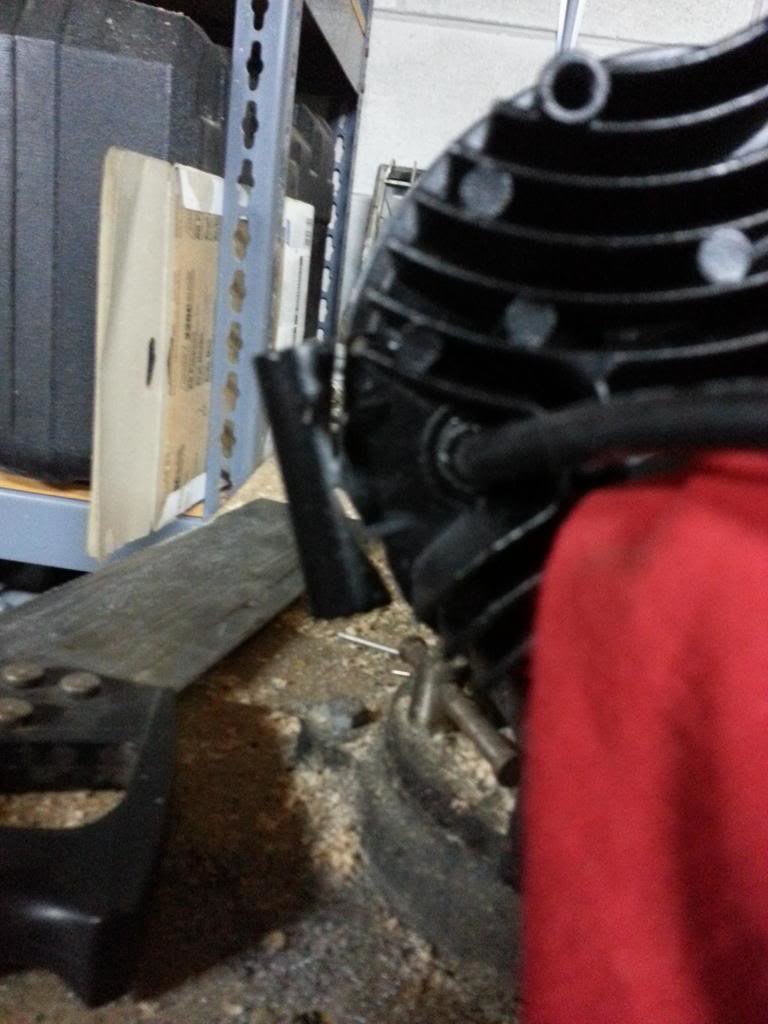

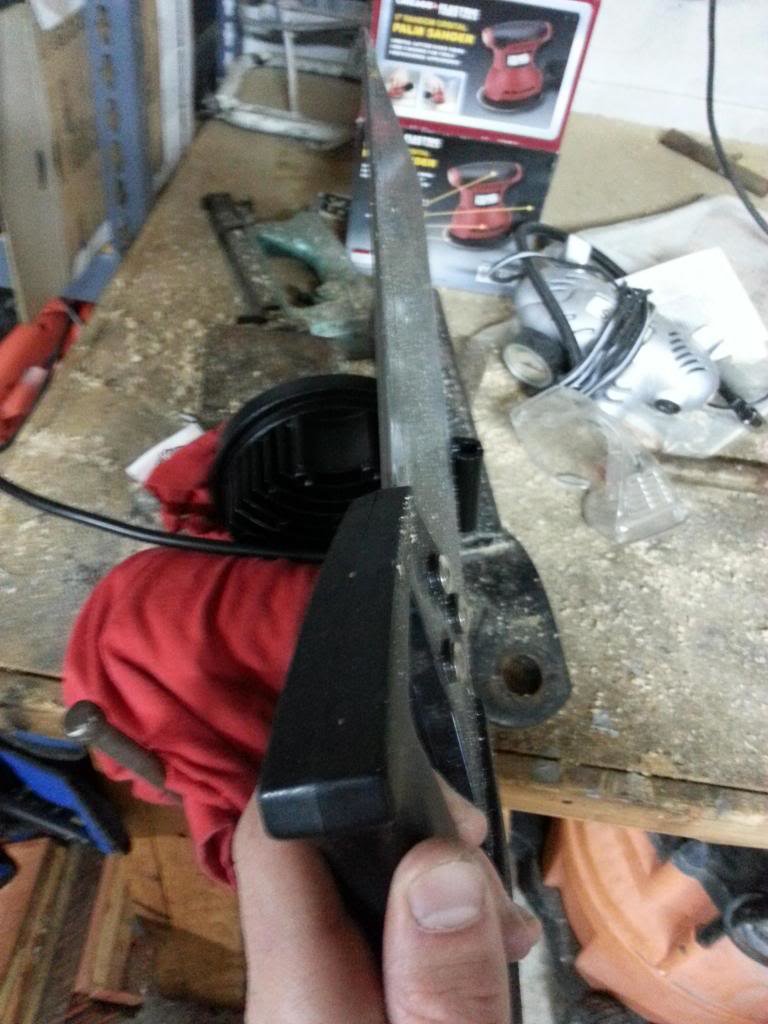

    I used a hand held saw and cut right throught he lightweight aluminum like so. I held them in a vice with a towel over the lense to prevent breakage.

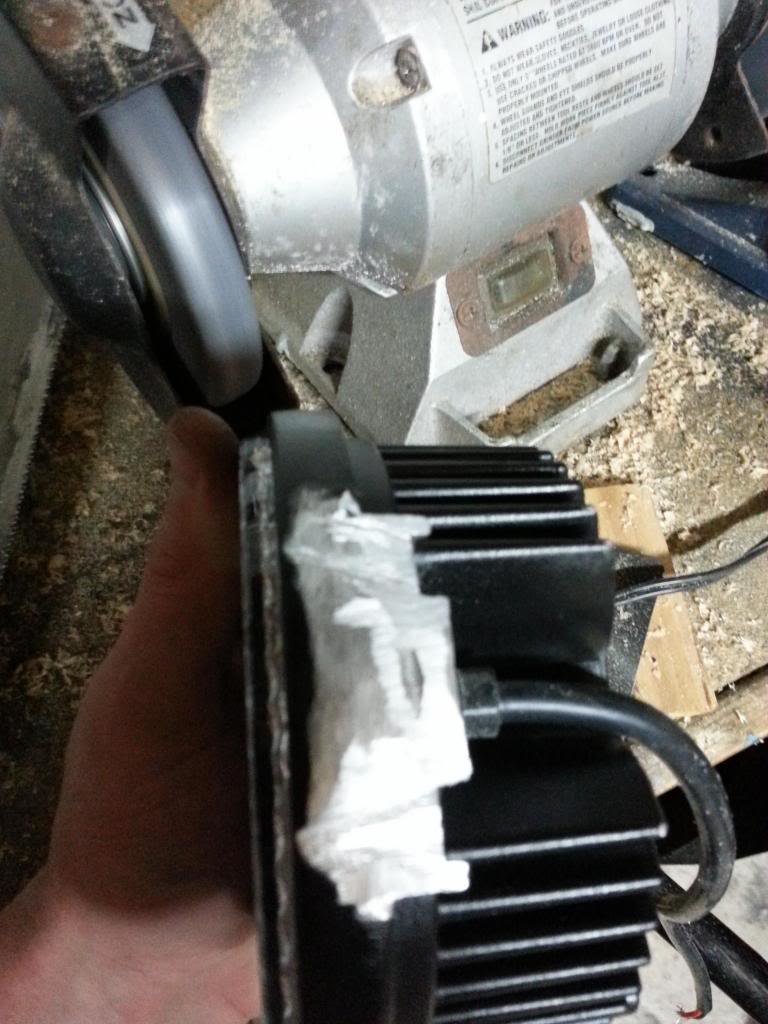

    I ran them over my grinding wheel to smooth the cut out a bit.

    Here is the piece that came off.

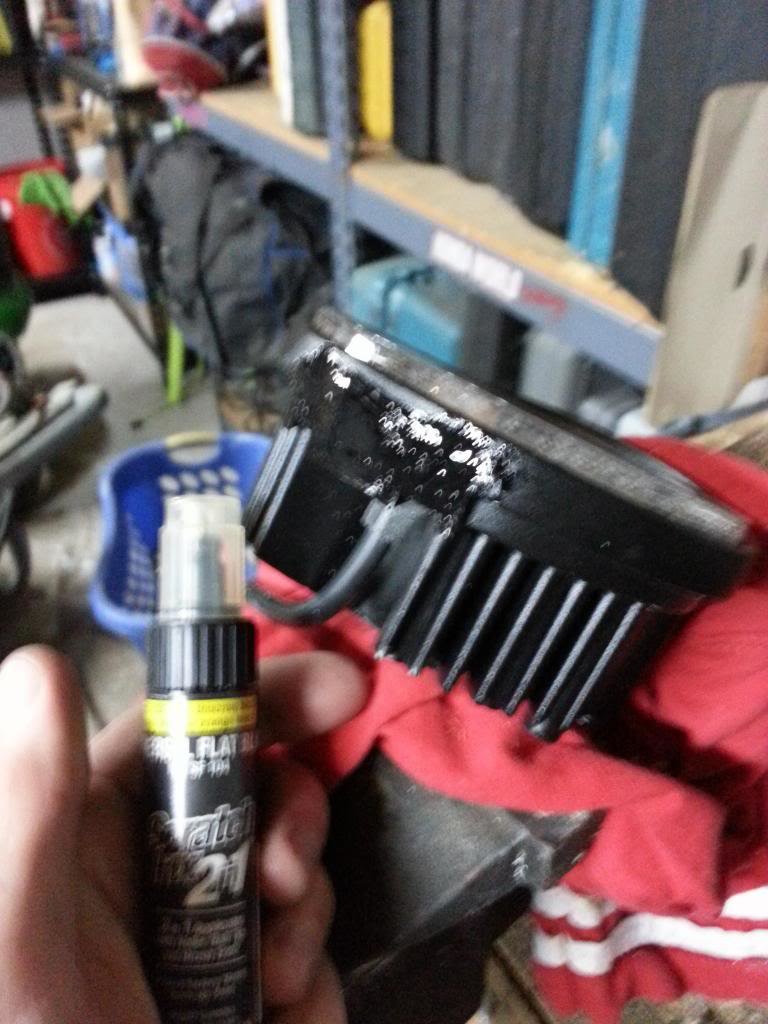

    Step 2: The cutting will leave you with some bare aluminum So i used some black duplicolor touchup paint i had laying around to paint the aluminum. It came out pretty well.

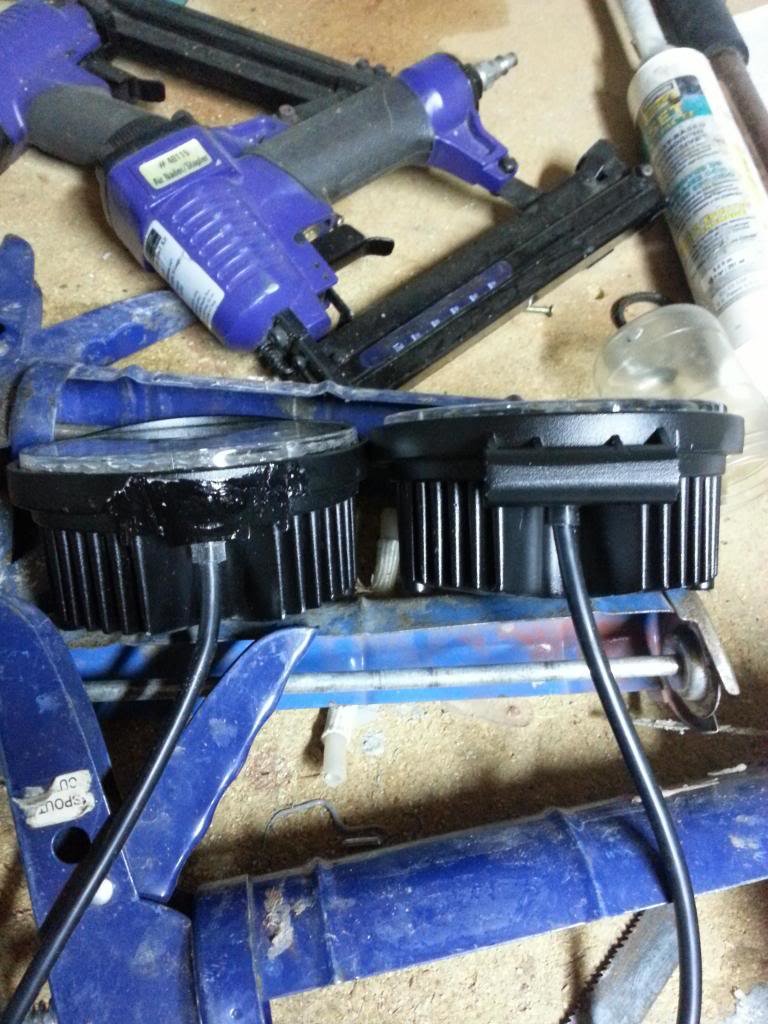

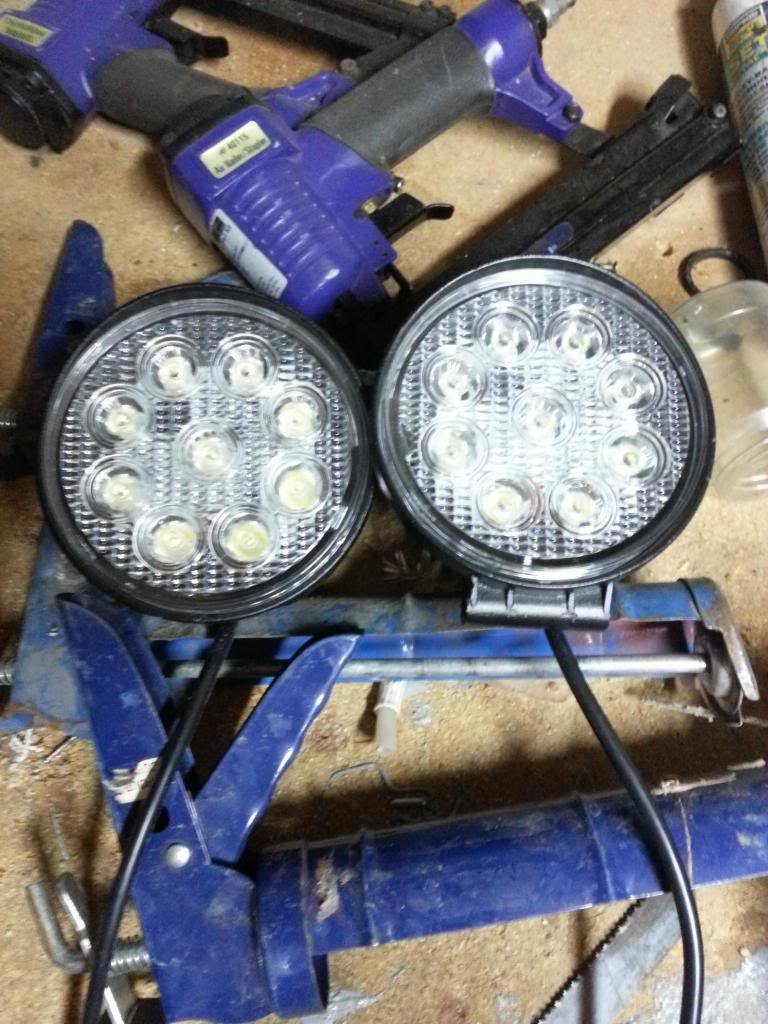

    Here is one done and painted and the other with the tab still on.

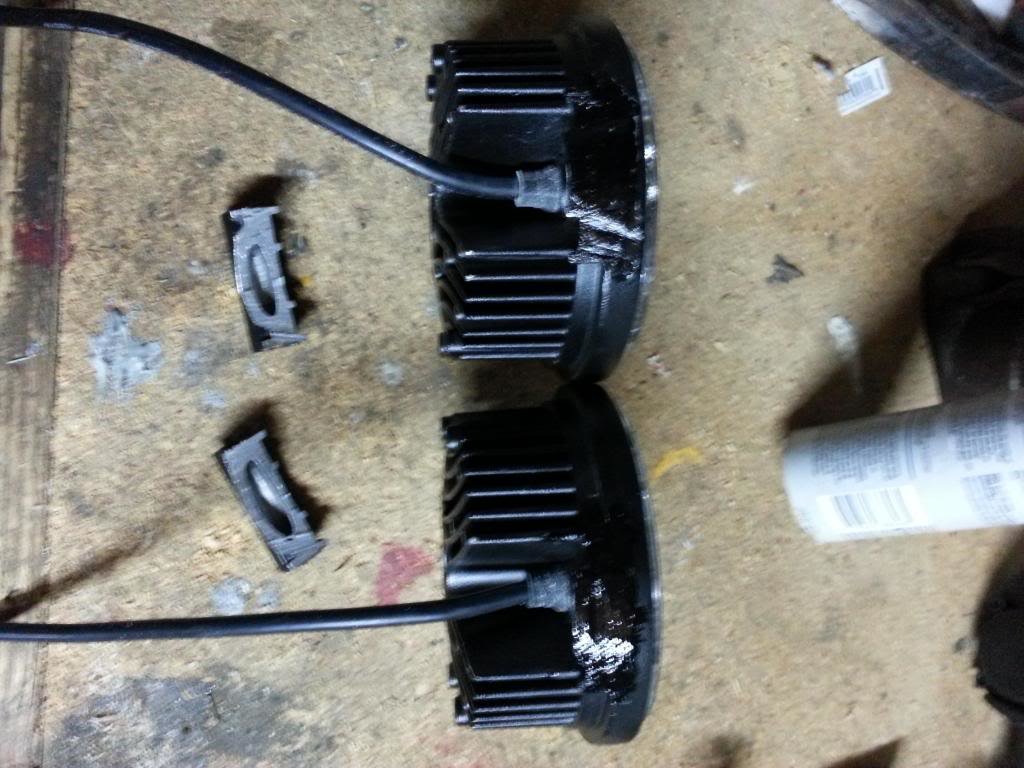

    Now both are cut and painted. You can see the tabs that were cut off beside them

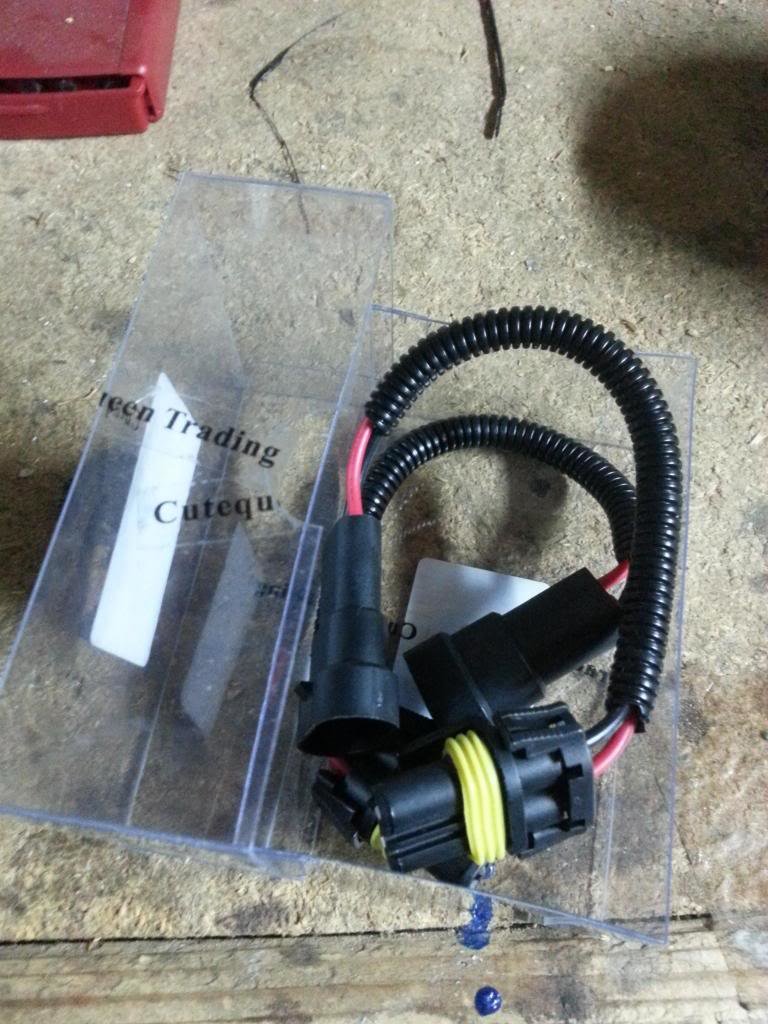

    Step 3: The next thing to do is wire the foglights. I bought a pack of two h10 extensions on amazon (http://www.amazon.com/gp/product/B008H6ZHYS/ref=oh_details_o00_s00_i00?ie=UTF8&psc=1) and cut them in half.

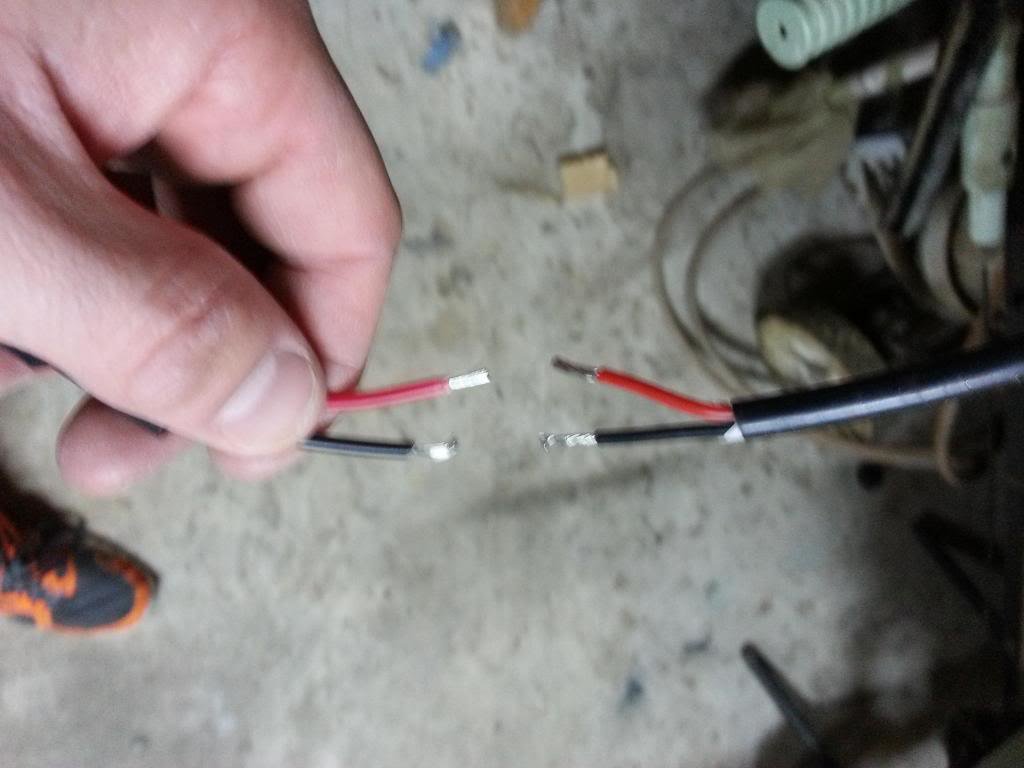

    I used the female ends and soldered them to the wires of the foglight. Red to red and black to black.

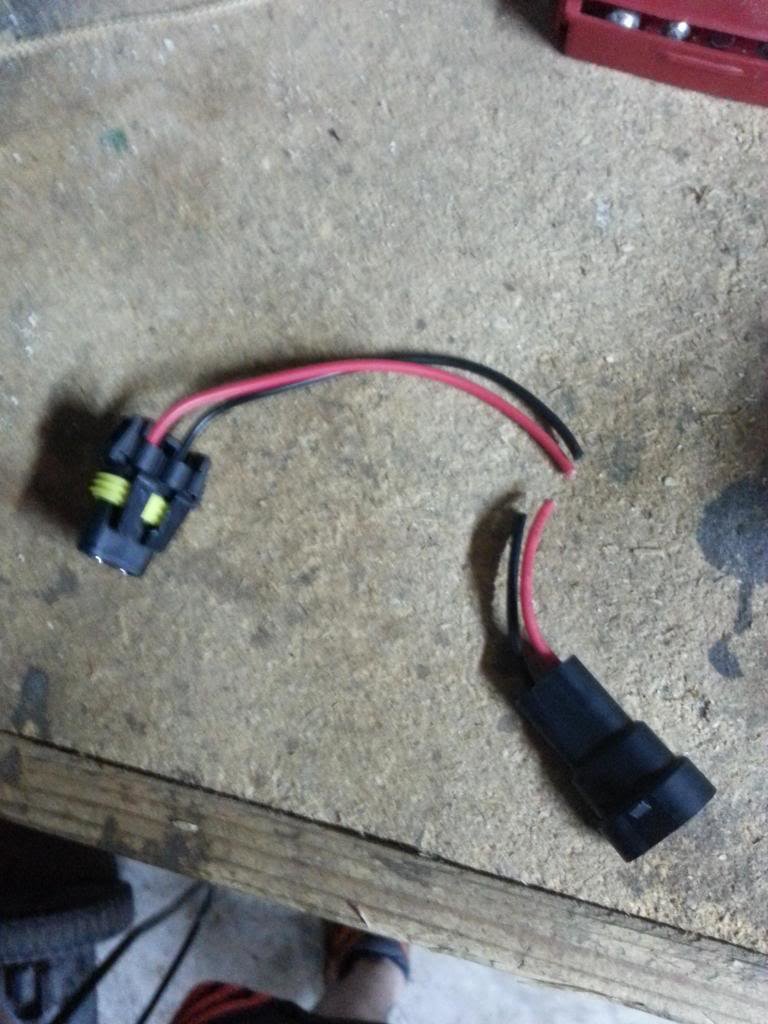

    make sure you don't make the cord too long like I did at first because the Male end on your truck reaches all the way up to the foglight, no need for the extra wiring. Here they are on my first attempt... too long but still functional.

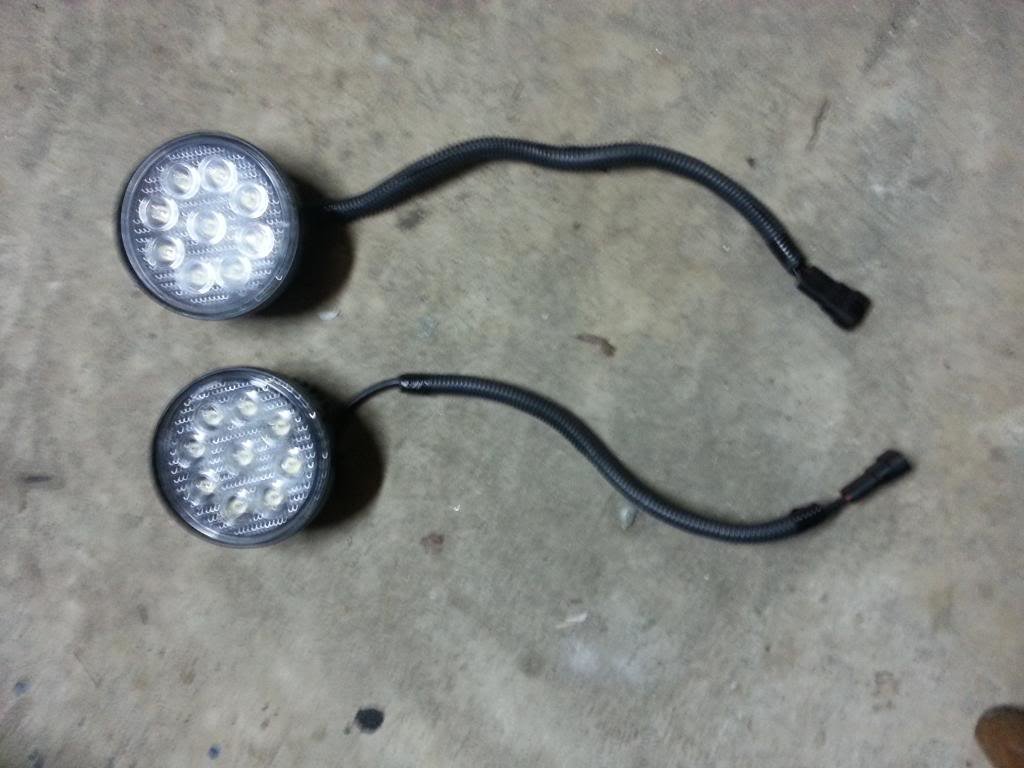

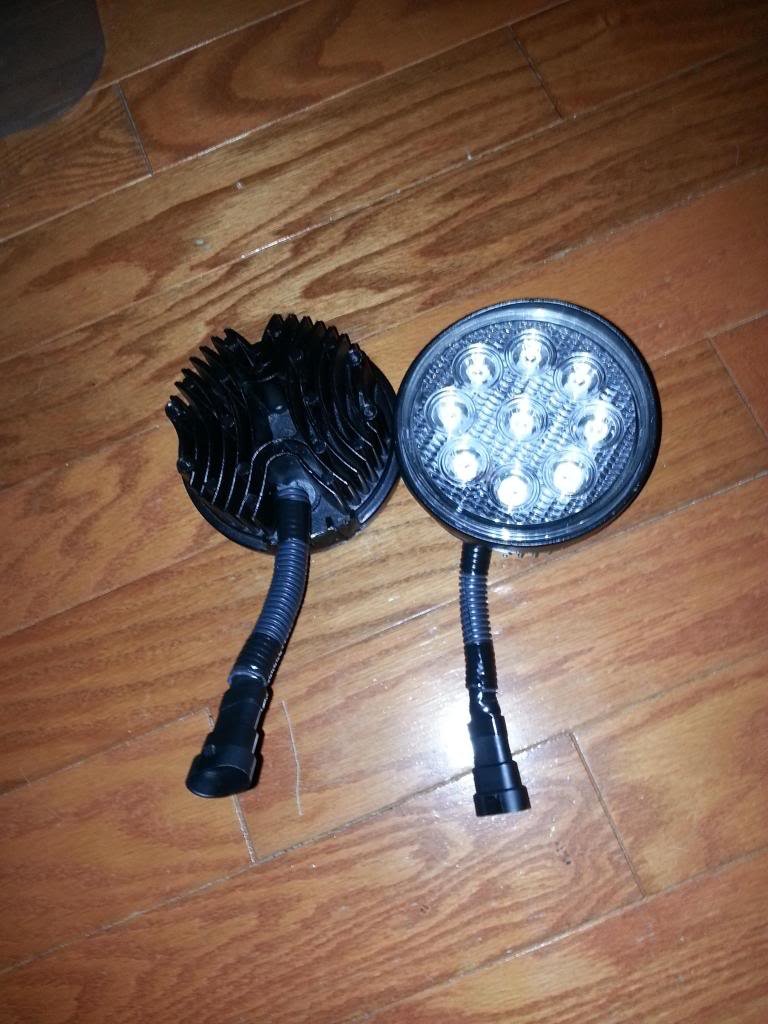

    I cut them again, shorter this time, stripped the wires, soldered, heatshrinked, wrapped in electrical tape, and then put a wire tube around it to maintain the professional look.


    Step 4: Next step is to unplug your stock foglights and test the connection of the new foglight. Make sure they work before proceeding any further.


    Step 5: Put your foglight in the hole (wire coming out of the bottom of the foglight towards bottom) and make a mark on each side of the foglight housing where the two stock holes are in the foglight hole. These holes are the two tabs that you press on the stock foglight to get it out.

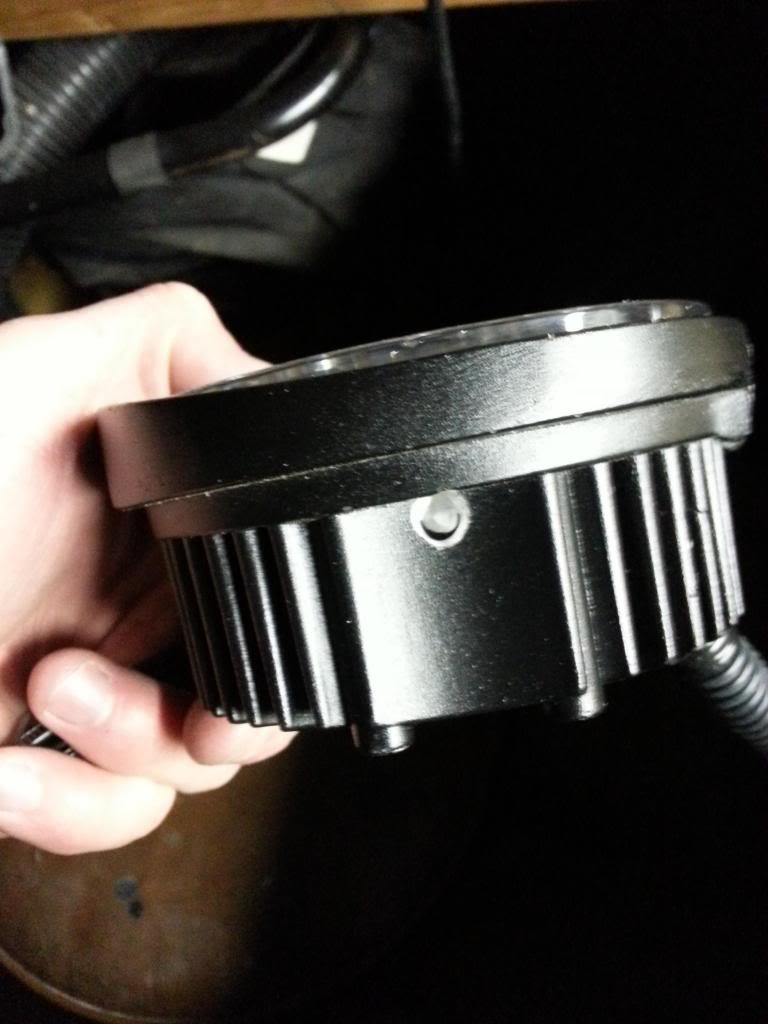

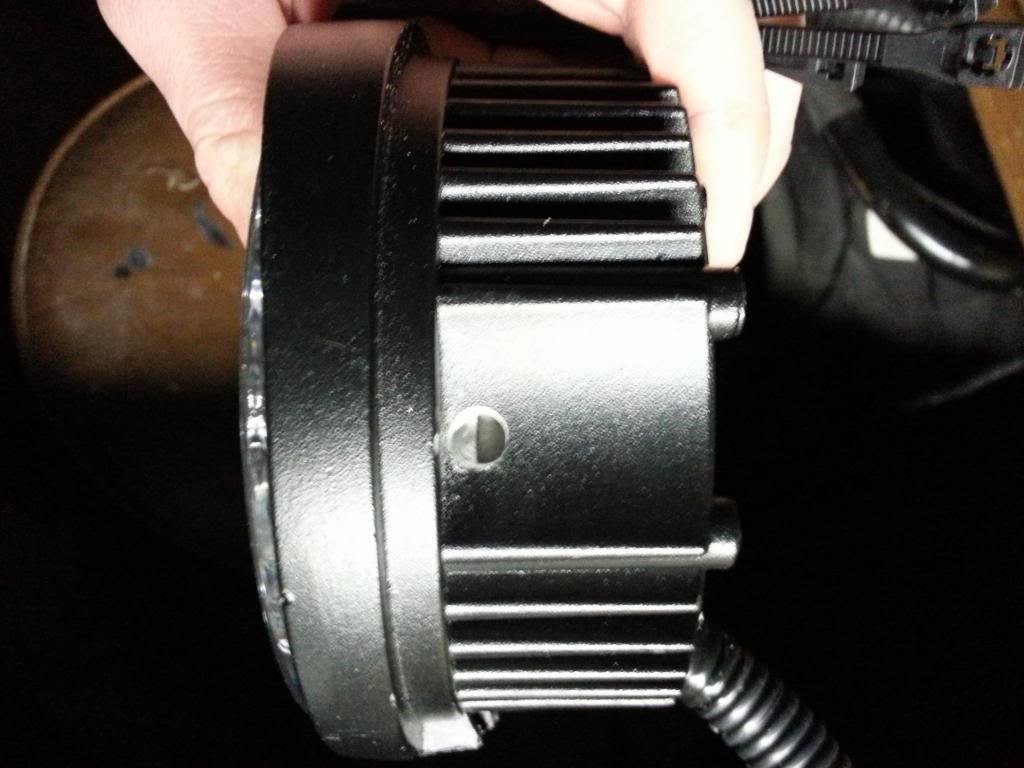

    Step 6: Take your foglights back to the workbench and drill the two holes that you marked on each. Only drill through the outermost shroud. Don't drill all the way through or anything like that.

    Step 7: Thread a zip tie through each hole, the thick head end of the zip tie sticking out of the hole you drilled a half inch. Put them into your stock foglight holes and zip tie them in. You can see here how it is done. The circled parts are the zip ties:

    7701d137-50c4-43fb-8211-1657a1fba625_zps_f56c3b11e70782043a2095e7721e9eded57f4b50.jpg

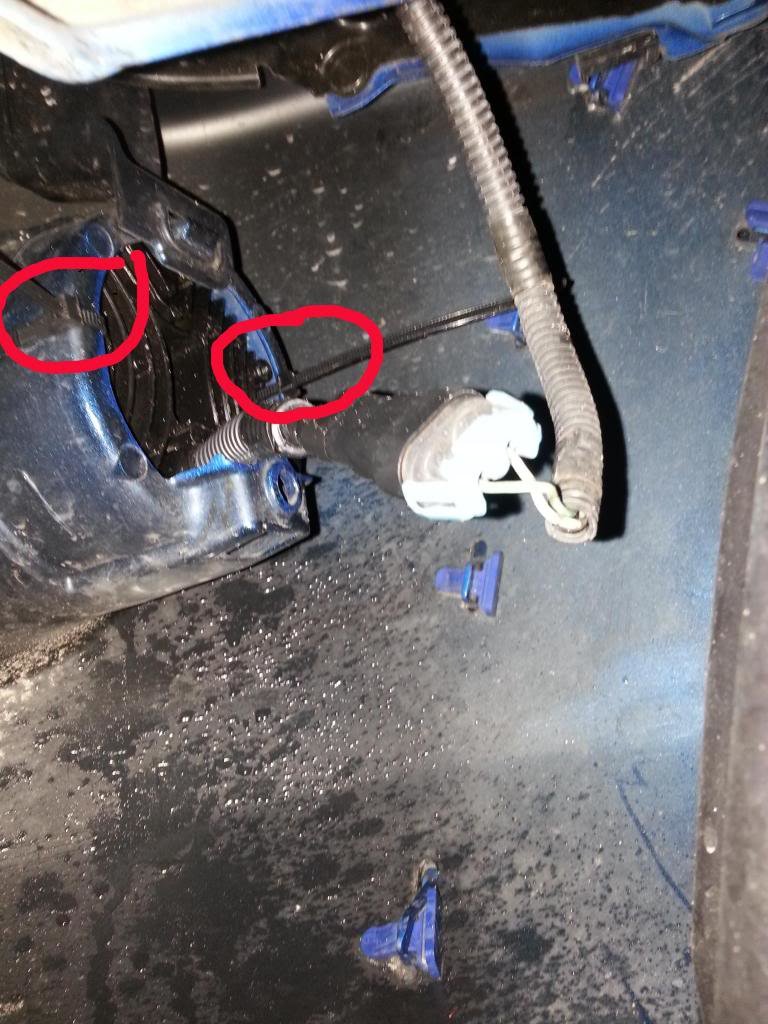

    The skinny end of the zip tie will come out of the fog light shroud and over to the back of the foglight hole near the connection then wrap around and zip into the thick head of the zip tie where the hole is.
    I will post pics soon of what it looks like all done on my truck. Like i said, the beauty of this mod is that nothing is hardwired onto your truck and you can remove these and install your stock fogs again in about 2 minutes flat. No mutilation of your truck required.

  2. Feb 2, 2014 at 9:53 AM
    #2
    jo35

    jo35 [OP] Well-Known Member

    Joined:
    Dec 7, 2013
    Member:
    #118105
    Messages:
    53
    Gender:
    Male
    First Name:
    Joe
    Orlando, FL
    Vehicle:
    2011 SR5 PreRunner
    Maxtrac Spindles Bilstein 5100 shocks @.85 Eibach springs Dakar leaf pack 1" block 3 degree shims Bilstein extended 5100 shocks CB spacer Method double standard wheels 285/75/17 Terra Grapplers BHLM w/ HID's and custom LED fogs 2011 color matched sport grille

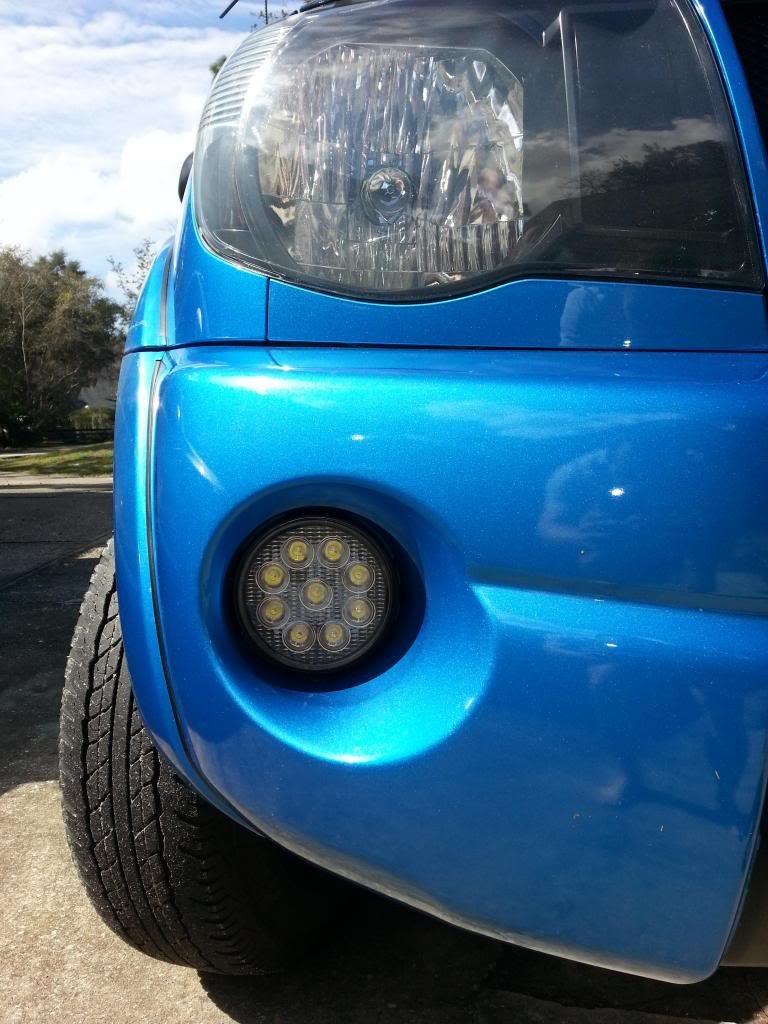

    Here are pics as promised. They are probably 3 times as bright as my stock fogs. Now I just need to get some lifetime Led bulbs for my headlights then I'm good 2 go.



    Kuntrykid likes this.
  3. Feb 2, 2014 at 10:03 AM
    #3
    Asianguywithatruk

    Asianguywithatruk Well-Known Member

    Joined:
    Jan 18, 2013
    Member:
    #95517
    Messages:
    412
    Gender:
    Male
    CenCal
    Vehicle:
    05 taco DCSB
    King RR coilovers Ironman leaf springs 17" scs sr8 jet black 285 70 17 cooper at3
    Cool mod man. I've been having this idea for a while but never got around to it. One question thought... How the heck do you aim them?

  4. Feb 2, 2014 at 10:05 AM
    #4
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,918
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake
    How bright are they. I read some of the Amazon reviews and am kinda skeptical because there are so many 5 stars. So many I think most may be fake.

  5. Feb 2, 2014 at 10:06 AM
    #5
    jo35

    jo35 [OP] Well-Known Member

    Joined:
    Dec 7, 2013
    Member:
    #118105
    Messages:
    53
    Gender:
    Male
    First Name:
    Joe
    Orlando, FL
    Vehicle:
    2011 SR5 PreRunner
    Maxtrac Spindles Bilstein 5100 shocks @.85 Eibach springs Dakar leaf pack 1" block 3 degree shims Bilstein extended 5100 shocks CB spacer Method double standard wheels 285/75/17 Terra Grapplers BHLM w/ HID's and custom LED fogs 2011 color matched sport grille
    I haven't aimed mine. The only way to really aim them would be to put a shim on the back of the unit against the stock hole to aim it lower. They cut throught the fog really well, they are just so bright that you don't want to have them on in front of oncoming traffic. Fog is never that bad here in FL so I did it mainly for looks.

  6. Feb 2, 2014 at 10:07 AM
    #6
    jo35

    jo35 [OP] Well-Known Member

    Joined:
    Dec 7, 2013
    Member:
    #118105
    Messages:
    53
    Gender:
    Male
    First Name:
    Joe
    Orlando, FL
    Vehicle:
    2011 SR5 PreRunner
    Maxtrac Spindles Bilstein 5100 shocks @.85 Eibach springs Dakar leaf pack 1" block 3 degree shims Bilstein extended 5100 shocks CB spacer Method double standard wheels 285/75/17 Terra Grapplers BHLM w/ HID's and custom LED fogs 2011 color matched sport grille
    They are wayyy brighter than I expected. Probably twice as bright as my stock high beams

    Kuntrykid likes this.
  7. Feb 2, 2014 at 10:09 AM
    #7
    anders99

    anders99 The Sailing Member

    Joined:
    May 28, 2013
    Member:
    #105101
    Messages:
    1,918
    Gender:
    Male
    First Name:
    Matthew
    Niceville, Florida
    Vehicle:
    07 Base 4cyl 4x4
    SOS Offroad Concepts hybrid front bumper Iggy Corp. Switch panel Famous Fab ditch lights and cb antenna mount Pioneer Appradio 2 Halo Led Headlights Led Taillights 3'' toytech spacer lift on front end Toytec AAL on rear AFE cold air intake
    Sweet thanks reason I asked is because there are 126 reviews for the product, 109 are 5 stars. Will have to do this sometime.

  8. Feb 3, 2014 at 11:02 AM
    #8
    Chris24

    Chris24 Well-Known Member

    Joined:
    Apr 19, 2012
    Member:
    #77247
    Messages:
    1,573
    Gender:
    Male
    First Name:
    Chris
    Greensboro, NC
    Vehicle:
    09 Black DCSB TRD Sport, V6, 6sp
    how many people flash you from this? seems like it would be way too bright for oncoming traffic since the beam can't be aimed or adjusted.

  9. Feb 3, 2014 at 2:40 PM
    #9
    penguins_cc

    penguins_cc Well-Known Member

    Joined:
    Aug 18, 2010
    Member:
    #41874
    Messages:
    2,356
    Gender:
    Male
    First Name:
    Will
    Bellevue, WA
    Vehicle:
    Timberland Mica Limo!
    Perkins Performance Sliders, Warn 9000, Brute Force Fab front & rear bumper, OME/Dakar lift, full ATO skids and hi-lift mount, satoshi, Wet Okoles, illuminated 4x4 switch, Diff Breather.
    This looks cool but would a spot pattern be preferable to the flood pattern for a fog light? I don't know the answer, I'm asking.

  10. Feb 3, 2014 at 3:40 PM
    #10
    rondog

    rondog Well-Known Member

    Joined:
    Nov 2, 2010
    Member:
    #45618
    Messages:
    2,289
    Gender:
    Male
    First Name:
    Ronnie
    Escondido/San Diego
    Crazy, I just bought a pair of LED lights today for my bumper and I was going to use the existing fog light wires but couldn't figure out what kind of connector it was. Thanks for the Amazon link!

    Tacoma SS likes this.
  11. Dec 28, 2014 at 1:01 PM
    #11
    88JayPizzle

    88JayPizzle Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121331
    Messages:
    180
    Gender:
    Male
  12. Dec 29, 2014 at 5:24 AM
    #12
    mattvivsound

    mattvivsound Well-Known Member

    Joined:
    Nov 24, 2009
    Member:
    #26445
    Messages:
    284
    Gender:
    Male
    First Name:
    Matt
    Southern MD
    Vehicle:
    '16 Tacoma DCSB TRD OR
    OME & 285/75R16 plus other stuff.
    photo of the lights 20-30ft from the wall.

  13. Dec 29, 2014 at 6:13 AM
    #13
    808TacoMan

    808TacoMan HAWAIIAN

    Joined:
    Apr 25, 2012
    Member:
    #77615
    Messages:
    1,664
    Gender:
    Male
    First Name:
    Lawson
    Hilo, HI
    Vehicle:
    '12 IS250
    Megan Racing Coilovers Morimoto XB LED Fogs
    Sub'd for output

  14. Dec 29, 2014 at 6:17 AM
    #14
    geekhouse23

    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    11,774
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius
    Looks good +1

  15. Dec 29, 2014 at 6:21 AM
    #15
    808TacoMan

    808TacoMan HAWAIIAN

    Joined:
    Apr 25, 2012
    Member:
    #77615
    Messages:
    1,664
    Gender:
    Male
    First Name:
    Lawson
    Hilo, HI
    Vehicle:
    '12 IS250
    Megan Racing Coilovers Morimoto XB LED Fogs
    OP what is the actual diameter of the lights?

  16. Dec 29, 2014 at 12:29 PM
    #16
    88JayPizzle

    88JayPizzle Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121331
    Messages:
    180
    Gender:
    Male
    just headlights on
    [​IMG]



    with fogs on
    [​IMG]

  17. Dec 30, 2014 at 10:39 AM
    #17
    jo35

    jo35 [OP] Well-Known Member

    Joined:
    Dec 7, 2013
    Member:
    #118105
    Messages:
    53
    Gender:
    Male
    First Name:
    Joe
    Orlando, FL
    Vehicle:
    2011 SR5 PreRunner
    Maxtrac Spindles Bilstein 5100 shocks @.85 Eibach springs Dakar leaf pack 1" block 3 degree shims Bilstein extended 5100 shocks CB spacer Method double standard wheels 285/75/17 Terra Grapplers BHLM w/ HID's and custom LED fogs 2011 color matched sport grille
    Hey guys!

    The lights are 4" in diameter.

  18. Dec 30, 2014 at 10:40 AM
    #18
    jo35

    jo35 [OP] Well-Known Member

    Joined:
    Dec 7, 2013
    Member:
    #118105
    Messages:
    53
    Gender:
    Male
    First Name:
    Joe
    Orlando, FL
    Vehicle:
    2011 SR5 PreRunner
    Maxtrac Spindles Bilstein 5100 shocks @.85 Eibach springs Dakar leaf pack 1" block 3 degree shims Bilstein extended 5100 shocks CB spacer Method double standard wheels 285/75/17 Terra Grapplers BHLM w/ HID's and custom LED fogs 2011 color matched sport grille
    Wow nice truck. I love the grille! It's cool to see someone doing this. My instructions and pictures paid off!

  19. Dec 30, 2014 at 2:18 PM
    #19
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    11,568
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    The light output looks great, but they are not fog lights anymore, are they? Driving lights/ flood light perhaps since fog lights are wide (cornering) beams and not long distance.

    Thanks for the write up and photos. I was considering HIDs for these weak factory fog 35 watt halogen bulbs just to improve the actual fog cutting and wide beam cornering advantage.

  20. Jan 3, 2015 at 8:04 PM
    #20
    n.gardner

    n.gardner Spacer Hater

    Joined:
    Dec 31, 2013
    Member:
    #119601
    Messages:
    711
    Gender:
    Male
    First Name:
    Nick
    Hawaii
    Vehicle:
    '13 SR5 4x4
    OME 3" 887s + Dakars 1" 4 Crawler BL Pro-Comp Uniballs Nitrochargers + Super Bumps Diff Drop + Drive Shaft Drop
