How To: OME Dakar Overload Flip

Discussion in 'Suspension' started by corprin, Feb 17, 2018.

  1. Feb 17, 2018 at 5:20 AM
    #1
    corprin

    corprin [OP] Well-Known Member

    Joined:
    Jun 21, 2015
    Member:
    #157908
    Messages:
    1,926
    Gender:
    Male
    First Name:
    corprin
    What: The leaf pack is made of a main leaf (with eyes) full length leafs, and two short overload leafs. These overload leafs don't do anything beyond giving you a slight 1/2" lift until you load the truck with weight. When the weight compresses the pack it flattens out and engages the overload to increase capacity. This allows for a leaf pack that is soft unloaded and stronger when loaded.

    Why: By flipping the first (upper) overload you decrease the amount compression needed to engage the overload... i.e. Less sag with load then before. This does affect the rate of compression and therefore articulation profile of the pack.

    Tools: it's been a while since I did this, and it was done off the truck during initial instal, so adjust fire as needed. If your packs are old, you'll need new center pins.

    An impact with a 13mm deep.

    Four quick clamps, c-clamps, or c-vice grips.

    How:

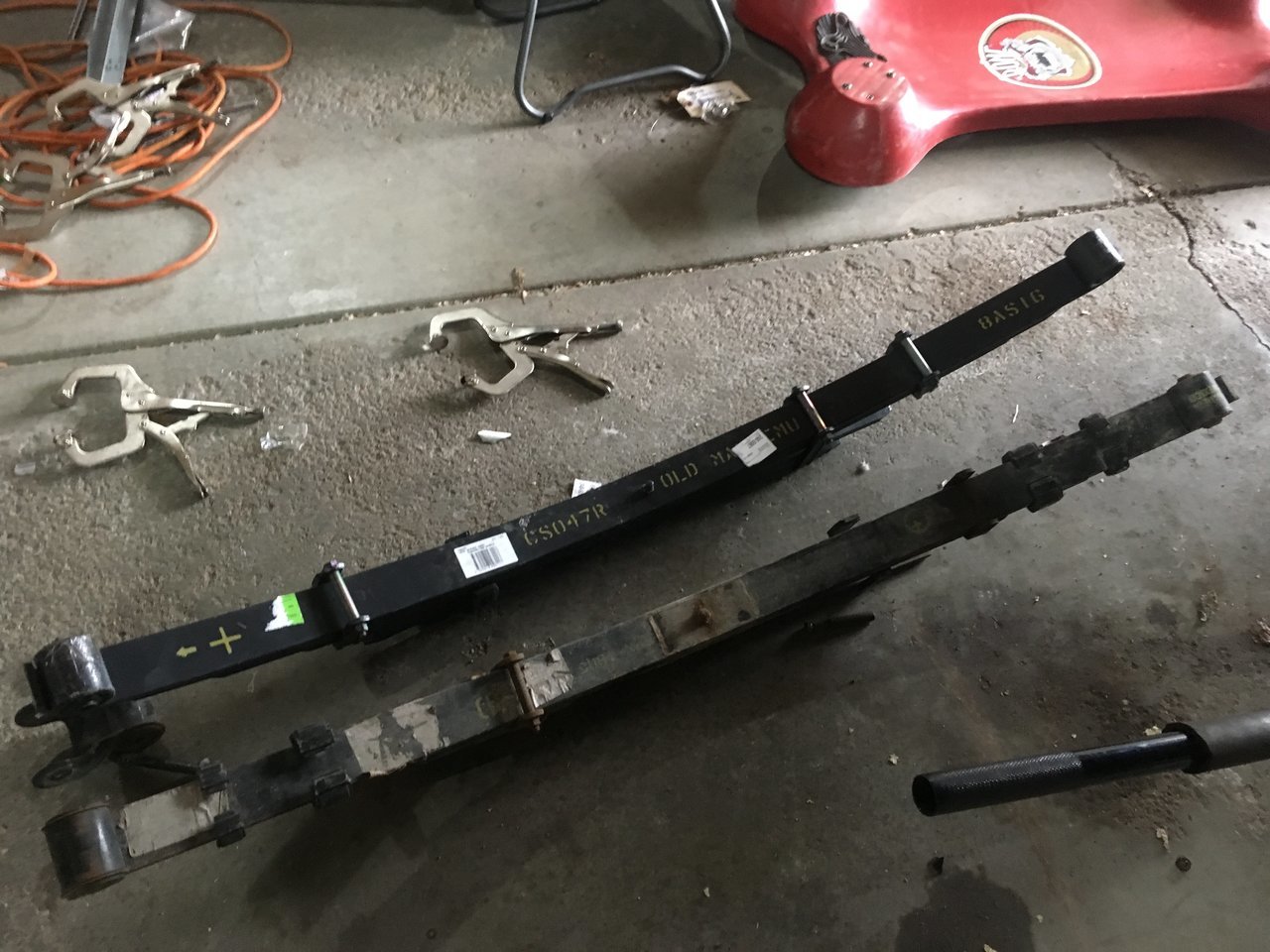

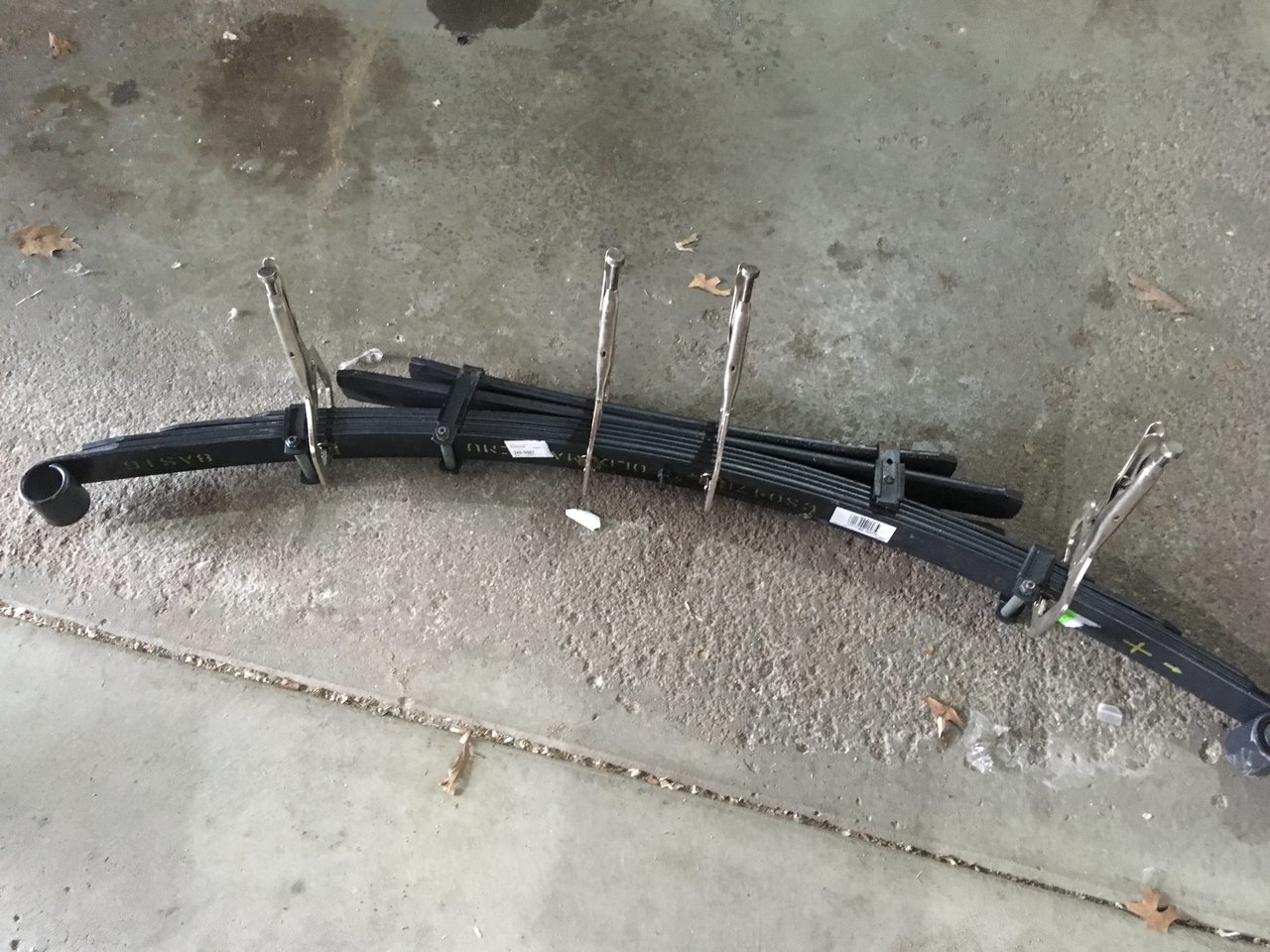

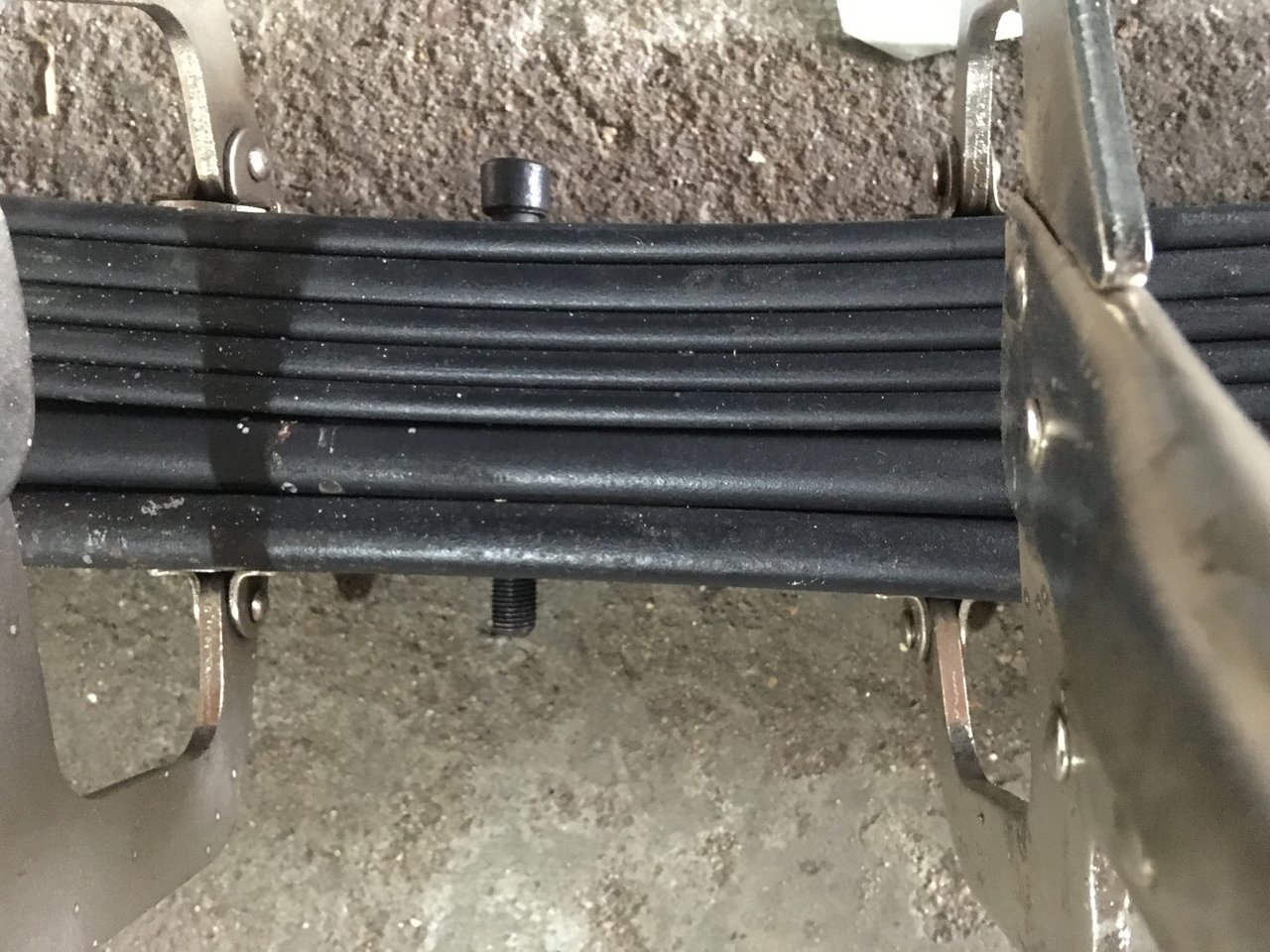

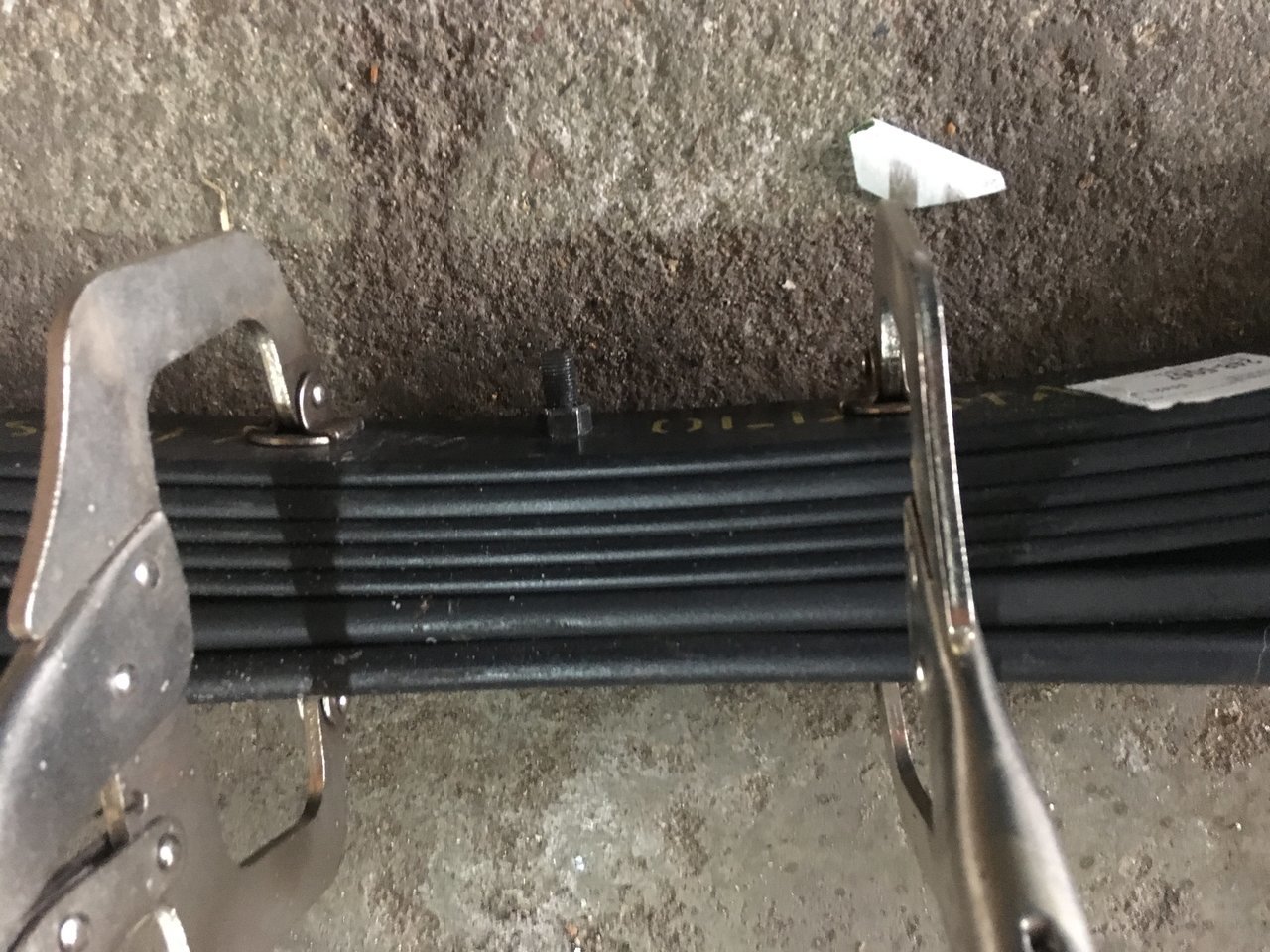

    Place two clamps on the main pack just outboard the overload leafs. And two a bit out from the center pin, but enough room to fit your impact.


    Loosen the pin nut and set aside.

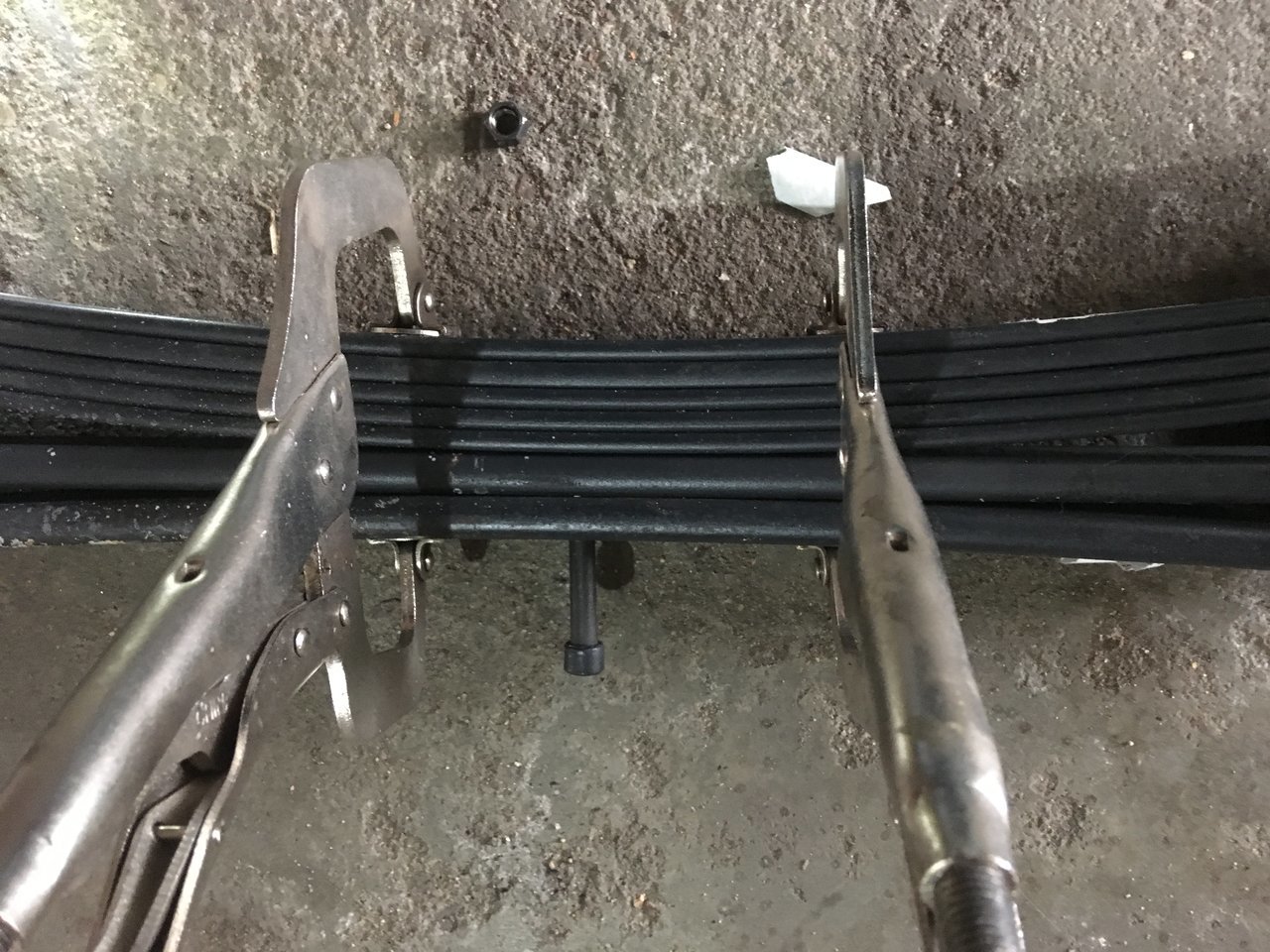

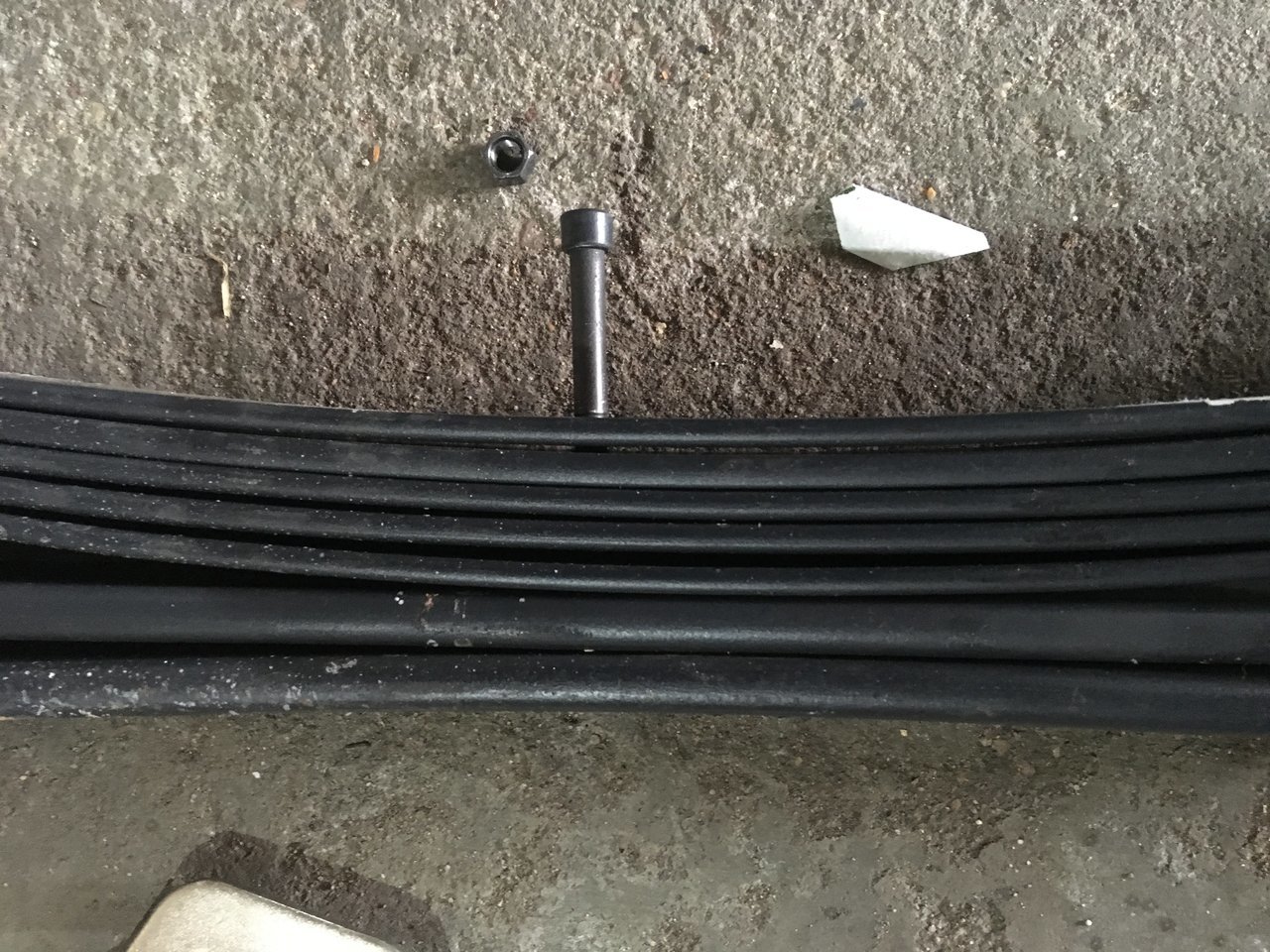

    Remove the pin from the pack, and insert from the other direction (main leaf down).


    Loosen/remove the two INNER clamps and set aside.

    Slide the pin back out just enough the clear the two overload leafs.

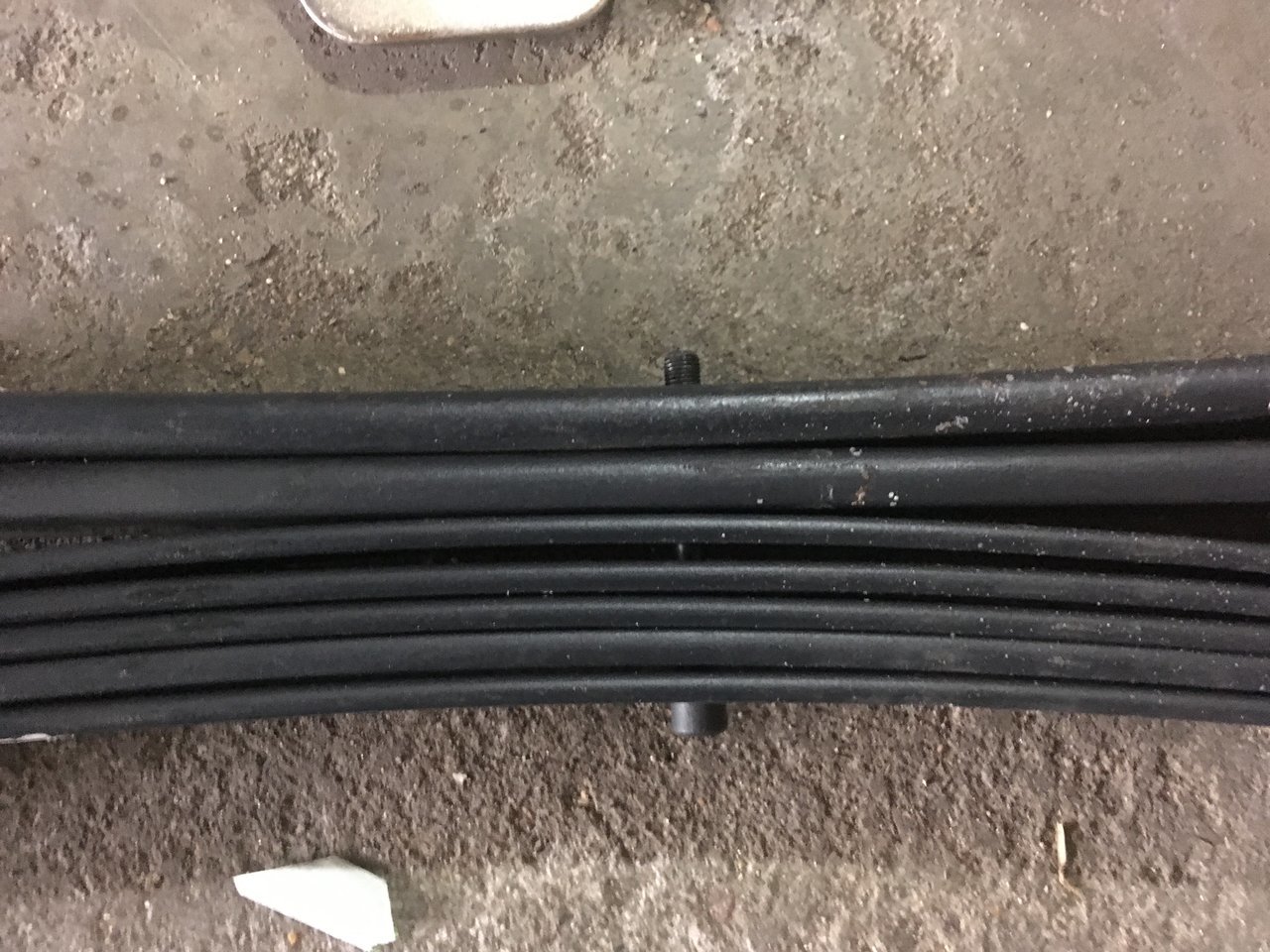

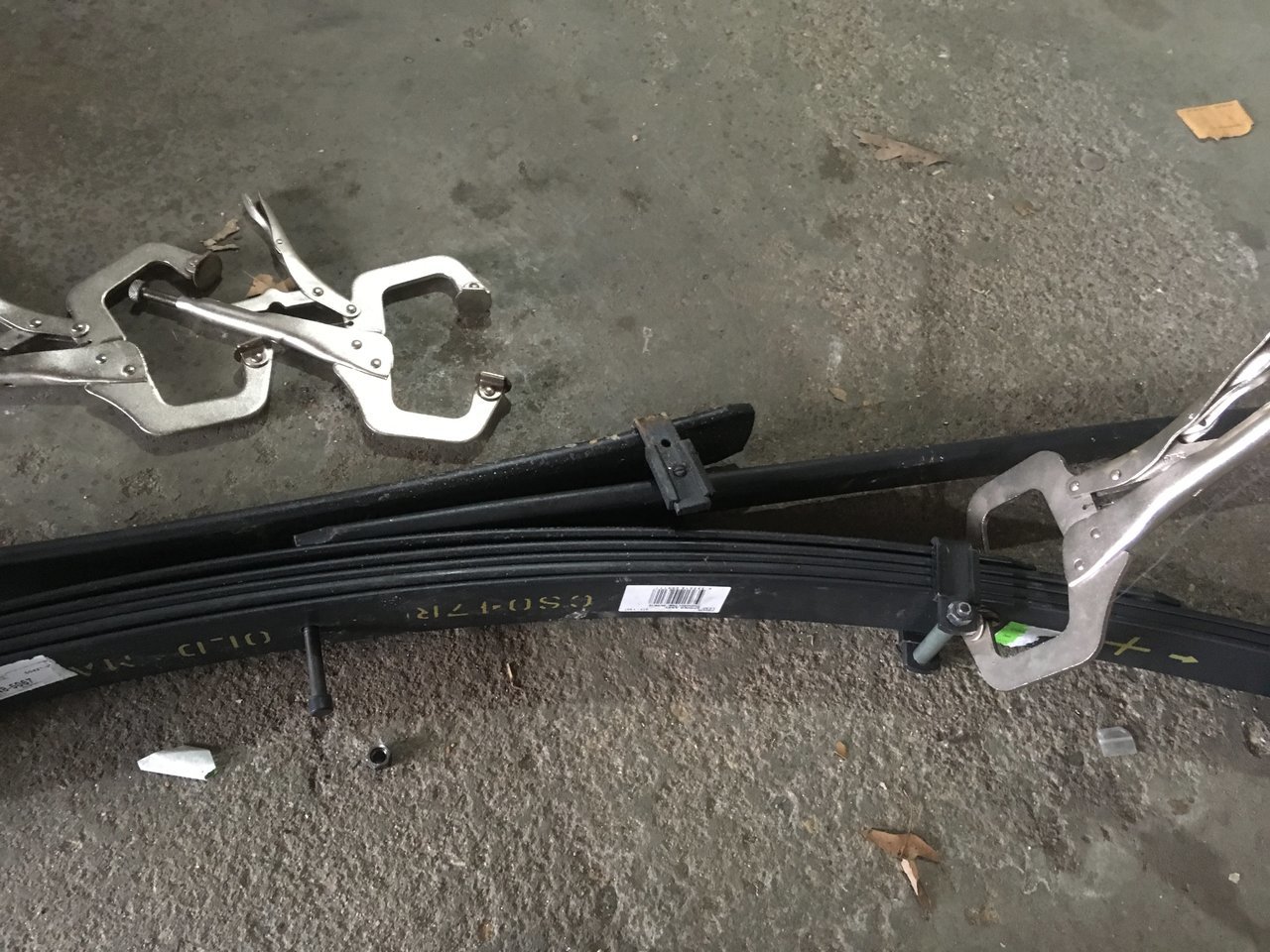

    Slip the primary overload leaf (2nd from the bottom) out rotate about the longitudinal axis and slip it back in. The rotation, not a flip, is required as the leaf is directional.


    Reposition the leaf's hole and push the center pin all the way through both overloads to ensure proper alignment.


    Replace the inner clamps, remove the pin, reinsert in proper orientation, and reinstall/torque the center pin nut.


    ~fin


    scottalot likes this.
  2. Feb 17, 2018 at 5:24 AM
    #2
    scottalot

    scottalot FooW

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    113,933
    First Name:
    Stockalot
    TW
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    Good write-up man
    Just can't leaf nothin alone can ya? :laugh: :p

  3. Feb 17, 2018 at 5:37 AM
    #3
    corprin

    corprin [OP] Well-Known Member

    Joined:
    Jun 21, 2015
    Member:
    #157908
    Messages:
    1,926
    Gender:
    Male
    First Name:
    corprin
    Nope.


    Hope it came across well... typed while half asleep and doped outta my goard on Percocet.

    scottalot likes this.
  4. Feb 17, 2018 at 5:39 AM
    #4
    scottalot

    scottalot FooW

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    113,933
    First Name:
    Stockalot
    TW
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    :thumbsup::rofl:

  5. May 30, 2019 at 8:03 PM
    #5
    kylehorvath

    kylehorvath Well-Known Member

    Joined:
    Feb 23, 2010
    Member:
    #32009
    Messages:
    169
    Gender:
    Male
    First Name:
    Kyle
    Humboldt/Tuolumne/Stanislaus
    Vehicle:
    2007 Access Cab, 4x4
    King 700 with RR, TC LCA skids, Dakar/OME rear, ARB, XRC winch, Baja Designs, sliders, Prinsu, and some other goodies
    How is the ride? Hub to fender measurements? Have the OME AAL also? I have moderate weight (big shell, platform, tools, drawer, HC steel rear bumper... but no cans out back, no swing out, no extra large spare tire) but getting another inch or so would be nice when fully loaded during long trips in the desert. I'm at 24" hub to fender when totally unloaded

  6. May 30, 2019 at 8:26 PM
    #6
    corprin

    corprin [OP] Well-Known Member

    Joined:
    Jun 21, 2015
    Member:
    #157908
    Messages:
    1,926
    Gender:
    Male
    First Name:
    corprin

    This gives no lift, and no change in spring to bump measurements. It just allows the primary overload to engage with less compression of the spring... earlier in the stroke if you will.

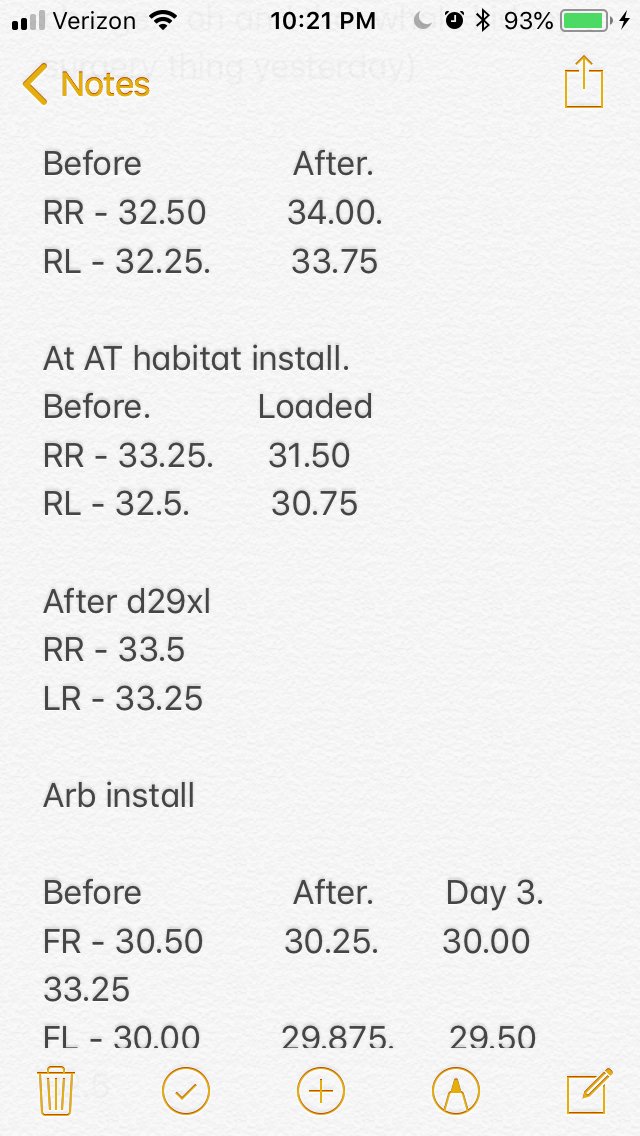

    I measure from the 6 o’clock on my rims. Here are my stock->OME->full camping load with habitat->d29xl AAL.


    I removed the AAL because dude quailify with no load sucked. Bagging it.

  7. May 31, 2019 at 11:59 AM
    #7
    kylehorvath

    kylehorvath Well-Known Member

    Joined:
    Feb 23, 2010
    Member:
    #32009
    Messages:
    169
    Gender:
    Male
    First Name:
    Kyle
    Humboldt/Tuolumne/Stanislaus
    Vehicle:
    2007 Access Cab, 4x4
    King 700 with RR, TC LCA skids, Dakar/OME rear, ARB, XRC winch, Baja Designs, sliders, Prinsu, and some other goodies
    @corprin , excellent, thanks! I don't want any lift when unloaded, but I also don't want to loose much when I'm loaded with fuel, water, food, and gear for trips. I may try the flip and see how I like it. Any adverse affect on flex or daily driving? Thanks for the input
    KH

  8. Jun 1, 2019 at 7:33 AM
    #8
    corprin

    corprin [OP] Well-Known Member

    Joined:
    Jun 21, 2015
    Member:
    #157908
    Messages:
    1,926
    Gender:
    Male
    First Name:
    corprin
    I never noticed any adverse ride quality, but the hab adds about 300lbs of constant weight to the bed. Running with the d29xl AAL it was really stiff and raked with just the hab. I pulled them after my last trip. I also have been using inverted timbrens as back ups which carry a ton of weight you know they are back there on speed bumps.

    I’m bagging as soon as I can get an afternoon to install the kit. After that I might pull the extra leaf from the pack and offset that loss of capacity with the bags.

  9. Jun 3, 2019 at 6:59 AM
    #9
    corprin

    corprin [OP] Well-Known Member

    Joined:
    Jun 21, 2015
    Member:
    #157908
    Messages:
    1,926
    Gender:
    Male
    First Name:
    corprin
    @kylehorvath

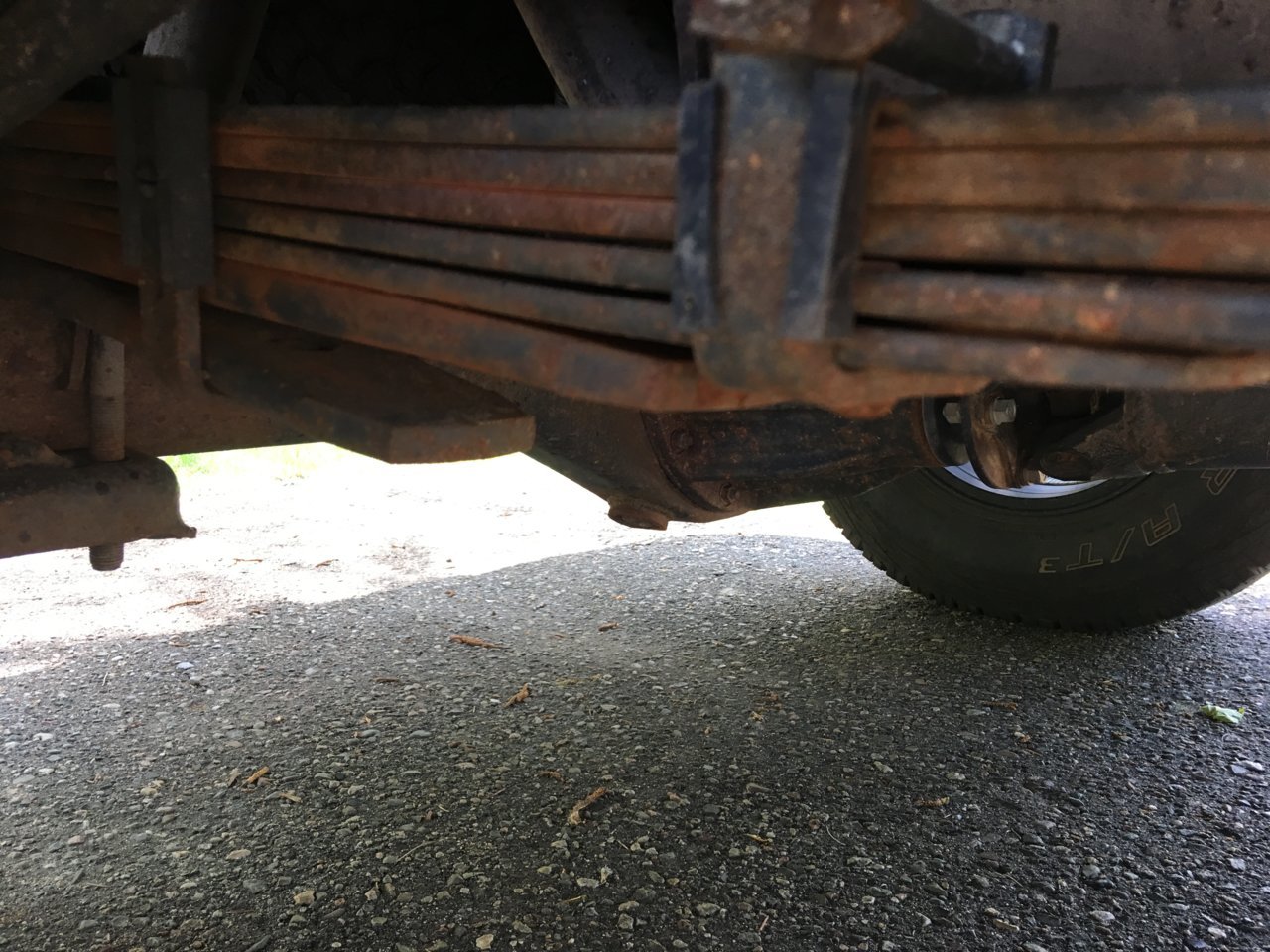

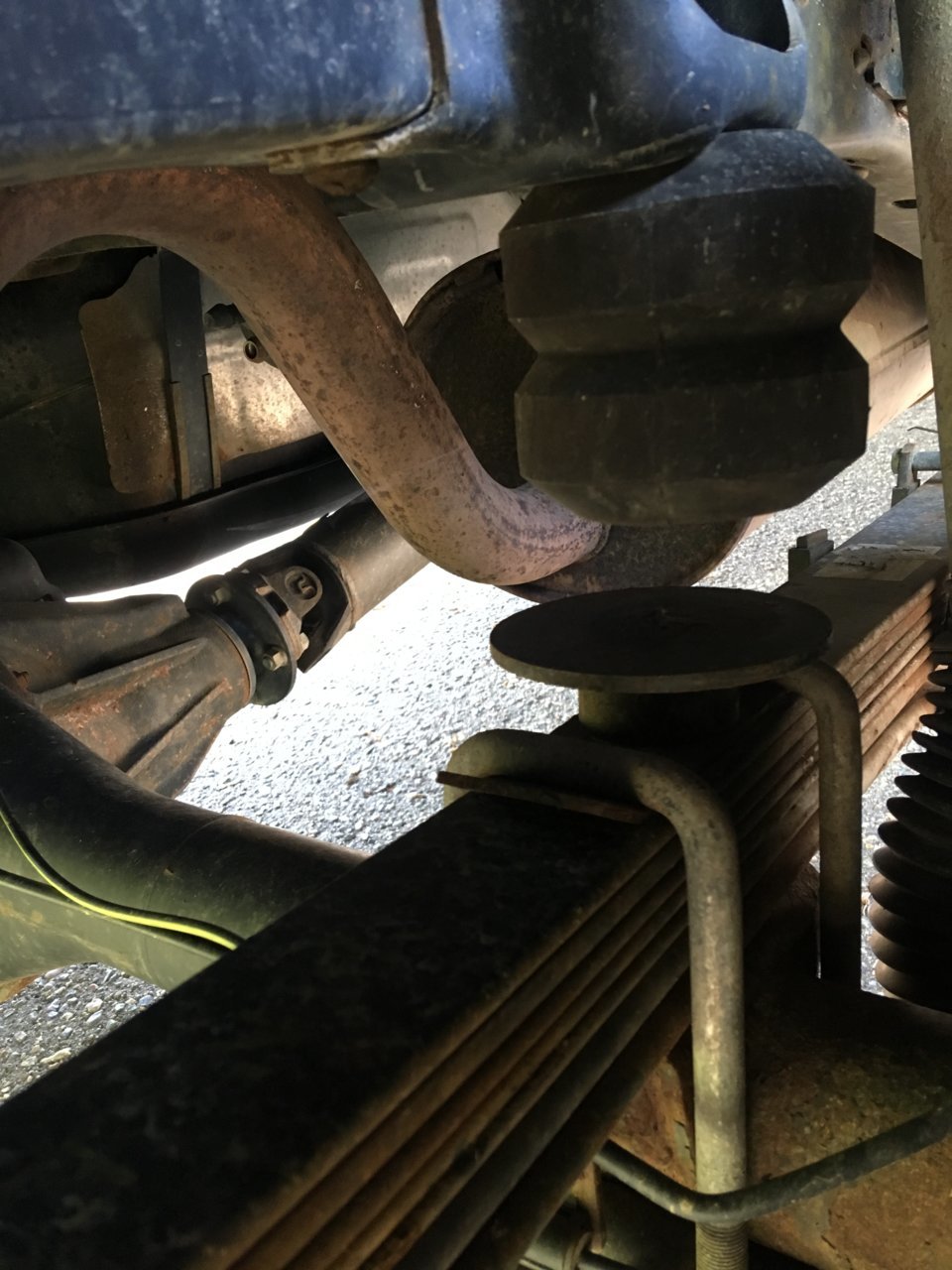

    Here is OME Dakar, overload flipped, with the hab and maybe 100lbs of stuff.
