How to remove your carpet in a first gen tacoma

Discussion in '1st Gen. Tacomas (1995-2004)' started by cynicalrider, Mar 2, 2017.

  1. Mar 2, 2017 at 8:01 AM
    #1
    cynicalrider

    cynicalrider [OP] #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    16,436
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4, '23 Bronco Wildtrak, 2017 HSQV FE350
    Drop bracket lift and booger welds
    So the original write up on this forum on how to pull the carpet looks like it was removed. Being the type of person who relies on write up's on this forum and not being able to find one, I decided to make my own. This write up is for the first gen extra cab, mine is an 01 so YMMV.

    Tools needed:

    Phillips head
    10 MM
    12 MM
    14 MM

    and maybe an impact depending on rust levels you are dealing with. I'm sure it's not necesary but it made it MUCH easier.

    Start by emptying your cab as much as possible. This is the order I went with stuff, but it doesn't need to be done in this order really.

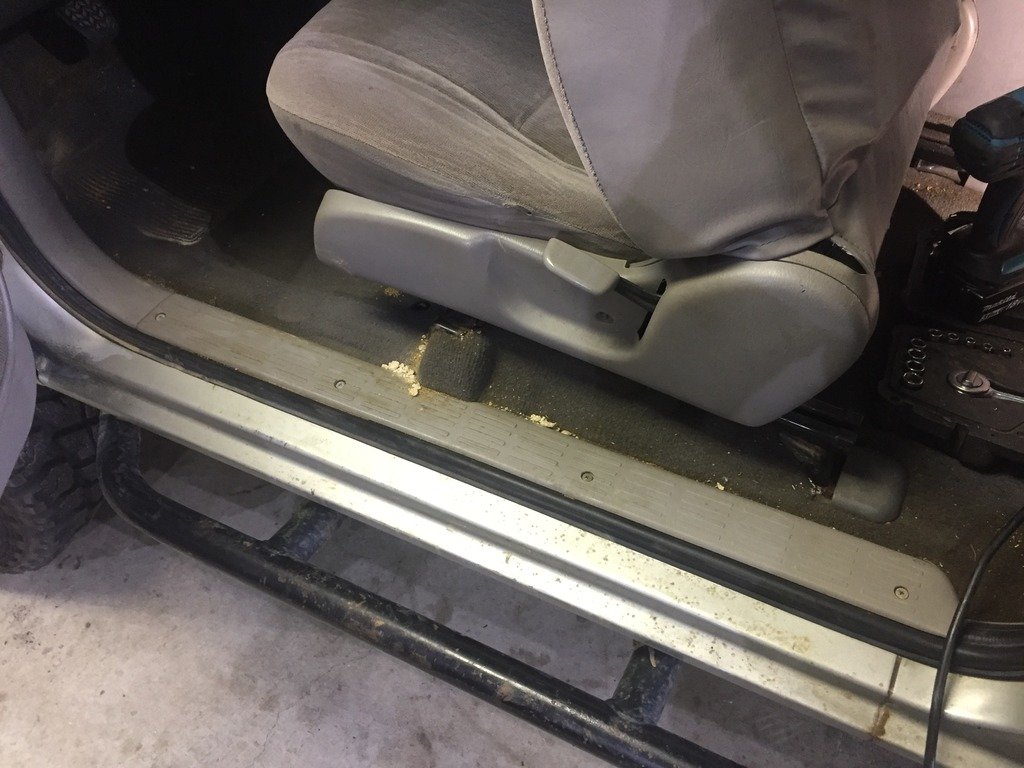

    First use a phillips to remove the panels that run along inside the doors:

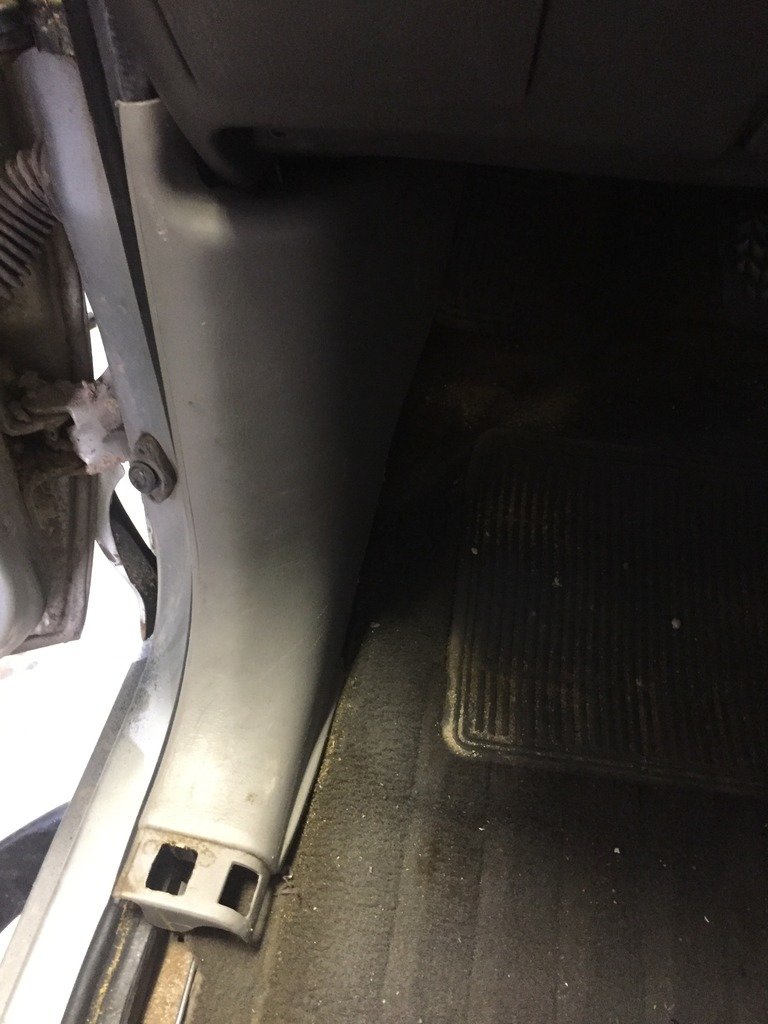

    After they are removed, you can pull the kick panel under the dash:


    Repeat for passenger side.

    Next are the seats. The seats are only held in by 4 14 MM bolts. The 2 in front are exposed:

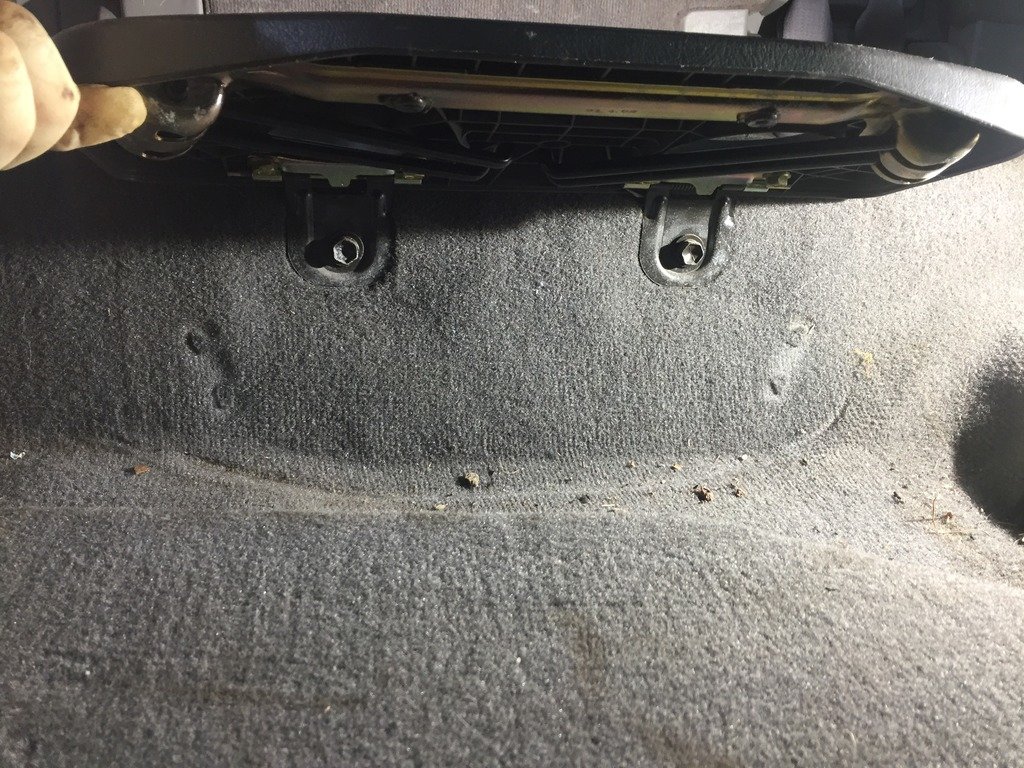

    The two in the rear hide under some trim paneling. Use an interior tool (if you dont have one I suggest you buy one because they rock) and pop the covers off.


    Then pull out the other 2 14MM bolts. These are the two that were a bitch.

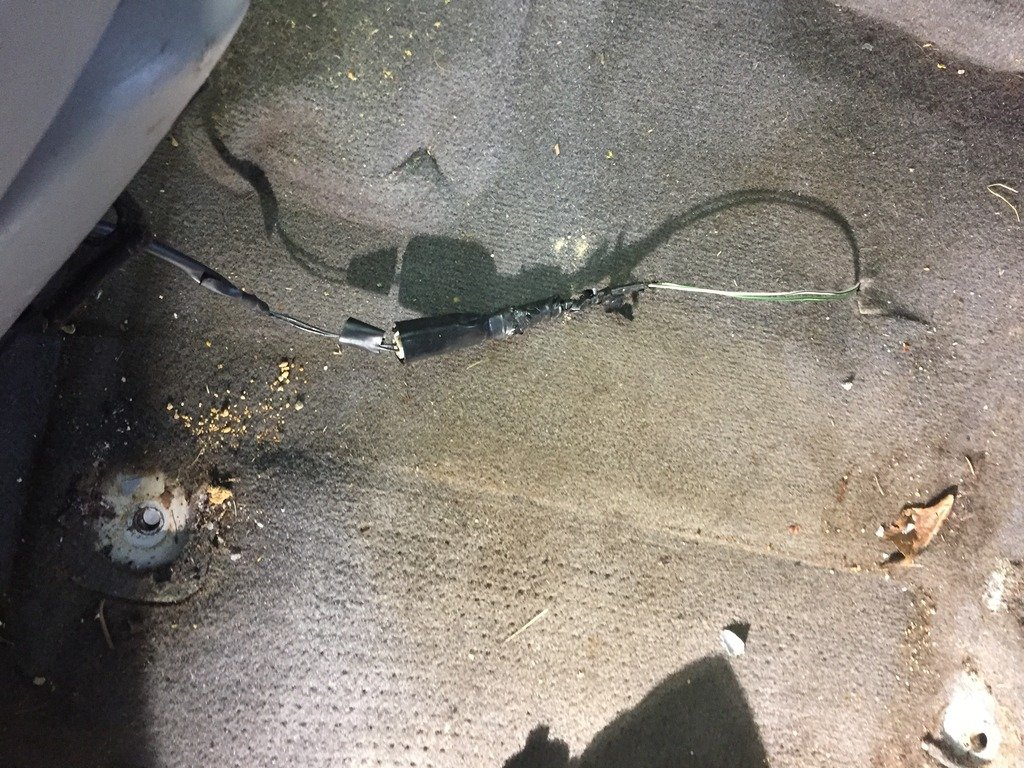

    After this the seat is removable, but not till you undo this clip under the seat. I think it's for the seatbelt monitor stuff.


    Repeat for passenger side seat, there should be no wire under that one.

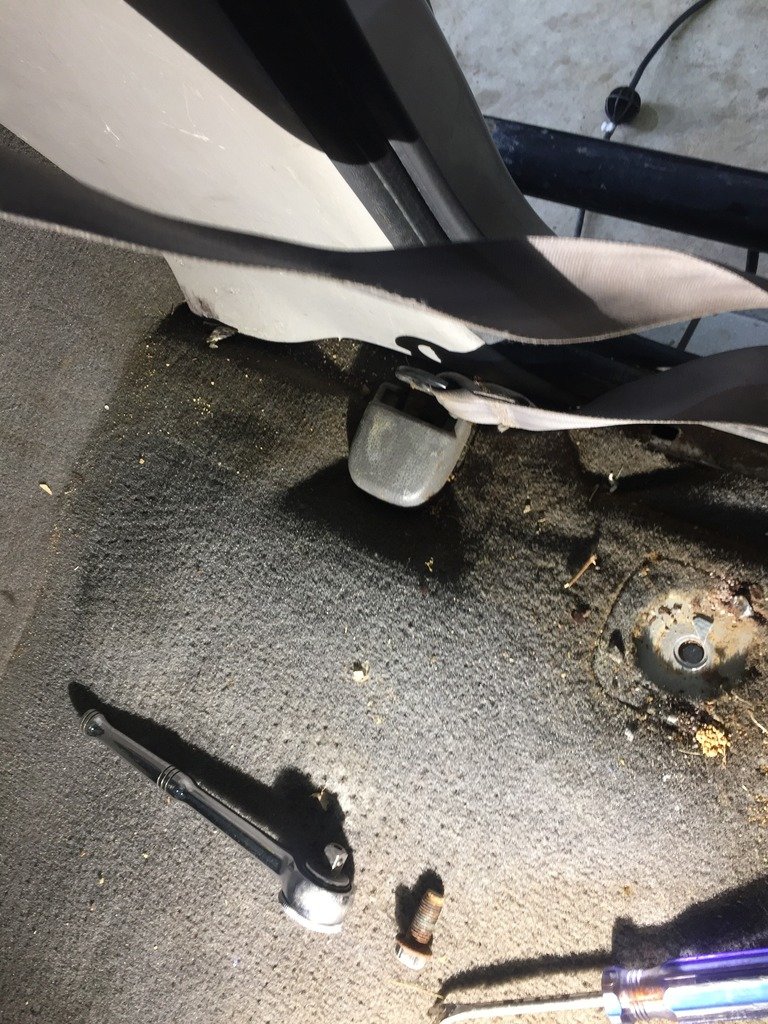

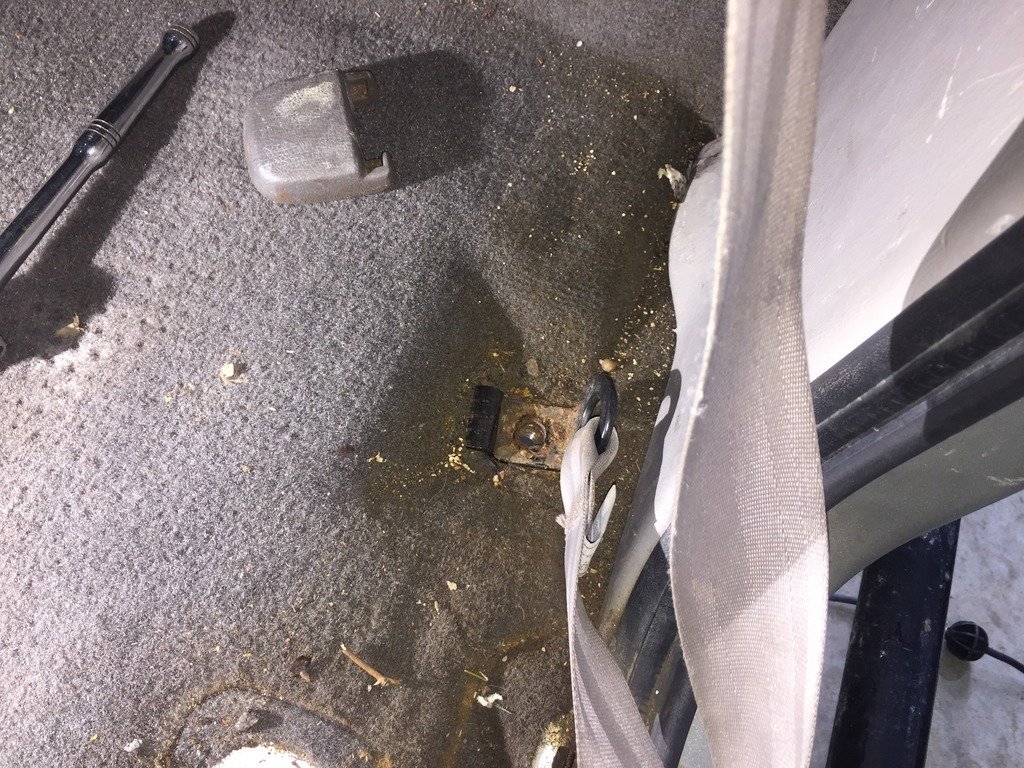

    Next I did the seat belt mounts on the floor. Those also were 14's I believe. They also hide under a panel.



    Next I did this little cup holder tray thing. They are 12's.



    At this point you can tackle the center console. It's really easy to remove with the seats out. This front clip is a phillips screw:

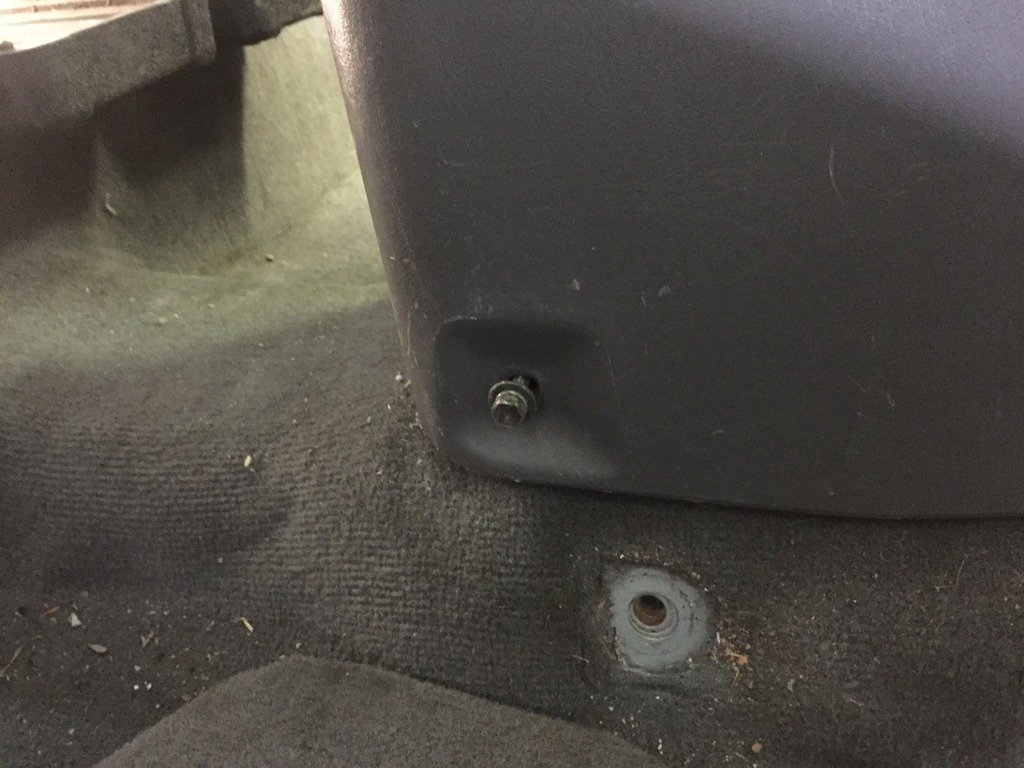

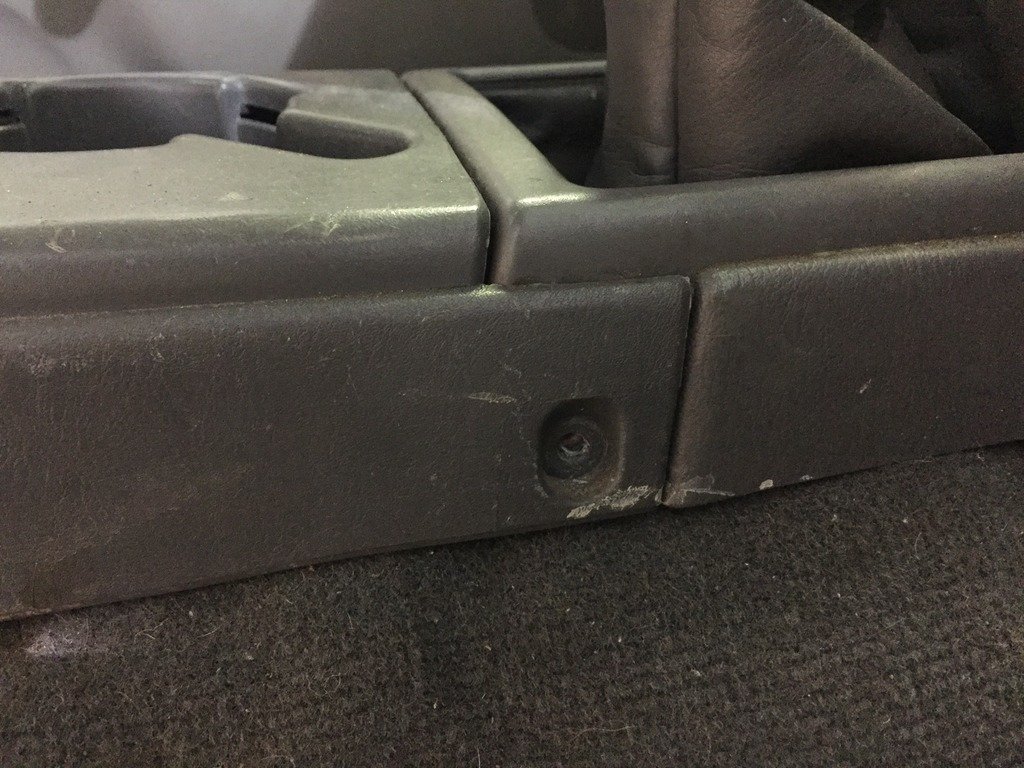

    And the rear is a 10 MM I think. These are on both sides of the rear console.

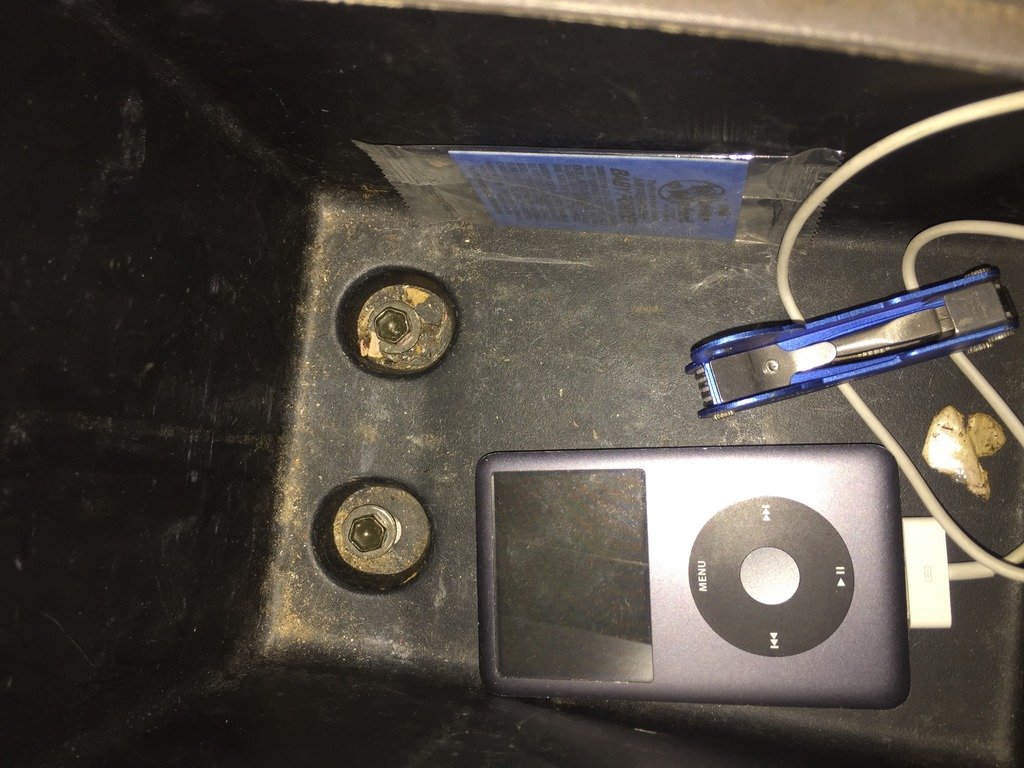

    There are also another 2 10 MM's inside the bottom of the console.

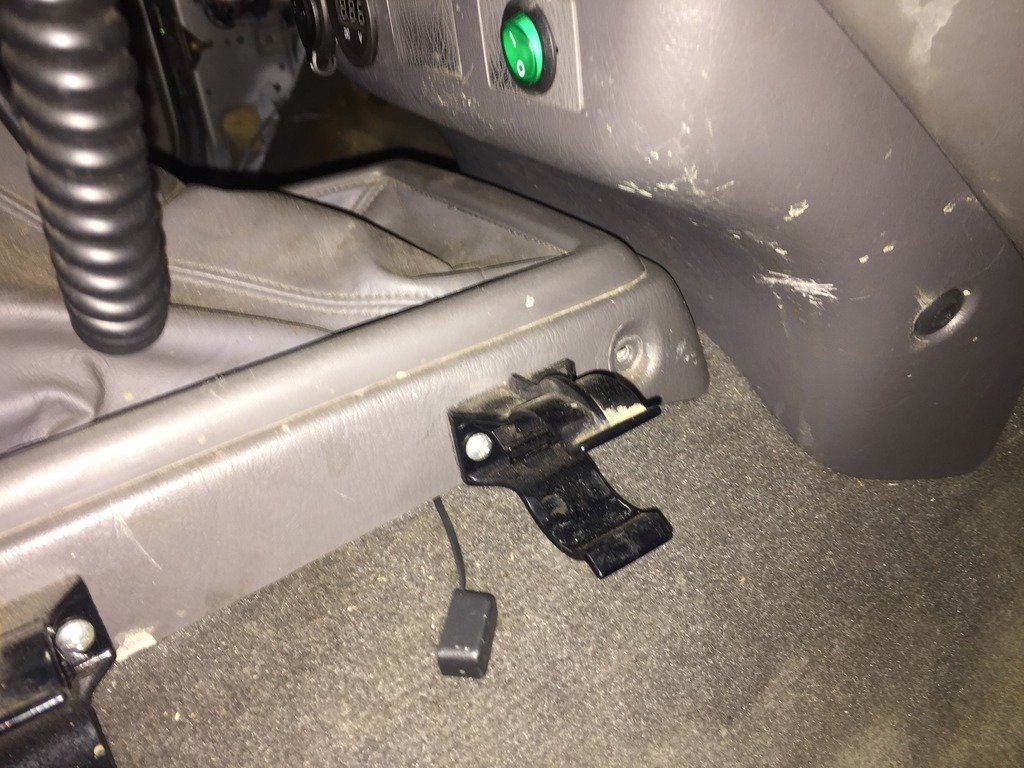

    At that point the back console is removable. Next is the front console. It's only got 2 phillips on each side up front.

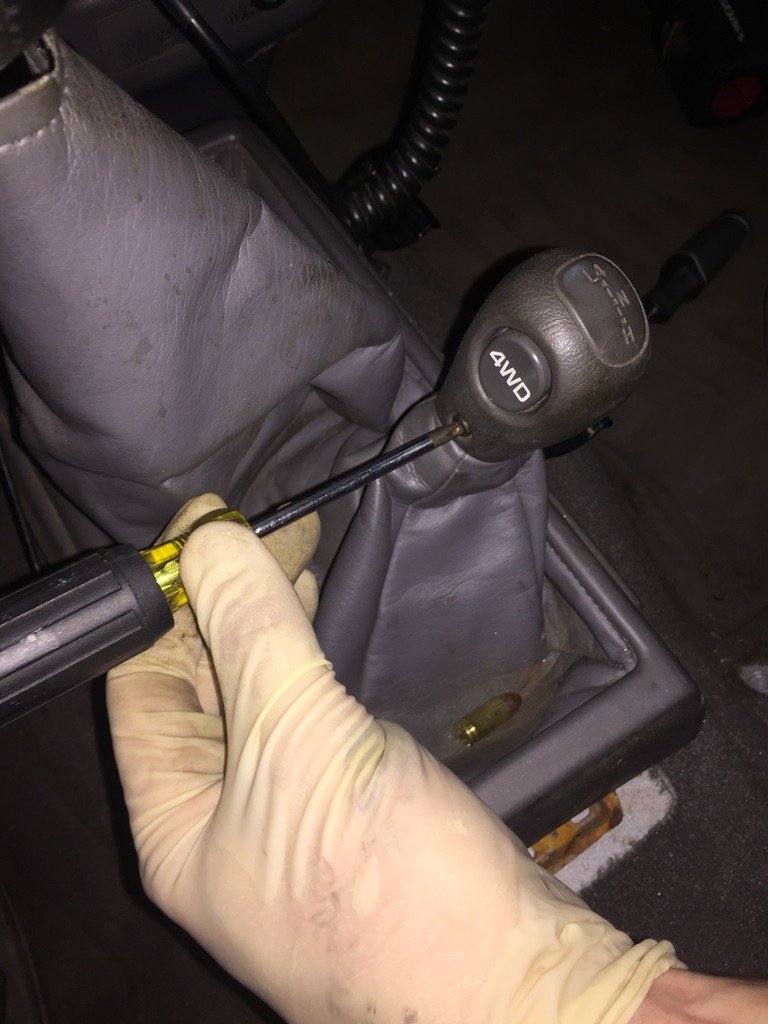

    To fully remove the console though you need to remove the shifter knob and the top of the 4WD shifter. You auto guys and guys with J shifter might need to go through some different steps for this.

    For the push button guys though, just remove the tiny phillips head screw under the button:


    And there is a small wire that you need to undo that comes from the 4wd shifter head. I had trouble with this connector but got it eventually. I forgot to take pics of that.

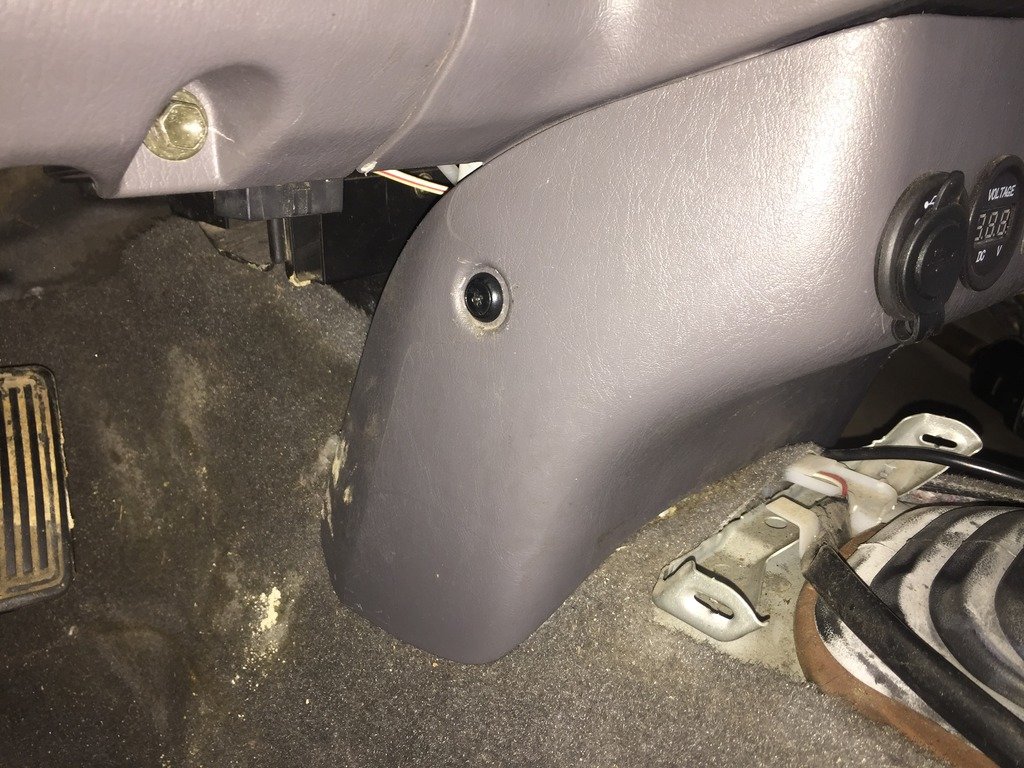

    Next you want to pull the plastic panel in front of the center console. Those are just two clips, I replaced mine with phillips clips a while back after breaking the OEM clips.



    I have a bunch of different stuff wired in here, but OEM had 2 cigarette lighter ports. They just unclip from their wires with their L shaped connectors. They just press on/off, no clip button to push IIRC.

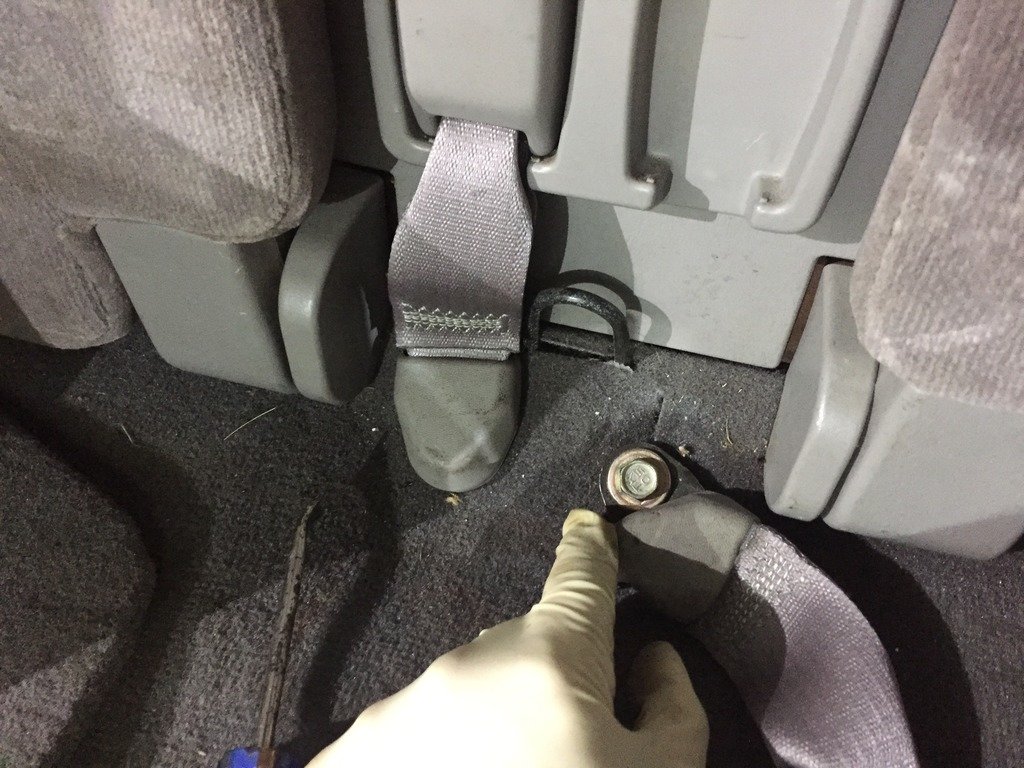

    From here there isn't much left. Two seatbelt bolts in the rear, these are covered by a rubbery plastic that you kind of need to force out of the way. Also 14 MM I think.


    And last but not least, the stupid plastic clips that hold the plastic surrounds/carpet in place on the rear cubbies. Be prepared to get really frustrated at these. Also be prepared to break some. I had to push up on the bottom while unscrewing them to get them to unscrew properly. The ones I couldn't get felt the wrath of my interior removal tool and muscle.


    At this point the carpet is ready to come out. I started pulling it from the rear first and worked my way up front:

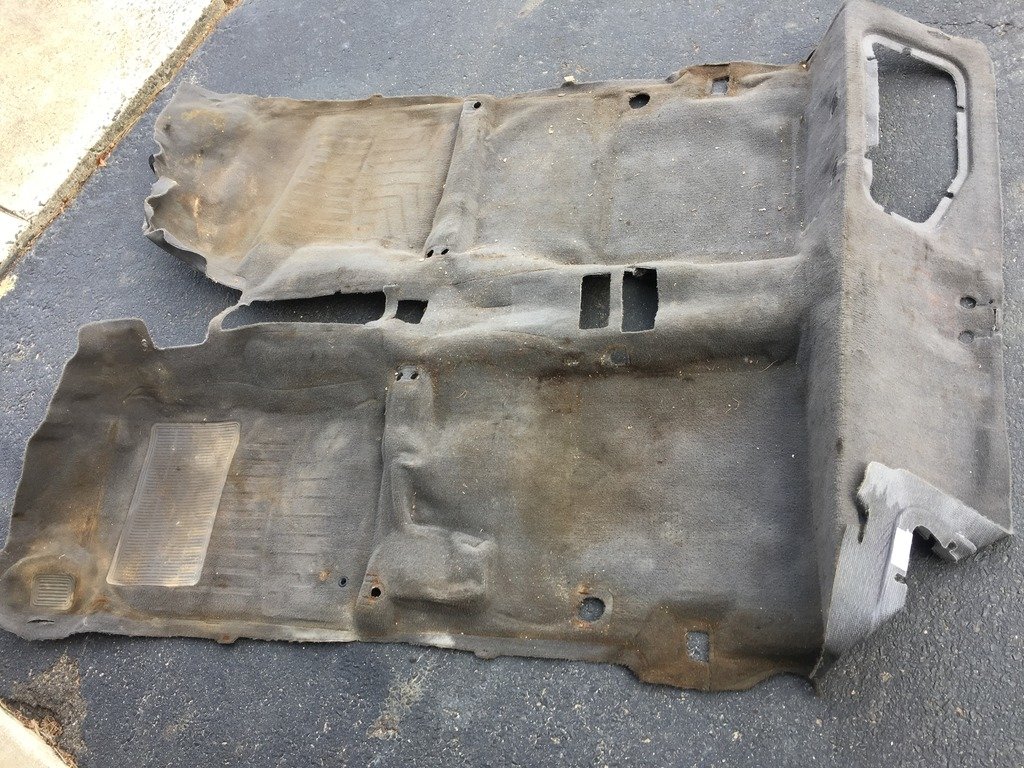

    Voila:


    Bridge4, Pervy, The Driver and 10 others like this.
  2. Mar 2, 2017 at 8:03 AM
    #2
    Alfred

    Alfred Well-Known Member

    Joined:
    Oct 6, 2013
    Member:
    #113986
    Messages:
    1,695
    Gender:
    Male
    First Name:
    Alfred
    California
    Vehicle:
    14 TRD Sport 4X4 DCSB
    I remember doing this to my 2nd gen when i sunk it at the river :anonymous:

  3. Mar 2, 2017 at 8:04 AM
    #3
    cynicalrider

    cynicalrider [OP] #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    16,436
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4, '23 Bronco Wildtrak, 2017 HSQV FE350
    Drop bracket lift and booger welds
    That's the main reason for me doing it, I subbed it months ago and never dealt with it :anonymous: and mold started to form.

  4. Mar 2, 2017 at 9:48 AM
    #4
    99SuperTaco4x4

    99SuperTaco4x4 Well-Known Member

    Joined:
    Apr 26, 2016
    Member:
    #185380
    Messages:
    953
    Gender:
    Male
    First Name:
    Adam
    Sacramento
    Vehicle:
    1999 3.4L V6 Tacoma, 4x4, TRD Supercharger
    are you going to dynamat line the interior and replace with new carpet? thanks for this write up!!

  5. Mar 2, 2017 at 9:58 AM
    #5
    cynicalrider

    cynicalrider [OP] #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    16,436
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4, '23 Bronco Wildtrak, 2017 HSQV FE350
    Drop bracket lift and booger welds
    Haven't decided what to do underneath yet. I want something that seals the floor better, is weatherproof and helps deaden sound but is cheap too. It's getting replaced by a formed vinyl liner. Never dealing with moldy carpet again.

  6. Mar 2, 2017 at 10:12 AM
    #6
    OneWheelPeel

    OneWheelPeel Well-Known Member

    Joined:
    May 19, 2016
    Member:
    #187371
    Messages:
    2,302
    Phoenix, AZ
    Definitely needed this. The carpet in my truck is beyond ruined. Are you planning on washing/ reinstalling or replacing?

  7. Mar 2, 2017 at 12:42 PM
    #7
    99SuperTaco4x4

    99SuperTaco4x4 Well-Known Member

    Joined:
    Apr 26, 2016
    Member:
    #185380
    Messages:
    953
    Gender:
    Male
    First Name:
    Adam
    Sacramento
    Vehicle:
    1999 3.4L V6 Tacoma, 4x4, TRD Supercharger
    :cheers:

    straightawaykid likes this.
  8. Mar 2, 2017 at 1:37 PM
    #8
    Beee1985

    Beee1985 Well-Known Member

    Joined:
    Jun 19, 2013
    Member:
    #106607
    Messages:
    142
    Gender:
    Male
    Thanks for the write-up. I'm definitely doing this in the Spring.

  9. Mar 2, 2017 at 4:43 PM
    #9
    Endo-4x4

    Endo-4x4 Well-Known Member

    Joined:
    Jan 19, 2017
    Member:
    #208047
    Messages:
    59
    Gender:
    Male
    Thanks for the detail on this! Saved for later :]:thumbsup:

  10. Mar 2, 2017 at 6:37 PM
    #10
    tonymhouts

    tonymhouts Active Member

    Joined:
    Oct 26, 2013
    Member:
    #115284
    Messages:
    40
    Gender:
    Male
    Wisconsin
    Vehicle:
    97 Toyota Tacoma
    low profile front/rear bumper, coil overs, 3 inch lift.
    I take my doors off during the warm months, rain or shine. they stay off. (I proposed to my wife after driving with me for 30 minutes in the cold soaking rain) Carpet is junk, So i might look at something similar.

  11. Mar 2, 2017 at 6:54 PM
    #11
    cynicalrider

    cynicalrider [OP] #NFG

    Joined:
    Jul 25, 2012
    Member:
    #83399
    Messages:
    16,436
    Gender:
    Male
    Jersey
    Vehicle:
    01 SR5 TRD 4x4, '23 Bronco Wildtrak, 2017 HSQV FE350
    Drop bracket lift and booger welds
    Yeah my plan for the future is half doors so vinyl will definitely help for that.

  12. Mar 2, 2017 at 9:06 PM
    #12
    QMEDJoe

    QMEDJoe Proverbs 3:5-6

    Joined:
    Nov 4, 2014
    Member:
    #141714
    Messages:
    2,389
    Gender:
    Male
    First Name:
    Joe
    Fleetwood NC
    Vehicle:
    2003 black DLX Tacoma,5VZ-FE,5 speed,4x4.
    Fox 2.0 Coilovers in the front and Fox 2.0’s in the rear, Total Chaos UCA’s, Al-lpro expo leafs, K&N cold air intake, TRD headers,Magnaflow catback exhaust,URD short throw shifter, switched out my 60/40 bench seat for some Tacoma Limited seats, Replaced the vinyl shift boot for a leather one, completely soundproofed the cab w/ Frost King. Replaced stock radio with a Pioneer AVH series head unit. Focal component system w/a 10" sub powered by 2 Alpine amps. Weathertech floor mats. Line-X'd the bed. SCS Ray 10’s, Installed an A.R.E. MX series camper shell. All-Pro Apex front bumper w/ All-Pro skid plates all the way back to the Trans. Low Range fuel skid plate.

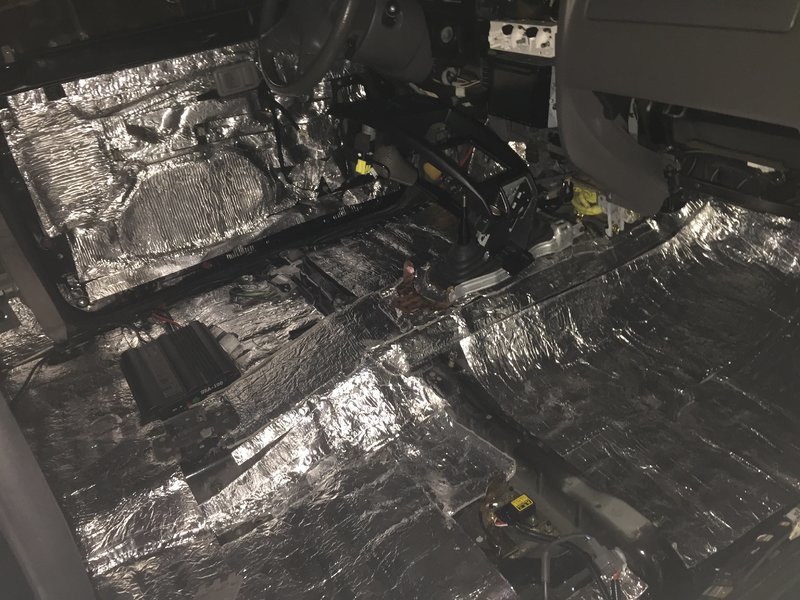

    I did this when I soundproofed the cab. A little spray glue, a few rolls of Frost King from Lowes and an entirely different driving experience.


  13. Mar 3, 2017 at 7:43 AM
    #13
    tonymhouts

    tonymhouts Active Member

    Joined:
    Oct 26, 2013
    Member:
    #115284
    Messages:
    40
    Gender:
    Male
    Wisconsin
    Vehicle:
    97 Toyota Tacoma
    low profile front/rear bumper, coil overs, 3 inch lift.

    DO you have a price on that? I never cared about the sound, I have this noise canceller called a radio :D. I just hate the trashy carpet at this point.

  14. Mar 3, 2017 at 11:52 AM
    #14
    QMEDJoe

    QMEDJoe Proverbs 3:5-6

    Joined:
    Nov 4, 2014
    Member:
    #141714
    Messages:
    2,389
    Gender:
    Male
    First Name:
    Joe
    Fleetwood NC
    Vehicle:
    2003 black DLX Tacoma,5VZ-FE,5 speed,4x4.
    Fox 2.0 Coilovers in the front and Fox 2.0’s in the rear, Total Chaos UCA’s, Al-lpro expo leafs, K&N cold air intake, TRD headers,Magnaflow catback exhaust,URD short throw shifter, switched out my 60/40 bench seat for some Tacoma Limited seats, Replaced the vinyl shift boot for a leather one, completely soundproofed the cab w/ Frost King. Replaced stock radio with a Pioneer AVH series head unit. Focal component system w/a 10" sub powered by 2 Alpine amps. Weathertech floor mats. Line-X'd the bed. SCS Ray 10’s, Installed an A.R.E. MX series camper shell. All-Pro Apex front bumper w/ All-Pro skid plates all the way back to the Trans. Low Range fuel skid plate.
    Awww man, it was so long ago...I'd have to guess and say around $100. I probably went through 2 cans of spray glue and I can't remember for the life of me how many rolls of Frost King I bought. I want to say like 3 or 4. I would go to a Dynamat website and find out how much square footage one would need for the cab of a truck and use that in gauging how much you'll need in the Frost King. It's practically the same stuff, your cab is so much quieter and if you have a good sound system it sounds so much better!

    jackn7 likes this.
  15. Mar 4, 2017 at 12:49 AM
    #15
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    45,636
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    What trim pins for the under console cover did you use? The ones on mine broke when I removed them to swap out my radio.

  16. Mar 4, 2017 at 1:22 AM
    #16
    Misplaced Nebraskan

    Misplaced Nebraskan TTC #007 'First Gen Best Gen'

    Joined:
    Dec 22, 2016
    Member:
    #205498
    Messages:
    16,894
    Gender:
    Male
    First Name:
    Zach
    Austin
    Vehicle:
    2001 Taco & 16 T4R TPE
    Thanks for the write-up OP. :cheers: Will be doing this in the future and sound dampening. Saving to my list of never ending lists

  17. Mar 4, 2017 at 7:29 AM
    #17
    Glamisman

    Glamisman Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200436
    Messages:
    4,083
    Gender:
    Male
    I just did the same job... I put additional jute carpet padding down throughout and have yet to drive her to hear the difference. The only issues I had were getting the old plastic to fit because if the new higher carpet profile. I ended up having to put some square plastic inserts into the floor holes the keep the floor/carpet door sill panels in as the expandable plugs on the door sill plates were gone. The plastic retainers for the lower center console were another issue... Toyota will only sell them in a 10 pack... I needed 2.

    I got back around to finishing the job this weekend. My replacement carpet did not come with the U shaped clips that are attached to the original carpet that hold the carpet in along the doors. My sill protectors expandable retention plugs were shot also. I cut them off and put in 1/4 square white plastic body plugs and they work great so far to hold the sill plates down.

    Last edited: Mar 6, 2017
  18. Mar 5, 2017 at 2:23 PM
    #18
    Jaysjammin

    Jaysjammin Well-Known Member

    Joined:
    Jul 8, 2016
    Member:
    #191550
    Messages:
    379
    Gender:
    Male
    First Name:
    Jay
    Upstate SC
    Vehicle:
    '98 SR5 5-speed 4x4 3.4L, 07 FJ Auto 4x4
    Billies, Trail Gear Bumper, Yakima Rack, 31's, Sound System Performance: -15 inch wheels with 31 inch Cooper AT3s -Bilstein 5100s all around -K&N filter -Deck Plate Mod -SPC UCAs waiting to go on Aesthetics: -Switchback turn signals:clear housing -20% Tint -LED everything Sound: -Kenwood Excelon headunit -Polk db series 6 inch door speakers -Kenwood 5.1 Sound System -12 inch Kicker CompVR sub Armor: Trail Gear Low Profile front bumper BAMF bolt on rock sliders (sitting in the garage) Yakima roof rack
    Awesome write up. Been meaning to pull up the carpet and rewire some things.

    Do you remember what specific Frost King product you used? I've been using Peel N Seal for years now but I can't fathom doing it for my entire floor.

  19. Mar 5, 2017 at 8:16 PM
    #19
    QMEDJoe

    QMEDJoe Proverbs 3:5-6

    Joined:
    Nov 4, 2014
    Member:
    #141714
    Messages:
    2,389
    Gender:
    Male
    First Name:
    Joe
    Fleetwood NC
    Vehicle:
    2003 black DLX Tacoma,5VZ-FE,5 speed,4x4.
    Fox 2.0 Coilovers in the front and Fox 2.0’s in the rear, Total Chaos UCA’s, Al-lpro expo leafs, K&N cold air intake, TRD headers,Magnaflow catback exhaust,URD short throw shifter, switched out my 60/40 bench seat for some Tacoma Limited seats, Replaced the vinyl shift boot for a leather one, completely soundproofed the cab w/ Frost King. Replaced stock radio with a Pioneer AVH series head unit. Focal component system w/a 10" sub powered by 2 Alpine amps. Weathertech floor mats. Line-X'd the bed. SCS Ray 10’s, Installed an A.R.E. MX series camper shell. All-Pro Apex front bumper w/ All-Pro skid plates all the way back to the Trans. Low Range fuel skid plate.
    I'm not sure. I found a video on Youtube where a guy is comparing Frost King to Dynamat and was saying the material was pretty much the same and cost 80% less in sq.ft. So I went to lowes and picked up a few rolls. I think that we're 1' to 18" in width. Not sure how long each roll was?

  20. Mar 6, 2017 at 11:48 AM
    #20
    ThunderOne

    ThunderOne Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,020
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    What Vinyl formed floor did you use? Where did you get it?
