HOW TO: REMOVING AND REPLACING 3RD BRAKELIGHT

Discussion in 'Lighting' started by PreRunning, Aug 26, 2012.

  1. Aug 26, 2012 at 9:58 PM
    #1
    PreRunning

    PreRunning [OP] Well-Known Member

    Joined:
    Aug 13, 2012
    Member:
    #84646
    Messages:
    115
    Gender:
    Male
    First Name:
    Clayton
    Missouri
    Vehicle:
    01 Lunar Mist Prerunner SR5
    Window Vents, Westin Bull Bars, Kenwood Deck, Kicker and Kenwood Door and rear Speakers, Alpine 660 RMS Amp, Twin Kicker 12 inch CompVR Series Subs, 265/75/16 Wrangler ArmorTrac Tires, Uhaul Towing package, removed mud flaps, Flowmaster 40, Cold Air.
    HOW TO REMOVE AND REPLACE THE THIRD BRAKE LIGHT!

    I have had this light for a month now and finally ballsed up and did it! I took pictures along the way for a guide so here it is!

    01 Tacoma XTRA CAB

    These are the diagrams i used!
    http://www.tacomaworld.com/out.php?url=http%3A%2F%2Fwww.ncttora.com%2Ffsm%2F2003%2FRepair_Manual%2F03tacoma%2Fbo%2Frooheaex%2Fremo.pdf

    Tools:
    10 11 and 12 mm Sockets
    10mm very deep well socket
    Rachet
    Flat head and phillips screwdrivers
    panel snap removing tool

    Step One.

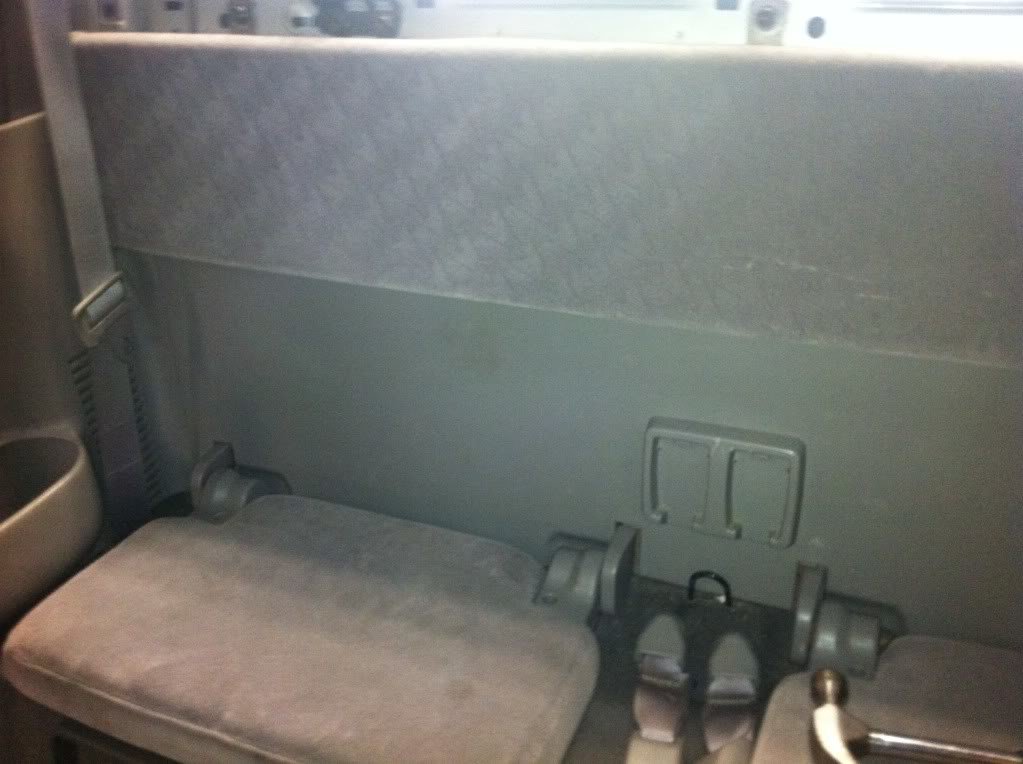

    Remove top trim and Baby hook
    6 pop out connecters. comes off fairly easily
    [​IMG]

    Step Two.

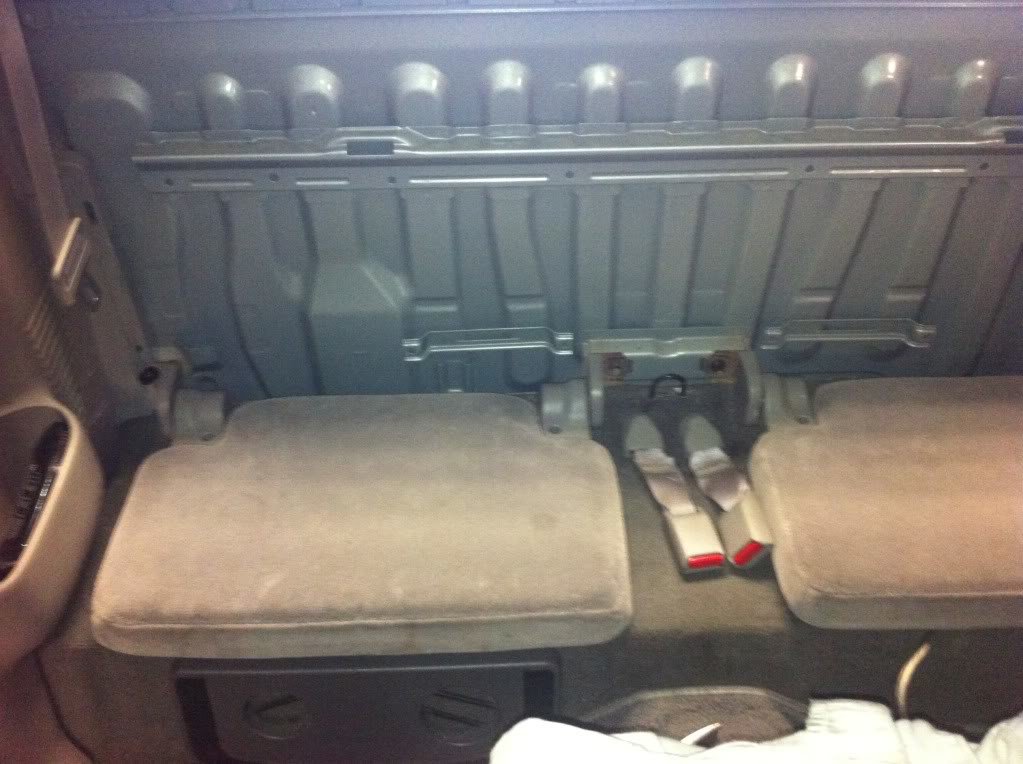

    Remove Back cushion and Panel
    3 Bolts and snaps on panel
    [​IMG][​IMG]

    Step Three.
    Remove Seats and Coat hooks
    2 bolts on each seat easy to get out. 1 screw for each hook
    [​IMG]This is also when i removed my amp.[​IMG]

    Step Four.

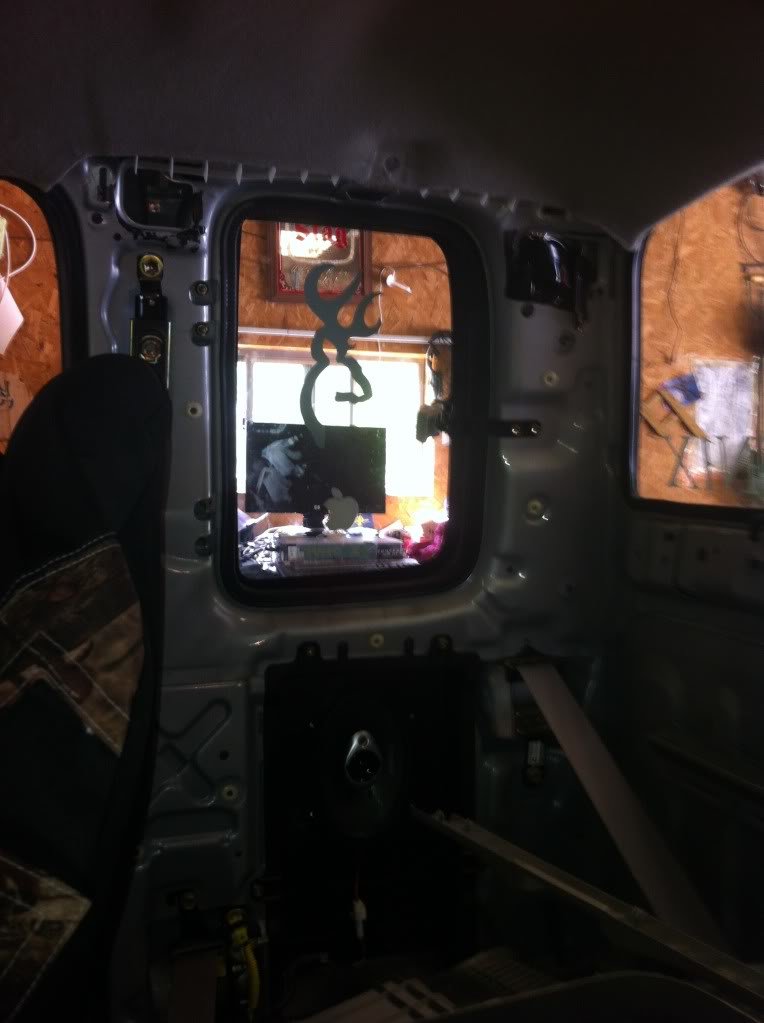

    Remove quarter panels and seatbelts
    bolts on seat belts and pops for panels. HARDEST PART BE GENTLE ON THE SNAPS!
    [​IMG][​IMG][​IMG]

    Step Five.

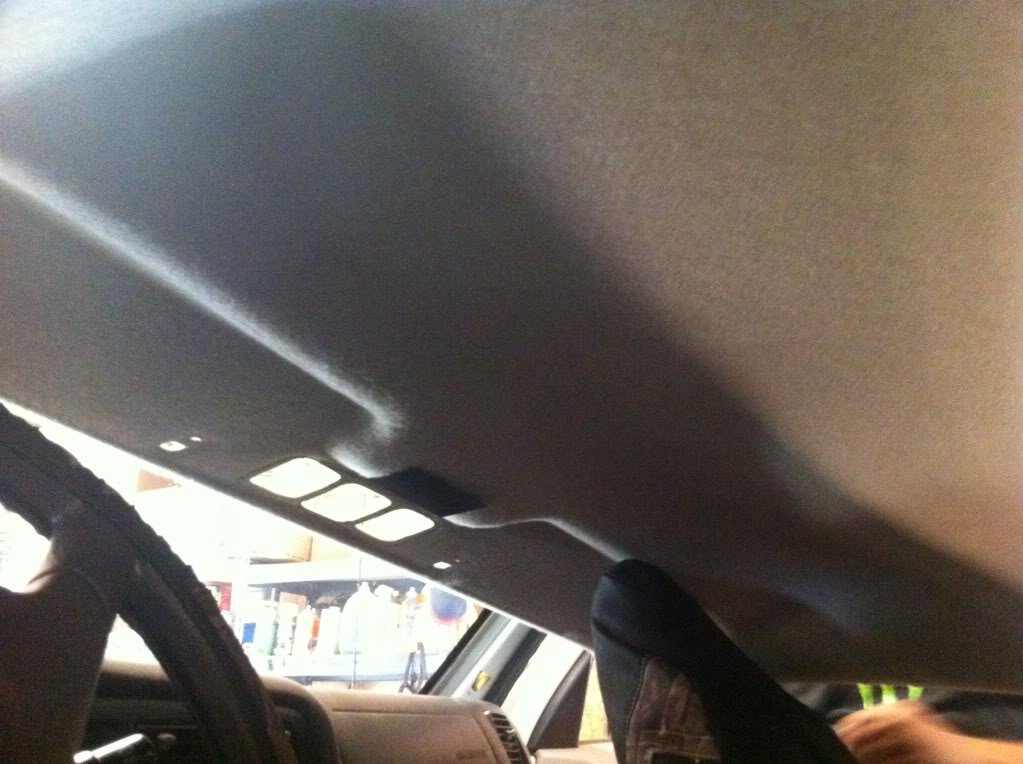

    Remove dome light and Map lights and mirror
    Fairly easy just pop off lens of dome and trim off of Maps 2 screws in the Dome and 4 in the maps
    [​IMG]

    Step Six.

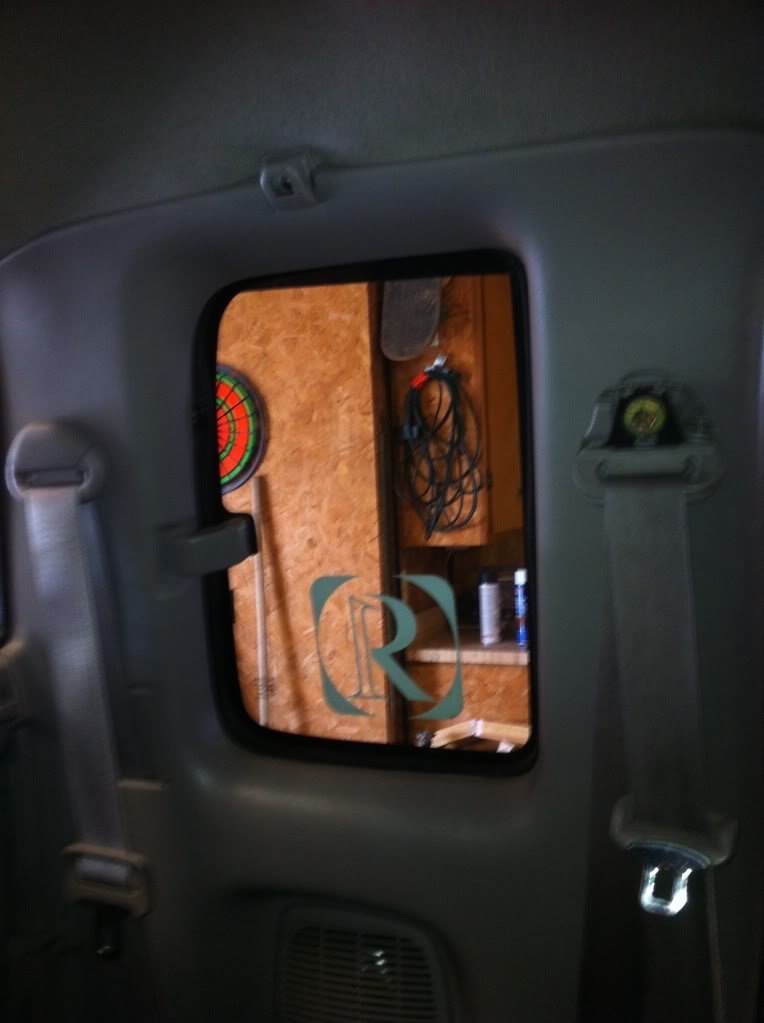

    Remove Tower Panels on sides
    Driver Side pops off and Remove the Handle and pops for Passenger
    [​IMG]

    Step Seven.

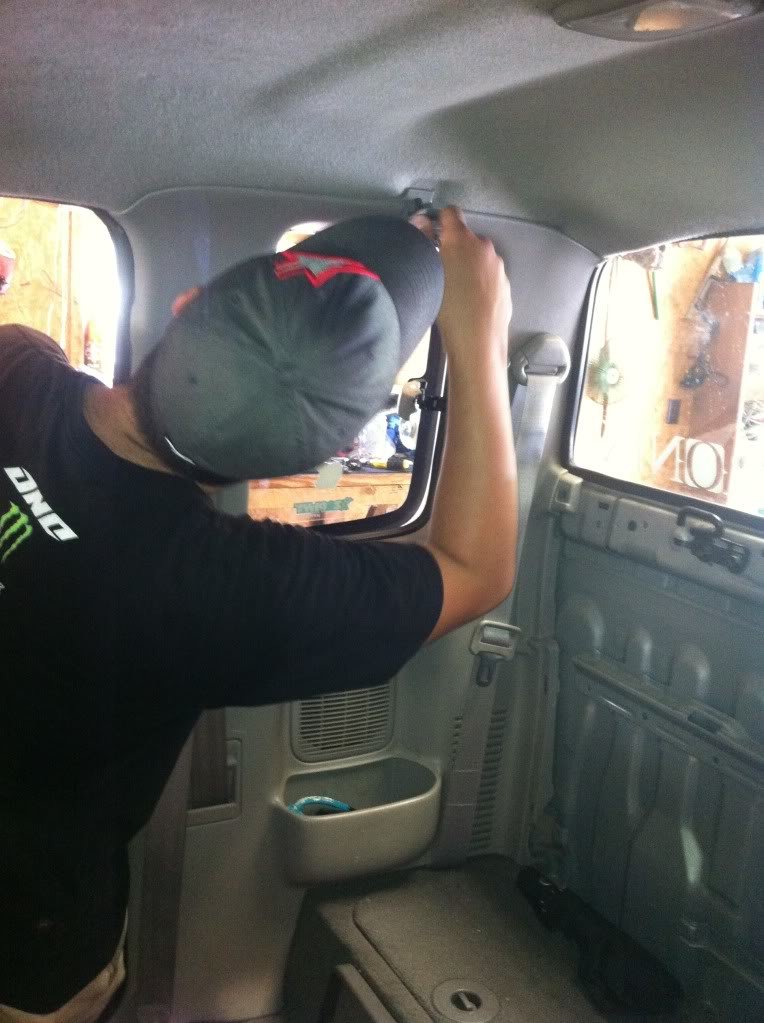

    Drop Head Board.
    BE VERY CAREFUL NOT TO BEND FIBERGLASS HEAD BOARD!!!! IT DOES NOT COME OUT OF DOOR.
    [​IMG]

    Step Eight.

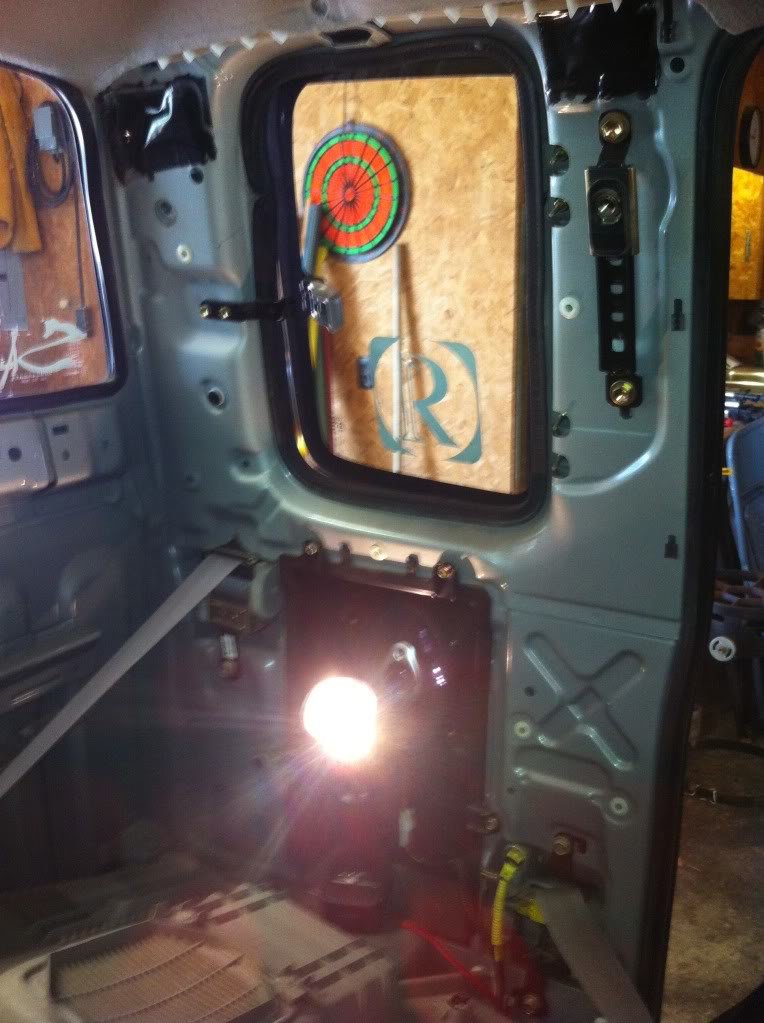

    Remove old brake light by removing the 2 nuts now accessible in back seat
    Remove tabs from old brake light to get the bolts back out.

    Step Nine.
    Install new light!
    Some modding may have to be done! I had to grind my bolt head down to fit inside my light.

    Step Ten.
    Reassemble Truck!

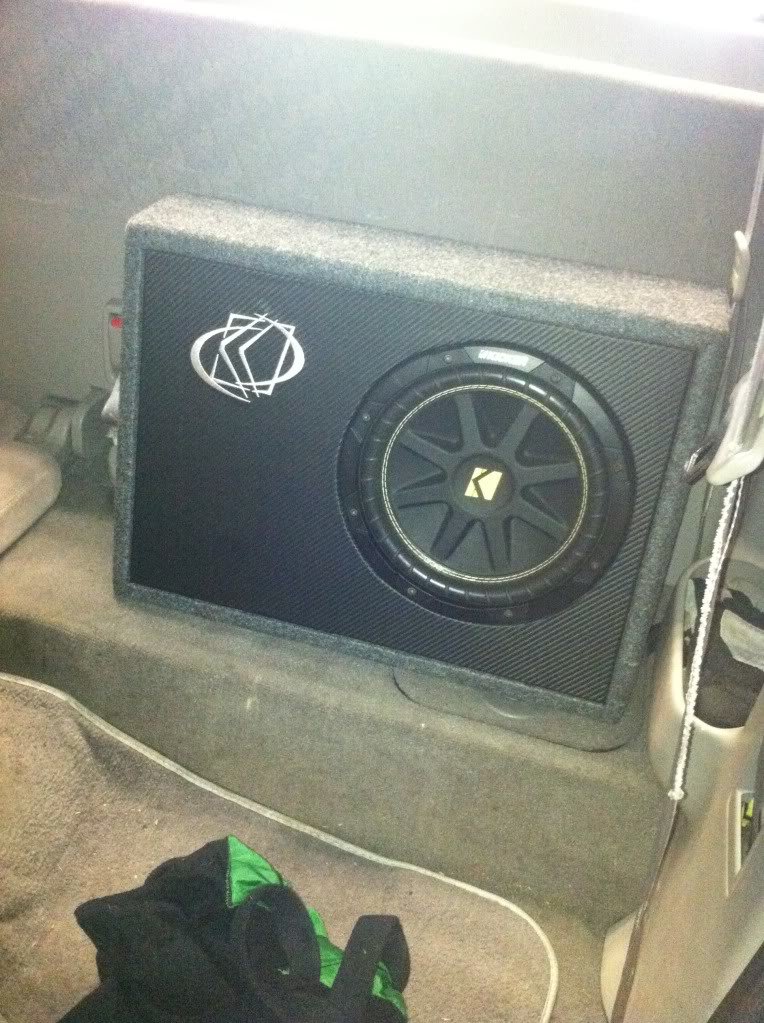

    With new Kicker 10" comp Sub :D look great in the truck and sounds amazing
    [​IMG]

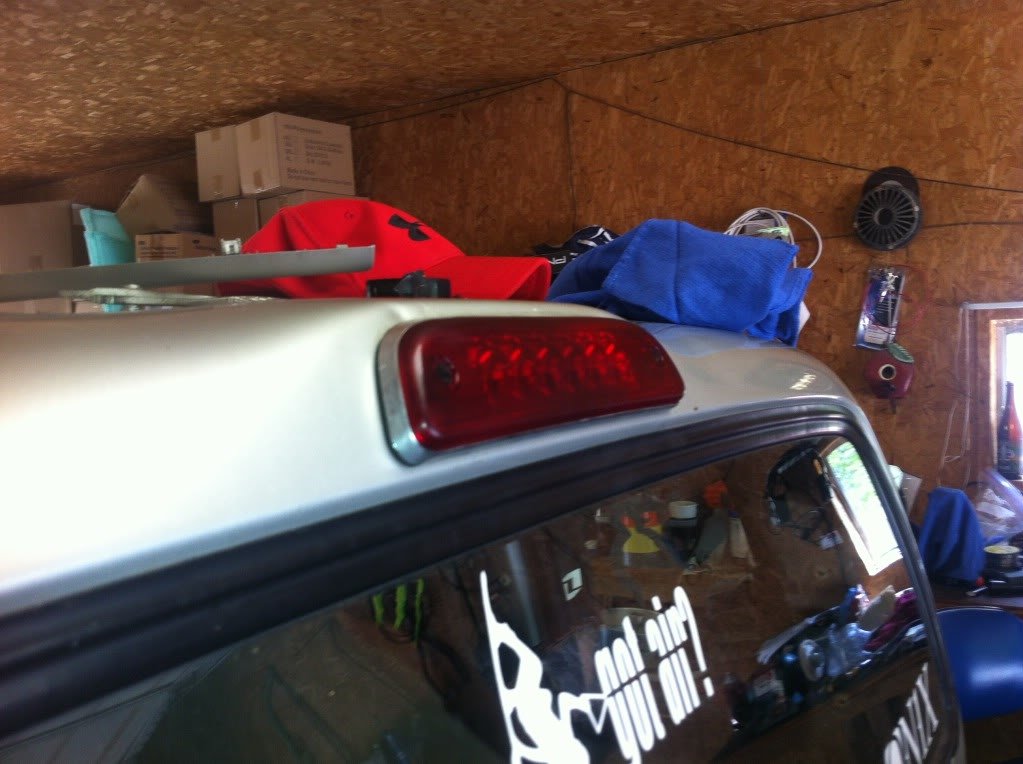

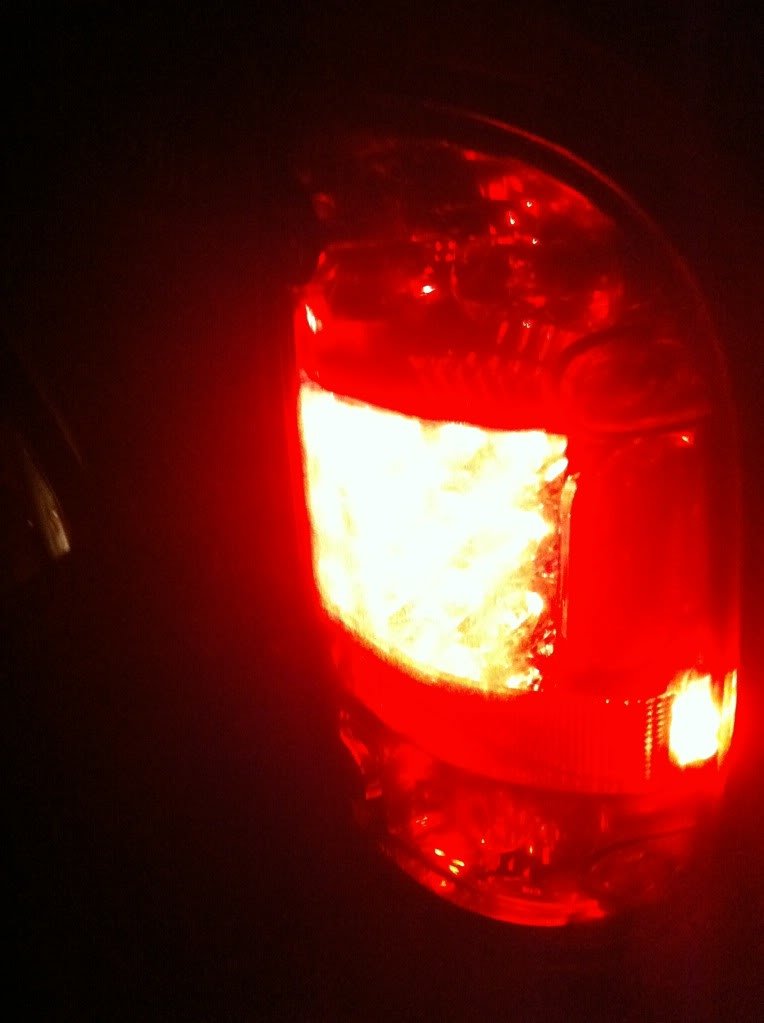

    Final Product
    This is the Set i bought!
    [​IMG]
    [​IMG]
    [​IMG][​IMG][​IMG]

    Message with any questions!!!!
