How to replace O2 Sensors

Discussion in '1st Gen. Tacomas (1995-2004)' started by Alderleet, Dec 22, 2011.

  1. Dec 22, 2011 at 4:16 PM
    #1
    Alderleet

    Alderleet [OP] Ace of Spades

    Joined:
    Oct 16, 2011
    Member:
    #65324
    Messages:
    1,126
    Gender:
    Male
    First Name:
    Nick
    Salty Hell
    Vehicle:
    '00 Acc Cab TRD 4x4
    Alright, i decided to make this, since i just did it on both Bank 1 and Bank 2 (upstream/downstream) sensors.

    Also the "lieblweb" how-to link has no real visual reference, since the photos are blown out and tiny.

    Anyway, here we go!


    All work was performed on a 2000 Toyota Tacoma SR5 Automatic V6, NON-CA model.

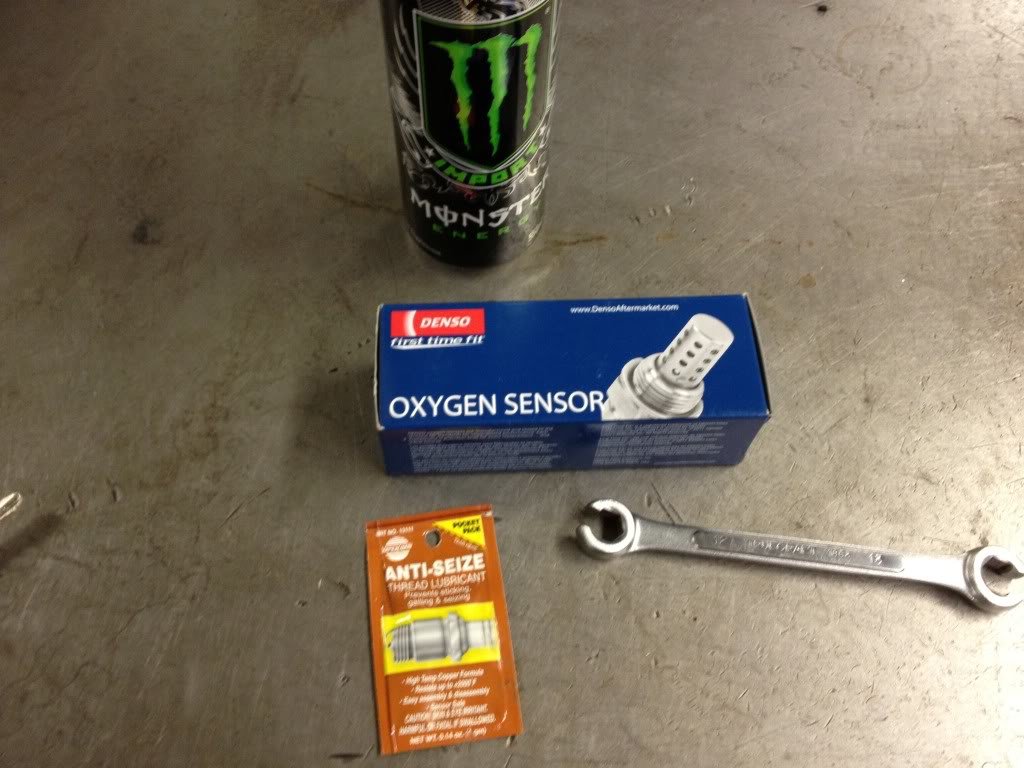

    Materials needed:

    • Denso Oxygen Sensor (with gasket), Part #234-4162
    • 12MM Line Wrench
    • Anti-Seize lubricant
    • Wire Brush (if area is rusty)
    • Vehicle Lift
    • Good lighting
    • Beverage of your choosing



    • Note: The type of transmission, drivetrain, and Emission type will change the part number for your O2 sensor.


    • Also note: OEM sensors are DENSO. Many folks have put in Bosch or "universal" only to have them fail a few thousand miles down the road.


    • Also Also Note: Line wrenches are a life saver, because more than likely the nuts holding your sensor in place are fairly rusty and corroded, and a normal wrench has a higher propensity to strip them smooth.


    Down to brass tax:

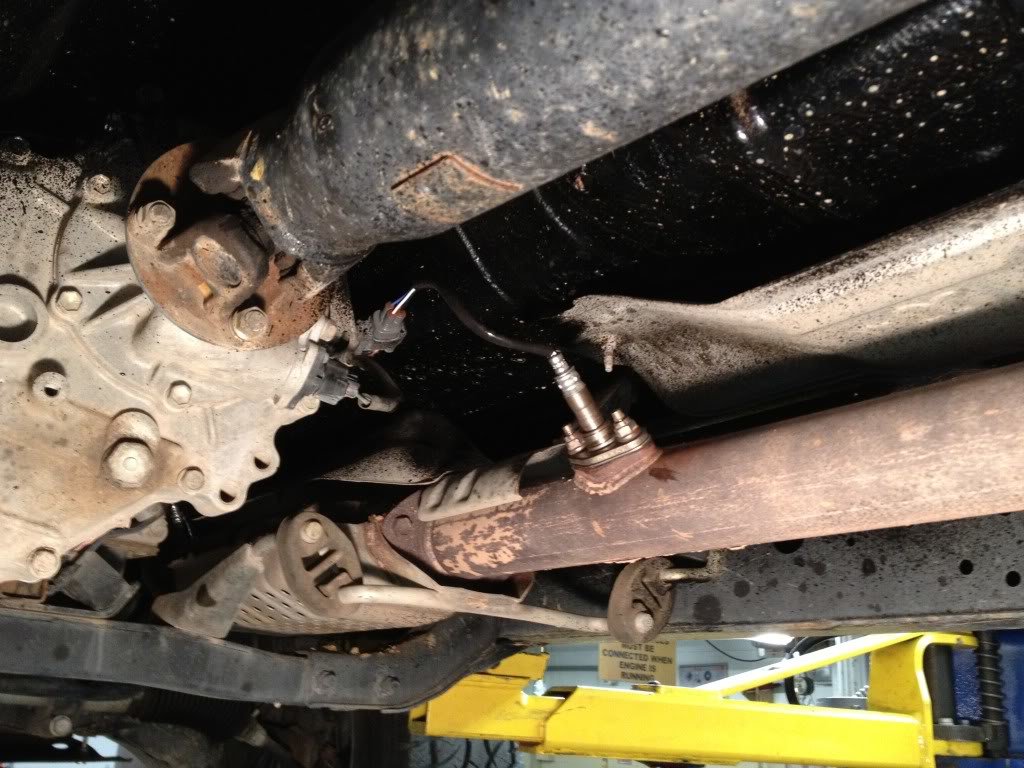

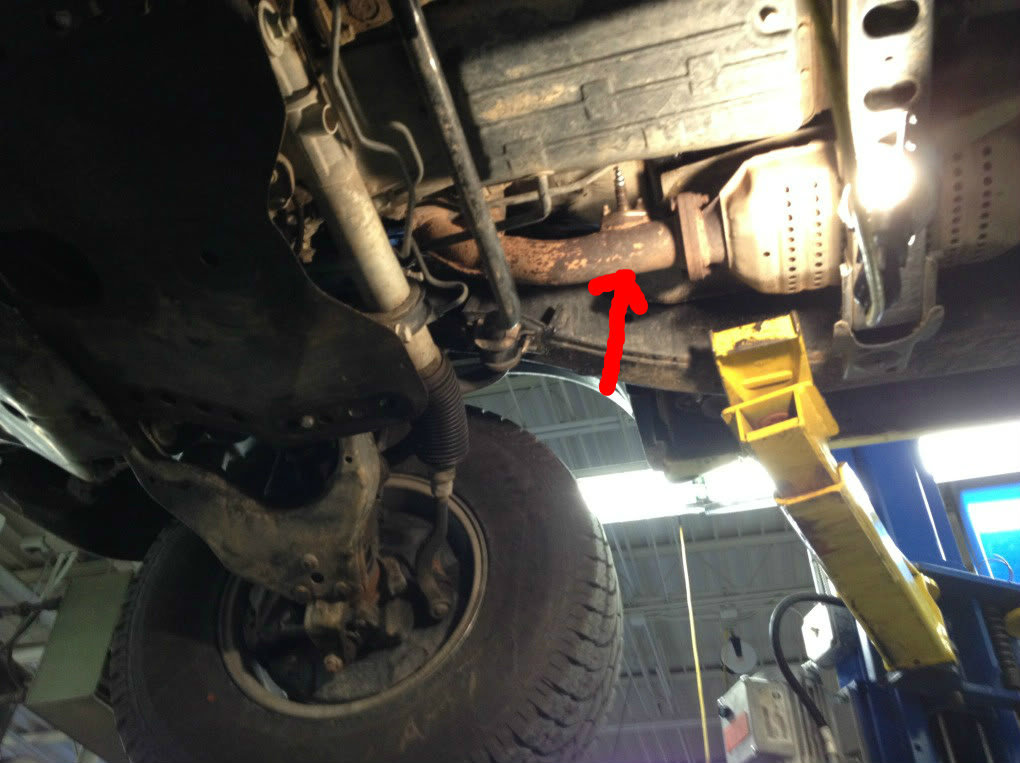

    I figured this would give a clearer picture, of "where exactly" the 2 Oxygen sensors are.

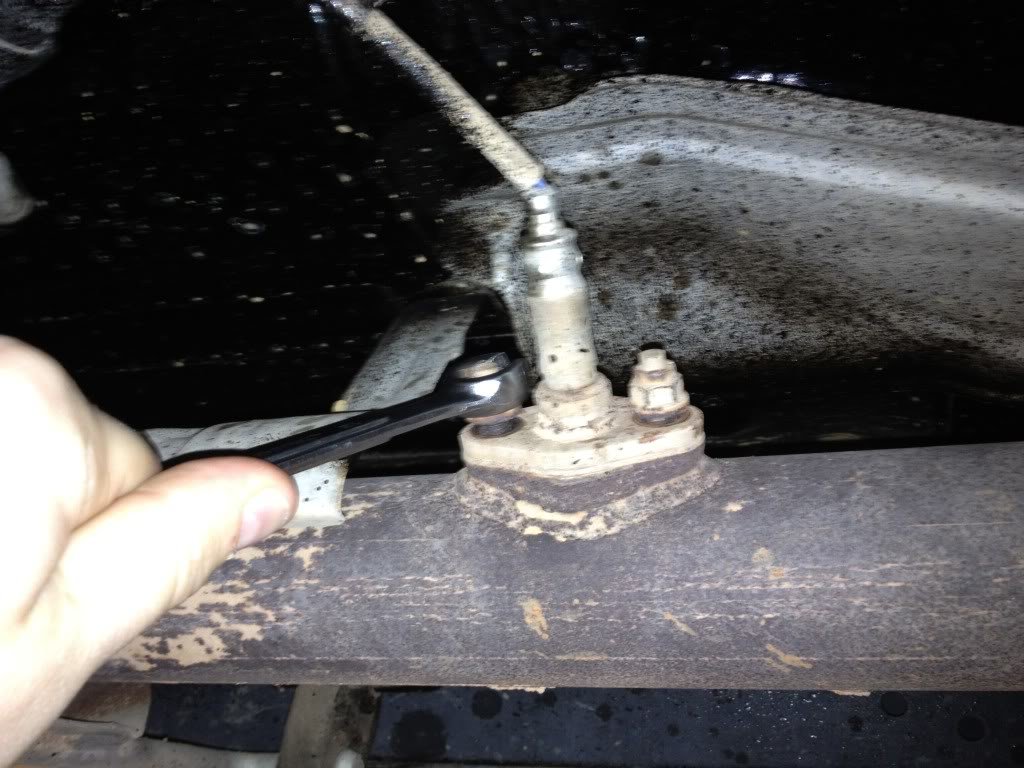

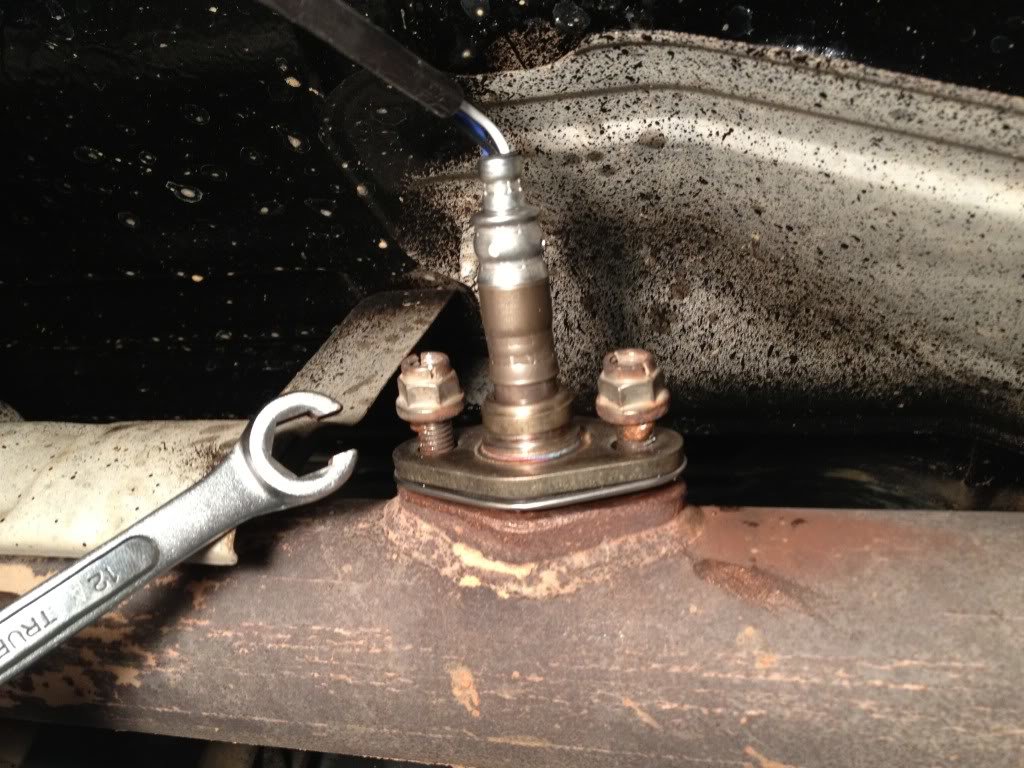

    Step 1: Unscrew the 2 nuts retaining the bad sensor.

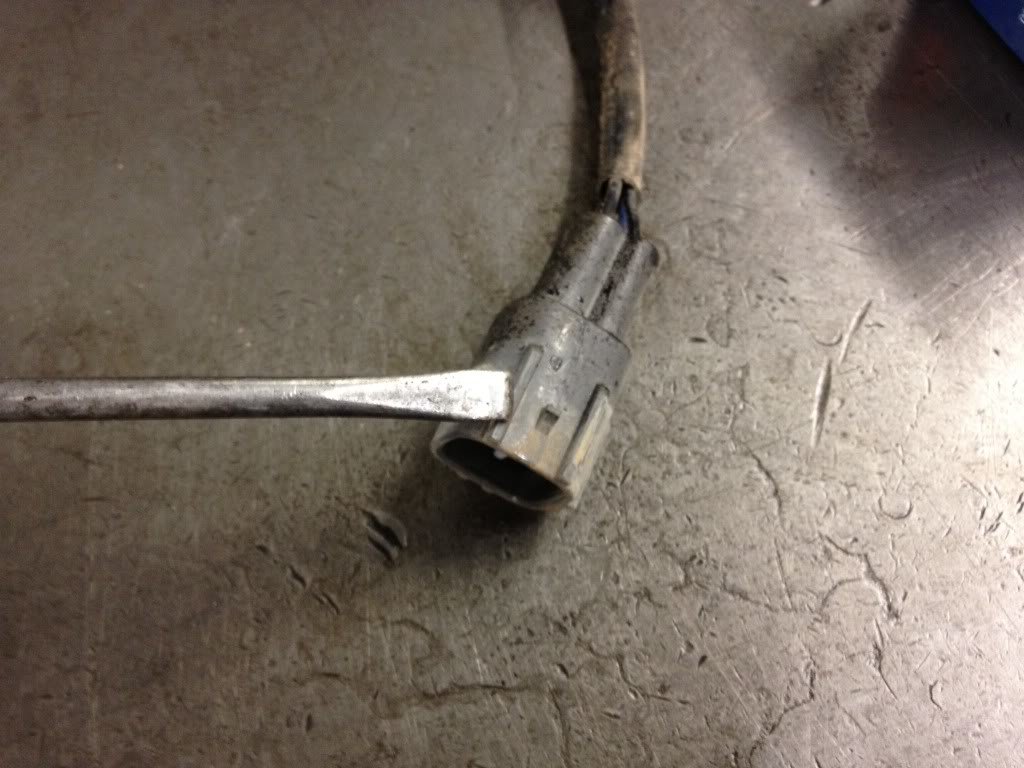

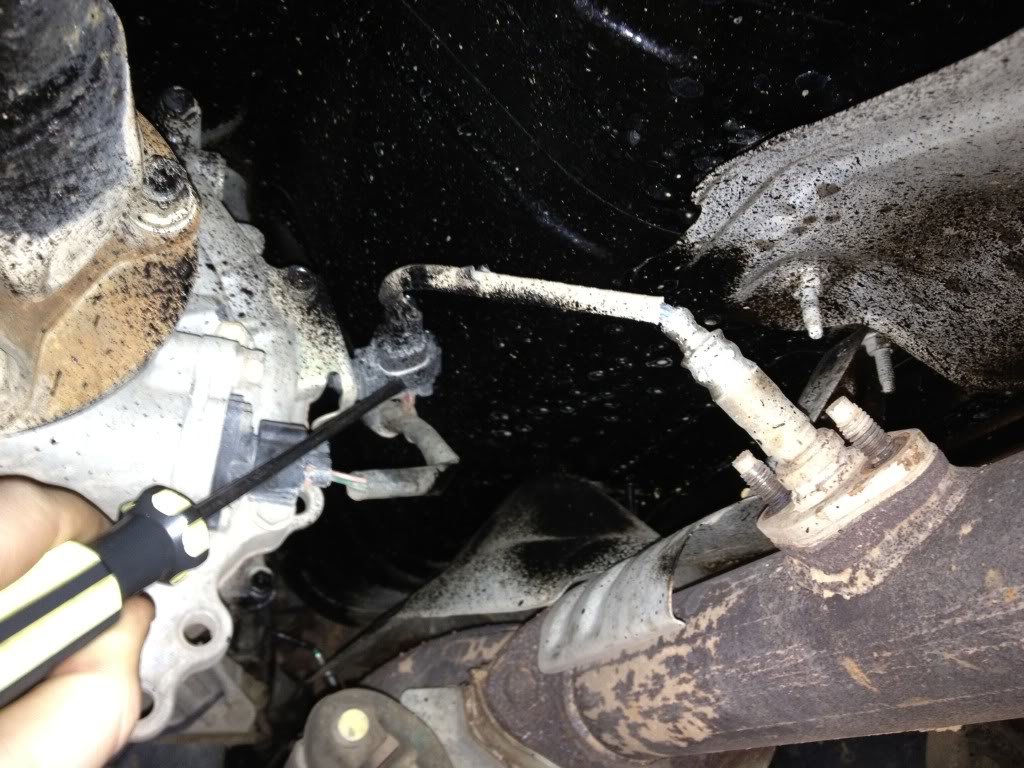

    Step 2: Unclip harness. Use a screwdriver to pry the retaining tab off of the hook

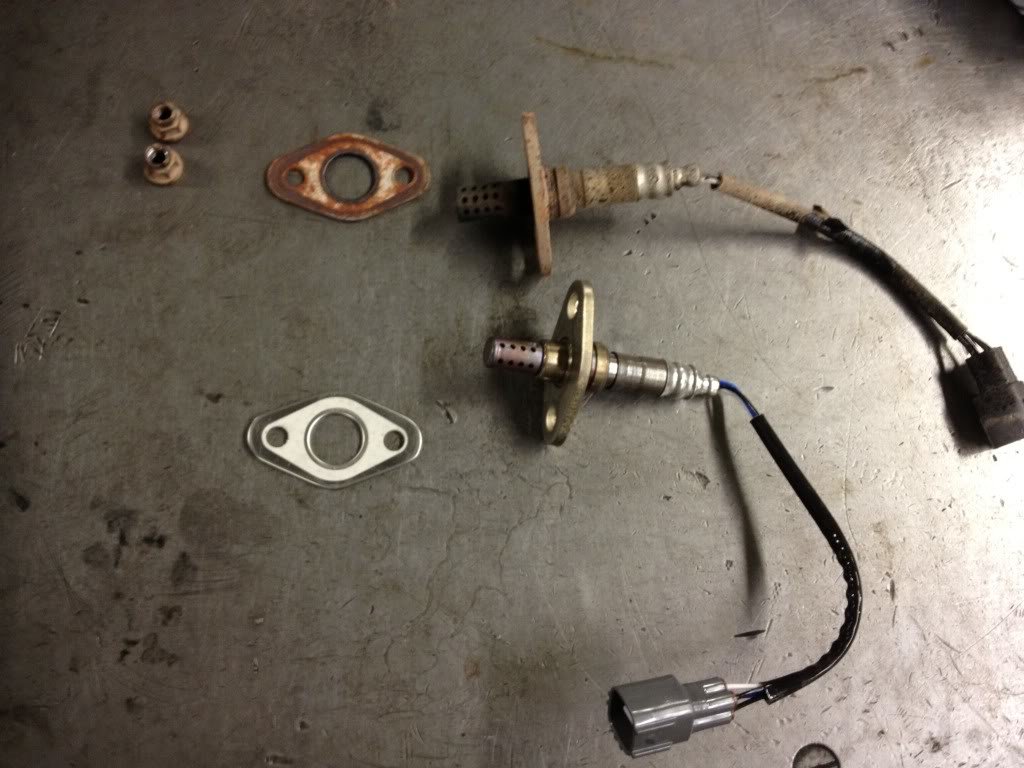

    Step 3: Remove new O2 Sensor from box

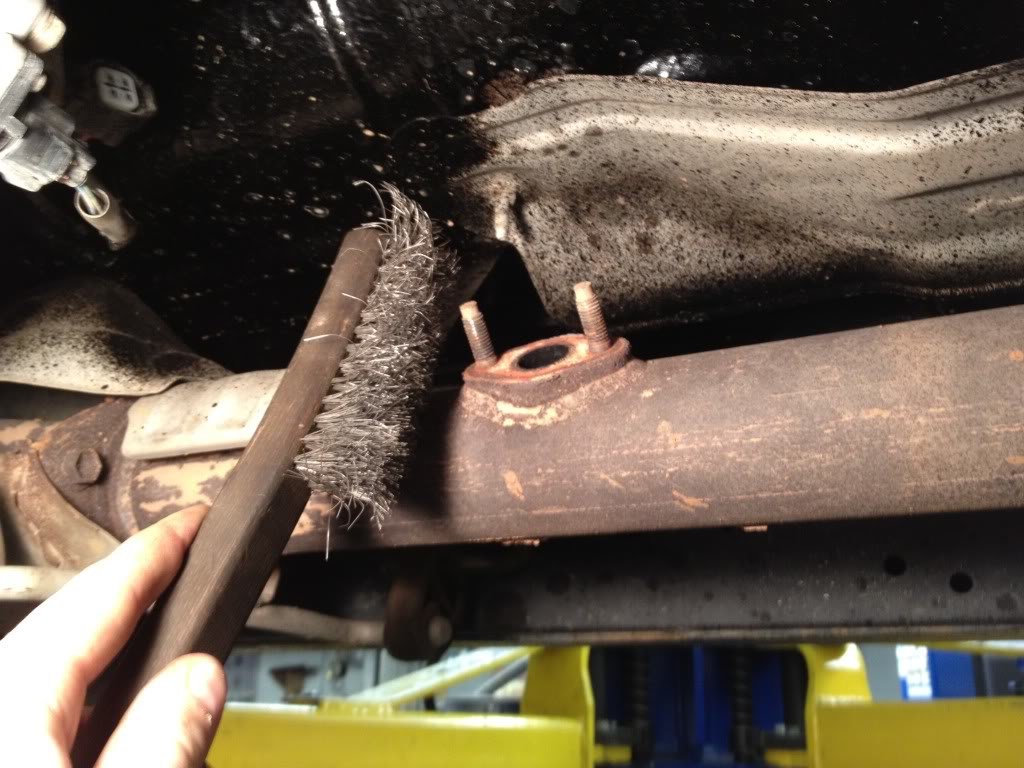

    Step 4: Clean the area

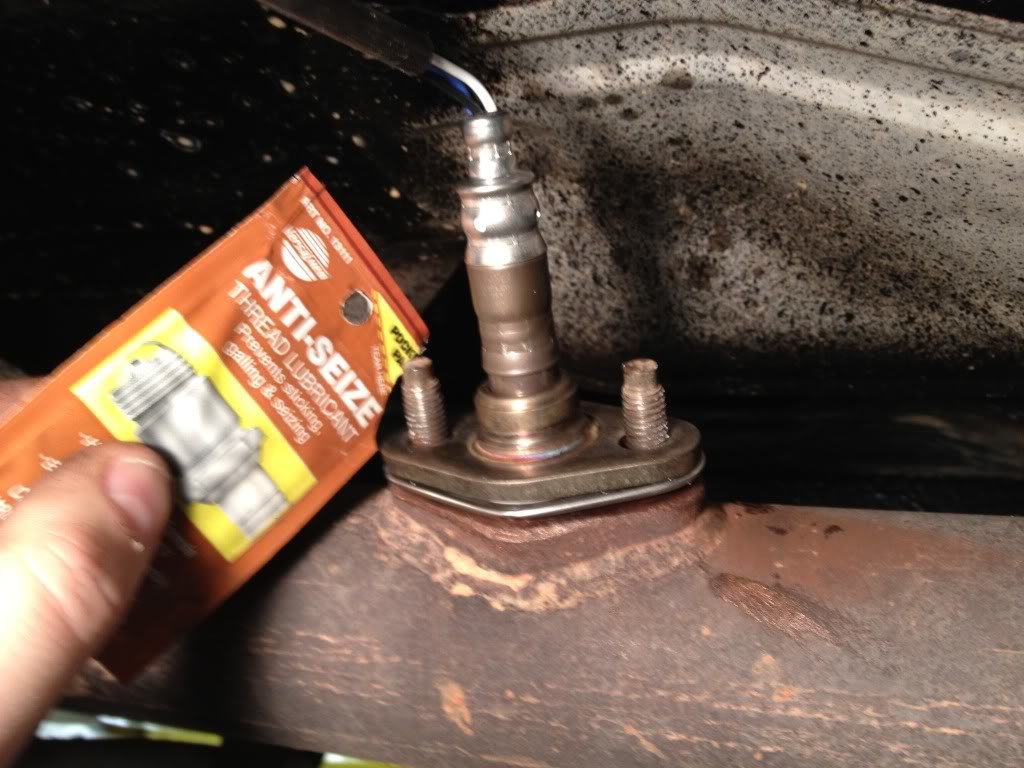

    Step 5: Put sensor in, and apply anti-seize lube to bolts

    Step 6: Tighten nuts back on, and tighten the sensor *firm* but not to hard. Its not pressurized like a spark plug, so it doesnt need to be torqued down. Just tight with a quarter turn for peace of mind

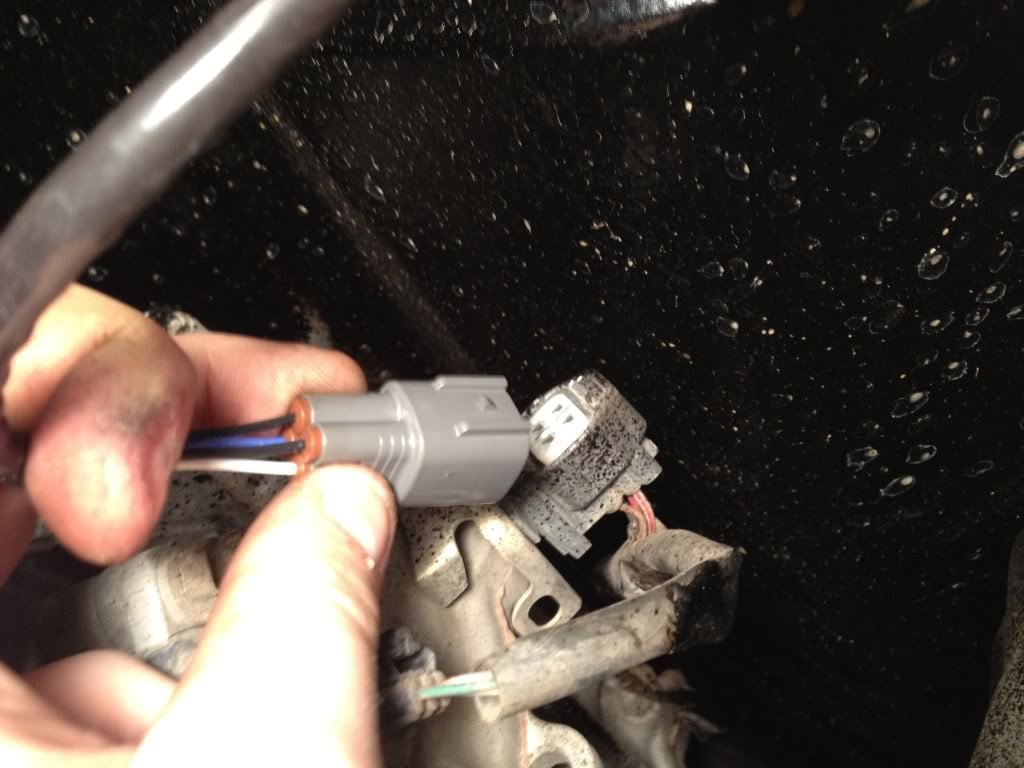

    Step 7: Plug in connector

    Step 8: Wipe up the area, clean your hands, and enjoy a beverage


  2. Feb 3, 2012 at 6:35 AM
    #2
    BROGEO

    BROGEO New Member

    Joined:
    Feb 3, 2012
    Member:
    #72026
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2004 Tacoma 4X4 Double Cab
    Wow, this is a great website! Thanks for the info. I couldn't be better put.
    My son is a Master Auto Tech but sees me as a Pain in the A--. last time my O2 sensors went out on my Ford he got them both wholesale for $100. Problem was he guessed which ones were bad and he was wrong. I was out the money.

  3. Feb 12, 2012 at 6:58 PM
    #3
    james

    james In over my head...

    Joined:
    Jun 2, 2010
    Member:
    #38223
    Messages:
    209
    Gender:
    Male
    Friday Harbor, WA: Fairbanks, AK
    Vehicle:
    '98 Tacoma V6
    Thanks for the step-by-step, Nick. I was *easily* able to the down downstream #2 sensor in about five minutes. Not so with the faulty one. The upstream #1 sensor has its electrical connection parked waaaaaaay up on top of the transmission, where the wiring is inconveniently stored. The "crux move" as we say in climbing parlance – the most difficult part of the problem – is in undoing the electrical connection parked where it cannot be seen nor easily gotten to. If I pay hundreds to a garage for the privilege, how will they eventually get at that pesky connector? How can I do it?

  4. Feb 12, 2012 at 7:09 PM
    #4
    tacoma04

    tacoma04 Laissez les bons temps rouler

    Joined:
    Mar 9, 2011
    Member:
    #52717
    Messages:
    515
    Gender:
    Male
    First Name:
    Bruce
    Northern Louisiana
    Vehicle:
    2007 DCSB SR5 4X4
    I was able to get to the upstream sensor on a 5 spd manual 4x4 by removing the center console and taking the boots off of the shifters and going through the hole. I had to remove the sensor first and then pull the wiring up to the hole. Also had to remove the bolt holding the wire connector. A real PITA.

  5. Feb 12, 2012 at 7:12 PM
    #5
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    6,029
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D60 F/R
    SAS.. Need I say more.
    Nice write up. I had to replaced an O2 Sensor previously, heat and some swearing were involved...

  6. Feb 12, 2012 at 7:27 PM
    #6
    capetaco12

    capetaco12 .<>./

    Joined:
    Mar 29, 2011
    Member:
    #53984
    Messages:
    4,058
    Gender:
    Male
    Cleveland Ledge, MA
    Vehicle:
    33's,armor,crawler,dents, ect
    OME lift CBI sliders, front bumper homemade rear bumper 33x12.50 m/t Gears Aussie locker inchworm crawlbox Homemade flat belly
    iv replaced 3 of em between 2 taco's iv owned... Never been able to unthread them. Chop them off with a chistel becase they rot off in like 4 years:mad: I have clean/rust free truck envy right now.

  7. Feb 12, 2012 at 7:46 PM
    #7
    shampoop

    shampoop Well-Known Member

    Joined:
    Feb 3, 2010
    Member:
    #30685
    Messages:
    583
    Gender:
    Male
    southwest WA
    Vehicle:
    08 tacoma extracab v6 auto trd offroad 4x4
    You don't need to use a line wrench on those bolts, the closed end of a standard wrench would work better. You only need to use a line wrench when you can't fit a closed end wrench or socket over a fastener because of the need for a slot for the wires or brake lines to pass through. You use a line wrench in place of an open end wrench because it makes more contact and has less chance of stripping than an open end wrench.

    You normally do need to use a line wrench on most oxygen sensors though. That's because most of them look like this
    [​IMG]

    The design used on tacomas is actually much better IMO, eliminates the need for a line wrench wrench or special socket which is actually a big deal in cars that have O2 sensors in hard to reach areas.

    anti seize is a great idea, and putting some dielectric/silicone grease in the electrical connectors is a great idea as well to protect from corrosion.

    Also, anytime you're removing ANY exhaust fastener, soak that shit with some penetrating oil and let it sit for a few minutes first. If your truck is pretty rusty, I'd soak it several times leading up to when you want to remove it. Decreases the chances of breaking/rounding fasteners and lots of swearing.

    Mine actually just went bad yesterday. This was the best deal I could find on the OE denso part. http://www.amazon.com/Denso-234-9003-Oxygen-Sensor-Ratio/dp/B000C5UFU8
    I would have paid more to get one at a local parts store immediately, but all of them only had the lowlier bosch sensors in stock.

  8. Feb 19, 2012 at 2:56 PM
