How-To: Replace OEM Antenna (in-fender)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Yoshio, Feb 2, 2013.

  1. Feb 2, 2013 at 8:55 PM
    #1
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    Disclaimer: This is how my antenna replacement worked for me and my 2007 SR5 4 cyl 4x4, your truck may vary! If in doubt, head to the dealer and ask for your specific diagram!

    Hello! As I couldn't find any good pictures before I attempted this myself, I thought I would type them up to assist anyone else out there. What follows is how to replace your Antenna (the part in your fender) with a OEM replacement.

    Here is what you will need:
    -Part # 86300-04070 (a new antenna) (#1 below)
    -Part # 86396-04040 (a new screw down bezel nut) (#4 below)
    -Part # 86392-04040 (a new bezel) (#3 below)
    -Part # 90189-A0002 (grommet screw) (Only required if you break the clips when they come out of the fender well)
    -Part # 75396-35020 (blue fender clip) (Only required if you break the blue clips when removing the fender flare)

    (something that was pointed out to me; the antenna mast is the part above the fender, or part #2 below)

    [​IMG]

    [​IMG]

    [​IMG]

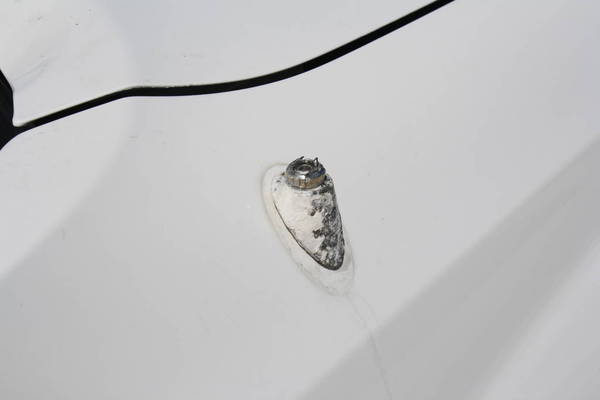

    So when I noticed a nasty stain going down the side of my tacoma, I noticed this: Super corrosion and a loose antenna bezel!
    [​IMG]

    [​IMG]

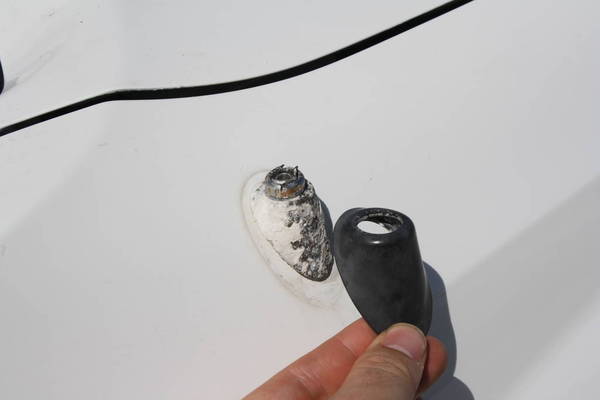

    Further investigation revealed the screw down bezel nut had corroded in place, making normal removal impossible. (At this point I had to drill out the bezel & bezel nut, but you might be able to unscrew yours)
    [​IMG]

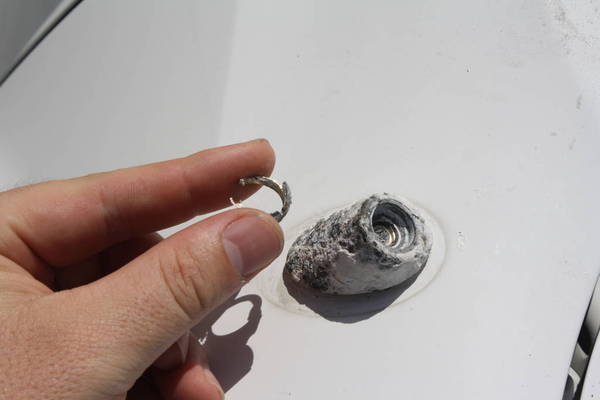

    Here's that pesky bezel nut! (at least what's left of it)

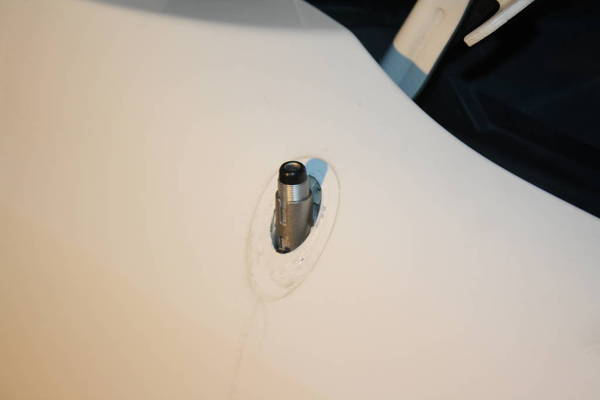

    When you get to this point drilling, stop!
    [​IMG]

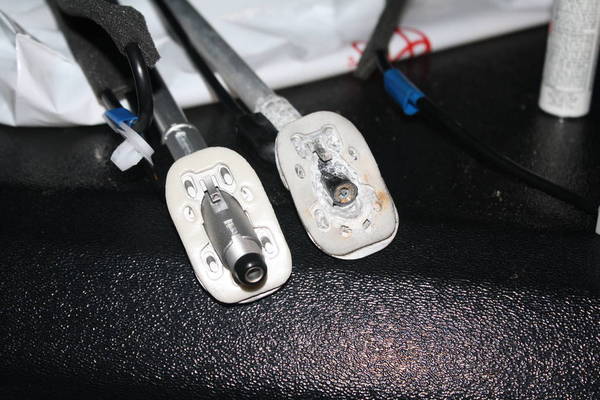

    Here's what a new antenna head should look like, and my old one
    [​IMG]

    Our next step is to get the fastening plugs out of the fender in order to access the antenna. Here is what the plug looks like, so you know what you're dealing with.
    [​IMG]

    [​IMG]

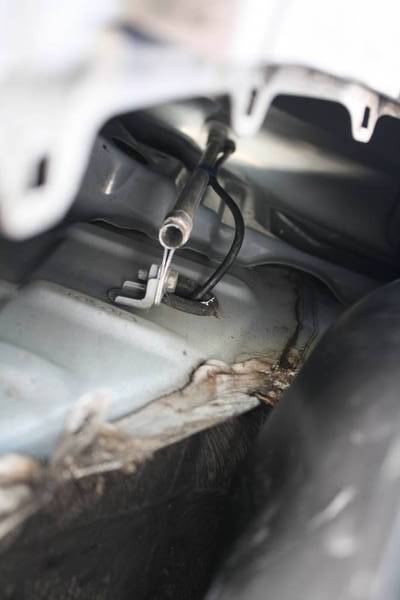

    This is the front passenger wheel well, remove your mud flap if present, and gently work out those plugs. You will have to pull up the fender flare, they are held on by 10 cent clips, just buy some new clips and get that flare out of your way. One the flare is out of the way, you can peel back the wheel well liner, and get to the antenna.
    [​IMG]

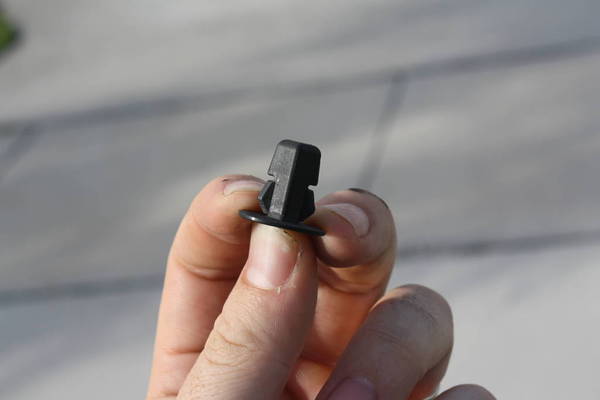

    A "gotcha" screw that I didn't notice until I broke a clip or two is here, fully under the body, on the very edge of the fender.
    [​IMG]

    Here is a shot of the retaining plugs out (you can see the holes where they connect to the fender) and the bottom of the antenna. The wiring goes into your cabin at that rubber plug. You will need to take out that screw to remove the mast, but don't pull on the wires just yet! Don't worry about the rubber plug where the wires go into your cabin, your OEM replacement should have one attached already.
    [​IMG]

    Remove your glove box, the sides flex allowing you to slip the retaining stud out, and take out the screw holding up the trim piece (and remove said trim piece) here:
    [​IMG]

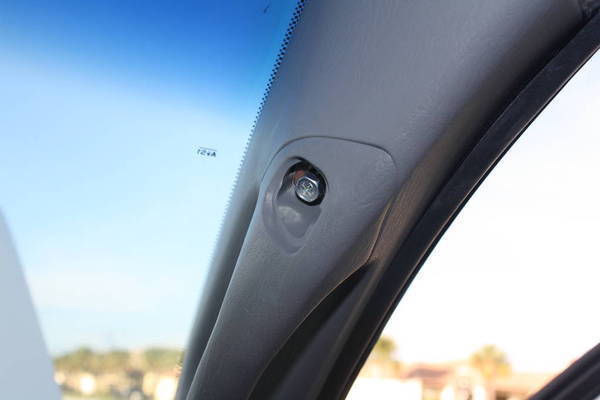

    Remove the trim piece covering your front pillar by prying up the pieces covering these bolts, then removing the bolts in question.
    [​IMG]

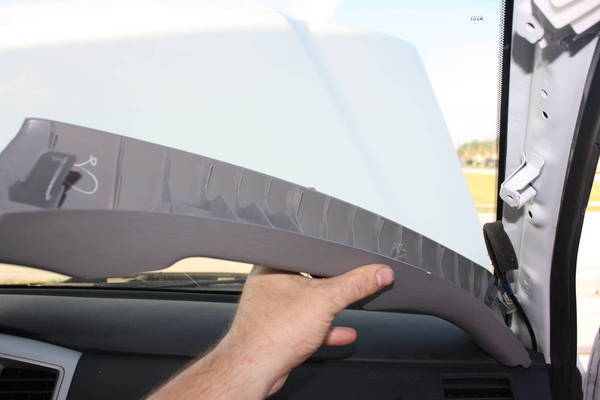

    Here is the trim piece coming away, and you can see the wiring that your antenna connects to (part #5 in the 1st diagram) coming out from the dash area. there is a detaching connector in the wiring that our replacement will plug into.
    [​IMG]

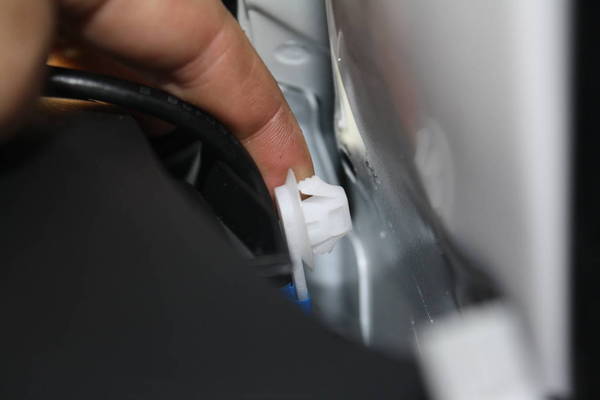

    Here (center, out of focus, sorry!) is where the wiring enters your cabin, seen from the glove box area. Also out of focus is a retaining clip connected to the mast's wiring that you will have to remove.
    [​IMG]

    There is a second identical clip on the mast's wiring, before the detaching connector, here by where the pillar cover touches the dash area. On mine I had to cut it, allowing part of the clip to fall into the body... ugh.
    [​IMG]

    Now that the 2 clips are out, remove the old mast and put the new one into the hole in your fender, using the hook, attach the bottom screw, run the wire into your cabin, and attach the clips & connector!
    [​IMG]

    [​IMG]

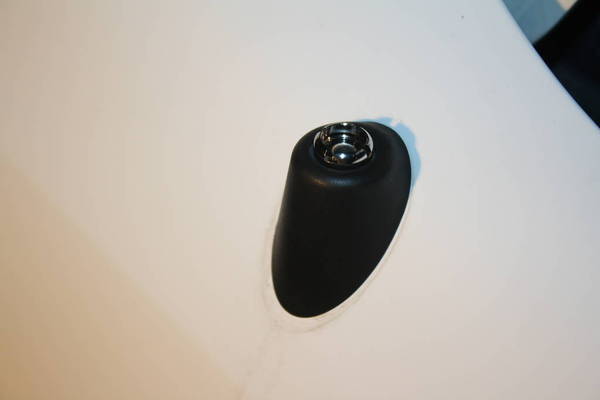

    Now add your new bezel and screw down the bezel nut.
    [​IMG]

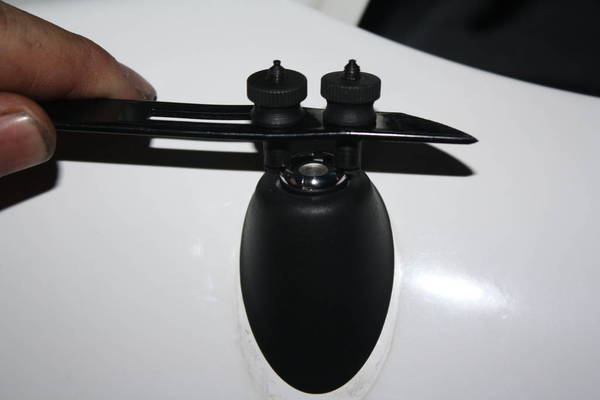

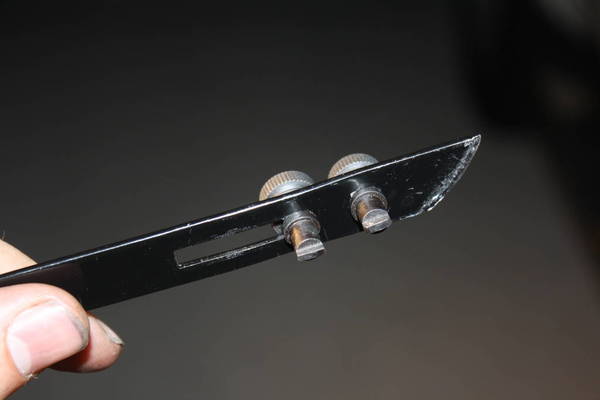

    I used this watch tool, a couple bucks at walmart, to both pry up all retaining clips and to tighten the bezel.
    [​IMG]

    [​IMG]

    Button up your wheel well & fender and you're done! You just saved yourself about $200 in labor :cool:

    The only thing I have run into is that I can't get the stain from the corrosion off of my truck! Let me know if you have any thoughts!

    Last edited: Aug 28, 2013
    BassAckwards, oheric!, rleete and 5 others like this.
  2. Feb 2, 2013 at 8:55 PM
    #2
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    Apologies if this is posted in the wrong discussion forum!

  3. Feb 3, 2013 at 1:50 AM
    #3
    Brandon###

    Brandon### Well-Known Member

    Joined:
    Apr 27, 2010
    Member:
    #36105
    Messages:
    798
    Gender:
    Male
    Perfect timing, i have the new mast sitting in the garage waiting to go on. I wasted $40 on the specialty tool (had to buy the whole set) to remove the mast nut. It did not work. It is so corroded, nothing would budge it.

  4. Feb 3, 2013 at 9:41 AM
    #4
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    Sounds like exactly what happened to my bezel, you might have to drill it out. I used a 1/2 inch bit just because it was very close to the same diameter as said bezel. Happily the bit is also larger than the mast head, that way I was sure to cut away the corroded boot from the mast.

  5. Feb 3, 2013 at 9:59 AM
    #5
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    I also took this as an opportunity to replace the antenna with the $10 stubby from pep boys; lost a little reception, but stopped hitting the garage door!

    The paranoid side of me thinks hitting things with the antenna helped corrode the mast by introducing cracks, but I might be :crazy:

  6. Feb 3, 2013 at 10:58 AM
    #6
    Brandon###

    Brandon### Well-Known Member

    Joined:
    Apr 27, 2010
    Member:
    #36105
    Messages:
    798
    Gender:
    Male
    Well I have broken 2 antennas 2 different ways...

    The first time the automatic car wash took it out.

    The second time I was going to outsmart the car wash and remove the antenna before I went through. I put a wrench on it and the slightest amount of pressure snapped it!

    Damned if you do, damned if you don't.

    So now I've been without an antenna for about 8 months. I didn't have the time, tools, or space to mess with it.

    I will definitely going back with an aftermarket stubby antenna.

  7. Feb 6, 2013 at 6:08 AM
    #7
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit

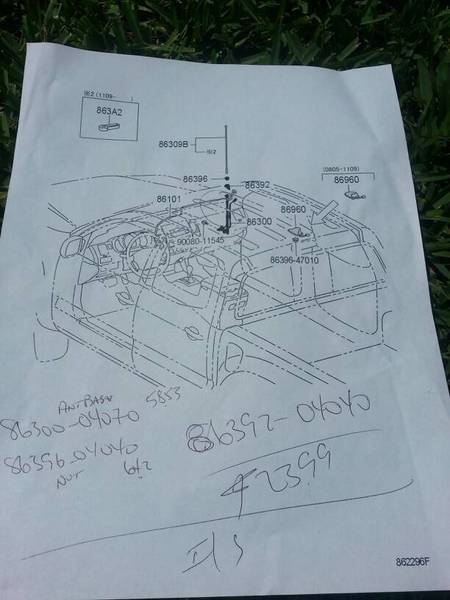

    Found this shot of the part diagram with part numbers! On my phone right now, add to the OP later.


  8. Feb 14, 2013 at 6:47 PM
    #8
    AntennaX

    AntennaX Well-Known Member

    Joined:
    Oct 10, 2011
    Member:
    #64983
    Messages:
    80
    Gender:
    Male
    nice write up, you can also use a pair of needle nose pliers to fit in the 2 grooves to unscrew the bezel off and on

    2009Access4x4 and Lord Helmet like this.
  9. Feb 15, 2013 at 3:44 AM
    #9
    scottw1

    scottw1 Well-Known Member

    Joined:
    Jan 7, 2013
    Member:
    #94652
    Messages:
    385
    Gender:
    Male
    First Name:
    Scott
    Norfolk, VA
    Vehicle:
    2010 SR5 Tacoma 4x4
    Lighted 4wd dial, Sirus XM radio
    Nice write up. What caused all that corrosion?

  10. Feb 16, 2013 at 4:24 AM
    #10
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    I had a similar thought, but mine were too thick in the tips to fit. Lucky I had the watch tool laying around!

  11. Feb 16, 2013 at 4:27 AM
    #11
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    I couldn't say for sure, but I think something hit the antenna, because I noticed it was canted to the passenger side compared to the new mast fitment. On the other hand, I have been living on a barrier island next to the ocean for a few years...

  12. Feb 16, 2013 at 4:52 AM
    #12
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,383
    Gender:
    Male
    Good write up.

  13. Feb 16, 2013 at 4:56 AM
    #13
    Slimwood Shady

    Slimwood Shady I love your mom!

    Joined:
    Jul 12, 2009
    Member:
    #19585
    Messages:
    10,728
    Gender:
    Male
    First Name:
    Linwood
    Hampton, VA
    Vehicle:
    '16 Odyssey; '15 Q7 ;14 A4
    This is excellent....too bad it wasn't here a few months ago when I swapped fenders when I bought a snorkel. Had to cut the antenna on both trucks. I am not sure what he has done, but I bought all new parts to replace mine. I was also sent an extra mast nut if anyone needs it.

  14. Feb 17, 2013 at 6:05 PM
    #14
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    Thanks! :wave:

    Ouch! At least the mast isn't crazy expensive...

  15. Mar 4, 2013 at 5:30 AM
    #15
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    Last edited: Mar 4, 2013
    RVerv86 likes this.
  16. Aug 5, 2013 at 3:03 AM
    #16
    Tacoma_SR5

    Tacoma_SR5 Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25927
    Messages:
    90
    Gender:
    Male
    Canada
    Vehicle:
    07 Tacoma SR5 Double Cab
    Is there a part number for these fender clips?

    [​IMG]

  17. Aug 9, 2013 at 6:26 AM
    #17
    TacoCat

    TacoCat These pretzels are making me thirsty

    Joined:
    Oct 26, 2009
    Member:
    #24912
    Messages:
    8,078
    Gender:
    Male
    First Name:
    Johnny-5
    Chantilly, VA
    Vehicle:
    18 wrx limited 6MT
    Could it be the "Retainer 2005-11, fender liner Right" (part#6) as seen here: http://parts.camelbacktoyota.com/pa...teid=214329&vehicleid=1445515&diagram=8512010 I know it shows up in the bumper cover area, but when I search for fender liner, I get the same product cross referenced.

    I am looking for the same thing. I snapped my shorty antenna mast off at the bottom where it screws in to the antenna base. It didn't sit flush so water got in there and rusted it out. I wanted to get a few extra of these clips in case I break any.

  18. Aug 11, 2013 at 6:15 PM
    #18
    Yoshio

    Yoshio [OP] Well-Known Member

    Joined:
    Aug 14, 2012
    Member:
    #84735
    Messages:
    509
    Gender:
    Male
    First Name:
    Scott
    Central Coast, CA
    Vehicle:
    2007 SW 2.7L 4x4 SR5
    Double Cab Step Tubes, 35% Tint Front Windows, Husky Mud Flaps, Illuminated 4x4 Switch, Debadged, DEPO LED tailights, Undercover SE Tonneau Cover, Panavise In-Dash Mount, Plasti-Dipped Front Bumper Lip, OEM Front Fogs, Rear Fog Lamp, LEDs throughout, Door Sill Protectors, Color Matched Satoshi, Rear Window Security Bar, ImMrYo Rear Mirror Bracket, Added factory DTRLs & DTRL kill switch, Rear Diff Breather Mod, 17" FJ Alloy Rims, Sport shocks coils leafs, DEPO black headlights, off-road recovery hook, skid plate, BT-35 TOY Bluetooth kit
    I will be going to the dealer soon for the seat belt recall, and will get a verified number!

  19. Aug 11, 2013 at 6:27 PM
    #19
    Nutzo333

    Nutzo333 FreakShow333

    Joined:
    Aug 11, 2012
    Member:
    #84550
    Messages:
    119
    Gender:
    Male
    First Name:
    Cory
    Canada
    Vehicle:
    Lifted 06 SR5
    6" Fabtech Lift, 315/70 r17 Duratracs, TRD Cold Air Intake MBRP stainless with duel side exit rear exhaust
    If anyone is worried about future corrosion, might I suggest a little dielectric grease? Youd be surprised how useful it can be. We use it on the 2 way antenna tips when we tune them to the radios for the heavy equipment. Really stops the ends from corroding so Im sure it will help with the Tacos antenna. Im about to replace my FM antenna on my Aacoma so this thread is a great help, and I knoe i'll be greasing up the joints!

    MTopp likes this.
  20. Aug 16, 2013 at 4:53 PM
    #20
    Tacoma_SR5

    Tacoma_SR5 Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25927
    Messages:
    90
    Gender:
    Male
    Canada
    Vehicle:
    07 Tacoma SR5 Double Cab
    I was able to get the part number since I order some here it is:
    90189-A0002 (Grommet Screw)
