How To: Retractable iPhone 5 Constant Hot Charger

Discussion in 'Technical Chat' started by THE CALICO, Oct 28, 2014.

  1. Oct 28, 2014 at 4:28 PM
    #1
    THE CALICO

    THE CALICO [OP] Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126772
    Messages:
    1,296
    Gender:
    Male
    First Name:
    Colton
    Nashville
    Vehicle:
    Black 2014 TRD SPORT ACCESS CAB
    This is my first write up so please over look the lack of refinement.

    I wanted to be able to charge my phone while the truck wasn't running or keys in the ignition. It's also worth noting that my truck came from the factory with a USB port that will charge my phone, however once my phone is plugged in it links to the radio. This makes the phone function act weird and almost useless.

    My solution was to put a retractable iPhone 5 charger in the little cubby next to the steering wheel. I normally put my phone in there while driving so that location was perfect for me.

    I ordered these to items off Amazon

    http://www.amazon.com/Hardwire-Smar...B00I3P6QQG/ref=cm_sw_em_r_dp_zBbuub14BQF4M_tt

    http://www.amazon.com/Compact-Retra...B00EDP0FFI/ref=cm_sw_em_r_dp_bUbuub1GYRSZT_tt

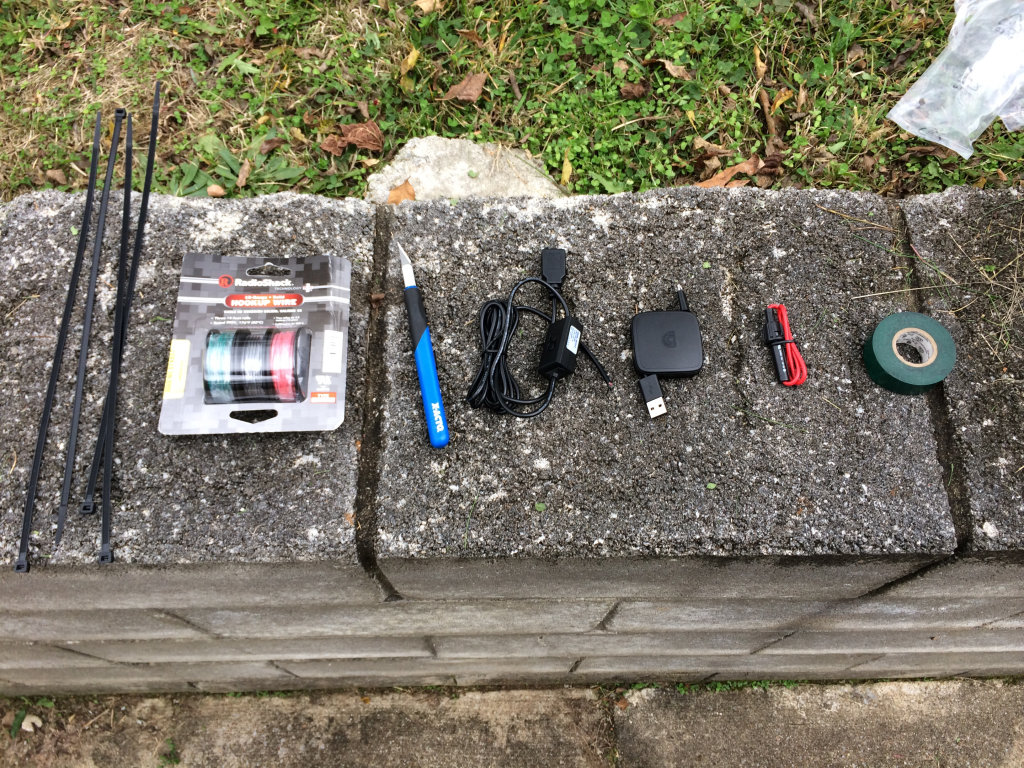

    I then gathered some extra wire along with a 2amp inline fuse and some zip-ties.

    83366c269d0fd6b062fcfca5fcbc5520_zps305d_4c7e21c8d226ee64614a994ddbe36ac72e400305.jpg

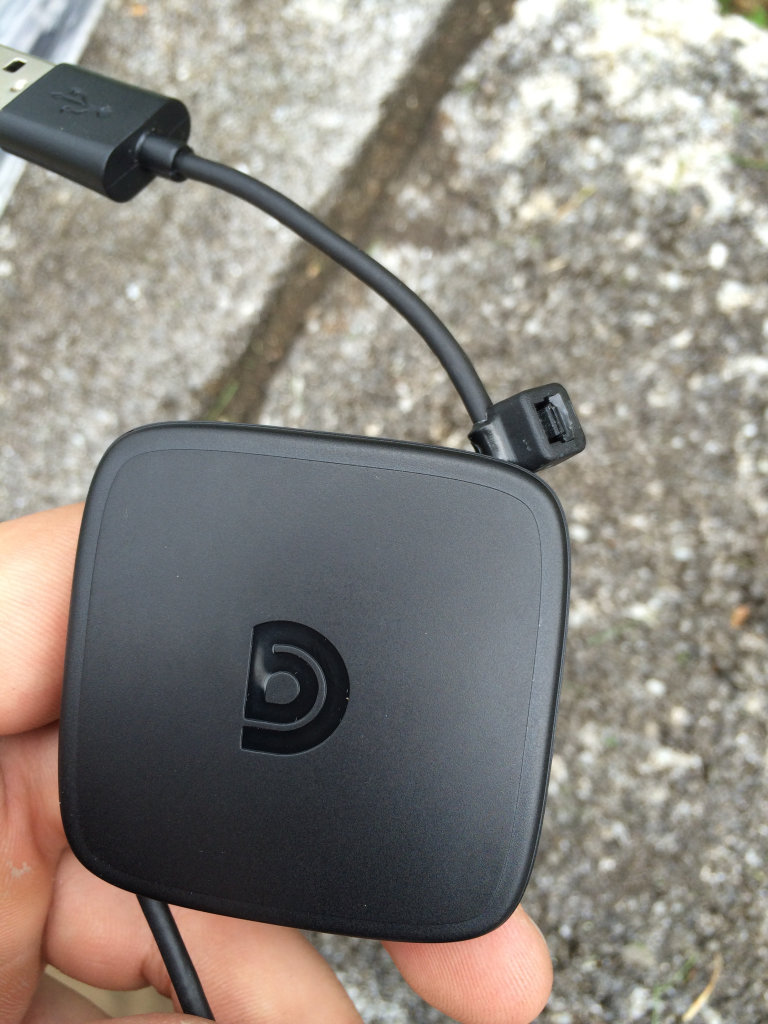

    Pulling a couple inches of the retractable cable out I placed a zip-tie to prevent it from pulling itself back in. This makes it easier to grab the cable and pull it from the cubby, and for the phone to sit in there and charge.

    3cbaf00d62ae7973e0fa2148f4089499_zps6192_ced7516e28d55dd5c7021bb0305d3a18e96bfc9d.jpg

    You then remove the cubby by grasping it and pulling strait out.

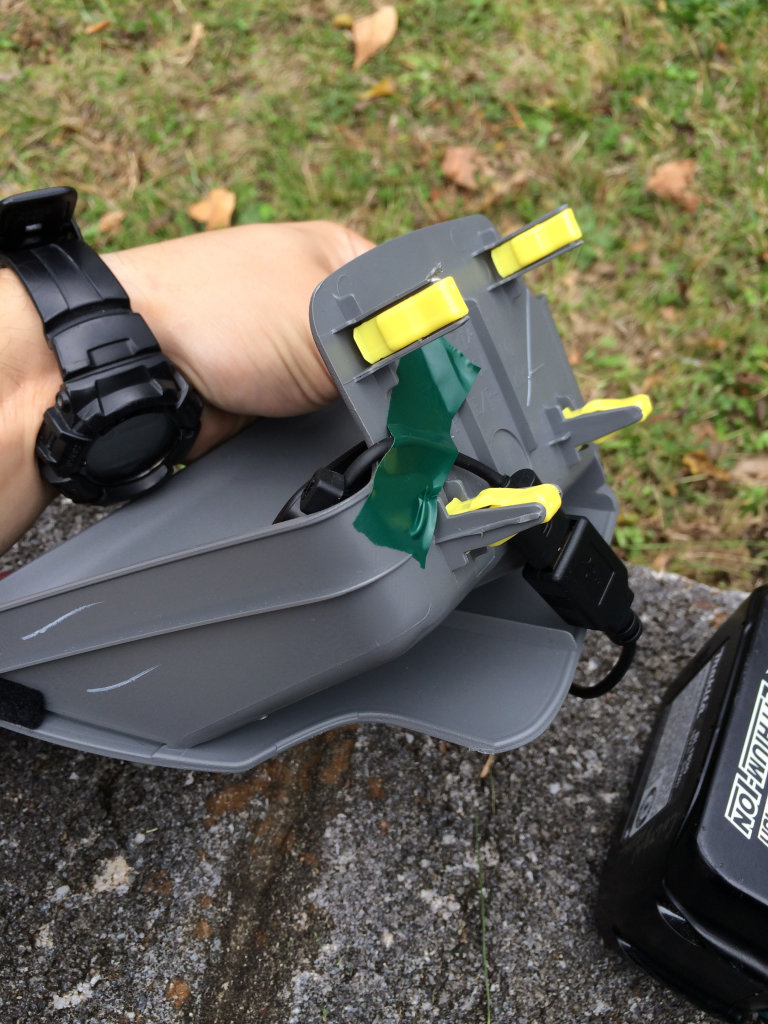

    I then placed the cable to my liking and secured the other end with electrical tape to hold it in place till it was put back in.

    5c277ddf4633d0cad5c5b6bc28a0dbc0_zps2f17_3b6d5821144c3e767083bc081284f7688f077231.jpg

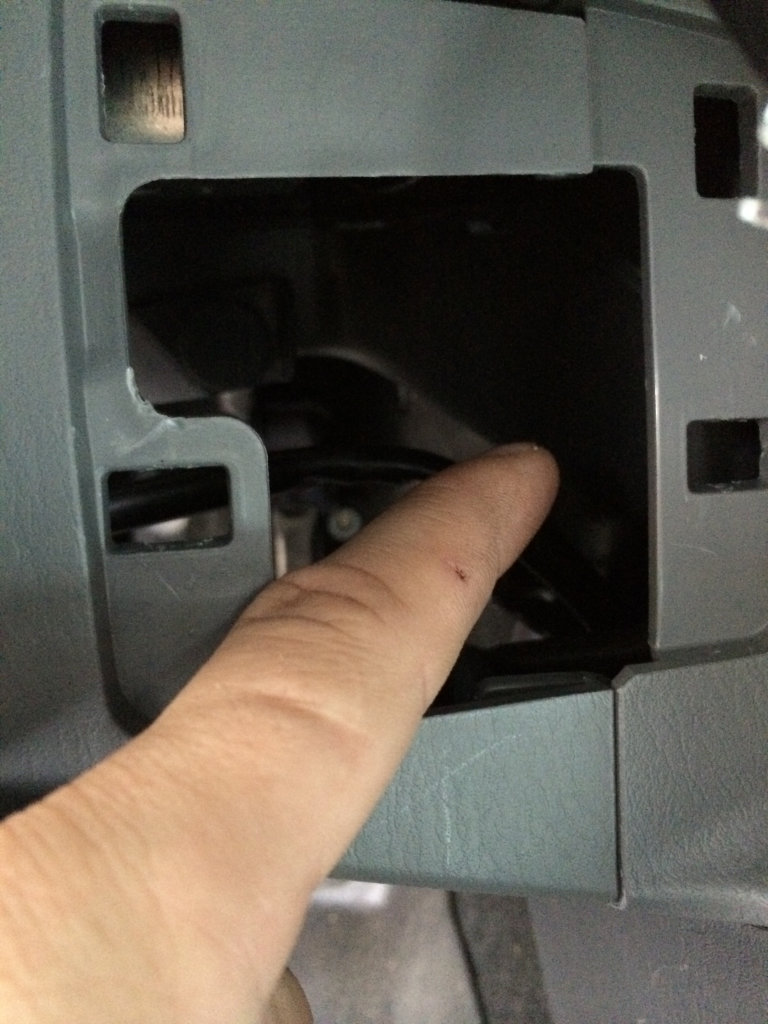

    I then ran the adapter cable through the hole expose in dash after cubby was removed.

    31460cae65f9b2decb42cadd0a84a51d_zpsbb1a_764e48a58b4c29b820276ee48fe00a086c1cbb50.jpg

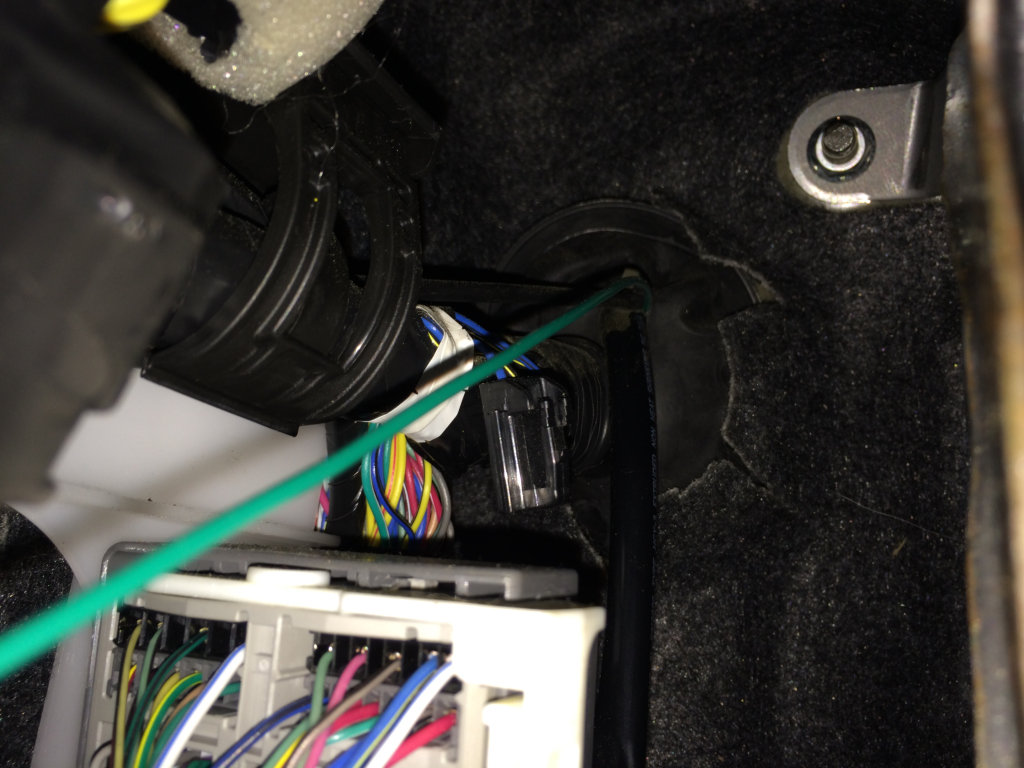

    From there I pulled the cable through the fire wall and into the engine bay. Don't mind the green wire that's another project but going through the same place.

    e68f048f8587a4b634af1a570fc975f4_zpsbad9_a7e36d0286d537d7844d2c51f6517381fdf8ab7a.jpg

    Ideally I would have liked to have kept the power inside the cab but was at a loss of where to get the constant power from. If I figure it out ill prob re run this wire.

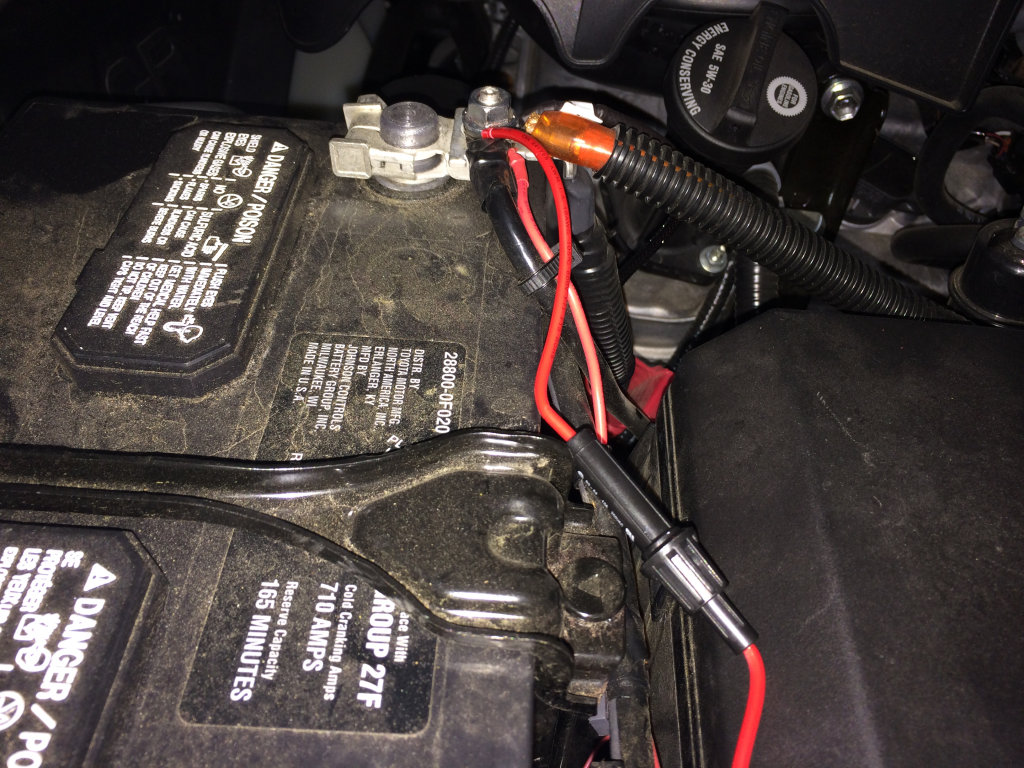

    From there all I did was add the inline fuse with a 2 amp fuse and connect the red wire to the battery and grounded the other.

    6502784ae2f245df190aedba6bb26017_zps557f_6a6e29715349f4e2af870045d9734a0476e0dfa4.jpg

    With all this completed connect the retractable charger to the hardwired connector and place the cubby back in.

    All in all I'm happy with the finished product!

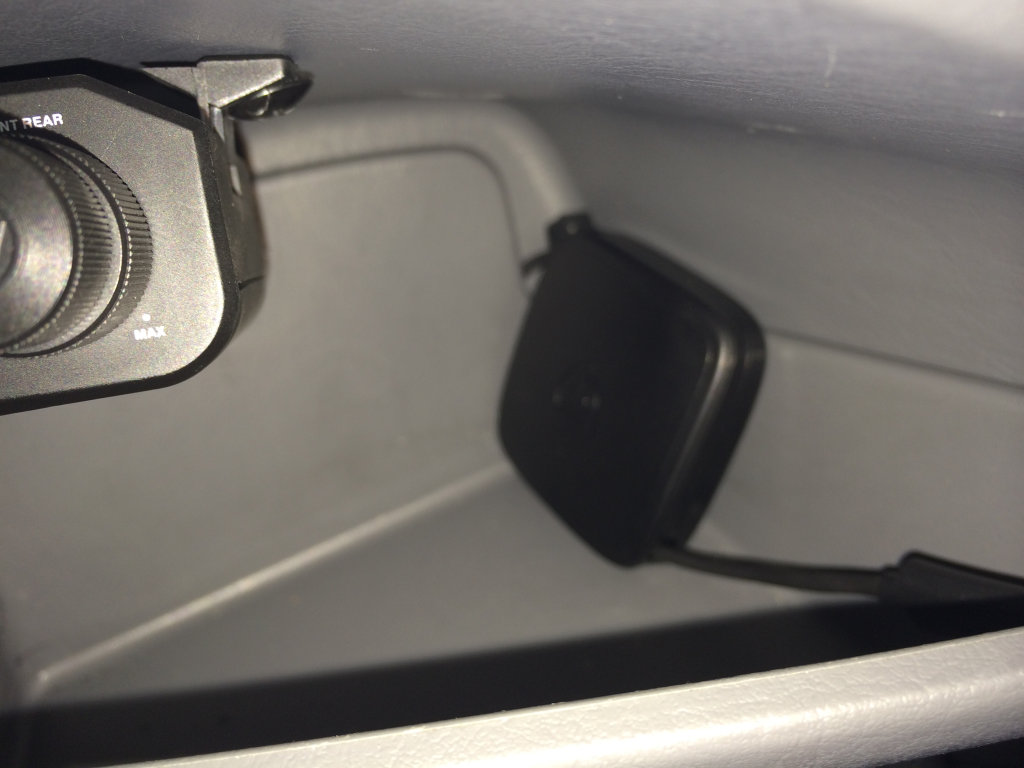

    b5557d0fd426f298a4143f73cfe75456_zps4159_9ce1c056a4cefd3a695dc7a31ff2348429c559ed.jpg

    804ebb2b34142e1be70f2333b22e62b6_zps2063_af90f79c92916370e56a2dedc1939f2d207d9c2d.jpg

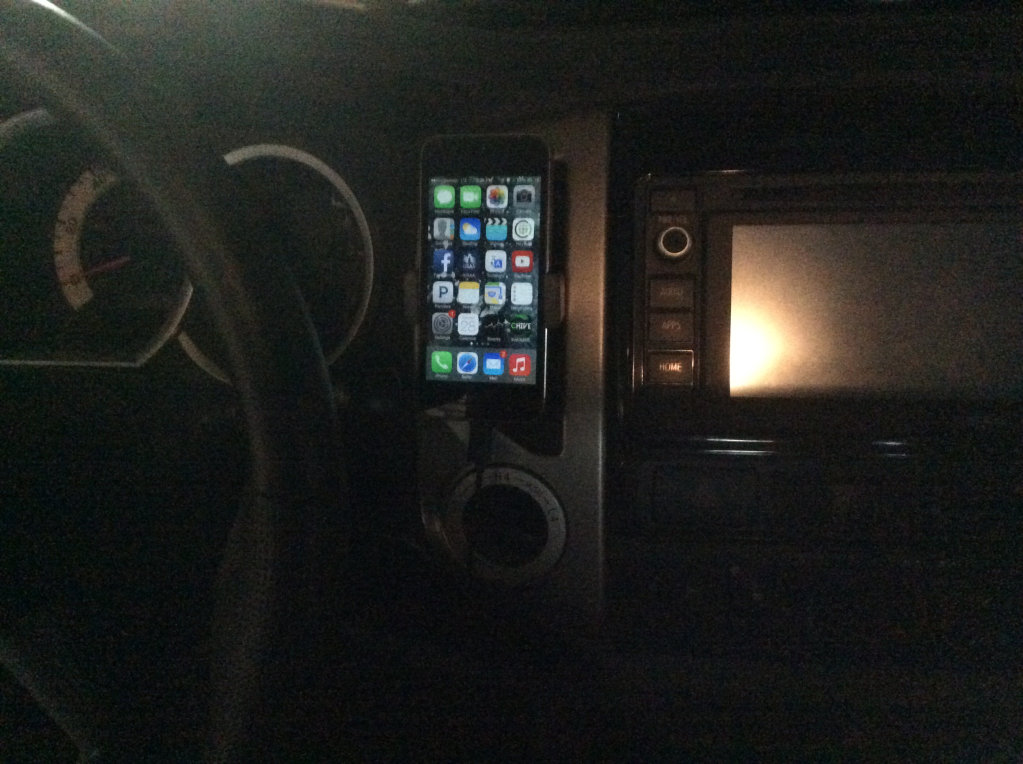

    I also tried out my new phone mount! Hope this is helpful!

    Last edited: Oct 28, 2014
    Smiley52 likes this.
