How to: Retrofit Morimoto FX-R & Mini H1- in depth

Discussion in 'Lighting' started by InSight Retrofits, Nov 21, 2013.

  1. Nov 21, 2013 at 7:09 AM
    #1
    InSight Retrofits

    InSight Retrofits [OP] Closed

    Joined:
    Sep 17, 2013
    Member:
    #112687
    Messages:
    1,260
    Gender:
    Male
    Update: My lights are complete! I am now working on the FXR part of the guide. Please take a read through it when I am done!



    Hey guys! I have been reading a ton of retrofit guides, a few on here and a few more around other sites as basically every install is the same.

    I am typing up another guide to help everyone that want's to do it without paying somebody to do it. This will be my second retrofit, first being Mini H1s on my old car: 2011 Ford Focus.


    This guide will be a little more in depth about things that the others were unclear about. Also feel free to PM me for any questions or information. This is geared towards the 2012-2013 headlight assemblies, but will work for the older ones too!




    Tools needed:
    Disassembly: sockets, screw drivers, pry bar, torx bits, razor blade
    Painting (optional)- Scuff pad, paint
    Projector mounting: dremel, aluminum tape, Jb stick weld and epoxy
    Reassembly: more butyl (optional), torx bits and screw drivers.

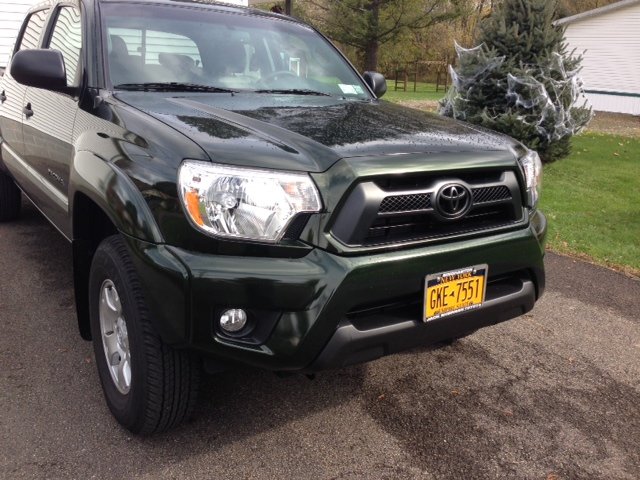

    1. Buy a Tacoma







    2. Remove your headlights. Follow this since there is no point of me retyping a perfect guide.

    http://www.tacomaworld.com/forum/lighting/221513-2nd-gen-headlight-removal-pics.html

    I will be leaving the bolt that is inside the fender area out for a few weeks to make sure the install goes 100% and there are no issues. That one is not fun to get to!
    7752F404-543B-4DAB-9E4C-241736661C5A_zps_b7f151cd7e3d53708bbadecc37b832bd053dd8b5.jpg

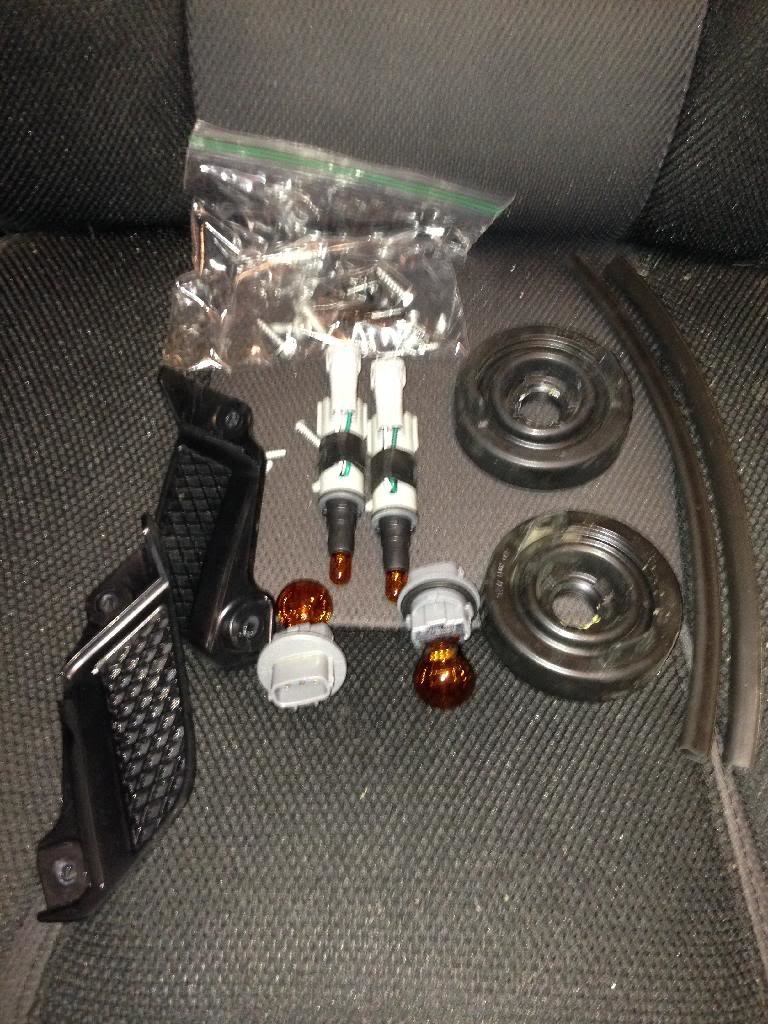

    3. Once you have the headlights removed, you can remove all of the parts you don't want in the oven. This included bulbs, bulb clips, bulb sockets, dust covers, screws, and honeycomb pieces. Make sure you get all of the screws off the back. Some Philips and some torx. You do not need to remove the weatherstripping on top of the light. The oven will not harm it.
    1B55A801-680E-418D-ACAE-311113719514_zps_5dc309120c8feaae4b88c7f82477a29963c21d66.jpg

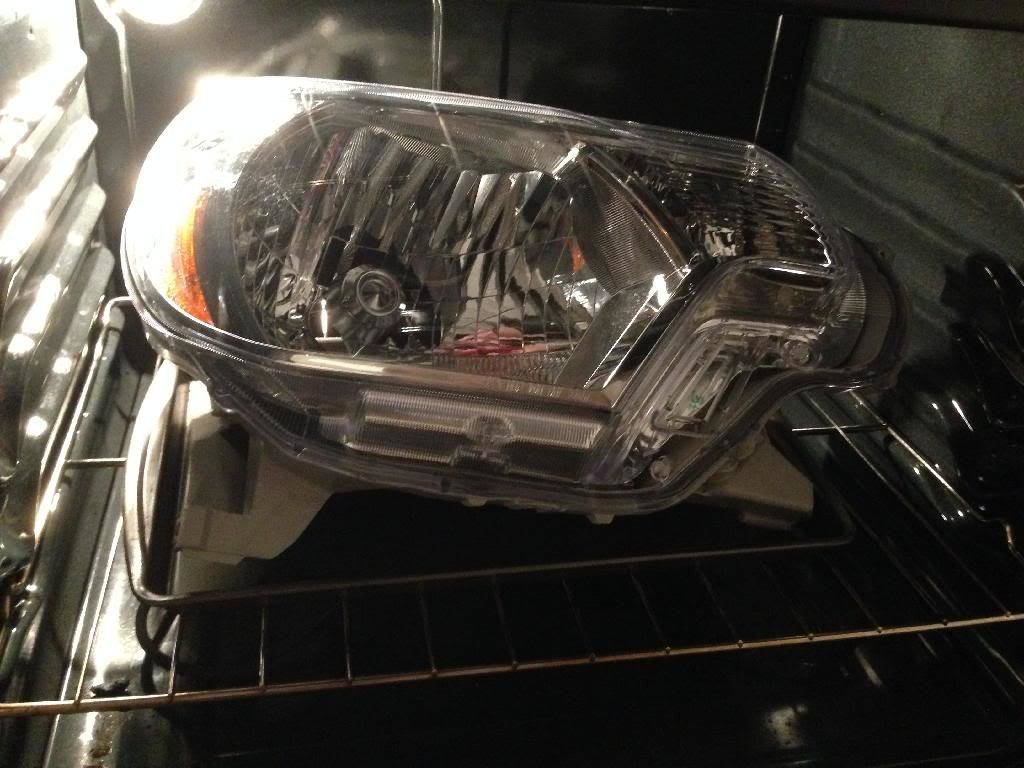

    4. I read a few guides and saw temperatures from 250 °F-300 °F, so I went right in the middle at 275 °F for 6-8 minutes. Left my oven on in the process, I tried the other method of preheating it then shutting it off but it didn’t work. My focus lens went in at like 280°F for 20 minutes with the oven on because they are permasealed. We are blessed with butyl in these lights!

    Set them on something that won’t get hot enough to melt the backing like carboard. As soon as they are done pull them out. They will be quite hot, so I recommend gloves/pot holders but gloves will make it easier as you have to hold the assembly next.
    DB8B77FA-E3BB-4039-9C9B-220BEE0160A0_zps_5d32767902a3ff3a5e71f8105081142de780a0ae.jpg

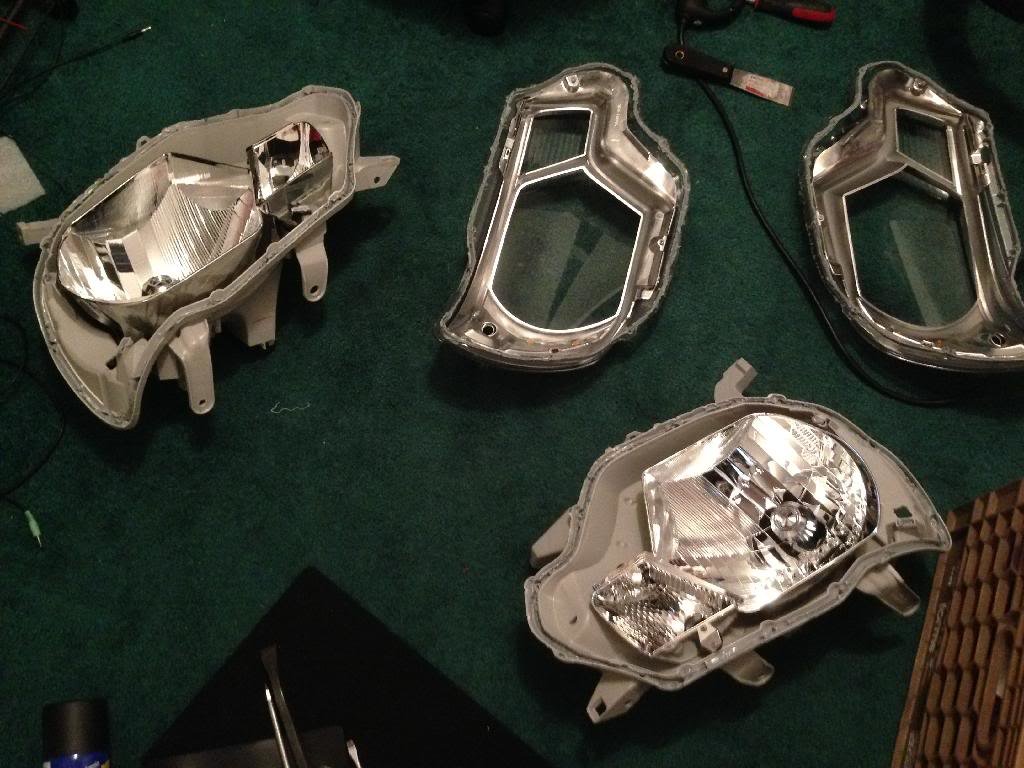

    5. While the assemblies are still hot, start at the bottom with a flat screw driver and pry the lens from the backing. Once it gets a little wider between the backing and lens, shove something much bigger in there like a big flat head or in my case a pry bar. If you keep going with the small screw driver you will mess up the back of the housing. For some reason the plastic they use is very pliable and actually twists very easy. When you get about a 1” gap take a razor blade and cut the butyl and keep working your way around. When you get the whole bottom done you can basically grab the lens and carefully pull it off the backing plate. These are mine fresh out of the oven and put into my office.

    653075AA-2BF3-47C4-9254-88D981E48B82_zps_175d94d793bfcd55d6f20c2102910614b2fcea98.jpg

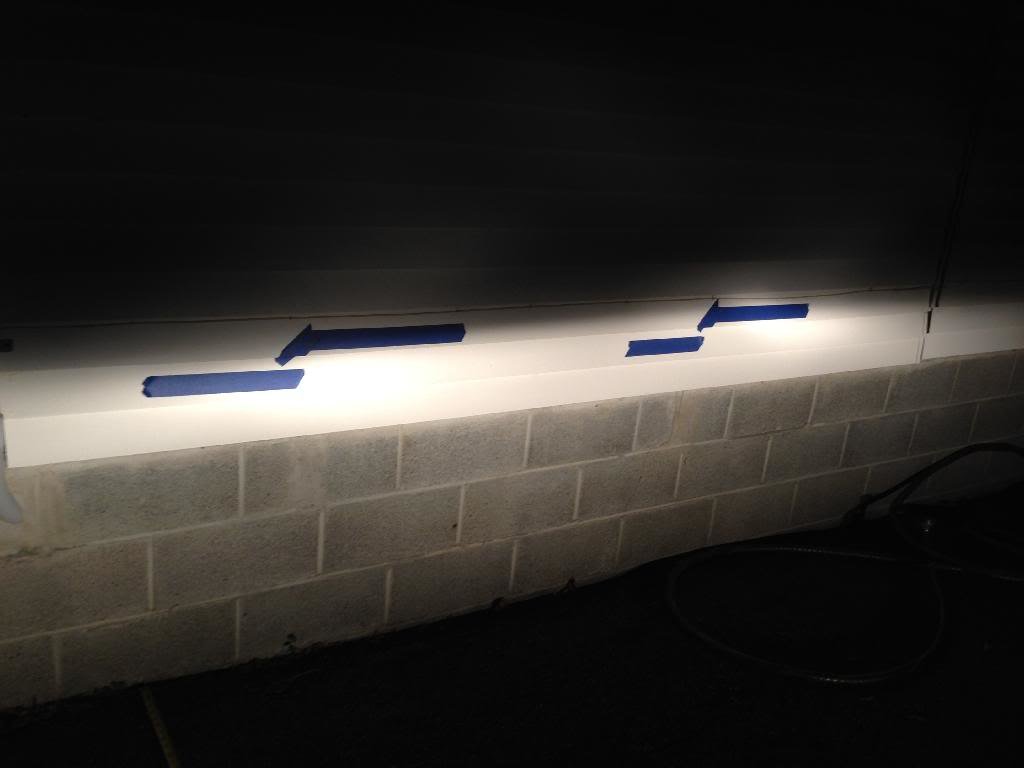

    6. At this point you are either going to A. Mount the backing of the headlight back on the truck and mark the output, or B. Make a jig (mount) for the headlights inside. A jig is just something you want to be able to put the headlight in the exact same spot to aim, some clamp the headlight to a table and some actually make a jig the headlight fits into out of wood. I decided to put them back on the truck, I mean it’s only 20°F out no biggie. Mark your beam cutoff (with an empty gas tank! a full gas tank will cause leaning towards the driver side!).

    4F87F31A-4E69-415D-B294-81A2EA4B978D_zps_afbf704aec59d80a3b5e9b2c9396a5978a3f32a5.jpg

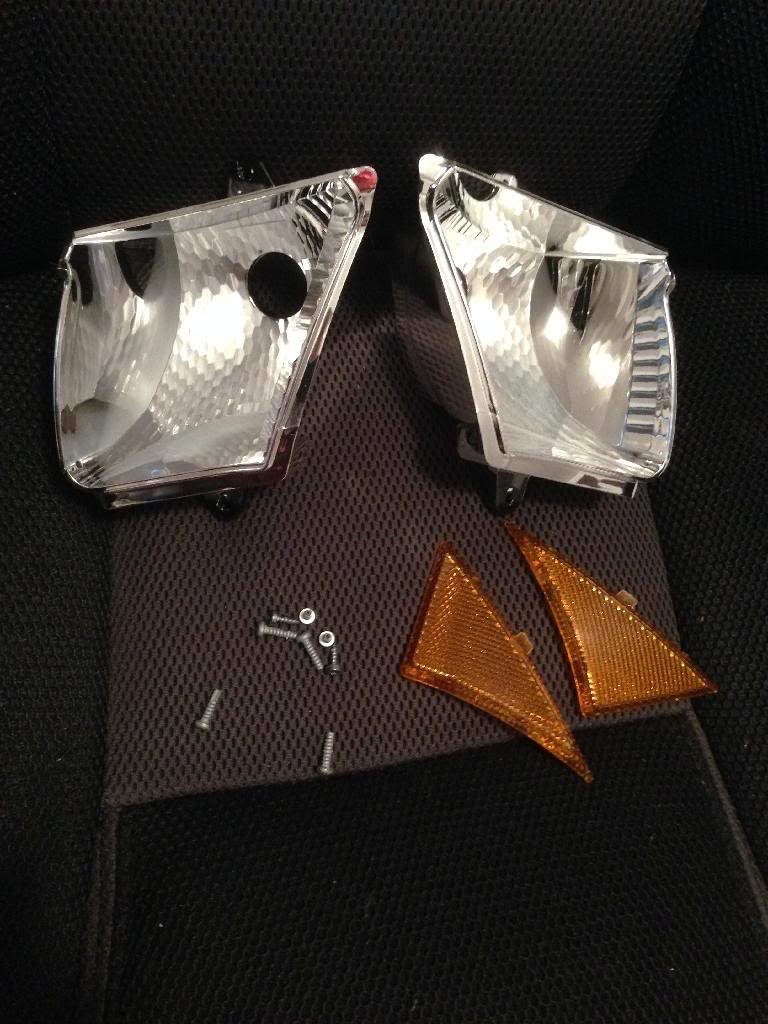

    7. Now back to work. Remove your turn signal reflector.

    38574661-1F90-4CA5-9FD7-1EB1B90E41B1_zps_b9253b77ed32afab271547d1a26986075a27345b.jpg

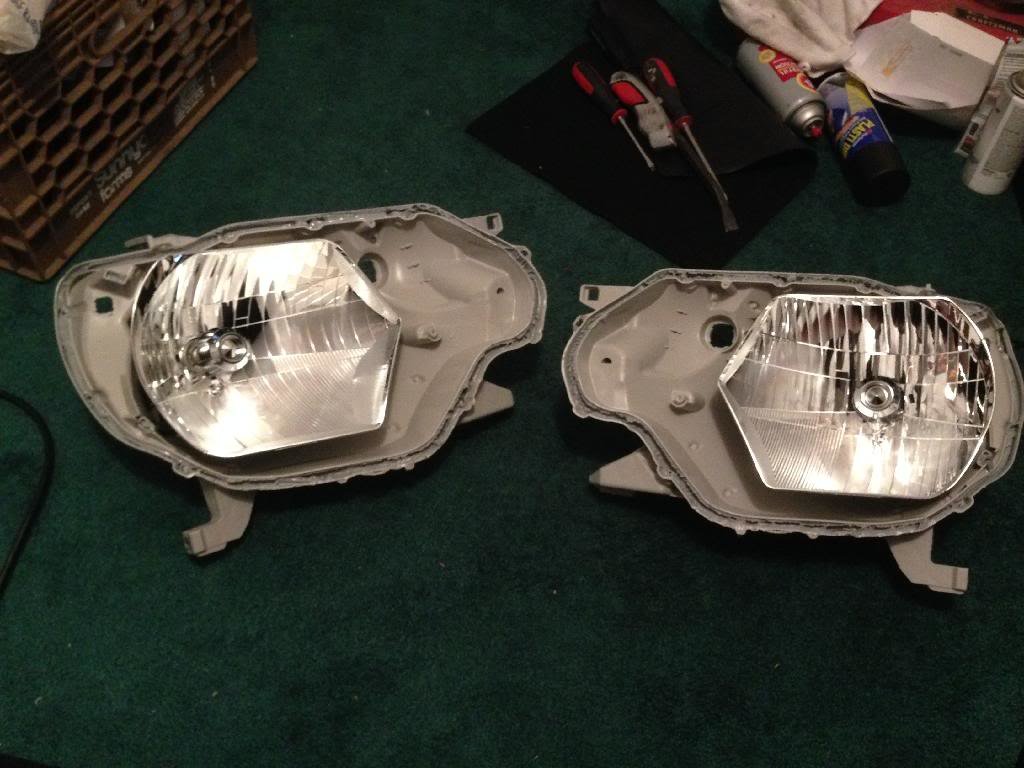

    Your assembly will now look like this.

    F640FB9D-C3AB-45C9-9FAF-5CDCCA312EE2_zps_78ac9df0c761347d2d1afd2c0d6d56b4f6ade74f.jpg

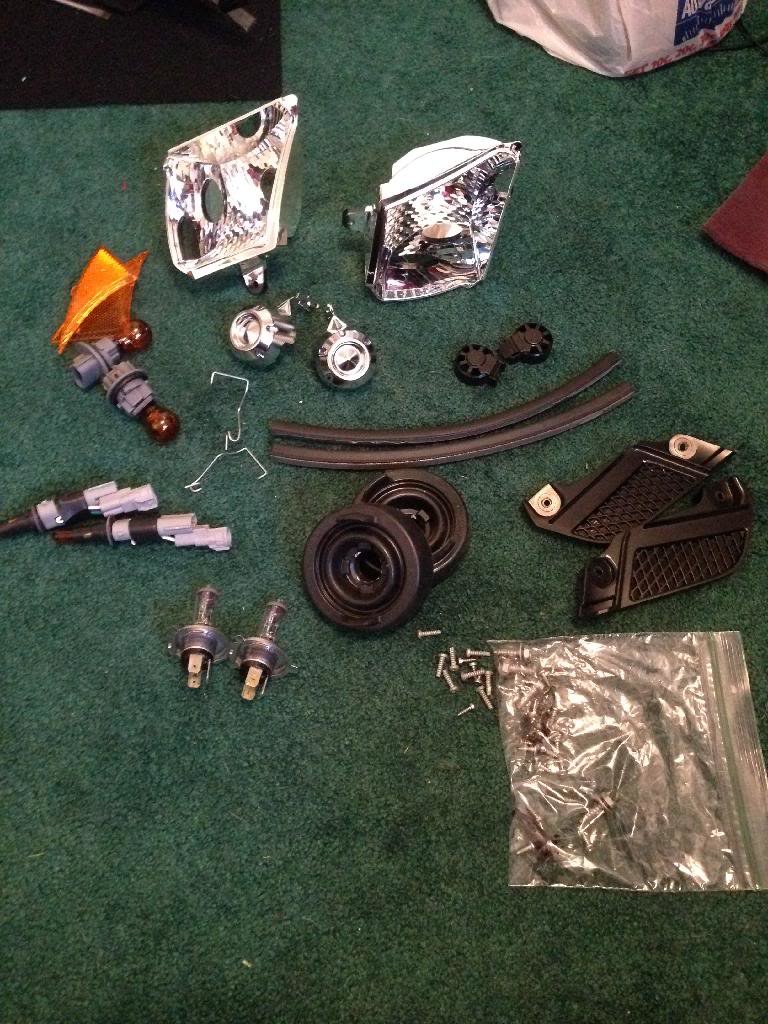

    Headlights don’t look that complicated, until you rip all this crap off

    1C50A9A7-AD3D-40AB-ADFF-8B793E2D28E1_zps_4737e2b3fe582dce4bb5cdf564a9d01fb9e45009.jpg











    8. Now you will be removing the reflector bowl for paint. I looked at how many threads were sticking through the adjusters and noted the following (yours MIGHT be different, but probably about the same)

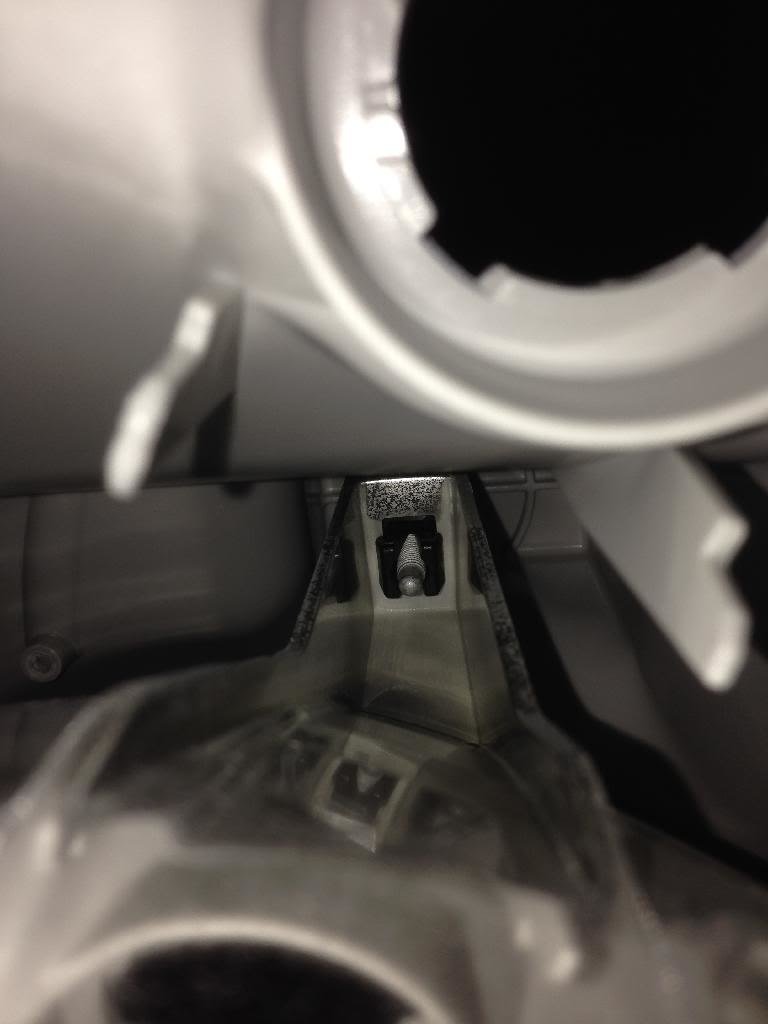

    Adjuster by the inner turn signal had about 2 threads coming through
    CBABE28E-2BAE-46E1-AF65-E155ACAA754A_zps_4c985e6e25527bacb92ae52c8311083cefc58dc8.jpg

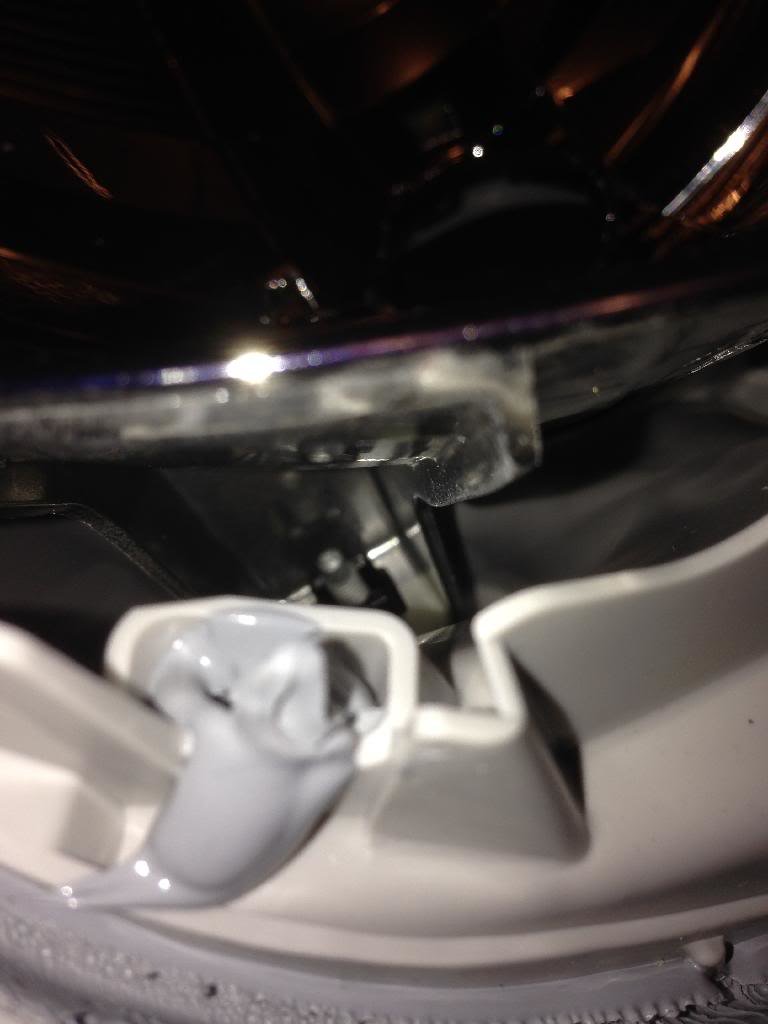

    Adjuster by the outer marker light had about 8 threads coming through

    AFEE3491-21A4-4B39-B2D4-DA3D89C449B6_zps_b09ed67c4ef570af8d27a5116020c8cf25e112bb.jpg

    Then there is also the ball joint clip that holds the reflector on shown in the top left of this picture. To get this off you need a little pick or flat head. The tabs push in towards the center of the piece of plastic, and the reflector pulls off of the black piece. It stays in the headlight, don’t break it off!

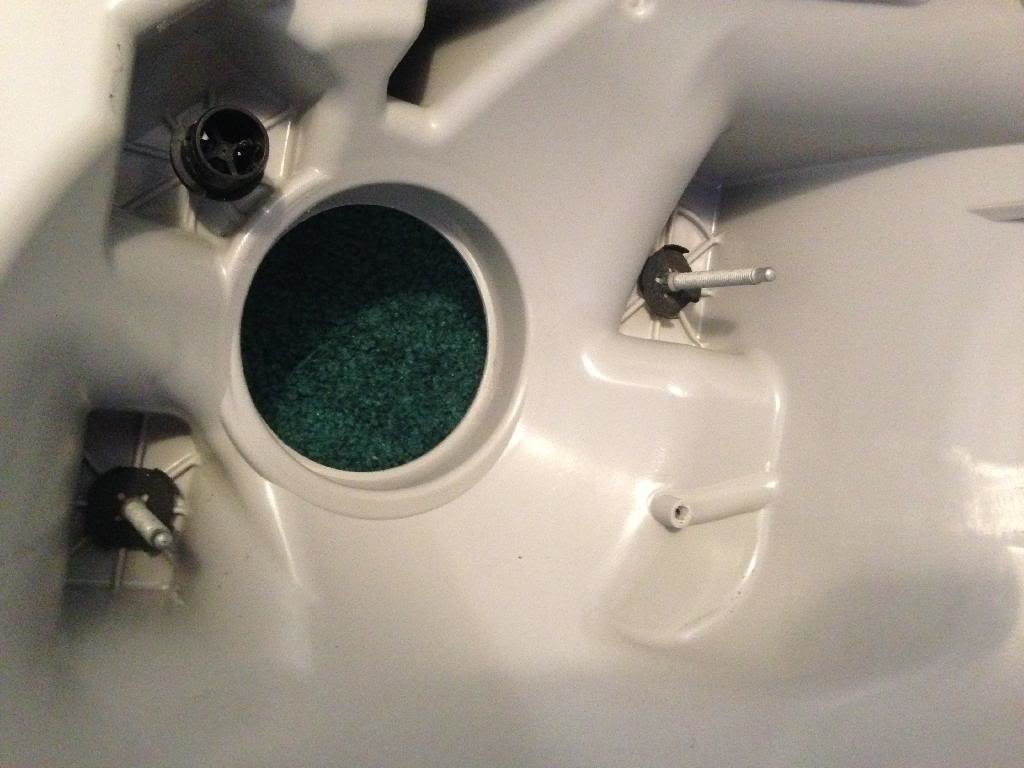

    As soon as you have the reflector out, there are 2 metal tabs coming through the back that hold the metal bulb cover. Pry the 2 tabs up, and it will pop right through the front.

    8B2B15ED-8E3B-4E17-9CB8-E436E3B6B316_zps_fc3c87f99816594b029b6a067b6ef61598cf3c08.jpg

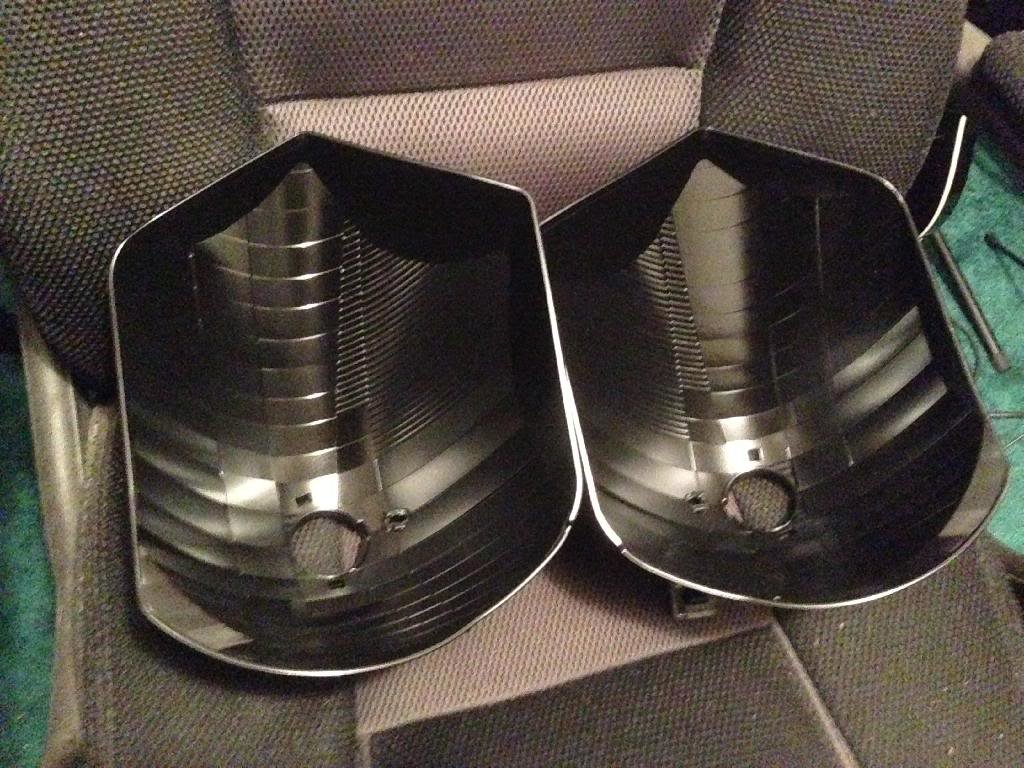

    Then you will have your reflectors out. These are already painted, I used Krylon Fusion satin black AFTER scuffing the chrome with a red scotch bright pad. Some people decide to remove the chrome lining with oven cleaner first and paint the plastic. But I have never seen chrome chip off of headlights so I didn’t worry about it. I did this all 2 days before my projectors will be delivered. I wanted to let the paint dry good.

    4AC804CE-9DB8-4CD6-B13B-7D9284EF13D5_zps_4a7369f5d29834cc09a318d05e34c6c52dc9b8b5.jpg


    You can also paint your turn signal reflector and shrouds. I think I am leaving both of mine chrome, but that will be decided today, projectors should be here in a few hours. It all depends how it looks when I mock it up on the truck.

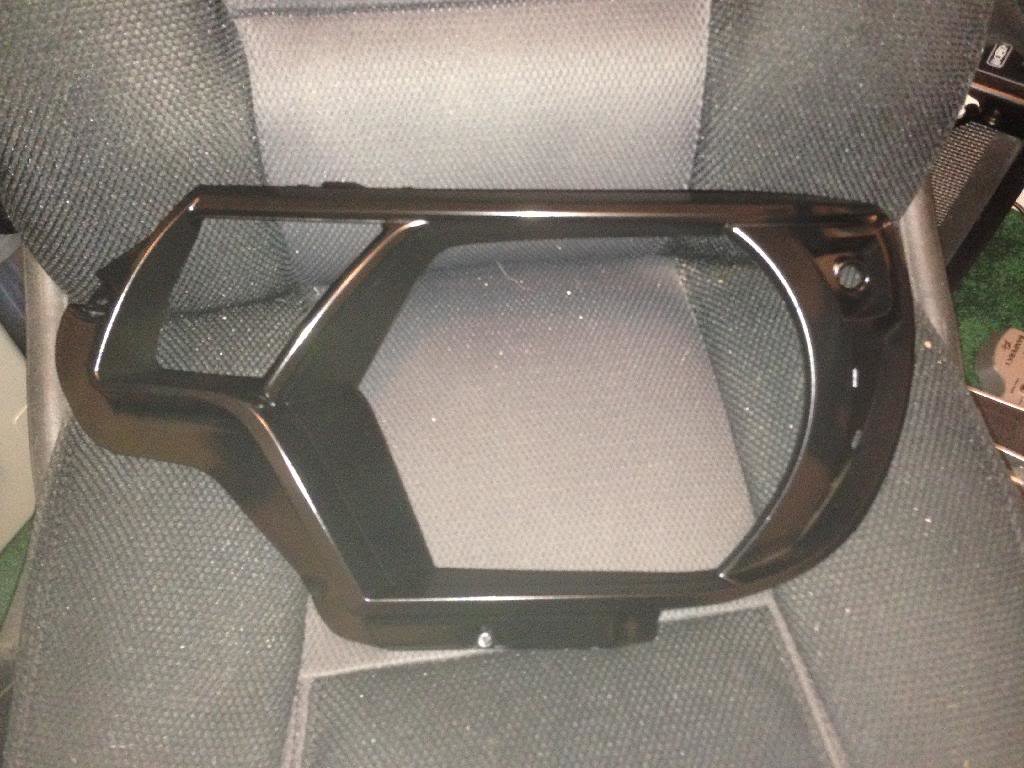

    9. Now back to your lens assembly, remove the 2 torx screws that hold in the headlight surround/bezel and remove it. Take any butyl off that is on the chrome surround (mine had a little bit on one of the corners).Use wax tar and grease remover and it comes right off. Best to scuff it first. A 100grit sanding sponge works good.Now you can paint your headlight surround (BHLM)

    7A02A8C4-C97D-4EA6-B1CE-BA77670EDD23_zps_47b0ffdad6fc5b9de230f9721b2e317c858a6952.jpg

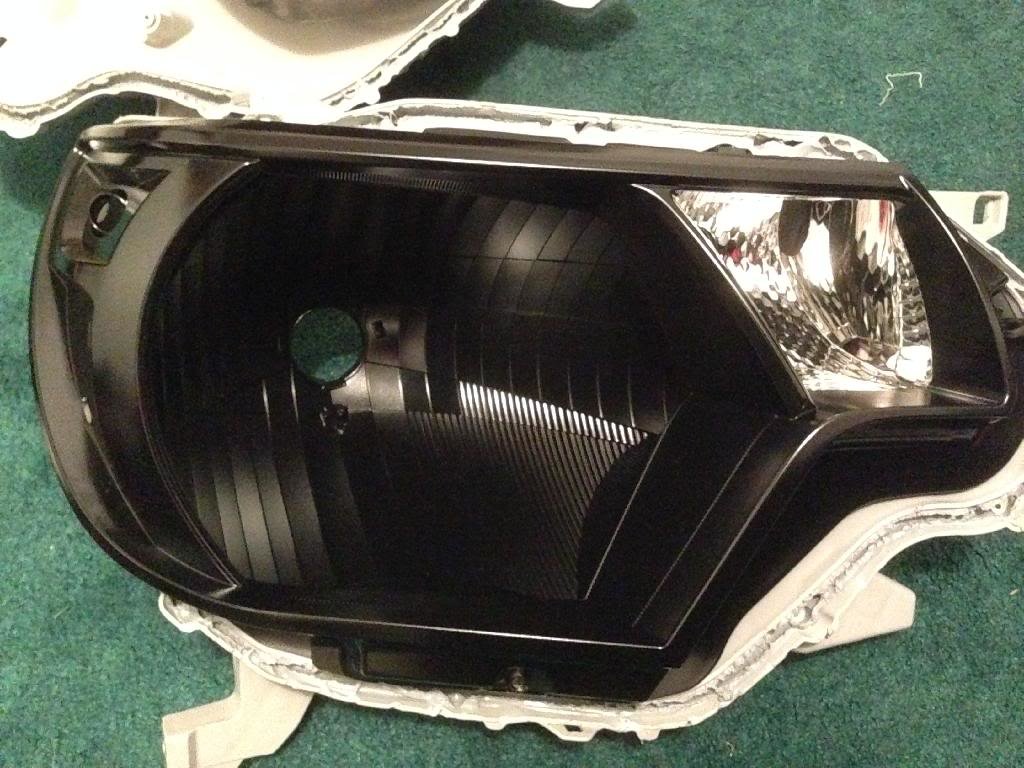

    10. Here is the assembly mock up (turn signal reflector might be painted, not sure yet)

    8275DAE5-A5F2-4489-B262-46134380CED5_zps_231464031402fd9ec8b8a210fed6a47cc32b07f2.jpg













    11. Morimoto Minis.
    All you have to do is reinstall the reflectors, put your Mini through the hole with a silicone washer on it, slip on your 9003 adapter plate, see where it aims and you will have to make up for how crooked it is by grinding the tabs of the adapter plate (see others' pictures below) Still a very easy install. Mini H1 installs from removing the headlights to completing all this shouldn’t take more than 2-3 hours if you work steady. Install them, snug them and take them to the truck/jig and see how they compare. Any adjustment can first be made with grinding the adapter plate and second the headlight adjusters.You want to rely on the adapter plate & grinding for aim and not so much the headlights themselves.

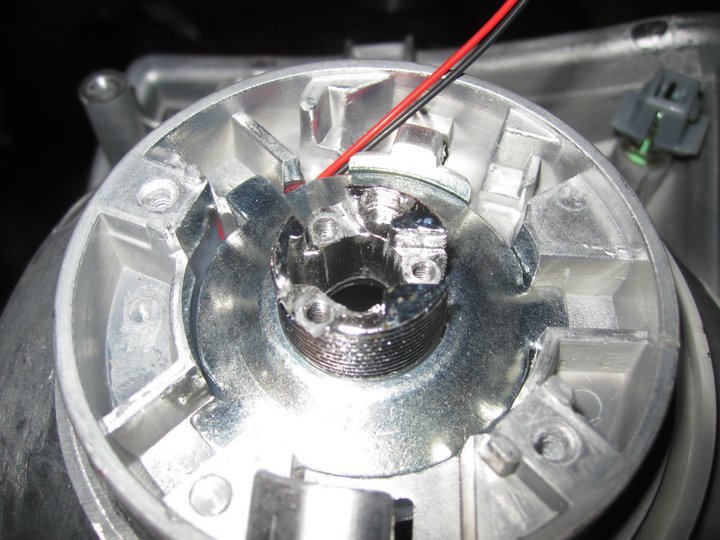

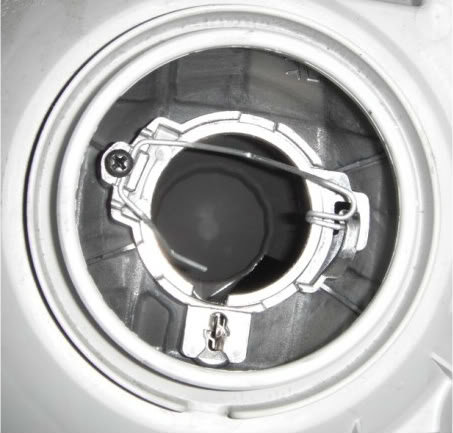

    This is what yours will look like (not a tacoma headlight!!!)

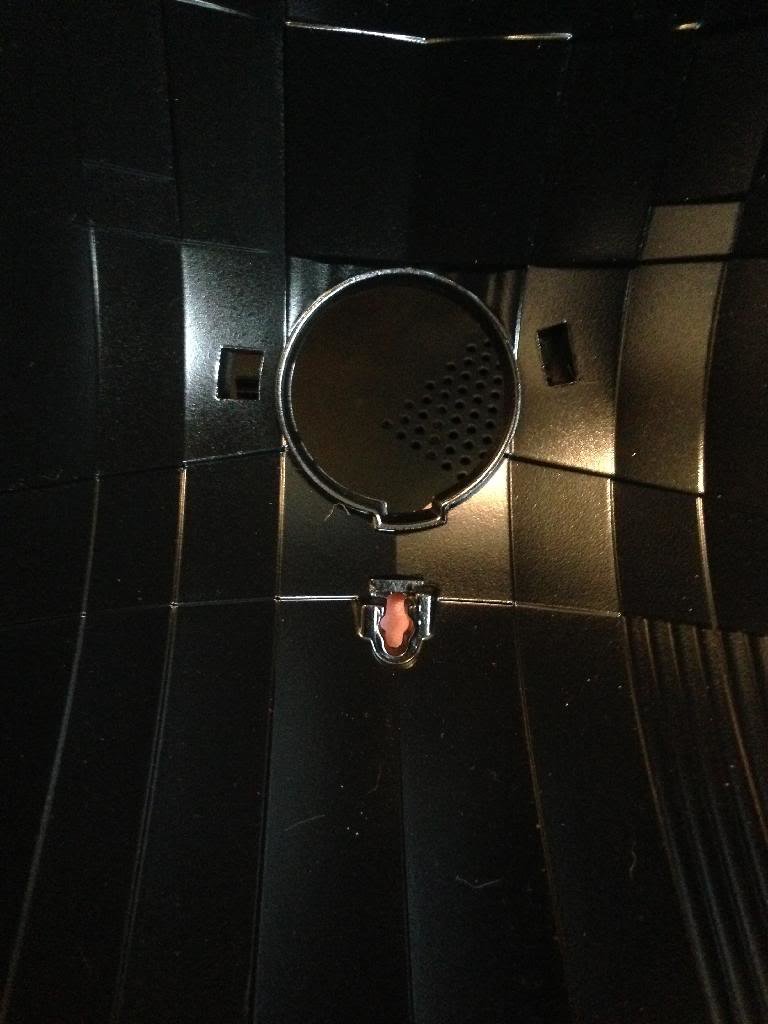

    Some grinding will be required as the headlight assembly is made so the bulb is not perfectly straight shown below. (Thanks Burt!) Also note the dust, make sure you blow everything out before reinstalling the lens later!!

    94756DAA-511B-4F91-B9DF-841DF26A2CAD_zps_c8f72a7567eea3f893a1ba6aa2157822a10f917a.jpg

    Then you make sure its snug, mount them on the car and make sure your aim is perfect, take them of tighten the nut more (don't go crazy, it's just aluminum!) Check the alignment once more to make sure you didn't slightly rotate it while tightening (kinda like measure 8 times and cut once). And follow with epoxy to make sure everything stays put. You want to epoxy the nut to the shaft, maybe a little from the shaft to the bowl. I used general purpose 60 second epoxy for this, jb weld will work too! This is not a Tacoma assembly. It's from my 2011 Focus.

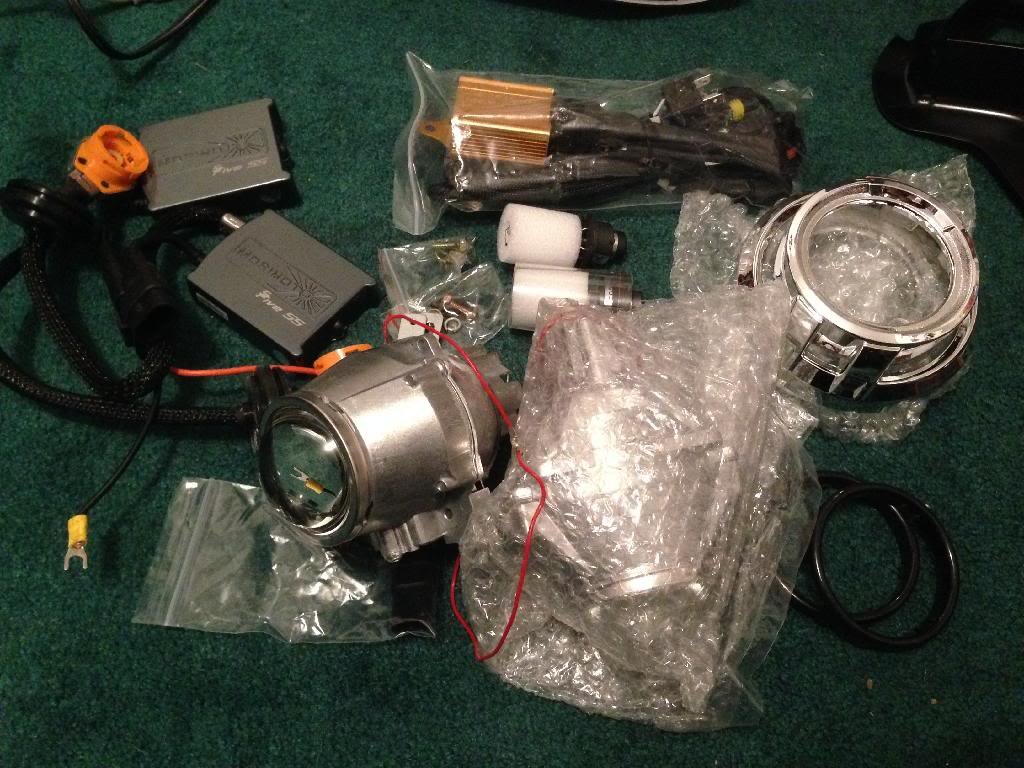

    FX-R.


    1A7CF371-705A-453D-A3B9-26259B813496_zps_554adc46edc150768d6ab8a55da5556000a65915.jpg

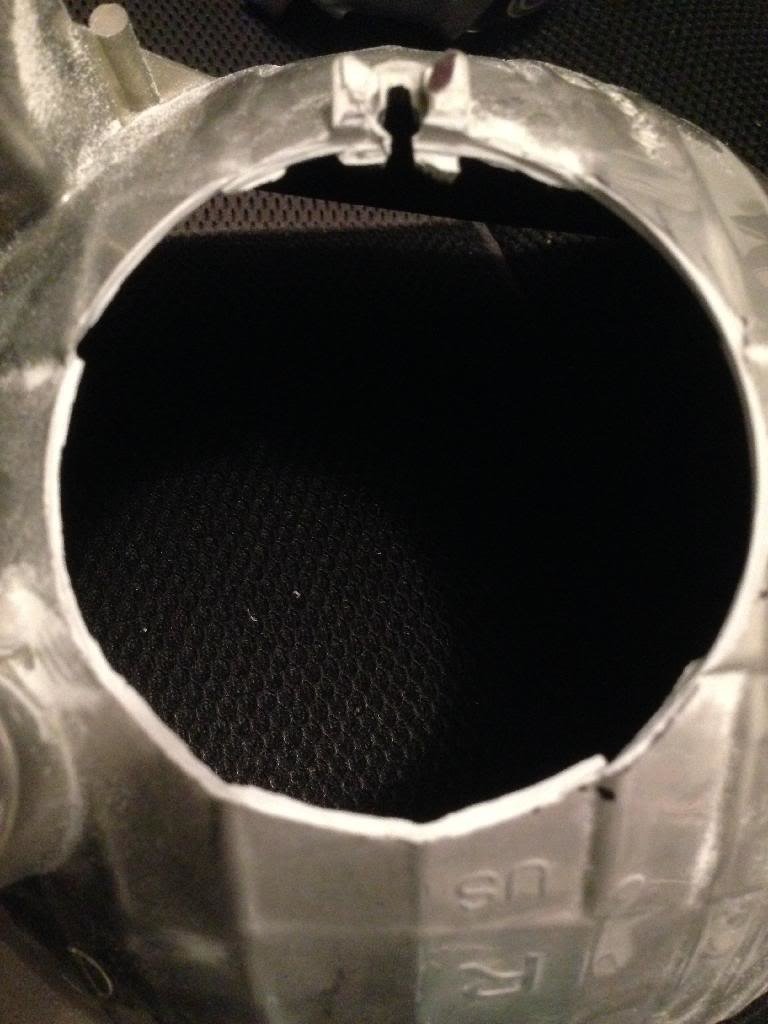

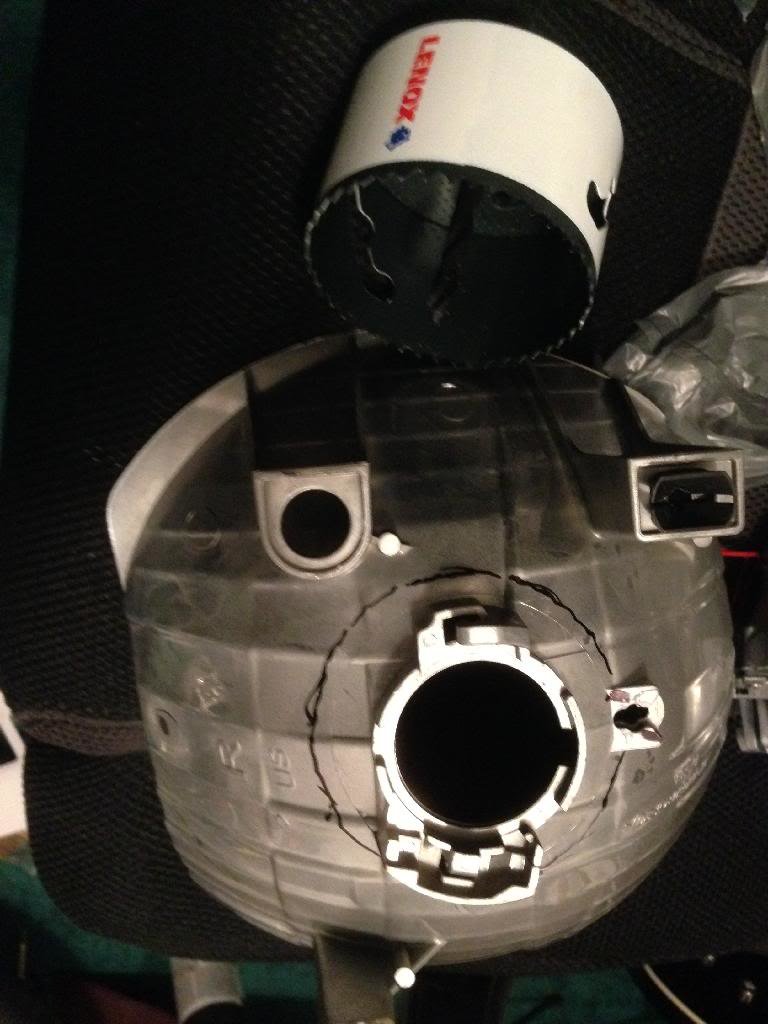

    12. The first part, is the scariest part. Hacking your reflector apart with a dremel and drill. I went to Lowes and bought a 3 inch hole saw. Glad I didn't get a smaller one! I read somewhere to start with a 2" and dremel from there. That would have been a lot more hacking and a lopsided hole. I held the hole saw centered through the reflector hole and had my girlfriend mark around it with a permanent marker for reference lines while I was drilling. Before you proceed, mark the top of the reflectors as the "top" or you might mess it up like I did.

    CC410A91-AFED-4A08-9F1C-59B324DF1349_zps_0840d4797f3ea1e91fbd7939cf63061664e1a408.jpg

    A98F2761-BBE4-47BC-93EF-E6DDC99061B5_zps_a68fb4519df0be74f1f0d5949b5d40afff8ea820.jpg

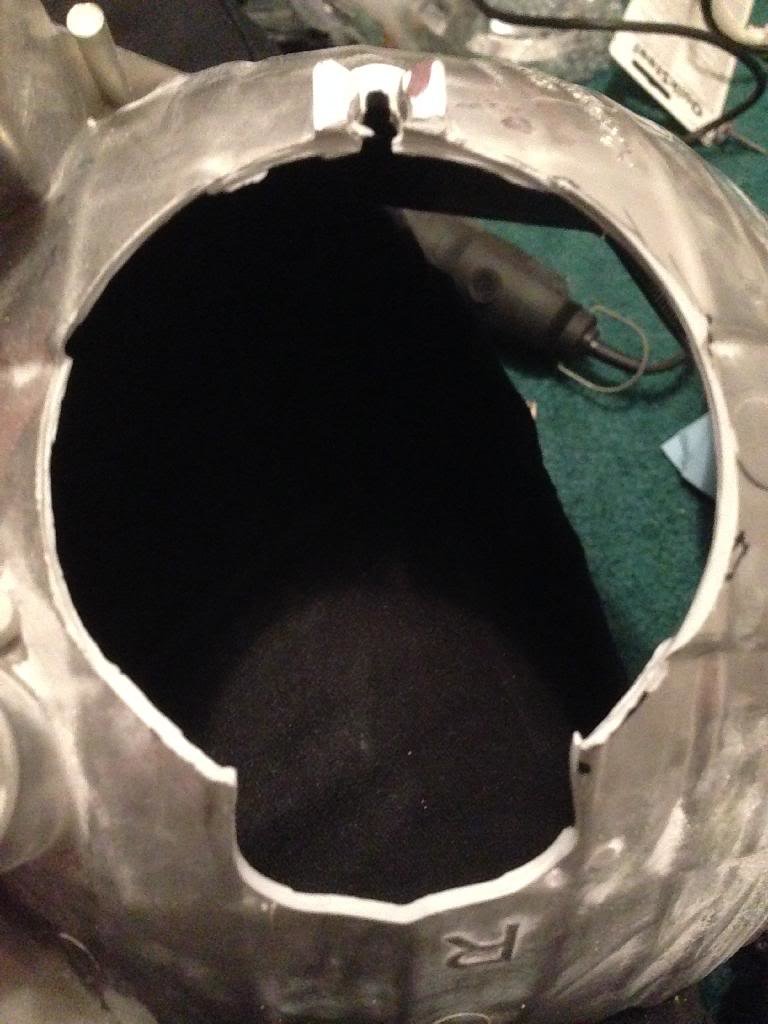

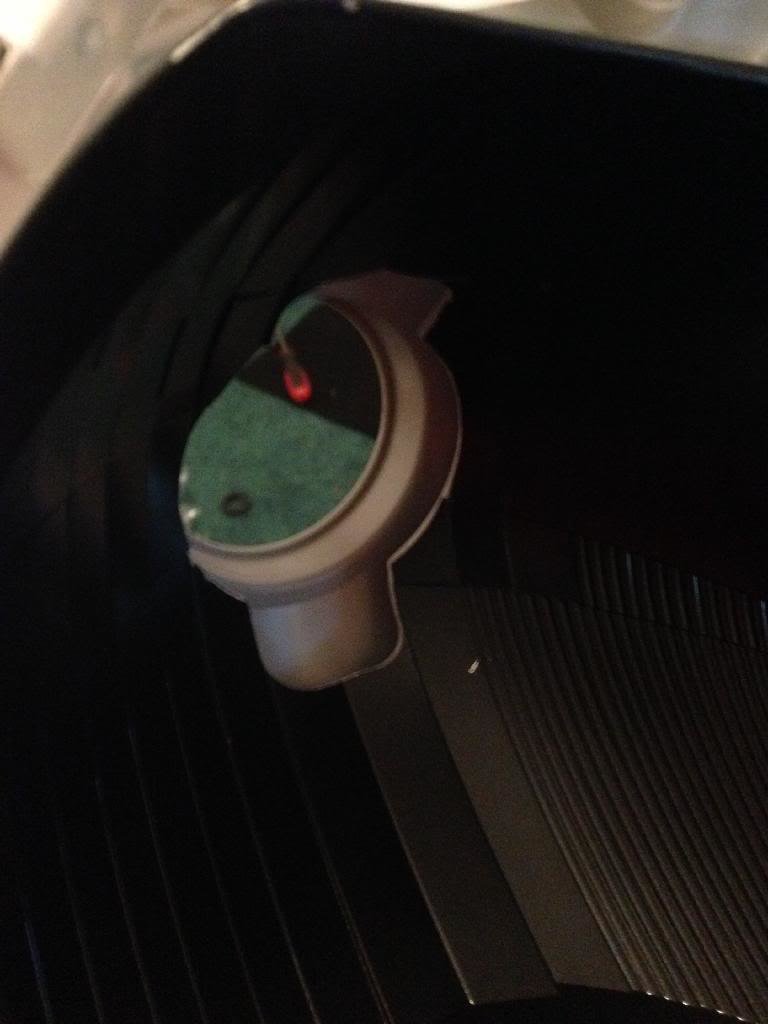

    13. Now you will be dremeling out the hole for the solenoid. You will be cutting out the section of plastic that has the hole for the halogen bulb shield! Make sure you don't cut the top like I did. So I had to cut 2 solenoid tabs on mine, luckily the shroud is huge and covers it anyway! Before you do the next step do a mock up mount of the projector and draw a circle around the back of the projector bowl, this will show you where it meets the housing and were to put your JB Weld in the next step.

    933DA7CC-1842-44E4-9A7F-0E3B08021373_zps_c2cabe911387b7e5a1ad08814e4c213e28fe8746.jpg

    3F131617-C845-4E7A-B3E7-2F9905CB43D5_zps_822e36deb08ab6e91004adfac5684817c3ddb457.jpg

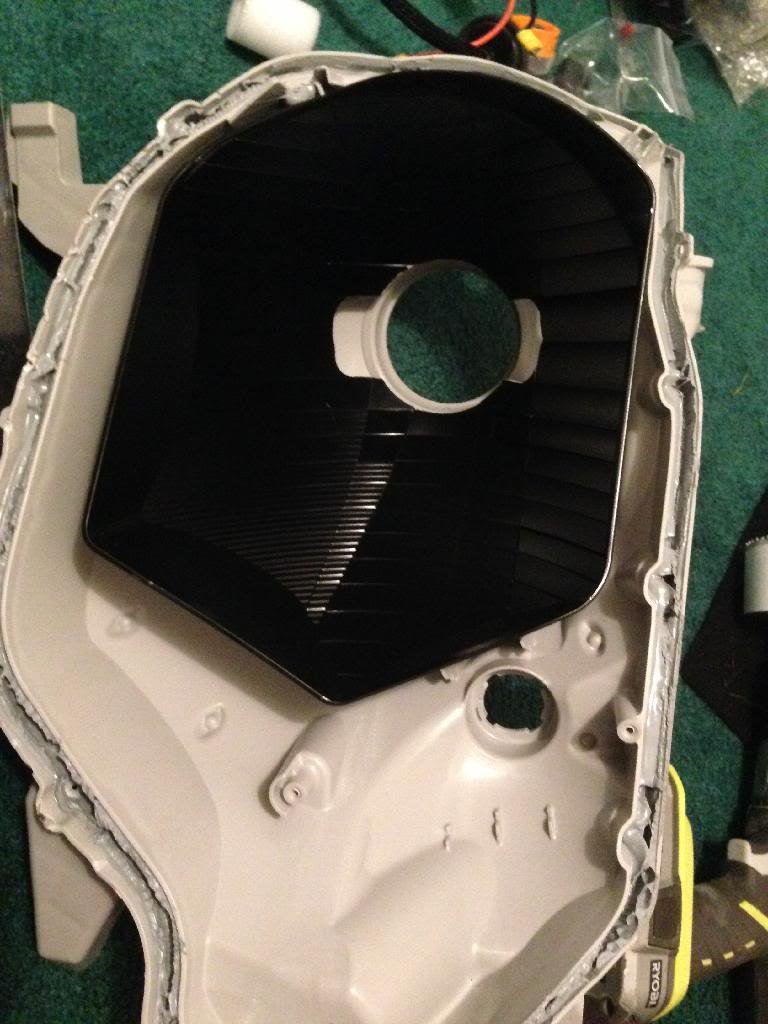

    14. Now mount the reflector back into the housing, use the # of threads you saw sticking out in the beginning- in my case 2 and 8. And also make sure you get the ball socket clip in. You want this as close to the original setting as possible, the rest of the adjustment will be made up in your JB weld mounting on the truck and finally the adjustments on the back at the very end of your install.

    CC1347D6-1145-4AB1-B947-3E49E764AF77_zps_8029bced976ad7cfda6ef72105620ffe53750f8a.jpg

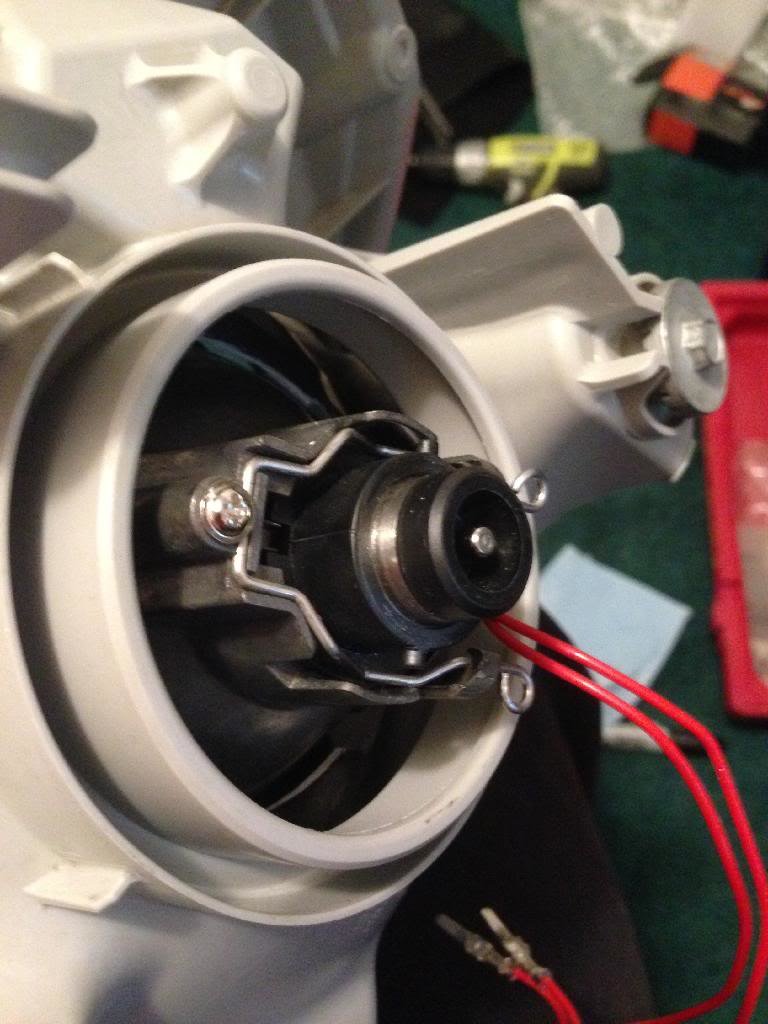

    Your bulb should stick out the back a bit

    D18A7736-DC70-4E7D-8471-FC9635B3015B_zps_860ebe9b7ff8dbb962bc16dfa9ffa274a01bc941.jpg

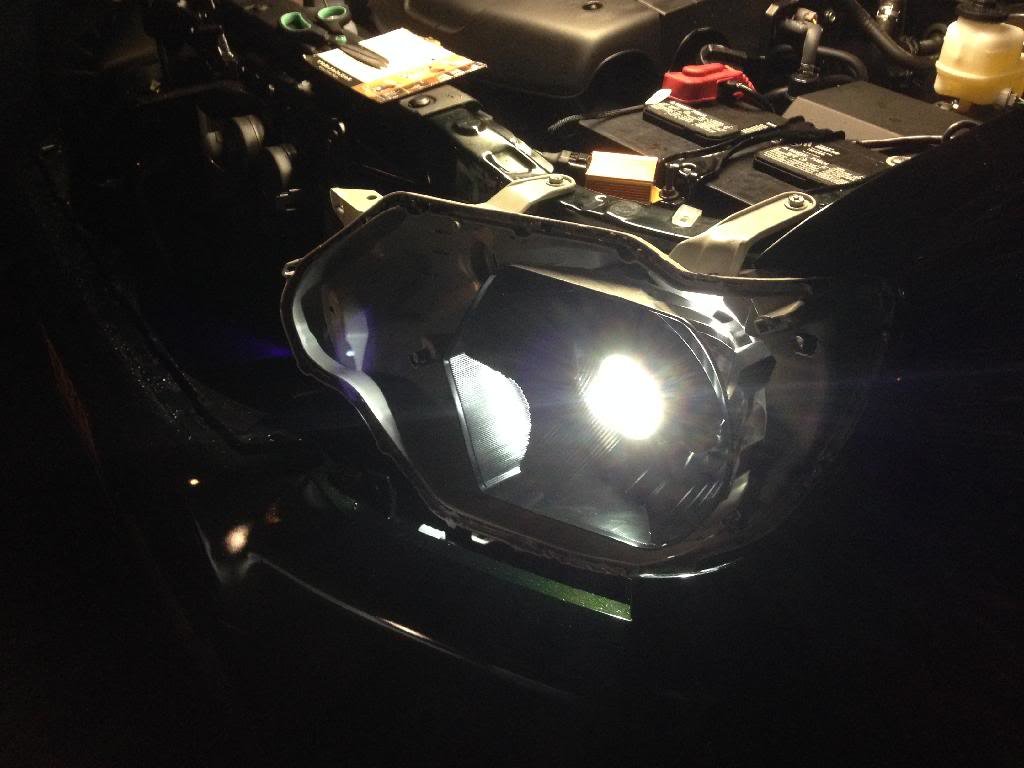

    15. Next you will be mounting the headlight and reflector back into the truck and following this video.

    http://www.youtube.com/watch?v=mTvhyH8dlFc


    Using the JB Stick weld stuff gives you the ability to quickly mount the projector adjust it left/right, up/down and rotation. Within a few minutes it sets up and stays put. While you are aiming it, push it into the reflector of the headlight to spread the JB weld out. The more surface area the better. (With an empty gas tank! a full gas tank will cause leaning towards the driver side!)

    971EDCA8-805F-427B-87B3-CCD3DB7859BF_zps_ced3907942fc58f8f6b808cedc12dc949186594d.jpg

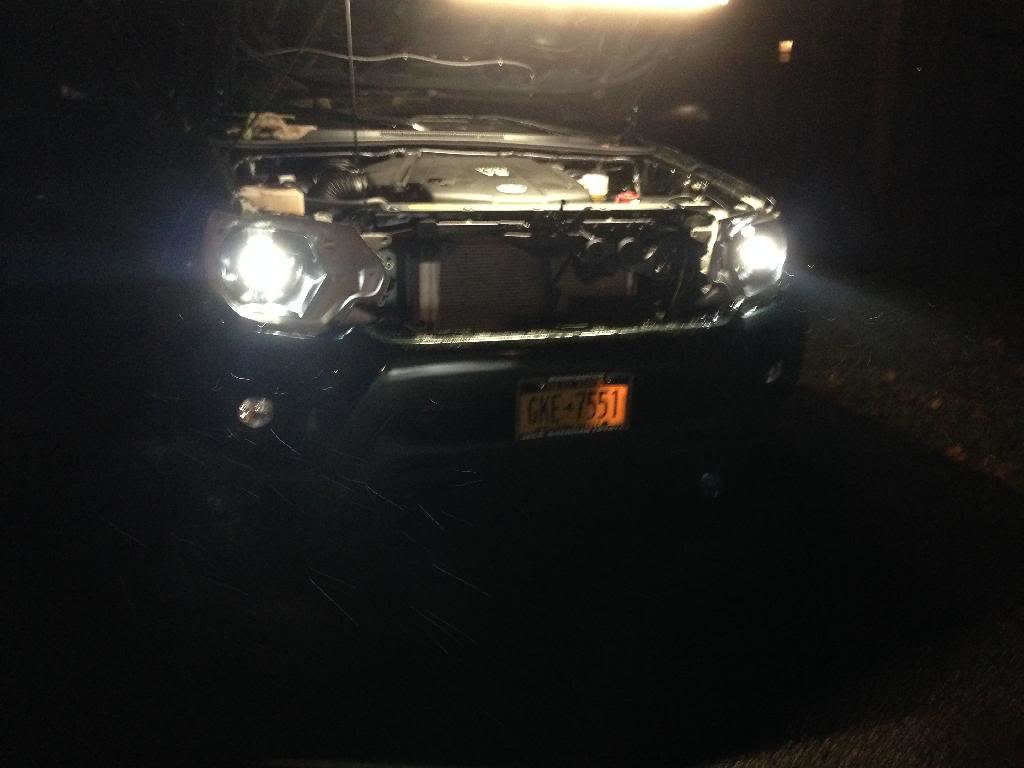

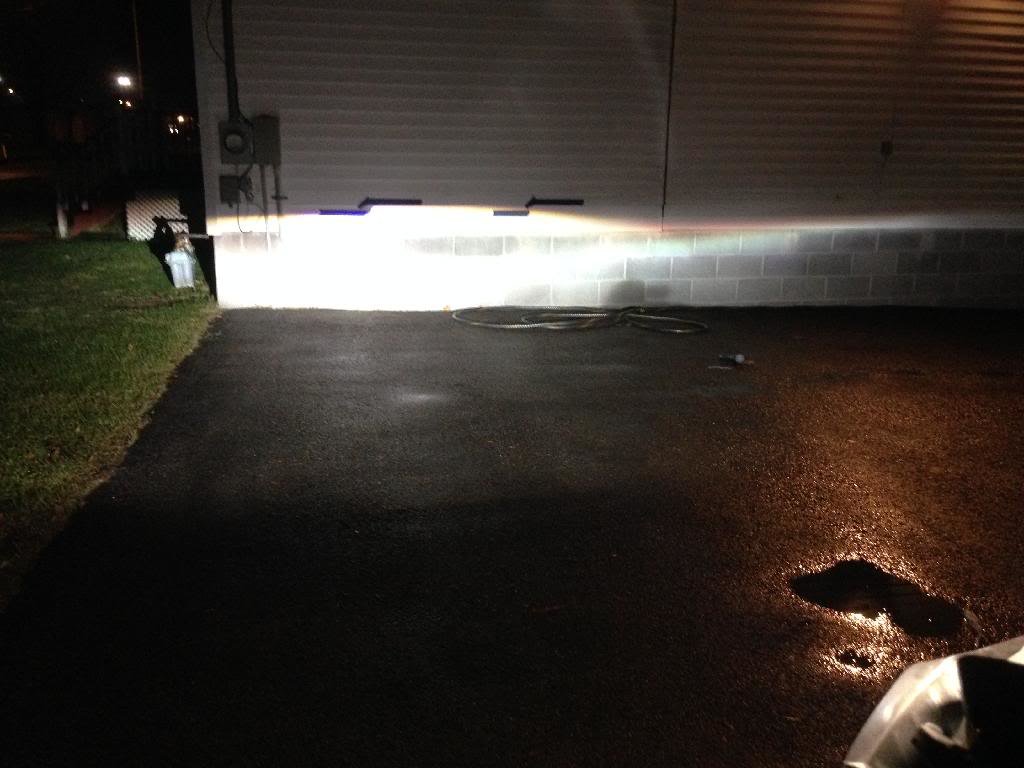

    16. Now you will be mounting each projector and Aiming them individually. You should already have your wiring harness on the vehicle just like TRS so you can plug in and aim. You have a few minutes to set it up, if the cutoff drops at all, simply aim it back up. Leave your lights on for this so you can see if anything is off by the time it cures. My bulb was not seated correctly in this picture. Explanation below.

    19BA94D7-7CAB-4919-BC3D-9220F7E988A2_zps_1da2e4527524eba236dcb4fe999bf4b113c3ce13.jpg

    1D2BDD79-E99B-44EB-B8EA-FEB114729C39_zps_f2afd757e4235dc18d6954f4a5b868186cb2f080.jpg

    E99977F3-1660-4747-A367-E639E245BB59_zps_407d505cf6b8b0e9c0f0cc8fa730b446ced34978.jpg

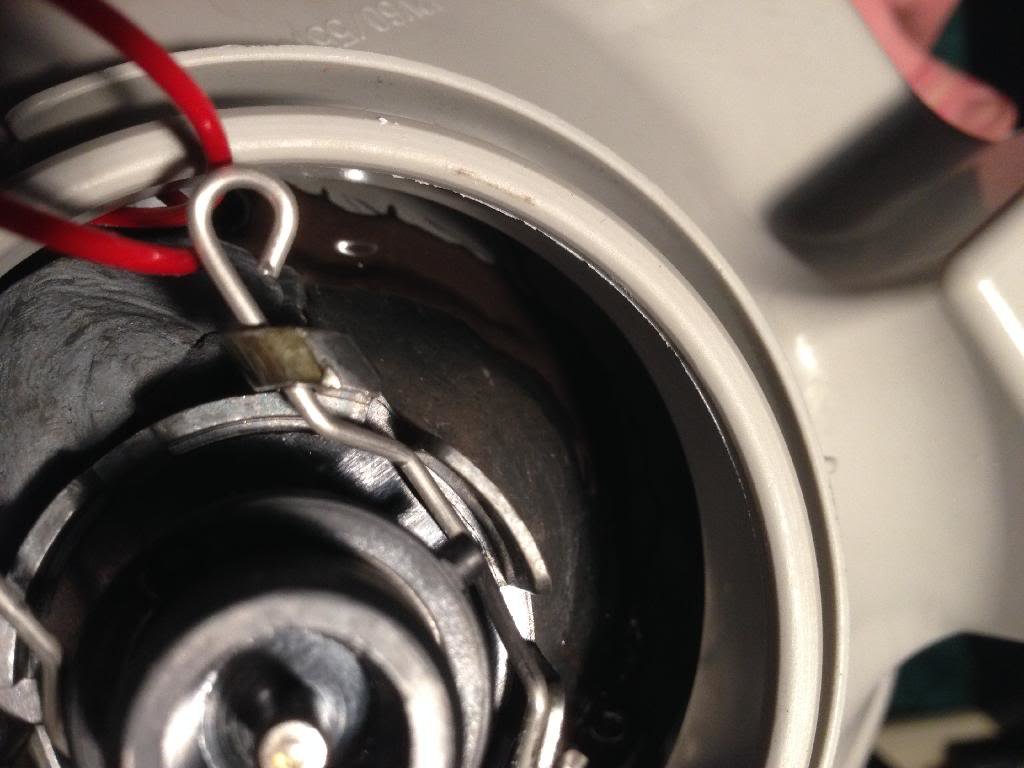

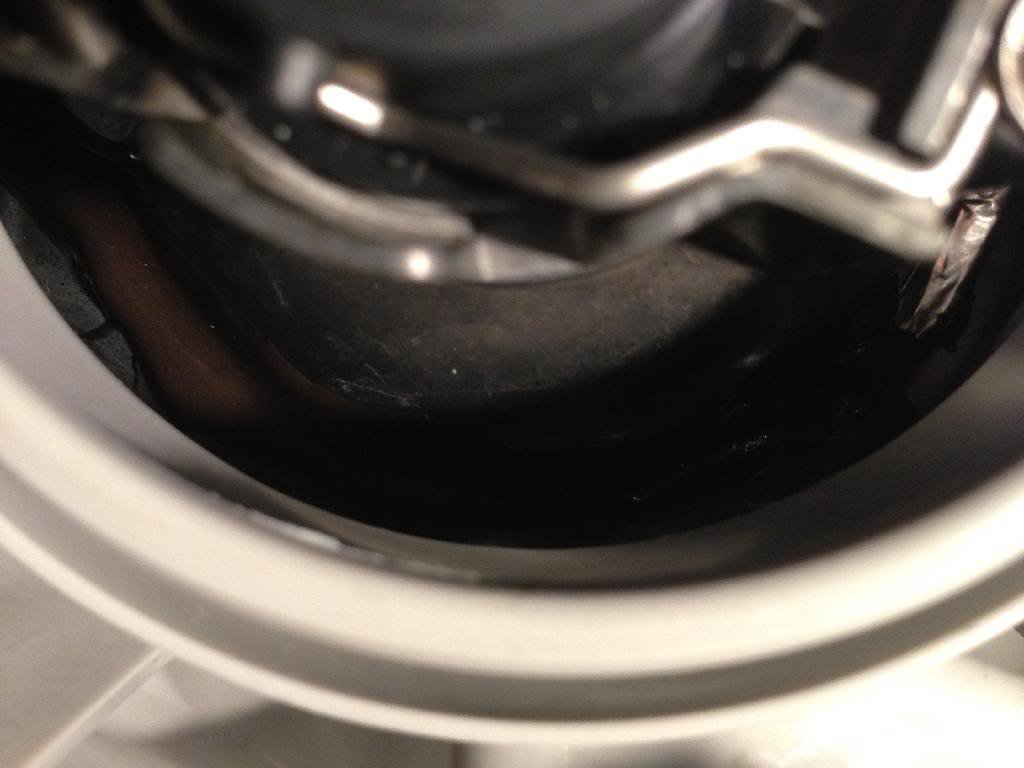

    17. Mine actually partially unmounted after a few hours (it was sprinkling and cold out when I installed them and kind of just set them into the housing without much pressure. Luckily the projector set back down in the JB weld right where it was aimed prior and I added some of the 2 part JB weld like TRS did in their video. I had to JB Weld 2 part around the stick stuff I put on the projector in step 15 and also added it to the back of the bowl around the whole area where the projector meets reflector.

    ECE3C7BE-CD97-44A9-B6EF-D652644A71DF_zps_0a300ca0a47933991d332cf598e673cb1d6dbe52.jpg

    9F0DEA1E-4BB4-45C1-BCF9-5E0B808AB38E_zps_b916b6c7e5cf82b8055ab58911c8fda2d37b6eeb.jpg

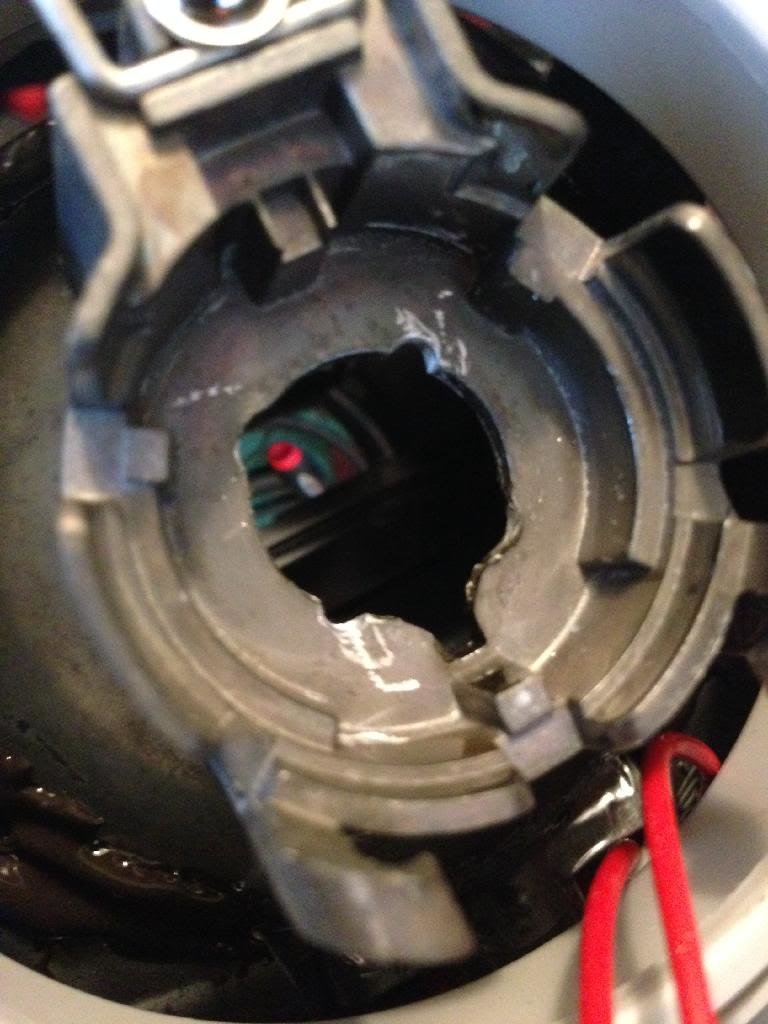

    18. This step might not be required for your projectors, but mine would not seat properly. Perhaps they were side specific and I just grabbed the wrong bulb, but the little feet that hold that glass part of the bulb were hitting the edge of the bulb hole and I had to dremel them out. I set the bulb in, rotated it back and forth a little to scratch where it was hitting and that was were I dremeled.

    3FF7A074-1D2E-4BFB-B508-D5F89D8B43A1_zps_ab33edc47d4c559b5593bf2c909823059fd44501.jpg

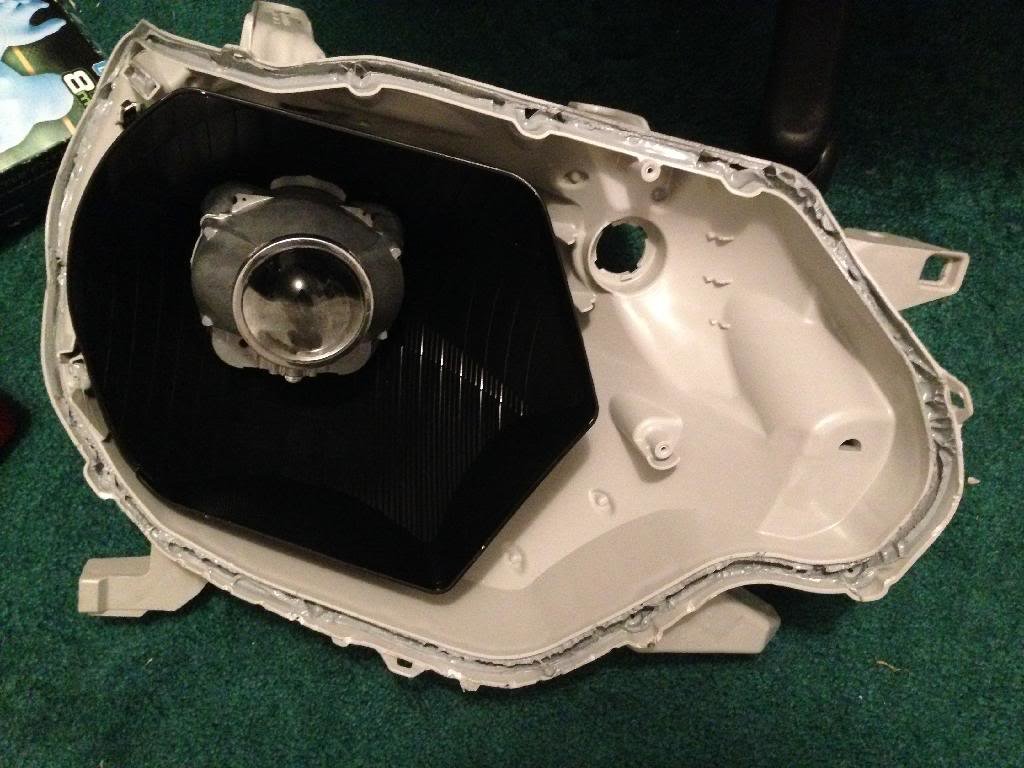

    19. Now you should have a mounted projector that won't come off and which bulbs seat properly in.




    B76B15E7-27B6-4DEA-9873-B09472DBBDF4_zps_f22930674d1389eee24027345467ba7c4a0e4a99.jpg

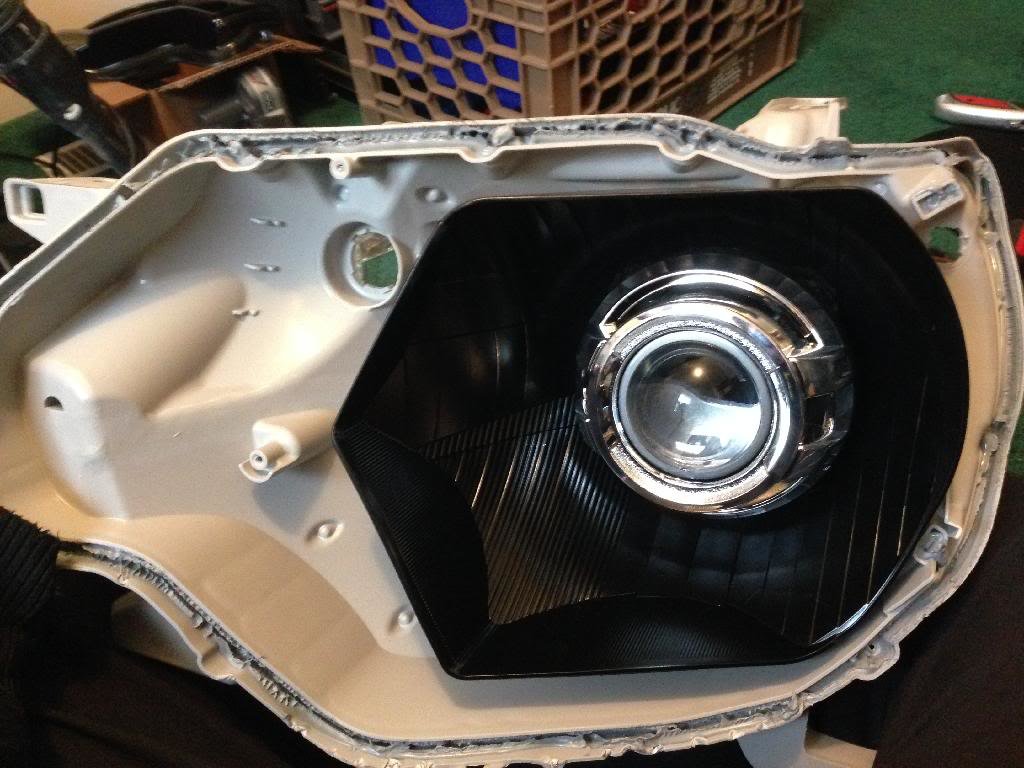

    20. I grabbed some clear 60 second epoxy to mount the shrouds. Wear gloves, if you try wiping fingerprints off the chrome shrouds you scratch them, if you rub too hard or use water/alcohol the chrome comes off rather quickly.

    Since the shrouds and rings click together so tightly I recommend going with 5 minute stuff just to give you a little more time! I heated my centric ring up so it would bend without breaking the tabs (heat gun) and epoxied the inside of the shrouds. You don't need much. Clicked the centric ring and followed it by a little more clear epoxy where the shroud met the ring. Then I heated this up with the heat gun and then put epoxy on the 4 tabs that click over the projector lens. Then I clipped them onto the projector and rotated them a hair to be what looked horizontal (doesn't matter on some shrouds, the Apollo shrouds have 2 tabs on opposite sides, so you should make them horizontal or vertical.


    61B7DA5E-E785-4B91-81A9-CB2C86D06C10_zps_bf60edb8d064ec5c42974aa2a05a6818570a500a.jpg

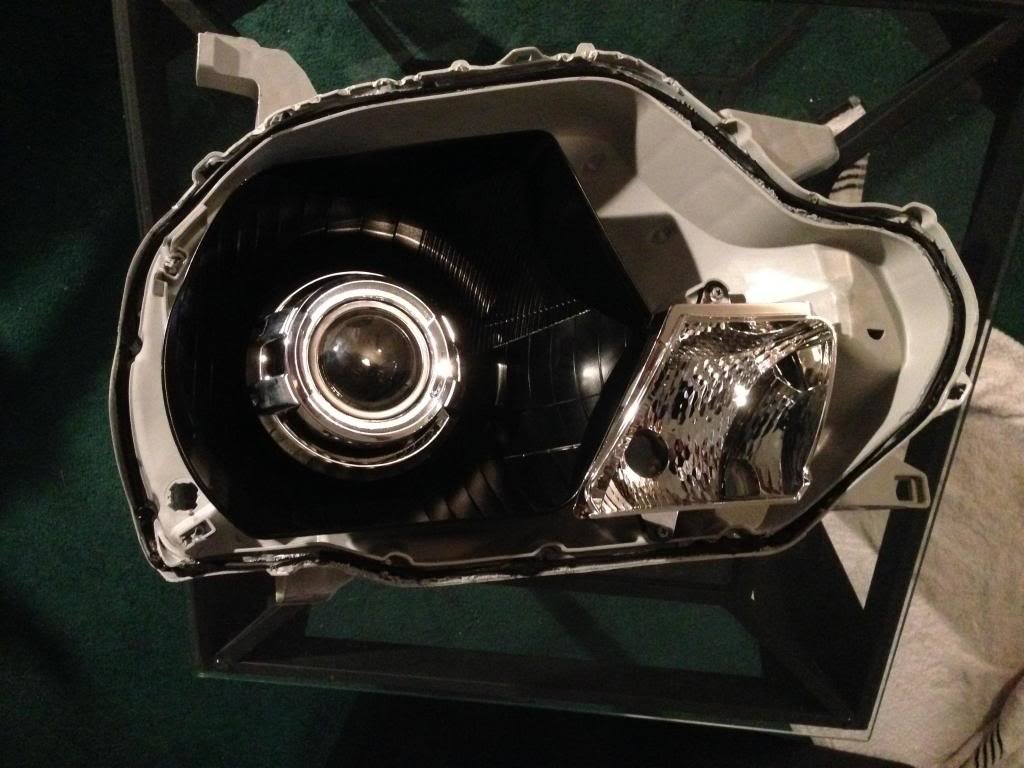

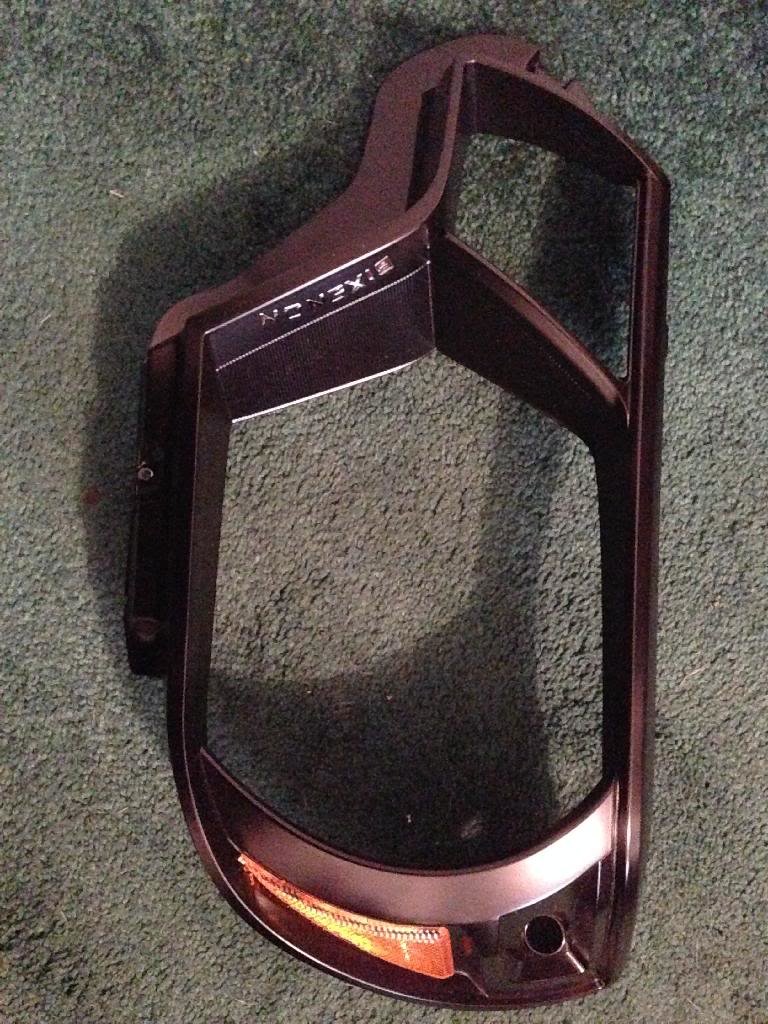

    21. Now you start reinstalling everything. Turn signal reflector, and the headlight bezel in the lens. Dont forget to put the little amber triangle back in. I put the BIXENON sticker on my bezel just for fun.

    4A33610D-E7D2-42C1-8AB3-786A5A65F7A6_zps_fc27a9fcd6afb17dfb723f9d4ec03e5fc9cb0a12.jpg
    6145D0AA-E9A9-4A54-8249-035780CBD0C8_zps_627b47b928102330c25078e7fb8efc2666941fee.jpg






    22. This is optional, I put a small bead of butyl in with the existing butyl. Some people scrape it all out and start fresh, and some just let the original flow back together.

    4A33610D-E7D2-42C1-8AB3-786A5A65F7A6_zps_fc27a9fcd6afb17dfb723f9d4ec03e5fc9cb0a12.jpg

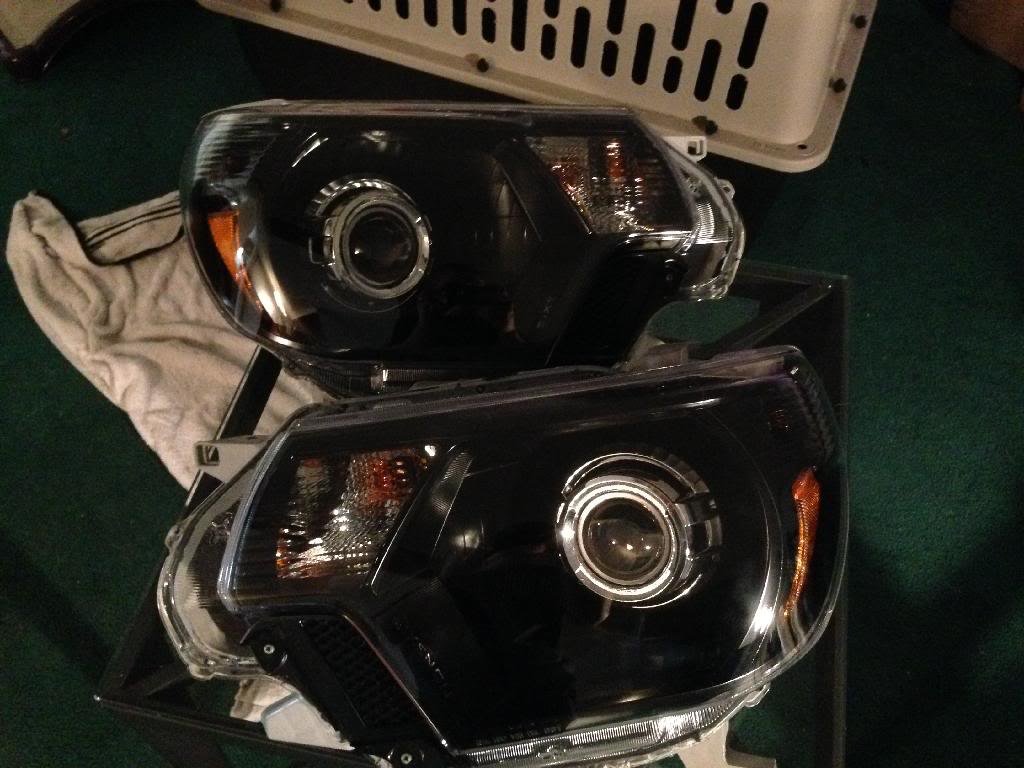

    23. Make sure your projector lens is clean, shroud is clean, and dust out everything else. Set the lens back where it should go and put it in the oven at 200°F for a few minutes to warm it up. Pull the assembly out and push the lens into the channel and start all the screws into the lens to where they start to pull the lens in but stop there. Put it back in the oven for a few, no more than 5 minutes. Pull it out, push the lens into the assembly while tightening the screws. Now you can add your bulbs back to it and have your almost completed assembly.

    5EB826DB-0413-4C8E-A390-FD6D6420AFD8_zps_5f09bb8ce5a3d365d7ab11e39357145b77341a17.jpg





    24. Install any left over pieces to the assembly like the weather strip that goes right below the hood on top of the headlight assembly. Leave the adjuster caps off, as you might need to adjust a hair when it's on the truck.

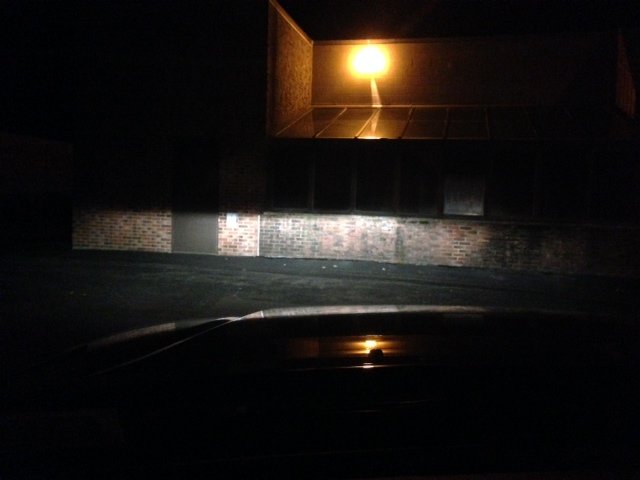

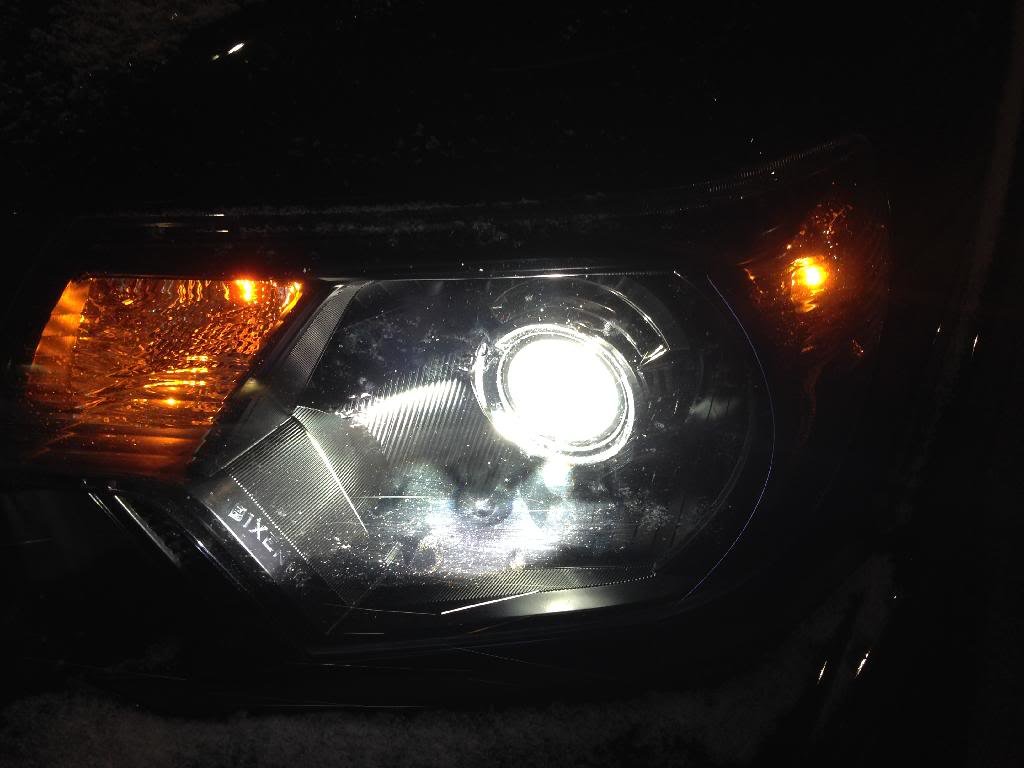

    Halogen Outputs





    Retrofit outputs: Coming soon

    camera exaggerates glare
    6A6A956B-F6CE-4530-875C-3C5A514A48D6_zps_7f50eee07e39eb5d2f5d40de90d6339aa301dd5a.jpg
    1084F354-F3DF-4EB7-AD93-E349A6091A0E_zps_1b3543174f37e204fbe6d5471a8df534febbd5cb.jpg
    984B91EA-1B87-478C-B8C9-A5B137F5F59F_zps_19a2a81ce1f3020e5989dd02606fc0cc782d7ad5.jpg

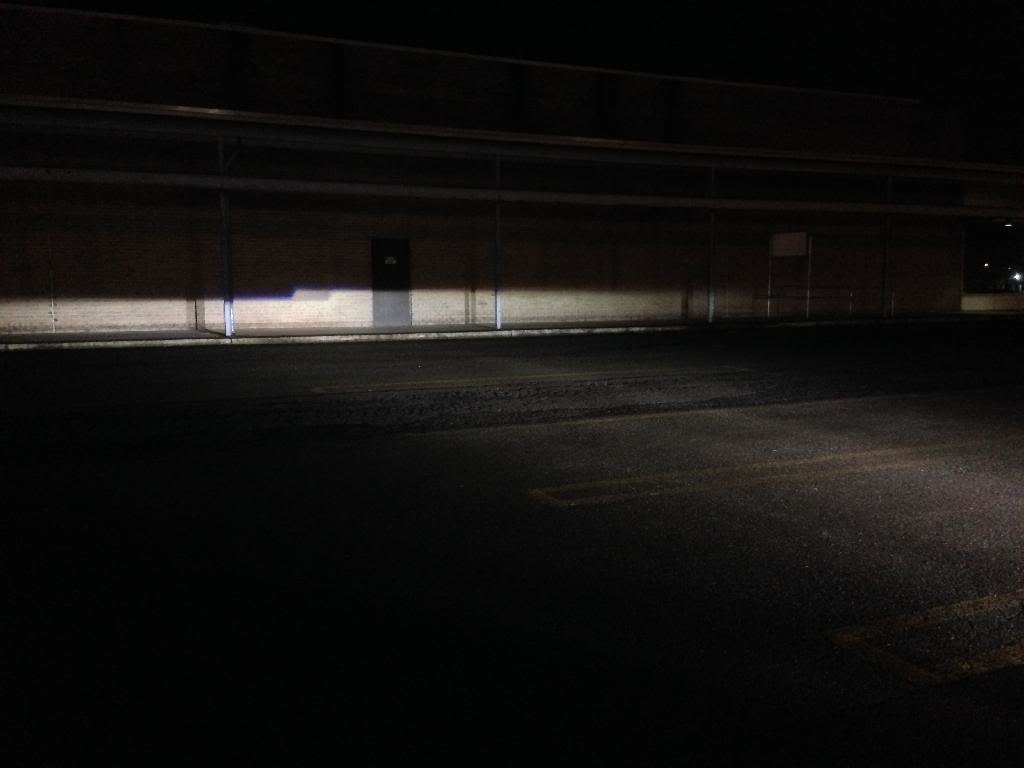

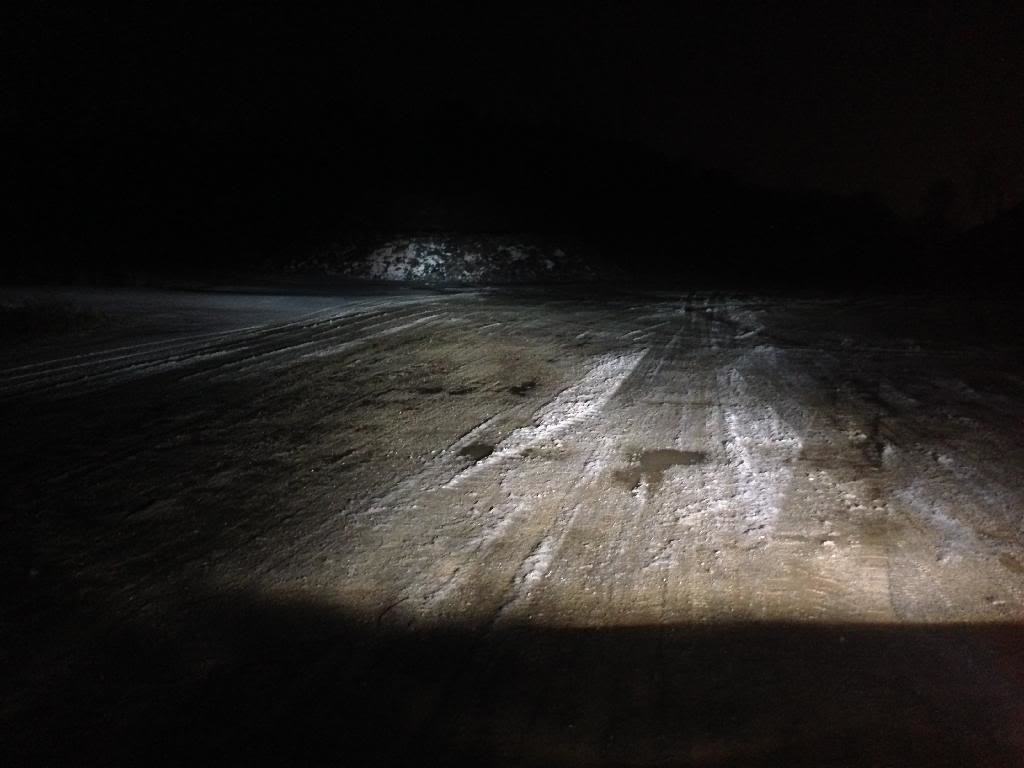

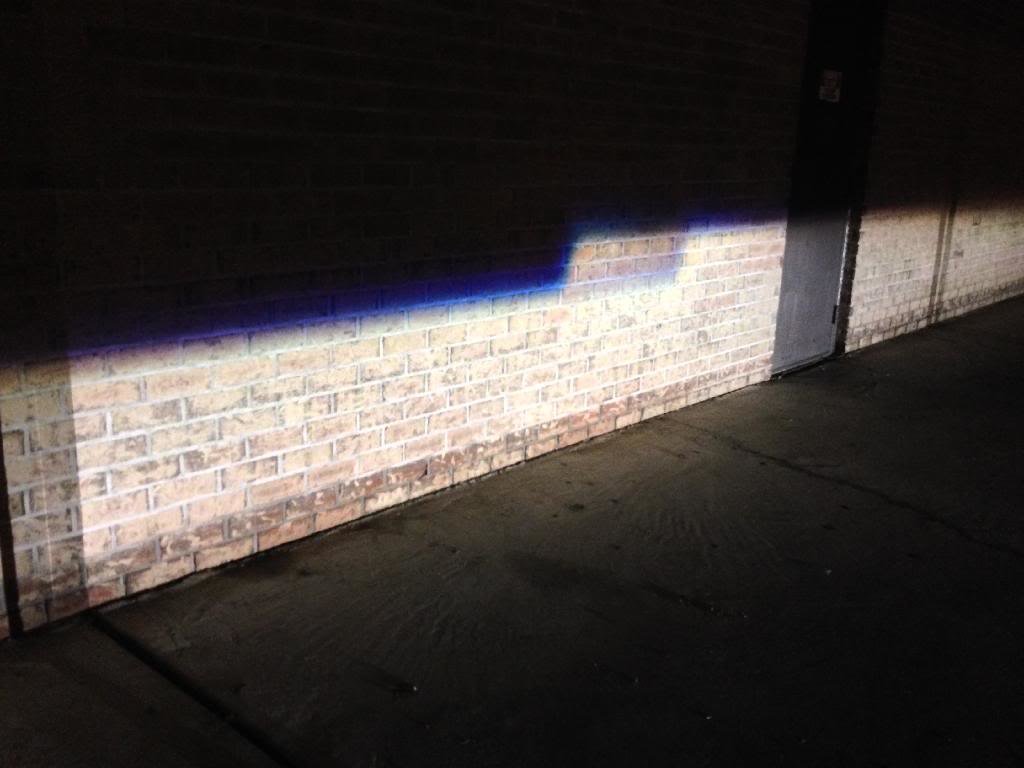

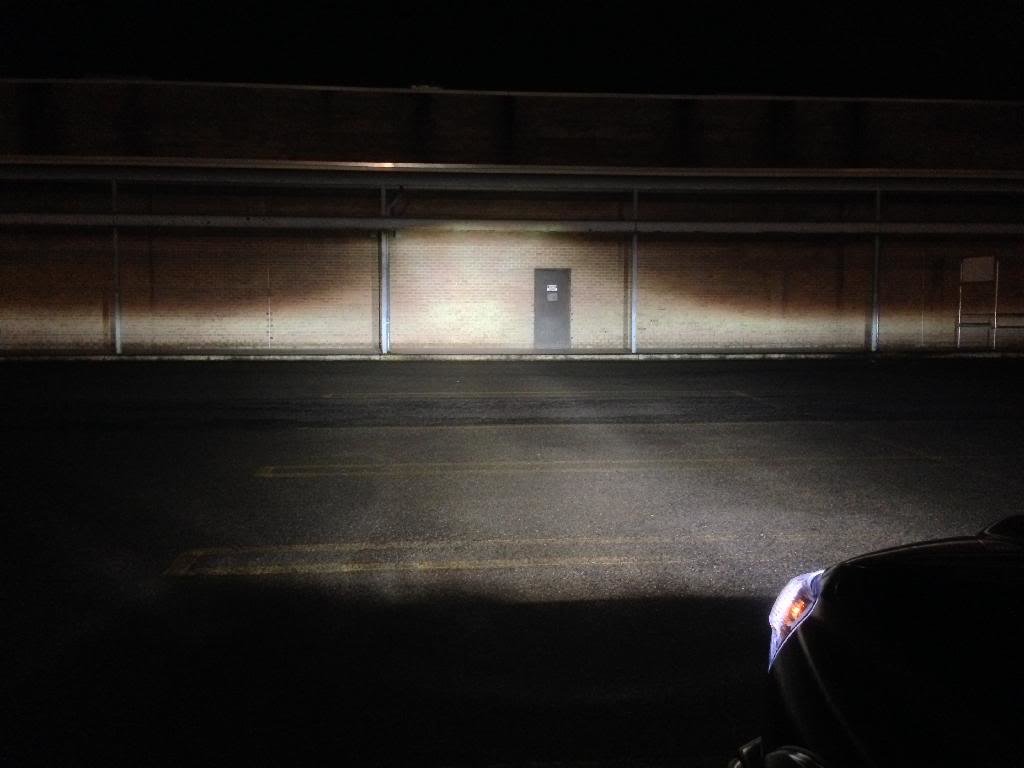

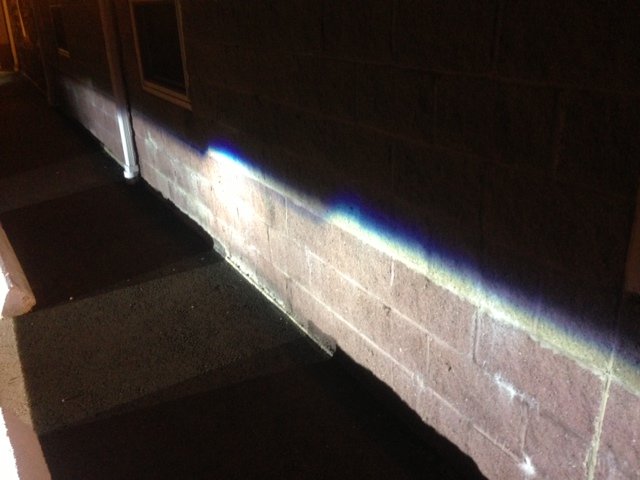

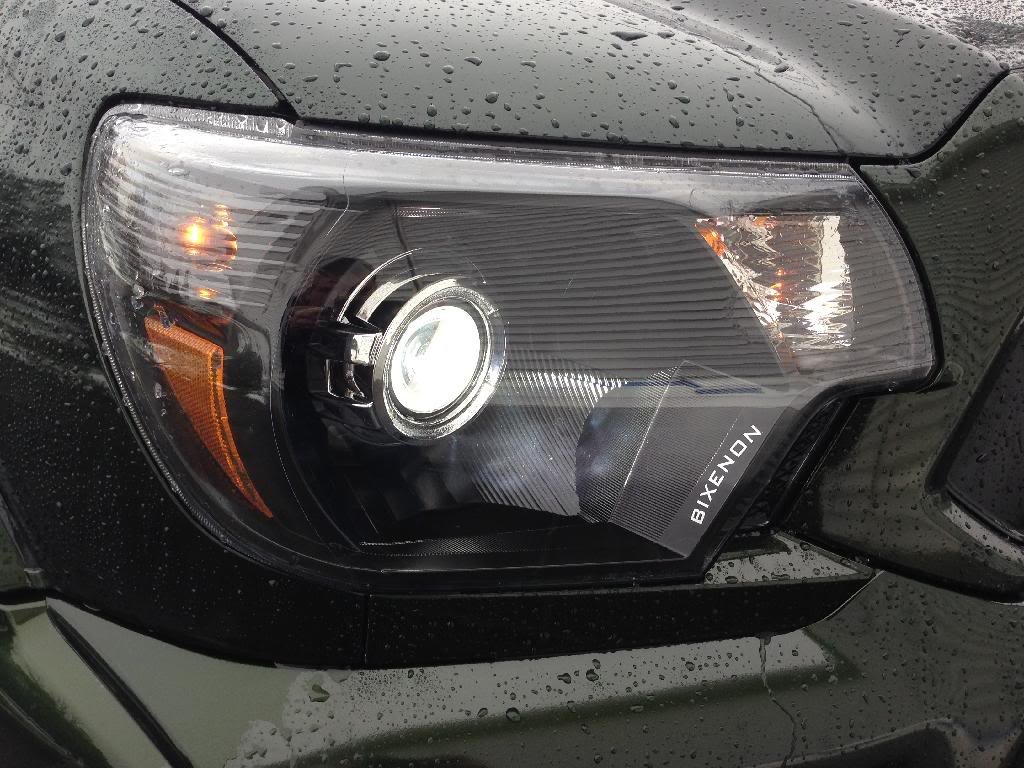

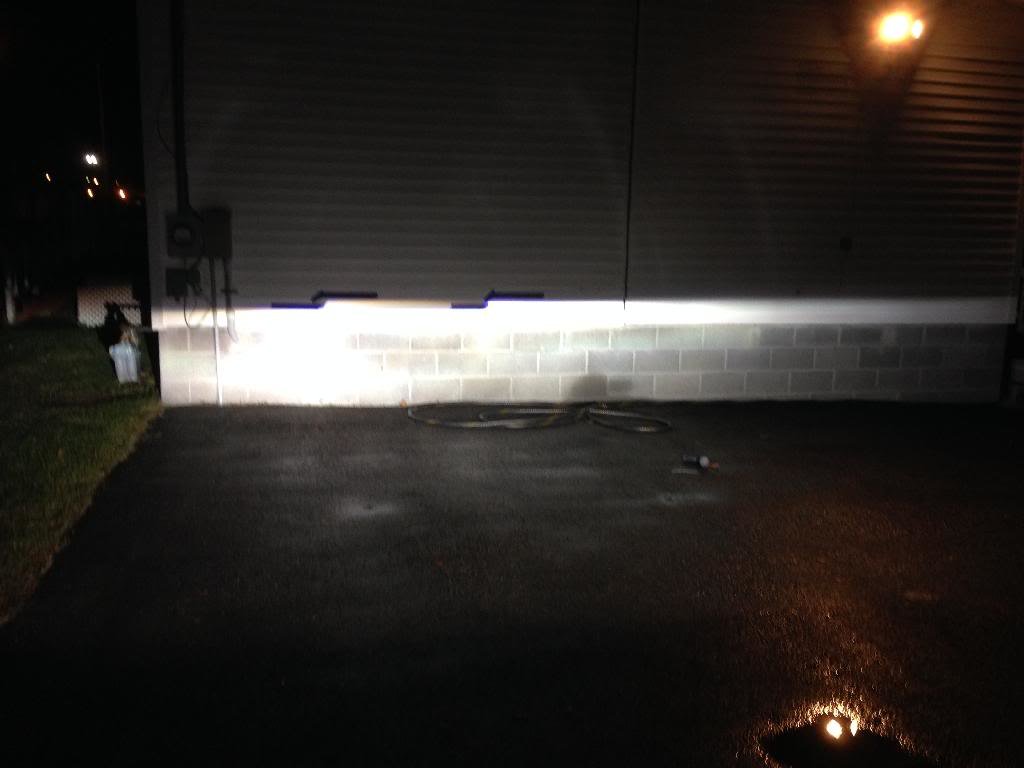

    Some output shots finally

    01690711-E01C-4EDD-BD93-F506D0649885_zps_5f19455d31b3ef350ba1303b595b445a933b411f.jpg
    74C2694C-6887-4224-9E43-B66605D987C1_zps_3412cbcbf10c8e74bc55b2a23cefb96c8572938f.jpg
    8638C30C-DA1F-440C-BE38-E5C631E87CF1_zps_8c83bfc4e46d8dd84d83b2a49ae8903d1e99923e.jpg
    1D8FD42B-F955-4A8C-B6F3-0E9D35375EA2_zps_f8895b4e98c31b21830000cc6bc81e20f1261675.jpg
    4A1A11BC-50CE-4C02-914D-CED0CC265BA6_zps_21aa804069f32bfeaff46595fa1f5345a19cf20c.jpg
    D5C970FE-5CAC-4264-BC3C-0D00C1EF847E_zps_feb5b117737bb12ddb73f6a34bb4778ec29442d9.jpg
    ED306AEF-72F2-4040-B677-5D13A9B3BD3F_zps_02785c530b242a47a27097c554b6f1edded375c5.jpg

    B2BC88B8-F42E-4684-B5D3-978FB64E27B1_zps_473ba1bf300d4229cf922ad0780041a116906984.jpg

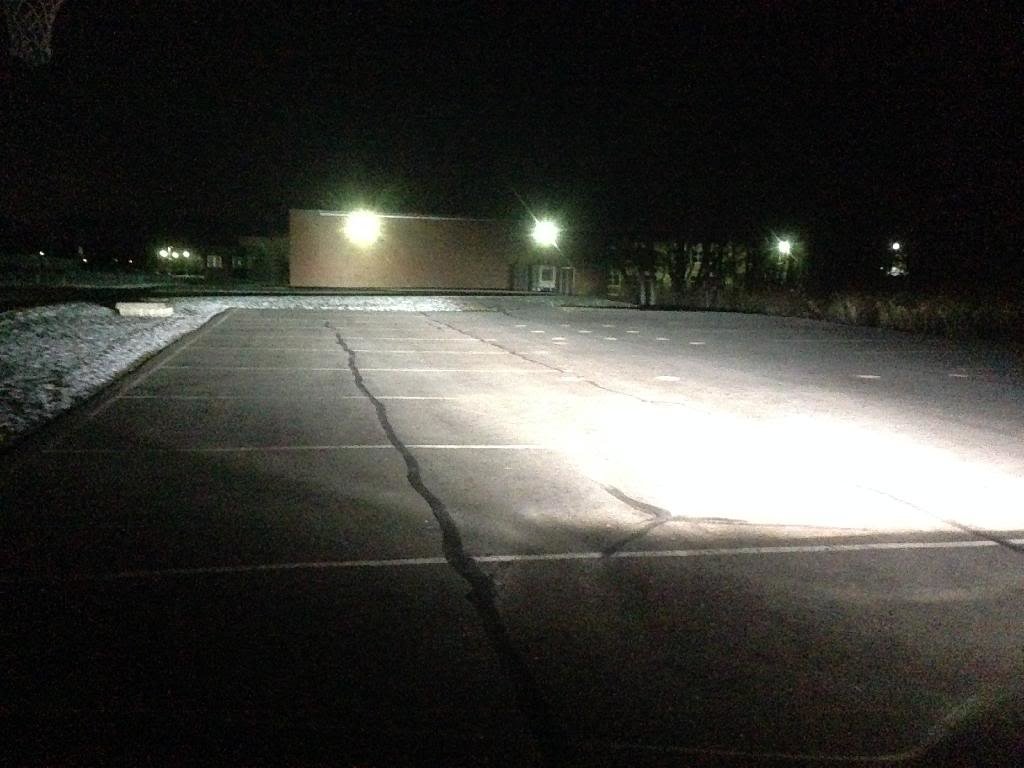

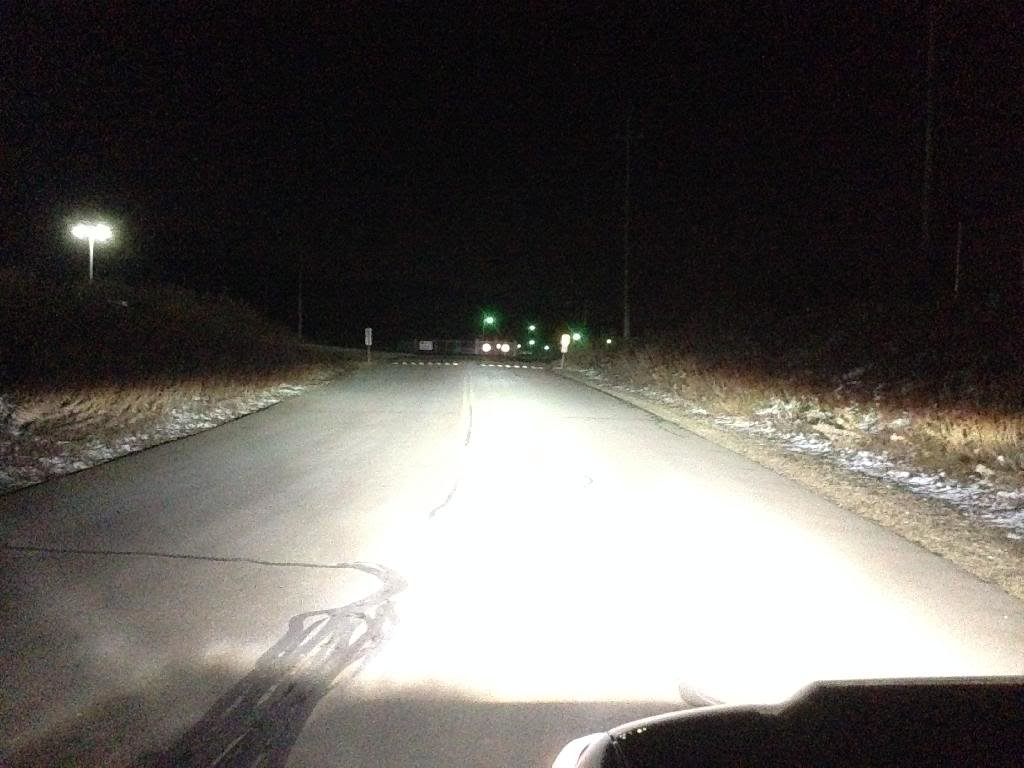

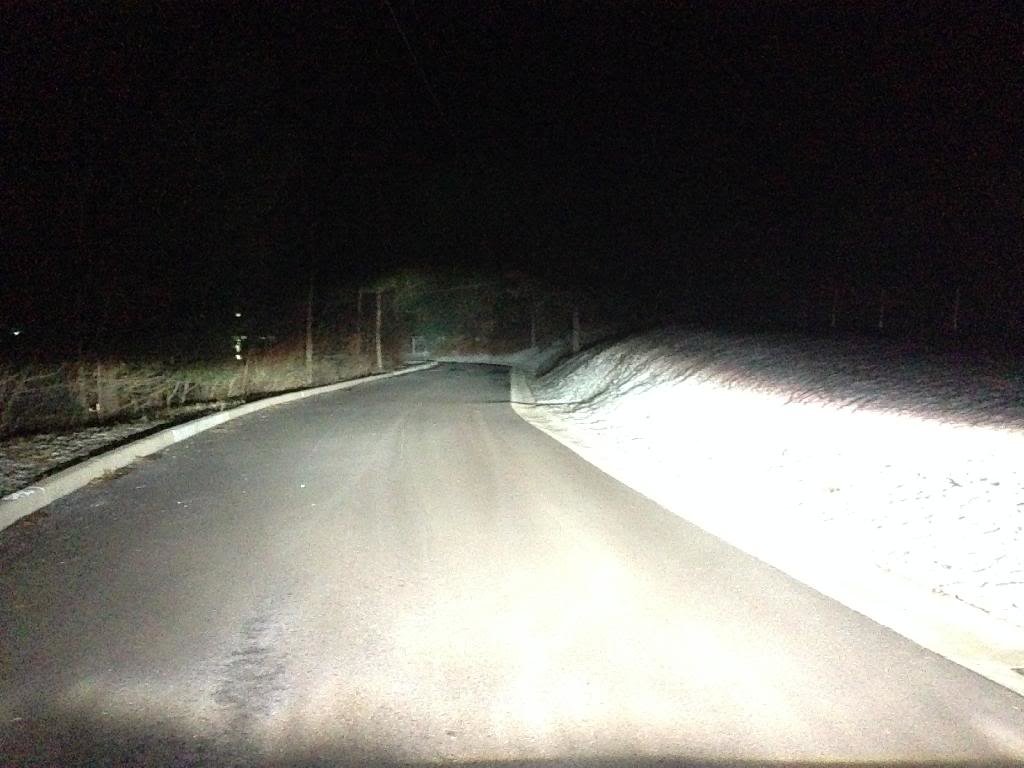

    And more


    6D25BA7A-F433-416C-B64A-EB2CE2DE9D31_zps_d0536b995ca7b55c71fab282c34a68a4085c36b0.jpg
    BA7CEE37-4188-4C47-82B7-59BB06D09E8A_zps_fd992778e84ef8f8c77609d93bfb7d5cb610a689.jpg
    A029088C-33BE-45AB-835D-55C519E0EF22_zps_17ee87eab43d9ffd0c34510814dcaa14d60e6f0a.jpg
    CFFFE0E6-FB6C-4D8C-8094-41B53E159753_zps_f1677da43264200a13eca4e7f667a7a9bd5c7884.jpg
    242EF039-562B-4C83-A9AD-7EFC6BF7082B_zps_42f5c7c11021c0a53d38d7bb580c64c04f0c83df.jpg
    8187C579-F3F8-427D-AFB7-2CBAC845A0E1_zps_6e08c1180d095b86e07bdabbd17db7aa150ed4cc.jpg
    73D98FB9-2F08-492F-9339-AEBE0002C91B_zps_ff9882ca4bde4ddfb4d438d8dc1b3a8a24167e7a.jpg

    Last edited: Nov 30, 2014
    Jessel, Blais03, 'MericanTaco and 4 others like this.
  2. Nov 21, 2013 at 7:28 AM
    #2
    itzyoboipaul

    itzyoboipaul Well-Known Member

    Joined:
    Jul 18, 2013
    Member:
    #108518
    Messages:
    2,487
    Gender:
    Male
    First Name:
    Paul
    PFville, TX
    Vehicle:
    2020 DBSC 2.7L SR
    17" Vision 398 Manx Wheels, 265/70R17 Falken Wildpeak AT3W tires
    Wow awesome write up!!!

    did mine the same way, left the DRL bowl chrome.

    to Me prying was the hardest part. I followed the 300degree oven off for 10min but that didn't soften the butyl enough. I ended up putting it back in the oven for 315 for about 5mins.

    Going to do the other headlight tonight, so ill try the 275degree for 6-8mins like you said with the oven on


    im just hoping once I put the H1 morimoto mini on that the alignment is good and no need to shave/trim parts of the h4/9003 adapter

    Last edited: Nov 21, 2013
    Missionship likes this.
  3. Nov 21, 2013 at 7:35 AM
    #3
    InSight Retrofits

    InSight Retrofits [OP] Closed

    Joined:
    Sep 17, 2013
    Member:
    #112687
    Messages:
    1,260
    Gender:
    Male

    Hopefully its close, if you mess them up cutting or anything I have a few spare I don't need. I had my oven on, my oven is the kind with the coil that gets red hot right below the rack. But anyway try that out, turning the oven off and doing it did basically nothing when I tried it.

    Just opening the door lets most of the heat out anyway.

  4. Nov 21, 2013 at 7:49 AM
    #4
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,430
    Gender:
    Male
    Very good write up, easily the best detailed version on here. Rep when I get to a computer.

  5. Nov 21, 2013 at 7:57 AM
    #5
    InSight Retrofits

    InSight Retrofits [OP] Closed

    Joined:
    Sep 17, 2013
    Member:
    #112687
    Messages:
    1,260
    Gender:
    Male
    Much more work to come! This is only the first part of an FXR install. Hopefully it isn't too bad though!

  6. Nov 21, 2013 at 8:37 AM
    #6
    suttonkb

    suttonkb GO TIGERS!

    Joined:
    Sep 25, 2011
    Member:
    #64119
    Messages:
    1,852
    Gender:
    Male
    First Name:
    Kevin
    Clemson, SC
    Vehicle:
    1994 Triple Locked FZJ80
    3X Locked FZJ80 37" MTR's Dobinson 4" flexicoils Upgraded steering

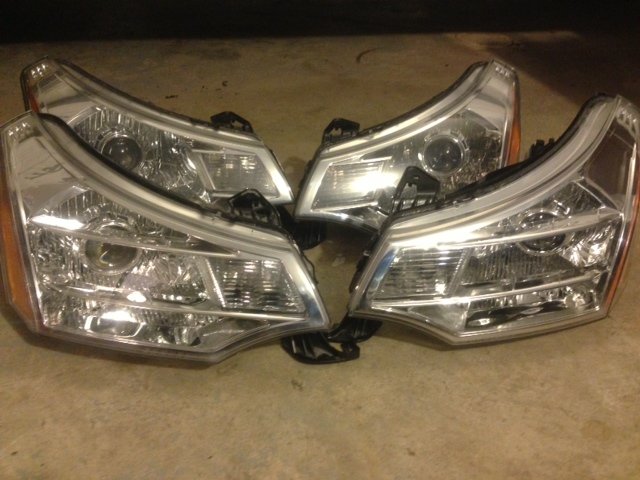

    Looking forward to the fxr version I bought extra headlights just so I could do it (I hate my mini d2s). So I know how to do everything except the cutting and that part doesn't sound fun lol. Anyways +1! And can't wait to see the rest

  7. Nov 21, 2013 at 9:48 AM
    #7
    PhatTaco12

    PhatTaco12 Well-Known Member

    Joined:
    Sep 9, 2013
    Member:
    #112155
    Messages:
    112
    Gender:
    Male
    First Name:
    Steve
    Roseville, CA
    Vehicle:
    '12 DC 4X4 Off Road
    In progress
    Could you have marked your beam cutoff before you removed your headlights if you're not moving your vehicle until done? Just making sure not missing something here. Great write up and glad you point out the little things to pay attention to.

  8. Nov 21, 2013 at 9:50 AM
    #8
    ambiguous

    ambiguous Master Retrofitter @RECHELON/AESTHETICS Vendor

    Joined:
    Jul 30, 2012
    Member:
    #83730
    Messages:
    1,152
    Gender:
    Male
    First Name:
    Burt
    Portland, OR to SoCal
    Vehicle:
    2012 DCLB TRD
    If you are using mini projectors on a 2012-2014, modification of the alignment ring pictured here does need to be modified...otherwise you will end up with a horizontal cutoff that is far from _____/--------------


    Here's a similar problem presented from a Highlander. http://www.toyotanation.com/forum/1...ojector-headlight-retrofit-how-pic-heavy.html

    "The reason I got this projector was the ease of install. It was suppose to be "plug and play", well it is, if you want a projector that puts the light out at 15 degrees off level...."

    "If you look at this ^, toyota mounted their Y-shaped H4 slots slightly off straight to the right. So it tilts the projector to the right. The H4 adapter that came with the projector didn't allow for rotation, so I had to modify it.
    BEFORE/ORIGINAL:"

    AFTER MODIFICATIONS:

    You want to check horizontal alignment on the vehicle. Never trust the ring to do it for you.

    Last edited: Nov 21, 2013
    DriftingPanda18 likes this.
  9. Nov 21, 2013 at 9:56 AM
    #9
    JTS2016TACO

    JTS2016TACO Well-Known Member

    Joined:
    May 1, 2013
    Member:
    #103303
    Messages:
    6,272
    Gender:
    Male
    First Name:
    Jamie
    Chandler, AZ
    Vehicle:
    2016 MGM 4x4 TRD Off Road Double Cab Short Bed
    See my build thread in my signature
    Sub'd and Burt is correct thats one thing I wasnt aware of before I attempted this. I just want to see how to do the FX-R's :popcorn:

  10. Nov 21, 2013 at 9:57 AM
    #10
    ambiguous

    ambiguous Master Retrofitter @RECHELON/AESTHETICS Vendor

    Joined:
    Jul 30, 2012
    Member:
    #83730
    Messages:
    1,152
    Gender:
    Male
    First Name:
    Burt
    Portland, OR to SoCal
    Vehicle:
    2012 DCLB TRD
    Yes I would mark the beam cutoff before you remove the lights. Do not move the vehicle from that location. Try to be at least 20-30 feet away from the wall for increased accuracy.

  11. Nov 21, 2013 at 10:00 AM
    #11
    ambiguous

    ambiguous Master Retrofitter @RECHELON/AESTHETICS Vendor

    Joined:
    Jul 30, 2012
    Member:
    #83730
    Messages:
    1,152
    Gender:
    Male
    First Name:
    Burt
    Portland, OR to SoCal
    Vehicle:
    2012 DCLB TRD
    There are a few different methods you could use but the principle is the same. Take reference, make sure cutoff is horizontal and perfect. Lock the projectors in place with ________. Some people use screws, others do not. I'll let you use your imagination.

  12. Nov 21, 2013 at 10:12 AM
    #12
    itzyoboipaul

    itzyoboipaul Well-Known Member

    Joined:
    Jul 18, 2013
    Member:
    #108518
    Messages:
    2,487
    Gender:
    Male
    First Name:
    Paul
    PFville, TX
    Vehicle:
    2020 DBSC 2.7L SR
    17" Vision 398 Manx Wheels, 265/70R17 Falken Wildpeak AT3W tires

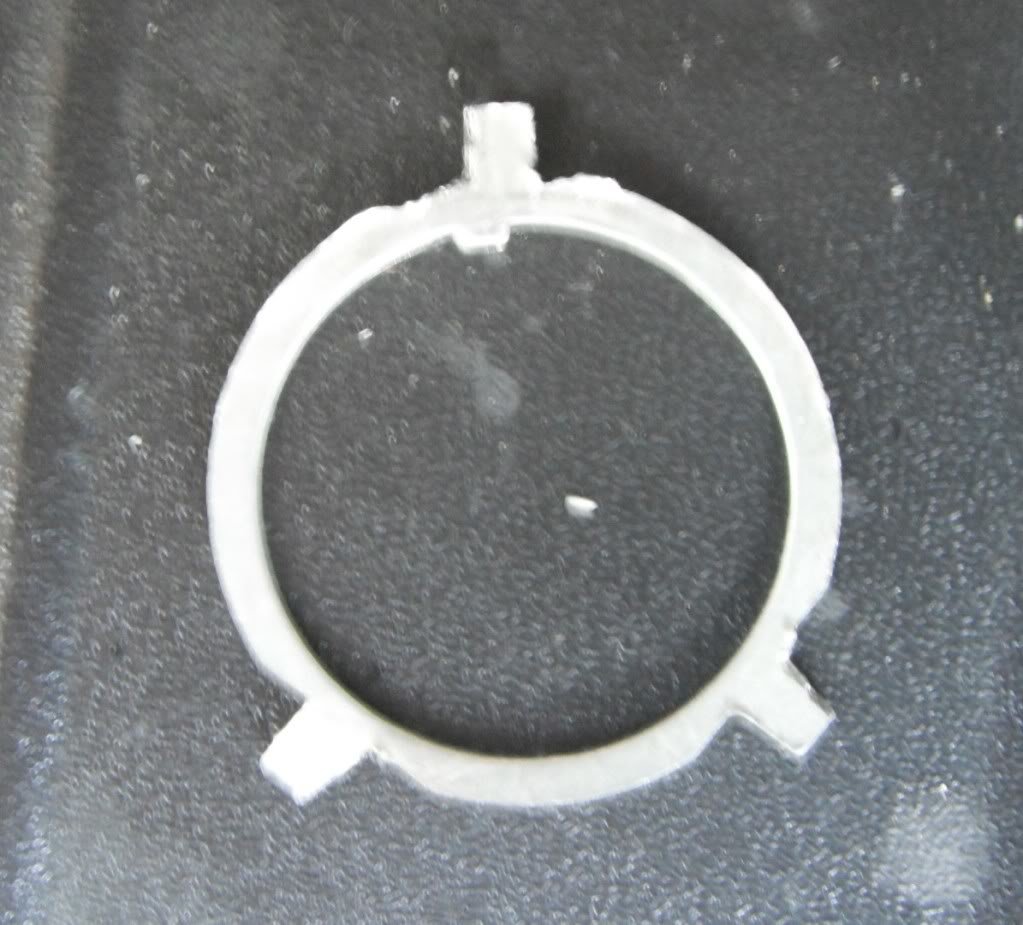

    any tips on whats the easiest way/tool to use to trim this adapter ring

  13. Nov 21, 2013 at 10:19 AM
    #13
    ambiguous

    ambiguous Master Retrofitter @RECHELON/AESTHETICS Vendor

    Joined:
    Jul 30, 2012
    Member:
    #83730
    Messages:
    1,152
    Gender:
    Male
    First Name:
    Burt
    Portland, OR to SoCal
    Vehicle:
    2012 DCLB TRD
    I use a deburr/grinding wheel at my shop.

    For most people, I would advise just using a dremel w/ cutoff wheel or a sanding wheel. The alignment ring is fairly thin and easy to cut. Remember you are only using the ring to hold the projector for tightening. It doesn't need to be cut accurately or pretty.

  14. Nov 21, 2013 at 10:22 AM
    #14
    itzyoboipaul

    itzyoboipaul Well-Known Member

    Joined:
    Jul 18, 2013
    Member:
    #108518
    Messages:
    2,487
    Gender:
    Male
    First Name:
    Paul
    PFville, TX
    Vehicle:
    2020 DBSC 2.7L SR
    17" Vision 398 Manx Wheels, 265/70R17 Falken Wildpeak AT3W tires

    appreciate the help. thank you sir!

    I know you've done plenty of these, so I guessing theres no chance that my mini h1 kit will have correct cutoff and no ring modification needed? LOL :pray:

  15. Nov 21, 2013 at 10:28 AM
    #15
    ambiguous

    ambiguous Master Retrofitter @RECHELON/AESTHETICS Vendor

    Joined:
    Jul 30, 2012
    Member:
    #83730
    Messages:
    1,152
    Gender:
    Male
    First Name:
    Burt
    Portland, OR to SoCal
    Vehicle:
    2012 DCLB TRD
    Housings from 2012-2014 all have the cockeyed angle. Don't ask me why. So yes you'll need to modify. Even for some off reason if the ring was modified and it really didnt need modifying, the cut off would have plenty of adjustment to get right. You're increasing your ability to rotate the projector to get the correct horizontal cut off.

  16. Nov 21, 2013 at 10:29 AM
    #16
    itzyoboipaul

    itzyoboipaul Well-Known Member

    Joined:
    Jul 18, 2013
    Member:
    #108518
    Messages:
    2,487
    Gender:
    Male
    First Name:
    Paul
    PFville, TX
    Vehicle:
    2020 DBSC 2.7L SR
    17" Vision 398 Manx Wheels, 265/70R17 Falken Wildpeak AT3W tires

    kool thanks again!

  17. Nov 21, 2013 at 10:29 AM
    #17
    InSight Retrofits

    InSight Retrofits [OP] Closed

    Joined:
    Sep 17, 2013
    Member:
    #112687
    Messages:
    1,260
    Gender:
    Male

    No because a few posts up Burt said they mount the bulb slightly off straight. Now that I look at my reflector assembly I can see it. Pain in the butt!

    Actually after I posted that I realized he beat me to answering your question too!

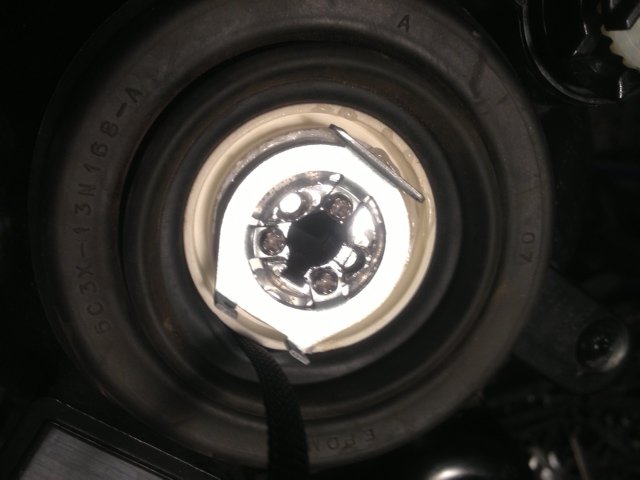

    I posted pictures, thanks Burt for pointing that out!! I would have learned if I was doing Minis myself as soon as I took it out to the truck, but I was just assuming it went straight up and down. But of course there always has to be a twist on how things are and how they should be..

    Last edited: Nov 21, 2013
  18. Nov 21, 2013 at 10:44 AM
    #18
    itzyoboipaul

    itzyoboipaul Well-Known Member

    Joined:
    Jul 18, 2013
    Member:
    #108518
    Messages:
    2,487
    Gender:
    Male
    First Name:
    Paul
    PFville, TX
    Vehicle:
    2020 DBSC 2.7L SR
    17" Vision 398 Manx Wheels, 265/70R17 Falken Wildpeak AT3W tires
    k one other question

    the main headlight front clear glass. I was told not to wipe/clean the inner face part of that.
    any truth to that?

  19. Nov 21, 2013 at 10:46 AM
    #19
    InSight Retrofits

    InSight Retrofits [OP] Closed

    Joined:
    Sep 17, 2013
    Member:
    #112687
    Messages:
    1,260
    Gender:
    Male

    What I did was I made sure I did not touch the INSIDE. As soon as I pulled them off I stuck them in my gun cabinet (Only place I could think of that would be "dust free" with a dog and 3 cats running around). From there they will be "dusted out" and placed back onto the assembly.

    Ever clean your windows and think you got them perfectly clean, then later you notice a haze or swirl mark? If you clean the inside of the lens you risk that happening and you have to deal with it forever or until you rip it apart again.

  20. Nov 21, 2013 at 10:49 AM
    #20
    itzyoboipaul

    itzyoboipaul Well-Known Member

    Joined:
    Jul 18, 2013
    Member:
    #108518
    Messages:
    2,487
    Gender:
    Male
    First Name:
    Paul
    PFville, TX
    Vehicle:
    2020 DBSC 2.7L SR
    17" Vision 398 Manx Wheels, 265/70R17 Falken Wildpeak AT3W tires
    gotcha! thanks

    ill finish the other headlight tonight.. took half day off tomorrow, do the wiring and finish everything else.


Products Discussed in

To Top
