How to: Retrofit Morimoto FX-R & Mini H1- in depth

Discussion in 'Lighting' started by InSight Retrofits, Nov 21, 2013.

Page 17 of 28
  1. Dec 13, 2013 at 5:04 AM
    #321
    zopperman

    #321
    zopperman LED & HID positive

    Joined:
    Sep 15, 2013
    Member:
    #112511
    Messages:
    2,321
    Gender:
    Male
    First Name:
    Zak
    Arlington, VA
    Vehicle:
    03 4Runner
    Lift, 32" Duratracs, sliders, LED light bar, interior LEDs, sweet tunes & sub, OBA, sliders, TRD 16" 6 spoke wheels, CB, HID spotlights, electrical mods, etc.
    You shouldn't have to solder anything for the halos...?

    BTW I was thinking of getting an 80mm light diffiuser and VHT'ing it to hide the halos. Will post results when i get off my lazy ass and order them

    zopperman, Dec 13, 2013
    #321
  2. Dec 13, 2013 at 5:07 AM
    #322
    tacodane

    #322
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights

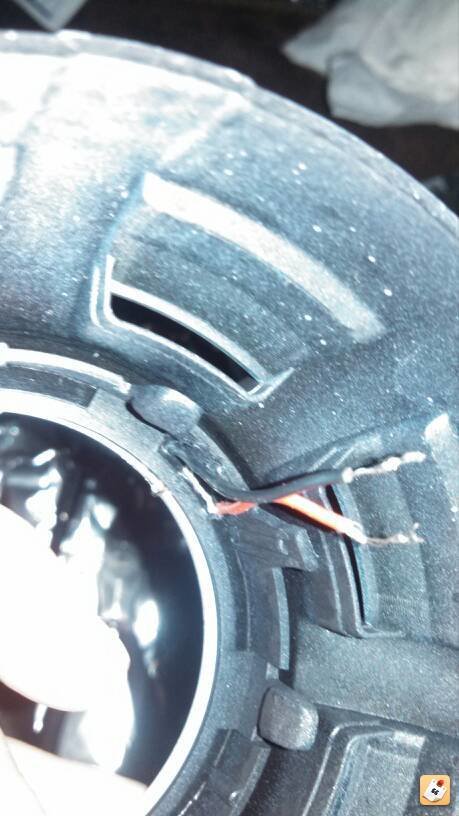

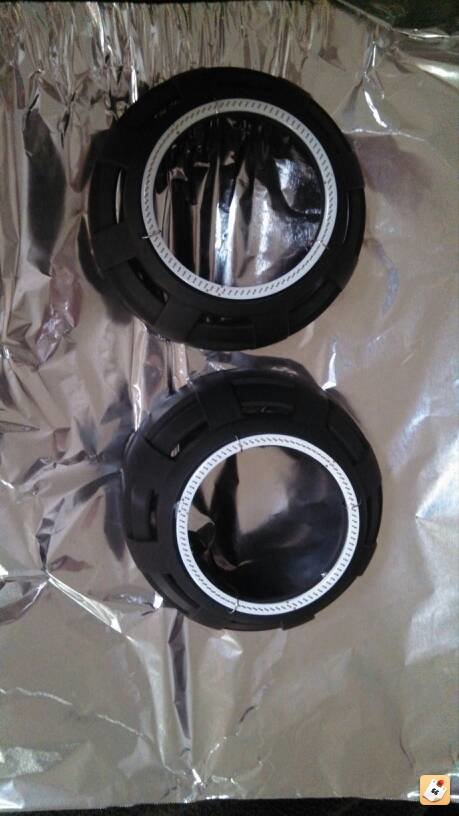

    usyre6eg_469355d38eb9e112c0edc6500ab19d48d0f65f41.jpgI cut my wires so I could route them thru the holes I drilled in the shroud.

    Last edited: Dec 13, 2013
    tacodane, Dec 13, 2013
    #322
  3. Dec 13, 2013 at 5:11 AM
    #323
    zopperman

    #323
    zopperman LED & HID positive

    Joined:
    Sep 15, 2013
    Member:
    #112511
    Messages:
    2,321
    Gender:
    Male
    First Name:
    Zak
    Arlington, VA
    Vehicle:
    03 4Runner
    Lift, 32" Duratracs, sliders, LED light bar, interior LEDs, sweet tunes & sub, OBA, sliders, TRD 16" 6 spoke wheels, CB, HID spotlights, electrical mods, etc.
    Ah I should have posted this before with my pics, but theres a really easy way to disconnect the wires from the harness, no cutting required... just use tweezers and press the metal pin to disengage a clip thing, youll see how it works

    too late tho

    zopperman, Dec 13, 2013
    #323
  4. Dec 13, 2013 at 5:13 AM
    #324
    tacodane

    #324
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    No those would have been to large for the holes I drilled. Its no biggie. I like how they turn out so far

    tacodane, Dec 13, 2013
    #324
  5. Dec 13, 2013 at 1:19 PM
    #325
    tacodane

    #325
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Can anyone get me pictures of where they have there grounding points and what not and ballasts placement

    tacodane, Dec 13, 2013
    #325
  6. Dec 13, 2013 at 9:41 PM
    #326
    bellassaiw10

    #326
    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    5,531
    Gender:
    Male
    Currituck NC
    Vehicle:
    09 LMM 2500HD Duramax

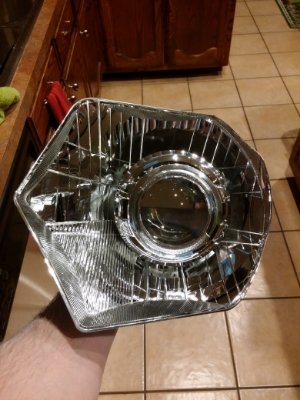

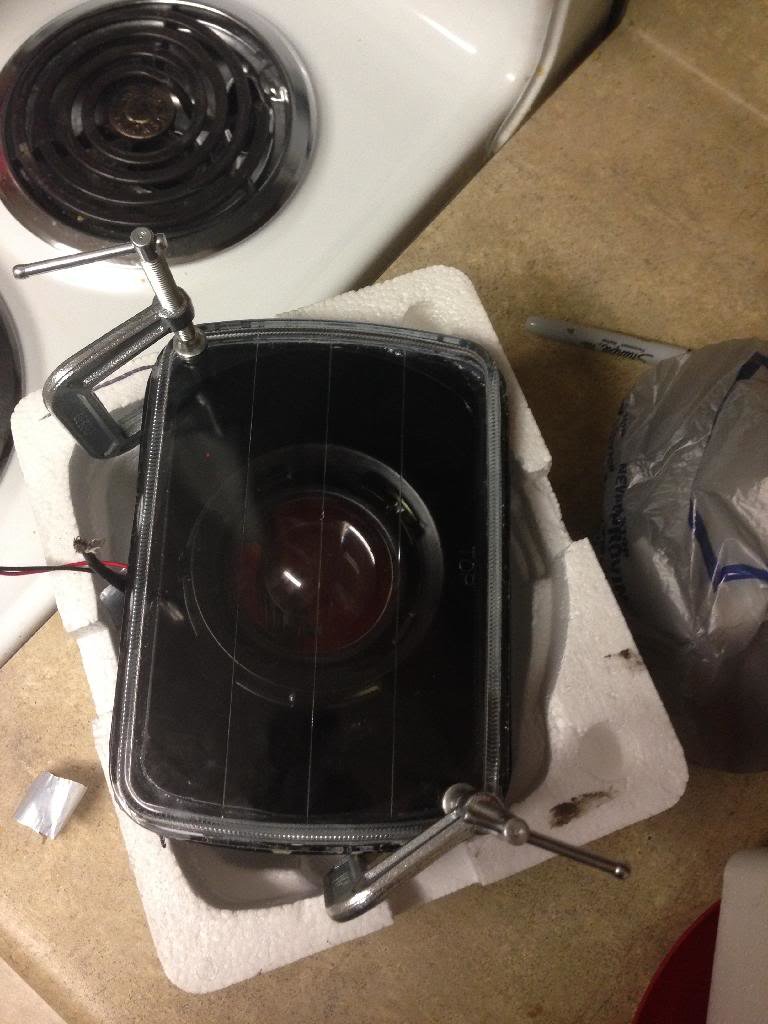

    Not mine but doing my 3rd Retro and 2nd retro on a 5x7 for LSC15s brother.

    DAC1270F-EE0E-4B74-8944-B1BBFE3454CD_zps_852aa3c183b292af07faf6b337cf33e6ef43205b.jpg
    [​IMG]
    [​IMG]

    Last edited: Dec 17, 2013
    bellassaiw10, Dec 13, 2013
    #326
  7. Dec 13, 2013 at 9:43 PM
    #327
    bellassaiw10

    #327
    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    5,531
    Gender:
    Male
    Currituck NC
    Vehicle:
    09 LMM 2500HD Duramax
    One ground is directly to the battery and the other is under one of the little rubber pieces for the hood. As long as you sand down to bare metal you'll be fine no matter where you put your ground. Have had mine for over a year and haven't experienced a single issue from my grounds. My ballast are just sitting in the engine this weekend I'm gonna mount them though

    bellassaiw10, Dec 13, 2013
    #327
  8. Dec 15, 2013 at 4:17 PM
    #328
    fenderpicks

    #328
    fenderpicks Well-Known Member

    Joined:
    Jul 10, 2013
    Member:
    #108031
    Messages:
    799
    Gender:
    Male
    So after finally received my RIGHT Apollo Shroud from TRS, I played with the stuff a little.
    And notice they gave me some bad quality shrouds, now i am emailing TRS once again about the shrouds.

    And on top of that, the previous Halos i ordered, i asked them what size i need for the inside of Apollo Shroud, they recommended me the size 90 Halos.
    I tried placing my halo inside the shroud, and it turns out the Halos are too small for the inside.

    So i am thinking the size 90 is for outside mounting, however i know i won't do a good job at mounting it outside, that is why i opted for INSIDE instead.

    More waiting games AGAIN!!!

    fenderpicks, Dec 15, 2013
    #328
  9. Dec 15, 2013 at 4:20 PM
    #329
    tacodane

    #329
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Just do what I did also what trs did. Drill small holes for some wire to hold it on

    tacodane, Dec 15, 2013
    #329
  10. Dec 15, 2013 at 4:34 PM
    #330
    fenderpicks

    #330
    fenderpicks Well-Known Member

    Joined:
    Jul 10, 2013
    Member:
    #108031
    Messages:
    799
    Gender:
    Male
    I don't know... I'm no confident enough lol
    I took a look at TRS website for these Halos, seems like price has gone up for these bad boys.
    Also did they get a redesign? My halos have the wires on the bottom of the halo.
    The ones from their website have a little notch sticking out with the wires attached?

    fenderpicks, Dec 15, 2013
    #330
  11. Dec 15, 2013 at 4:45 PM
    #331
    tacodane

    #331
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights

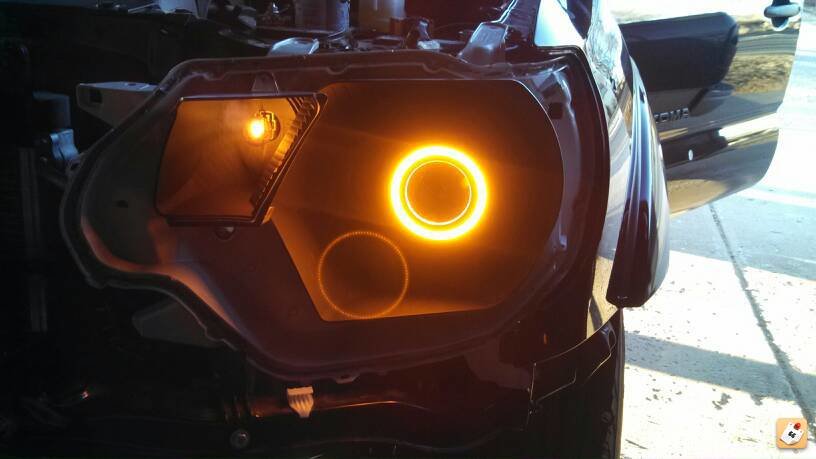

    Mine were on the bottom as well. I also drilled holes for the wires as well so they didn't go on the outside of the shroud. 7yvy4eba_4d9b9f2d24692e5576600ede9ee5befbc7f71433.jpg

    tacodane, Dec 15, 2013
    #331
  12. Dec 15, 2013 at 4:49 PM
    #332
    fenderpicks

    #332
    fenderpicks Well-Known Member

    Joined:
    Jul 10, 2013
    Member:
    #108031
    Messages:
    799
    Gender:
    Male
    What Shroud and projector are u using?

    fenderpicks, Dec 15, 2013
    #332
  13. Dec 15, 2013 at 7:24 PM
    #333
    tacodane

    #333
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    Apollo 3.0 fx-rs

    tacodane, Dec 15, 2013
    #333
  14. Dec 17, 2013 at 3:06 PM
    #334
    InSight Retrofits

    #334
    InSight Retrofits [OP] Closed

    Joined:
    Sep 17, 2013
    Member:
    #112687
    Messages:
    1,260
    Gender:
    Male
    Kinda hard to get good pictures at 60mph

    Here are my FX-Rs drowning out a crappy PnP kit


    InSight Retrofits, Dec 17, 2013
    #334
  15. Dec 19, 2013 at 4:39 AM
    #335
    MadMedic35

    #335
    MadMedic35 Well-Known Member

    Joined:
    Jan 12, 2013
    Member:
    #95000
    Messages:
    129
    Gender:
    Male
    Sandhills, NC
    Vehicle:
    09 TRD SPORT DCSB
    Fox 2.5 coilover, TC UCA, FOX 2.5 res rear shock, OME leaf pack, SCS Ray-10 gold, Nitto Ridge Grappler, SoftTopper. On order: Relentless Fab Summit Bumper, HC rear bumper with tire carrier, sPOD, Powertray,
    OP: I've been following your post as I prep to do my FX-R retro today. Two questions: 1) I saw aluminum tape in your parts list but missed where you used it? 2) how did you seal up the rear of the housing? Did you just use a bunch of JB weld?

    MadMedic35, Dec 19, 2013
    #335
  16. Dec 19, 2013 at 5:47 AM
    #336
    tacodane

    #336
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    I did that method. For large gaps from the reflector to the projector and then cover the aluminum tape in jb weldugyja7e6_19414204e92797e7751416ae3ca3ac34c7e5de13.jpg

    tacodane, Dec 19, 2013
    #336
  17. Dec 19, 2013 at 6:09 AM
    #337
    InSight Retrofits

    #337
    InSight Retrofits [OP] Closed

    Joined:
    Sep 17, 2013
    Member:
    #112687
    Messages:
    1,260
    Gender:
    Male

    The only place I actually used a small gum-stick sized piece was over where the front of the projector bolts to the back and leaves a little vent slit. I didn't want to get Jb weld in there. But Yes I just JB welded everywhere the projector met the reflector on the back

    InSight Retrofits, Dec 19, 2013
    #337
  18. Dec 19, 2013 at 6:18 AM
    #338
    tacodane

    #338
    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,902
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    X2 for the small piece on projector

    tacodane, Dec 19, 2013
    #338
  19. Dec 19, 2013 at 7:41 AM
    #339
    MadMedic35

    #339
    MadMedic35 Well-Known Member

    Joined:
    Jan 12, 2013
    Member:
    #95000
    Messages:
    129
    Gender:
    Male
    Sandhills, NC
    Vehicle:
    09 TRD SPORT DCSB
    Fox 2.5 coilover, TC UCA, FOX 2.5 res rear shock, OME leaf pack, SCS Ray-10 gold, Nitto Ridge Grappler, SoftTopper. On order: Relentless Fab Summit Bumper, HC rear bumper with tire carrier, sPOD, Powertray,
    Thanks

    MadMedic35, Dec 19, 2013
    #339
  20. Dec 19, 2013 at 10:53 AM
    #340
    Edpsx

    #340
    Edpsx Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114018
    Messages:
    147
    Gender:
    Male
    DFW
    Vehicle:
    13' Double Cab Limited MGM
    K&N Intake, Stainless Tube Steps, Pioneer 8500BHS, Coming Soon:, Morimoto H1 Mini, Viper 5704

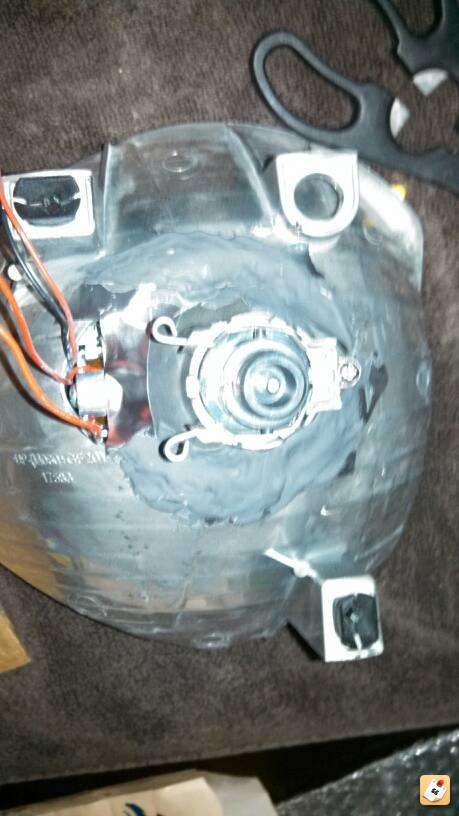

    Started working on my FX-Rs last night. Have one ready to mount and get aligned. I will probably start the other side tonight.

    Last edited: Dec 19, 2013
    Edpsx, Dec 19, 2013
    #340
