How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

  1. Oct 27, 2010 at 9:47 PM
    #1
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    This will be my first “How To” contribution for Tacoma World, so hopefully it will come to good use or possibly give people other ideas. If anyone wants dimensions I can try and take rough measurements to get you close.

    GOAL: Have a secondary fuse-able power source for accessories and other devices without tapping into factory wiring. Also building a tray to hold these components.

    SOLUTION = below...

    PARTS:
    1 - 16”x8” Sheet of Lexan
    1 - Scrap Piece of 1/8” Aluminum
    1 - Blue Sea Systems ST Blade Fuse Block [PN# 5025 - 6 Circuit]
    1 - Blue Sea Systems 187 Series Thermal Circuit Breaker [PN# 7144 - 100A]
    AWG 4 Wire
    6 - AWG 4 Ring Terminals for 1/4” Stud Size
    1 - Bolt that holds on the rear bracket for the engine cover
    2 - 8mm-1.25x25mm Bolts
    9 - 10-24x3/4” Machine Screws Pan Head
    9 - 10-24 Nylon Lock Nuts
    11 - No.10 Flat Washers
    6 - 5/16” Flat Washers

    TOOLS:
    Heat Gun
    Wire Crimpers
    Sharpie
    Utility Knife
    Hacksaw
    Dremel
    File
    Wrenches

    [​IMG]

    [​IMG]

    FIRST:
    -Figure out where you wish to locate the fuse block and breaker.
    -Measure the dimensions of the space.

    SECOND:
    -If you really want to save yourself some money, time and effort... Mock up the tray using foam core board. I know it sounds a little tedious but it saves you in the long run.
    -Make sure you do not cover something you may need to access certain things later on other the truck.
    -More work, measuring and designing now means less work and headache later.

    [​IMG]

    THIRD:
    -After trimming and getting the foam core mock up as close to the design you want it, flatten the design and transfer the mock up to the Lexan. Mark any areas that need to be completely removed, and mark where the bends need to go.
    -Using the utility knife, hacksaw or Dremel; cut off all the large chunks that are not part of the design.

    *Notes*
    -It is easier to cut as much of the Lexan as you can while the piece is flat because once you bend it, any small mistake and lead to further problems.
    -Use the hacksaw to cut the shorter straight edges. The Dremel causes the Lexan to MELT!!!
    -Use a utility knife on the longer straight edges, and break the Lexan like you would score a piece of glass and bend to break off the chunk.

    [​IMG]

    FOURTH:
    -After removing the large chunks of unnecessary Lexan, you are ready to bend the piece.
    -This is the tricky part. You don’t want to get the Lexan too hot or it will bubble, too cold and it won’t bend. Between 20 and 30 seconds on high heat should do the trick. Making sure to move the heat gun back and forth.
    -Once bent, trim off any corners or any excess you do not need to slim the tray down.
    -File the edges to de-bur them.

    *Notes*
    -Test on some scrap pieces of Lexan
    -Tiny bubbles are okay.
    -Anything that is touching the Lexan will melt to it or transfer the color / pattern to the clear Lexan.
    -I chose to sand the Lexan with 1500 grit to make mine cloudy so scratches don't show up easily. You could paint it if you like.

    [​IMG]

    [​IMG]

    FIFTH:
    -Once you have the Lexan tray looking and fitting how you want it to, you need to fabricate a bracket to support the end of it.
    -Using the scrap aluminum, fabricate a support bracket that will allow you to bolt it to the free spot on the inner wheel well and the edge of the Lexan tray.

    [​IMG]

    SIXTH:
    Bolt all the pieces up, bolt the tray and bracket into the truck.

    [​IMG]

    [​IMG]

    SEVENTH:
    - Run the wire.

    [​IMG]

    Biscuits, Captain Taco and bjmoose like this.
  2. Oct 27, 2010 at 9:50 PM
    #2
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    *The circuit breaker is to protect all the accessories wired to the fuse block, also to protect the truck. Don't want too much current draw to start melting things. My father is an electrician so the safety and protection things are inherited.

    *Fuse Block and Circuit Breaker are Marine grade components. Weatherproof to weather resistant.

    *100A Circuit Breaker performs three tasks. It serves as an on/off switch, 100A Fuse, and circuit protection trips if draw exceeds 100 amps.

    *AWG 4 Wire will handle up to ~ 135A. That is the reason I went with it. Remember the shortest route means less resistance and better current flow. If you are drawing the upper limits of the amps, unnecessary bends and excess length are not a good thing.

    *I used all stainless steal hardware for rust prevention and longevity.

    *Lexan was chosen not only for its inherent strength / durability and weight, but I don't want the chance of any arc or shorting to ground on any of the connections or wires.

    Biscuits and Captain Taco like this.
  3. Oct 27, 2010 at 9:53 PM
    #3
    SocalMan22

    SocalMan22 Founder Socaltacomas.com

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,136
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Very nicely done i am going to be doing this here i have a buddy that wants to do it, and i may be adding a secondary battery. Thanks!!

  4. Oct 27, 2010 at 9:56 PM
    #4
    victheyankee

    victheyankee Well-Known Member

    Joined:
    Nov 12, 2009
    Member:
    #25842
    Messages:
    47
    Gender:
    Male
    arizona
    upgraded sound system eclipse and alpine and mb wheels.
    I like it. I need to get this.

  5. Oct 27, 2010 at 9:59 PM
    #5
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!

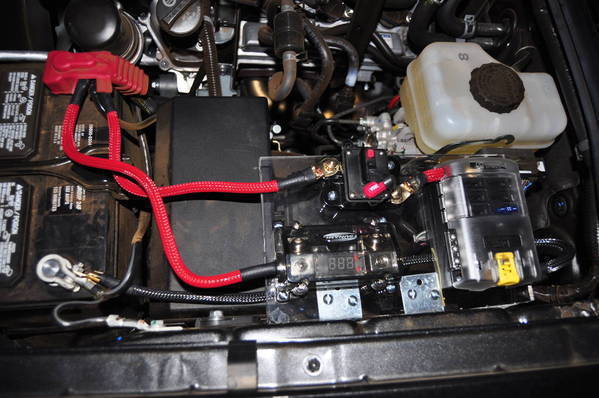

    Nice job man! I never thought about using plexi...Looks pretty similar to mine.

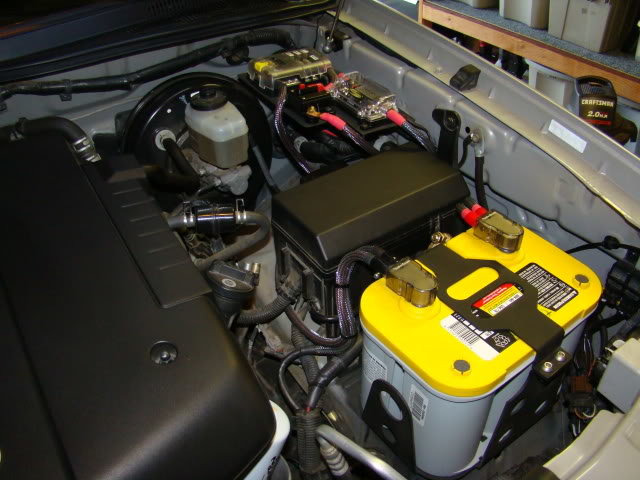

    [​IMG]

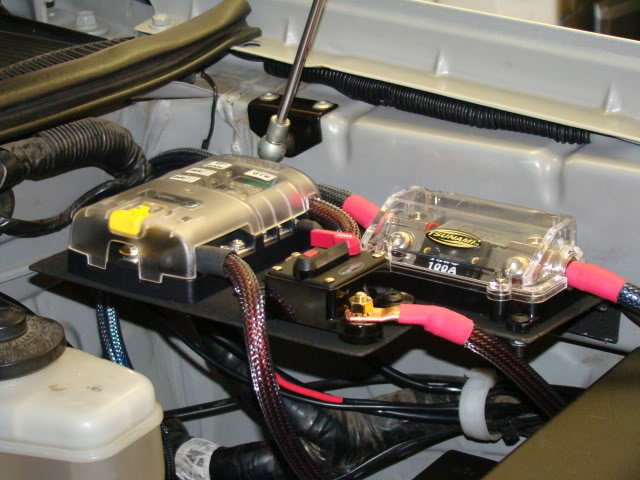

    [​IMG]

  6. Oct 27, 2010 at 10:10 PM
    #6
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    Yep pretty similar. I wanted something light and durable. One thing I would note is the reason I used the breaker I did, was because it was weatherproof and combined all the things a couple of your components are accomplishing. I am NOT knocking your design by any means. Just simplifying and compacting. Granted the breaker alone cost me $85.

    Ilovetacos - is that in line fuse for your amp / speaker system or is it protecting the fuse block?

    *I wouldn't use plexi though, Lexan has a different density. I wouldn't know how plexi would react to the heat gun. I am not saying it can't be done, I just know the stress tests put on Lexan are different.

    *There are three types of products out there that people need to be made aware of. Acrylic, Plexi-Glass and Lexan. All behave differently and are made of different compounds.

  7. Oct 27, 2010 at 10:17 PM
    #7
    dustin81

    dustin81 DUSTOFF

    Joined:
    Apr 15, 2009
    Member:
    #16018
    Messages:
    381
    Gender:
    Male
    Rio Rancho, NM
    Vehicle:
    09 TaCo Lifted TRD
    PRO COMP 6" Lift Stage II PRO COMP 2.75" Coilovers PRO COMP MX-6 shocks PRO COMP skid plate Bushwacker Fender Flares Smittybuilt Chrome Steps KC Chrome 6" SLIMLITES Billet Custom Grill JDM window vent visors Window Tint Flowmaster TRD CAI
    good post... ill be doing something similar soon

  8. Oct 27, 2010 at 10:20 PM
    #8
    TacoNut

    TacoNut IgnoringChrisWatchingEdLi veVicariouslyThroughMJP2

    Joined:
    Mar 29, 2008
    Member:
    #5597
    Messages:
    5,243
    Gender:
    Male
    First Name:
    Adam
    Denver, Co
    Vehicle:
    16 TRD OR DCSB Quicksand
    Nicely Done.

  9. Oct 27, 2010 at 10:21 PM
    #9
    mreimann

    mreimann vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT

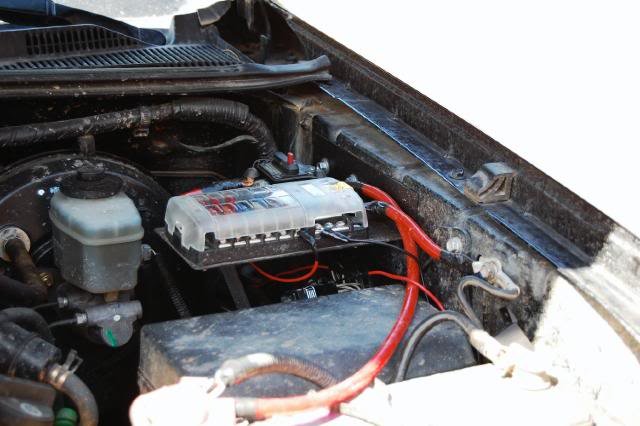

    Looks like the most common place to mount these guys :p

    [​IMG]

    [​IMG]

  10. Oct 27, 2010 at 10:31 PM
    #10
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    The amp meter you are seeing in mine is connected to my amplifier. The breaker is the only fused component connected to the fuse block.

    Why was your breaker $85?

  11. Oct 27, 2010 at 11:25 PM
    #11
    chyknees

    chyknees 13th wunder

    Joined:
    Dec 22, 2008
    Member:
    #11801
    Messages:
    317
    Gender:
    Male
    So Cal
    Vehicle:
    05 Tacoma TRD 4x4
    TRD, Total Chaos, Fox, Volk, Toyo
    Great job w/ the lexan!

  12. Oct 28, 2010 at 5:09 AM
    #12
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    Marine grade component manufactured by the same company that produced the fuse block. Weatherproof and sometimes touted as waterproof, it's nice and beefy though.

    I think it may be because of the name stamped on it. Honestly it was easier to go with the same company just for making my life easier. I live along the coast so we have a bunch of boat shops and parts stores that carry their stuff.

  13. Oct 28, 2010 at 7:12 AM
    #13
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    Nice man! Again the install looks good!

    My breaker was a $15 cheapy off of eBay.

  14. Oct 28, 2010 at 7:16 AM
    #14
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    Thanks man. I just hope I left enough room for supercharger components.

    Anyone know where or how they relocated the Hood Sensor for the alarm? Going to have to do that for when I install the hood struts.

  15. Oct 28, 2010 at 8:50 AM
    #15
    monrad

    monrad Coprolite

    Joined:
    Jul 25, 2009
    Member:
    #20150
    Messages:
    101
    Gender:
    Male
    B'wood, SC
    Vehicle:
    09 DC short box TRD Sport, TM
    Avid light bar+RBG, Lightforce 140s, fog mod, FSM badges, Bobcatoshi grille + Stampede, JDM DRLs, TRD cat-back, rear spring TSB, AccessLE
    Nice job!

    What's the thickness of the Lexan? Appears to be 1/16 inch when compared with the aluminum...

    I've a similar set up but use Blue Sea 7102 for the breaker; interrupt rating 3000A@12V w/push button reset instead of 5000A w/lever reset in the 7144, but about half the price, and no problems in 14,000 miles since installing.

  16. Oct 28, 2010 at 8:59 AM
    #16
    hookedontronics

    hookedontronics Well-Known Member

    Joined:
    Jan 6, 2010
    Member:
    #28863
    Messages:
    2,783
    Gender:
    Male
    First Name:
    Jake
    Glenville, NY
    Vehicle:
    2010 DC Off Road 4x4
    Icon extended travel 3.5" front coilovers, DSM UCAs, TSB leaf pack w/ wheelers AAL, All Pro U-bolt flip kit, Walker Evans 2.0 rear shocks, 18" XD Monster rims, Nitto trail grappler 285/65R18 Tires, Color matched grill, Grillcraft, Kragen HIDs, Carling switches, my bed light mod, diff drop, Alpine IVA-W505, JL Audio C5 componets and coaxials, JL 300/4 and 250/1 amps and JL stealthbox, wheathertechs, avs vent visors, toyota bed x-tender, alcantara center console cover and door pocket covers, console vault, color matched mirrors, heated mirrors, etc etc etc
    looks good. But won't everything running off that block be hot all the time, even when the truck is turned off?

  17. Oct 28, 2010 at 9:23 AM
    #17
    barlowrs

    barlowrs Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    596
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    Yes, running strait from the battery will be hot all the time (this is how I did my aux fuse block, as I wanted to be able to run comms without having truck on).

    You could easily throw a 100A mag relay in the mix and trigger it off of your ignition or any switch power to make the whole block switched though, if that’s what you want.

    Unfortunately there is no switched power (even the strait ignition wires) that are 100A rated, so you must run a relay.

  18. Oct 28, 2010 at 9:46 AM
    #18
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    The Lexan is between 1/16" and 1/8". At Home Depot they only had one thinckness, but all different size sheets.

  19. Oct 28, 2010 at 9:50 AM
    #19
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    What barlows said...

    HAM radio, Front and Rear Lightforce Lights, etc. Wanted the ability to run devices without truck being on. I will throw switches in the cab when I run the cables.

    You can easily do what barlows talked about, running a relay that clicks with the ignition. You can wire it up how ever you wish.

    But my other main concern is when I get any service done on it, I can flip the breaker switch and those devices won't work, and therefore the service techs can't leave crap on.

  20. Oct 28, 2010 at 9:53 AM
    #20
    MDBigRed

    MDBigRed Well-Known Member

    Joined:
    May 29, 2008
    Member:
    #6954
    Messages:
    409
    Gender:
    Male
    Potomac, MD
    Vehicle:
    '08 TRD Sport 4x4
    Uniden PC78Elite CB, 4' Firestiks, KC reverse/work lights, Mudflaps removed, Gorilla wheel locks, TRD box air intake, MBRP XP series dual exhaust, Wet Okole seat covers, 20% front tints, Pacer tailgate light bar, Uniden Bear Cat PA external speaker, 4.5" RCD Lift w/ extended ICON coilovers, door sill LED running lights, LED alarm scanner light, Scangauge II, Blendmount, Diff breather mod, Whelen hideaway 90watt strobes, Piaa Xtreme white bulbs, VIAIR onboard air, Allpro T-case sheild, TC LCA Skids, Stubbswelding HD-SKO Sliders, Weathertech floor mats, TC UCA's, Allpro SS brakelines, rear ARB locker, 4.56 Yukon gears, BlueSea fuse block, bed rail light bar, Shrockworks bumper, Smittybuilt XRC8 Comp winch, IPF 900's, Piaa 510's, Tekonsha brake controller, Air horn, Pop 'n lock, Alcan Spring leaf packs, JVC KD-AHD 69 head unit, 12voltguy winch controller, Safari Snorkel
    I wish my engine bay and wiring looked as clean as yours!
