How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

  1. Mar 4, 2016 at 5:38 AM
    #221
    Captain Taco

    Captain Taco RipCity

    Joined:
    Feb 15, 2014
    Member:
    #123157
    Messages:
    1,122
    Gender:
    Male
    First Name:
    Rob
    Portland
    Vehicle:
    2013 Black Tacoma Sport
    3" Lift, Krank Fuel Wheels, TRD Pro Grill, Curved Roof LED Light Bar
    I see it now! Appreciate it!

    Question for all of you, I have some LEDs I want to come on with my parking lights. Is it possible to connect it to the same switch that does the parking lights but still going through the blue sea fuse block?

  2. Mar 4, 2016 at 5:48 AM
    #222
    Scott B.

    Scott B. Well-Known Member

    Joined:
    Nov 11, 2014
    Member:
    #142118
    Messages:
    2,990
    Gender:
    Male
    First Name:
    Scott
    Georgia / Alabama
    Vehicle:
    2015 ACLB SR5 4x4 Expo
    Not that style of block, unless you use the parking light signal to switch a relay which sends power from the battery through the fuse block to the LEDs.

    Otherwise, Blue Sea also makes straight through fuse blocks.

    Captain Taco likes this.
  3. Jun 22, 2016 at 12:38 PM
    #223
    chizzie

    chizzie Active Member

    Joined:
    Jul 14, 2015
    Member:
    #159443
    Messages:
    41
    Gender:
    Male
    Vehicle:
    08 Taco l4 4x4 AC
    How does this wiring diagram work look? Blue Sea 12 block, 40a relay, 5 pin rocker, 100a breaker, (3) 27w bumper lights.


    Kilroy and Toynado like this.
  4. Jun 22, 2016 at 12:45 PM
    #224
    nevadabugle

    nevadabugle Desert Rat

    Joined:
    Jul 25, 2014
    Member:
    #134701
    Messages:
    3,953
    Gender:
    Male
    Elko, NV
    Vehicle:
    2016 DCSB TRDOR manual in quicksand
    Looks correct to me but i am no expert.

  5. Jun 22, 2016 at 1:26 PM
    #225
    Littles

    Littles Stupid is as stupid does.

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    2,504
    Gender:
    Male
    First Name:
    Bryan
    Castle Rock, CO
    Vehicle:
    3 tons of fun
    How many relays do most folks run? I was going to run 10 on my 12 circuit fuse box, leaving 1 always on for the switches, and one for my 12v cigarette lighter running my fridge.

    I just can't think of 10 things I need switches for right now...

  6. Nov 15, 2016 at 5:06 AM
    #226
    Stricker 2016 4x4

    Stricker 2016 4x4 Well-Known Member

    Joined:
    Jul 14, 2016
    Member:
    #191971
    Messages:
    62
    Gender:
    Male
    Vehicle:
    2016 Tacoma SR5 4x4

    How did you make the edge for the replay to the foot under the breaker?

  7. Nov 15, 2016 at 5:09 AM
    #227
    Captain Taco

    Captain Taco RipCity

    Joined:
    Feb 15, 2014
    Member:
    #123157
    Messages:
    1,122
    Gender:
    Male
    First Name:
    Rob
    Portland
    Vehicle:
    2013 Black Tacoma Sport
    3" Lift, Krank Fuel Wheels, TRD Pro Grill, Curved Roof LED Light Bar
    Okay stupid question time! What is the point of relays?? Like I have my stuff wired from the fuse box to the switch. No relay inbetween. Am I missing something here??

    Giovas likes this.
  8. Nov 15, 2016 at 1:03 PM
    #228
    i8boots

    i8boots Well-Known Member

    Joined:
    Mar 10, 2014
    Member:
    #125032
    Messages:
    200
    Gender:
    Male
    UT - 801
    Vehicle:
    2017 MGM DC SB TRDOR JBL
    Hood/bed lights, pop-n-lock, Bak X2 Tonneau, custom breaker box, Husky mudflaps, white interior LEDs, Morimoto xB v2 Headlights, Bilstein 6112/5160, Sumo Springs.
    If I've learned properly from this thread, and from the internet, the point of a relay is for items that require more power than can be pushed through a normal switch. Basically it's a high power switch that needs a lower powered switch to turn on. Some switches can only do a few amps, max. Now imagine trying to use a regular switch to power a compressor, or a winch. The amps needed will burn out the switch (and wiring). A relay can handle the higher power requirements while allowing you to use a normal switch (a lower powered device) to trip the relay.

    Giovas likes this.
  9. Nov 15, 2016 at 1:28 PM
    #229
    Captain Taco

    Captain Taco RipCity

    Joined:
    Feb 15, 2014
    Member:
    #123157
    Messages:
    1,122
    Gender:
    Male
    First Name:
    Rob
    Portland
    Vehicle:
    2013 Black Tacoma Sport
    3" Lift, Krank Fuel Wheels, TRD Pro Grill, Curved Roof LED Light Bar
    Thanks! So from what I understand. Things like my LED light bar, or rock lights, won't need a relay. But things like a winch or air compressor would each need a relay? Because of the amount of power they draw.
    Right?
    Thanks for all the info :)

  10. Nov 15, 2016 at 1:57 PM
    #230
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,338
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Well lightbars can draw more than a switch is rated for....obviously it depends on the switches you are running. My 42" lightbar draws something like 16 amps or so, so for a 20amp switch, on top of being appropriately fused, it would probably be fine but I run it via a relay anyway just due to my AUX fuse block setup. Some of those shit switches that you can get off Amazon are only rated at like 3-5 amps.

    What you should do is calc how many amps your accessory is drawing, and then see what your switch is rated for.

  11. Nov 15, 2016 at 1:59 PM
    #231
    Captain Taco

    Captain Taco RipCity

    Joined:
    Feb 15, 2014
    Member:
    #123157
    Messages:
    1,122
    Gender:
    Male
    First Name:
    Rob
    Portland
    Vehicle:
    2013 Black Tacoma Sport
    3" Lift, Krank Fuel Wheels, TRD Pro Grill, Curved Roof LED Light Bar
    Oh gotcha! I'll have to do that then! I appreciate all the help!

  12. Nov 15, 2016 at 7:46 PM
    #232
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    Some multimeters have an amp meter as well. You can test total current draw for each light. If you test the ground side you will find a much lower amp draw. In many cases it is less than 1 amp. Test before trying it on an actual switch. If it is low enough you can connect the switch to the negative side (ground switching) and not use a relay at all.

    Captain Taco likes this.
  13. Nov 15, 2016 at 8:36 PM
    #233
    Captain Taco

    Captain Taco RipCity

    Joined:
    Feb 15, 2014
    Member:
    #123157
    Messages:
    1,122
    Gender:
    Male
    First Name:
    Rob
    Portland
    Vehicle:
    2013 Black Tacoma Sport
    3" Lift, Krank Fuel Wheels, TRD Pro Grill, Curved Roof LED Light Bar
    Okay! I see what you are saying. I'll have to give that a test!

  14. Dec 10, 2016 at 8:15 AM
    #234
    firsttraxxx

    firsttraxxx Well-Known Member

    Joined:
    Jan 16, 2010
    Member:
    #29459
    Messages:
    121
    Gender:
    Male
    NoVA-LoCo
    Vehicle:
    2013 Baja TX
    Fox 2.5 front / JBA UCA 3” Fox 2.0 rear / Icon RXT Stg 1 3” Some cool mods
    Greetings, anyone out there in TW have a solid drawing or sketch (flat w/ bends) for fabricating a mounting plate or does someone have a link to manufacturer? I see a ripe market for someone who has the equipment and means to mass produce kits. Regards.

    FYI - Here's a good source for polyc sheeting https://www.mcmaster.com/#polycarbonate-sheets/=15eqjna

    dziner likes this.
  15. Dec 10, 2016 at 8:23 AM
    #235
    Captain Taco

    Captain Taco RipCity

    Joined:
    Feb 15, 2014
    Member:
    #123157
    Messages:
    1,122
    Gender:
    Male
    First Name:
    Rob
    Portland
    Vehicle:
    2013 Black Tacoma Sport
    3" Lift, Krank Fuel Wheels, TRD Pro Grill, Curved Roof LED Light Bar
    ETAV8R likes this.
  16. Dec 12, 2016 at 3:06 AM
    #236
    Toynado

    Toynado Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166816
    Messages:
    1,384
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 TRD OR DCSB Quicksand
    EXTERIOR: Toytec Boss 2.0 Dakar CS047R Leaf Springs Tailpipe chopped Pelfreybilt Front full hoop front bumper w/ Pelfrey fairlead Pelfreybilt Rear standard bumper Pelfreybilt Aluminum IFS, Mid, Rear (exhaust reroute) & Gas tank skids Pelfreybilt Fuseplate w/ 12 circuit fuse block All-Pro Apex Sliders ProComp 7036 17"x9" -6 offset BFG 275/70R/17 KO2's Warn VR10000-S winch Baja Designs S8 light bar & Squadron sports amber pods in front bumper Baja Designs S2 flush pods in rear bumper Baja Designs Squadron Pro amber pods on Caliraised ditch light brackets @rrentrop reflective black tailgate inserts RSI LED's for regular & high beams Prinsu Cabrac Custom Tradesman Truck Top by Access Manufacturing w/ Powertank 8"propane tank mount & Yakima tracks on the roof INTERIOR: Warrior Products door sill protectors Husky Weather Beater floor mats front & rear Coverking arid multicam seat covers in the front Midland 75-822 CB w/ 4' Firestick antenna on C4 Fabrication tailgate mount Consolevault Hondo Garage iPhone mount
    ^^^^
    Pelfrebilt is the way to go! IMG_3879.jpg

    r6chan and Wild Crow like this.
  17. Dec 23, 2016 at 6:41 PM
    #237
    Timbo's Customs

    Timbo's Customs Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110078
    Messages:
    7,012
    Gender:
    Male
    First Name:
    Timothy
    Auburndale FL
    Vehicle:
    2019 Tundra CM 4x4 2017 T4r 1997 T4r, tons and 4ds
    1997 t4r has super duty axles, 5.13s locked front and rear. 3 link front with 14" kings. Rear 63s.

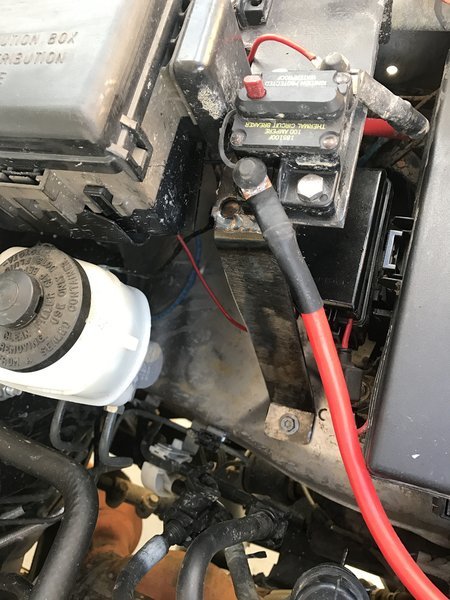

    Be careful with weight on them factory mounting points. Had to make a brace for mine. It cracked the metal and was about to pull the welded nuts through


  18. Dec 24, 2016 at 6:42 AM
    #238
    Marbleyard

    Marbleyard Thread killer

    Joined:
    Jul 15, 2016
    Member:
    #192084
    Messages:
    806
    Gender:
    Male
    First Name:
    John
    Virginia
    Vehicle:
    2019 4Runner Pro
    SOLD 2016 taco: premium technology and tow package. OV Tune 1.05; A.R.E. V Camper Shell; BRO grille & Tails; OEM bed mat; Xenon Depot HID headlight conversion; reflective gray tailgate letter inserts; GoPro session; Hondo radio knobs; K&N cold air intake, quicksand painted dash bezels, Subaru dash speakers, Kicker CS 6x9 fronts and 6.5 rear speakers; All LED interior lights and LED high-beam headlights. Redline elite hood shock props. prinsu cab and camper rack with rough country 30" light bar; (2) 8" rear facing “F.U.”rough country black LED lights; prinsu cargo basket kit, (2) prinsu load racks; roadshower 4; ARB 2500 awning and room kit; weather tech floor mats; carhart seat covers; ckma12 ARB air compressor under the hood; blue ridge overland gear air tools bag, tool bag, driver's seat molle. Rack mounted TRED 800 recovery treds and plano case. Rotopax water and fuelpax fuel canisters; Pelican cased first aid kit in bed. rockblokz mud flaps. ARB rear dif. breather. Stand alone fuse block. SSO bumper with 10k smittybilt synthetic line winch and factor55 ultrahook. Pro Eagle 2-Ton “The Beast” jack. OME lift kit: 90000 front shocks and 886 OME coils, Camburg 310078 UCA, 60091 rear shocks with light duty Dakar leafs. Good Year duratracs 285/75R16. Black vinyl inlays on factory OR wheels; RCI Steel Front/Trans/Trans Case/Rear Diff Skids, Alum A-Arm; Mobtown bolt-on sliders with scorpion bed coating; pelfreybilt aluminum fuel tank skid; Cali-Raised full length Molle storage LH & RH bed sides; Caliraised bedside reinforcements; HELLA sharptone horns; Optima blue-top battery with AJT machined red tiedown bracket. AJT quicksand key fob. Overland Bound member #6996
    I have been working on getting all my components together and after reading every thread I can, I really like these power and ground wires but can't find this style anywhere. Anybody, even op from 6 years ago, point me in the right direction or link? Thanks!

  19. Dec 24, 2016 at 6:45 AM
    #239
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,338
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Just regular power/ground cables covered with woven wire loom and heat shrink at terminal ends to keep it in place. You can get rolls of woven loom pretty cheap on eBay in a variety of colors.

    Or were you referring to the battery terminals?

  20. Dec 24, 2016 at 6:52 AM
    #240
    Marbleyard

    Marbleyard Thread killer

    Joined:
    Jul 15, 2016
    Member:
    #192084
    Messages:
    806
    Gender:
    Male
    First Name:
    John
    Virginia
    Vehicle:
    2019 4Runner Pro
    SOLD 2016 taco: premium technology and tow package. OV Tune 1.05; A.R.E. V Camper Shell; BRO grille & Tails; OEM bed mat; Xenon Depot HID headlight conversion; reflective gray tailgate letter inserts; GoPro session; Hondo radio knobs; K&N cold air intake, quicksand painted dash bezels, Subaru dash speakers, Kicker CS 6x9 fronts and 6.5 rear speakers; All LED interior lights and LED high-beam headlights. Redline elite hood shock props. prinsu cab and camper rack with rough country 30" light bar; (2) 8" rear facing “F.U.”rough country black LED lights; prinsu cargo basket kit, (2) prinsu load racks; roadshower 4; ARB 2500 awning and room kit; weather tech floor mats; carhart seat covers; ckma12 ARB air compressor under the hood; blue ridge overland gear air tools bag, tool bag, driver's seat molle. Rack mounted TRED 800 recovery treds and plano case. Rotopax water and fuelpax fuel canisters; Pelican cased first aid kit in bed. rockblokz mud flaps. ARB rear dif. breather. Stand alone fuse block. SSO bumper with 10k smittybilt synthetic line winch and factor55 ultrahook. Pro Eagle 2-Ton “The Beast” jack. OME lift kit: 90000 front shocks and 886 OME coils, Camburg 310078 UCA, 60091 rear shocks with light duty Dakar leafs. Good Year duratracs 285/75R16. Black vinyl inlays on factory OR wheels; RCI Steel Front/Trans/Trans Case/Rear Diff Skids, Alum A-Arm; Mobtown bolt-on sliders with scorpion bed coating; pelfreybilt aluminum fuel tank skid; Cali-Raised full length Molle storage LH & RH bed sides; Caliraised bedside reinforcements; HELLA sharptone horns; Optima blue-top battery with AJT machined red tiedown bracket. AJT quicksand key fob. Overland Bound member #6996
    I thought maybe in was a loom or snake skin. You got it right, that will narrow down my search :thumbsup:
